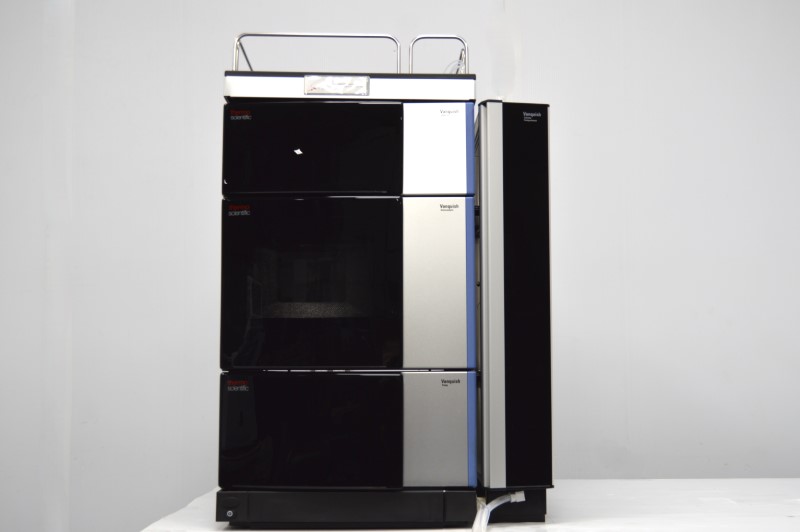

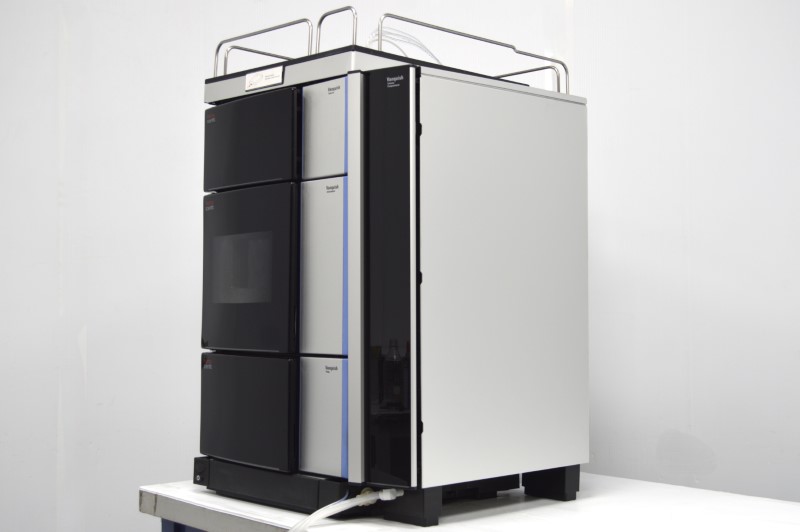

Thermo Scientific Vanquish Flex Quaternary UHPLC System Unit 4

For Sale Thermo Scientific Vanquish Flex Quaternary UHPLC System Unit 4

 This item has been recently sold. Please view the other available instruments on your right.

 If you do not see what you need, let us know via the “Request Quote” form; we often replenish sold-out items.

• Fully Functional
• Serviced & in Stock
• Current Model
• Made in 2021 (Column Compartment H is 2018)
• Good cosmetic condition
• Technical sales consultation available
•  WARRANTY

Here is what you will receive:

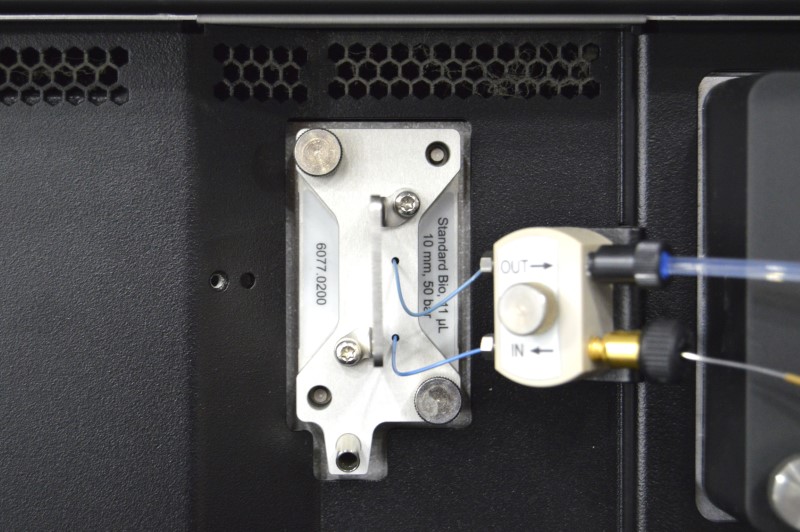

• Vanquish Variable Wavelength Detector F p/n: VF-D40-A with Standard flow cell, biocompatible (11 uL, 10 mm, 5 MPa, PEEK) p/n 6077.0200

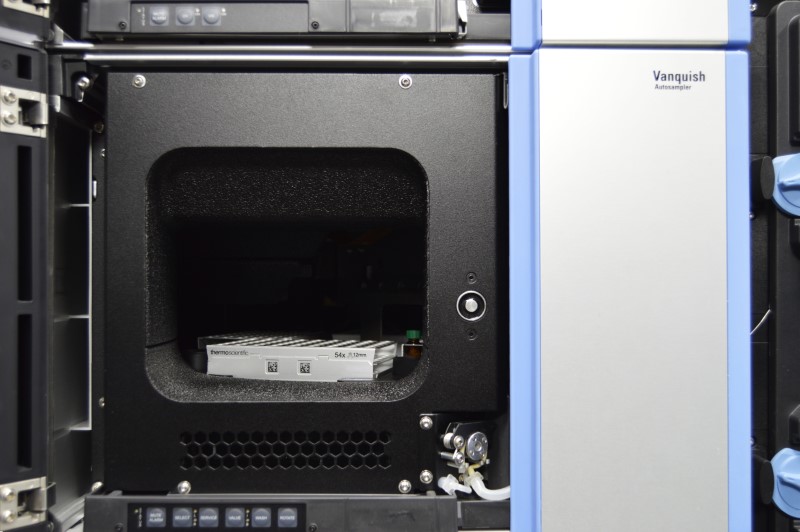

• Vanquish Split Sampler FT p/n: VF-A10-A
• Vanquish Split Sampler Sample Racks 54 pos. x 12 mm OD vials (≤ 1.5 mL) Qty.(4)
• Vanquish Quaternary Pump F w/ Static Mixer, volume: 350 uL & Capilary Mixer, volume: 50 uL p/n: VF-P20-A

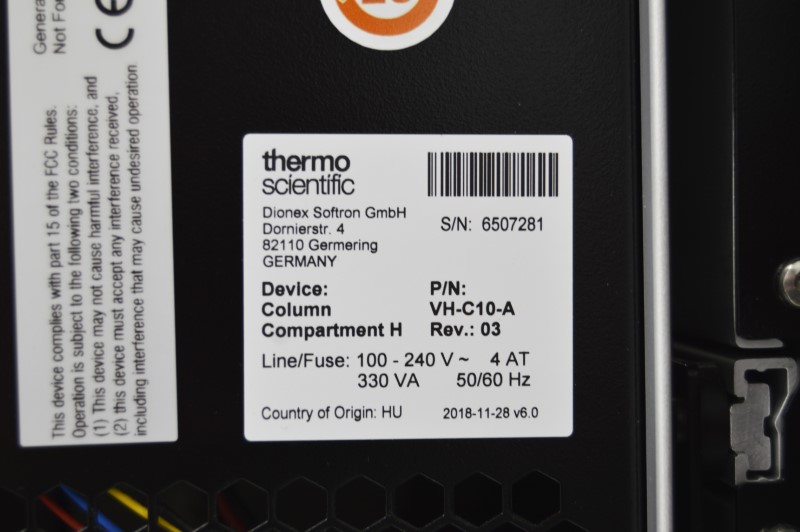

• Vanquish Column Compartment H w/ Active Column Preheater p/n: VH-C10-A
• Solvents Rack
• Inter-communication cables
• Standard power cords

Please note that the computer with Thermo Chromeleon software is not included.

Vanquish Flex Quaternary UHPLC System Configuration:

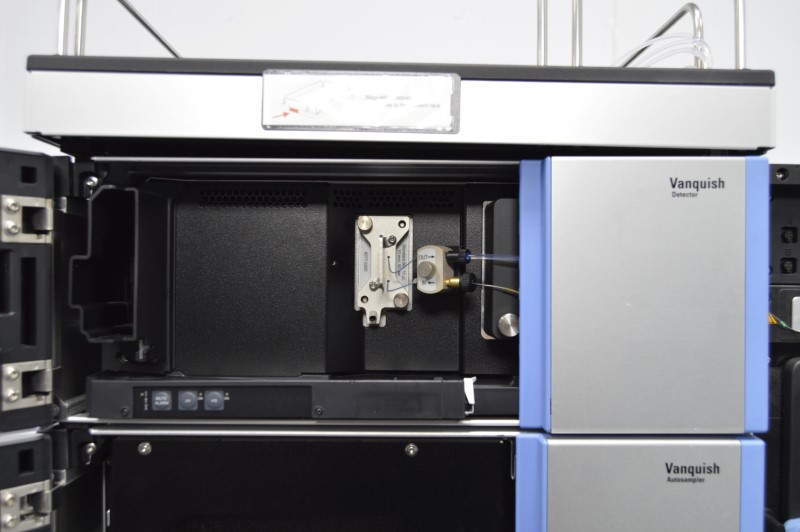

Vanquish Variable Wavelength Detector F:

• Optical design: UV/VIS/NIR photometer (tunable Czerny-Turner monochromator) with additional internal reference beam
• Light source: Deuterium lamp for UV and VIS; Tungsten lamp for VIS and NIR
• Wavelength range: 190–900 nm (with deuterium and tungsten lamp)
• Spectral bandwidth: typ. 6 nm at 254 nm
• Wavelength Accuracy: ± 1 nm
• Wavelength Repeatability: ± 0.1 nm
• Wavelength Calibration: Internal calibration with zero order of monochromator spectrum
• Wavelength Validation: Internal validation with holmium-oxide filter
• Signal channel: Up to 4 signal channels
• Data collection rate (single-channel): up to 250 Hz; (multi-channel) Up to 5 Hz
• Noise (single-channel): <±2.5 uAU at 254 nm
• Noise (multi-channel): <±10 uAU (typical <±7 uAU) at 254 nm and 280 nm
• Drift: <0.1 mAU/h at 254 nm
• Linearity: <5% at 2.5 AU (typical <3% at 2.5 AU
• Flow Cell: Standard flow cell, biocompatible (11 uL, 10 mm, 5 MPa, PEEK)

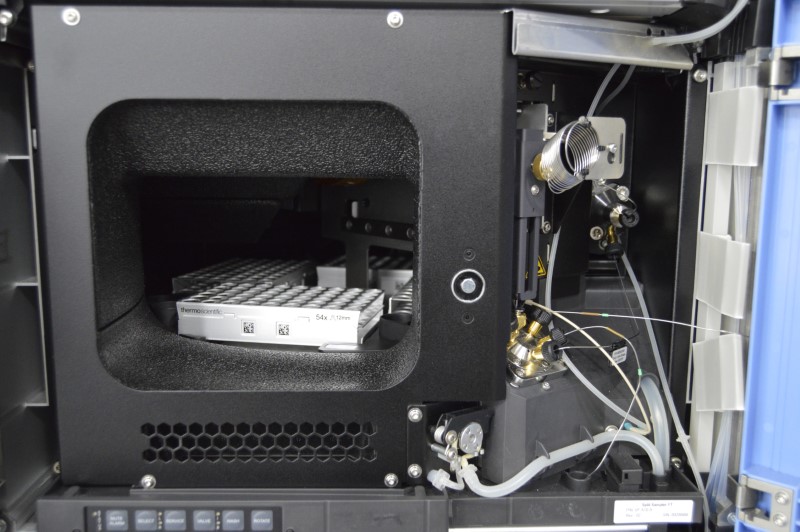

Vanquish Split Sampler FT:

• Injection units: 1
• Operating principle: split loop injection
• Pressure range: 2–103 MPa
• Injection volume range: 0.01–25 uL, min. Step = 0.01 uL
• Injection volume accuracy: typically ±0.5% for 10 uL water
• Injection volume precision: <0.25% area RSD for 1 uL (caffeine in water); typically <0.5% area RSD for 0.5 uL (caffeine in water)
• Injection linearity: r > 0.99999 (caffeine in water)
• Injection cycle time: down to 8s depending on separation conditions
• Minimum sample required: 2 uL at 1 uL injection volume
• Carryover (UV): <0.002% with caffeine (typically: <0.0004%)
• Needle wash (external): 1 solvent per injection unit, dip rinse and continuous rinse
• Sample compartment temperature range: 4–40 DegC (≥23 K below ambient at <80% RH)
• Sample temperature accuracy: -2 DegC/+4 DegC
• Sample temperature stability: ±1 DegC
• Dwell volume (contribution of the autosampler to the system gradient delay volume):
• Method Transfer capability: 110 uL with 25 uL sample loop
• Sample capacity: 4 segments useable for sample racks or well plates with SBS footprint format; plus a capacity of 12 x 22.5 mm O.D. vials in the carousel
• Included sample racks: (4) x 54×12 mm OD vials (≤1.5 mL)
• Barcode reading: empty segment detection, rack/well plate verification, inventory management

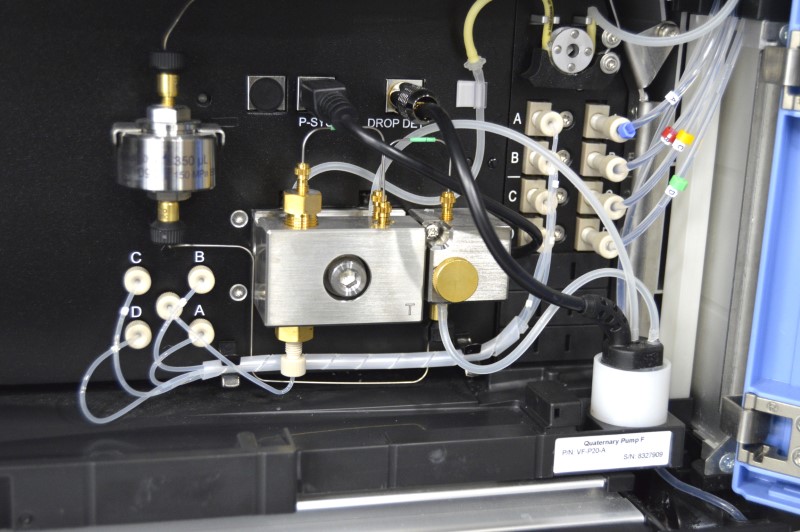

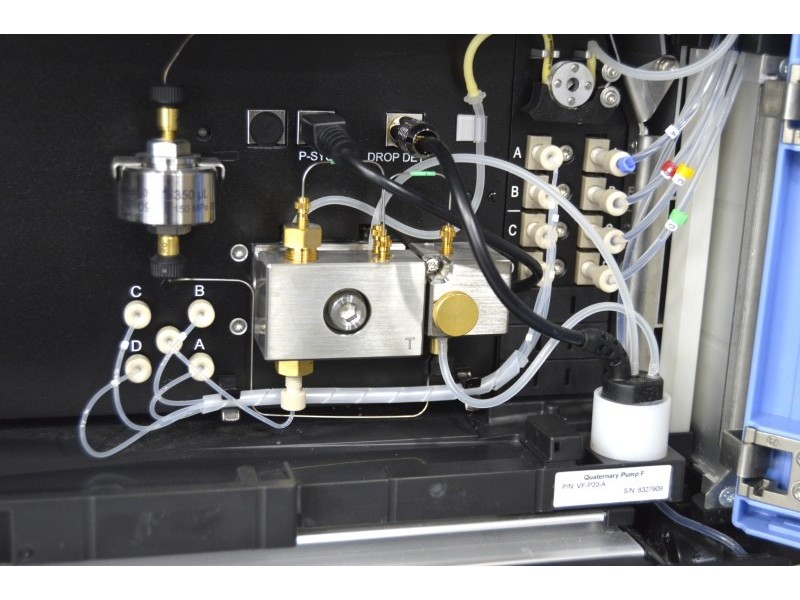

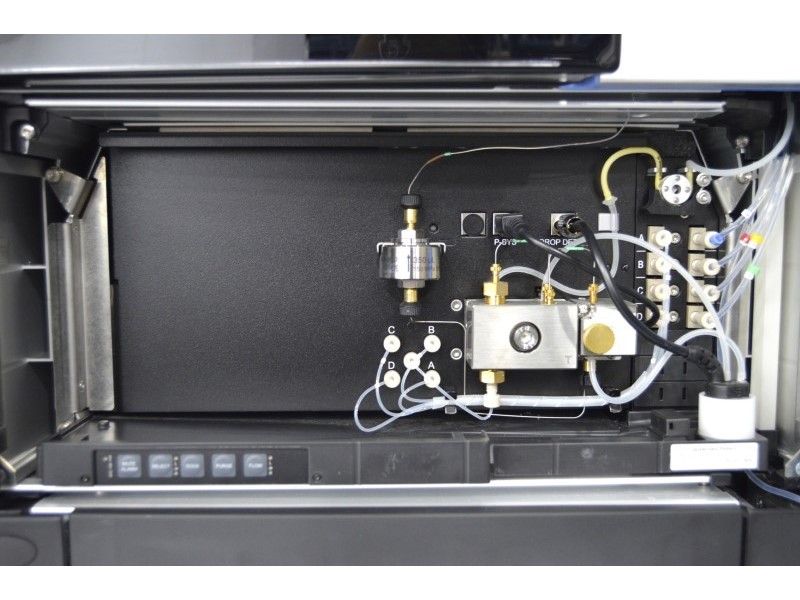

Vanquish Quaternary Pump F:

• Operating Principle: serial dual-piston pump
• Flow Range: 0.001–8 mL/min, in 1 uL/min increments
• Pressure Range: 2–103 MPa; flow rate >5 mL/min, the pressure range decreases 80 MPa
• Compressibility Compensation: fully automated, independent of the composition of the mobile phase
• Flow Accuracy: ±0.1%
• Flow Precision: <0.05% RSD or <0.01 min SD, whichever is greater
• Pulsation typically: <1.0% or <0.2 MPa, whichever is greater
• Gradient Formation: low-pressure gradient proportioning
• Proportioning Accuracy: ±0.5% of full-scale
• Proportioning Precision: <0.15% SD
• Number of Solvent Lines: 4
• Mixer Volume: 400 uL (50 uL proprietary capillary mixer and 350 uL static mixer)
• Dwell Volume: 679 uL
• Solvent Degassing: built-in, 4 Channels

Vanquish Column Compartment H with Active Column Preheater:

Operating Principle Column Chamber: Still air and forced air

• Temperature Range: 5–120 DegC in 0.1 DegC increments (18K below ambient)
• Temperature Stability: ±0.05K
• Temperature Accuracy: ±0.5K (up to 80 DegC)
• Heating Performance: <15 min, 20–50 DegC, ±1K Typical: 5 min, 25–40 DegC, ±1K
• Cooling Performance: <15 min, 50–20 DegC, ±1K
• Capacity: 2 column slots

Operating Principle Pre-heater: Active

• Temperature Range: 30–120 DegC  (5K above ambient)
• Temperature Stability: ±0.5K
• Temperature Accuracy: ±2K
• Heating Performance: 80 DegC at 2.5 mL/min, 120 DegC at 1 mL/min (water/acetonitrile (50/50, v/v))
• Capacity: 2 column slots
• Temperature Zones: 1 per device (up to 3 zones in stacked configuration)
• Column ID: 4 column ID tags
• Valve: 2 Positions 6 Ports Thermo Scientific 150MPa bio

Customization/Options: N/A

Testing performed by our in-house service team:

The Vanquish Flex Quaternary UHPLC System passed all tests and was found to be fully functional:

Vanquish Quaternary Pump F:

• We performed the initialization test.
• We conducted the self-test.
• We verified the software communication test.
• We performed the gradient proportioning valve test.
• We completed the seal-washing pump test.
• We ran the pressure limiter test.
• We tested the flow rate accuracy.
• We ran a solvent delivery stability.

Vanquish Split Sampler FT:

• We conducted the initialization test.
• We checked the software communication.
• We tested the sample cooler set temperature accuracy.
• We performed the needle wash test.
• We carried out the reproducibility test.

Vanquish Column Compartment H:

• We conducted the initialization test.
• We verified the software communication.
• We conducted the heating and cooling test.
• We performed the switching valve test.
• We tested the active column preheater.
• We checked the leak sensor.

Vanquish Variable Wavelength Detector F:

• We performed the initialization test.
• We verified the software communication.
• We checked the leak sensor.
• We conducted test injections of the caffeine solution and verified the peaks.

Instrument Overview:

• Thermo Scientific Vanquish Flex Quaternary UHPLC System delivers robust performance for demanding chromatographic workflows.
• Engineered for high throughput and precise gradient control in both routine and research environments.
• Integrates a variable-wavelength detector optimized for the accurate quantification of UV-absorbing analytes.
• Compatible with a wide range of columns and mobile phases for flexible method development.
• Offers reliable injection precision and consistent retention times across extended run sequences.
• Vanquish Flex Quaternary UHPLC System ensures dependable, reproducible results with minimal maintenance requirements.

Instrument Application:

• Analysis of pharmaceutical compounds for purity and content uniformity
• Quantification of food additives and preservatives
• Detection of environmental contaminants in water samples
• Routine quality control of chemical raw materials
• Separation of natural products and plant extracts

The Key Features:

• High-pressure quaternary solvent delivery
• Wide flow rate from 0.001 to 8 mL/min
• Variable wavelength UV/VIS detection
• Precise gradient and flow control
• Biocompatible and low-dispersion design
• Reliable, reproducible peak performance

Additional technical info:

• Manual: Thermo Vanquish UHPLC Manual
• Manual: Vanquish Variable Wavelength Detector Manual
• Manual: Vanquish Split Sampler FT Manual
• Manual: Vanquish Quaternary Pump F Manual
• Manual: Vanquish Column Compartment H Manual

Video Overview:

About us

How we pack

 VIEW SOME OF THE CUSTOMERS WE HELPED HERE

Why do so many customers choose to order from us?

• We have experience servicing and repairing these instruments.

• This instrument goes through all the described service steps before shipping. see the questions section below
• We offer detailed photos and videos of the instruments you buy.
• We are an approved pre-owned equipment vendor to many large US, Canadian, and EU Universities.
• We are an approved pre-owned equipment vendor to many Fortune 500 US and International Biopharma companies.
• Technical sales consultation available
• On-site installation may be available in the Boston Area (New England area)
• US or International shipping is no problem (see the shipping tab on how we pack and feel at ease)

• Warranty
• You get after-sales technical support
• Customer references are available
• The instrument will be fully functional!
• Smooth process from the initial quote to order fulfillment

This will ship via freight. Please contact us with your zip code to obtain a shipping quote.
