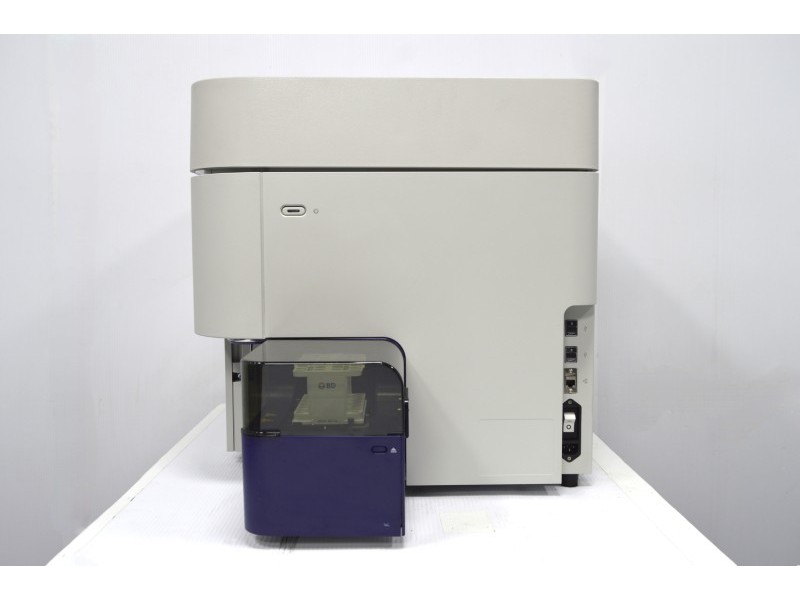

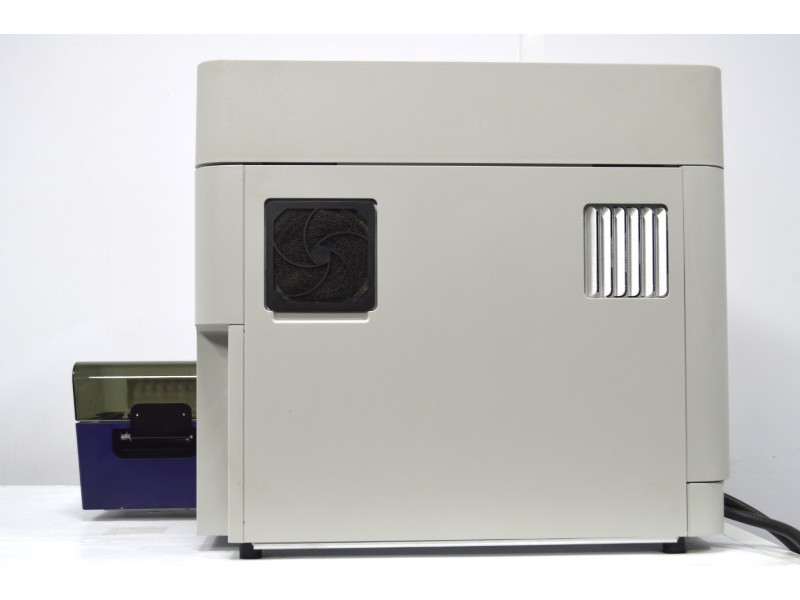

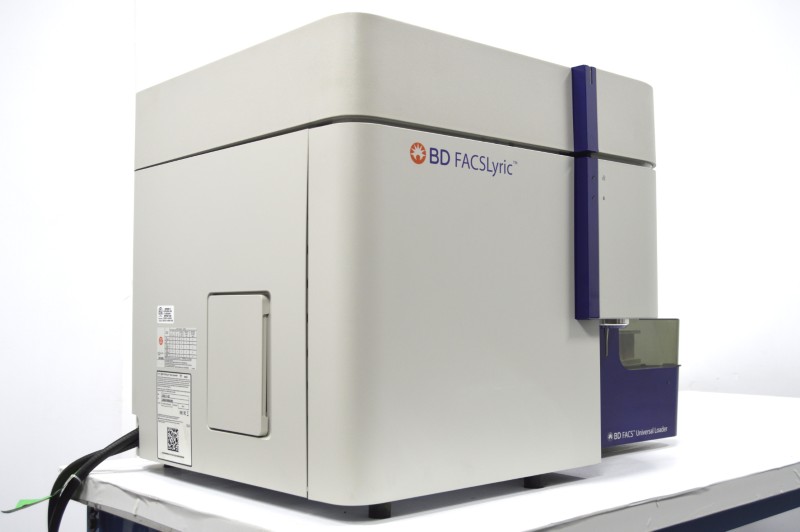

BD FACSLyric IVD Flow Cytometer (3)Lasers(12)Colors/(14)Detectors with 30-Tube Universal Loader

BD FACSLyric IVD Flow Cytometer (3)Lasers(12)Colors/(14)Detectors with 30-Tube Universal Loader

	Approved Vendor to many US, Canada, and EU Universities
	International Shipping
	Customer References Available
	Training and Installation Options Available

Stock: In Stock
Brand: BD
Product Code: 66459
Condition: Pre-Owned

$59,995.00

Qty

Request Quote

or receive

Additional Information

Add to Cart

CLICKABLE TABS BELOW

For Sale BD FACSLyric IVD Flow Cytometer (3)Lasers(12)Colors/(14)Detectors with 30-Tube Universal Loader Unit 2

Fully Functional
Serviced & in Stock
Technical sales consultation available
Made in 2022
WARRANTY

Optional Services

Optional on-site setup and training are available for customers within 2 hours of Boston, MA
Optional remote installation support and training are available for non-local customers

Service Highlights

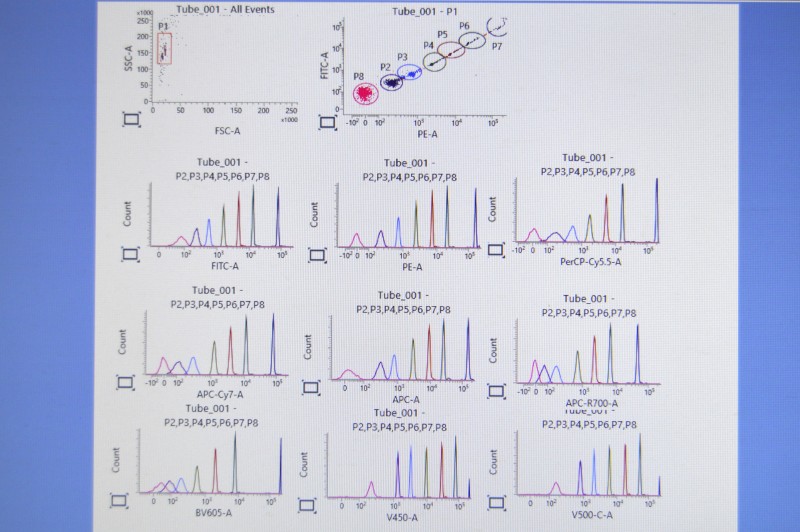

Calibration beads test results match expected values
Laser power output confirmed stable over time
Instrument stress testing performed

Configuration Highlights

Ultimate System configuration: 12-Color: 3-Laser (4 Blue / 3 Red / 5 Violet)

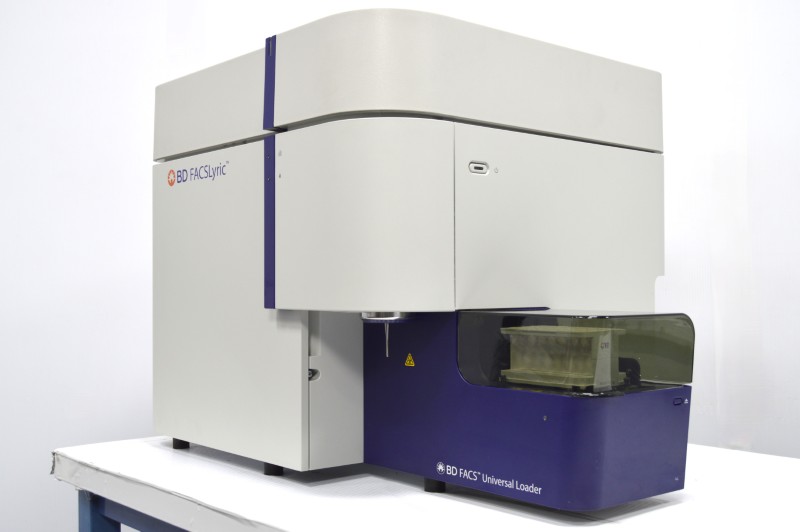

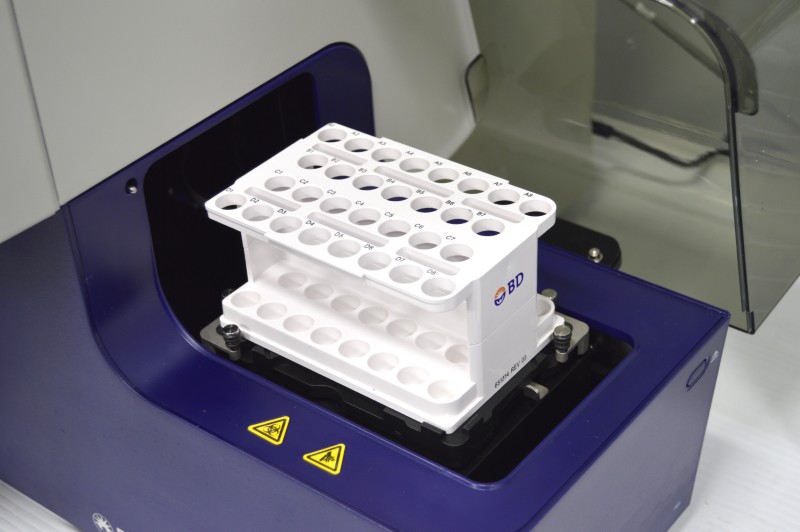

Includes Universal loader (30-tube racks or 96/384-well plates)

Here is what you will receive:

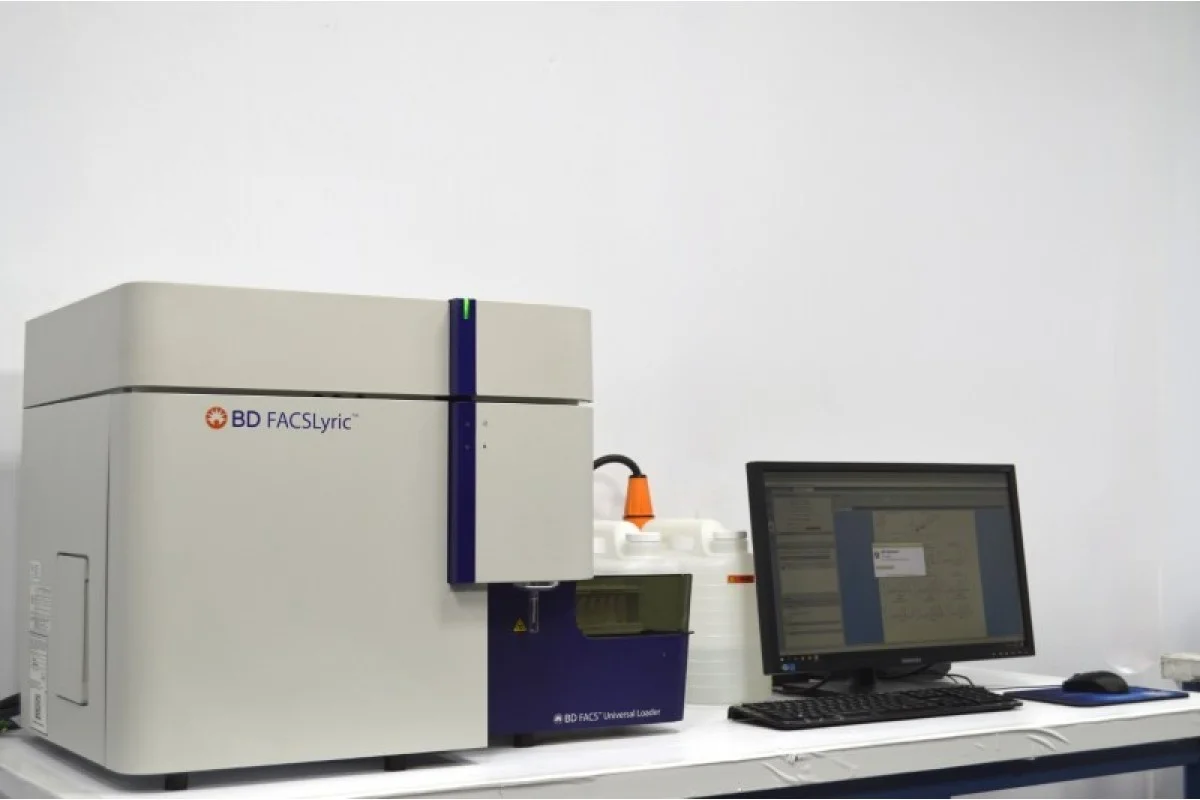

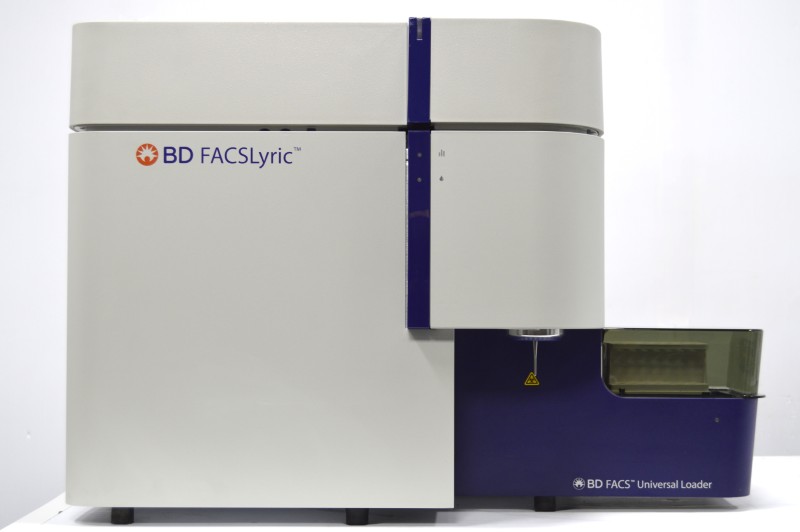

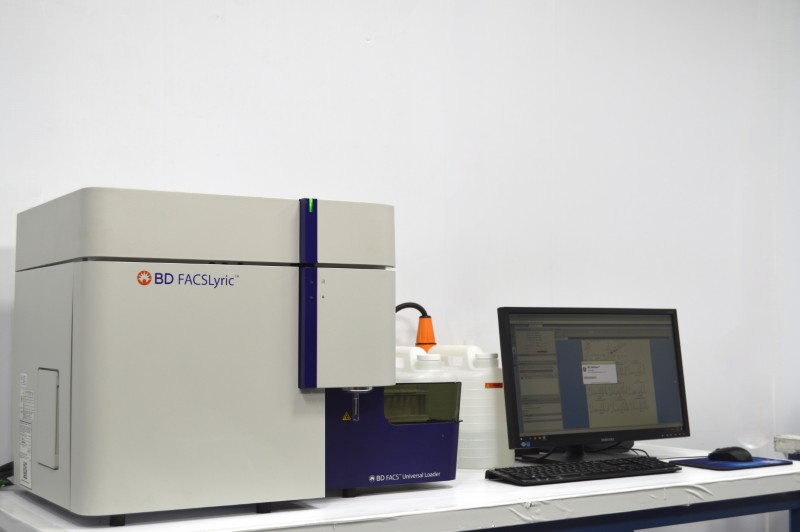

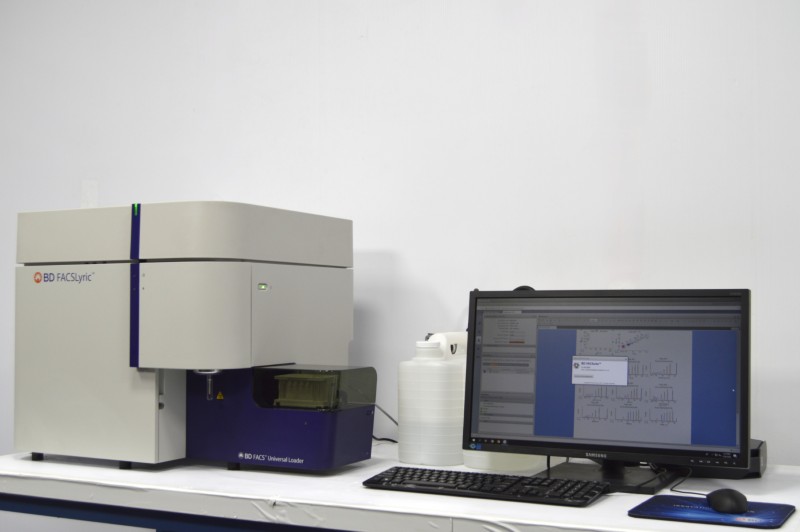

BD FACSLyric IVD Flow Cytometry System Ref.: 663518
Computer running FACSSuite (Clinical & RUO) software with License Dongle
Monitor, Keyboard, and Mouse
30 Tube Rack
10L Sheath and Waste Bottles

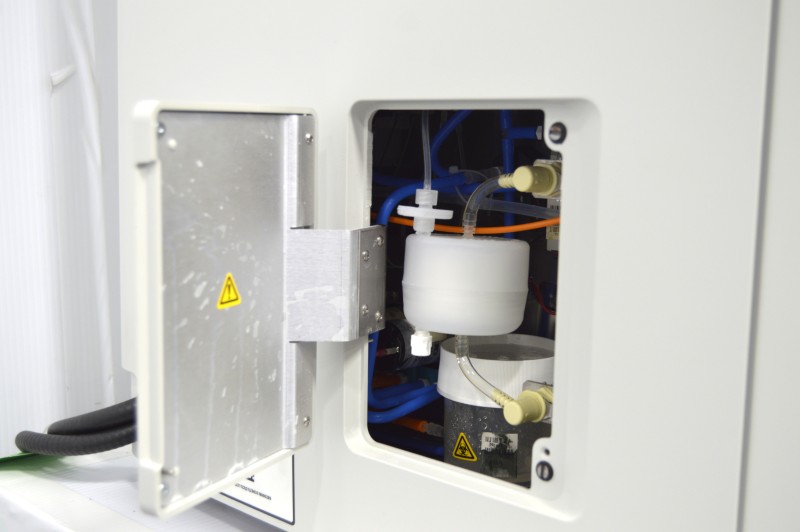

Sheath filter Bypass (for cleaning fluidics)
Communication and power cables

BD FACSLyric Flow Cytometer Configuration:

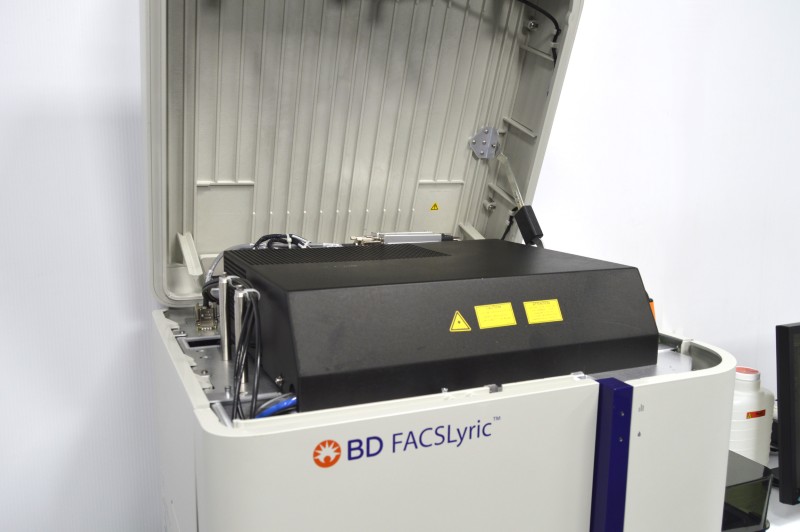

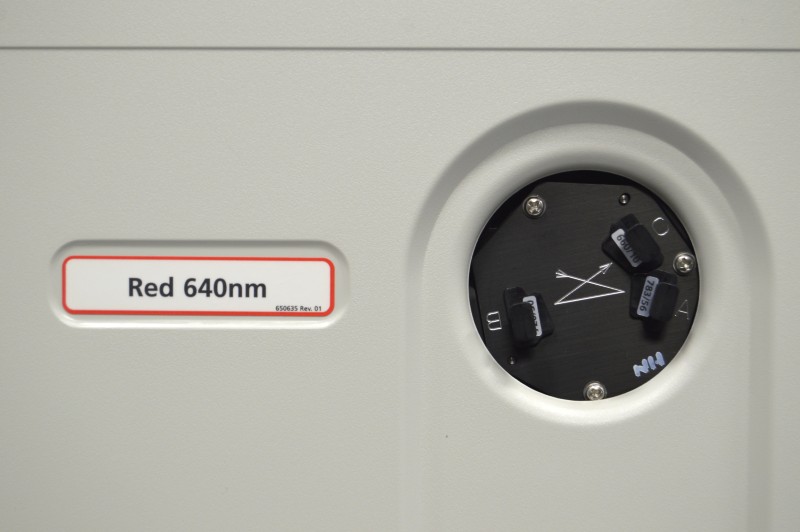

(3) Lasers: 488nm Blue / 640nm Red / Violet 405nm
(12) Colors simultaneously
(14) Detector channels

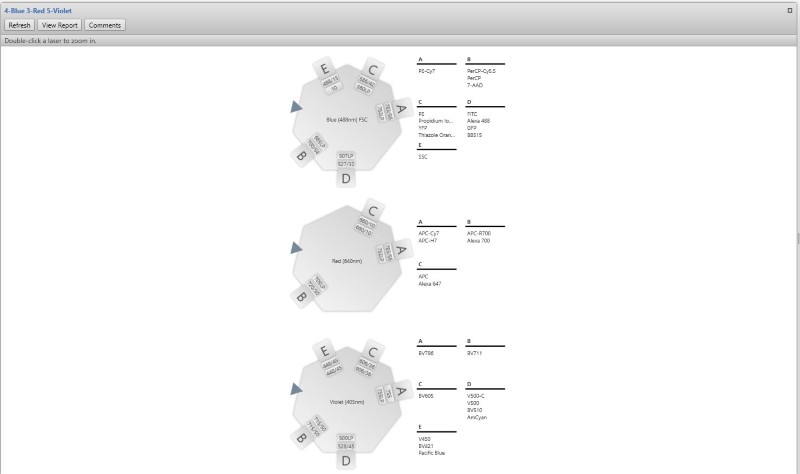

Laser Color Allocation (Laser/Channel Count): Blue/4, Red/3, Violet/5
FSC Detection: Photodiode detector
SSC Detector: Photomultiplier tube (PMT) with a 488/15 filter

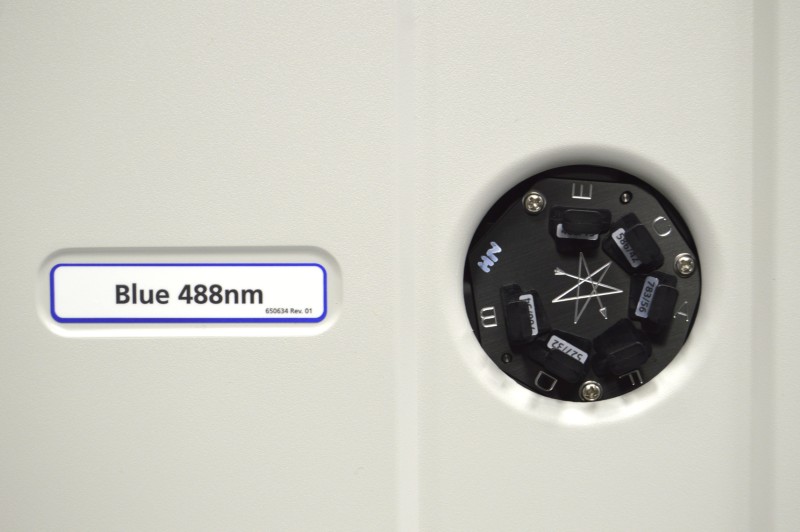

488nm Blue Laser: Channel A(783/56, 752LP) Channel B(700/54, 665LP) Channel C(586/42, 560LP) Channel D(527/32, 507LP);
640nm Red Laser: Channel A(783/56, 752LP), Channel B(720/30, 705LP), (Channel C (660/10);

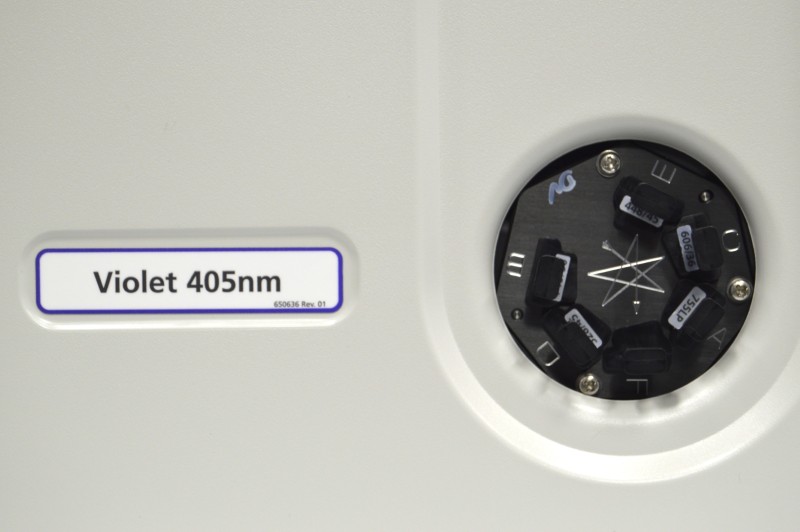

405nm Violet Laser: Channel A(755LP), Channel B(715/50), Channel C(606/36), Channel D(528/45, 500LP), Channel E(448/45).
Beam spot size (all lasers): 9 um x 63 um
Fluorescence Threshold Sensitivities: FITC <85 MESF; PE <20 MESF
Data Acquisition Rate: 35,000 events/s with beads
Sample Flow Rates: LO: 12 uL/min; MED: 60 uL/min; HI: 120 uL/min; High sensitivity: 50 uL/min

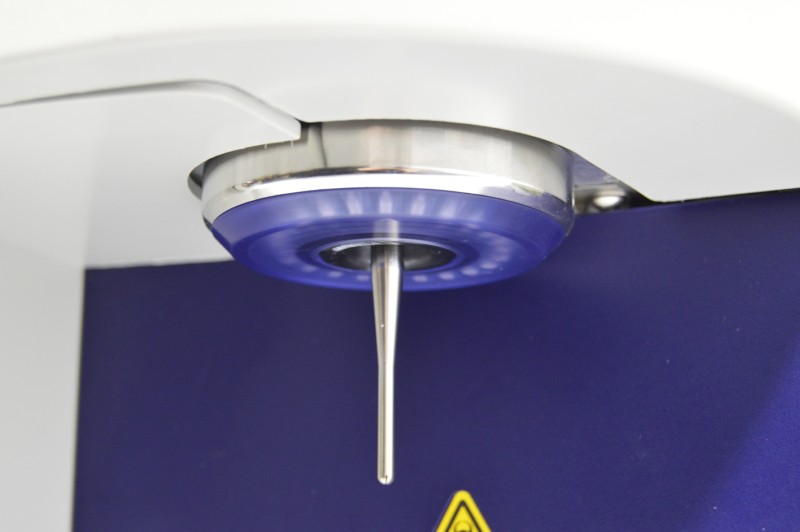

Sample Handling: Manual Tube Loading, Universal loader (30-tube rack (12 x 75-mm tubes), 96-384-well plates)
Sample dead volume: 30 uL (12 x 75-mm tubes)

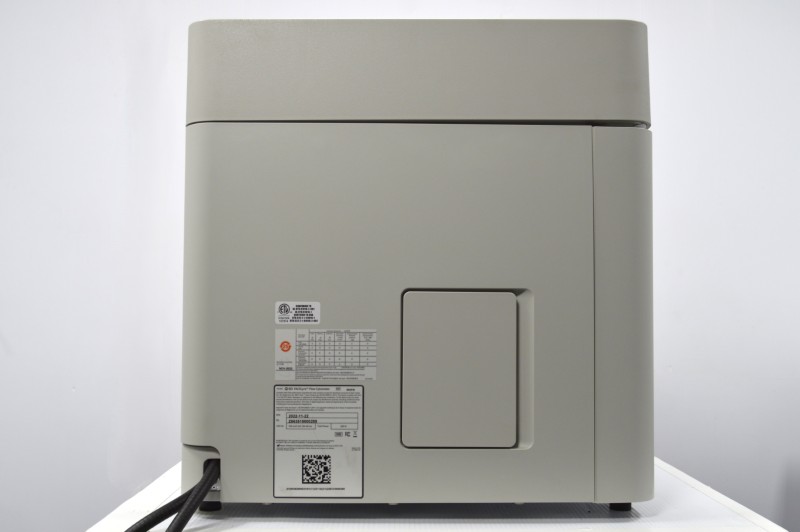

Size (D x W x H) Cytometer: 63.2 x 57.9 x 57.9 cm; 24.9 x 22.8 x 22.8 in.
Weight Cytometer: 56.0 kg (123.5 lb) Loader: 13.2 kg (29 lb)

Customization/Options: N/A

Testing performed by our in-house service team:

The BD FACSLyric Flow Cytometer passed all tests and was found to be fully functional:

We completed system setup and initialization.
We established and verified a stable connection to the control software.
We performed a comprehensive deep cleaning of the fluidic system to ensure optimal performance.
We evaluated laser performance, confirming power output and stability across all channels.
We verified baseline alignment and validated the functionality of automated alignment features.
We executed both daily and monthly maintenance cleaning cycles per recommended protocols.
We confirmed proper operation and functionality of the Universal Loader system.

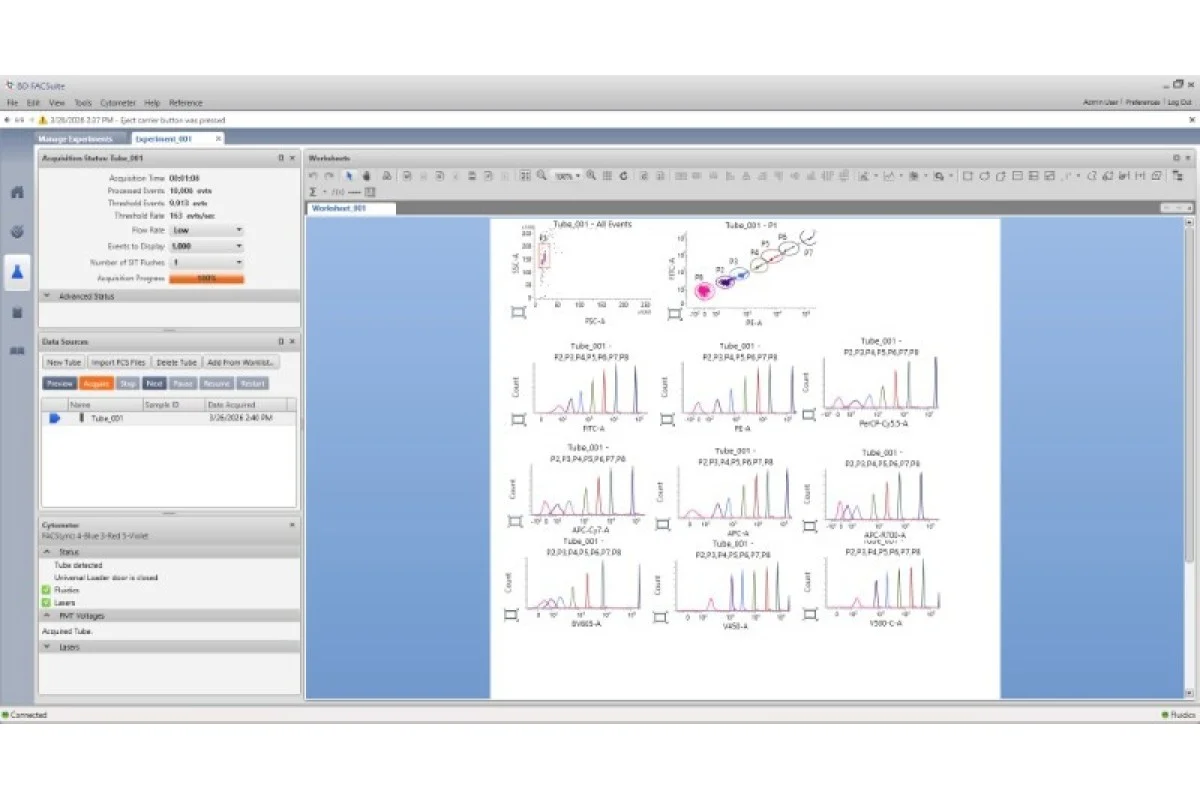

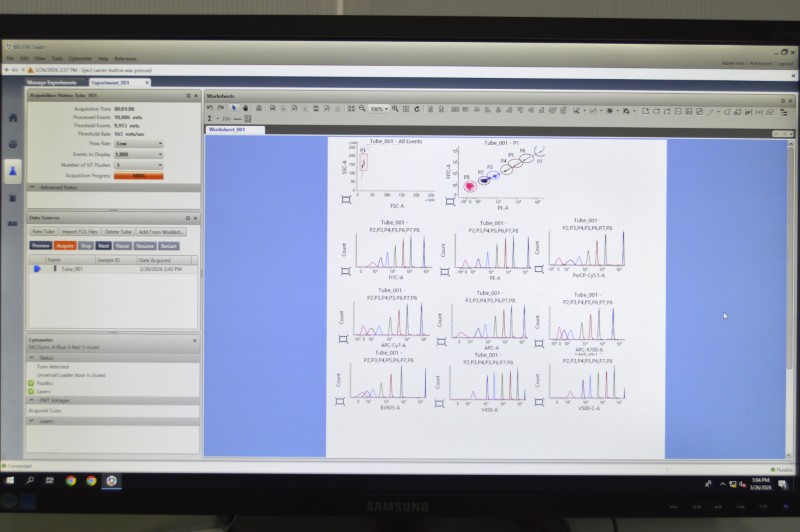

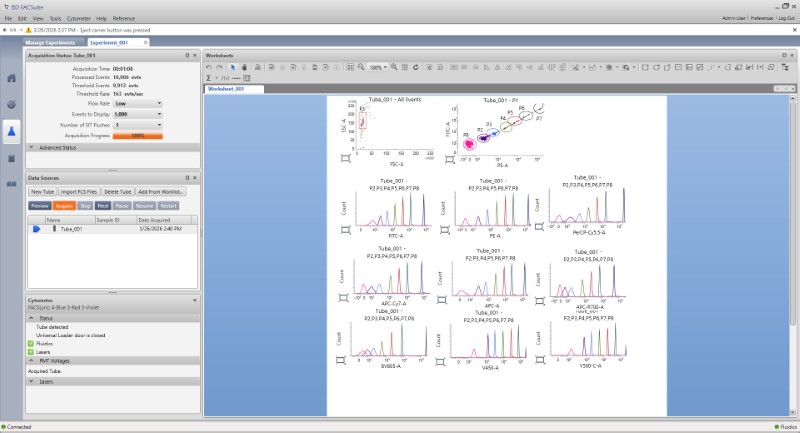

We conducted baseline measurements and completed performance quality control testing within normal parameters.

Instrument Overview:

The BD FACSLyric IVD Flow Cytometer is a high-performance system featuring 3 lasers enabling detection of up to 12 colors across 14 parameters.
It delivers high sensitivity for dim fluorochromes, supporting reliable clinical and research applications.
The system includes flexible optical configurations optimized for common fluorochromes and Brilliant Violet dyes.
With acquisition rates up to 35,000 events per second, it provides efficient high-throughput analysis.
Integrated fluidics offers multiple flow rates, including a high-sensitivity mode for delicate samples.

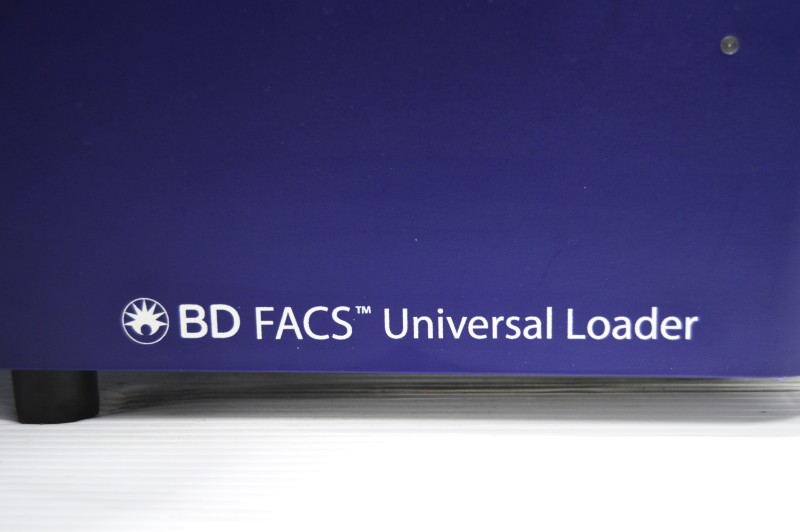

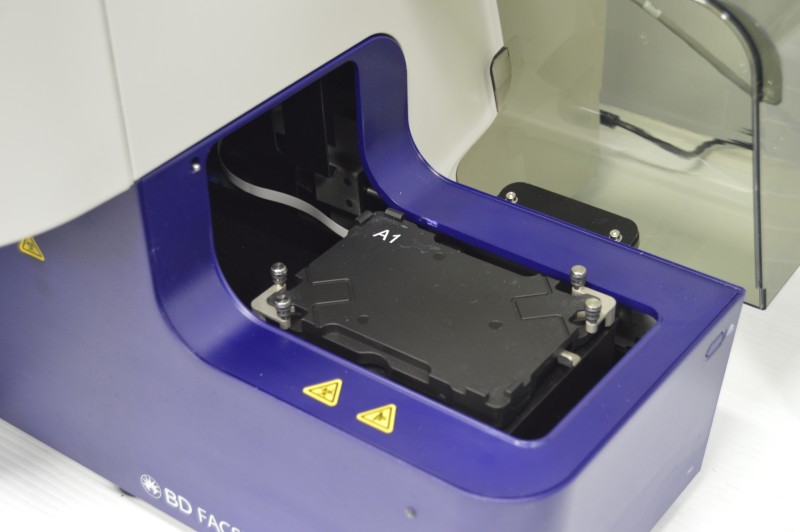

The Universal Loader supports both tube-based and plate-based workflows, enhancing versatility and ease of use.

Instrument Application:

Clinical immunophenotyping
Hematology and oncology panels
Immune monitoring
Multi-color research assays

The Key Features:

Flexible 3-laser / 12-color configuration for clinical panels
High sensitivity for dim markers (low MESF values)
Scalable sample loading (tubes + plates)
Balanced throughput vs. sensitivity options
Reliable and reproducible performance.

Additional technical info:

Video Overview:

About us

How we pack

VIEW SOME OF THE CUSTOMERS WE HELPED HERE

WHY DO CUSTOMERS MAKING CRITICAL LAB PURCHASES CHOOSE TO ORDER FLOW CYTOMETERS FROM US?

They want to ensure the cytometer undergoes full decontamination of the fluidics system, flushing, and inspection to protect the valves and flow sensors from damage.

They want to ensure the cytometer has no residual sheath salt buildup in the flow cell, which could skew scatter data and, if improperly cleaned, can damage the flow cell.

They want to confirm that all detectors, including forward scatter (FSC) and side scatter (SSC) detectors, can be aligned and calibrated for particle sizing and granularity resolution.

They want assurance that baseline performance has been verified using standardized particles, with data or log files available for review.

They want to confirm that electronic noise and EMI levels at the detector/amplifier stage remain within tolerance and will not distort signal fidelity.

They want to ensure that no fiber optic cables are missing, misrouted, or defective, which can lead to diminished fluorophore excitation or signal dropout.

They want to confirm that no power degradation or misalignment in laser paths is detected through precise mW-level measurement at the final optics output.

They want to ensure that optical filters and dichroic mirrors have been inspected for delamination, spectral shift, or contamination that could compromise signal specificity.

They want to ensure the sample flow rate is linear and stable across the full range of flow settings, as verified by volumetric calibration and pressure profiling.

They want to ensure the system passes automated QC and performance tracking with reproducible CVs for bead standards across multiple channels.

They want to ensure the fluidics pump assembly does not exhibit pulsation, drift, or backpressure due to check valve wear or micro-leaks.

They want peace of mind, knowing their instrument is backed by a warranty from a company that can stand behind it.

We have experience servicing and repairing these instruments.
This instrument goes through all the described service steps before shipping. see questions section below
We offer detailed photos and videos of the instruments you buy.
We are an approved pre-owned equipment vendor to many large US, Canadian, and EU Universities.
We are an approved pre-owned equipment vendor to many Fortune 500 US and International Biopharma companies.
Technical sales consultation available
Remote installation and instrument operation training may be available.
On-site installation may be available in the Boston Area (New England area)
US or International shipping is no problem (see the shipping tab on how we pack and feel at ease)

Warranty
An extended warranty may be available
You get after-sales technical support
Customer references are available
The instrument will be fully functional!
Smooth process from the initial quote to order fulfillment

This will ship via freight. Please contact us with your zip code to obtain a shipping quote.

*ME* Medium Crate
375#

COMMON QUESTIONS AND ANSWERS BELOW

What steps do you take to verify, service, and confirm the functionality of the BD FACSLyric Flow Cytometer?

We verify various instrument functions individually and together, performing necessary repairs or maintenance to bring the instrument to our quality standards.

We completed system setup and initialization.
We established and verified a stable connection to the control software.
We performed a comprehensive deep cleaning of the fluidic system to ensure optimal performance.
We evaluated laser performance, confirming power output and stability across all channels.
We verified baseline alignment and validated the functionality of automated alignment features.
We executed both daily and monthly maintenance cleaning cycles per recommended protocols.
We confirmed proper operation and functionality of the Universal Loader system.
We conducted baseline measurements and completed performance quality control testing within normal parameters.

What supplies do I need?

You will need the consumables starting out: (Here are some helpful links)

Flow Cytometry Setup Beads

Can I view the BD FACSLyric Flow Cytometer in person at your facility or do a live Zoom demo before it is shipped to me?

We invite you to visit our facility for an on-site demo, or you can request a virtual Zoom demo of the instrument you are interested in.

What about the warranty? Installation, training, maintenance?

Warranty Terms:

The instrument comes fully warranted for both parts and labor.
The customer should retain all packing materials during the warranty period.

What should I watch out for when buying a BD FACSLyric Flow Cytometer used/pre-owned from another lab?

Make sure the instrument is properly packed for shipping and will arrive safely. If the instrument is large, request to have it packed in a wooden crate.
Confirm that there is no physical damage or any misaligned internal components.
Ask what accessories are included.
Ask how long the warranty is and what it covers.

Here is what our technical team tests so you can request something similar and ensure your instrument will be fully functional.

We completed system setup and initialization.
We established and verified a stable connection to the control software.
We performed a comprehensive deep cleaning of the fluidic system to ensure optimal performance.
We evaluated laser performance, confirming power output and stability across all channels.
We verified baseline alignment and validated the functionality of automated alignment features.
We executed both daily and monthly maintenance cleaning cycles per recommended protocols.
We confirmed proper operation and functionality of the Universal Loader system.
We conducted baseline measurements and completed performance quality control testing within normal parameters.

We recommend inspecting the instrument in person or requesting a virtual demo; this will allow you to evaluate its condition and performance before you consider purchasing it.

I found it elsewhere for less. What goes into your price?

We acknowledge that sometimes you can purchase this BD FACSLyric Flow Cytometer elsewhere, possibly for less.

Here are some of the reasons for our price.

We may offer longer warranty terms.
We cover shipping costs during the warranty period. (Customer is required to save packing materials for the duration).
We need technical staff that can perform testing/repairs and provide after-sales support if there are any issues.
We invest considerable time into the testing and service of each instrument we sell.
We have to purchase various testing supplies (often expensive) to perform testing.
We must purchase any required or missing accessories to complete the instruments.
We have to procure and stock service parts to support our warranty.
We have extensive experience packing and shipping sensitive instruments.
We guarantee that the instrument will be functional.

This procurement is for a University or College. Are purchase orders with NET terms accepted?

If you are a US or Canadian customer, we are likely already a registered vendor in your University's vendor system. This would greatly expedite the process of PO approvals and get this instrument into your lab faster.
POs are accepted from US and Canadian universities.

How fast will you ship?

We can ship within a few days to two weeks. Shipping time depends on the current demand for our instruments. Members of our sales team will be able to offer current delivery estimates.

Will my instrument be insured during shipping?

All instruments shipped within the USA and internationally are fully insured. This applies as long as we are the shipper and handle shipping arrangements.
If the buyer handles shipping, the responsibility for shipping insurance falls to the buyer; we highly advise that the buyer obtain shipping insurance from their carrier.

How do you pack? Have you previously packed and shipped BD FACSLyric Flow Cytometer? Do you ship Internationally?

Packing

Smaller instruments ship via UPS Parcel Delivery with adequate packing material and a strong box. Or, when combined with other orders, it may be packed in a crate.
Most larger instruments ship in fully enclosed ISPM15-certified wooden crates with proper padding underneath, and the sides have moving components braced.
Accessories are packed safely in boxes with padding and then safely packed inside the crate.
We may not use a crate for local deliveries to save you money *if delivered by us.
We often use “tilt’ & “shock” indicators on the crates to ensure the crate has not been excessively tilted and dropped where equipment may suffer damage.
Photos are taken during the packing process to make sure nothing is missed.

USA/Canada Shipping

Within the US and Canada, we will ship via selected freight carriers. We do not use low-price/high-damage carriers as we want the equipment to get safely to you.

International Shipping

Internationally, we will only ship via Air Freight or Air Parcel (such as UPS or DHL), which provides reliability, no exposure to Ocean weather, and timely delivery.
We have extensive experience packing and shipping fragile instruments globally.

Our experience and process

We have safely packed and shipped thousands of sensitive analytical instruments.

How much will I save buying it pre-owned, and is it worth it?

A lot, and it is undoubtedly worth it, and here is why. Feel free to ask for feedback from hundreds of customers who bought from us.

You will pay less than half the cost of buying a new instrument. Why not spend the leftover funds on another instrument for your lab?
You will get our standard warranty, plus, when available, an option to obtain an extended warranty agreement.
Know that your instrument was tested and working the day it left our facility and that it is covered if there are faults.
Get extra peace of mind by adding an extended warranty or service agreement when such an option is available.

Sustainability

Well, this one is easy: buying a pre-owned instrument is great for the planet; you are reducing unnecessary waste, CO² output, and water use that would be used during the manufacturing process.

I have more questions; I want to receive a formal quote.

Absolutely! Please give us a call (1-617-397-3486) or complete this form to get your questions answered or receive a formal Quote.

OPEN THE FORM

We understand that every instrument has unique packing and shipping requirements; our team understands that no one wants to spend tens of thousands of dollars and receive a damaged instrument.

Our process involves evaluating every instrument to determine the safest shipping method and the best process for packing.

We generally ship parcels either via UPS or via freight for all larger instruments.

Whenever we ship freight, we use an ISPM-15 wooden crates or pallets made from ½” plywood and 1x4 framing. (Our crates are Internationally Compliant). On freight shipments, we also use dense foam, which provides excellent cushioning and support for the instrument. Instruments then are safely braced inside the crates. We use solid boards with 1” foam shrink-wrapped around them, which provide cushioning in all directions and hold instruments firmly in place.

Final step is to we photograph everything inside the crate and then seal it with screws.
