- Stock: In Stock
- Brand: Thermo Scientific
- Product Code: 58238
- Condition: Pre-Owned
For Sale Thermo Scientific Invitrogen BIGFOOT Spectral Cell Sorter (4)Lasers/(25)Fluorescence Channels/(27) Detectors
- Fully Functional
- Serviced & in Stock
- Current Model
- Good cosmetic condition
- Technical sales consultation available
- WARRANTY
Here is what you will receive:

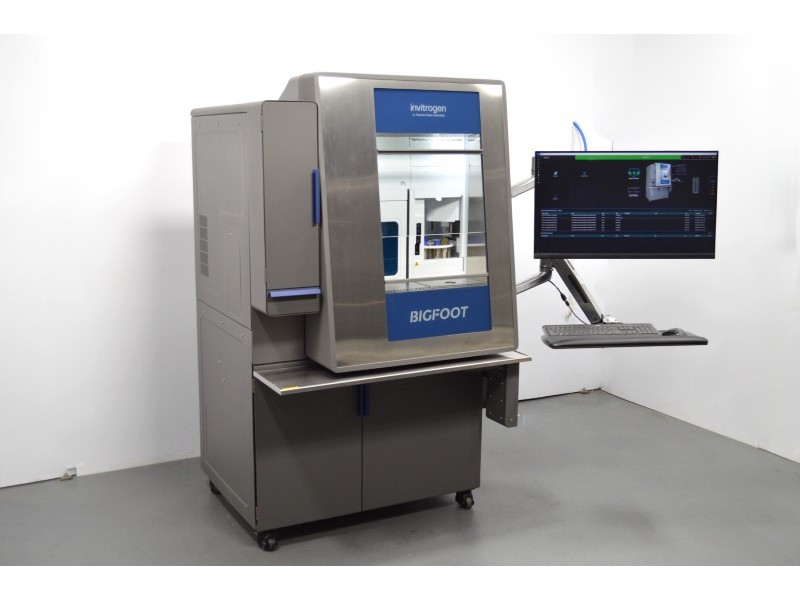

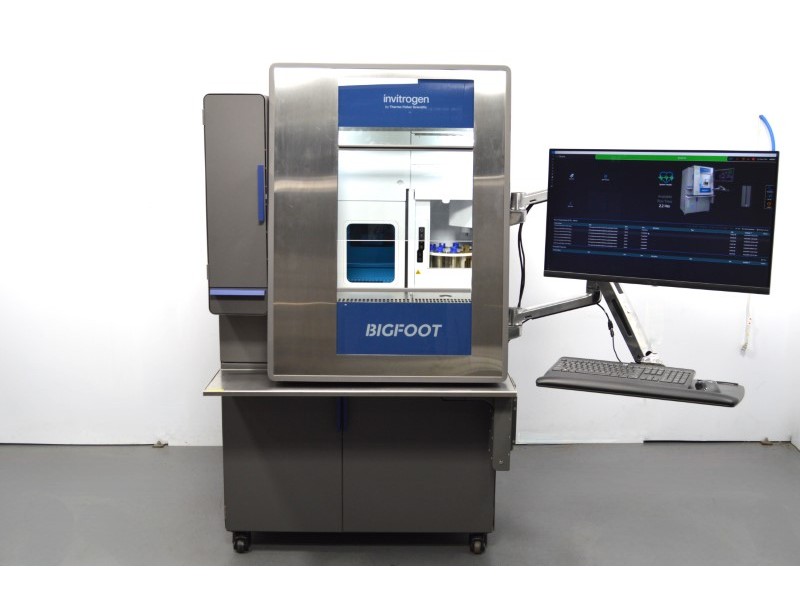

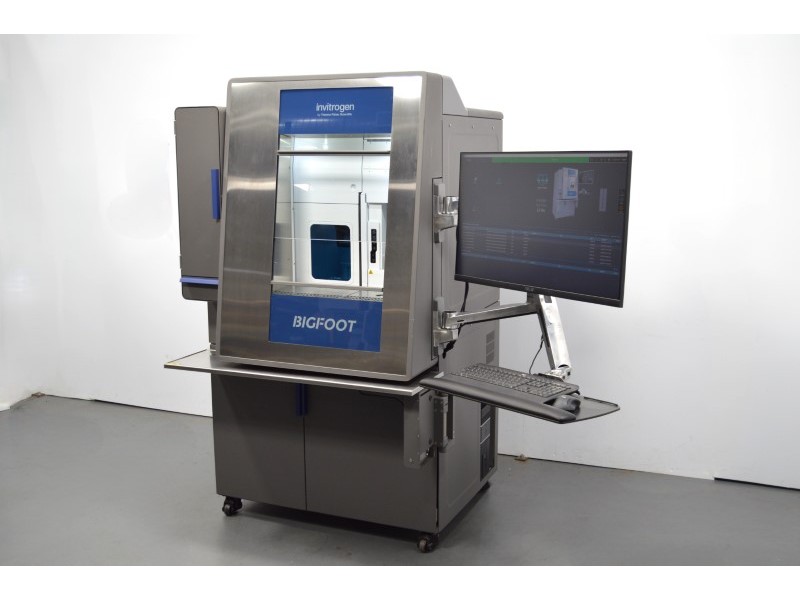

- Bigfoot Cell Sorter
- Computer running SQS software
- Communication and Power Cables
- Sorting alignment plates (Tubes, 96 well Plate, 384 well Plate)
- 100 μm nozzle installed
- (1) 1.5mL Tube sample holder
- (1) 5mL Tube sample holder
- (1) 15mL Tube sample holder

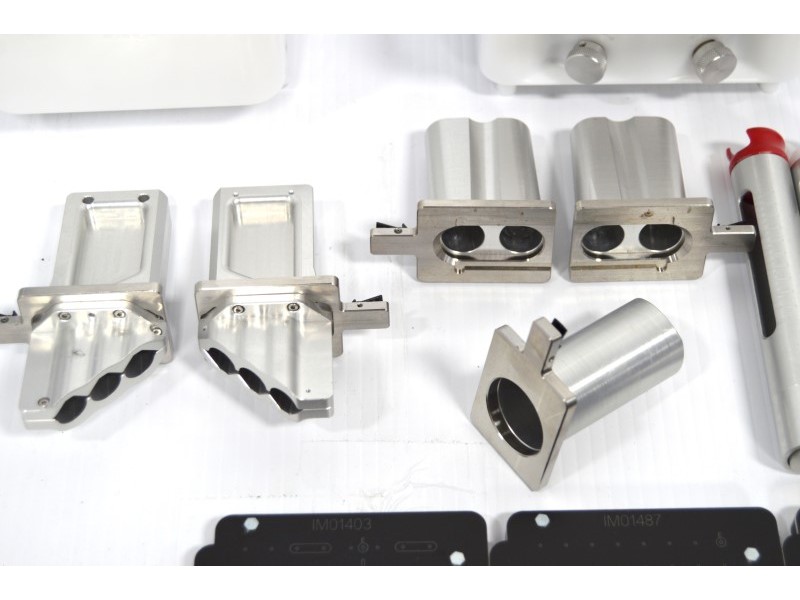

- (1) 50mL Sort output adapter
- (2) 15mL Sort output adapters
- (6) 5mL Sort output adapters
- (2) 1.5mL Sort output adapters
- (1) Sort output Loader Box
- (1) Sort output Microplate Stage
Bigfoot Cell Sorter Configuration:
Optics:
- Excitation lasers: Violet (405 nm), Blue (488 nm), Yellow-green (561 nm), Far red (640 nm)
- Laser/Channel Count: 7V-7B-7Y-4R
- Detection parameters: 25 fluorescence + 2 scatter

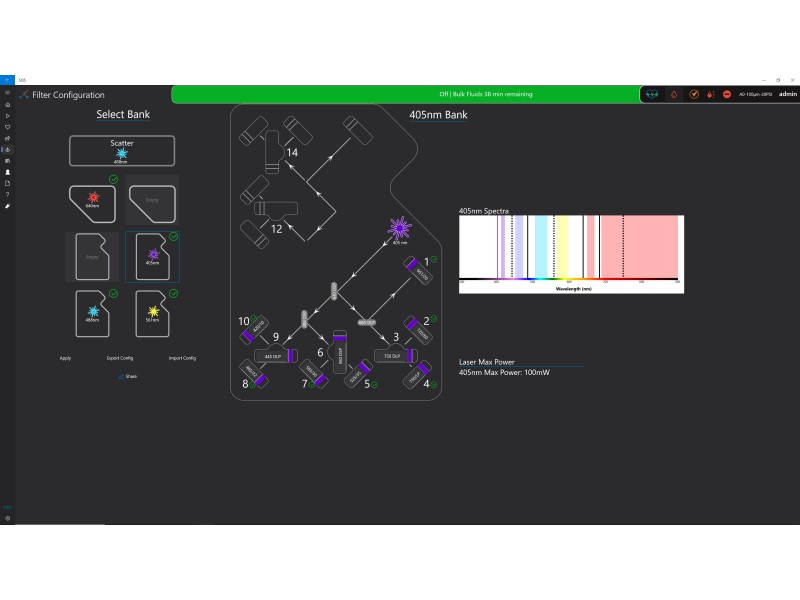

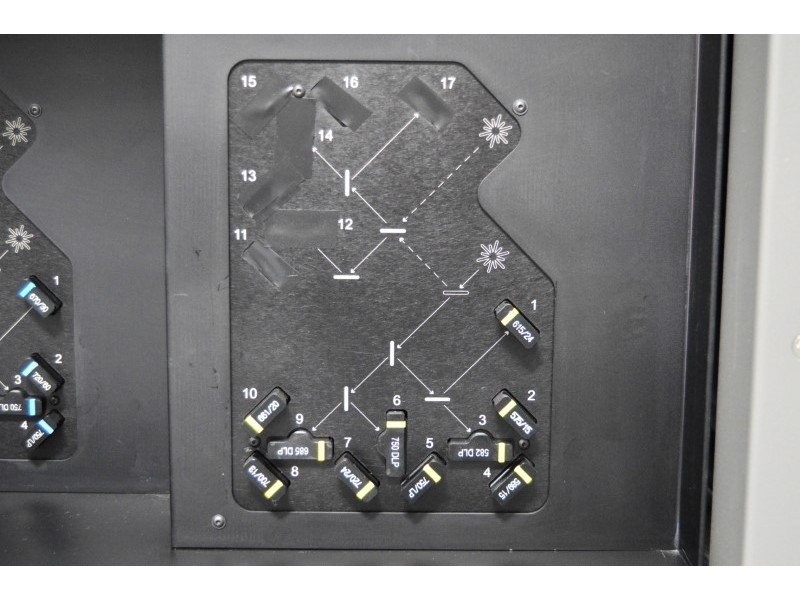

- Fluorescence Channels:
- Violet (405 nm): 420/10, 465/22, 525/35, 583/30, 661/20, 720/60, 750LP
- Blue (488 nm): 507/19, 549/15, 615/24, 670/30, 720/60, 750LP, 583/30
- Yellow-green (561 nm): 575/15, 589/15, 615/24, 661/20, 700/13, 720/24, 750LP
- Far red (640 nm): 670/30, 700/13, 728/40, 750LP

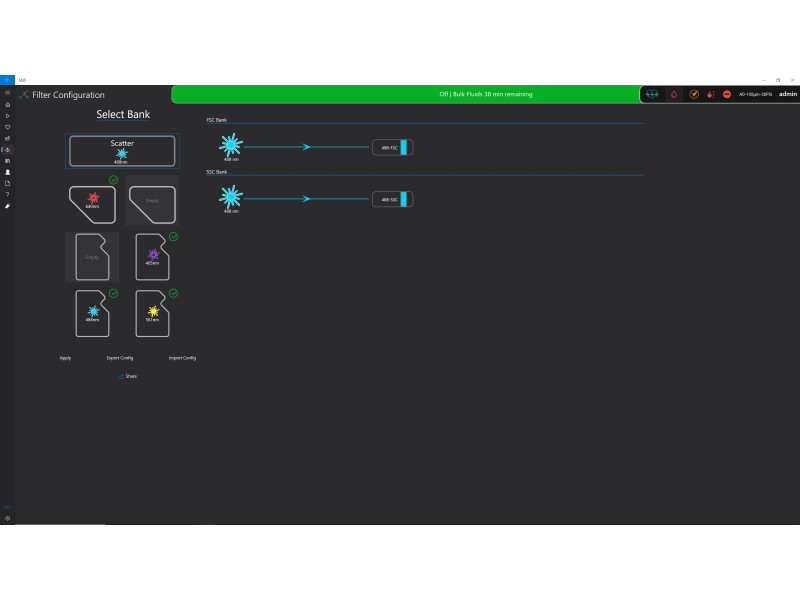

- Scatter parameters: standard FSC and SSC 488 nm
- Pulse measurement: simultaneously measured peak, area, and width for sample input and output of every channel
- Fluorescence sensitivity: <100 MESF for FITC, PE, APC
Fluidics:
- Nozzles: 100 μm ceramic nozzle, 30 PSI
- Sample input tube types: 1.5 mL, 5 mL, and 15 mL
- Temperature control: 4 DegC to 37 DegC for input and output of all media types
- Agitation: automatic based on input tube type
Sorting:
- Event rate: >100,000 events/sec acquisition with all 60 parameters
- Sorting speed: >70,000 events/sec with all parameters enabled
- Sort devices:
- sort output adapters for 1.5 mL, 5 mL, 15 mL, and 50 mL tubes
- straight-down sorting into 96-well plates
- straight-down sorting into 384-well plates
- 4-way sorting into 96-well plates
- 4-way sorting into 384-well plates
- Dimensions (WxDxH): 99 x 99 x 170 cm (39 x 39 x 67 in.)
- Weight: 1433 lbs (650 kg)
- Power supply: 100-240VAC 50/60Hz
Customization/Options: N/A
Testing performed by our in-house service team:
The Bigfoot Cell Sorter passed all tests and was found to be fully functional:
- We powered up the instrument and computer system.
- We verified that the instrument performed full startup and shutdown sequences.
- We performed extensive cleaning of the fluidic system.
- We adjusted the fluidic sensors and verified proper operation and flow.
- We tested the droplet generation function.
- We checked the laser powers and stable output.
- We performed alignment of the optics and lasers.
- We passed the QC bead alignment tests.

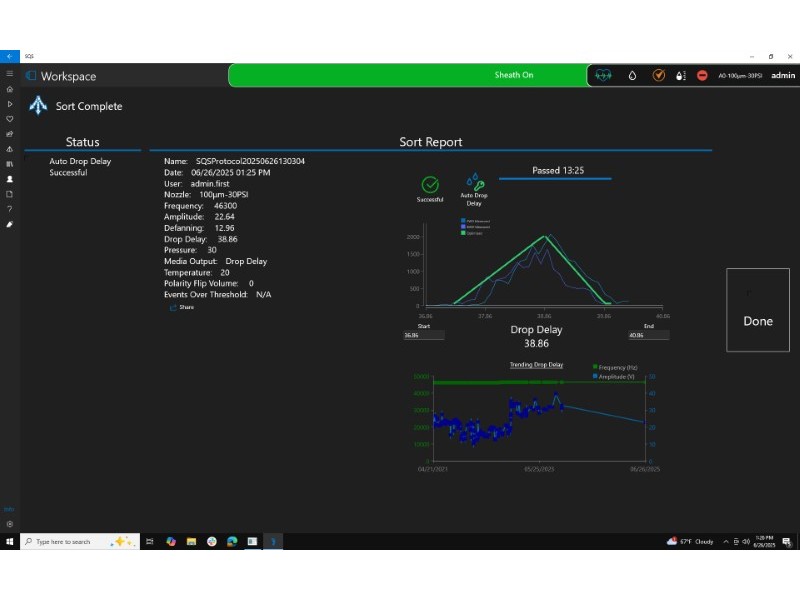

- We adjusted the stream collectors and verified the drop delay by testing.
- We verified the automatic stream alignment.
- We tested the media calibration wizard for the 5 mL tubes.
Instrument Overview:
- The Thermo Scientific Invitrogen BIGFOOT Cell Sorter offers high-speed, customizable cell sorting.
- It features 4 lasers and 27 detection channels for complex multicolor panels.
- BIGFOOT Cell Sorter ensures precise droplet generation and automatic stream alignment.
- The system includes advanced calibration wizards for consistent sorting performance.
- Robust design supports full startup, shutdown, and QC calibration sequences.
- Thermo Scientific BIGFOOT Cell Sorter is engineered for reliable, high-throughput operation.
Instrument Application:
- Immunophenotyping
- Rare cell isolation
- Stem cell sorting
- Cancer research
The Key Features:
- 4 lasers, 27 detection channels
- High-speed sorting
- Automated calibration and drop delay
- Spectral unmixing and conventional modes
- Multi-way sorting into various plate/tube formats
Additional technical info:
- Datasheet: Bigfoot Cell Sorter Datasheet
- Brochure: Bigfoot Cell Sorter Brochure
- Manual: Bigfoot Cell Sorter Manual
Video Overview:
