- Stock: In Stock
- Brand: ACEA
- Product Code: 61801
- Condition: Pre-Owned
For Sale Agilent Acea xCELLigence RTCA ePacer Cardiomyocyte Pacing System w/ RTCA Cardio Temperature Tool
- Fully Functional
- Serviced & in Stock
- Current Model
- Good cosmetic condition
- Technical sales consultation available
- WARRANTY

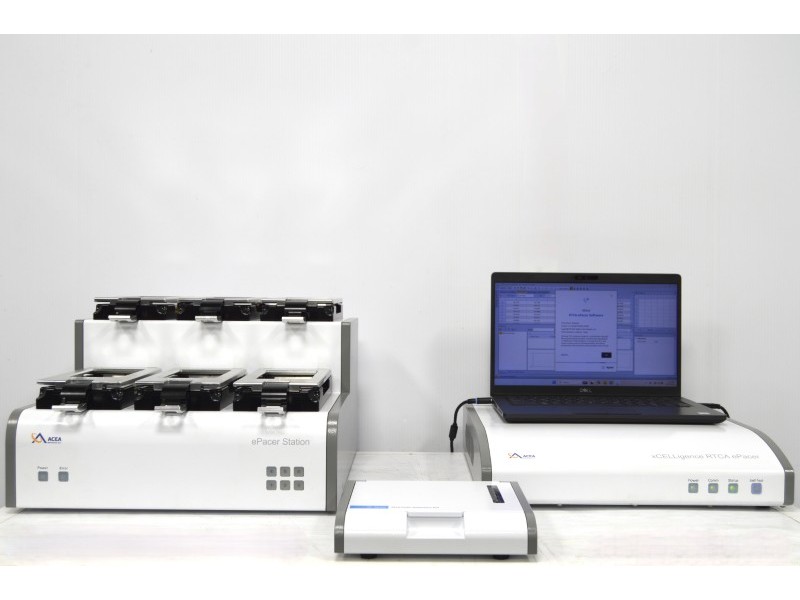

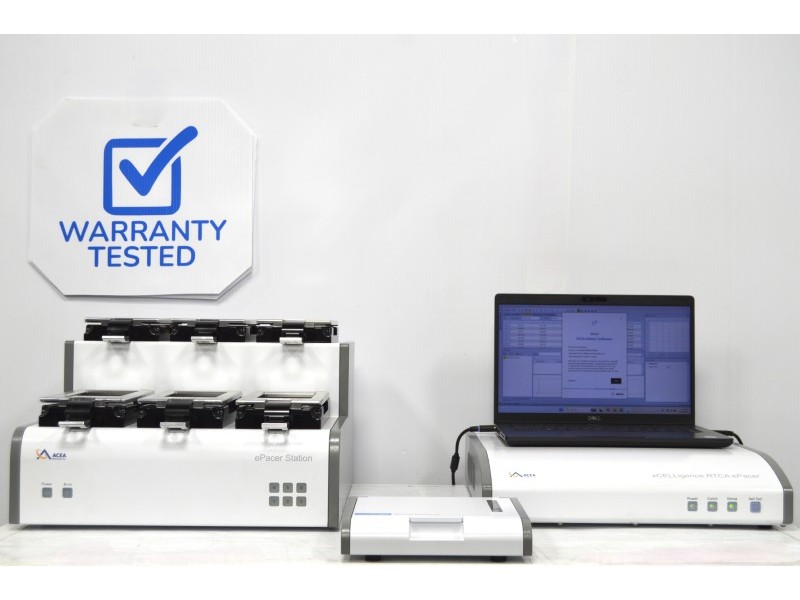

Here is what you will receive:

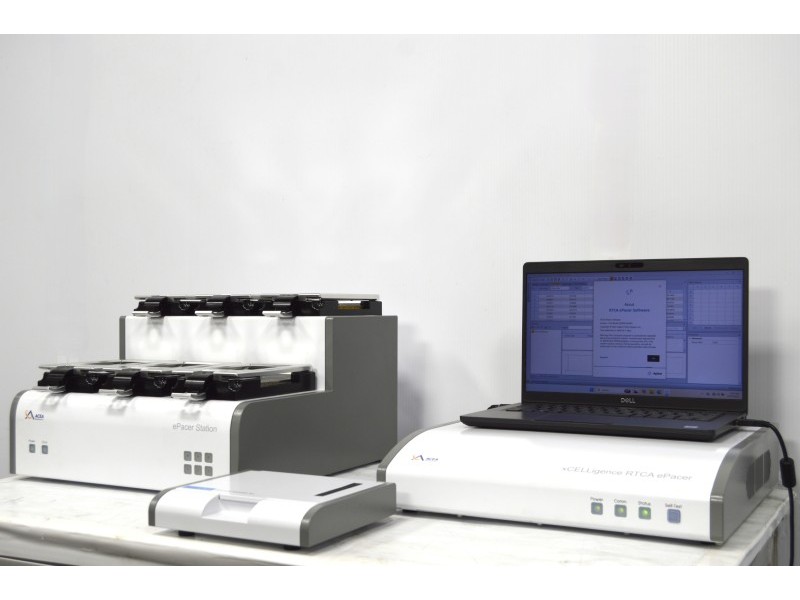

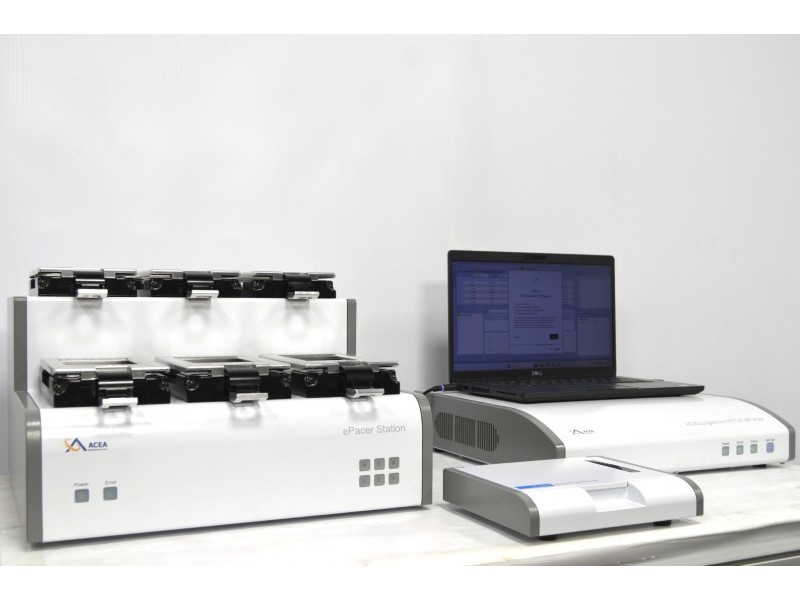

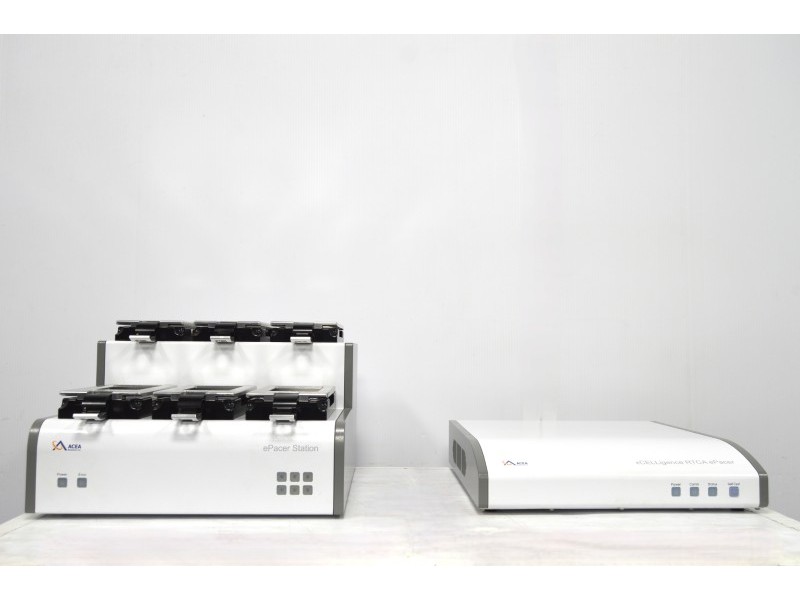

- Acea xCELLigence RTCA ePacer W680 Real-Time Cell Analyzer

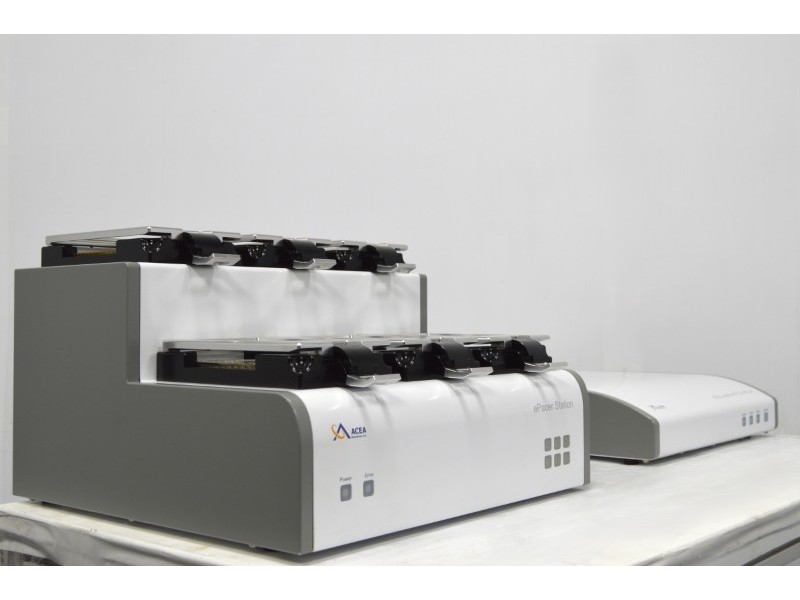

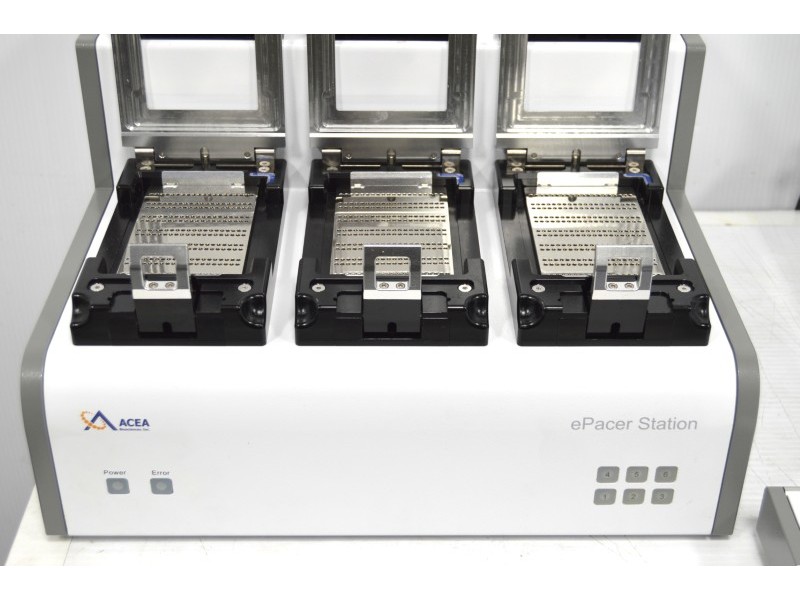

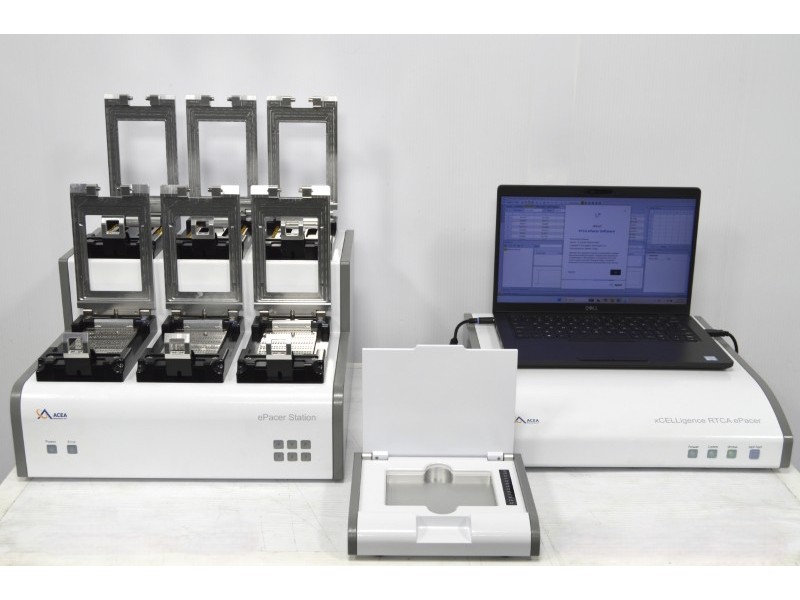

- Acea ePacer Station with 3 Cardio Cradles and 3 CardioECR Cradles (3×96 Cardio + 3×48 CardioECR)
- Computer running RTCA software trial

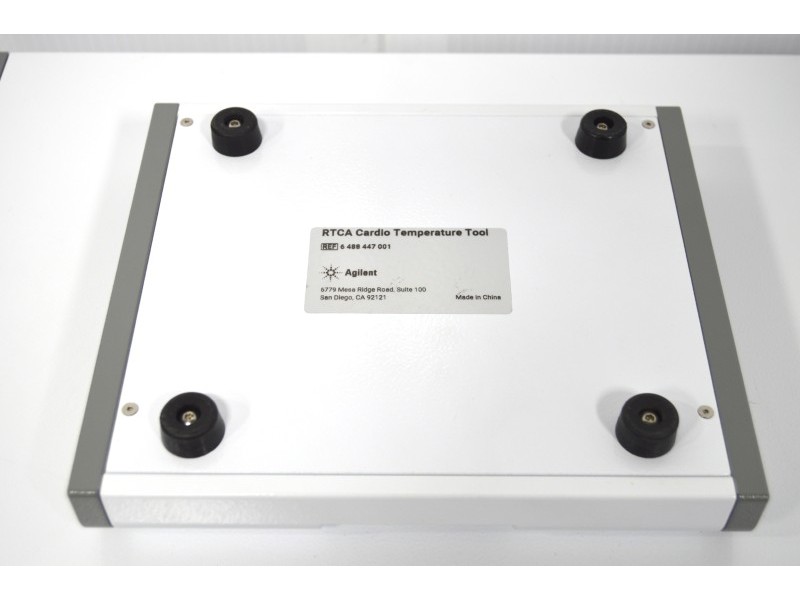

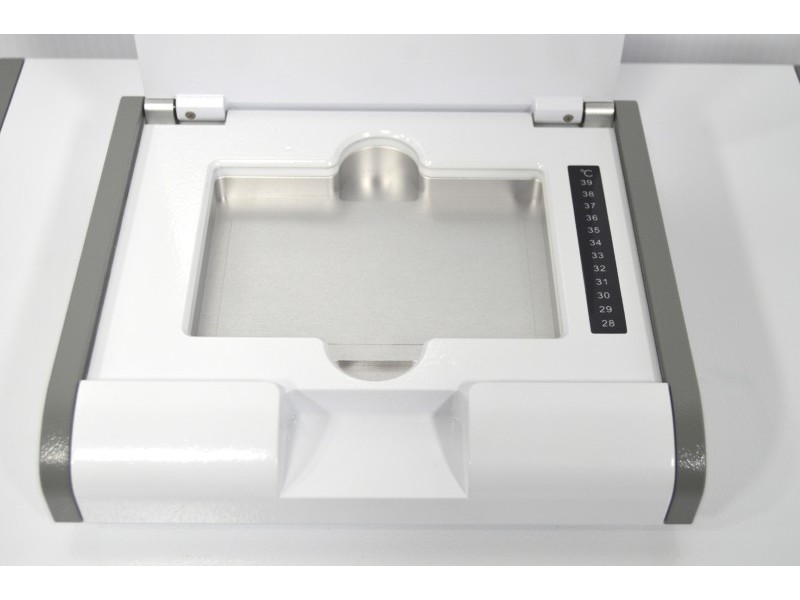

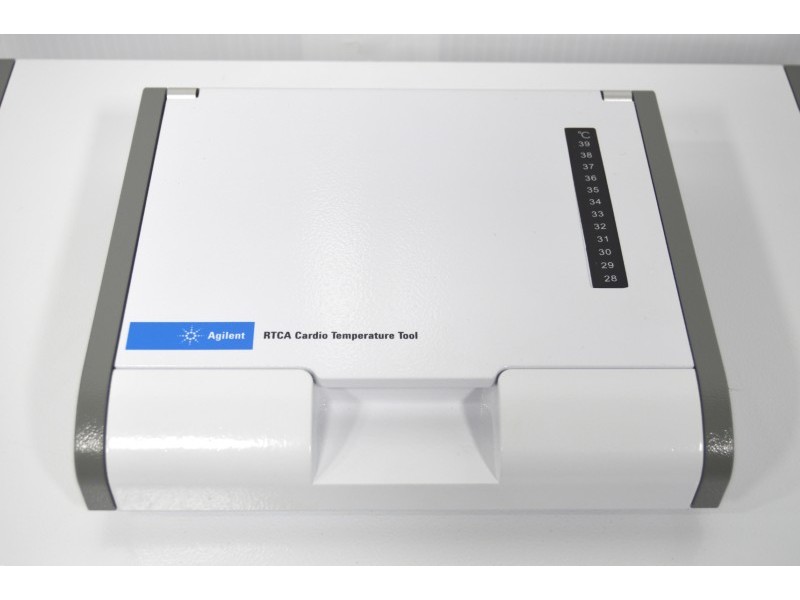

- RTCA Cardio Temperature Tool
- Communication and power cables
RTCA software license needs to be purchased from Agilent
xCELLigence RTCA ePacer Station Configuration:
- Impedance Measurement Speed: 250 Hz sampling rate
- Impedance Measurement Accuracy: ± (1.5% + 1 Ω)
- Impedance Measurement Repeatability: 0.8%
- Dynamic Range: 20 Ω to 2 kΩ
- Electronic Switch Resistance: 4 to 8 Ω
- Stimulation Pulse Voltage: -2.5 V to +2.5 V
- Stimulation Pulse Frequency: 0.01 – 125 Hz
- Stimulation Pulse Width: 0.02 – 600 ms
- Stimulation Pulse Waveform: Bipolar Rectangle, Triangle, Sine, Trapezoid, Exponential Decay
- Electrical Interface: (3) x E-Plate CardioECR 48 & (3) x E-Plate Cardio 96
- Environment: Temperature: 15-40DegC; RH: 98% max w/o condensation
- E-Plate Cardio 96 Specifications:
- Volume: 264 μL ± 10 μL
- Bottom Diameter: 5.0 mm ± 0.05mm
- Sensor Impedance: ABGH 80~120 Ω, CDEF 90~130 Ω at 10 kHz, when measured with a 1× PBS solution
- E-Plate CardioECR 48 Specifications:
- Volume: 263 μL ± 10 μL
- Bottom Diameter: 5.0 mm ± 0.075mm
- Electrical Interface: Interface with the ePacer Station and CardioECR Station
- Sensor Impedance: 50 Ω ± 12 Ω at 10 kHz, when measured with a 1× PBS solution
Customization/Options: N/A
Testing performed by our in-house service team:
The xCELLigence RTCA ePacer System passed all tests and was found to be fully functional:
- We powered on and initialized the system.

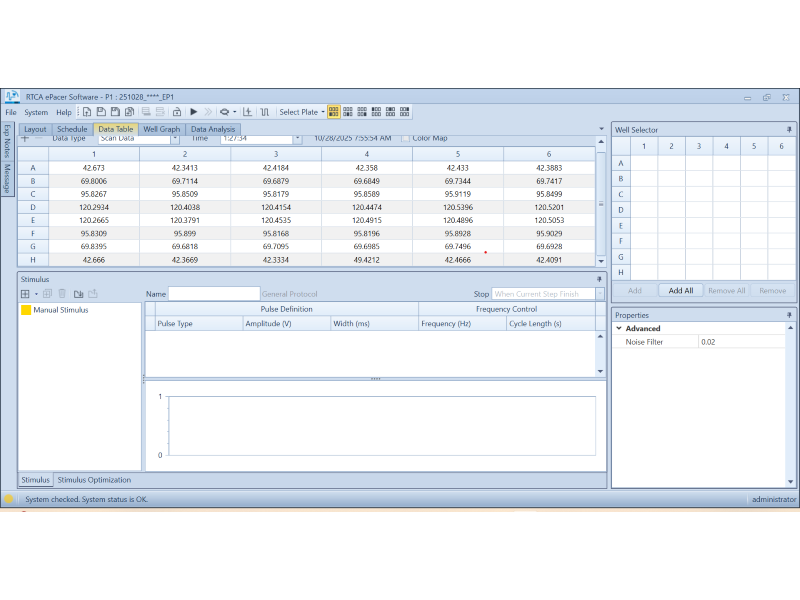

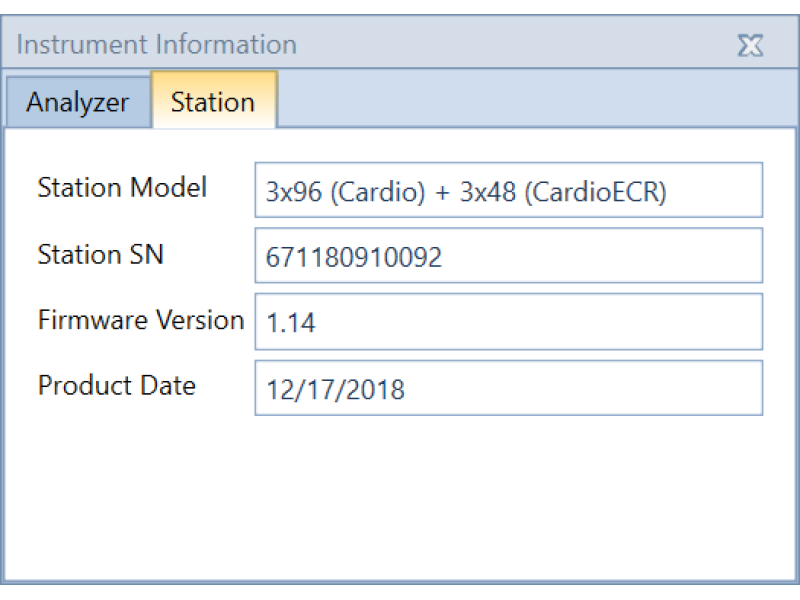

- We verified software communication and device connectivity.
- We ran the full self-check procedure – no errors detected.
- We confirmed proper plate recognition functionality.
- We performed a PBS solution resistance plate verification test.
- We performed a resistance plate verification test.

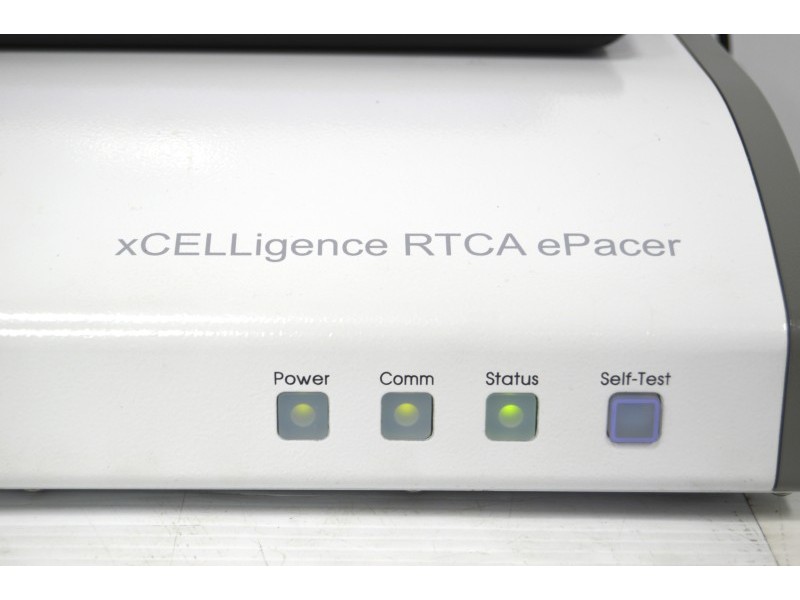

- We checked all status lights and control buttons for operation.

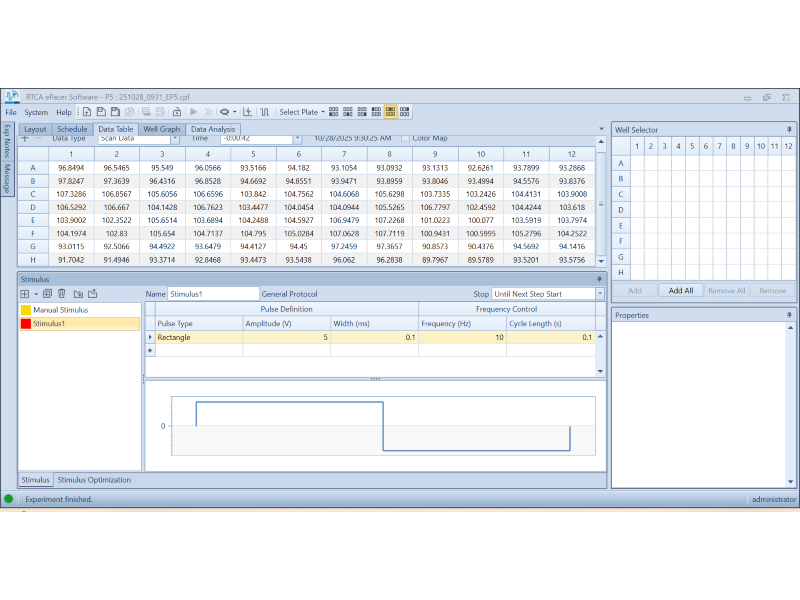

- We conducted a test run using PBS buffer within a known impedance range.
Instrument Overview:
- The Agilent Acea xCELLigence RTCA ePacer provides precise electrical pacing for cardiomyocyte assays in real time.
- Includes ePacer Station with three Cardio and three CardioECR cradles for flexible 96- and 48-well formats.
- Enables synchronized pacing control to simulate physiological heart rate conditions during cell monitoring.
- Integrated RTCA Cardio Temperature Tool maintains optimal assay temperature stability and consistency.
- Designed for seamless operation with RTCA Cardio instruments for high-quality electrophysiological studies.
- The RTCA ePacer system delivers accurate, reproducible stimulation for cardiac safety and drug testing research.
Instrument Application:
- Cardiomyocyte contractility and rhythm studies
- Cardiac safety and drug toxicity testing
- Electrophysiological pacing synchronization
- Stem cell–derived cardiomyocyte maturation
- Temperature-controlled cardiac assay validation
The Key Features:
- Enables precise electrical pacing of hiPSC-cardiomyocytes.
- Improves cardiomyocyte maturation in 2–3 weeks.
- Supports scalable formats: 48- or 96-well E-Plates.
- Temperature Tool for RTCA Cardio monitoring
Additional technical info:
- Application Note: xCELLigence RTCA ePacer System Application Note
- Manual: xCELLigence RTCA ePacer System Manual
Video Overview:
About us

How we pack

VIEW SOME OF THE CUSTOMERS WE HELPED HERE
WHY DO CUSTOMERS MAKING CRITICAL LAB PURCHASES CHOOSE TO ORDER CELL ANALYSIS SYSTEMS FROM US?
They want to ensure the system is internally inspected for dirt, corrosion, and other common issues in equipment that spends time in incubators.
They want test runs in PBS within a known impedance window, proving the full signal chain (electrodes → amplifiers → software), and reporting the correct magnitude and frequency content before cell loading.
They want to know that the solenoids for the plate locks have been tested for reliable and repeatable operation and have been cleaned and lubricated appropriately.
They want assurance that contacts have been tested to prevent jamming and to ensure continuity between the sensing circuit and the plate electrodes.
They want to confirm that electronic noise and EMI levels at the detector/amplifier stage remain within tolerance and will not distort signal fidelity.
They want peace of mind, knowing their instrument is backed by a warranty from a company that can stand behind it.

- We have experience servicing and repairing these instruments.
- This instrument goes through all the described service steps before shipping. see the questions section below
- We offer detailed photos and videos of the instruments you buy.
- We are an approved pre-owned equipment vendor to many large US, Canadian, and EU Universities.
- We are an approved pre-owned equipment vendor to many Fortune 500 US and International Biopharma companies.
- Technical sales consultation available
- Remote installation and instrument operation training may be available.
- On-site installation may be available in the Boston Area (New England area)
- US or International shipping is no problem (see the shipping tab on how we pack and feel at ease)

- Warranty
- You get after-sales technical support
- Customer references are available
- The instrument will be fully functional!
- Smooth process from the initial quote to order fulfillment
This will ship via freight. Please contact us with your zip code to obtain a shipping quote.
*SM* Small Crate
230#
COMMON QUESTIONS AND ANSWERS BELOW
What are the steps you take to verify, service, and confirm the functionality of the xCELLigence RTCA ePacer System?
We verify various instrument functions individually and together, performing necessary repairs or maintenance to bring the instrument to our quality standards..
- We powered on and initialized the system.
- We verified software communication and device connectivity.
- We ran the full self-check procedure – no errors detected.
- We confirmed proper plate recognition functionality.
- We performed resistance plate verification test.
- We checked all status lights and control buttons for operation.
- We conducted a test run using PBS buffer within a known impedance range.
What supplies do I need?
You will need the consumables starting out:
Can I view the xCELLigence RTCA ePacer System in person at your facility or do a live Zoom demo before it is shipped to me?
We invite you to visit our facility for an on-site demo or feel free to request a virtual Zoom demo of the instrument you are interested in.
What about the warranty? Installation, training, maintenance?
Warranty Terms:
- The instrument comes fully warranted for both parts and labor.
- The customer should retain all packing materials during the warranty period.
What should I watch out for when buying an xCELLigence RTCA ePacer System used/pre-owned from another lab?
- Make sure the instrument is properly packed for shipping and will arrive safely. If the instrument is large, request to have it packed in a wooden crate.
- Confirm that there is no physical damage or any misaligned internal components.
- Ask what accessories are included.
- Ask how long the warranty is and what it covers.
Here is what our technical team tests so you can request something similar and ensure your instrument will be fully functional.
- We powered on and initialized the system.
- We verified software communication and device connectivity.
- We ran the full self-check procedure – no errors detected.
- We confirmed proper plate recognition functionality.
- We performed resistance plate verification test.
- We checked all status lights and control buttons for operation.
- We conducted a test run using PBS buffer within a known impedance range.
We recommend inspecting the instrument in person or requesting a virtual demo; this will allow you to evaluate the condition and performance of the instrument you are considering purchasing.
Do you have an xCELLigence RTCA ePacer System on hand?
- This is a common model, and we generally stock multiple instruments, accessories, and many replacement parts to back up our warranty.
I found it elsewhere for less. What goes into your price?
We acknowledge that sometimes you can purchase this model instrument elsewhere, possibly for less.
Here are some of the reasons for our price.
- We may offer longer warranty terms.
- We cover shipping costs during the warranty period. (Customer is required to save packing materials for the duration).
- We have to have technical staff that can do the testing/repairs and after-sales support if there are any issues.
- We invest considerable time into the testing and service of each instrument we sell.
- We have to purchase various testing supplies (often expensive) to perform testing.
- We have to purchase any missing required accessories to make the instruments complete.
- We have to procure and stock service parts to support our warranty.
- We have extensive experience packing sensitive instruments. See the shipping section in the website menu for info on how not to pack.
- We guarantee that the instrument will be functional.
This procurement is for a University or College. Are purchase orders with NET terms accepted?
- If you are a US or Canadian customer, we are likely already a registered vendor in your University's vendor system. This would greatly expedite the process of PO approvals and get this instrument into your lab faster.
- POs are accepted from US and Canadian universities.
How fast will you ship?
- We can ship within a few days to two weeks. Shipping time depends on the current demand for our instruments. Members of our sales team will be able to offer current delivery estimates.
Will my instrument be insured during shipping?
- All instruments shipped within the USA and internationally are fully insured. This applies as long as we are the shipper and handle shipping arrangements.
- If the buyer handles shipping, then shipping insurance responsibility falls to the buyer; we highly advise that the buyer obtain shipping insurance from their carrier.
How do you pack? Have you packed and shipped xCELLigence RTCA ePacer System Instruments in the past? Do you ship Internationally?
Packing
- Most larger instruments ship in fully enclosed ISPM15-certified wooden crates with proper padding underneath, and the sides have moving components braced.
- Accessories are packed safely in boxes with padding and then safely packed inside the crate.
- We may not use a crate for local deliveries to save you money *if delivered by us.
- We often use “tilt’ & “shock” indicators on the crates to ensure the crate has not been excessively tilted and dropped where equipment may suffer damage.
- Photos are taken during the packing process to make sure nothing is missed.
USA/Canada Shipping
- Within the US and Canada, we will ship via selected freight carriers. We do not use low-price/high-damage carriers as we want the equipment to get safely to you.
International Shipping
- Internationally, we will only ship via Air Freight or Air Parcel (such as UPS or DHL), which provides reliability, no exposure to Ocean weather, and timely delivery.
We have extensive experience packing and shipping fragile instruments globally.
Our experience and process
- We have safely packed and shipped thousands of sensitive analytical instruments.
How much will I save buying it pre-owned, and is it worth it?
A lot…and it is undoubtedly worth it, and here is why. Feel free to ask for feedback from hundreds of customers who bought from us.
- You will pay less than half vs. buying a new instrument. Why not spend leftover funds on another instrument for your lab?
- You will get our standard warranty, plus, when available, an option to obtain an extended warranty agreement.
- Know that your instrument was tested and working the day it left our facility and is covered if there are faults.
- Get extra peace of mind by adding an extended warranty or service agreement when such an option is available.
Sustainability
- Well, this one is easy: buying a pre-owned instrument is great for the planet; you are reducing unnecessary waste, CO2 output, and water use that would be used during the manufacturing process.
I have more questions; I want to receive a formal quote.
Absolutely! Please give us a call (1-617-397-3486) or complete this form to get your questions answered or receive a formal Quote.
