Axion Biosystems Maestro Pro MEA System

Axion Biosystems Maestro Pro MEA System
Axion Biosystems Maestro Pro MEA System
Axion Biosystems Maestro Pro MEA System
Axion Biosystems Maestro Pro MEA System
Axion Biosystems Maestro Pro MEA System
Axion Biosystems Maestro Pro MEA System
Axion Biosystems Maestro Pro MEA System
Axion Biosystems Maestro Pro MEA System
Axion Biosystems Maestro Pro MEA System
Axion Biosystems Maestro Pro MEA System
Axion Biosystems Maestro Pro MEA System
Axion Biosystems Maestro Pro MEA System
Axion Biosystems Maestro Pro MEA System
Axion Biosystems Maestro Pro MEA System
Axion Biosystems Maestro Pro MEA System
Axion Biosystems Maestro Pro MEA System
Axion Biosystems Maestro Pro MEA System
Axion Biosystems Maestro Pro MEA System
Axion Biosystems Maestro Pro MEA System
Axion Biosystems Maestro Pro MEA System
Axion Biosystems Maestro Pro MEA System
Axion Biosystems Maestro Pro MEA System
Axion Biosystems Maestro Pro MEA System
Axion Biosystems Maestro Pro MEA System
Axion Biosystems Maestro Pro MEA System
Approved Vendor to many US, Canada, and EU Universities
International Shipping
Customer References Available
Training and Installation Options Available



$29,995.00
CLICKABLE TABS BELOW

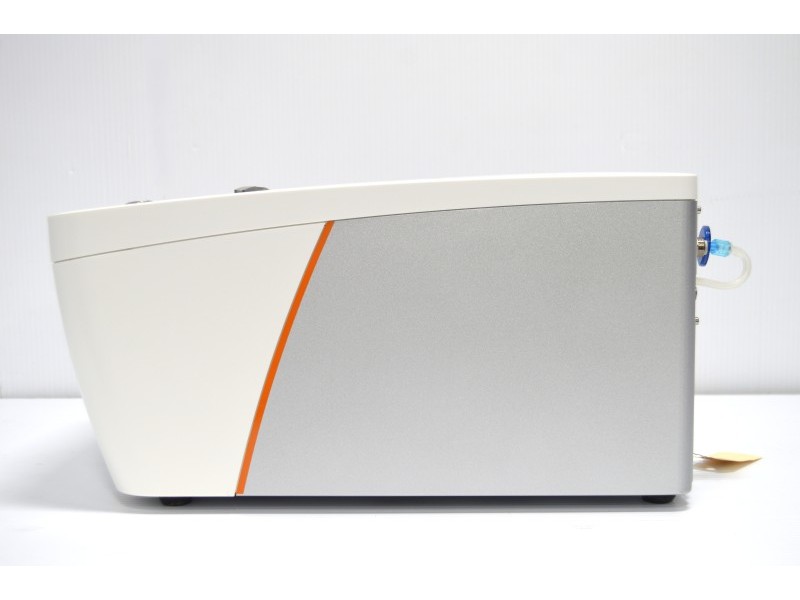

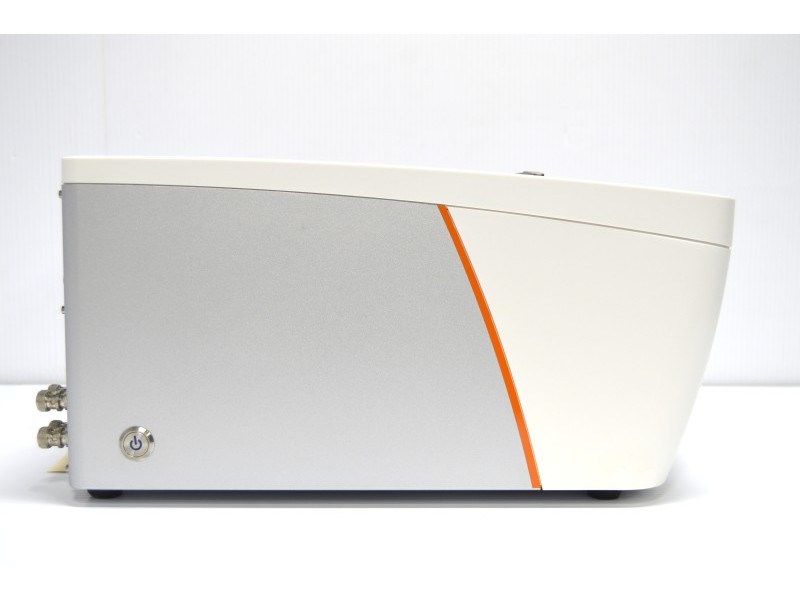

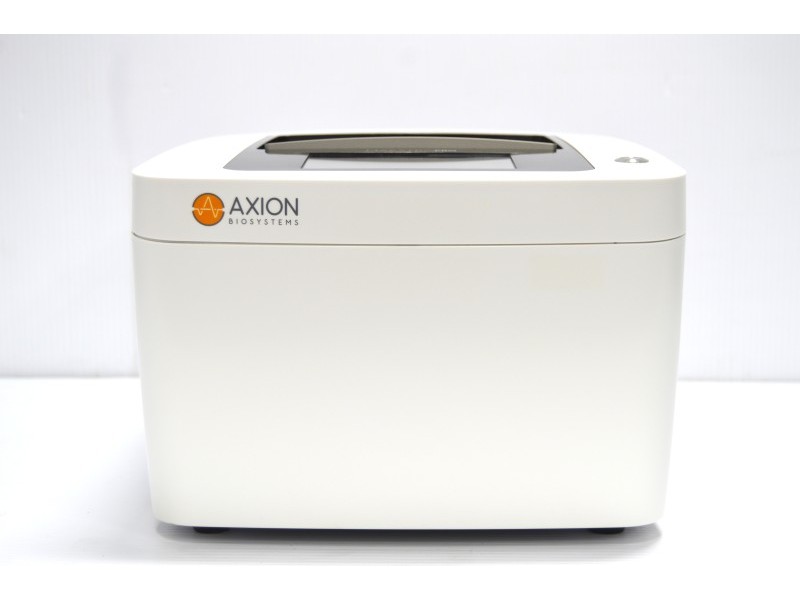

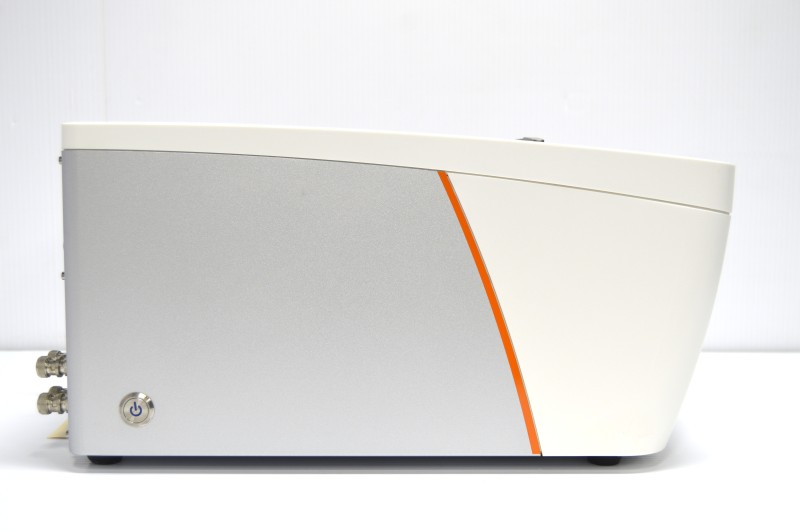

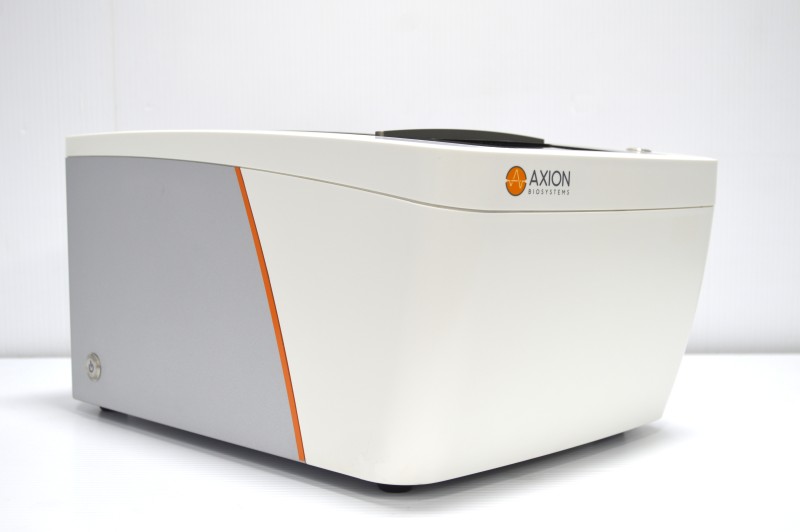

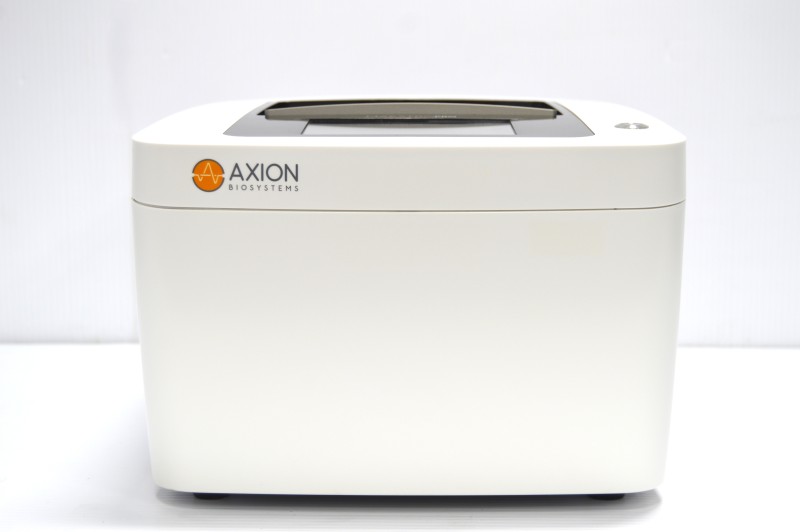

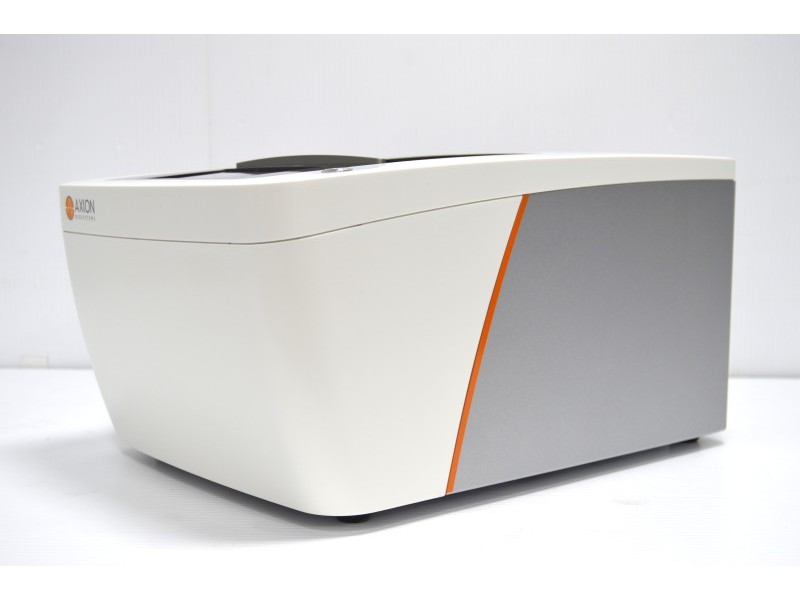

For Sale Axion Biosystems Maestro Pro MEA System



  • Fully Functional
  • Serviced & in Stock
  • Current Model
  • Good cosmetic condition
  • Technical sales consultation available
  •  WARRANTY




Here is what you will receive:

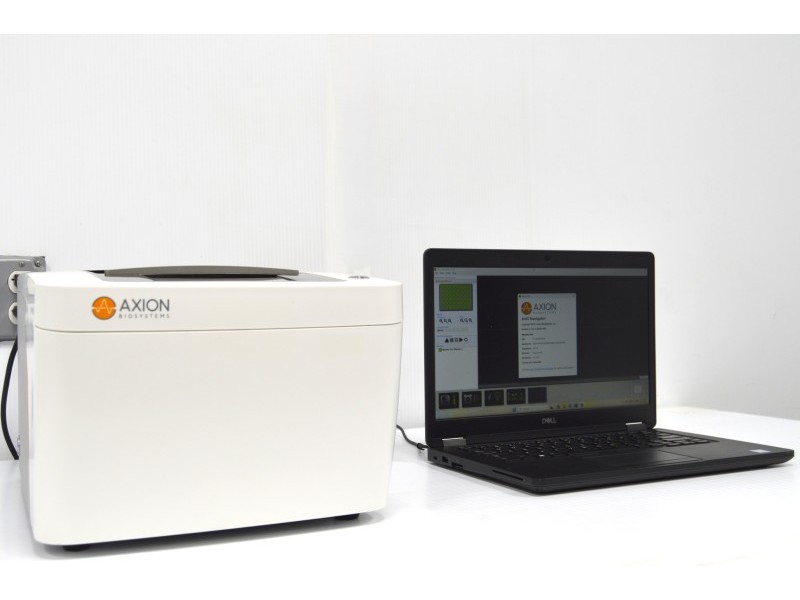

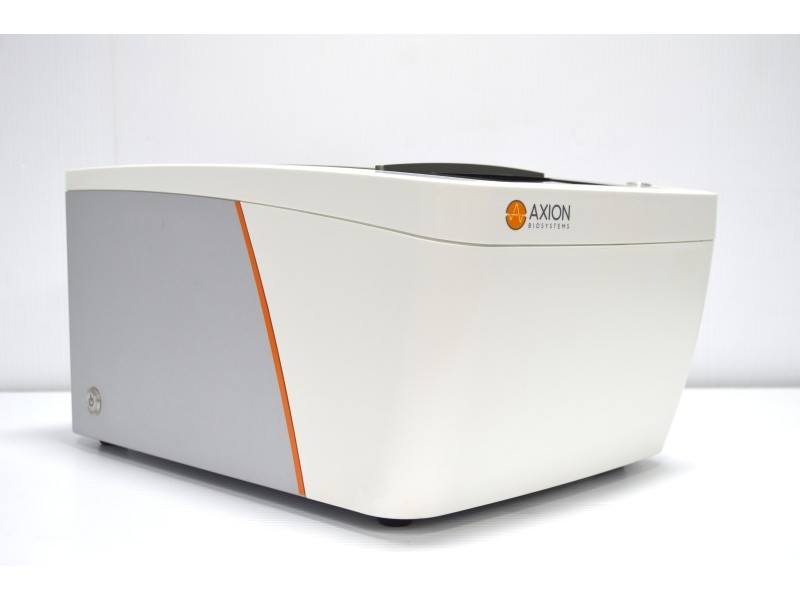

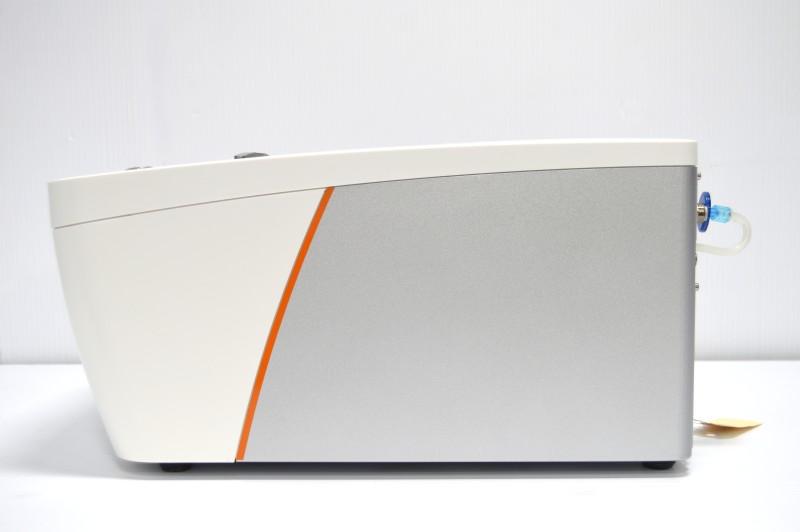

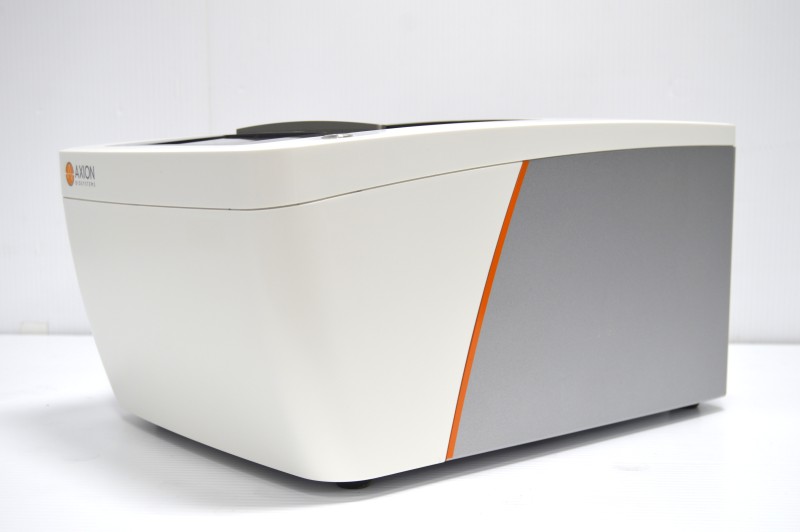

  • Axion Biosystems Maestro Pro MEA System
  • Maestro Pro Hardware Guide
  • Maestro Pro Protective Fabric Cover
  • Communication and Power Cables



Maestro Pro MEA System Configuration:

  • Activated Software Modules: Cardiac & Impedance

  • Recording: 768 channels, 12.5 kHz sampling rate, 0.01 Hz to 5 kHz bandwidth
  • MEA Viability Dynamic Range: 5 kΩ - 100 kΩ
  • Stimulation: Up to ±1.2 V and ±250 µA, supports stimulation on all 768 channels
  • Impedance Measurement: 50 Ω to 5 kΩ dynamic range, automatic monitoring
  • Plate Formats: 6-, 24-, 48-, 96-, and 384-well (impedance only for 384-well)
  • Experiment Management: Automatic barcode-based plate tracking
  • Environmental Control: 0-10% CO₂, ambient +7°C to 46°C

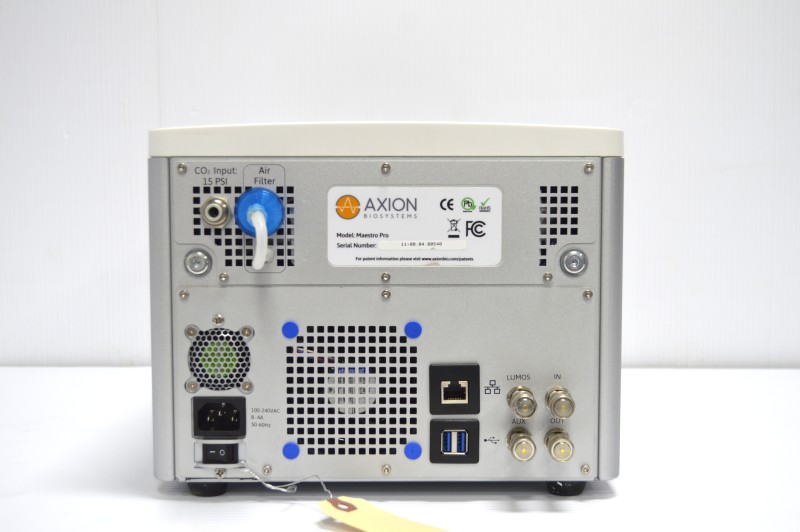

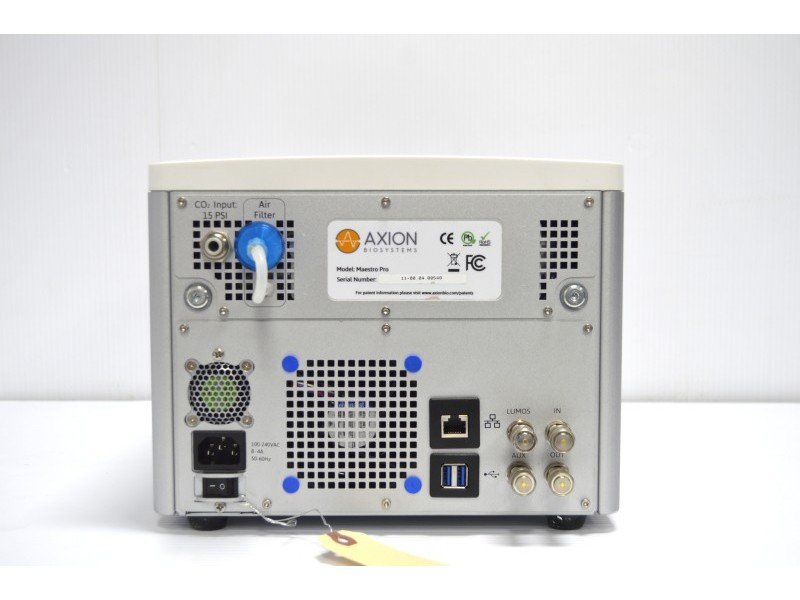

  • Recommended CO2 Pressure: 10-15 psi (0.7 - 1 bar/0.06 - 0.1 MPa)
  • Power requirments: 100-240V AC, 8-4A, 60-50Hz
  • Dimensions: 280 x 452 x 225 mm (W x D x H)
  • Weight: 30.6 lbs



Customization/Options: N/A

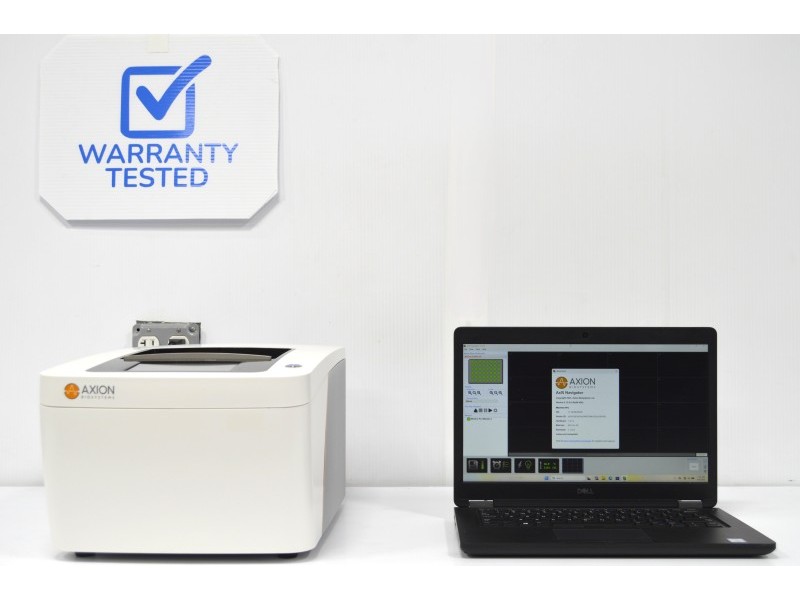

Testing performed by our in-house service team:

The Maestro Pro MEA System passed all tests and was found to be fully functional:

  • We verified that the system powered on successfully.

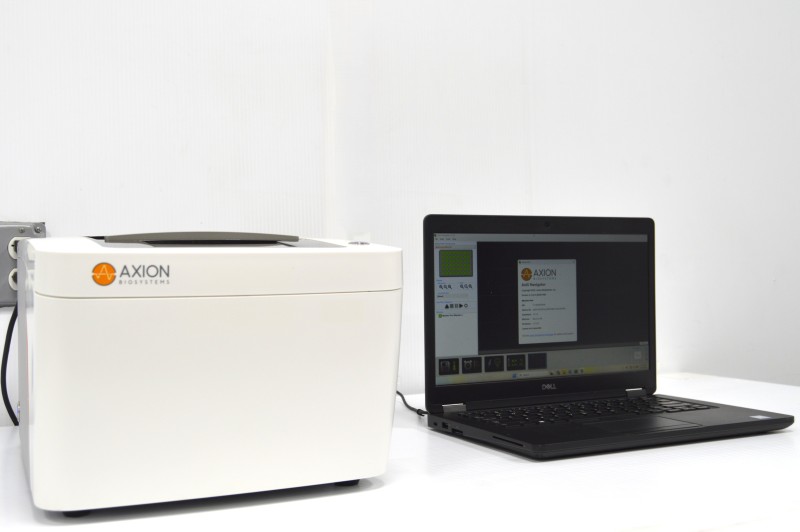

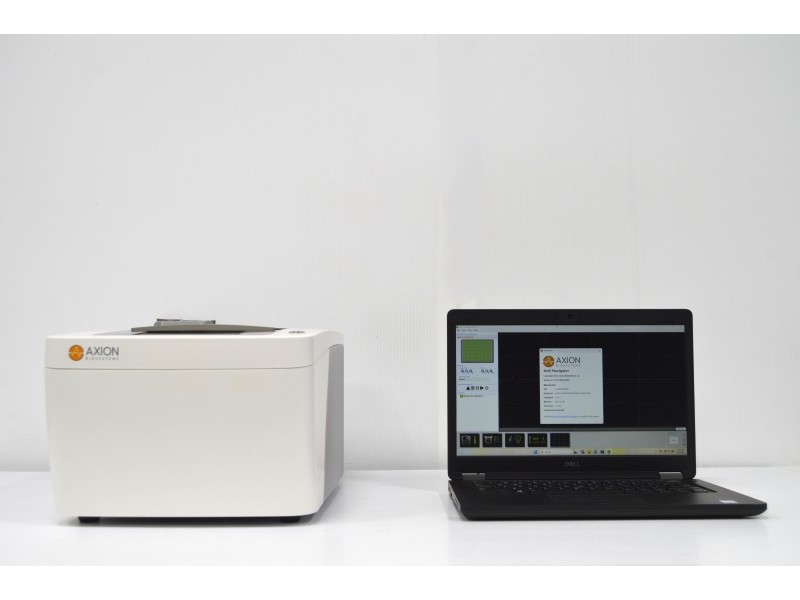

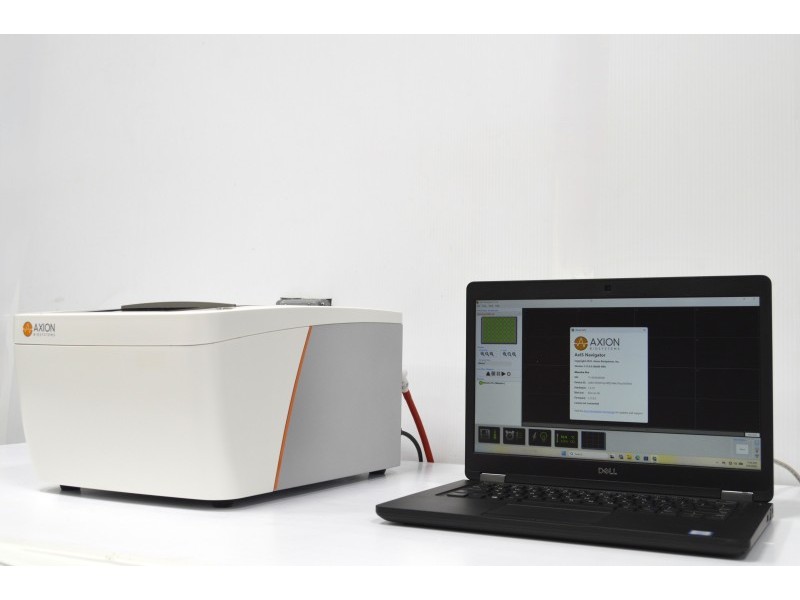

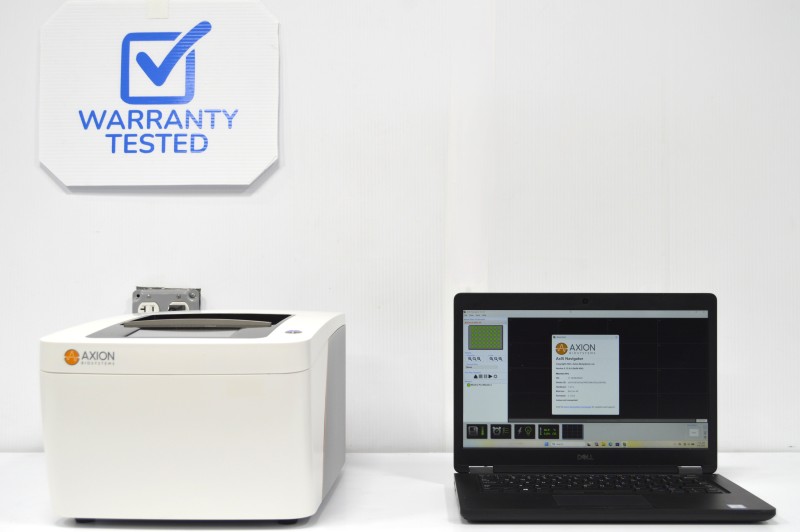

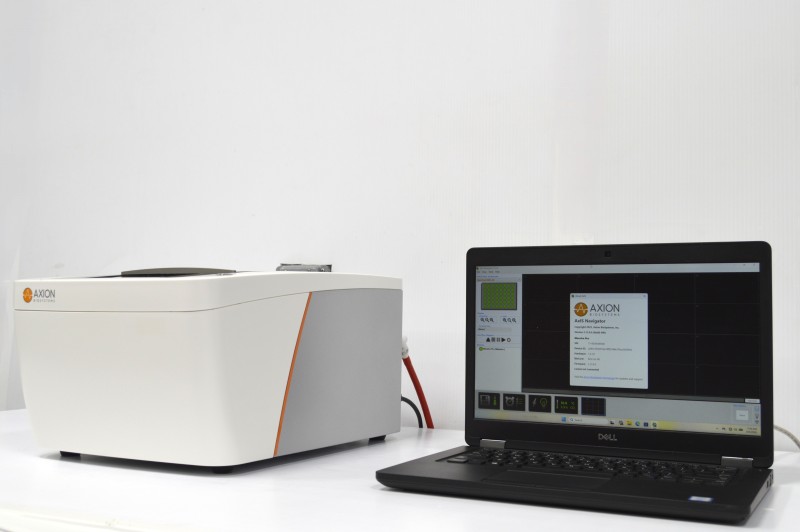

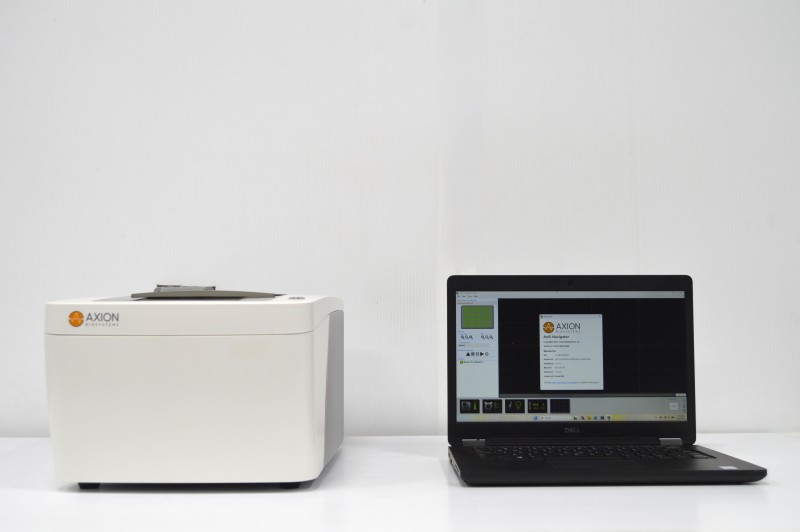

  • We established communication between the Maestro Pro MEA System and the software.

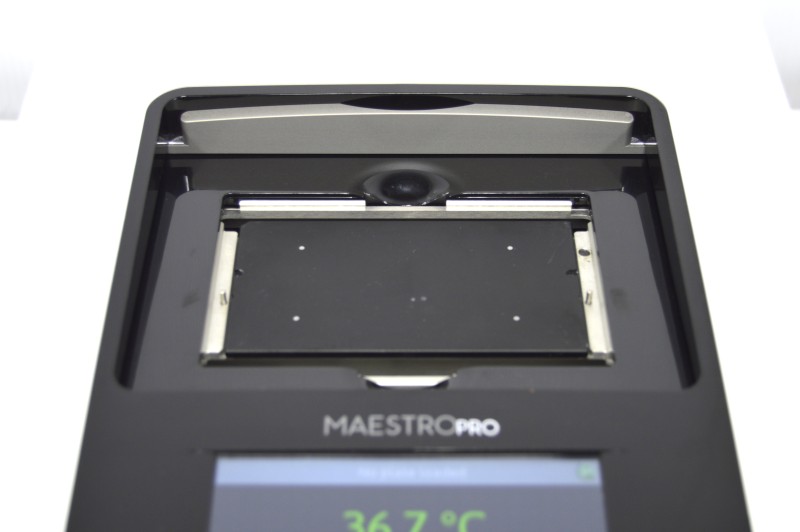

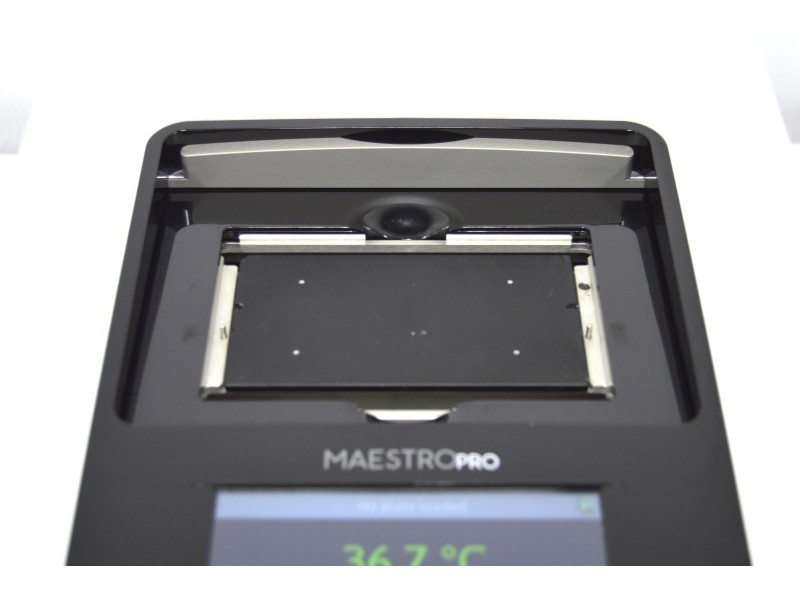

  • We tested the plate access door functionality and confirmed proper operation.

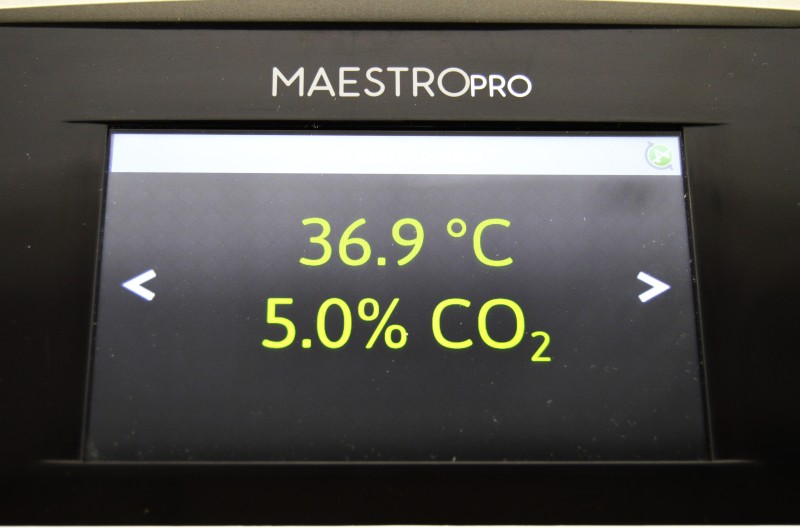

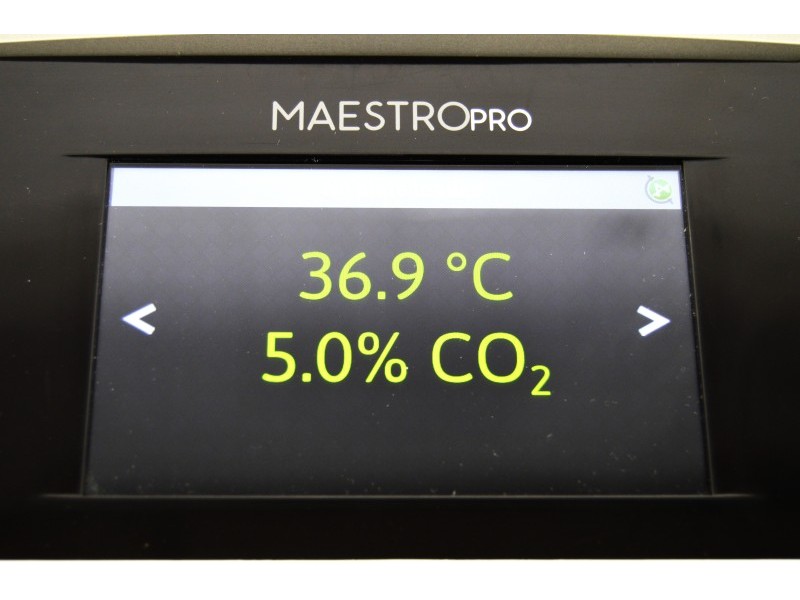

  • We tested the plate temperature control and verified correct performance.
  • We tested the plate CO₂ control and verified correct performance.
  • We confirmed that all LED indicators and buttons were functioning properly.
  • We performed SmartPlate impedance testing, and the system passed all tests.



Instrument Overview:

  • Axion Biosystems Maestro Pro MEA System enables high-throughput neural and cardiac electrophysiology studies.
  • Features 768 recording and stimulation channels with 12.5 kHz data acquisition.
  • Supports 6-, 24-, 48-, 96-, and 384-well plate formats for flexible workflows.
  • Includes integrated impedance measurement for electrode and culture quality assessment.
  • Equipped with a built-in chamber providing CO₂ and temperature control during experiments.
  • Offers automated barcode-based plate tracking and compact benchtop integration.



Instrument Application:

  • Neural network activity recording and analysis.
  • Cardiac electrophysiology and beat pattern monitoring.
  • Drug screening and toxicity assessment.
  • Disease modeling using cultured cells.
  • Stem cell-derived neuron and cardiomyocyte studies.
  • Long-term, non-invasive cell culture monitoring.



The Key Features:

  • Noninvasive cellular activity recording
  • Simultaneous multiwell data acquisition
  • Environmental control for live assays
  • Label-free monitoring of cell function
  • Scalable system for high-throughput studies



FeaturesMaestro ProMaestro EdgeMaestro Volt
Throughput (well format)6, 24, 48, 96, 384*6, 24, 96*6
MEA mode
MEA viability
Impedance mode
Environmental control
Automation API
StimulationElectrical & OpticalElectrical & OpticalElectrical
Omni compatible
*Well format available in impedance only

Additional technical info:



Video Overview:



About us



How we pack





 VIEW SOME OF THE CUSTOMERS WE HELPED HERE


Why do so many customers choose to order from us?



  • We have experience servicing and repairing these instruments.
  • This instrument goes through all the described service steps before shipping. see the questions section below
  • We offer detailed photos and videos of the instruments you buy.
  • We are an approved pre-owned equipment vendor to many large US, Canadian, and EU Universities.
  • We are an approved pre-owned equipment vendor to many Fortune 500 US and International Biopharma companies.
  • Technical sales consultation available
  • Remote installation and instrument operation training may be available.
  • On-site installation may be available in the Boston Area (New England area)
  • US or International shipping is no problem (see the shipping tab on how we pack and feel at ease)




  • Warranty
  • An extended warranty may be available
  • You get after-sales technical support
  • Customer references are available
  • The instrument will be fully functional!
  • Smooth process from the initial quote to order fulfillment




This will ship via freight. Please contact us with your zip code to obtain a shipping quote.


40#
