- Stock: In Stock
- Brand: Thermo Scientific
- Product Code: SM101268-Inc
- Condition: Pre-Owned
For Sale Thermo CellInsight CX7 LZR Confocal High Content Analysis Platform w/ On-Stage Incubator
- Fully Functional
- Serviced & in Stock
- Good cosmetic condition
- Technical sales consultation available
- CONTINENTAL US 120 DAYS WARRANTY & 60 DAYS INTERNATIONAL
- Includes remote instrument setup and training session
Predecessor to: CX7 Pro
Here is what you will receive:

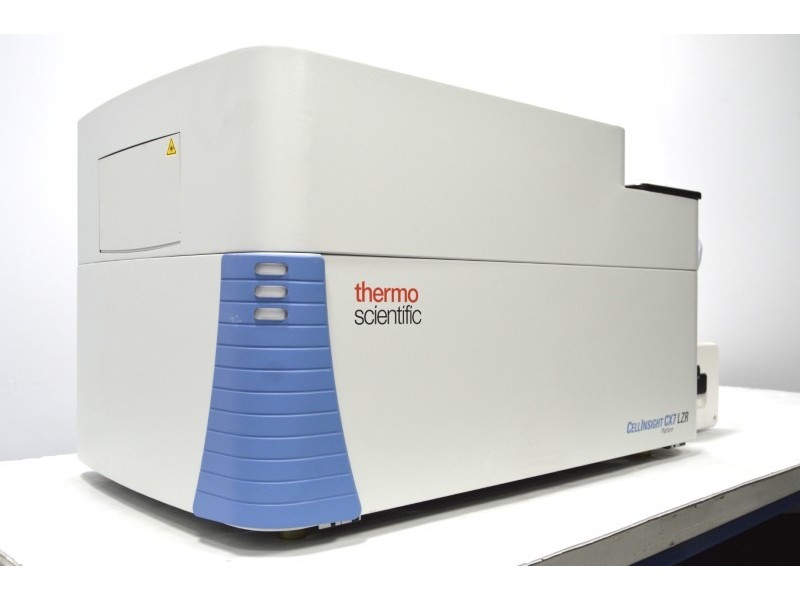

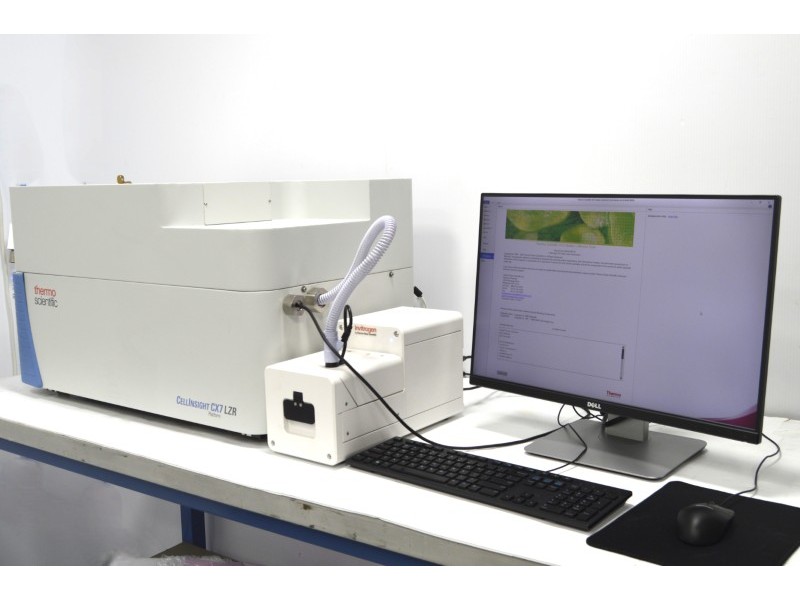

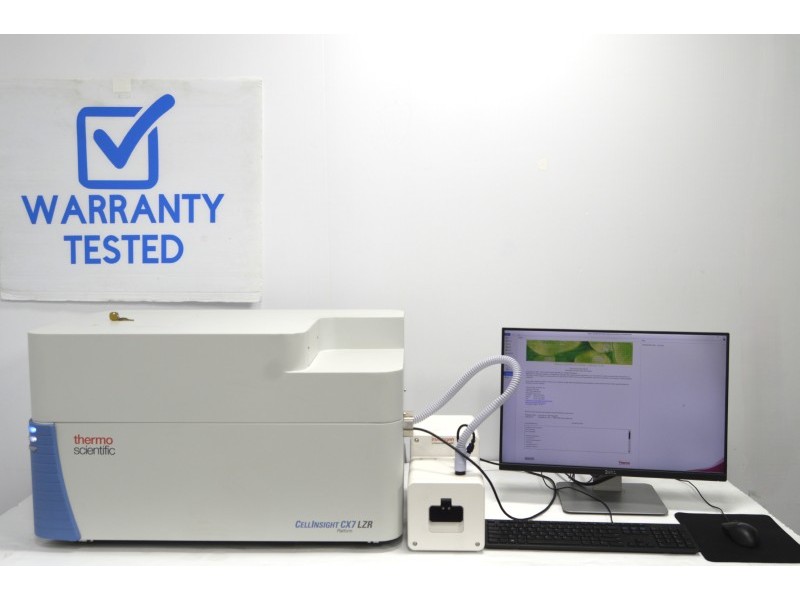

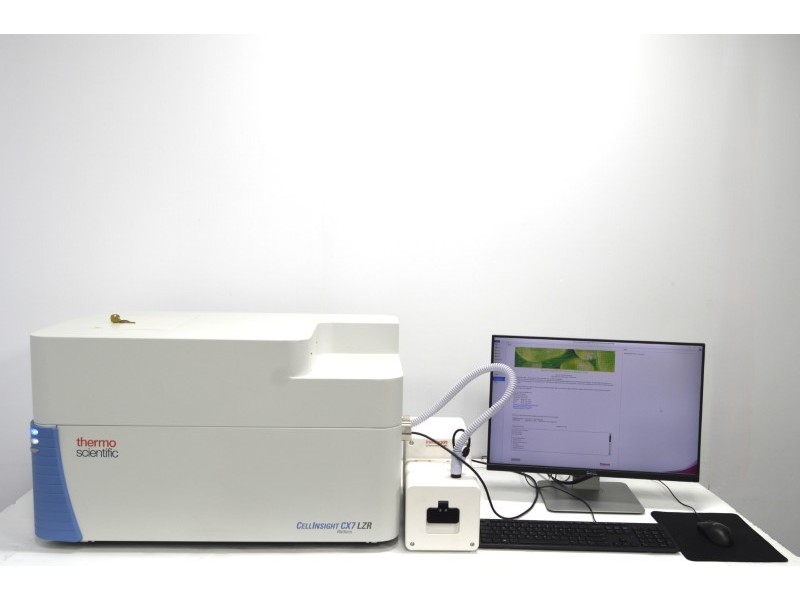

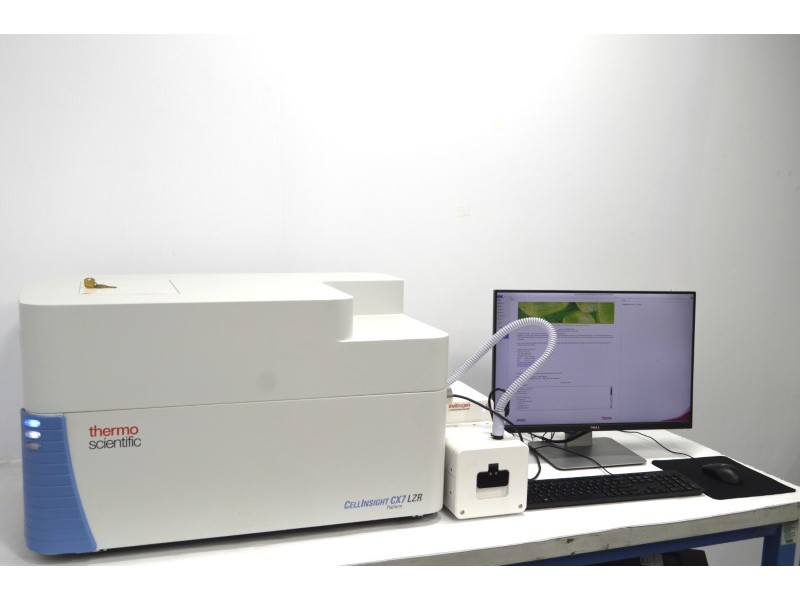

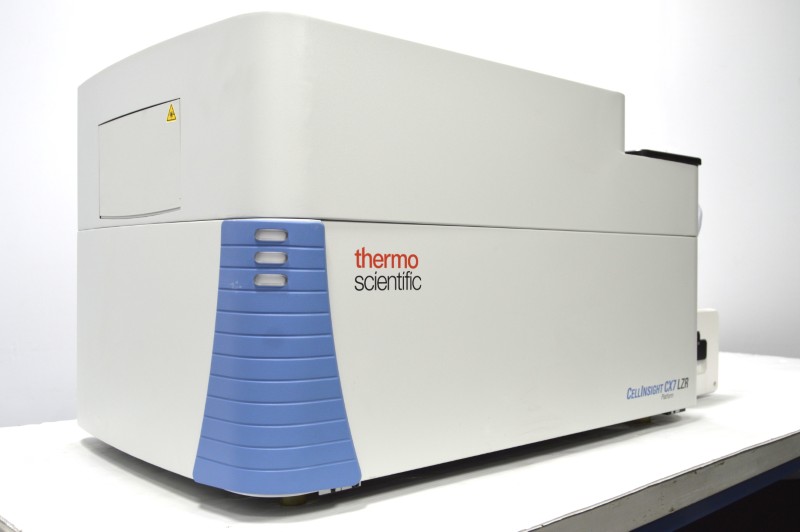

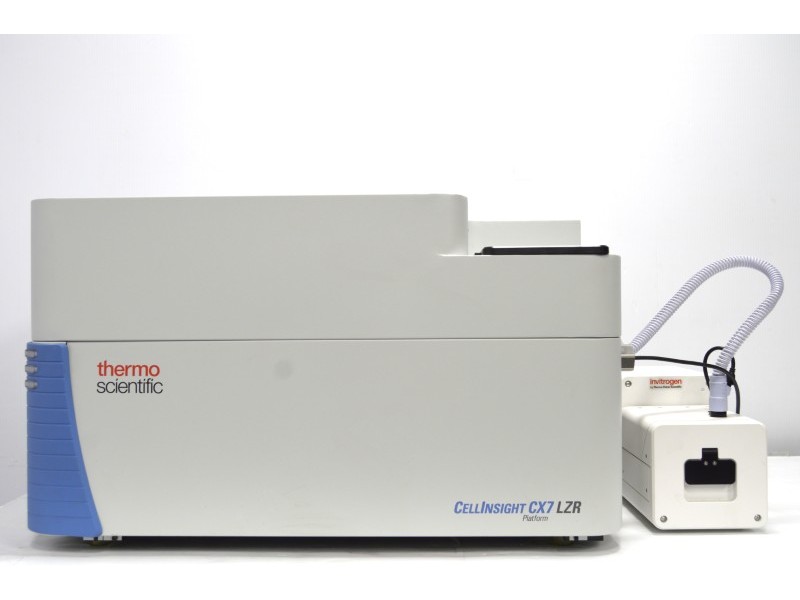

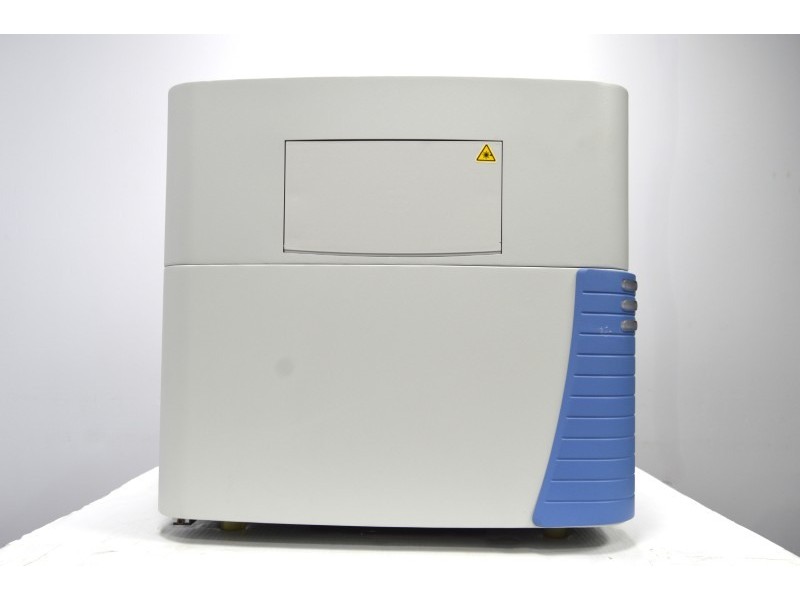

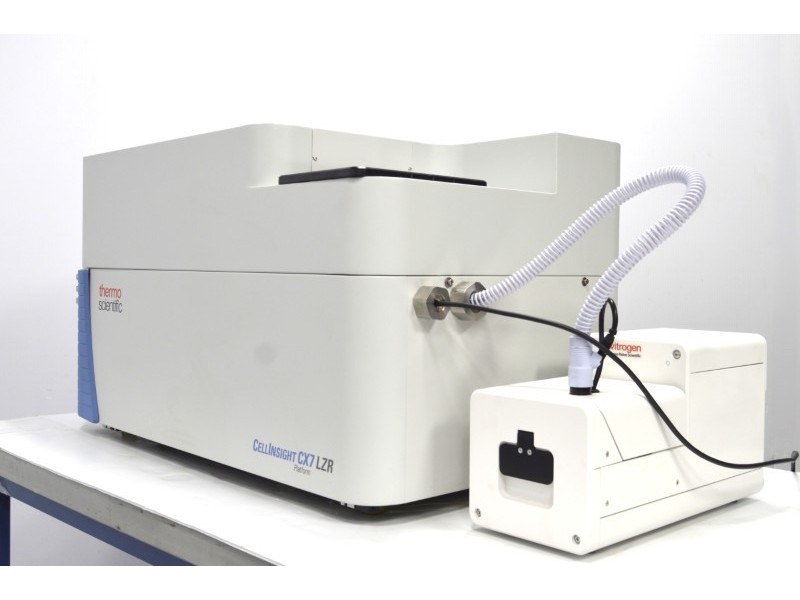

- Thermo Scientific CellInsight CX7 LZR Confocal High Content Analysis Platform

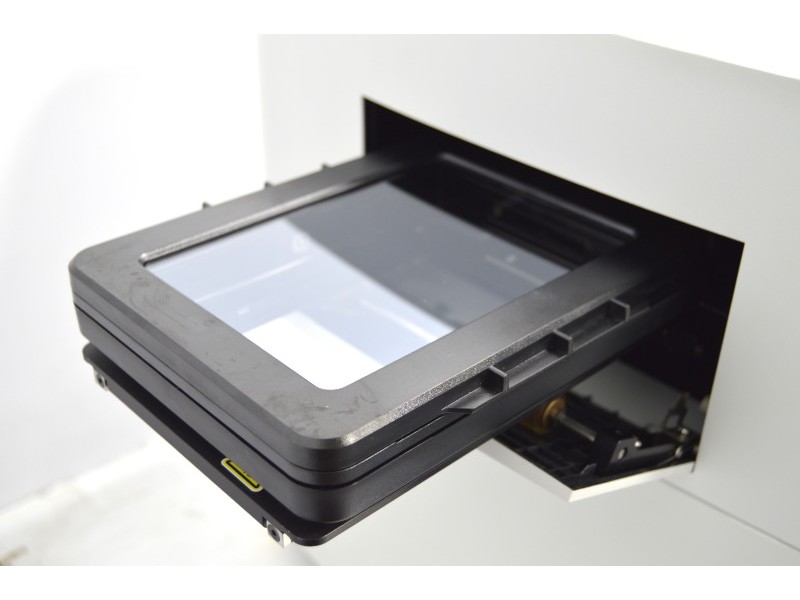

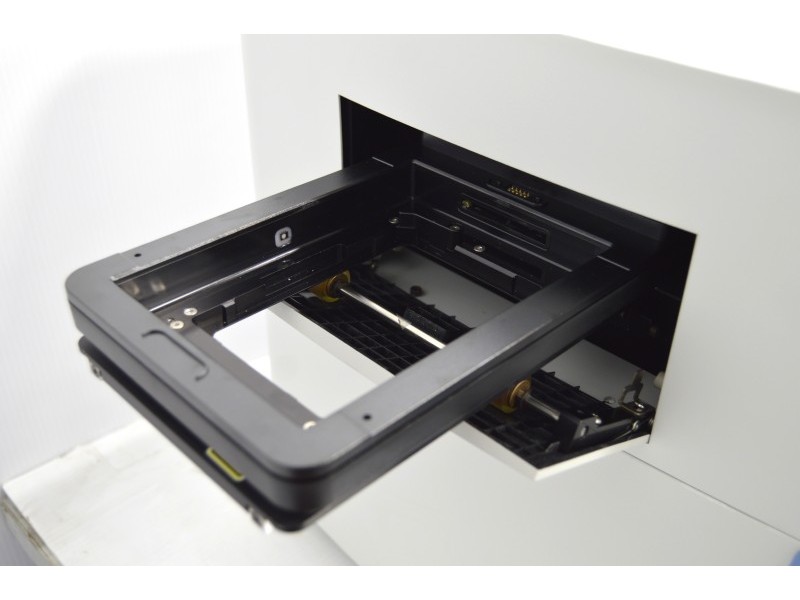

- 4-position microscope slide adapter

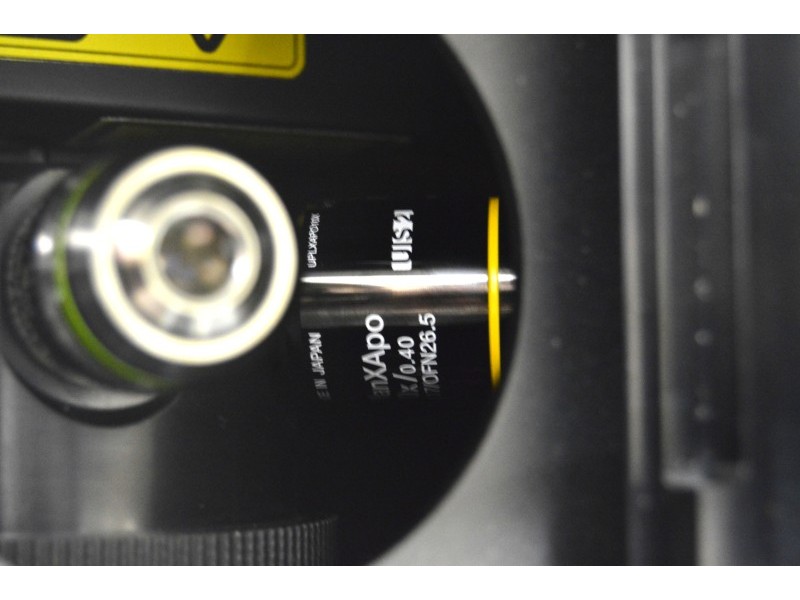

- 10x/0.40 UPlanSApo objective

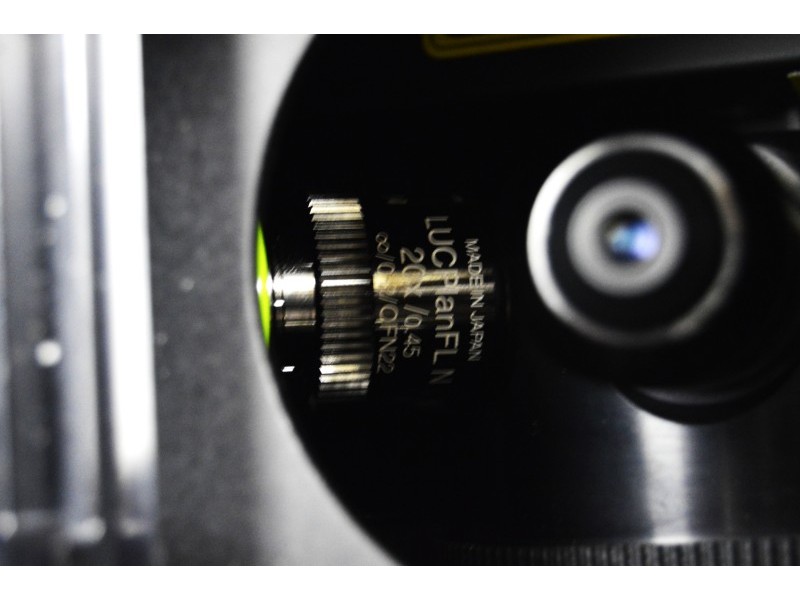

- 20x/0.45 LUCPlanFL N objective

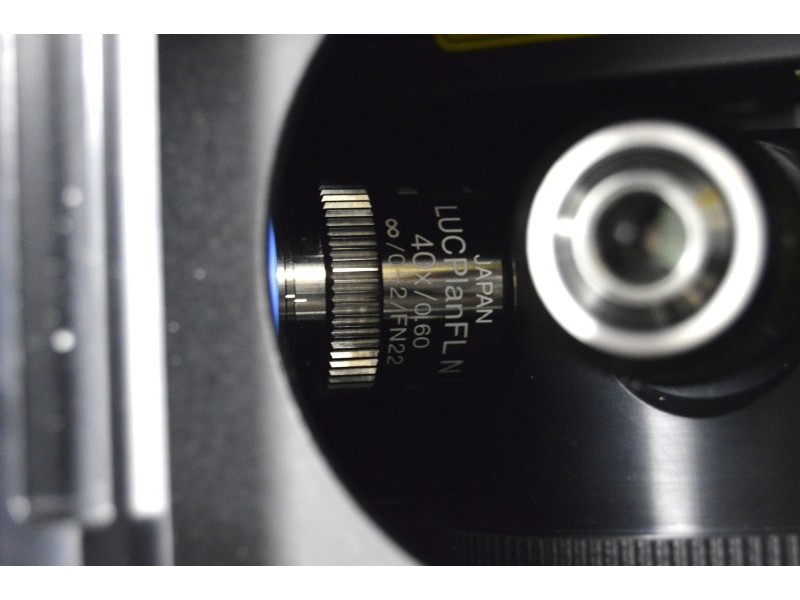

- 40x/0.60 LUCPlanFL N objective (Optional Position)

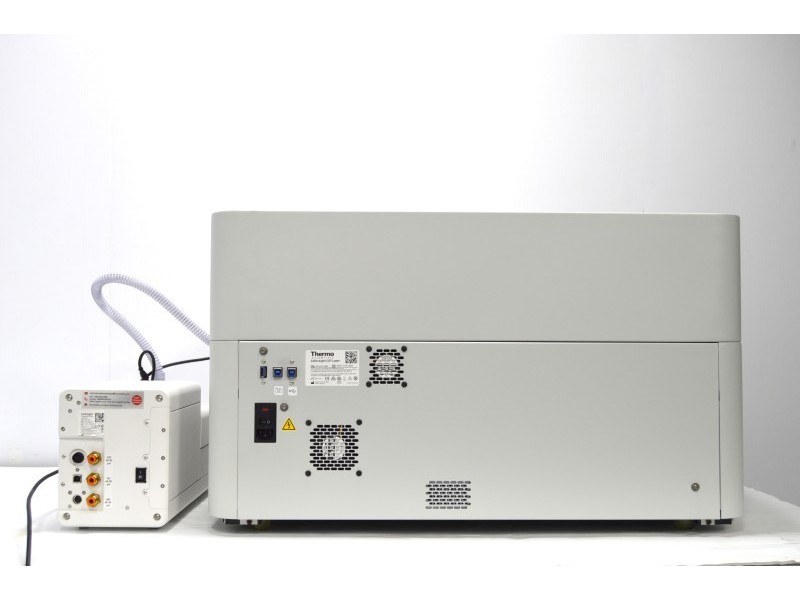

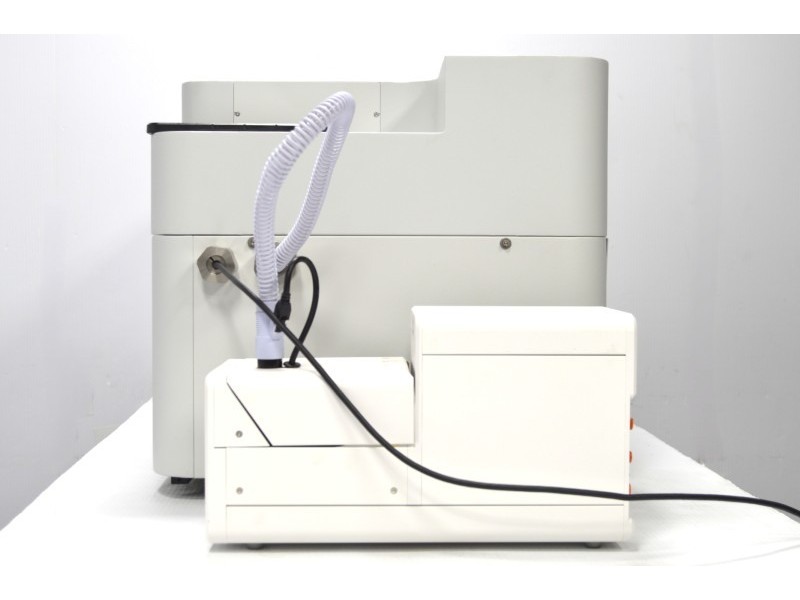

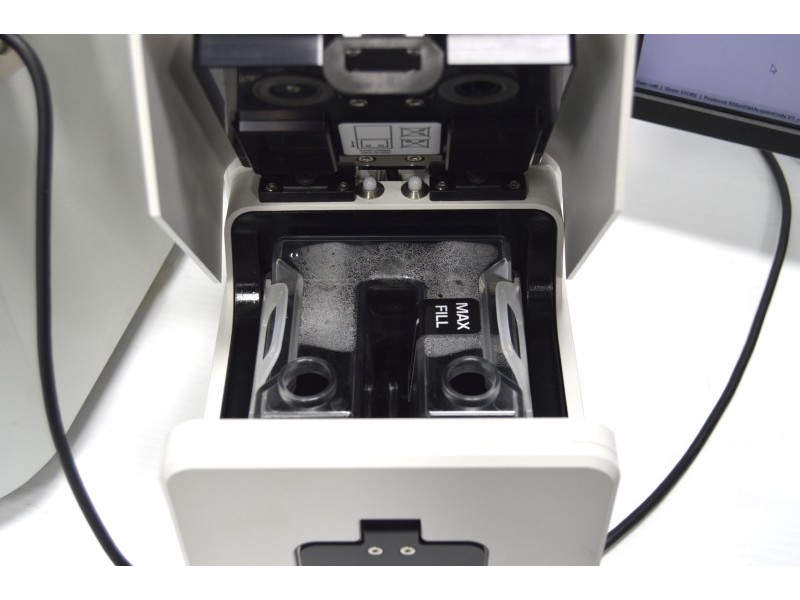

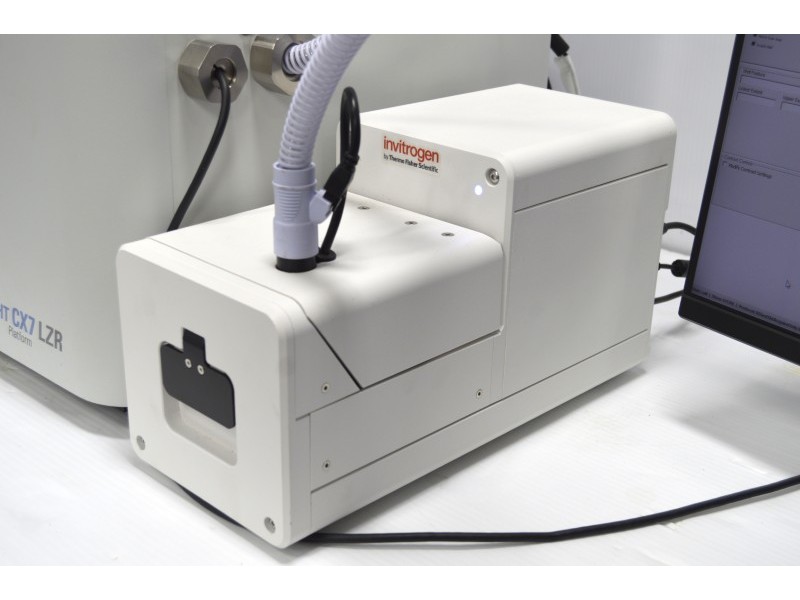

- On-Stage Incubator with Environmental Controller
- Computer with HCS Studio software
- Communication and power cables.
CellInsight CX7 LZR Confocal HCA System Configuration:
- Capable Studies: Widefield, Brightfield, Confocal
- Optics: Infinity corrected system
- Confocal pinhole options: 40 um and 70 um
- Illumination: 7-color laser light source for fluorescence excitation and a White LED for Brightfield
- Wavelength range: The Light Engine houses seven class 3B lasers (405 nm/100 mW; 450 nm/75 mW; 488 nm/120 mW; 561 nm/100 mW; 594 nm/100 mW; 647 nm/120 mW; 785 nm/100 mW)
- Built-in barcode reader-supported symbologies: UPC-A, UPC-E, EAN-8, EAN-13, USS-128, UCC/EAN-128, ISBT 128, Code 39, Code 39, Full ASCII Conversion, Interleaved 2 of 5
- Microplate Types: clear bottom 96-, 384-, and 1536-, slides as well with insert adapter (up to 4 glass microscope slides)
- Objectives: 10x/0.40 UPlanSApo, 20x/0.45 LUCPlanFL N, 40x/0.60 LUCPlanFL N (3 position objective changer)
- Focus resolution: Sub-micron step size with advanced micro-stepping and double-stepping capabilities
- Live-cell imaging: HCA Onstage Incubator
Onstage Incubator Configuration:
- Compatible vessels: 96-, 384-, and 1536-well plates; chamber slides.
- Temperature range: ambient to 40 DegC
- CO2 range: 0–20%
- O2 range: 0% to ambient
- Humidity range: >60% relative humidity at 37 DegC
Customization/Options:
- Other Objectives are available; please inquire about available stock on hand.
- Orbitor RS2 Microplate Mover
Testing performed by our in-house service team:
- We test the power and initialization to ensure proper system startup.
- We verify communication and control between the platform and software for smooth operation.
- We clean and inspect the electronics and optical systems.
- We clean and lubricate the mechanical systems.
- We confirm that the auto exposure function adjusted lighting levels effectively.
- We test the autofocus to ensure sharp, accurate focusing without manual input.
- We evaluate manual focus for precise adjustments during imaging.
- We confirm that manual exposure adjustments allow for customized lighting control.
- We test plate movement for accurate and smooth positioning.
- We verify the objective selection to ensure proper magnification changes.
- We assess brightfield imaging for clear, non-fluorescent sample visualization.
- We test widefield fluorescence for high-quality broad-field imaging.
- We evaluate confocal images to confirm proper alignment and functionality.
- We verify environmental control and accuracy of temperature, humidity, CO2, & O2.
- We perform PM and final QC before shipping.
Instrument Overview:
- The Thermo CellInsight CX7 Laser HCS Platform offers advanced high-content screening with laser-based illumination.
- Supports multi-channel fluorescence imaging, brightfield, widefield, and confocal modes for diverse assay needs.
- Features integrated plate handling for efficient automation, compatible with 96, 384, and 1536-well plates.
- The CX7 Platform is equipped with high-quality objective lenses for versatile magnification options.
- Integrated on-stage incubator enables live-cell imaging with control of temperature, CO₂, and humidity.
- Compact, automated platform delivers high-throughput imaging with minimal manual intervention.
Instrument Application:
- Live-cell imaging under controlled conditions
- High-content drug screening and toxicology
- Phenotypic profiling in cell biology
- Multiplexed fluorescence imaging of complex assays
The Key Features:
- Integrated HCS system with laser-based imaging.
- Automated 3-position objective changer.
- Wide fluorescence spectral range from blue to near-infrared.
- Ability to image multi-dimensional structures in three-dimensions.
- Multi-mode plate compatibility for flexibility.
- Integrated on-stage incubator
- Advanced software for data visualization.
Additional technical info:
- Brochure: CellInsight CX7 HCA Platform Brochure
- Manual: CellInsight CX7 PRO HCS Platform Manual
- Brochure: HCA Onstage Incubator Brochure
- Manual: HCA Onstage Incubator Manual
Video Overview:
