Approved Vendor to many US, Canada, and EU Universities
International Shipping
Customer References Available
Training and Installation Options Available



  • Stock: In Stock
  • Brand: Infors HT
  • Product Code: 68626
  • Condition: Pre-Owned
$26,995.00
CLICKABLE TABS BELOW

For Sale Infors HT Labfors 5 Bench-Top Bioreactor System for Microorganisms 2-Fold, Jacketed 3.6 L Vessels



  • Fully Functional
  • Serviced & in Stock
  • Current Model
  • Made in 2021
  • Good cosmetic condition
  • Technical sales consultation available
  • WARRANTY




Here is what you will receive:

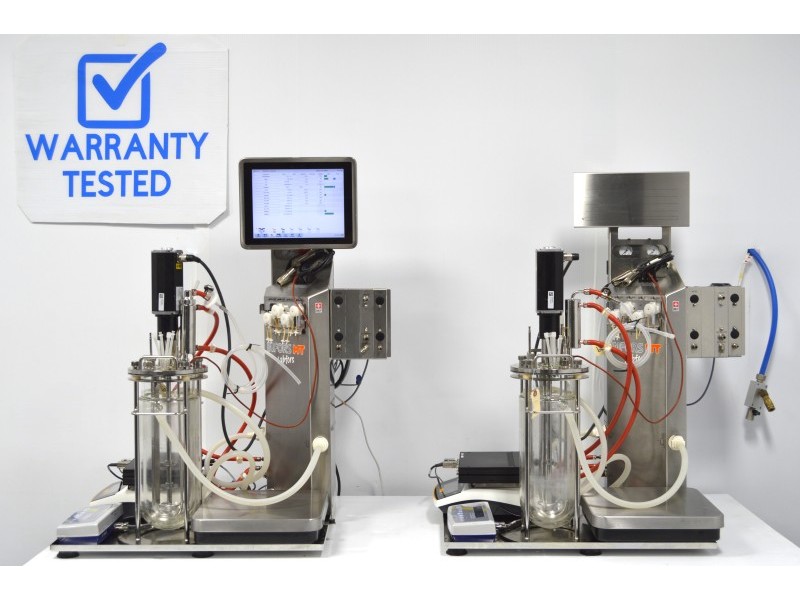

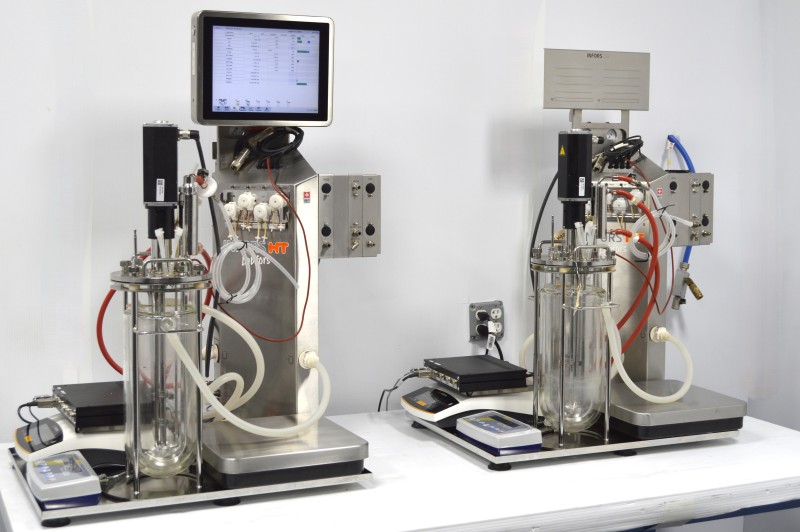

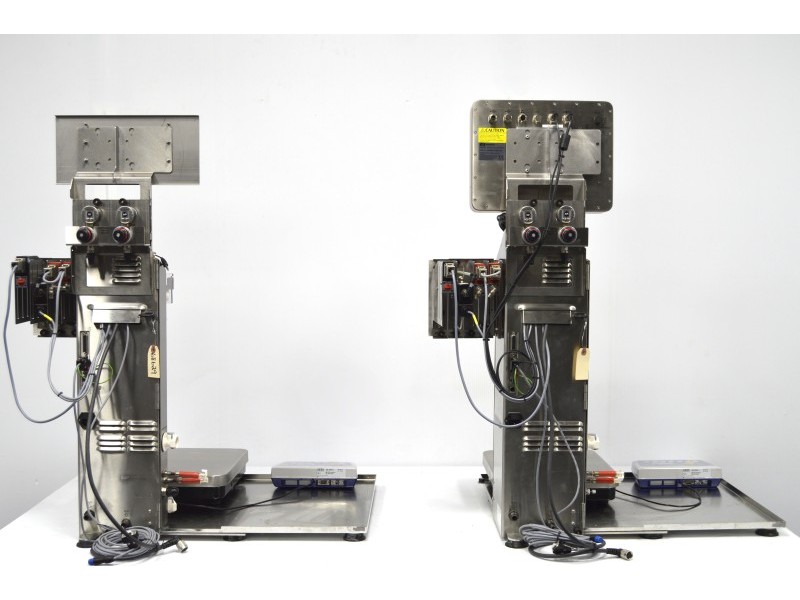

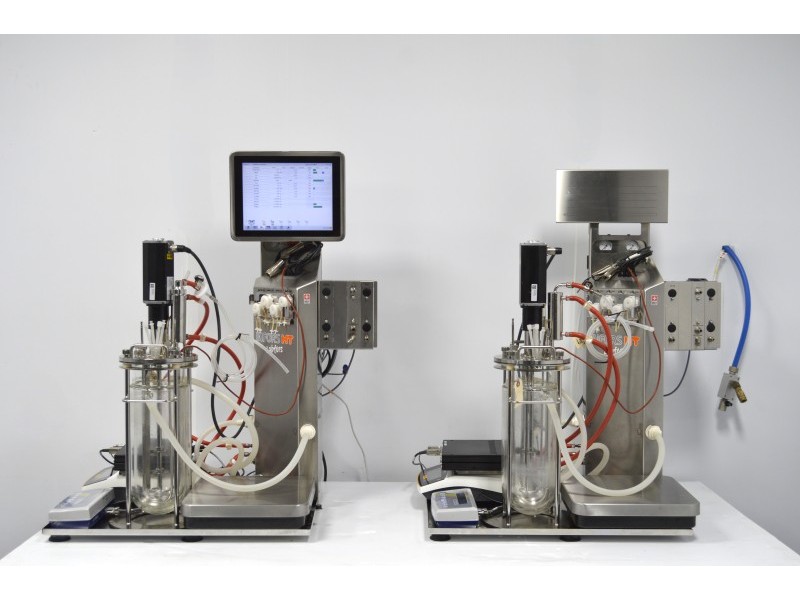

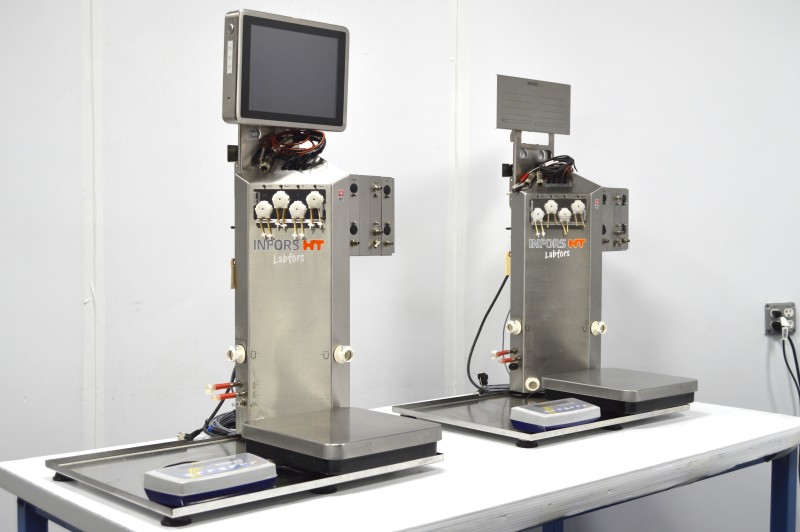

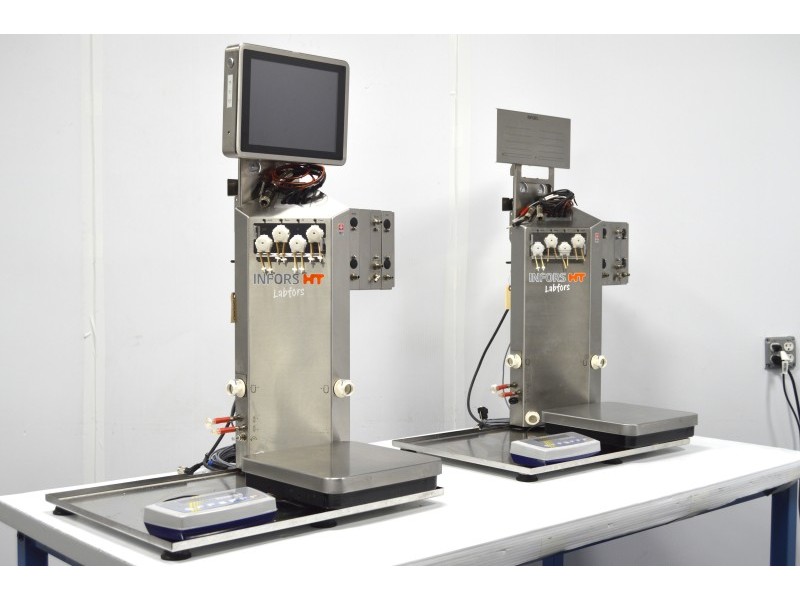

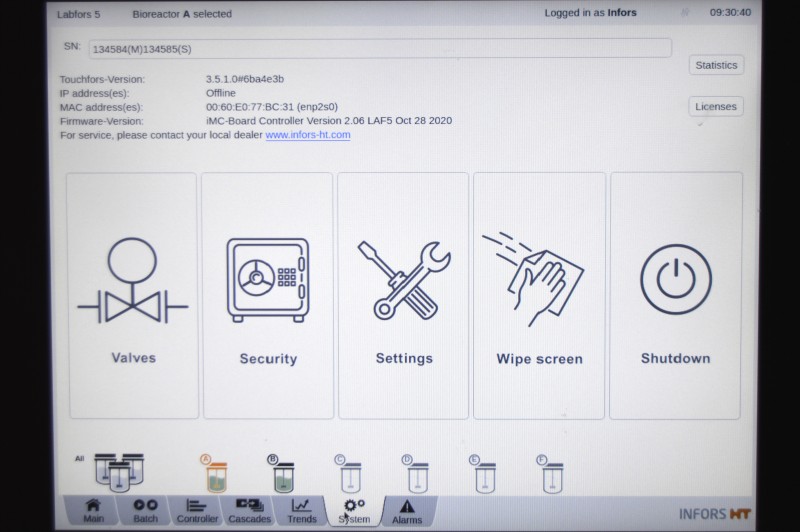

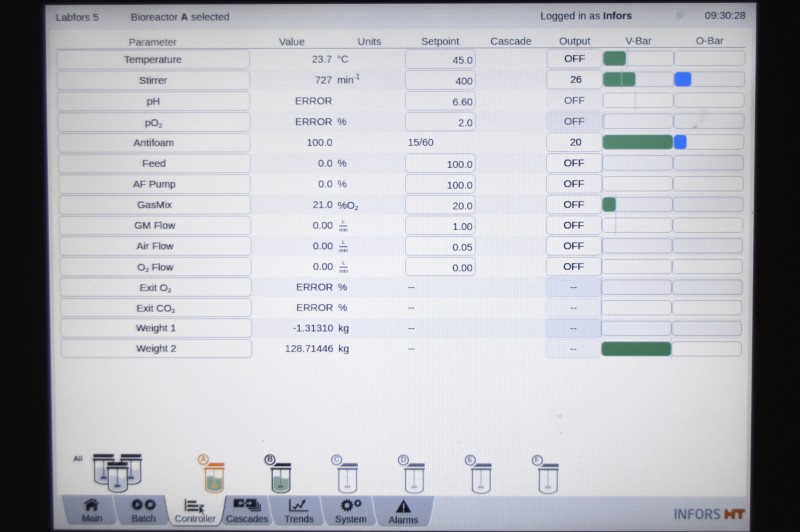

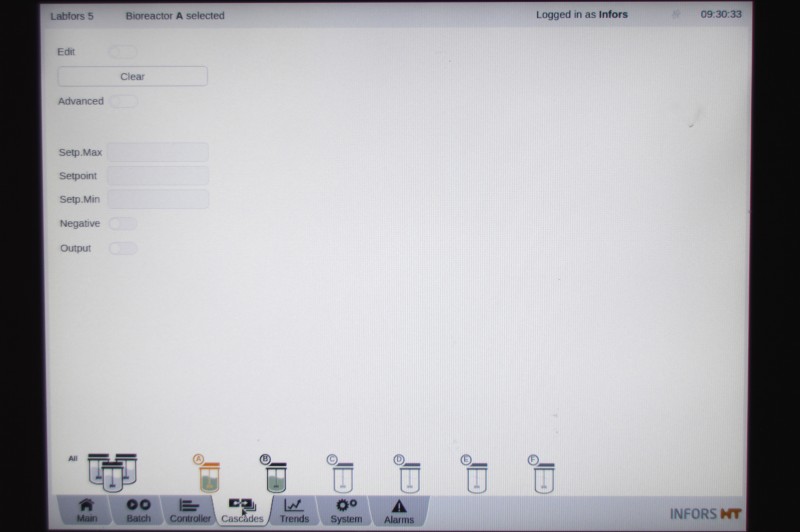

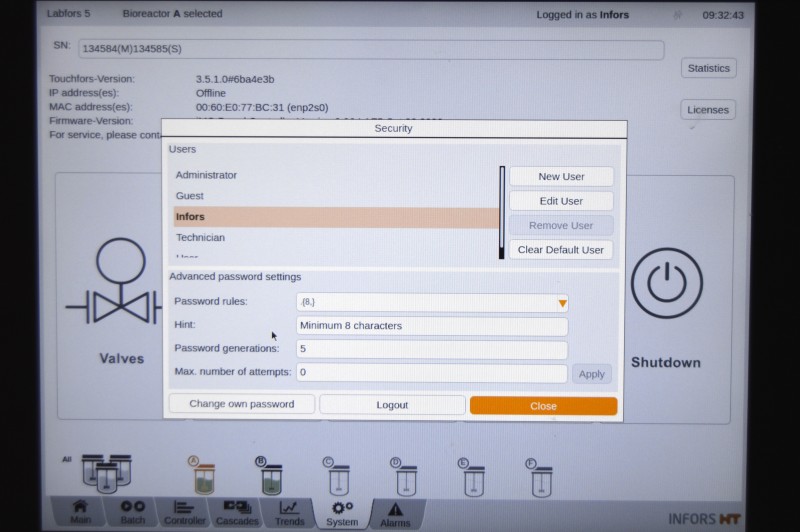

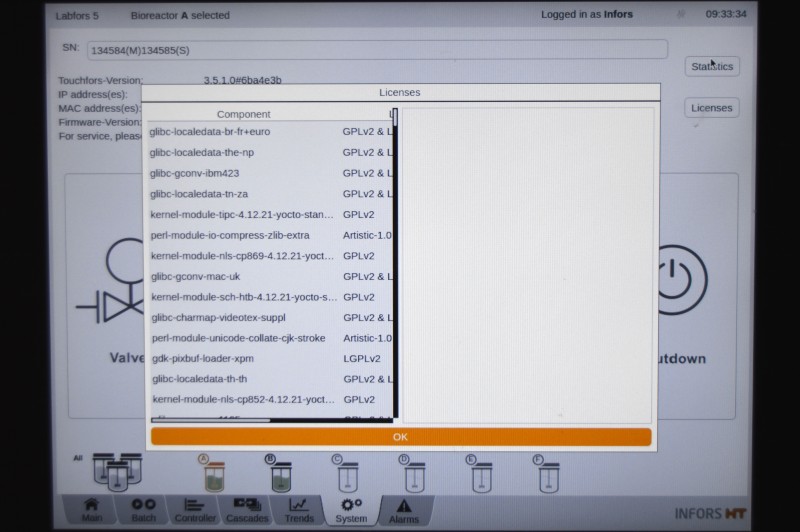

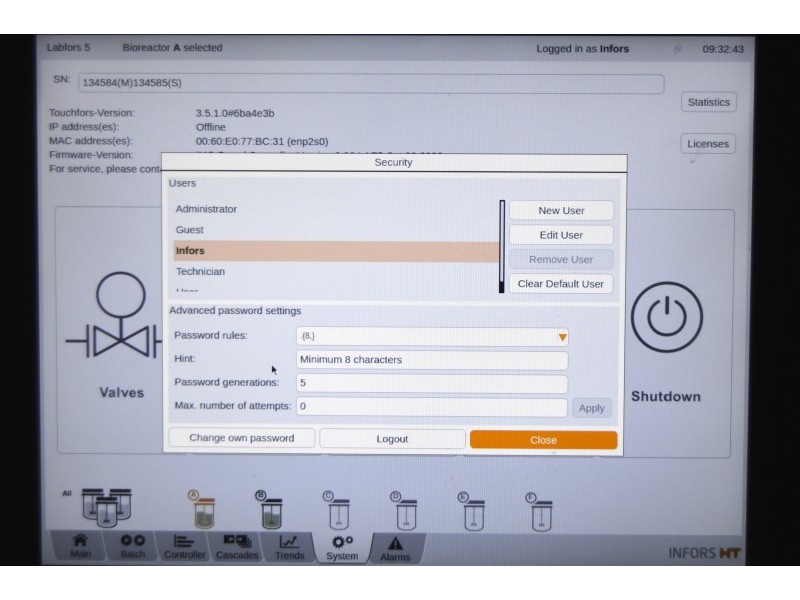

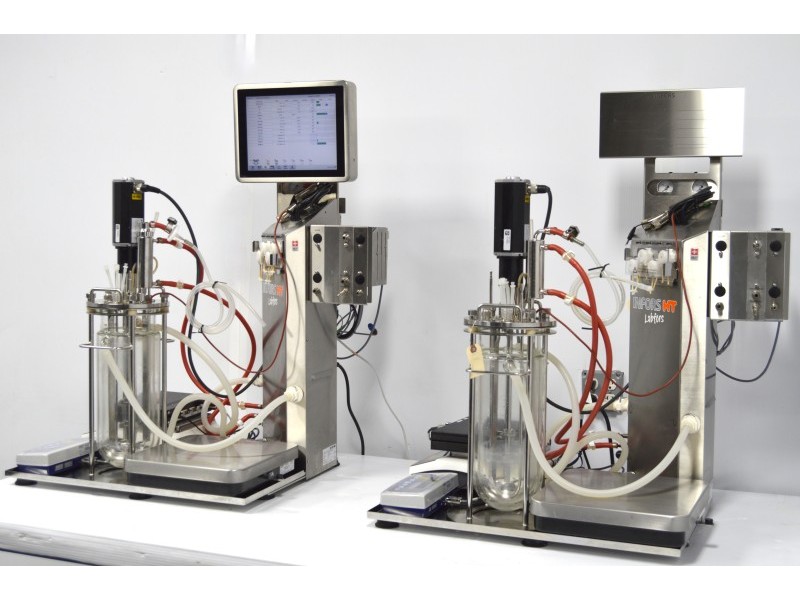

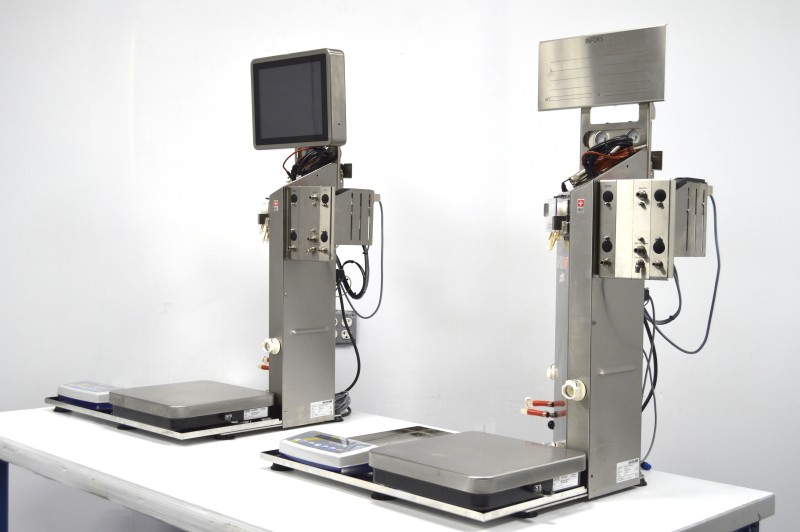

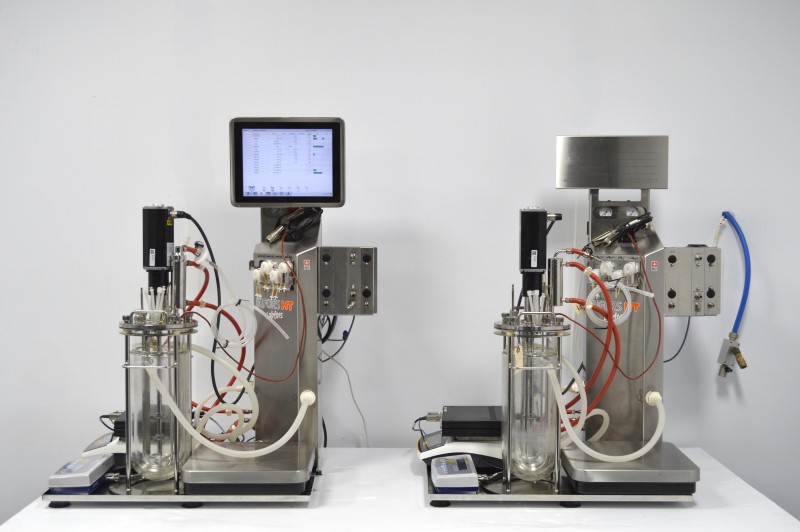

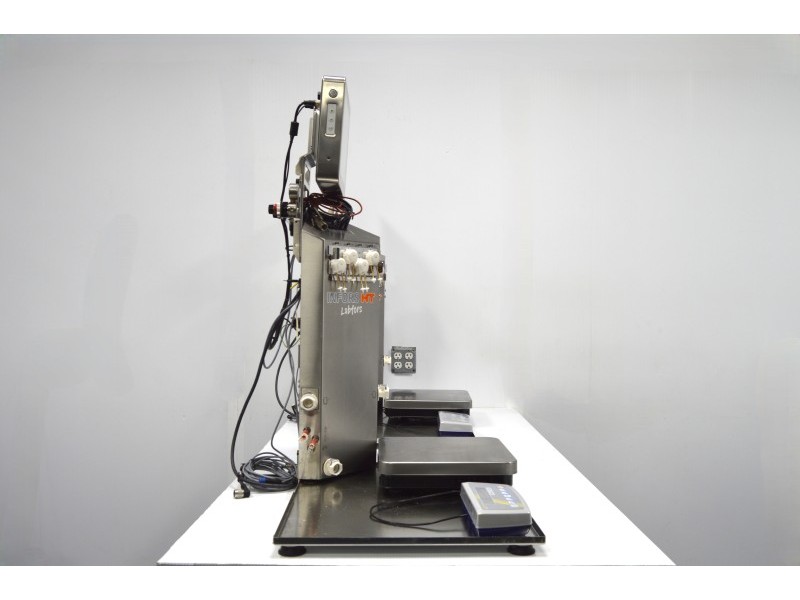

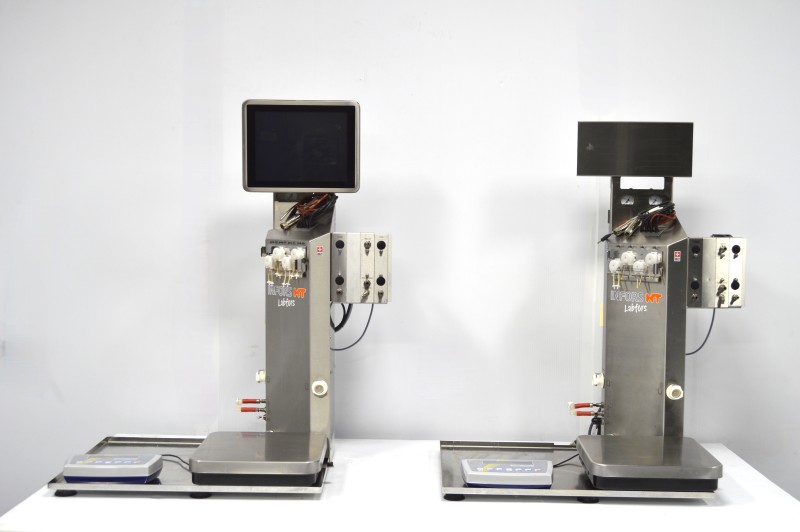

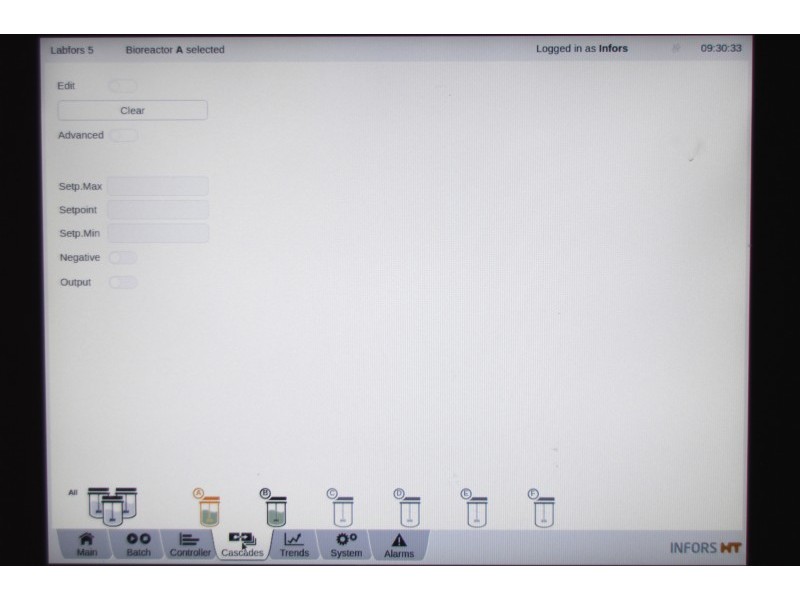

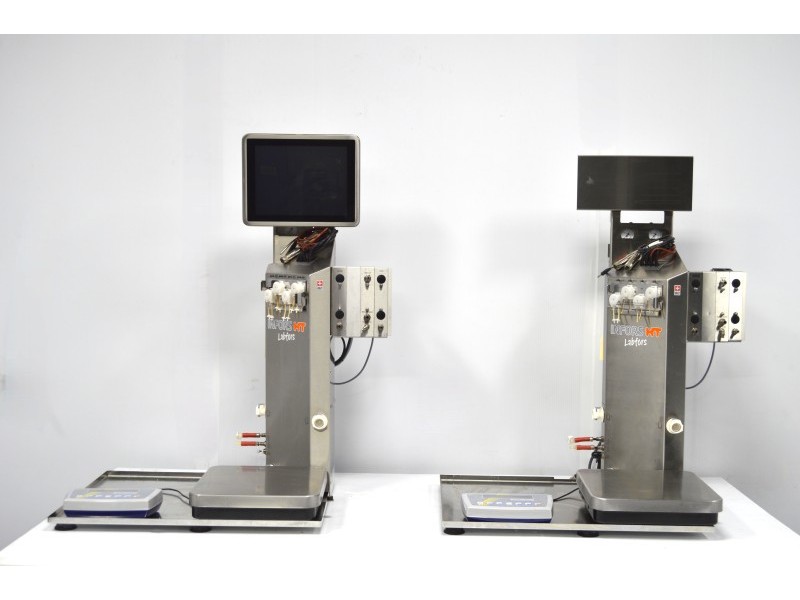

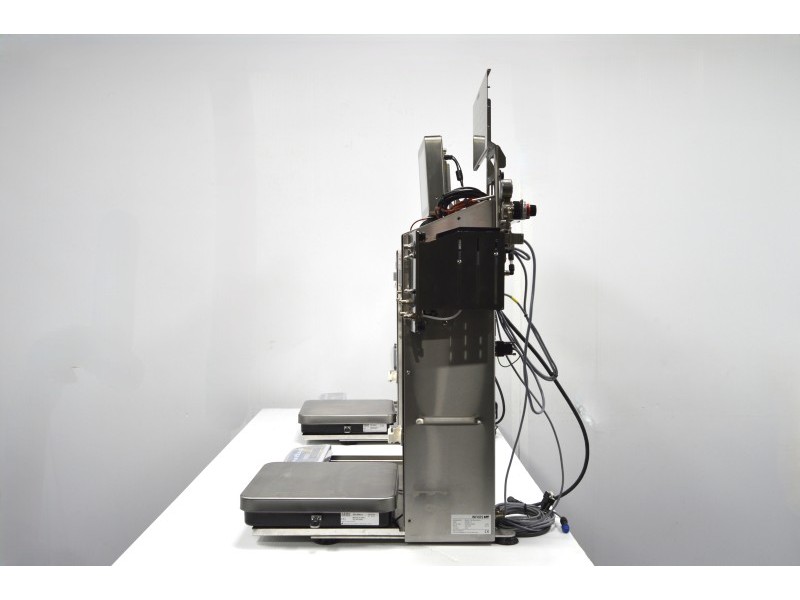

  • Infors HT Labfors 5 BioReactor master unit with 12" color touch screen Qty.:1
  • Infors HT Labfors 5 BioReactor satellite unit Qty.:1

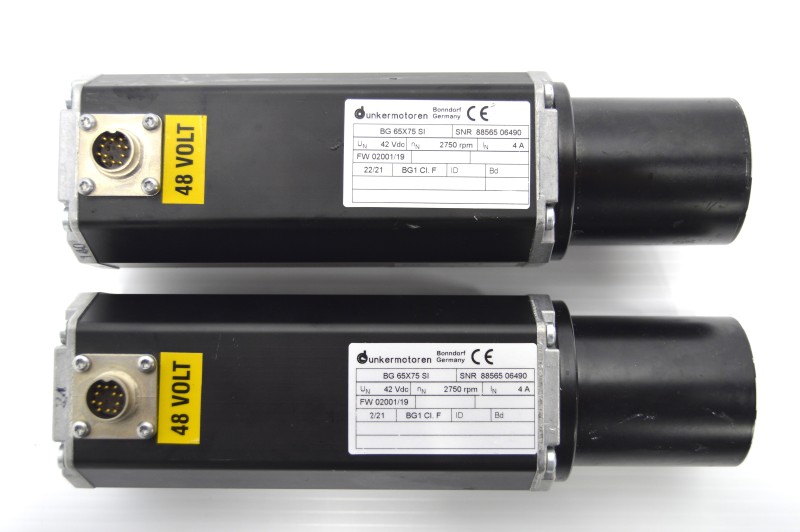

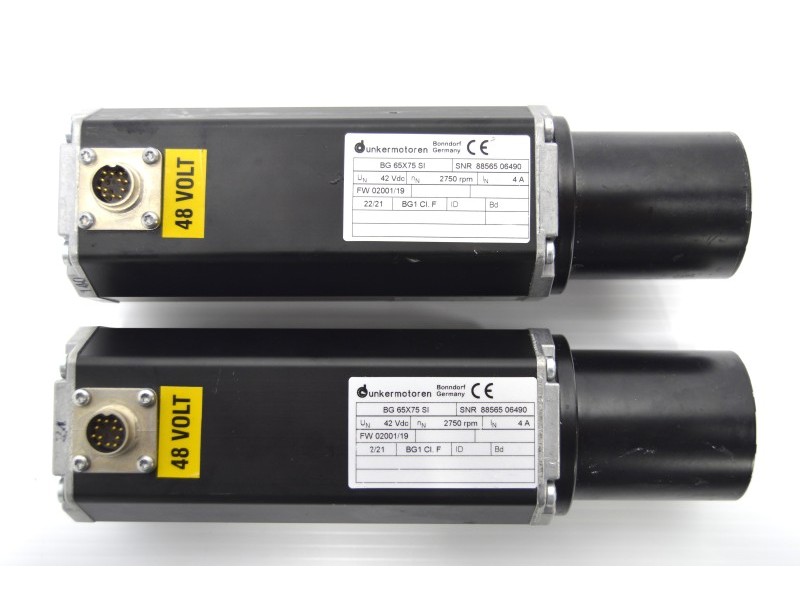

  • Dunkermotoren 48V Stir Motor, 1,200 RPM max Qty: 2

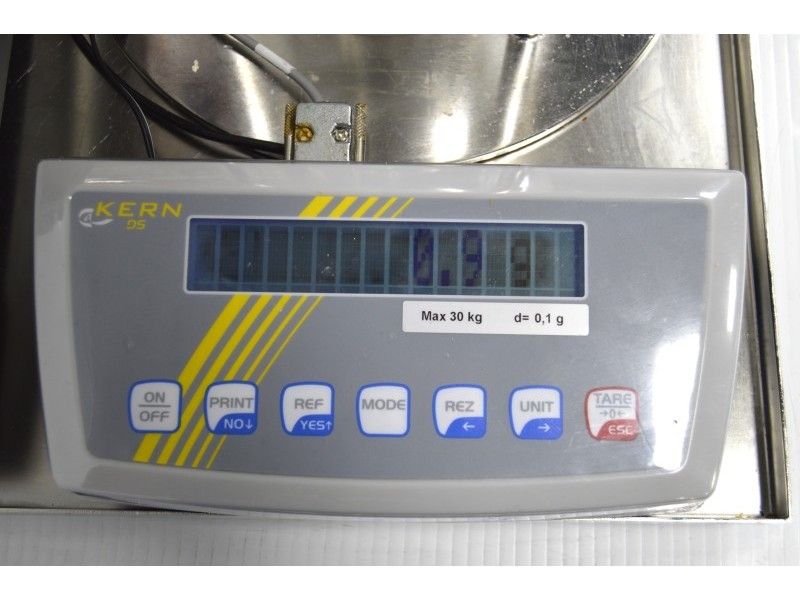

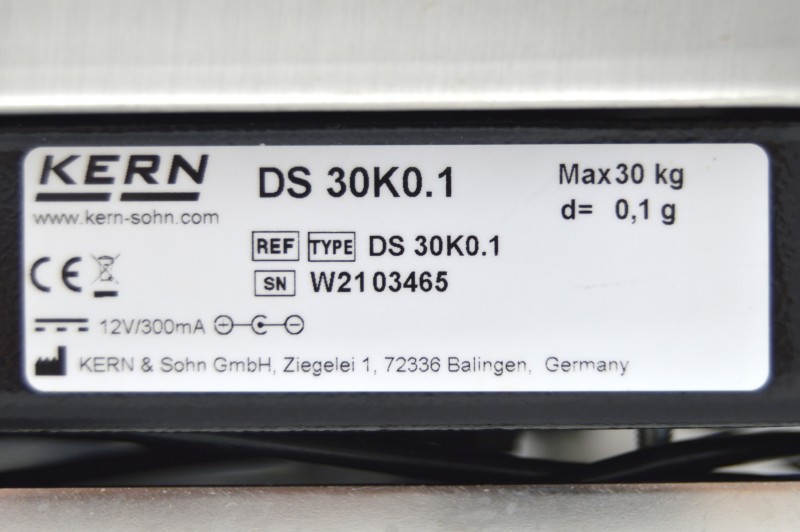

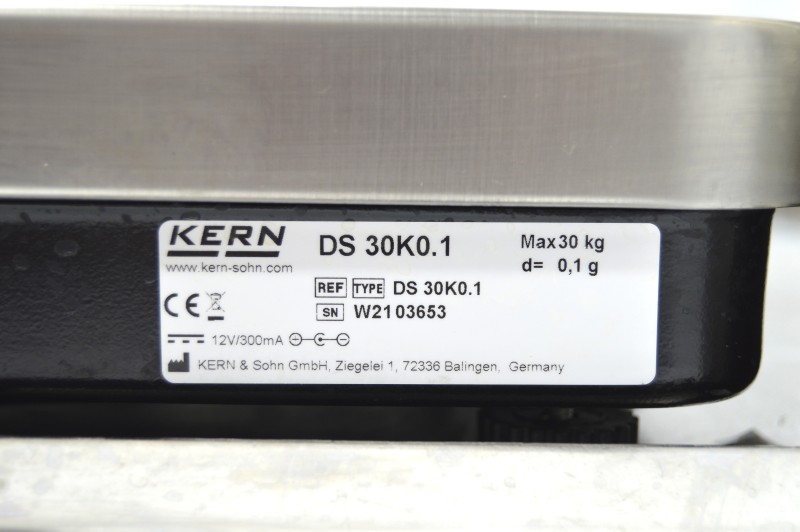

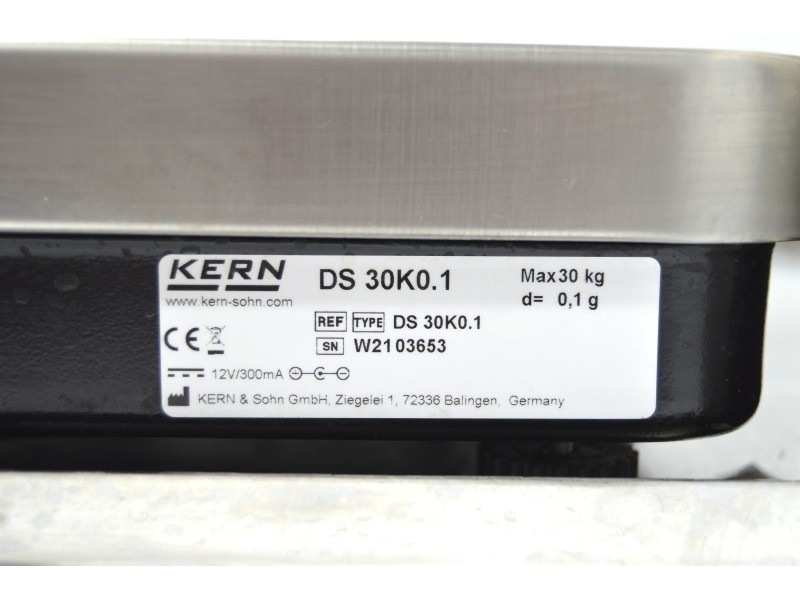

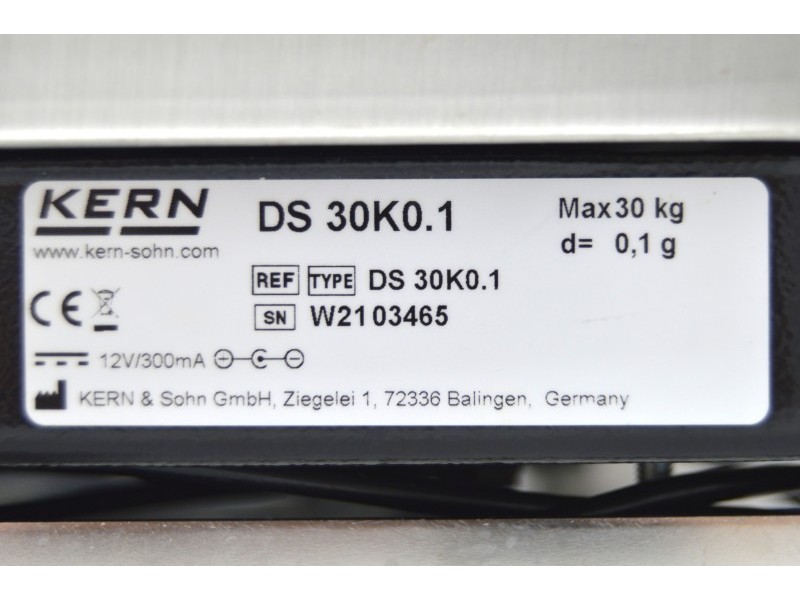

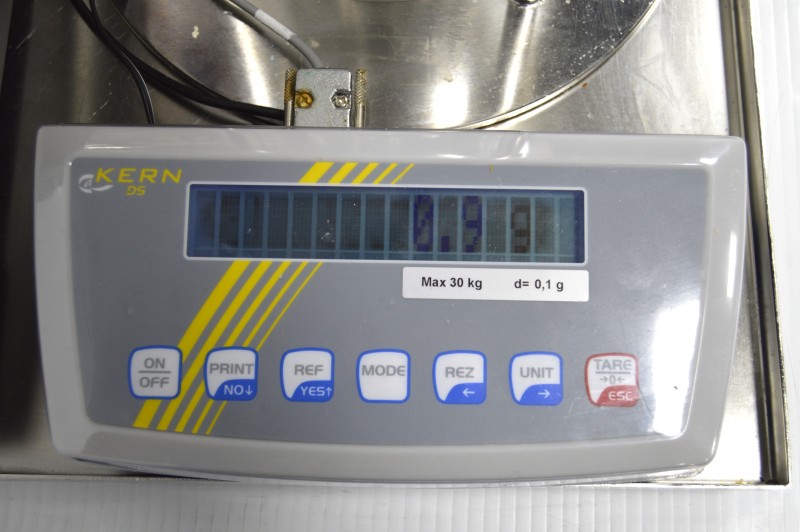

  • Kern DS balance, Max. 30kg Qty.: 2

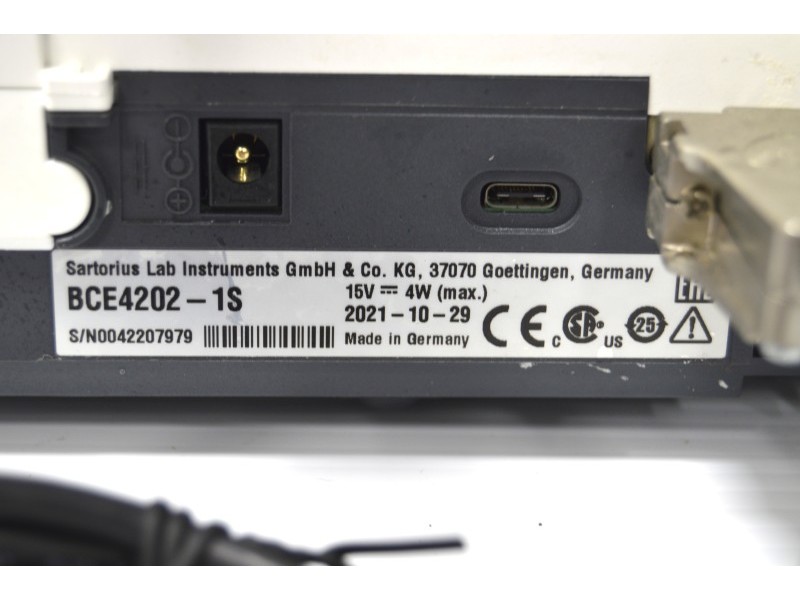

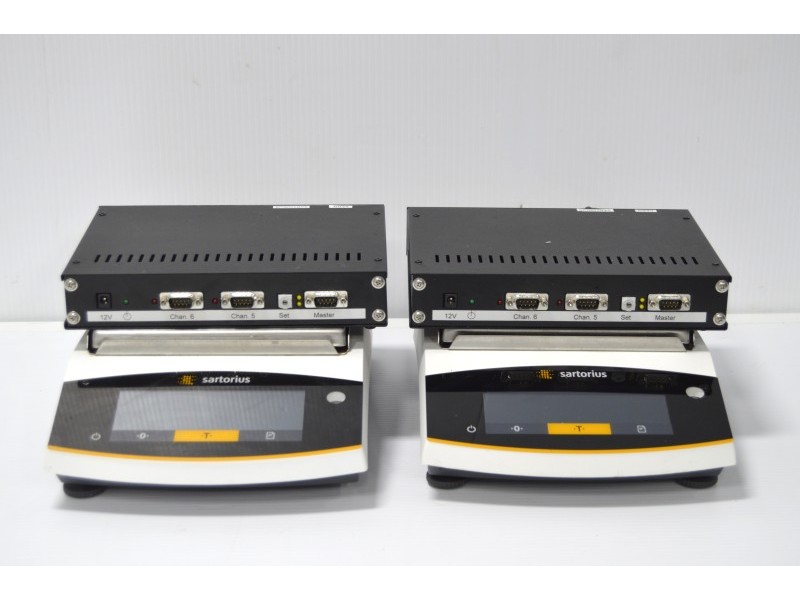

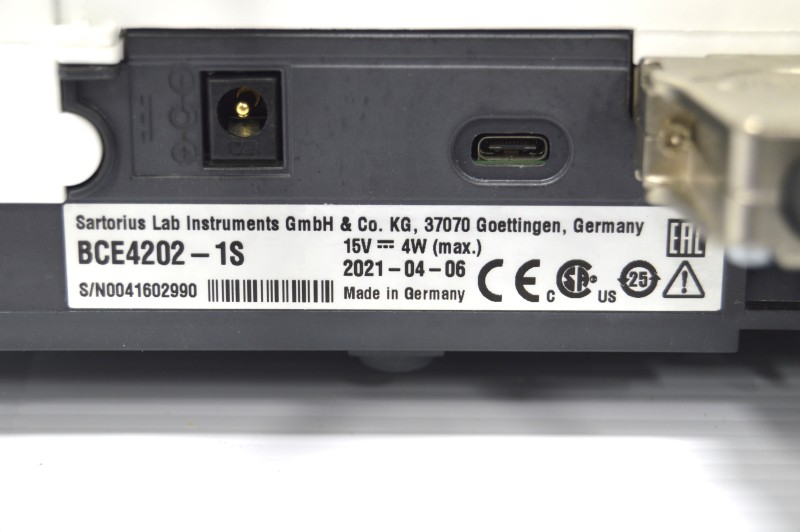

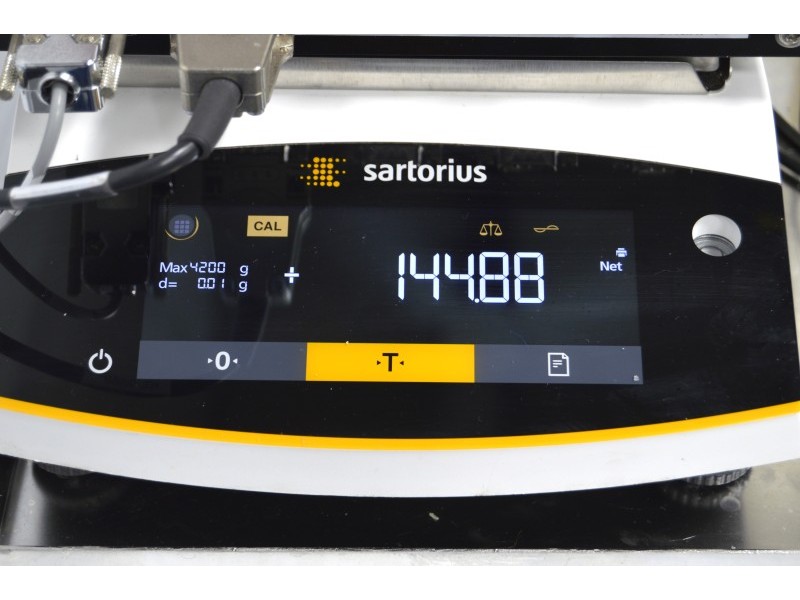

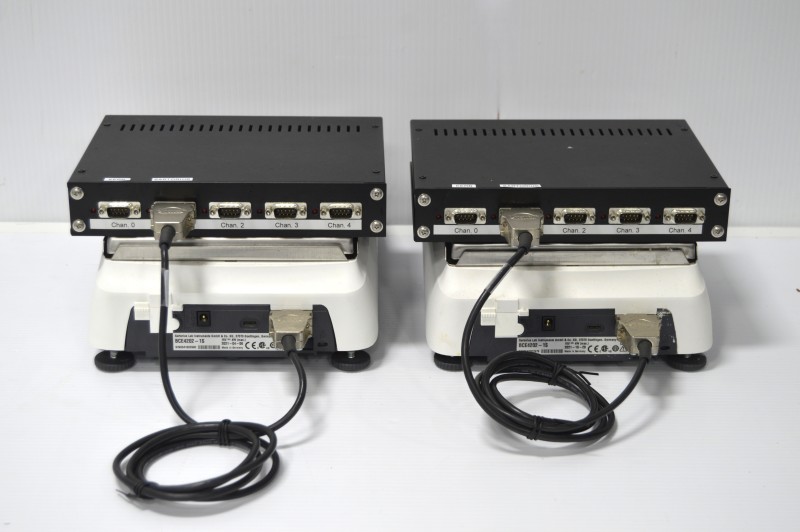

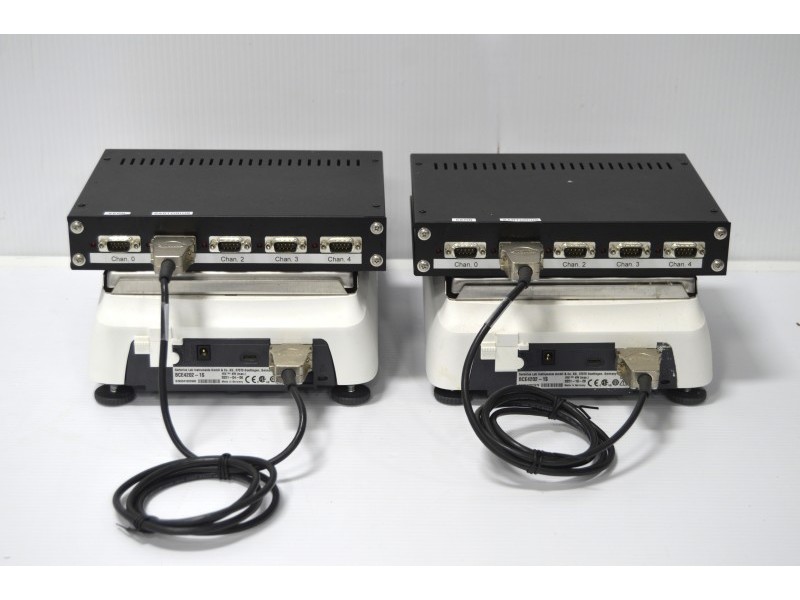

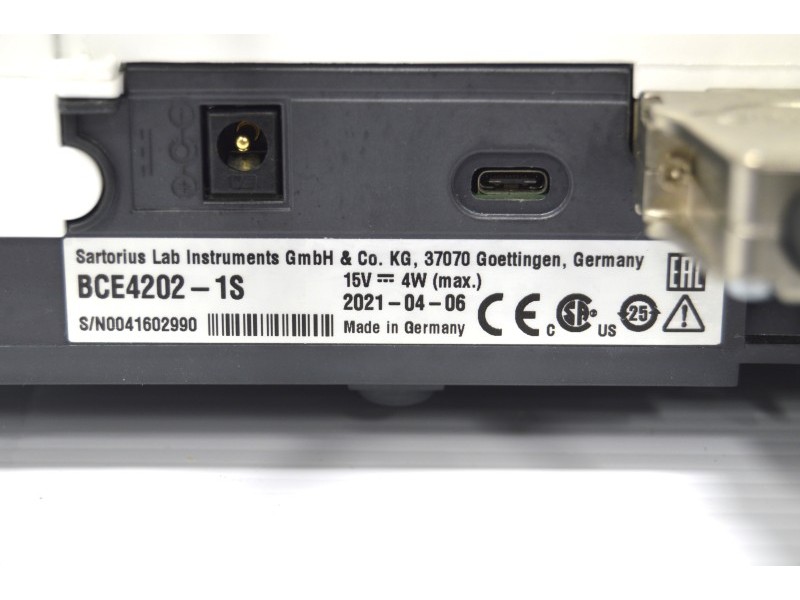

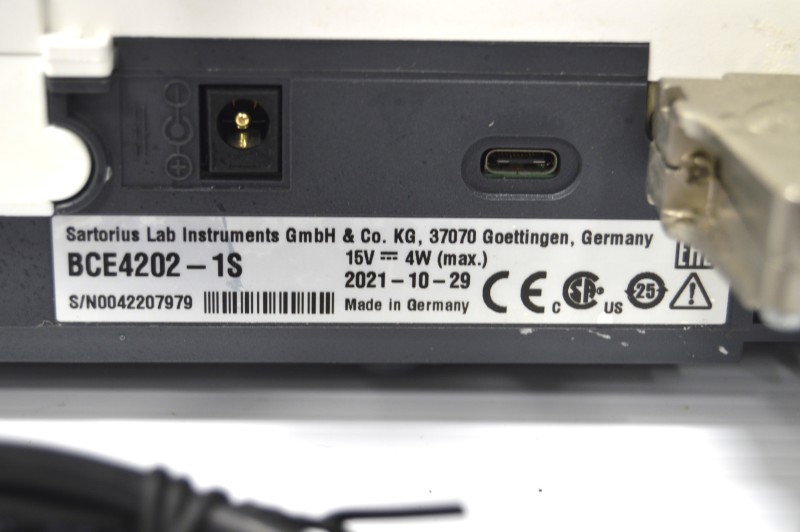

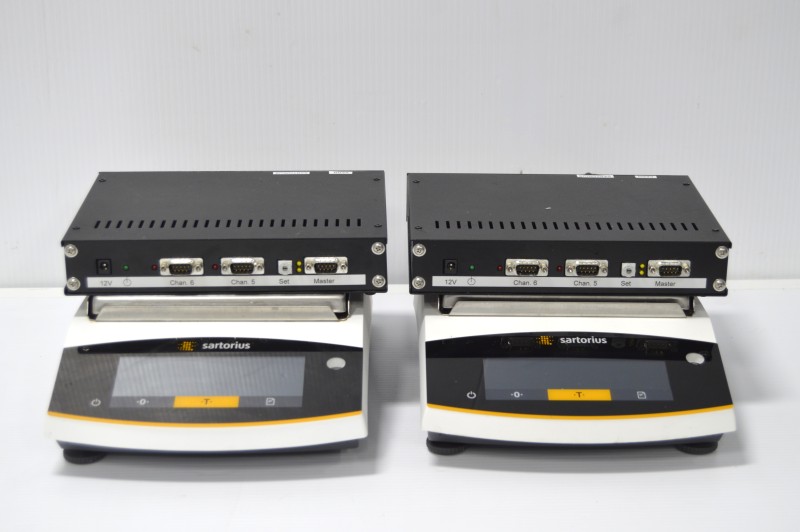

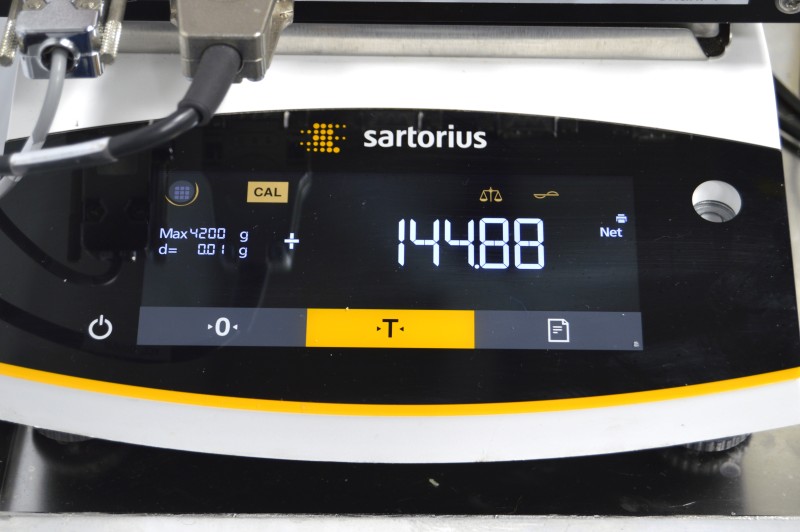

  • Sartorius Entris II balance, Max. 4.2 kg Qty.: 2

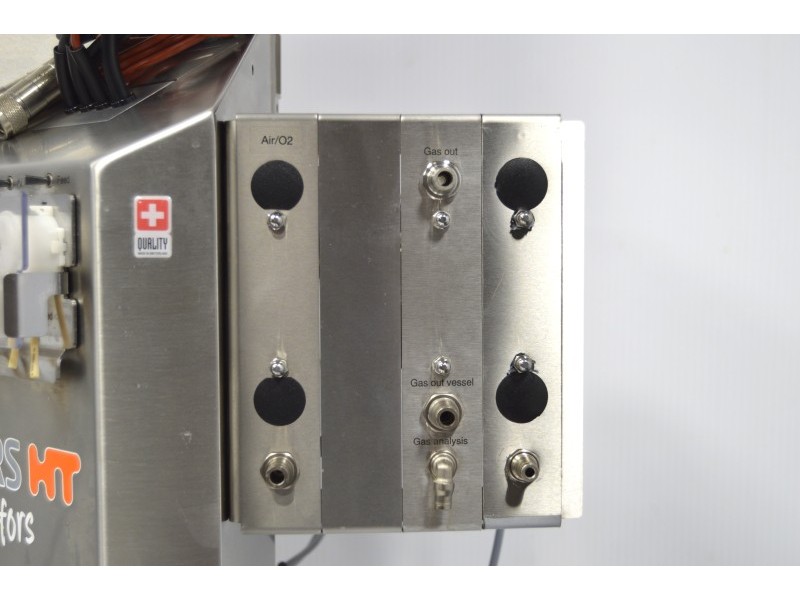

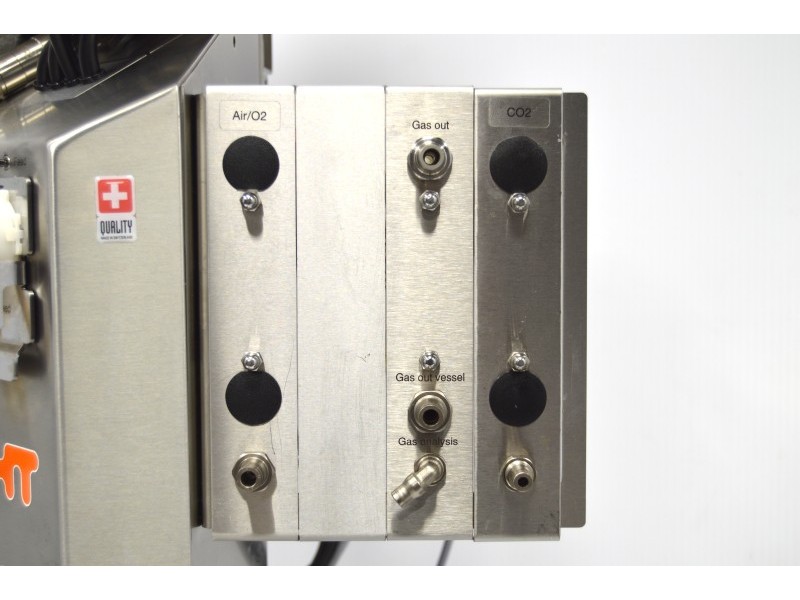

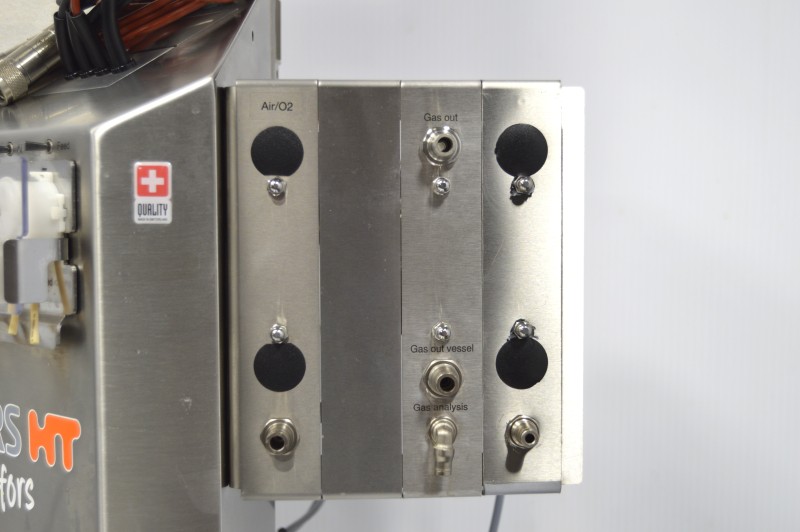

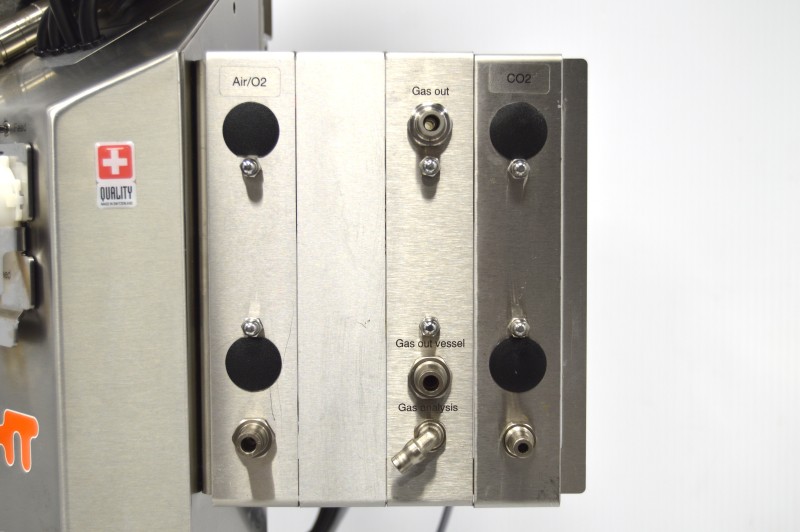

  • Brukert Control Valve, Gas out, Vessel out, Gas Analysis Qty.:2
  • Base tray Qty.:2

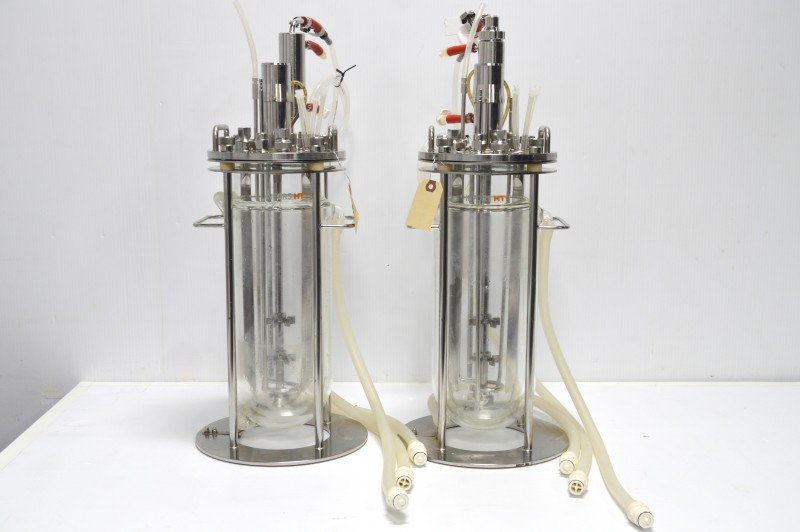

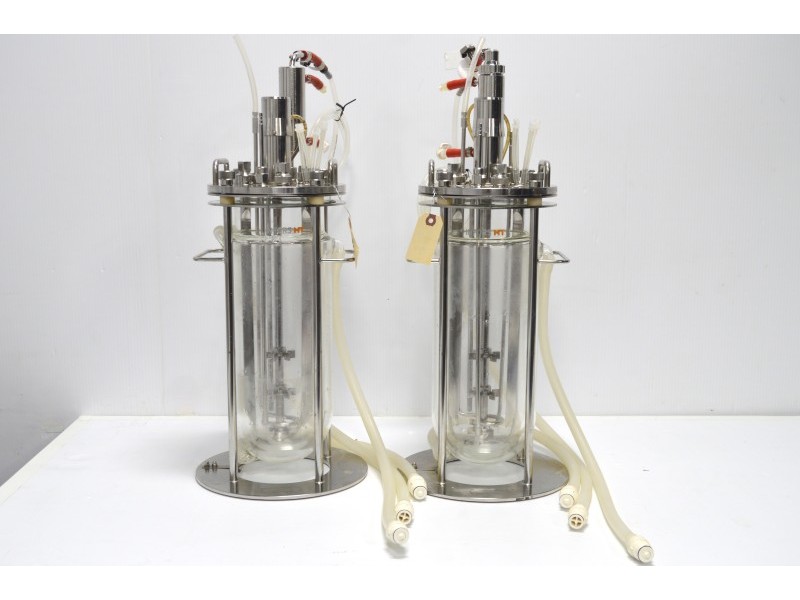

  • Jacketed/Double-wall Culture Vessel 3.6L DN115 Qty.:2
  • Exit gas coolers Qty.:2
  • Temp sensor Pt100 w/built-in cable Qty.:2
  • pH Cable, built-in, VP8 digital connection (Hamilton) Qty.:2
  • pH sensors Qty.:2
  • DO Cable, built-in, VP8 digital connection (Hamilton) Qty.:2
  • DO sensors Qty.:2
  • 3 x Rushton impellers with 6 blades Qty.:2
  • Arch sparger Qty.:2
  • Ring sparger Qty.:2
  • Harvest probe Qty.:2
  • Water hoses KIT for the jacket Qty.:2
  • Communication and power cables





Labfors 5 Bench-Top Bioreactor Configuration: Same for master unit and satellite unit

Vessel:

  • Total volume per vessel: 3.6 L
  • Working volume per vessel: 0.5-2.3 L
  • Vessel type: round bottom, double-walled
  • Nominal diameter: 150 mm
  • Impellers: 3 x Rushton impellers with 6 blades
  • Sparger type: arch sparger for microbials

Stirrer:

  • Stirrer: Dunkermotoren 48V Brushless motor, shaft with mechanical seal
  • Rotation speed with 3 impellers: 400 to 1200 min-1

Gassing system:

  • Gases: Air, O2, CO2

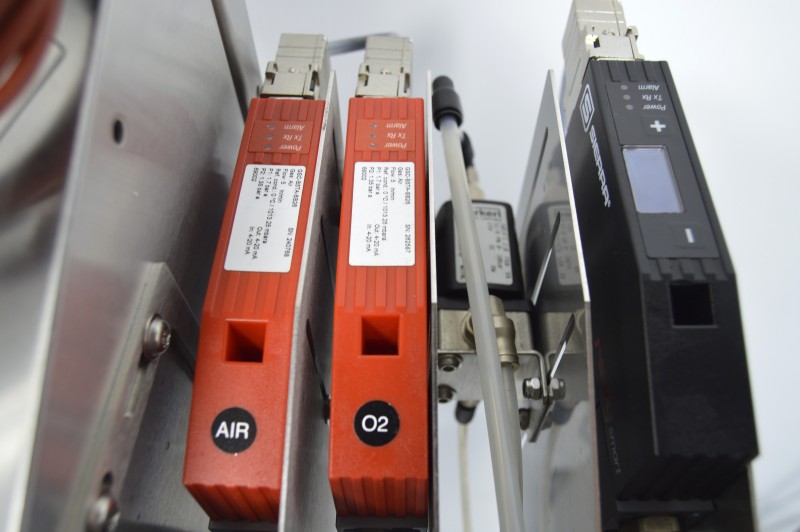

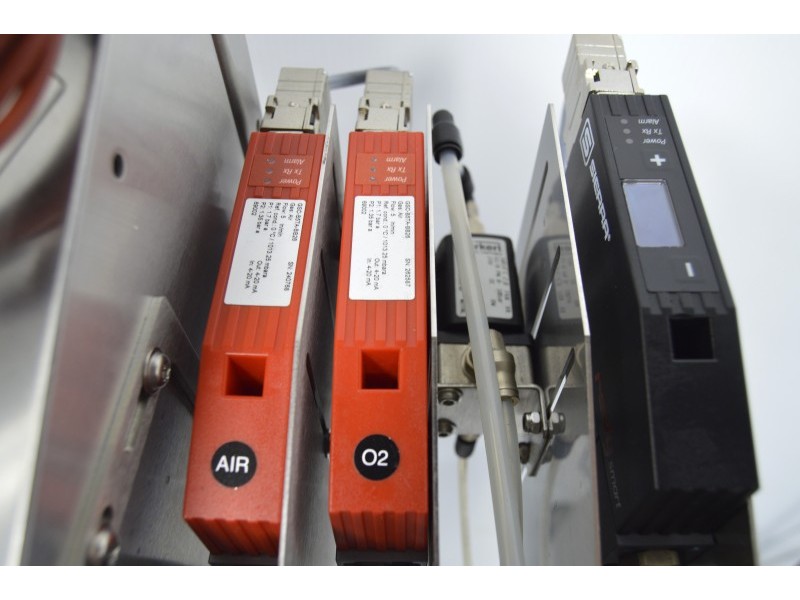

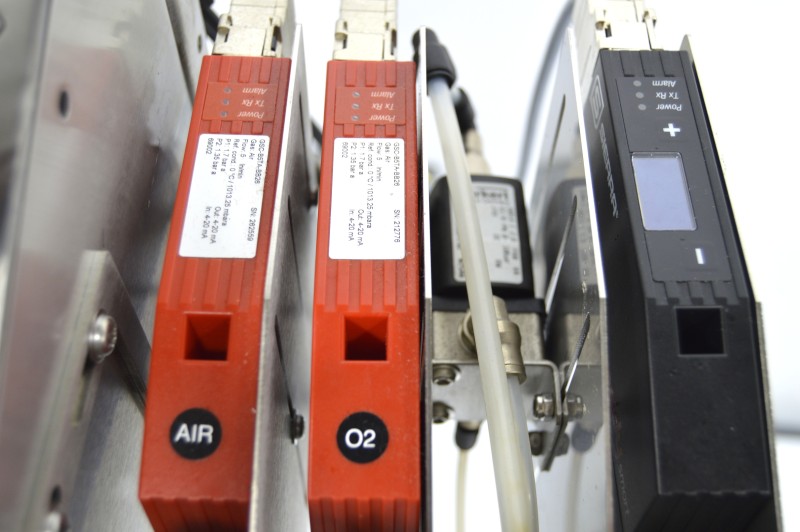

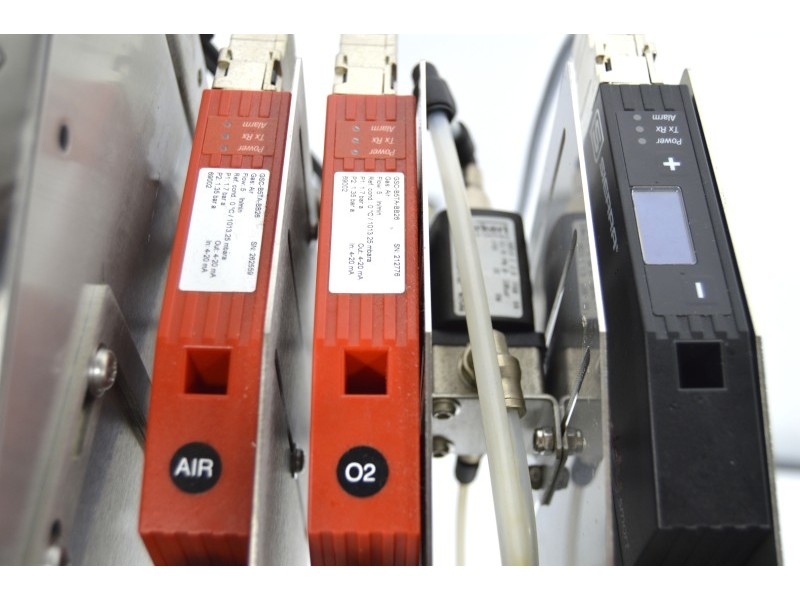

  • Gas flow control and Gasmix: 3 Mass Flow Controllers
  • Control Ranges of MFCs: 0.05 to 5.0 L min-1 for Air+O2, 0.05 to 2.5 L min-1 for CO2
  • Accuracy measurement and control: ± 1.5 % FS

Pumps:

  • 4x analogue peristaltic pumps (Acid, Base, Antifoam, Feed)
  • Rotation speed: adjustable 0-74 min-1

Temperature control system & sterilization:

  • Heating: water circulation in jacket, pump and heating 500 W integrated in basic unit
  • Cooling: tap water via water circuit into vessel jacket
  • Temperature sensor: Pt100 Sensor
  • Temperature control range: 5 °C above inlet temperature to 70 °C
  • Exit gas coolers: condensers for exhaust gas conditioning and condensate recovery

System Controls:

  • pH control: peristaltic pumps for acid and base
  • Control range: pH 2 to pH 12
  • Measurement accuracy: pH ± 0.1
  • pO2 control: via cascade stirrer, gas flow, gas mixture (addition of O2)
  • pO2 Control range: 0 to 100 %-sat
  • Measurement accuracy: ± 1 %
  • Antifoam control: Antifoam peristaltic pump, 0-100 %
  • Pressure Control: pressure control valve

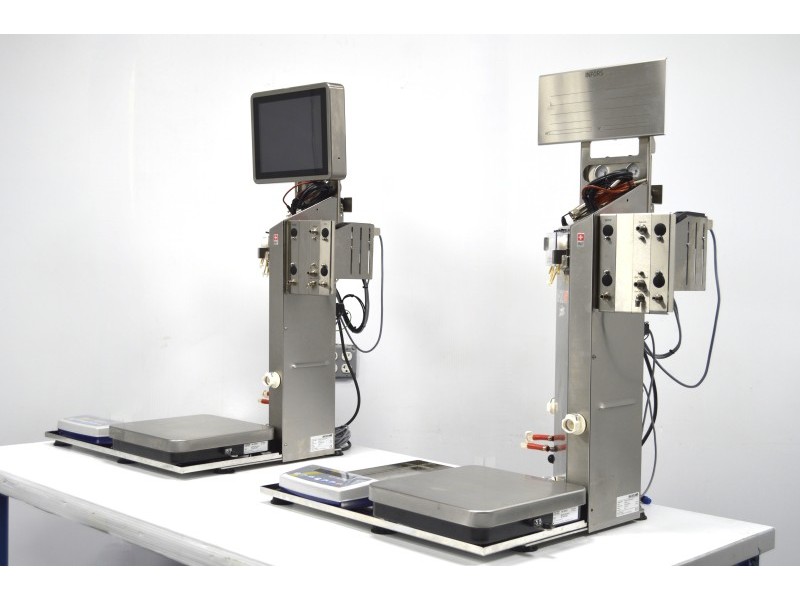

  • Balances: Kern DS, 30kg max., Sartorius Entris II 4.2kg max



Customization/Options:

  • Exhaust Gas Analyzer (Please inquire for available inventory)
  • Alternative vessel configurations (Please inquire for available inventory)



Testing performed by our in-house service team:

The Labfors 5 Bench-Top Bioreactor passed all tests and was found to be fully functional:

  • We tested the power supply to the system.

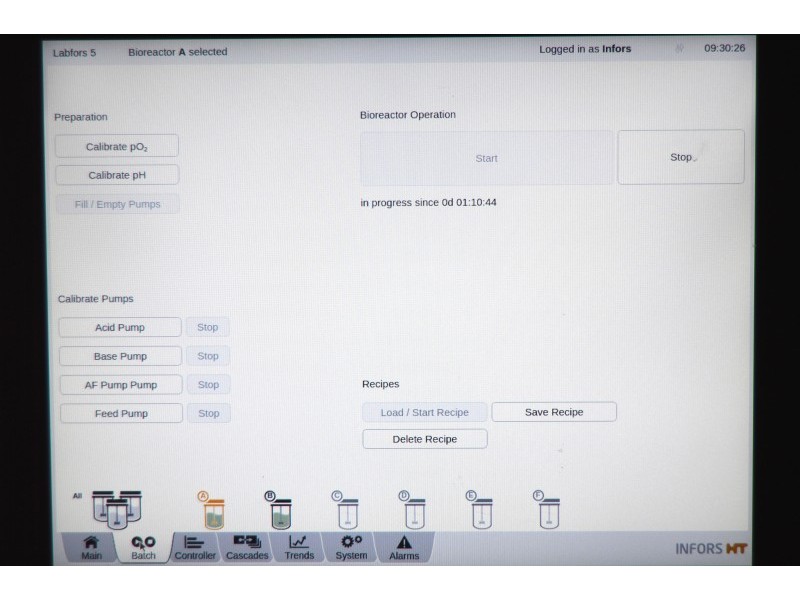

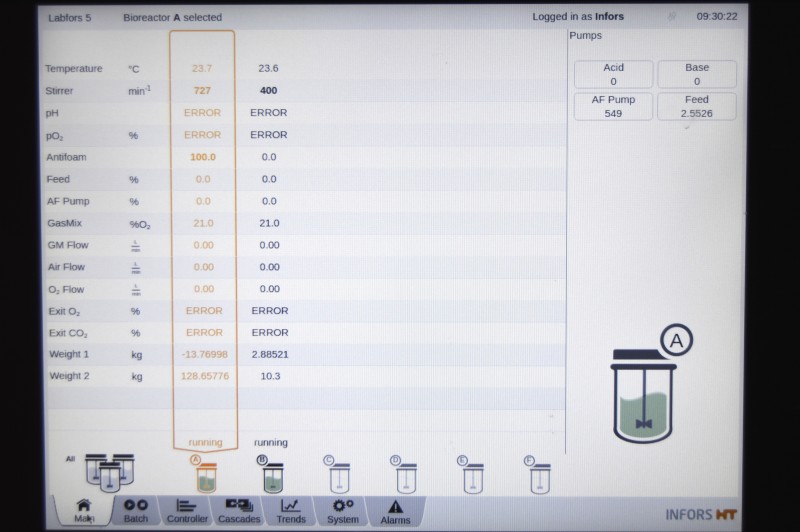

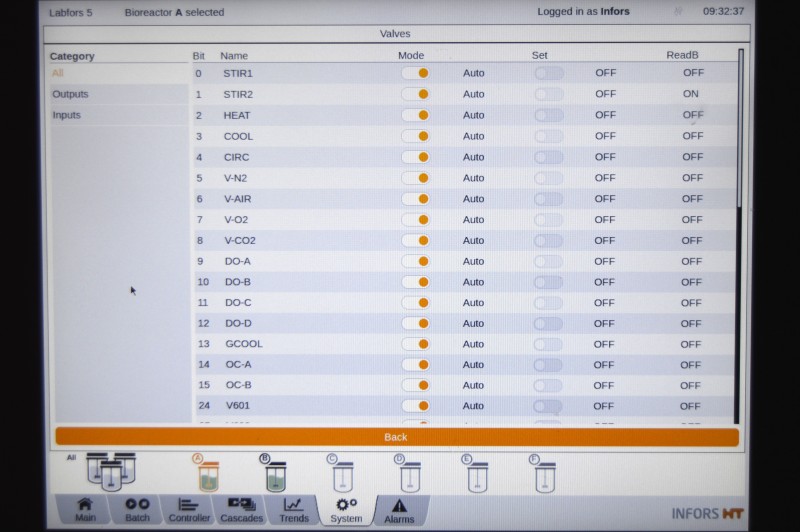

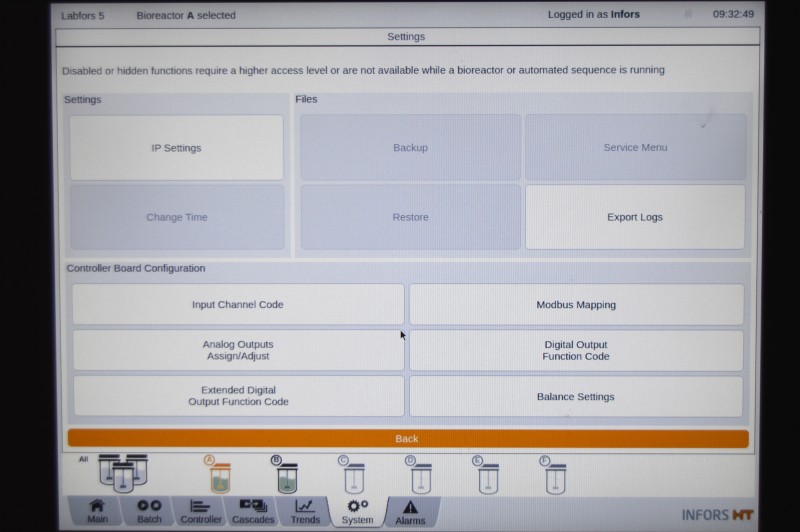

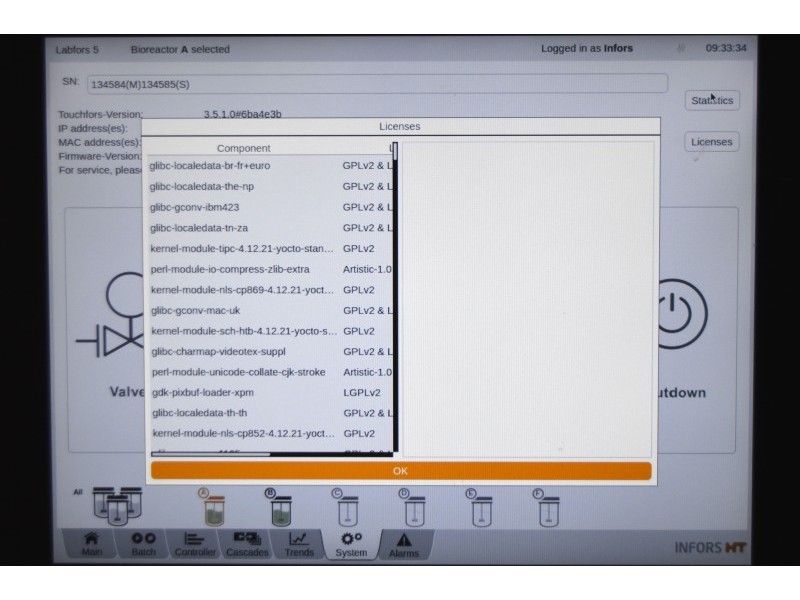

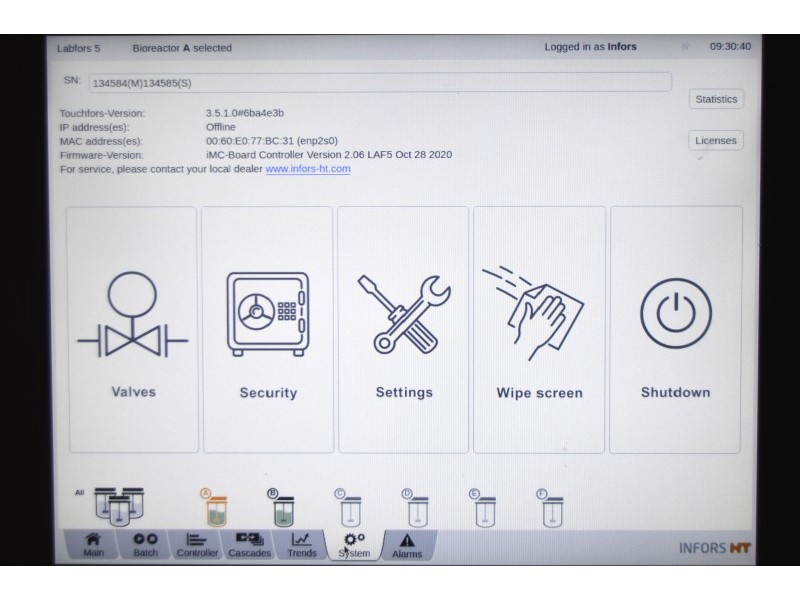

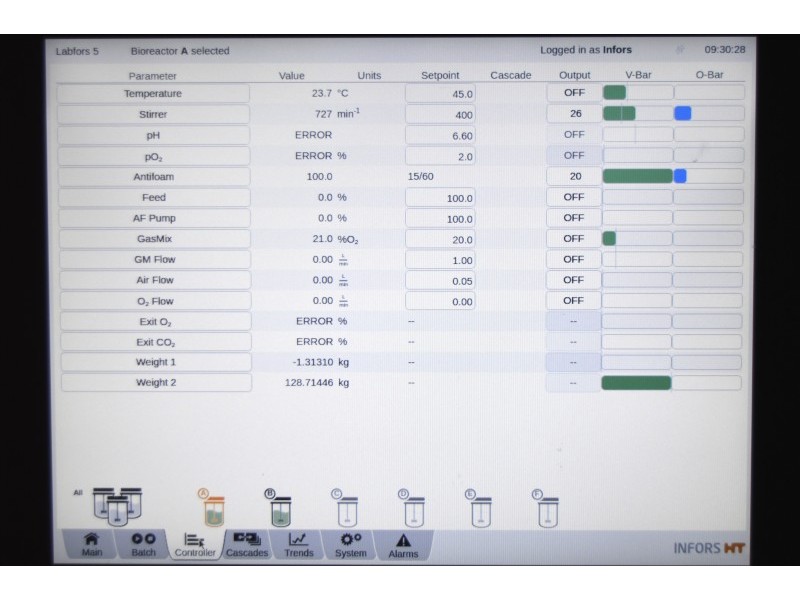

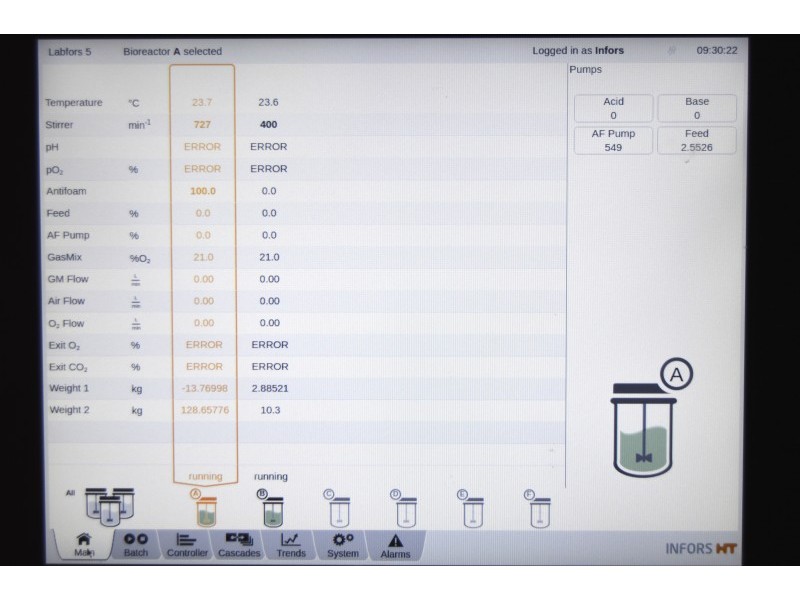

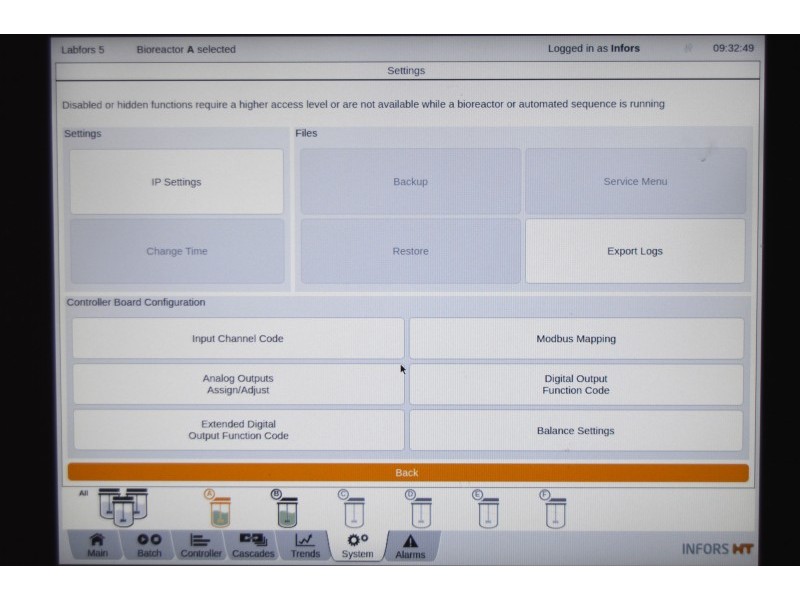

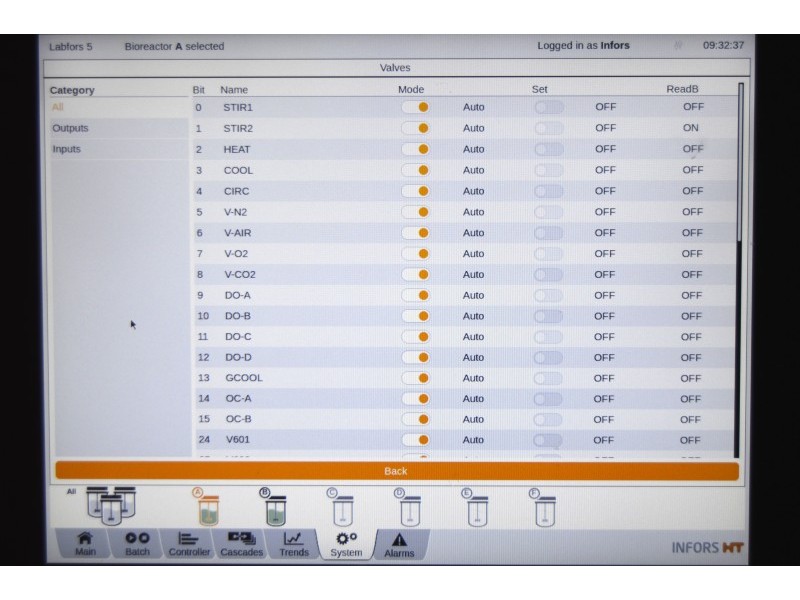

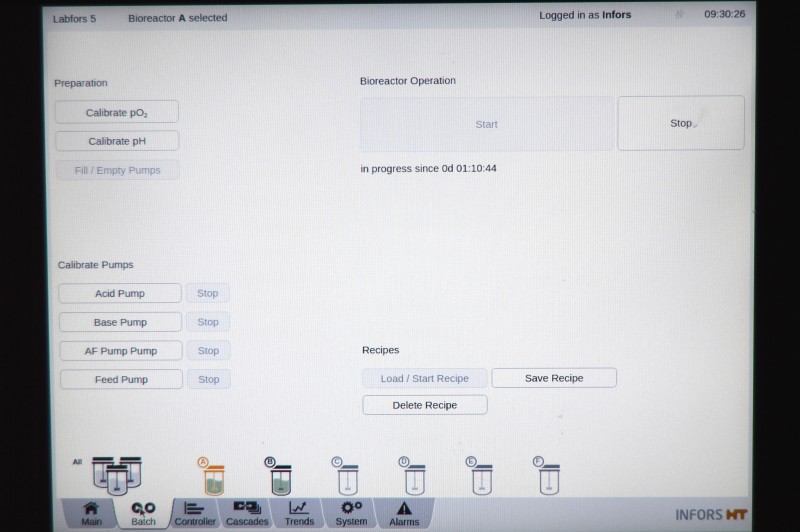

  • We tested the operation of the touchscreen display.
  • We tested the communication between the control unit and the bioreactor stations.
  • We checked the operation of all peristaltic pumps.
  • We verified the functionality of the agitation motors.
  • We verified the communication and accuracy of the temperature probes.
  • We tested the communication and responsiveness of the dissolved oxygen (DO) sensors.
  • We tested the communication and responsiveness of the dissolved pH sensors.
  • We confirmed the proper operation of the temperature control loop.
  • We tested the functionality of the gas mixing components.
  • We confirmed the functionality of the coolant distribution components.



Instrument Overview:

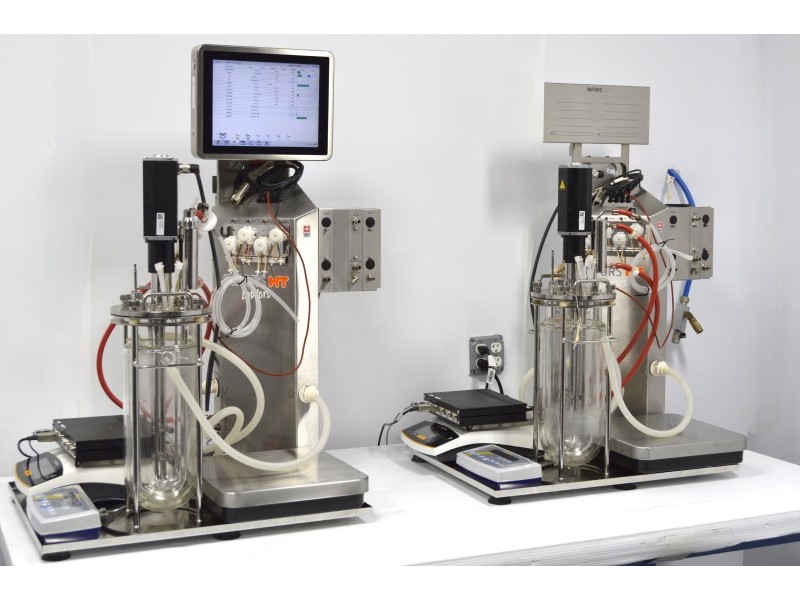

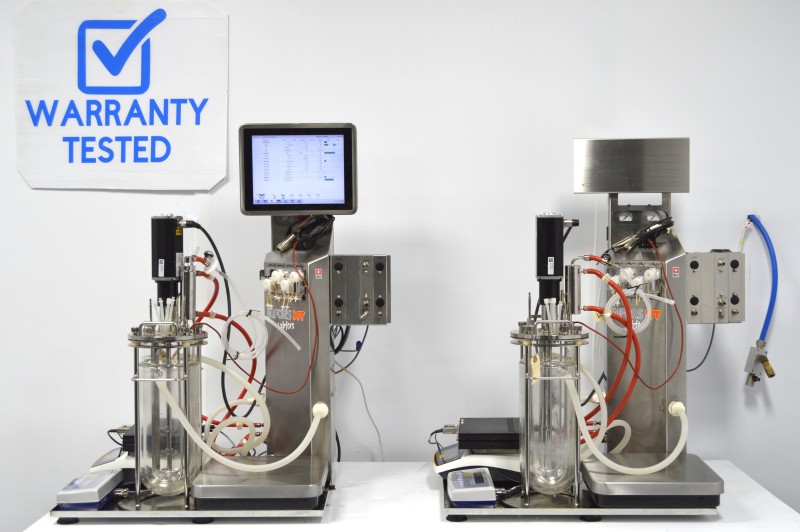

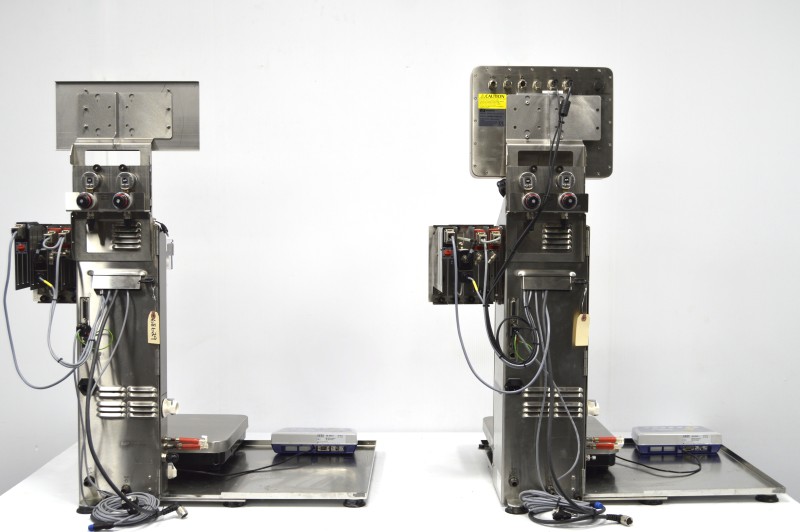

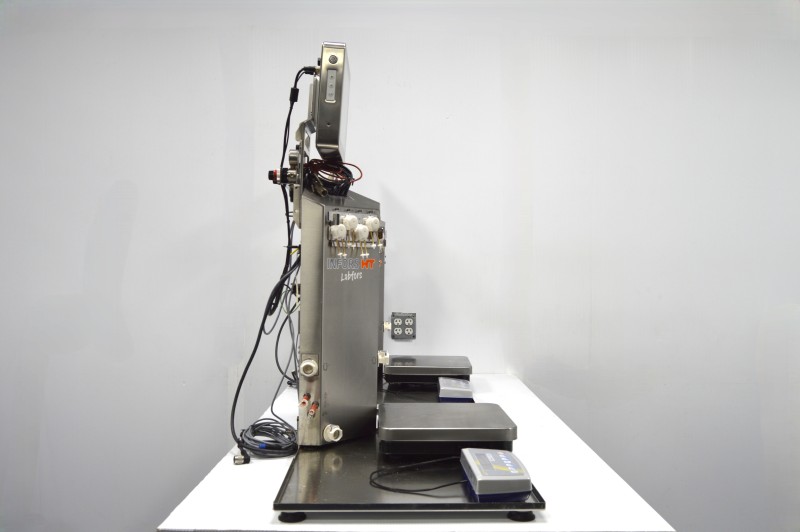

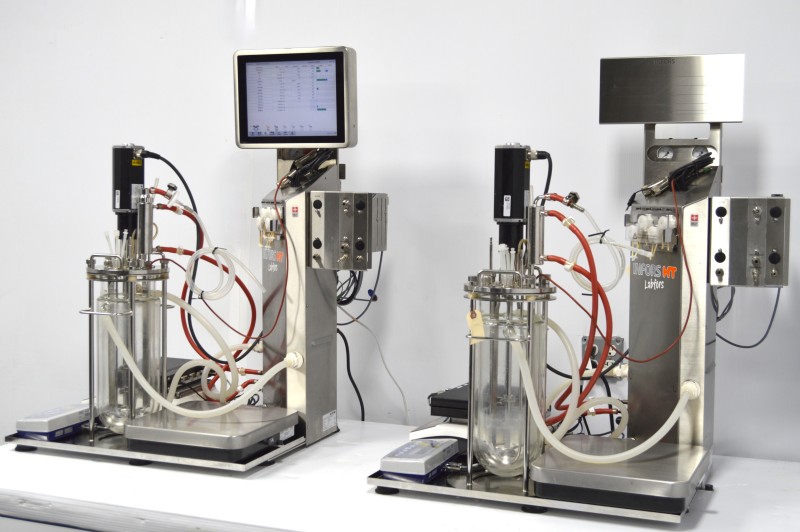

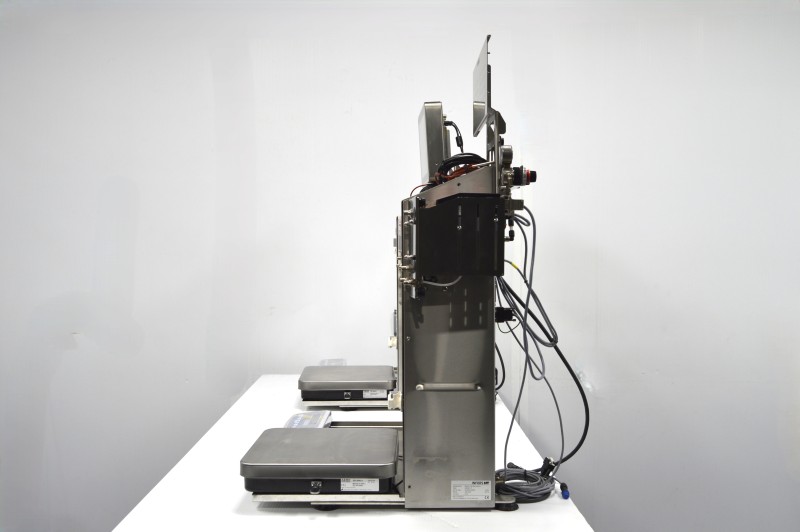

  • Infors HT Labfors 5 Bench-Top Bioreactor System with dual-reactor configuration and integrated control platform.
  • Two 3.6 L jacketed glass vessels with temperature monitoring and sampling capability.
  • Advanced gas handling with air/O₂ mass flow control and Sierra mixed-gas flow instrumentation.
  • High oxygen transfer design with three Rushton impellers plus arch and ring spargers per vessel.
  • Integrated weighing system with precision and high-capacity balances for process monitoring.
  • Equipped with sensor interfaces and hardware for future pH, DO and off-gas monitoring.



Instrument Application:

  • Microbial fermentation and cultivation studies
  • Bioprocess and fermentation process development
  • Fed-batch cultivation experiments
  • Aeration and oxygen transfer optimization
  • Cell growth and biomass production research
  • Strain screening and culture condition optimization
  • Academic and industrial biotechnology research
  • Process scale-up and feasibility studies



The Key Features:

  • 2-fold benchtop bioreactor platform
  • Two 3.6 L jacketed glass vessels
  • Air/O₂ mass flow control system
  • Sierra mixed-gas flow monitoring
  • Triple Rushton impellers per vessel
  • Integrated balances and sensor ports



Additional technical info:



Video Overview:



About us



How we pack





 VIEW SOME OF THE CUSTOMERS WE HELPED HERE


Why do so many customers choose to order from us?



  • We have experience servicing and repairing these instruments.
  • This instrument goes through all the described service steps before shipping. see the questions section below
  • We offer detailed photos and videos of the instruments you buy.
  • We are an approved pre-owned equipment vendor to many large US, Canadian, and EU Universities.
  • We are an approved pre-owned equipment vendor to many Fortune 500 US and International Biopharma companies.
  • Technical sales consultation available
  • Remote installation and instrument operation training may be available.
  • On-site installation may be available in the Boston Area (New England area)
  • US or International shipping is no problem (see the shipping tab on how we pack and feel at ease)




  • Warranty
  • You get after-sales technical support
  • Customer references are available
  • The instrument will be fully functional!
  • Smooth process from the initial quote to order fulfillment




This will ship via freight. Please contact us with your zip code to obtain a shipping quote.



ESQ
1300#



COMMON QUESTIONS AND ANSWERS BELOW



What are the steps you take to verify, service, and confirm the functionality of the Labfors 5 Bench-Top Bioreactor?

We verify various instrument functions individually and together, performing necessary repairs or maintenance to bring the instrument to our quality standards.

  • We tested the power supply to the system.
  • We tested the operation of the touchscreen display.
  • We tested the communication between the control unit and the bioreactor stations.
  • We checked the operation of all peristaltic pumps.
  • We verified the functionality of the agitation motors.
  • We verified the communication and accuracy of the temperature probes.
  • We tested the communication and responsiveness of the dissolved oxygen (DO) sensors.
  • We tested the communication and responsiveness of the dissolved pH sensors.
  • We confirmed the proper operation of the temperature control loop.
  • We tested the functionality of the gas mixing components.
  • We confirmed the functionality of the coolant distribution components.



What supplies do I need?

You will need the consumables starting out:



Can I view the Labfors 5 Bench-Top Bioreactor in person at your facility or do a live Zoom demo before it is shipped to me?

We invite you to visit our facility for an on-site demo or feel free to request a virtual Zoom demo of the instrument you are interested in.



What about the warranty? Installation, training, maintenance?

Warranty Terms:

  • The instrument comes fully warranted for both parts and labor.
  • The customer should retain all packing materials during the warranty period.



What should I watch out for when buying a Labfors 5 Bench-Top Bioreactor used/pre-owned from another lab?
  • Make sure the instrument is properly packed for shipping and will arrive safely. If the instrument is large, request to have it packed in a wooden crate.
  • Confirm that there is no physical damage or any misaligned internal components.
  • Ask what accessories are included.
  • Ask how long the warranty is and what it covers.



Here is what our technical team tests so you can request something similar and ensure your instrument will be fully functional.

  • We tested the power supply to the system.
  • We tested the operation of the touchscreen display.
  • We tested the communication between the control unit and the bioreactor stations.
  • We checked the operation of all peristaltic pumps.
  • We verified the functionality of the agitation motors.
  • We verified the communication and accuracy of the temperature probes.
  • We tested the communication and responsiveness of the dissolved oxygen (DO) sensors.
  • We tested the communication and responsiveness of the dissolved pH sensors.
  • We confirmed the proper operation of the temperature control loop.
  • We tested the functionality of the gas mixing components.
  • We confirmed the functionality of the coolant distribution components.



We recommend inspecting the instrument in person or requesting a virtual demo; this will allow you to evaluate the condition and performance of the instrument you are considering purchasing.



Do you have a Labfors 5 Bench-Top Bioreactor on hand?
  • This is a common model, and we generally stock multiple instruments, accessories, and many replacement parts to back up our warranty.



I found it elsewhere for less. What goes into your price?

We acknowledge that sometimes you can purchase this model instrument elsewhere, possibly for less.



Here are some of the reasons for our price.

  • We may offer longer warranty terms.
  • We cover shipping costs during the warranty period. (Customer is required to save packing materials for the duration).
  • We have to have technical staff that can do the testing/repairs and after-sales support if there are any issues.
  • We invest considerable time into the testing and service of each instrument we sell.
  • We have to purchase various testing supplies (often expensive) to perform testing.
  • We have to purchase any missing required accessories to make the instruments complete.
  • We have to procure and stock service parts to support our warranty.
  • We have extensive experience packing sensitive instruments. See the shipping section in the website menu for info on how not to pack.
  • We guarantee that the instrument will be functional.



This procurement is for a University or College. Are purchase orders with NET terms accepted?
  • If you are a US or Canadian customer, we are likely already a registered vendor in your University's vendor system. This would greatly expedite the process of PO approvals and get this instrument into your lab faster.
  • POs are accepted from US and Canadian universities.



How fast will you ship?
  • We can ship within a few days to two weeks. Shipping time depends on the current demand for our instruments. Members of our sales team will be able to offer current delivery estimates.



Will my instrument be insured during shipping?
  • All instruments shipped within the USA and internationally are fully insured. This applies as long as we are the shipper and handle shipping arrangements.
  • If the buyer handles shipping, then shipping insurance responsibility falls to the buyer; we highly advise that the buyer obtain shipping insurance from their carrier.



How do you pack? Have you packed and shipped Labfors 5 Bench-Top Bioreactor Instruments in the past? Do you ship Internationally?

Packing

  • Most larger instruments ship in fully enclosed ISPM15-certified wooden crates with proper padding underneath, and the sides have moving components braced.
  • Accessories are packed safely in boxes with padding and then safely packed inside the crate.
  • We may not use a crate for local deliveries to save you money *if delivered by us.
  • We often use “tilt’ & “shock” indicators on the crates to ensure the crate has not been excessively tilted and dropped where equipment may suffer damage.
  • Photos are taken during the packing process to make sure nothing is missed.

USA/Canada Shipping

  • Within the US and Canada, we will ship via selected freight carriers. We do not use low-price/high-damage carriers as we want the equipment to get safely to you.

International Shipping

  • Internationally, we will only ship via Air Freight or Air Parcel (such as UPS or DHL), which provides reliability, no exposure to Ocean weather, and timely delivery.
    We have extensive experience packing and shipping fragile instruments globally.

Our experience and process

  • We have safely packed and shipped thousands of sensitive analytical instruments.



How much will I save buying it pre-owned, and is it worth it?

A lot…and it is undoubtedly worth it, and here is why. Feel free to ask for feedback from hundreds of customers who bought from us.



  • You will pay less than half vs. buying a new instrument. Why not spend leftover funds on another instrument for your lab?
  • You will get our standard warranty, plus, when available, an option to obtain an extended warranty agreement.
  • Know that your instrument was tested and working the day it left our facility and is covered if there are faults.
  • Get extra peace of mind by adding an extended warranty or service agreement when such an option is available.



Sustainability
  • Well, this one is easy: buying a pre-owned instrument is great for the planet; you are reducing unnecessary waste, CO2 output, and water use that would be used during the manufacturing process.



I have more questions; I want to receive a formal quote.

Absolutely! Please give us a call (1-617-397-3486) or complete this form to get your questions answered or receive a formal Quote.
