BRAND NEW Infors HT Techfors-S Pilot Bioreactor with 15 Liter Stainless Vessel Unit 2

	Approved Vendor to many US, Canada, and EU Universities
	International Shipping
	Customer References Available
	Training and Installation Options Available

Stock: In Stock
Brand: Infors HT
Product Code: SM100477-NU2
Condition: New

$69,995.00

Qty

Request Quote

or receive

Additional Information

Add to Cart

CLICKABLE TABS BELOW

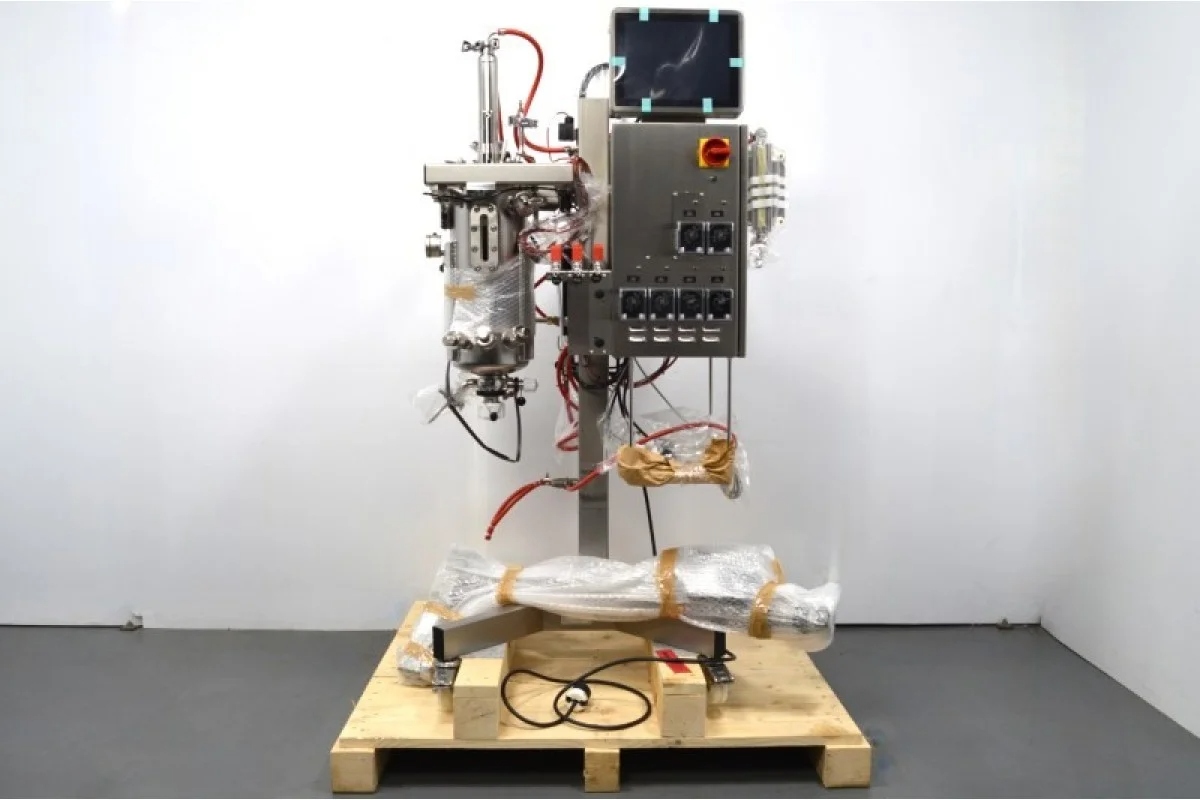

For Sale BRAND NEW Infors HT Techfors-S Pilot Bioreactor with 15 Liter Stainless Vessel Unit 2

BRAND NEW (we have 4 of them)
Fully Functional
In Stock
Current Model
Made in 2024
Technical sales consultation available
WARRANTY
Optional on-site setup and training are available for customers within 2 hours of Boston, MA.

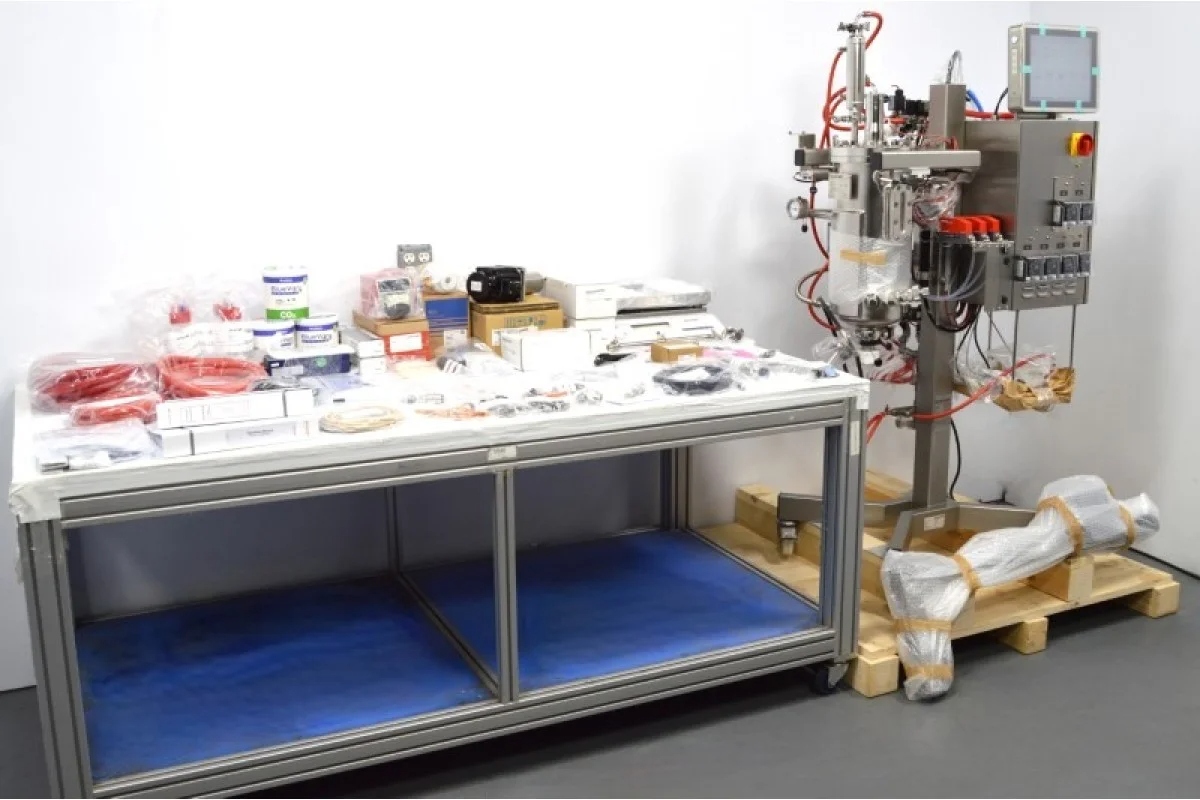

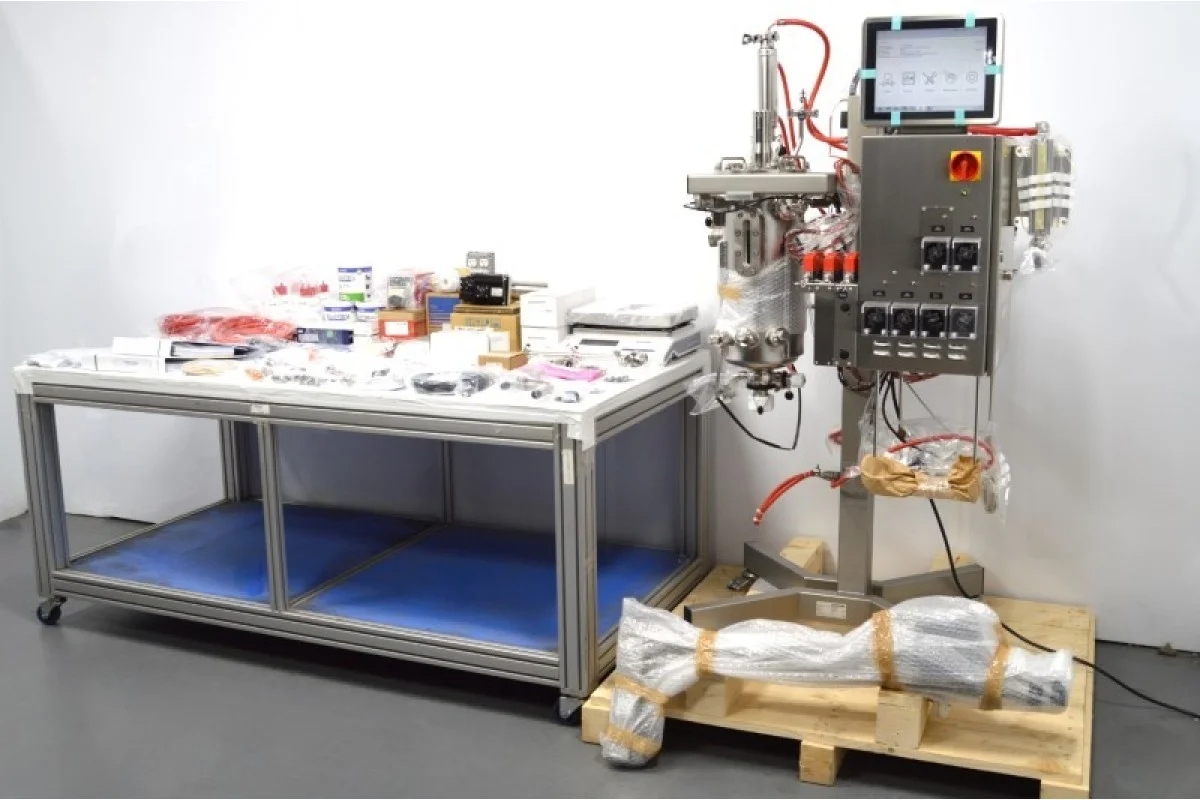

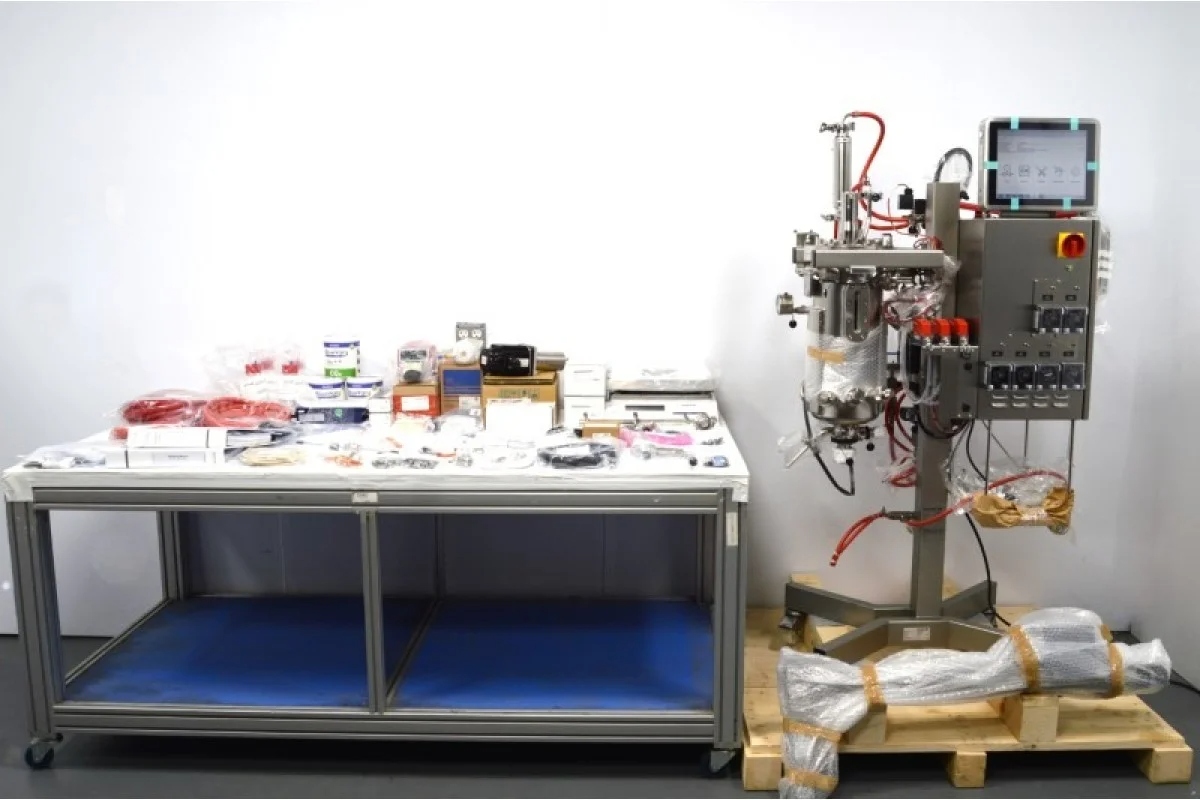

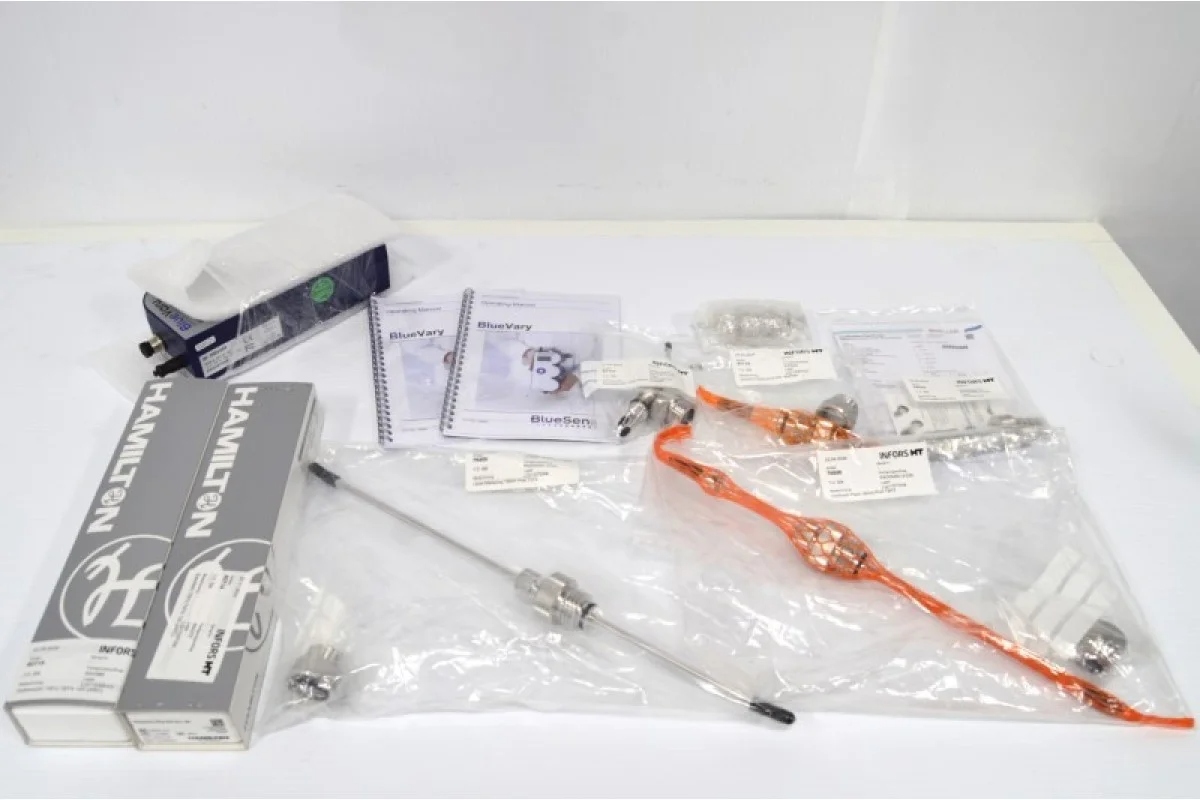

Here is what you will receive:

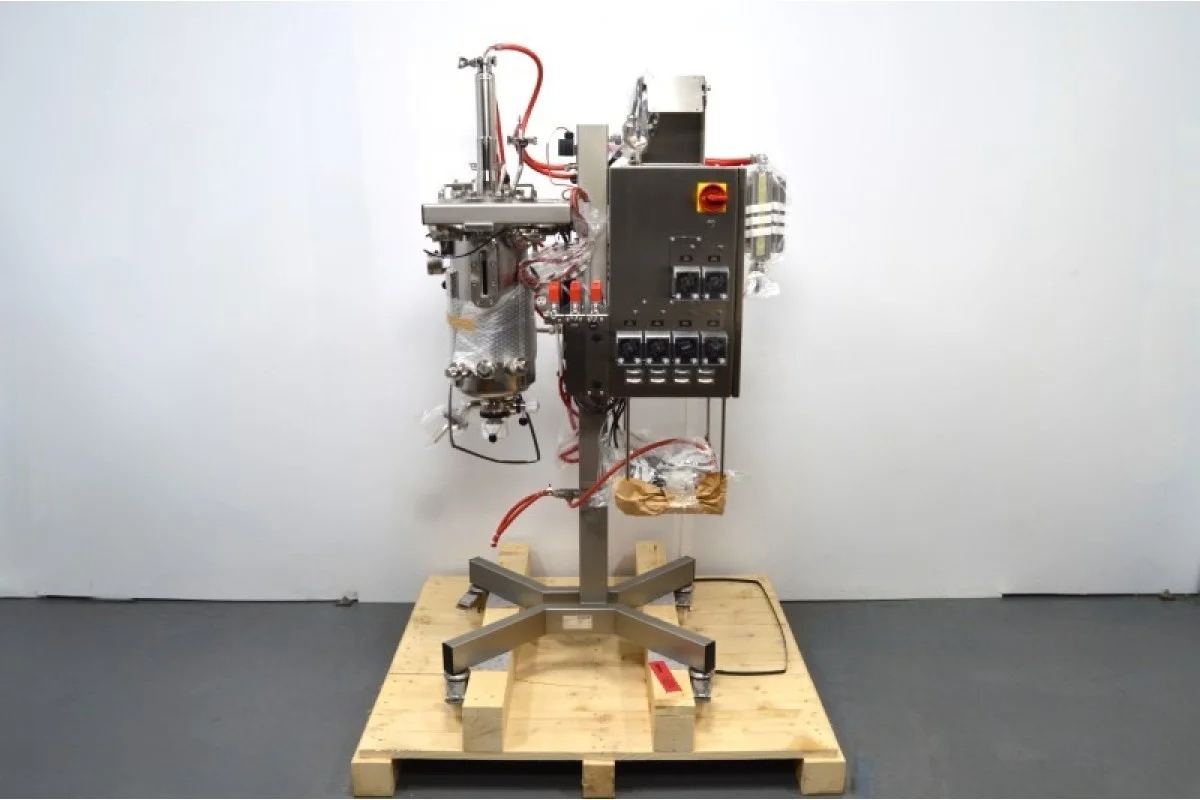

Pilotbioreactor Techfors-S Serial: S-000139631 Made in 2024

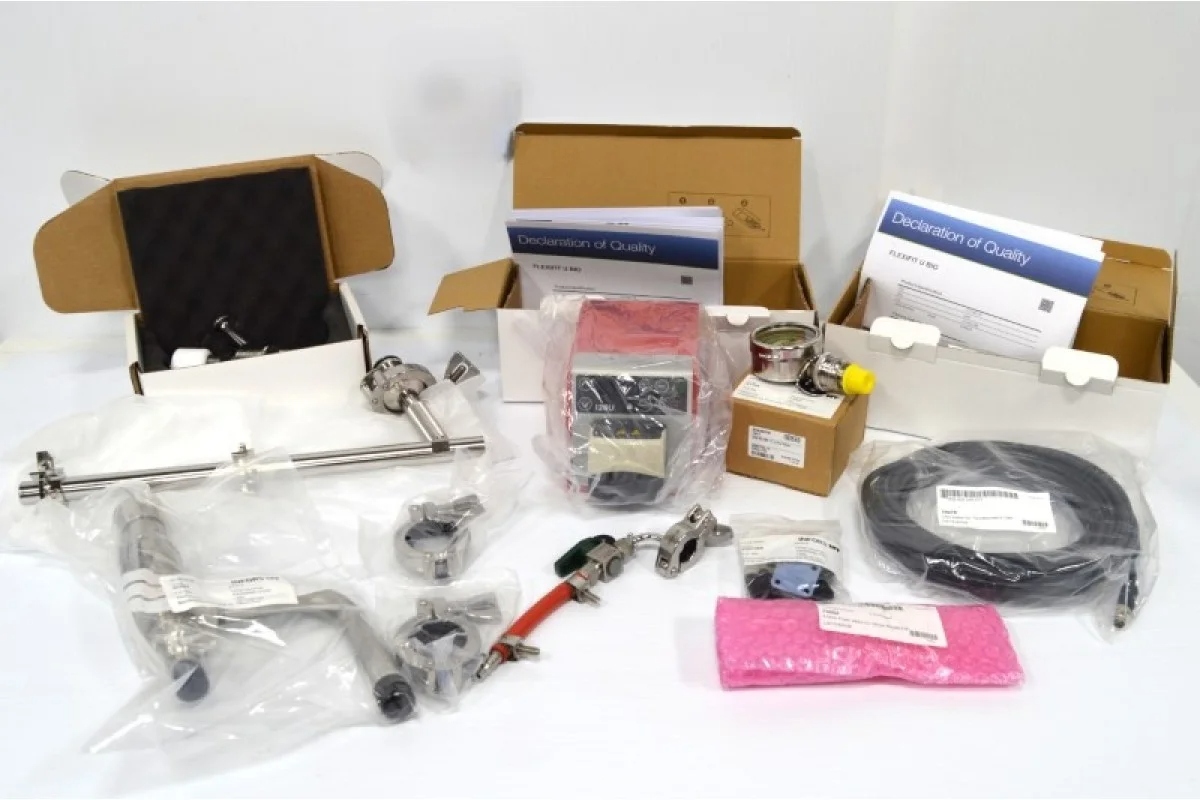

Connection Set 74349
Starter Set TSF 74347
Precision balance MS32001L

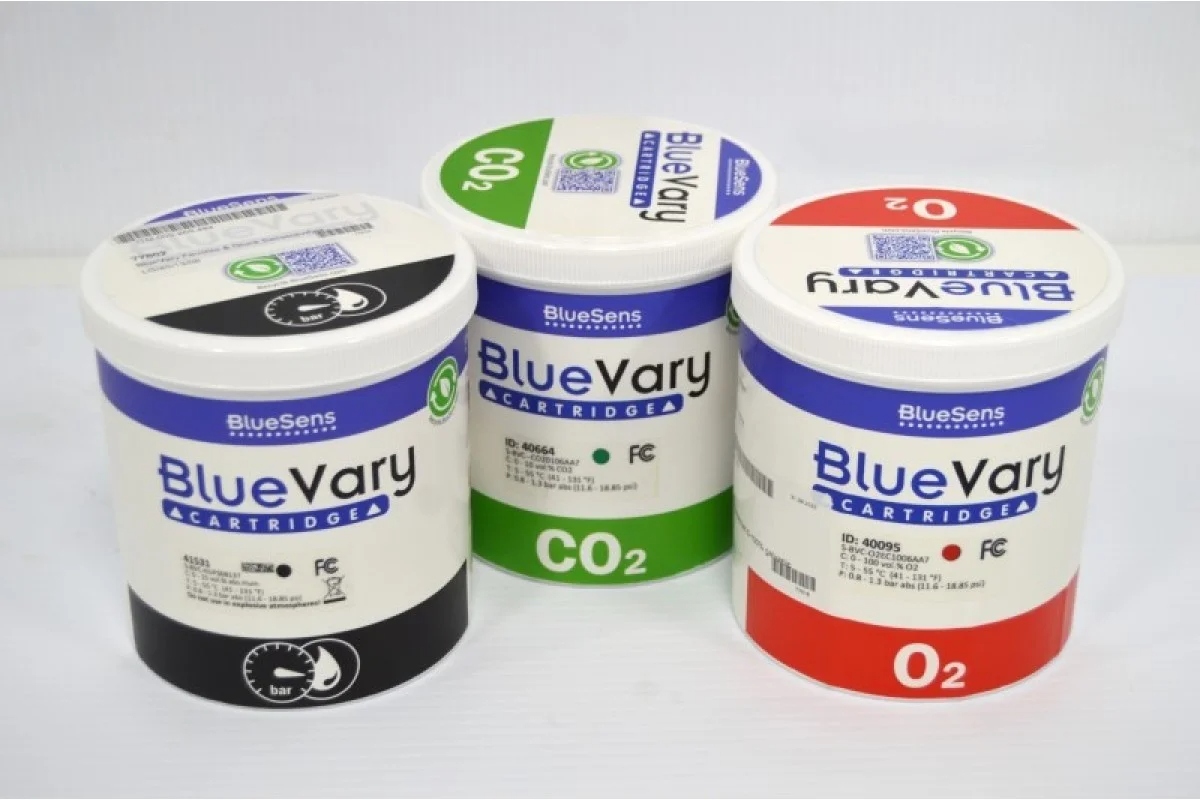

BlueVary O2, CO2, and Pressure/Humidity cartridges

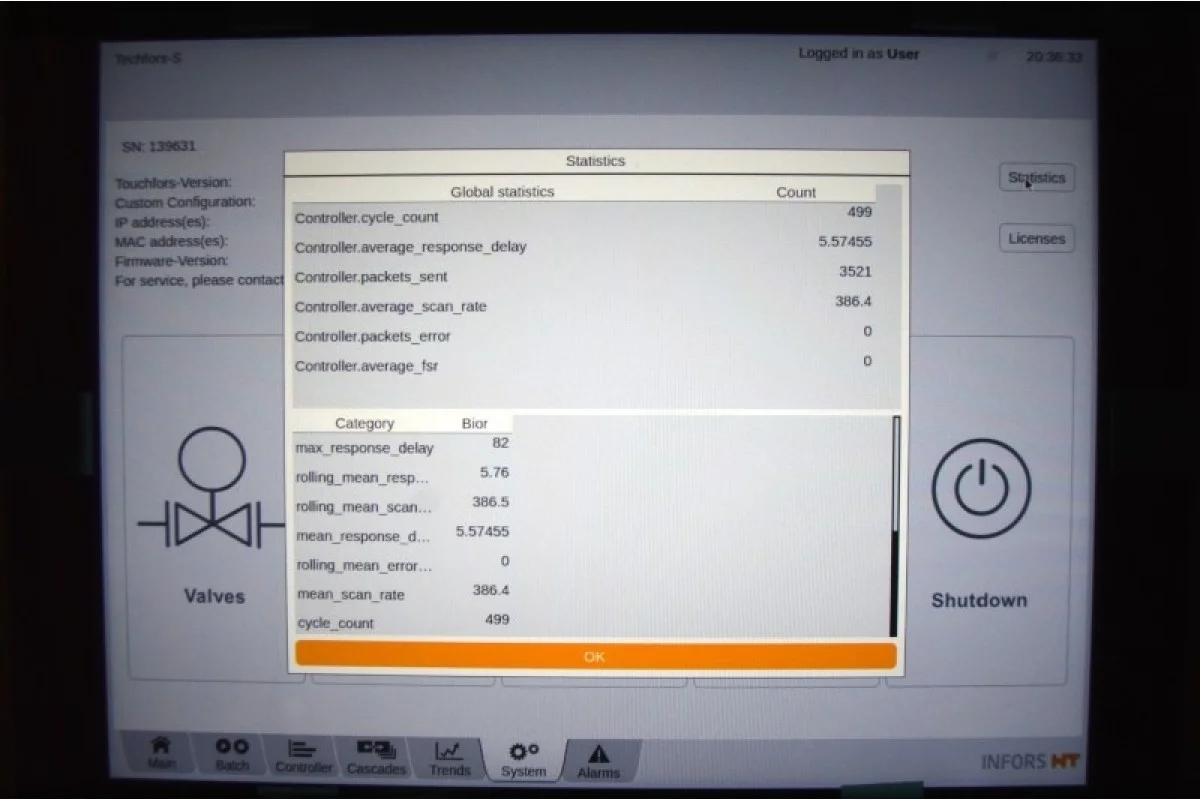

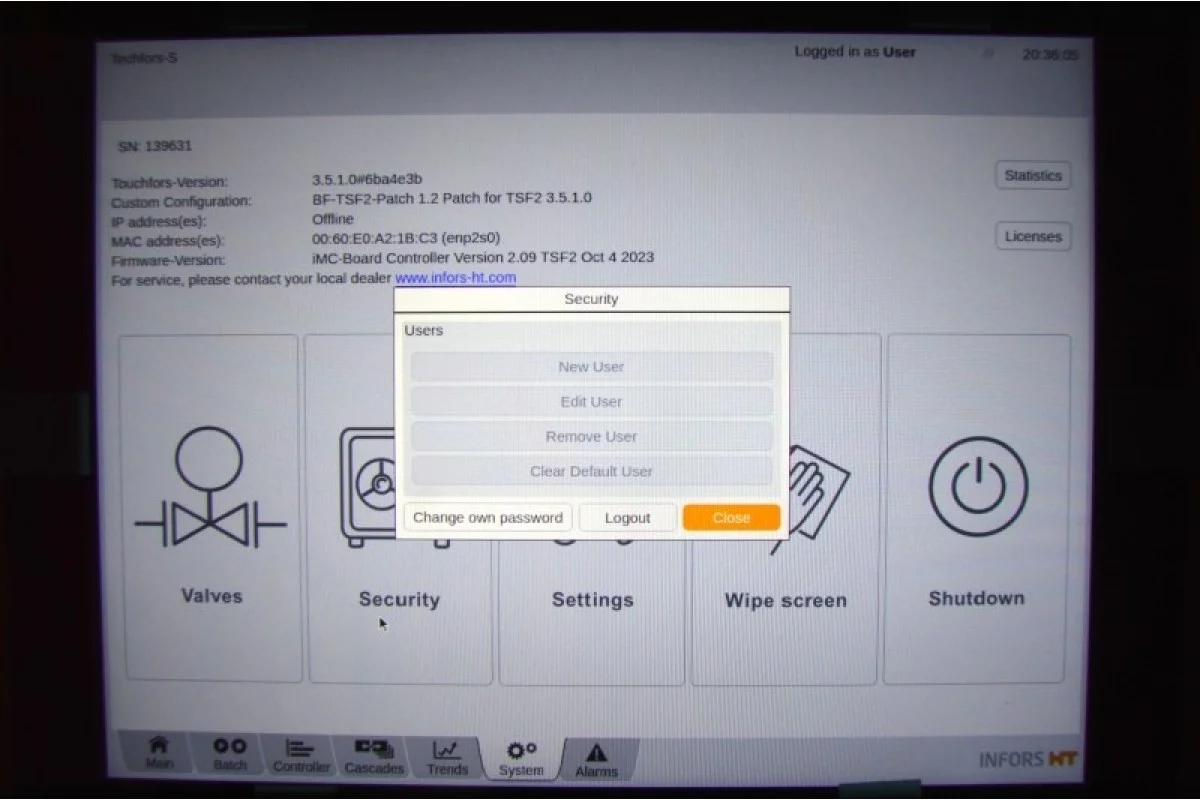

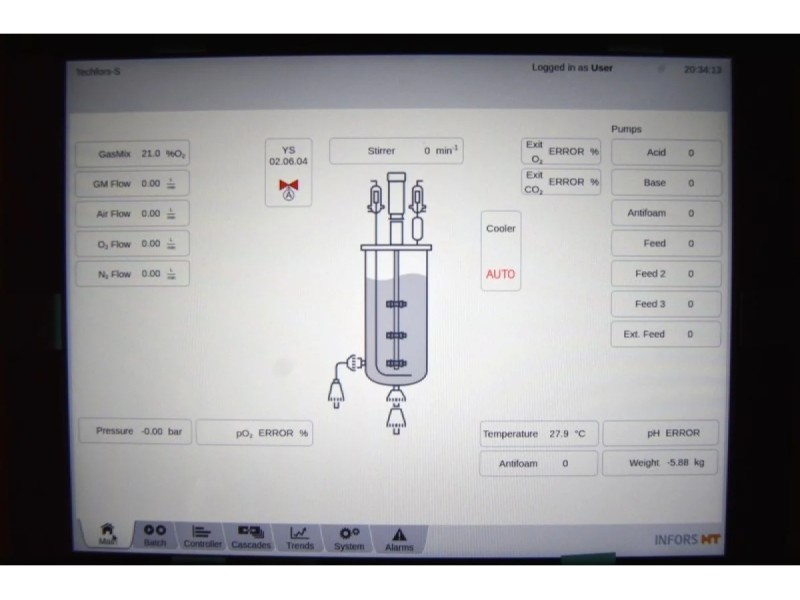

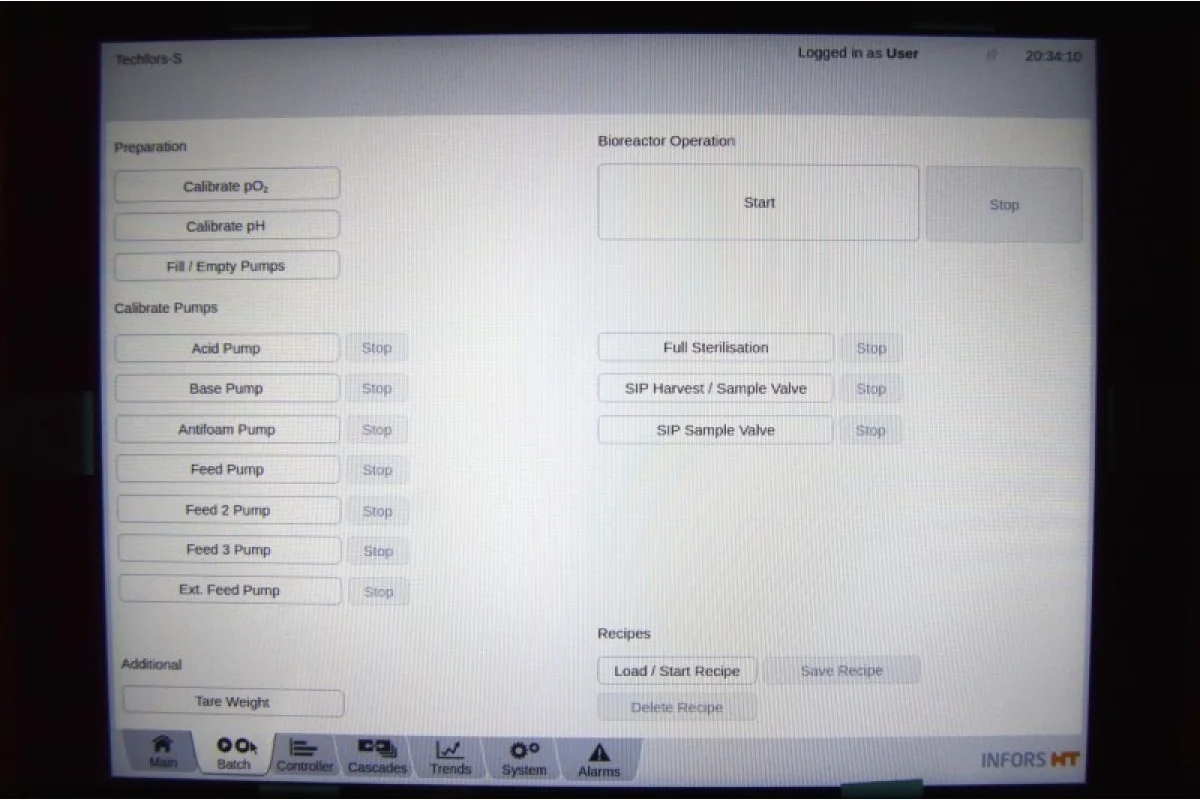

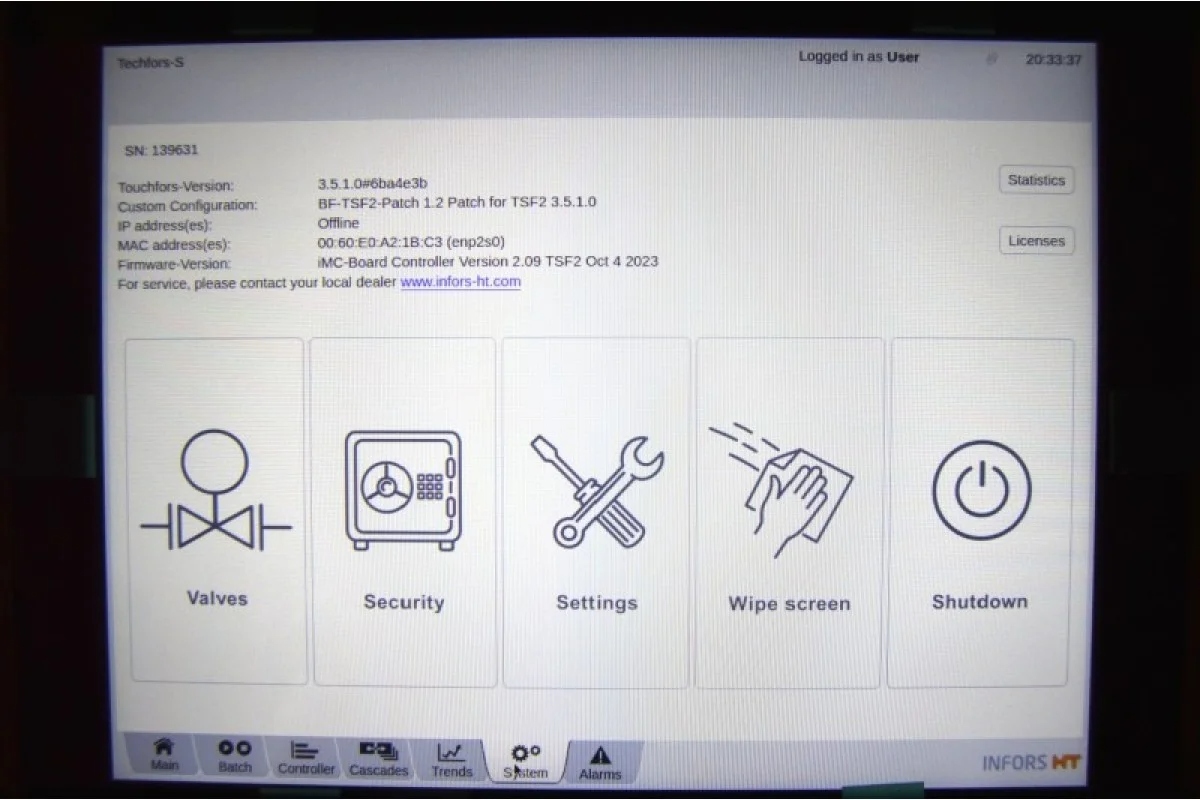

Techfors version: 3.5.1.0
Custom Configuration: BF-TSF2-Patch 1.2 Patch for TSF2 3.5.1.0
Firmware version: iMC-Board Controller version 2.09 TSF2 Oct 4 2023

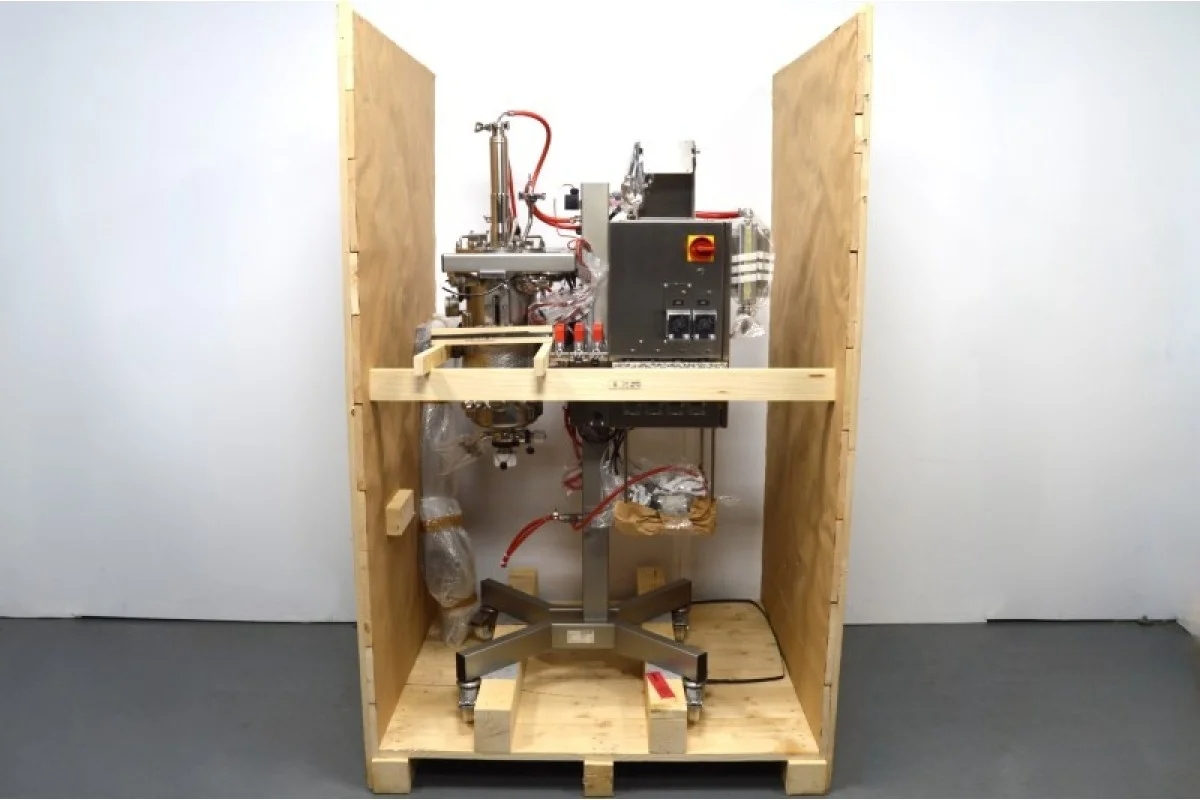

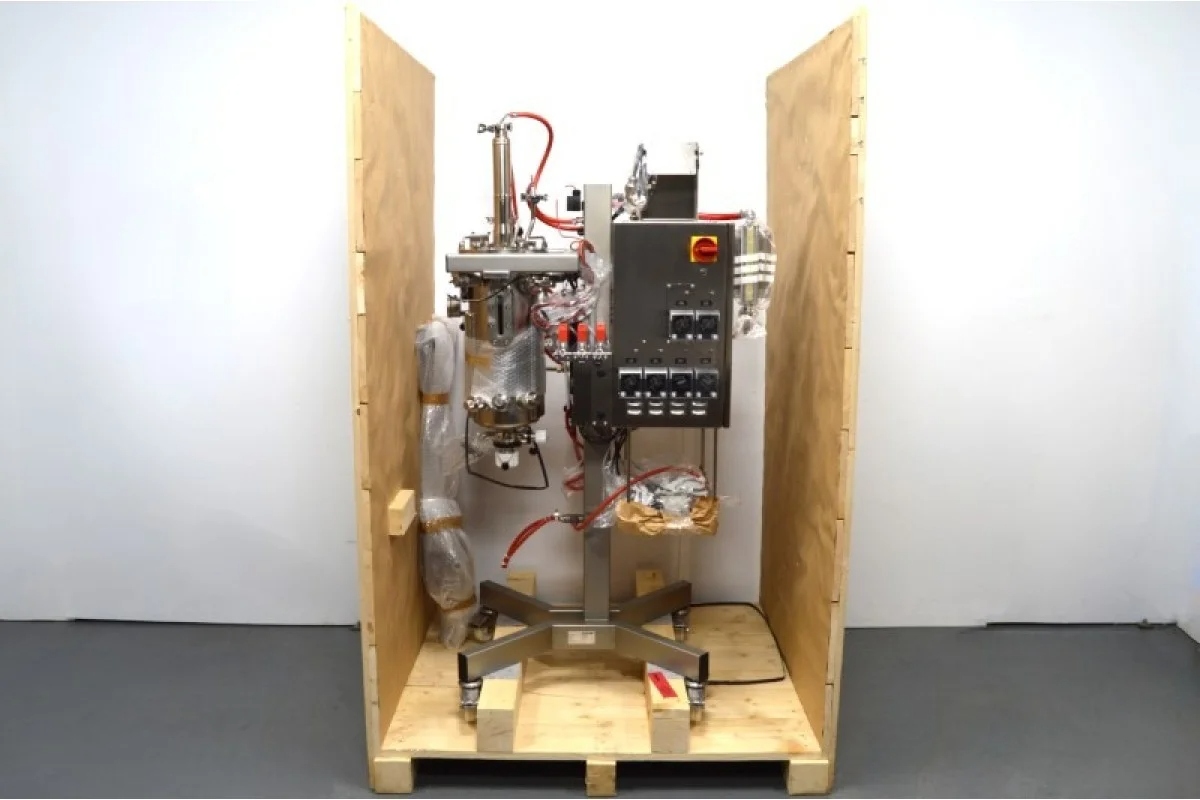

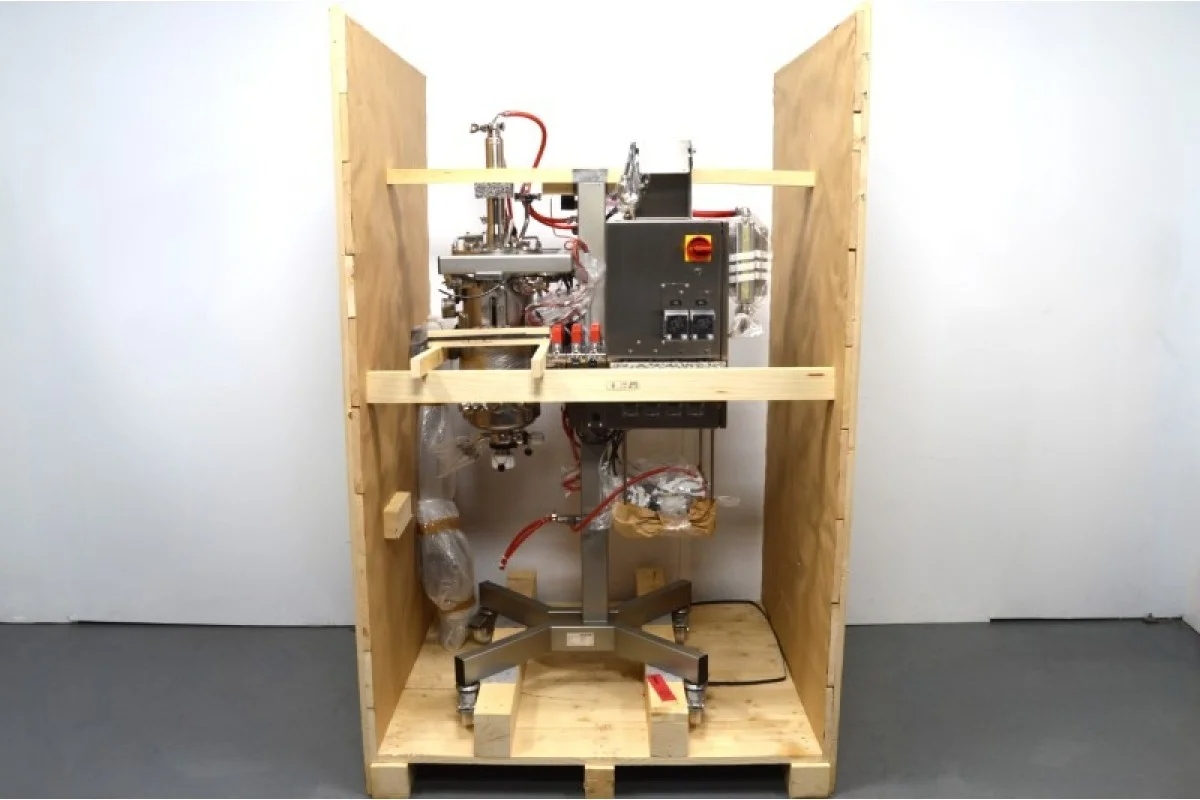

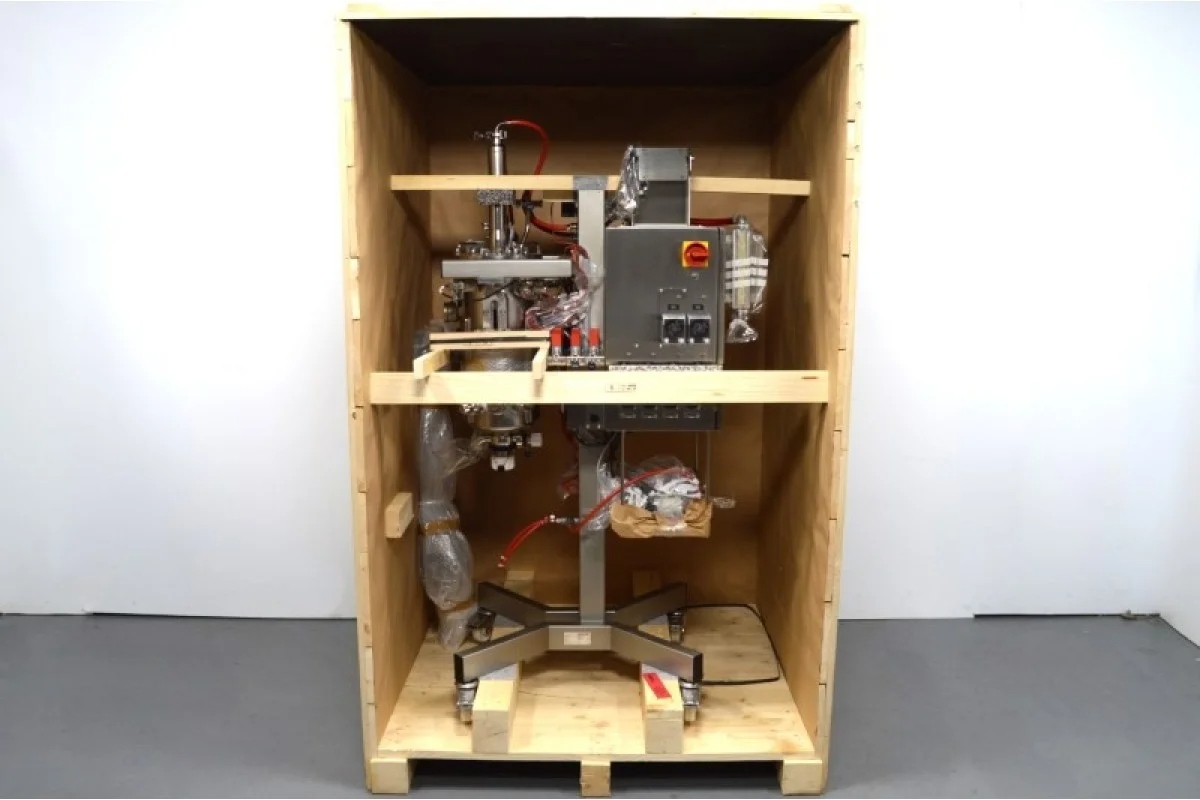

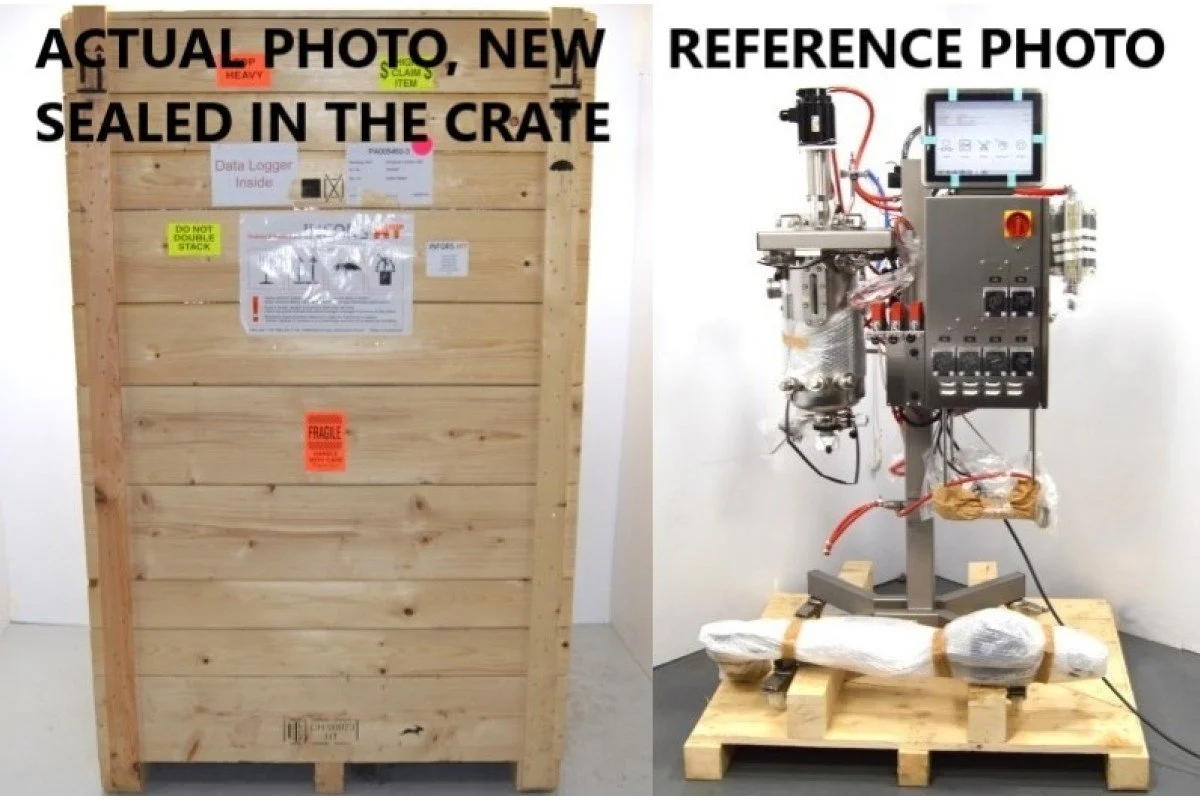

The Instrument is sealed in the original manufacturer's crate.
The customer is responsible for having it installed and set up either by us or by the manufacturer

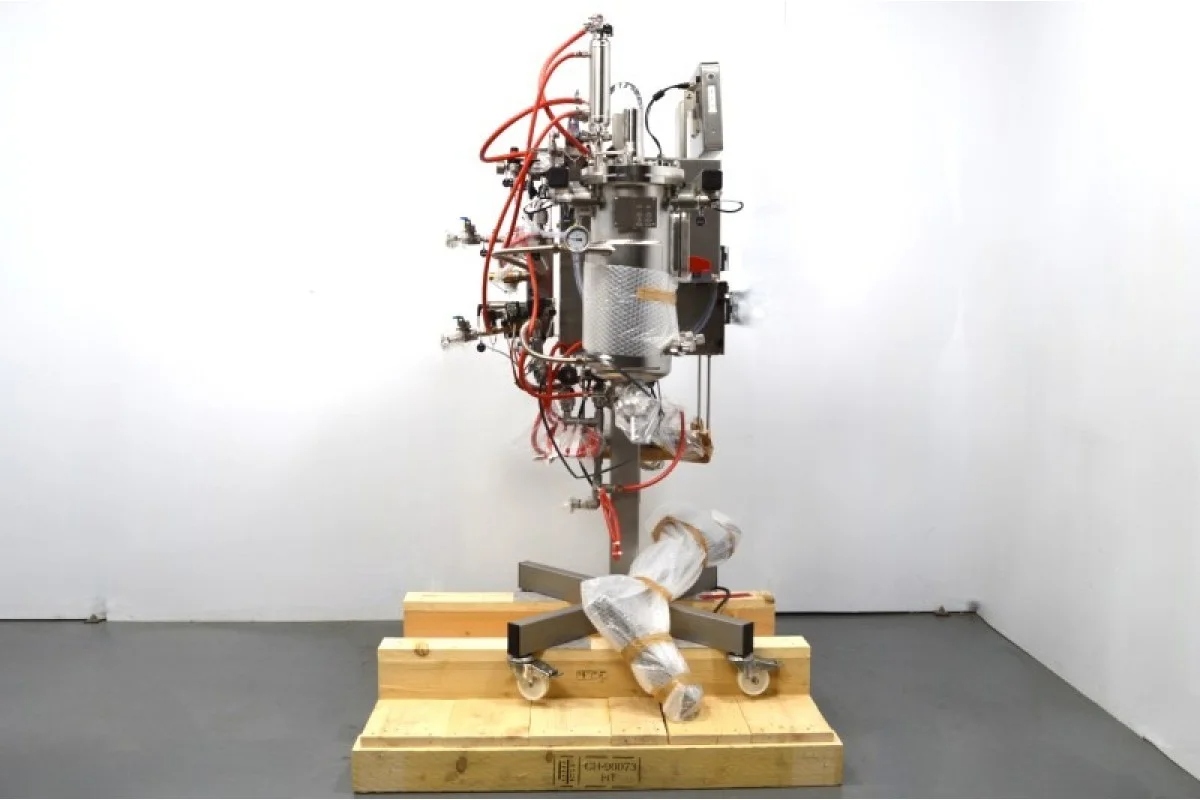

Techfors-S Pilot Bioreactor Configuration:

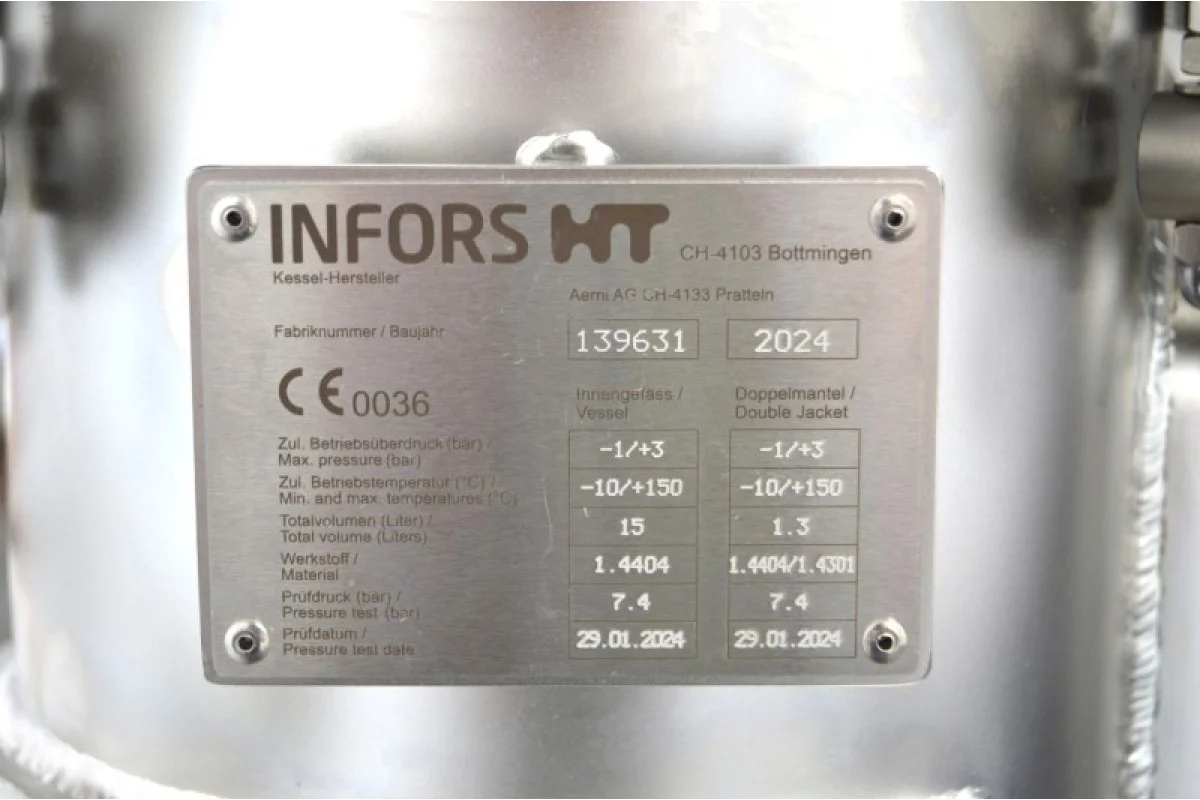

Vessel:

Total volume: 15 L
Working volume: 3-10 L
Total volume vessel jacket: 1.3 L
Temperature range vessel inside/vessel jacket: -10 to +150 DegC
Impellers: 2 x Rushton impellers with 6 blades
Steam valve with steam line (pressure hose) and vessel safety valve (pressure: 3 barg)

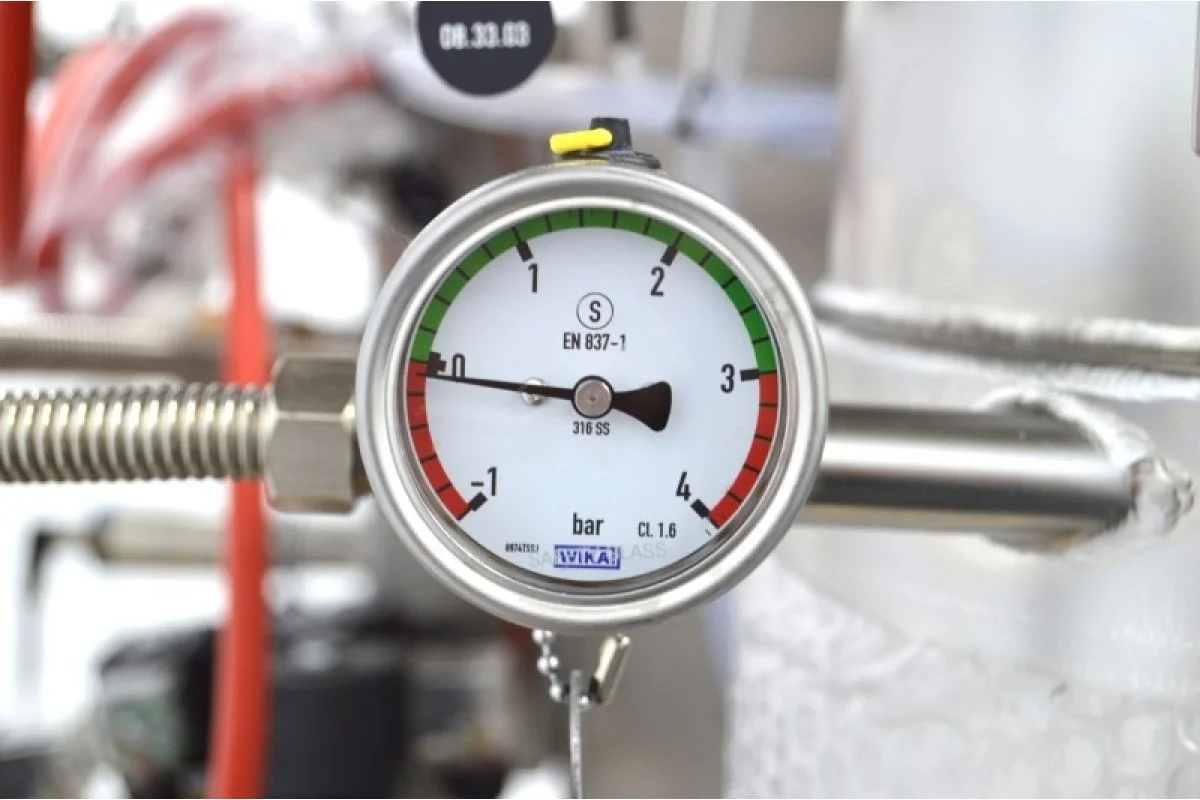

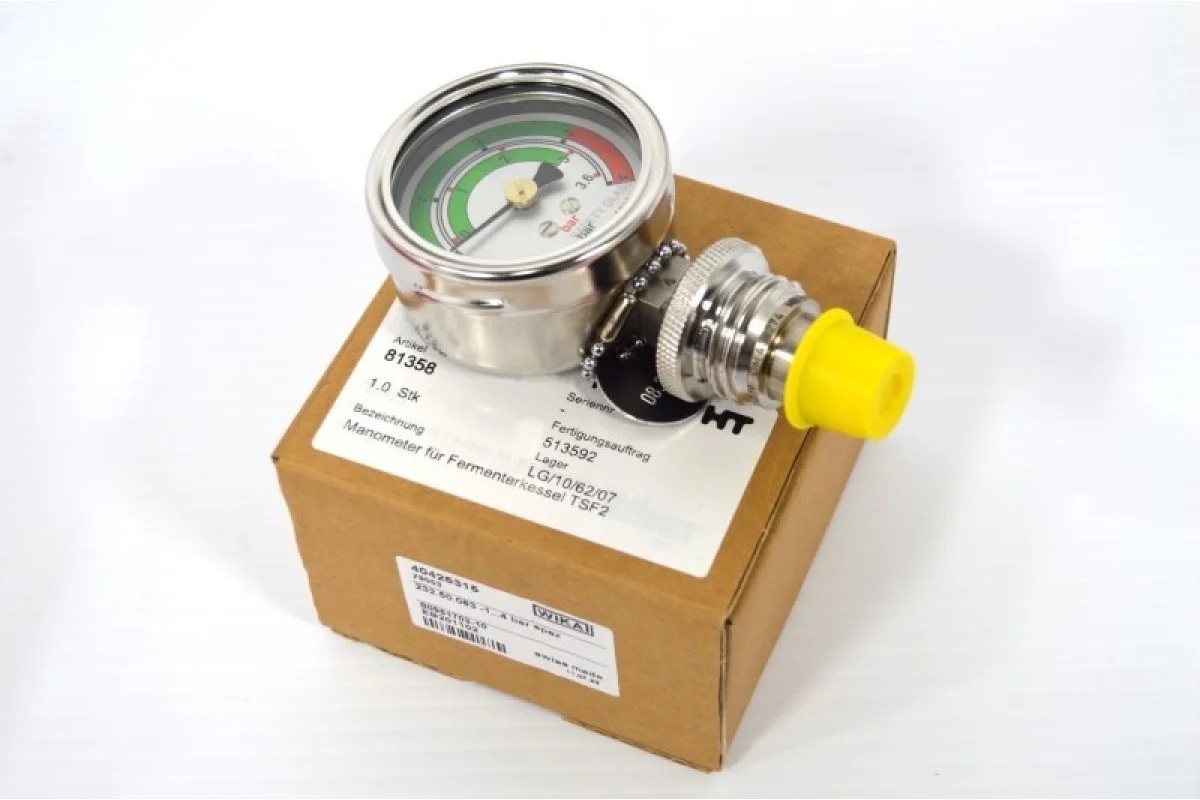

Vessel pressure manometer: measurement range: 0-4 bar

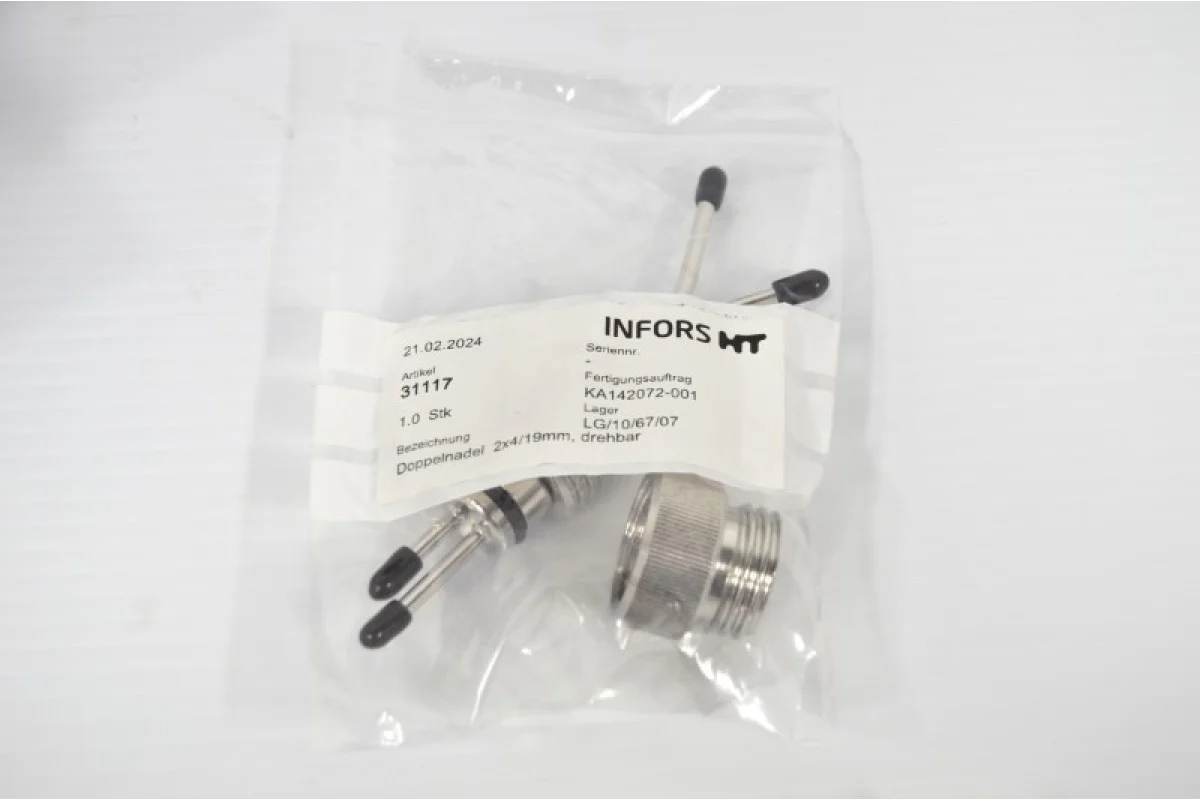

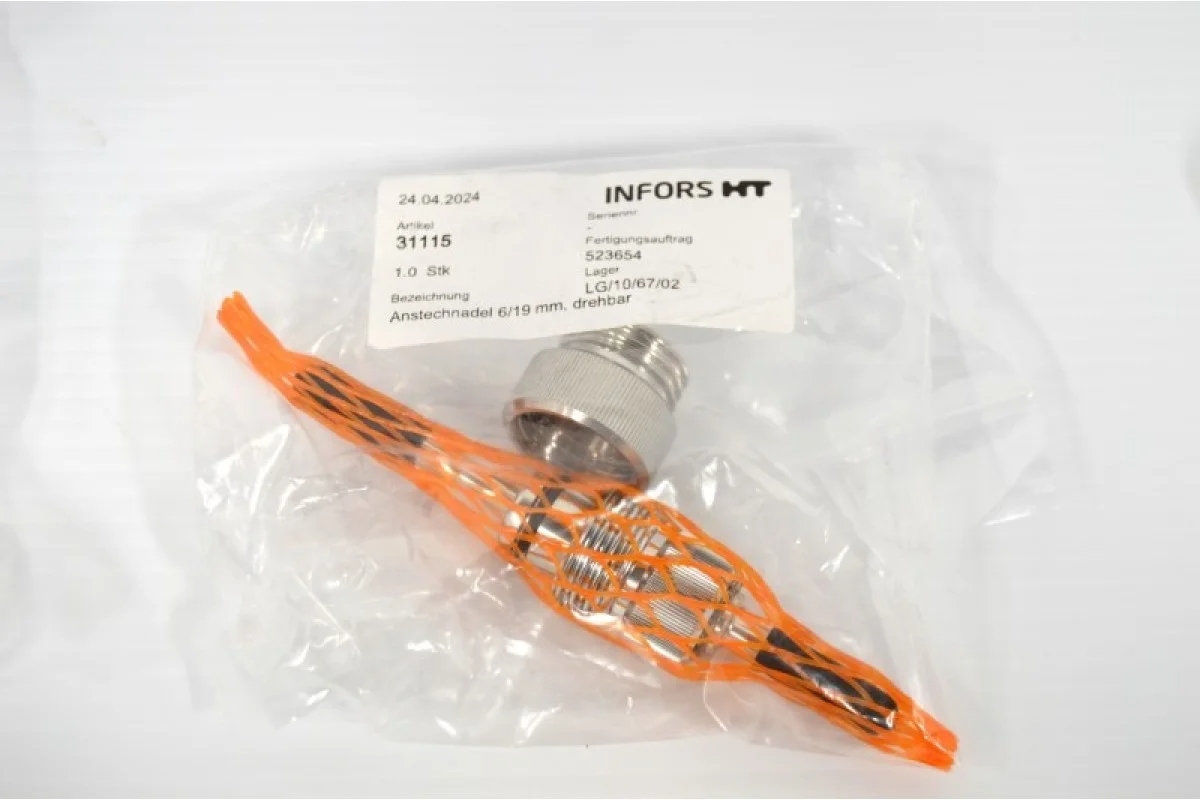

Inoculation Needles: (1) x single inoculation needle, (1) x double inoculation needle to add liquids such as reagent, nutrient solution, or inoculum to the vessel.

Stirrer:

Stirrer: AC servo motor, brushless with single mechanical seal, 3000 min^-1
Rotation speed for 15 L vessel: 20 to 1500 min^-1

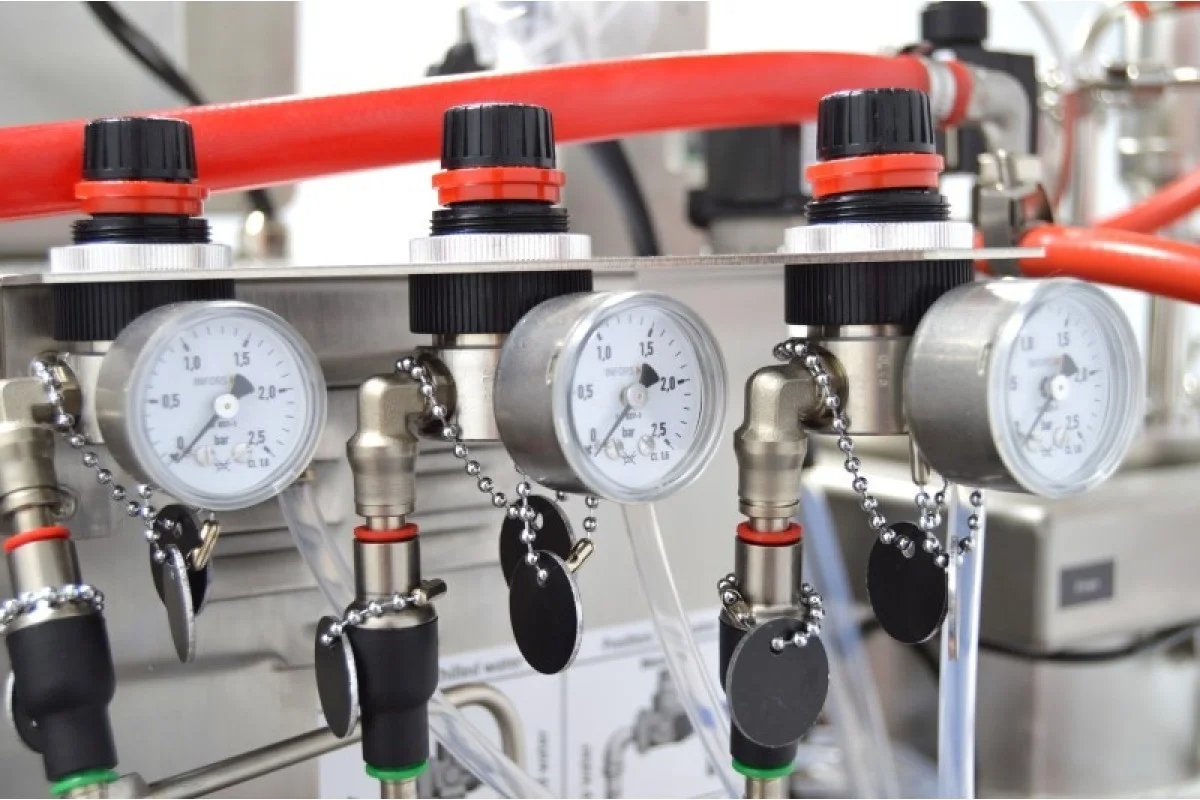

Gassing system:

Gases: Air + O2 + N2 via ring sparger

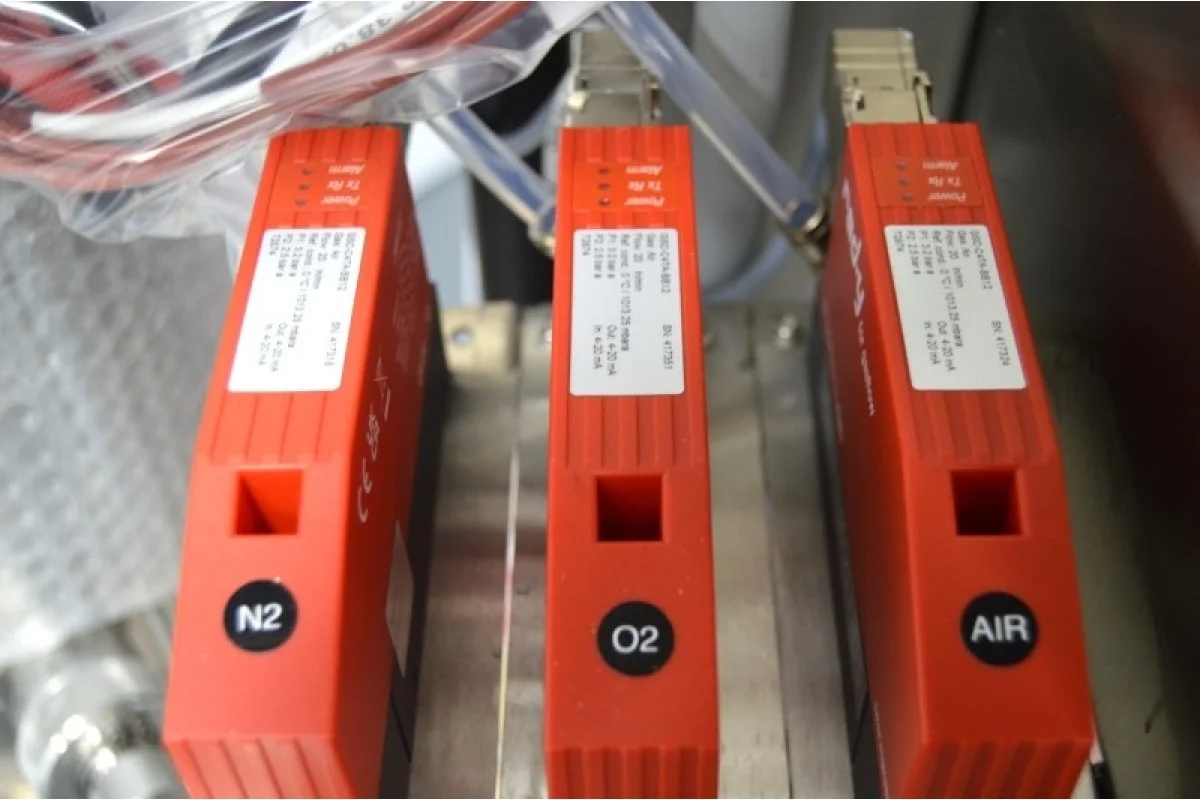

Gas flow control and Gasmix: 3 Mass Flow Controllers (MFCs Red-y smart)
Control Ranges of MFCs: 0.20 to 20.0 L min^-1
Accuracy measurement and control: ± 2.0 % FS

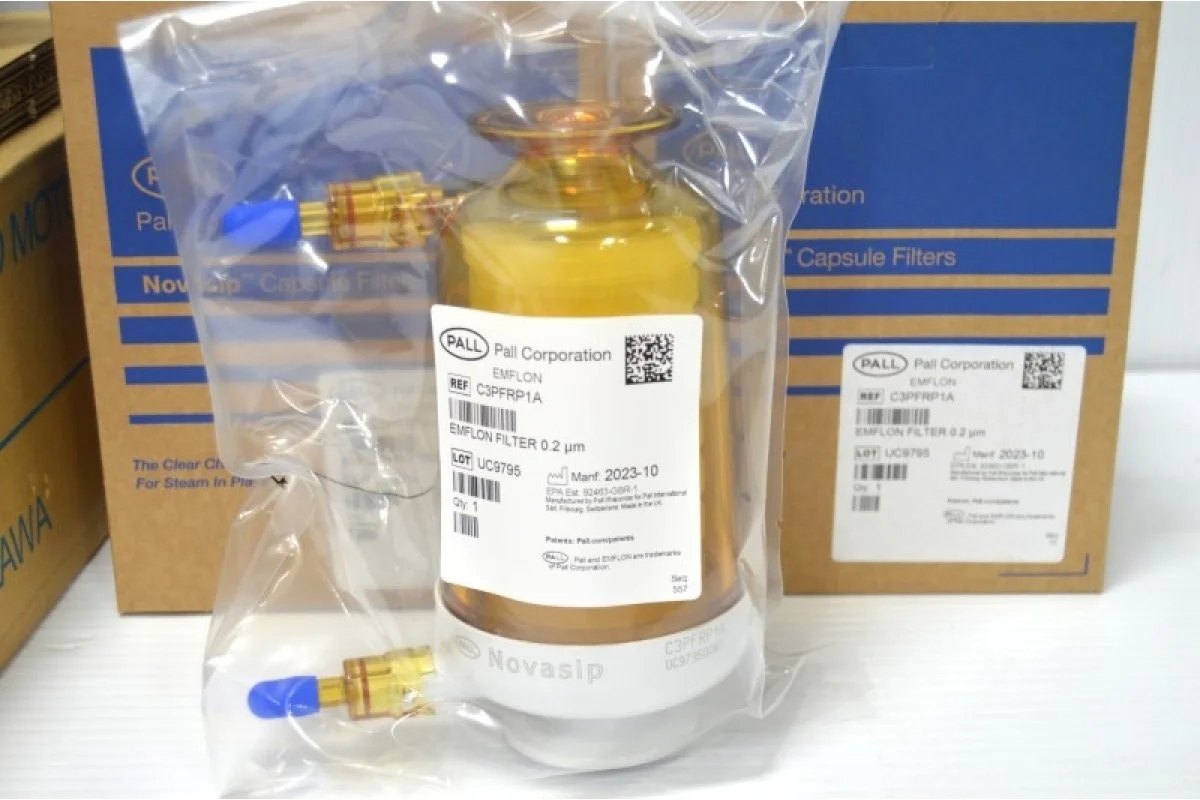

Gas System: exit gas cooler, Novasip C3PFRP1A filters for exit gas filter/inlet air filter

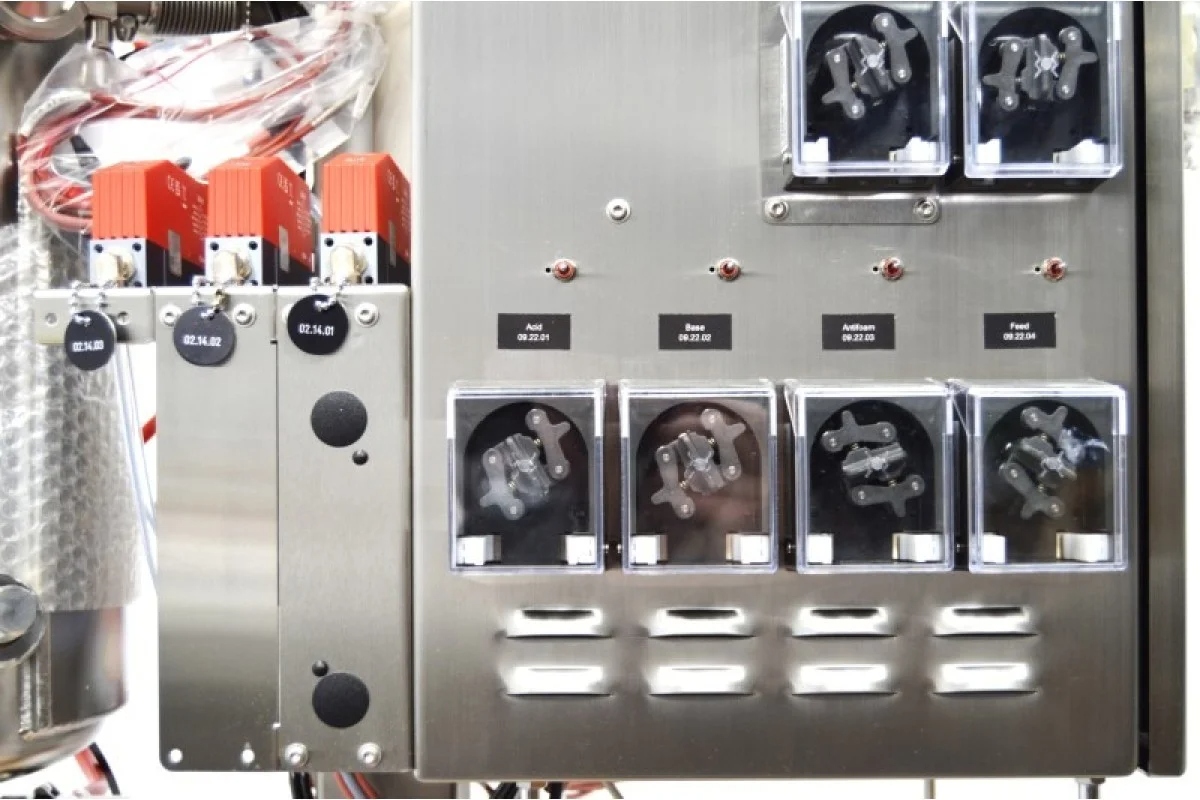

Pumps:

3 digital peristaltic pumps (Acid, Base, Antifoam); Rotation speed: fixed speed 150 min^-1, Accuracy: ± 5 min^-1

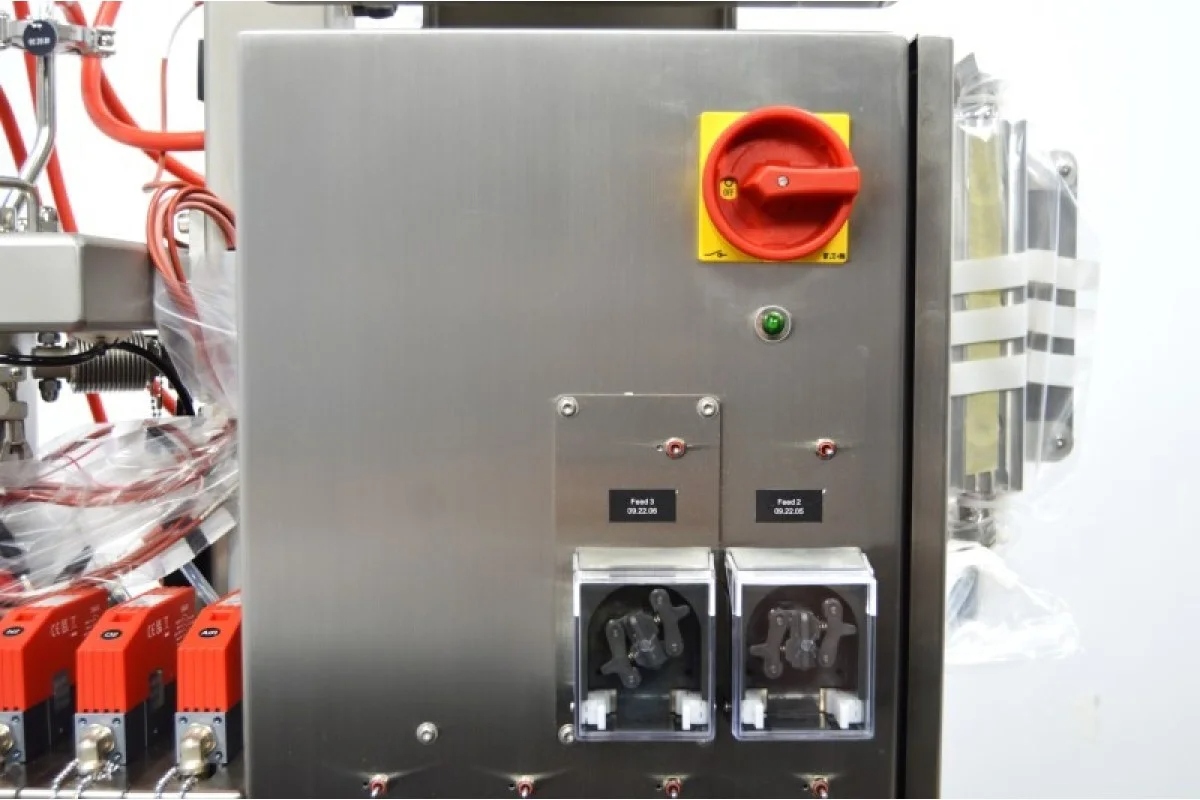

3 digital peristaltic pumps (Feed 1, Feed 2, Feed 3); Rotation speed: adjustable 0-150 min^-1, Accuracy: ± 5 min^-1
External Feed pump Watson Marlow 120 U/DV; Rotation speed: variable control 200 min^-1

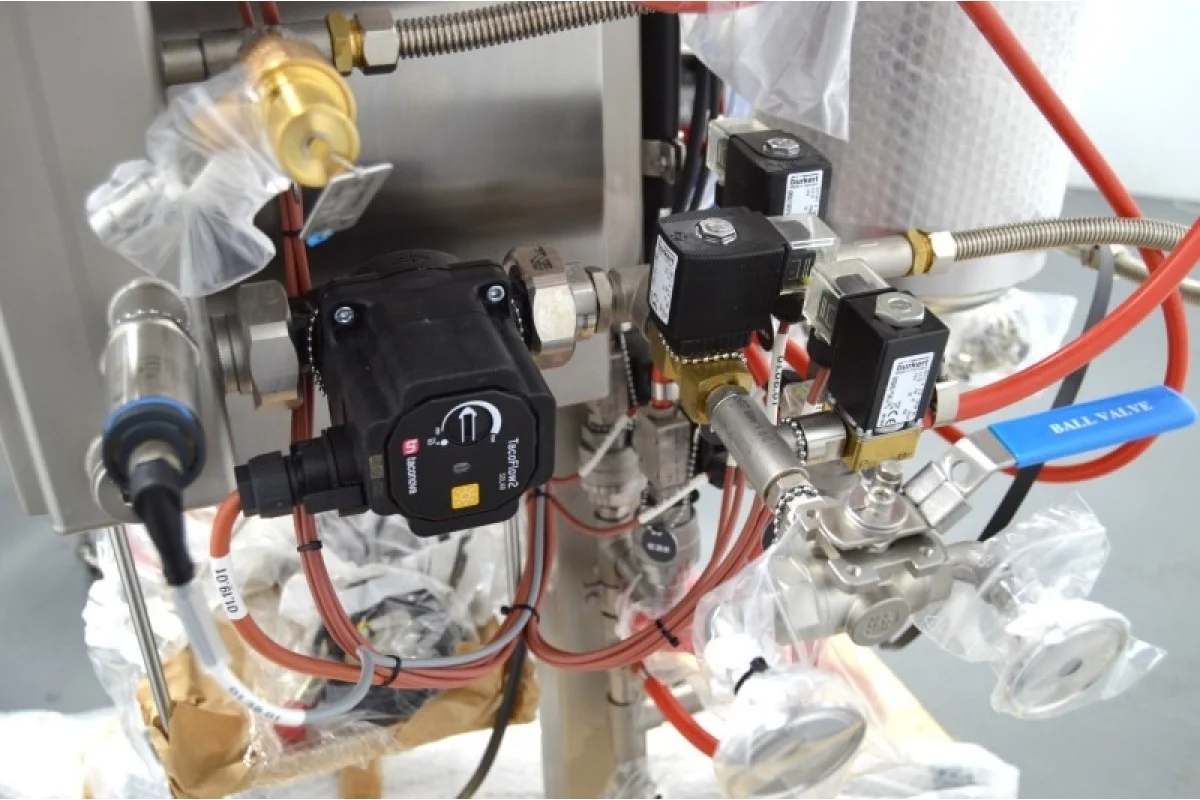

Temperature control system & sterilization:

Heating: injection nozzle for direct steam injection via house steam supply

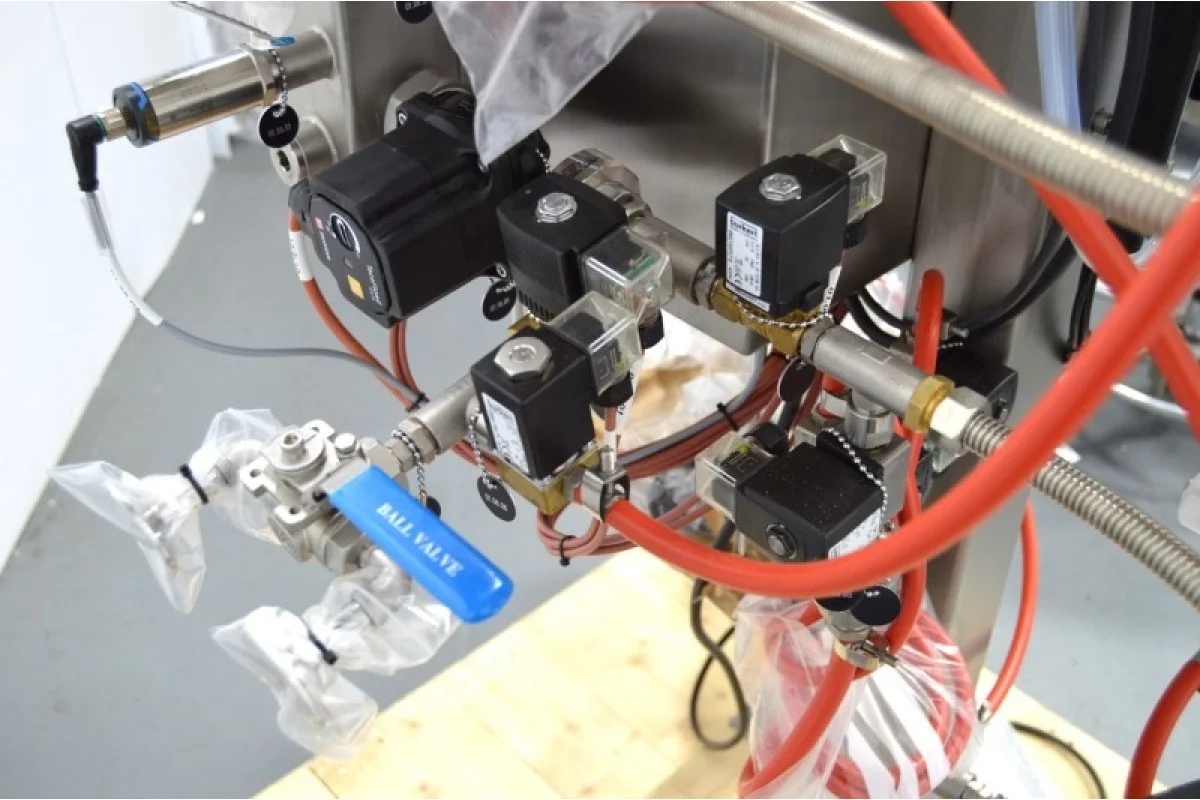

Cooling: 3-way ball valves on the water inlet and water outlet facilitate manual switching between tap water and chilled water
Sterilization: automatic with steam
Temperature sensor: Pt100 Sensor

pH control:

Control: peristaltic pumps for acid and base
Control range: pH 2 to pH 12
Measurement accuracy: pH ± 0.1

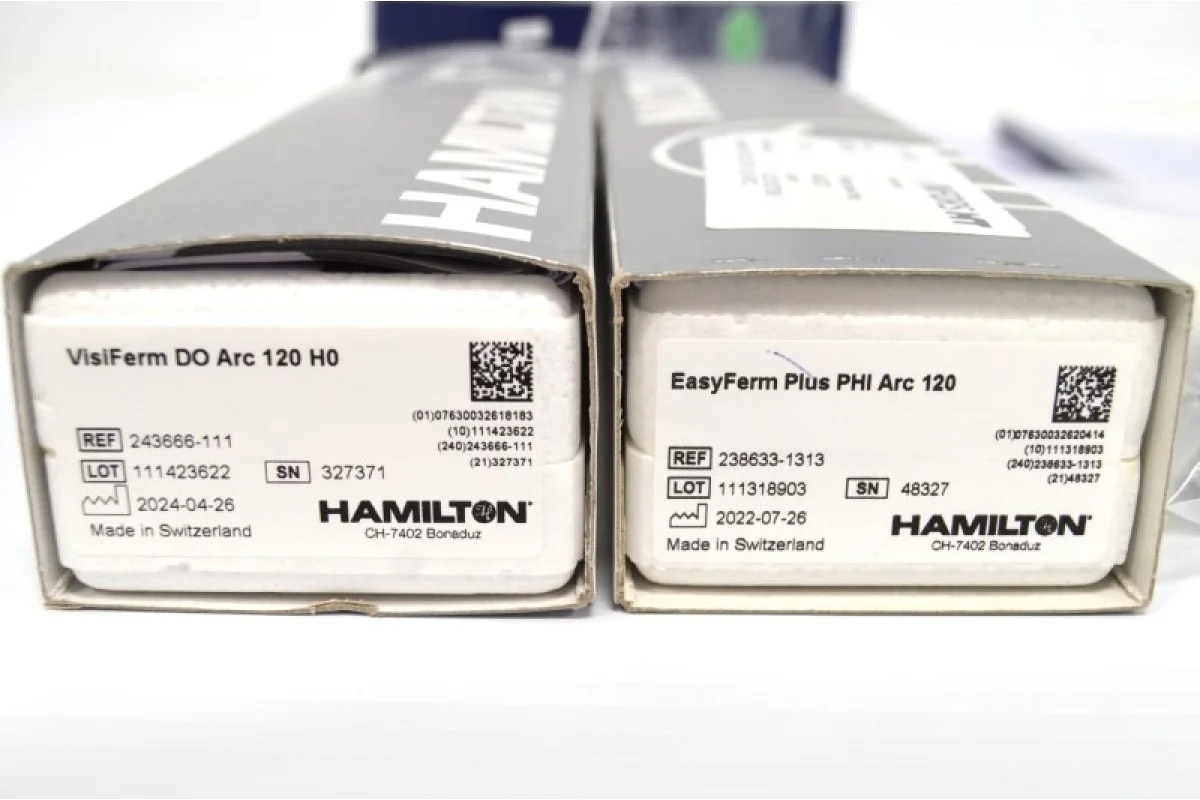

Sensor type: Easyferm Plus ARC (Digital Hamilton)
Measurement range: pH 0 to pH 14

pO2 control:

pO2 Control range: 0 to 100 %-sat
Measurement accuracy: ± 1 %
Sensor type: optical Visiferm DO ARC (Digital Hamilton)
Measurement range: 0 to 300 %-sat

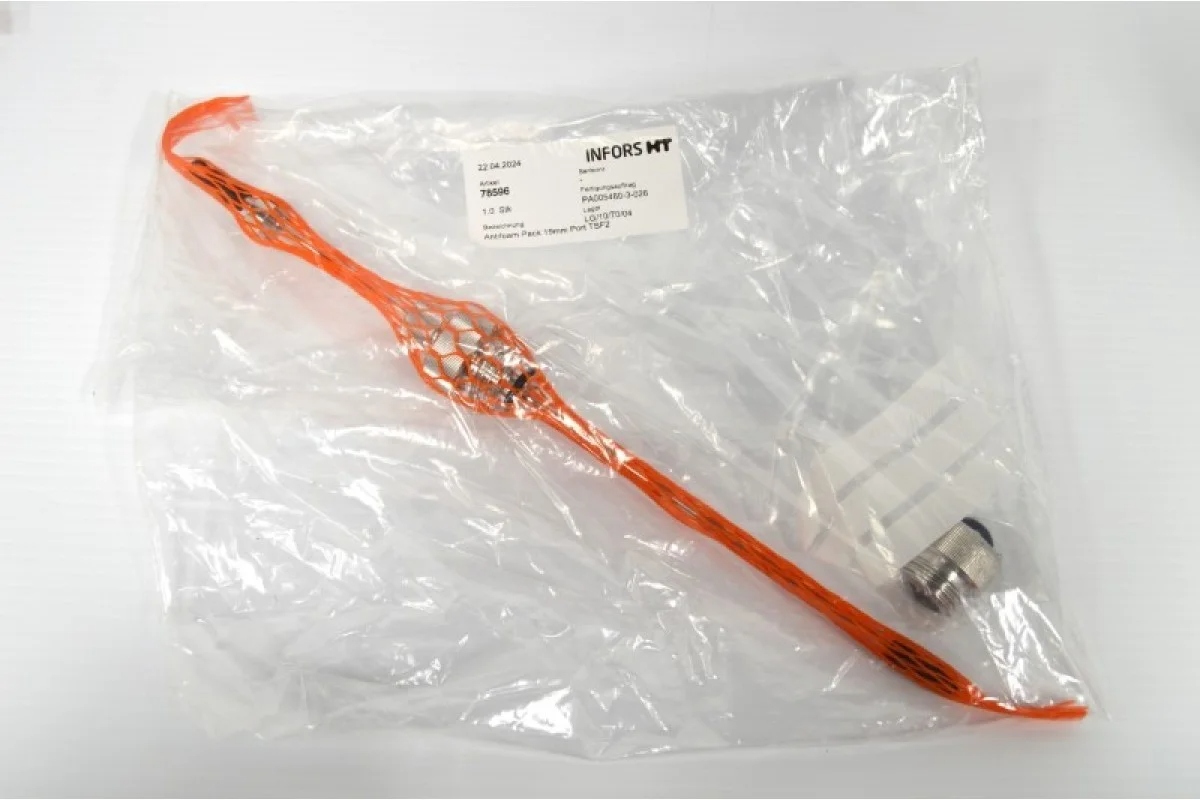

Antifoam control:

Antifoam peristaltic pump, 0-100 % w/ included antifoam sensor

Level detection:

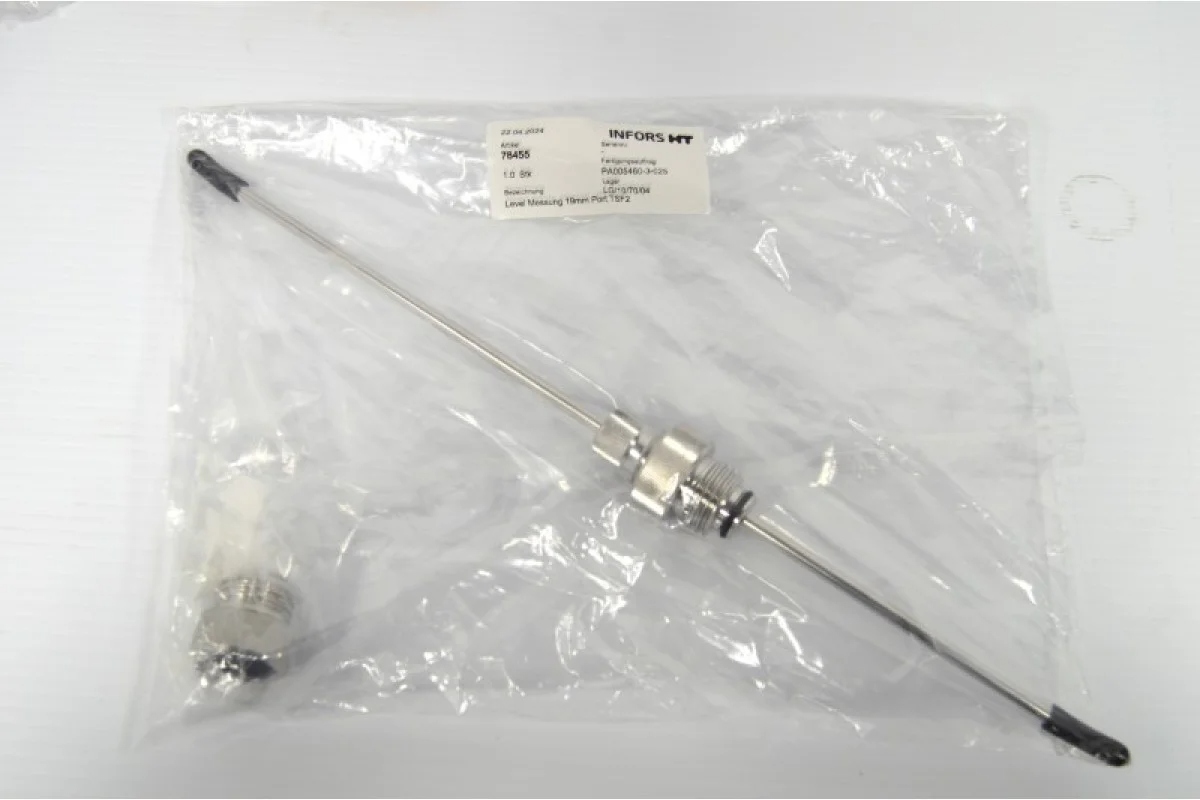

Included level sensor 0-100 %

Pressure Control:

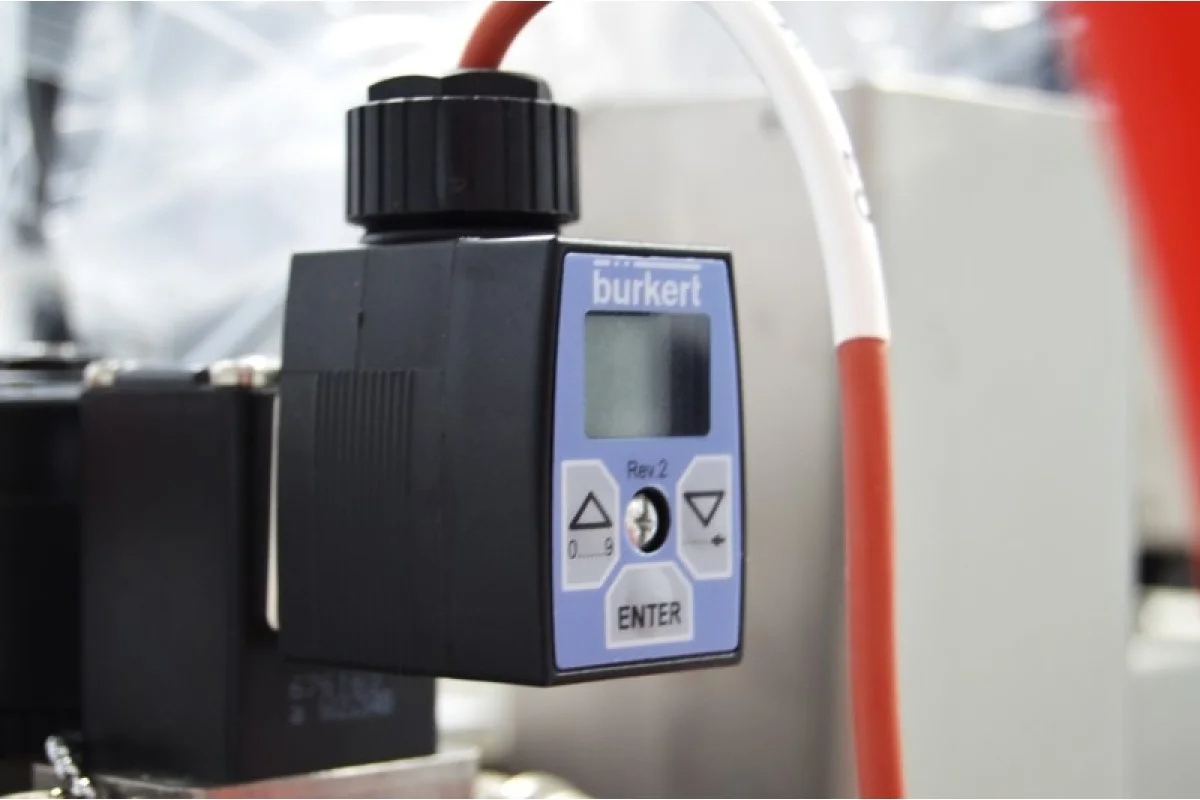

Pressure Brukert control valve with pressure sensor, measurement range: 0-3 bar

Weight measurement vessel:

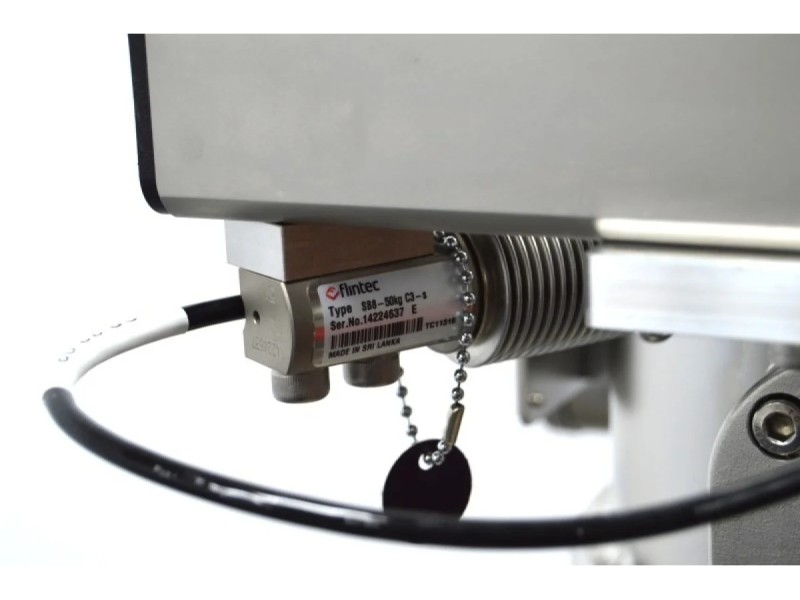

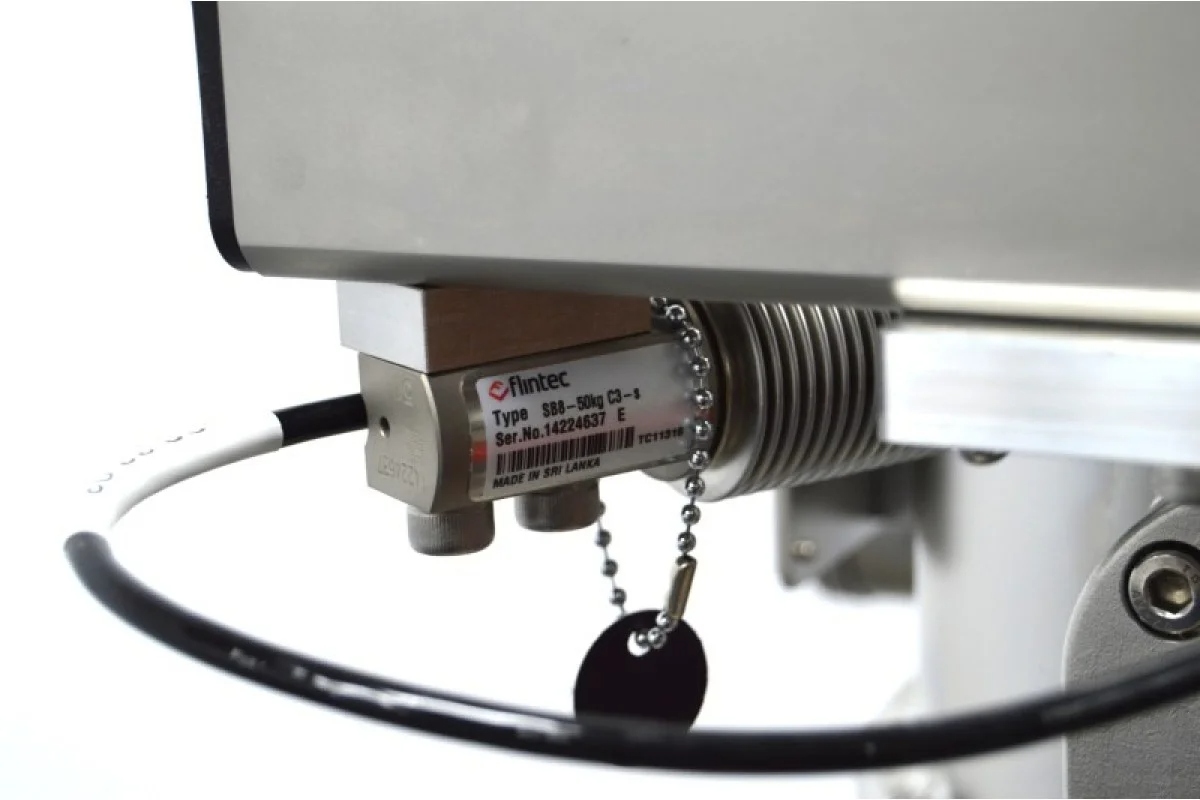

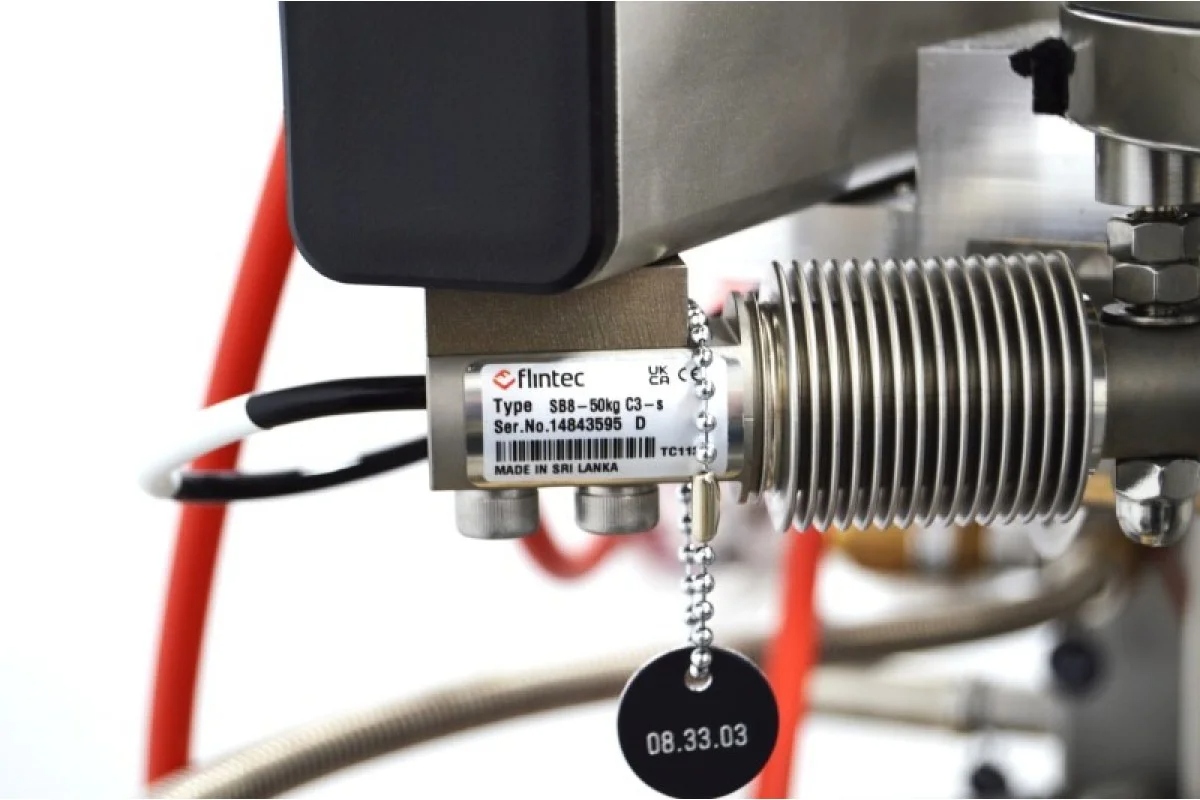

Sensor type: 3 bending rod load cells, measurement accuracy: ± 100 g

Balances:

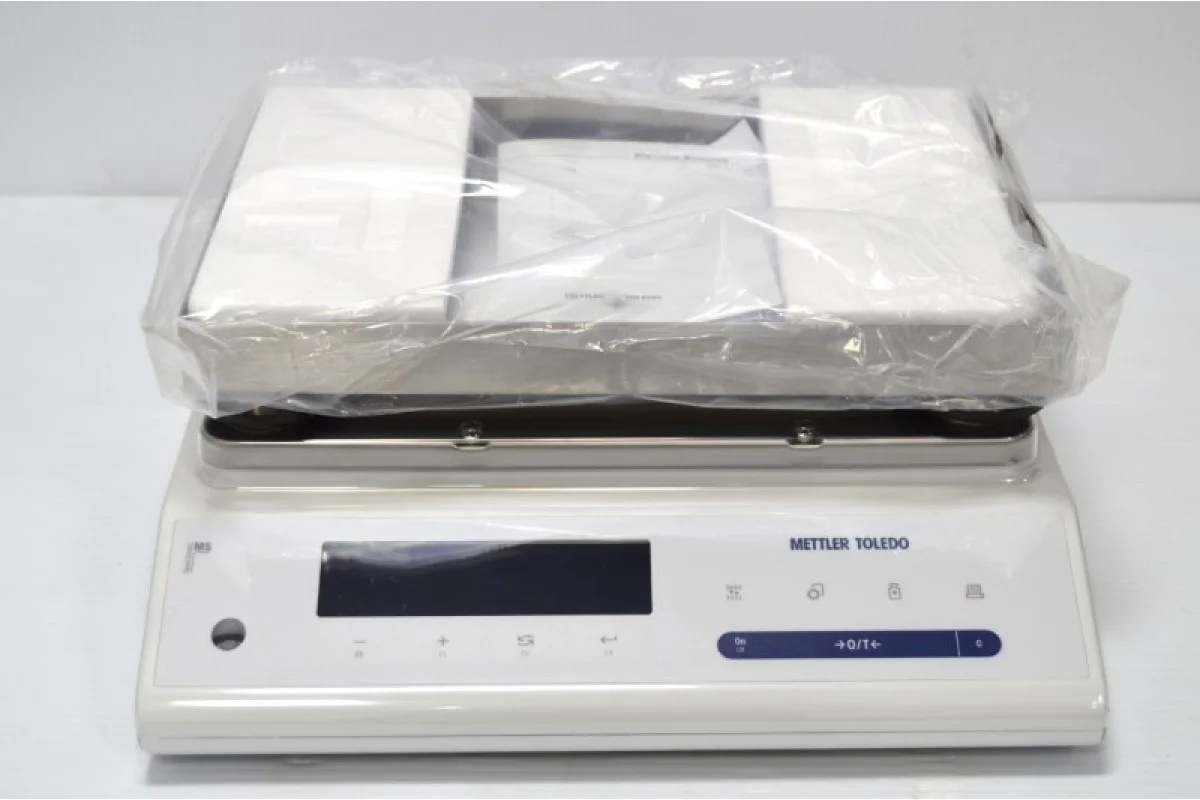

Mettler Toledo MS32001L Precision Balance; max. capacity: 32kg

Exit gas analysis:

BlueVary with O2, CO2, and Pressure/Humidity cartridges for aerobic/anaerobic bioprocesses
Measurement ranges: 0 to 10% CO2, 0 to 100% O2, and 0 to 15% Humidity

Power requirements: 200-230 V (± 5 %), 60 Hz, 15 A

Customization/Options: N/A

Testing performed by our in-house service team: BRAND NEW/SEALED

Instrument Overview:

Scalable vessel: the 15 L total volume with a wide 3–10 L working range makes it adaptable to varying batch sizes.
Reliable stirring: the AC servo motor and wide rotation speed (20–1500 min⁻¹) allow excellent mixing for different shear requirements.
Advanced gas control: 3 smart MFCs with precise flow rates and good measurement accuracy offer tight control of gas mix—ideal for complex cultures.
Comprehensive sensors: includes robust pH, pO₂, level, pressure, and weight monitoring for consistent process data.
Easy sterilization: direct steam injection and fully automated SIP enhance operational safety and efficiency.
Exit gas analysis: the integrated BlueVary unit supports both aerobic and anaerobic monitoring, which is a plus for diverse processes.

Instrument Application:

Microbial fermentation for biomass or metabolite production
Cell culture processes for vaccine development
Pilot-scale enzyme production
Small-batch production of bio-based chemicals
Scale-up studies from lab to industrial fermenters

The Key Features:

Flexible 3–10 L working volume range
Rushton impellers for strong mixing
Smart MFCs for precise gas control
Robust sensors for tight monitoring
Modular, easy-to-scale design
