BRAND NEW Infors HT Labfors 5 Bench-Top Bioreactor System for Microorganisms 4-Fold, Jacketed 7.5 L Vessels Unit 2
 | Approved Vendor to many US, Canada, and EU Universities |
| International Shipping |
| Customer References Available |
| Training and Installation Options Available |
- Stock: In Stock
- Brand: Infors HT
- Product Code: SM101589-U2
- Condition: New
$64,995.00
CLICKABLE TABS BELOW
For Sale BRAND NEW Infors HT Labfors 5 Bench-Top Bioreactor System for Microorganisms 4-Fold, 7.5 L Vessels Unit 2
- BRAND NEW
- Fully Functional
- In Stock
- Current Model
- Technical sales consultation available
- WARRANTY
- Optional on-site setup and training are available for customers within 2 hours of Boston, MA.

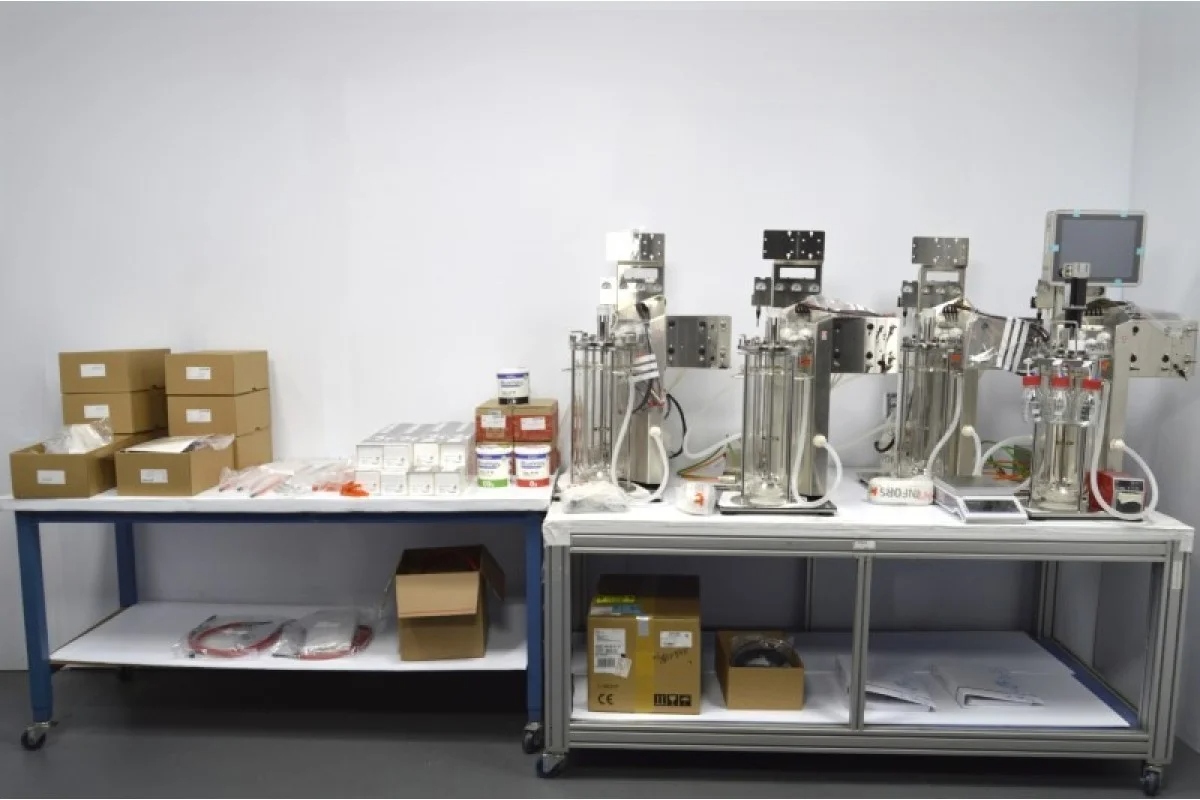

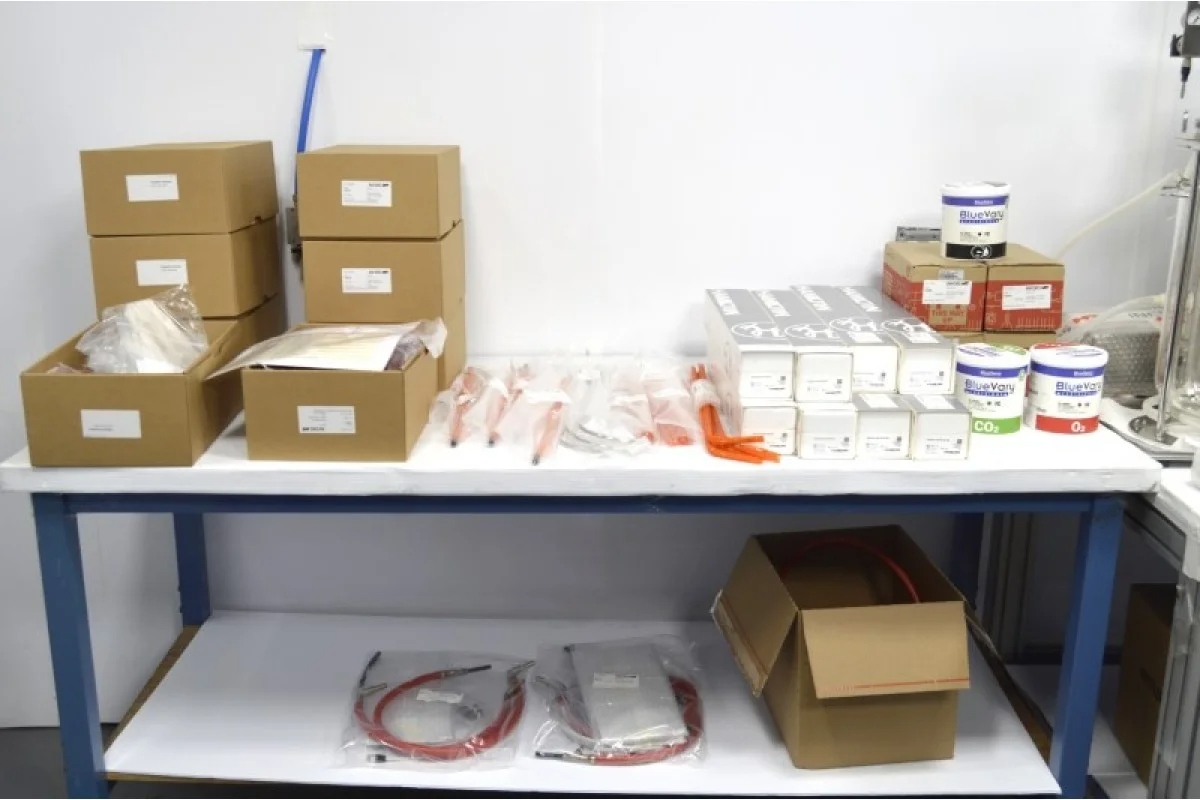

Here is what you will receive:

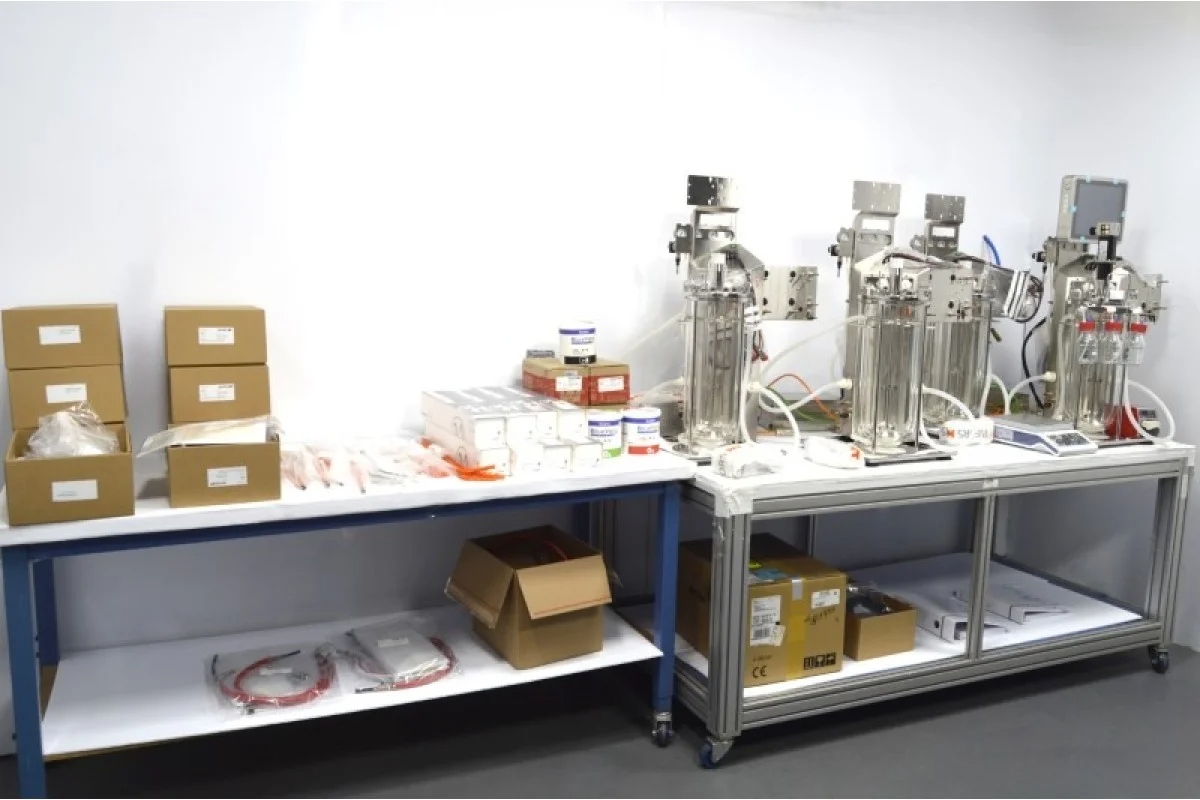

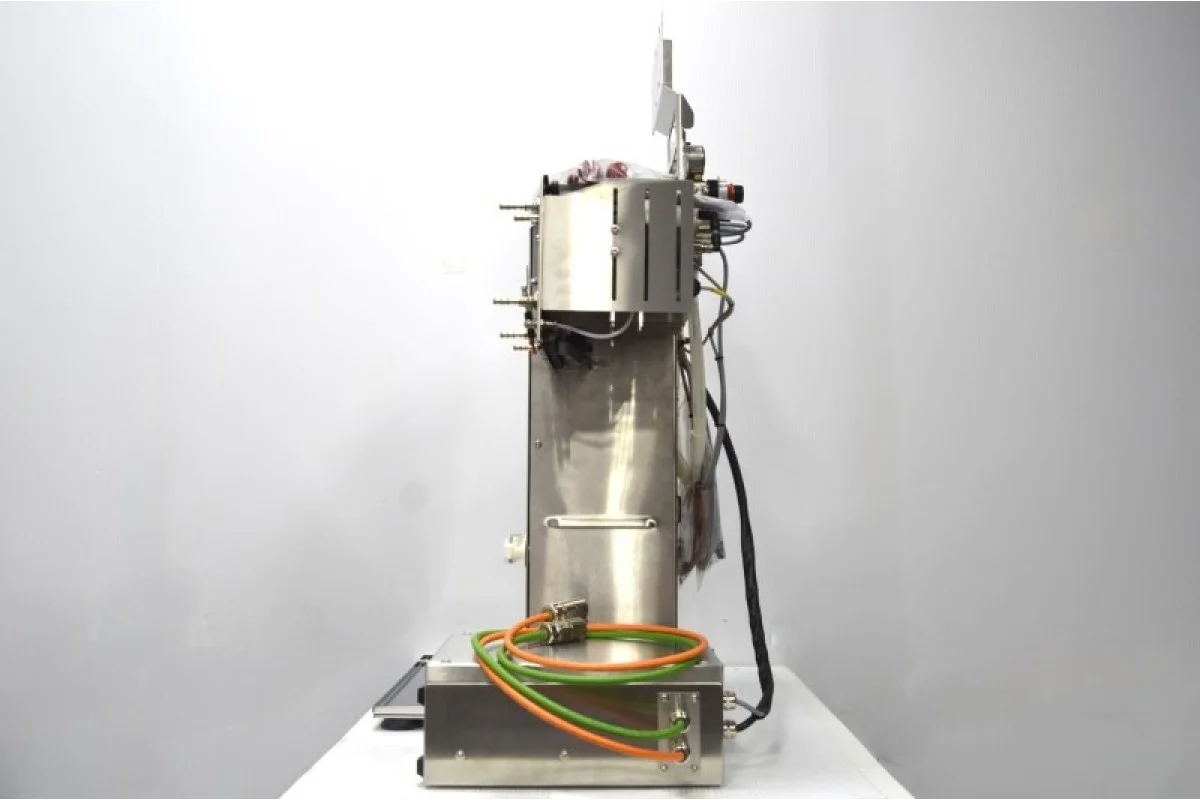

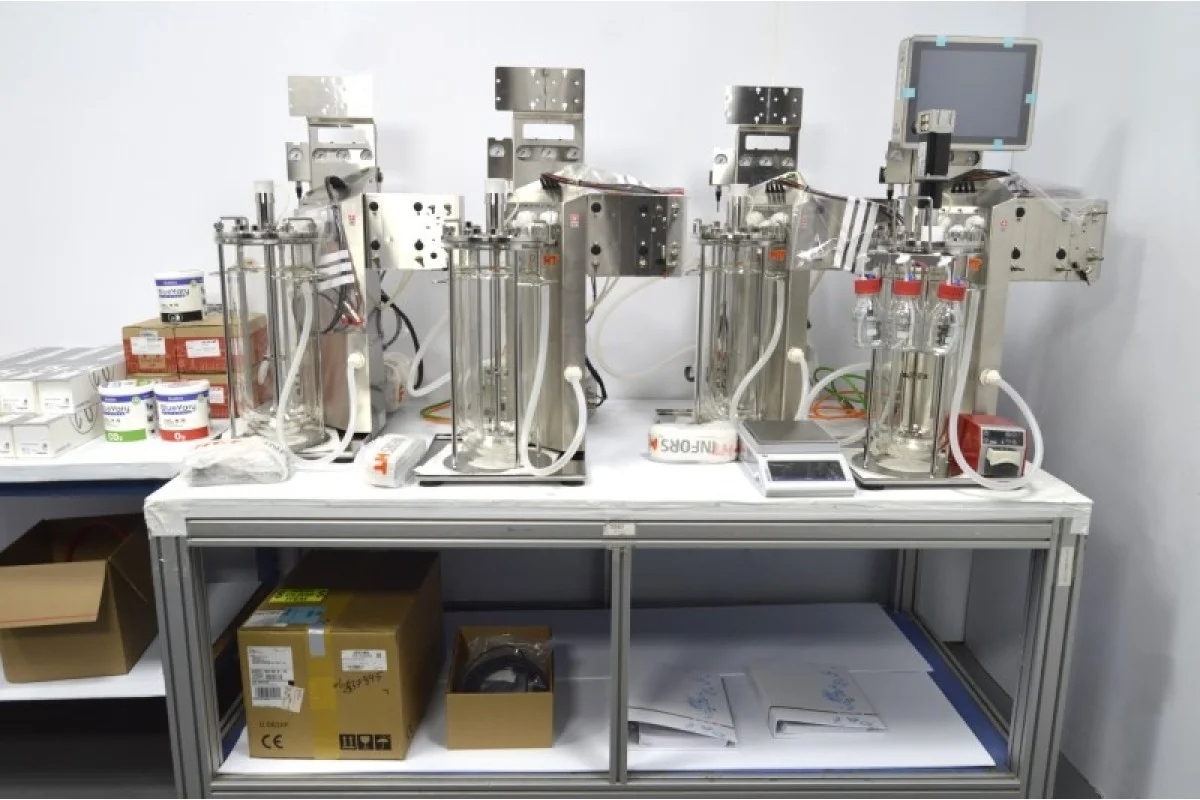

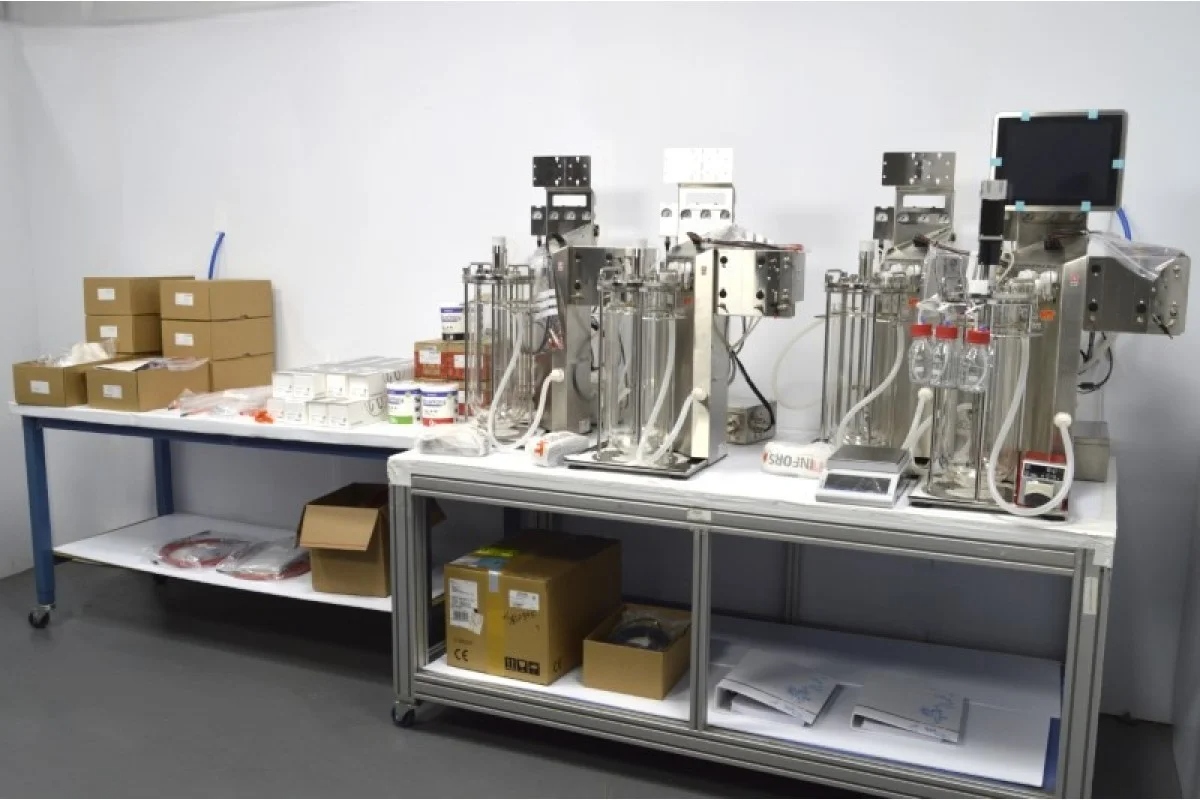

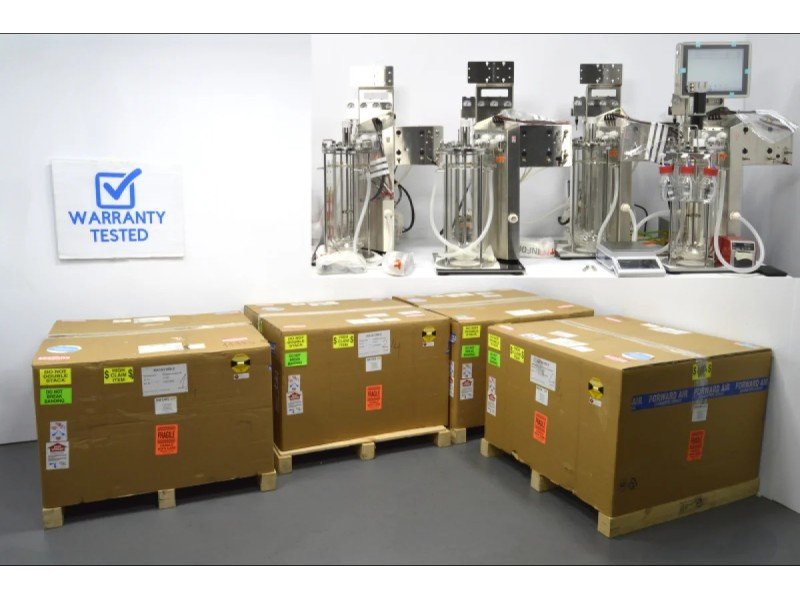

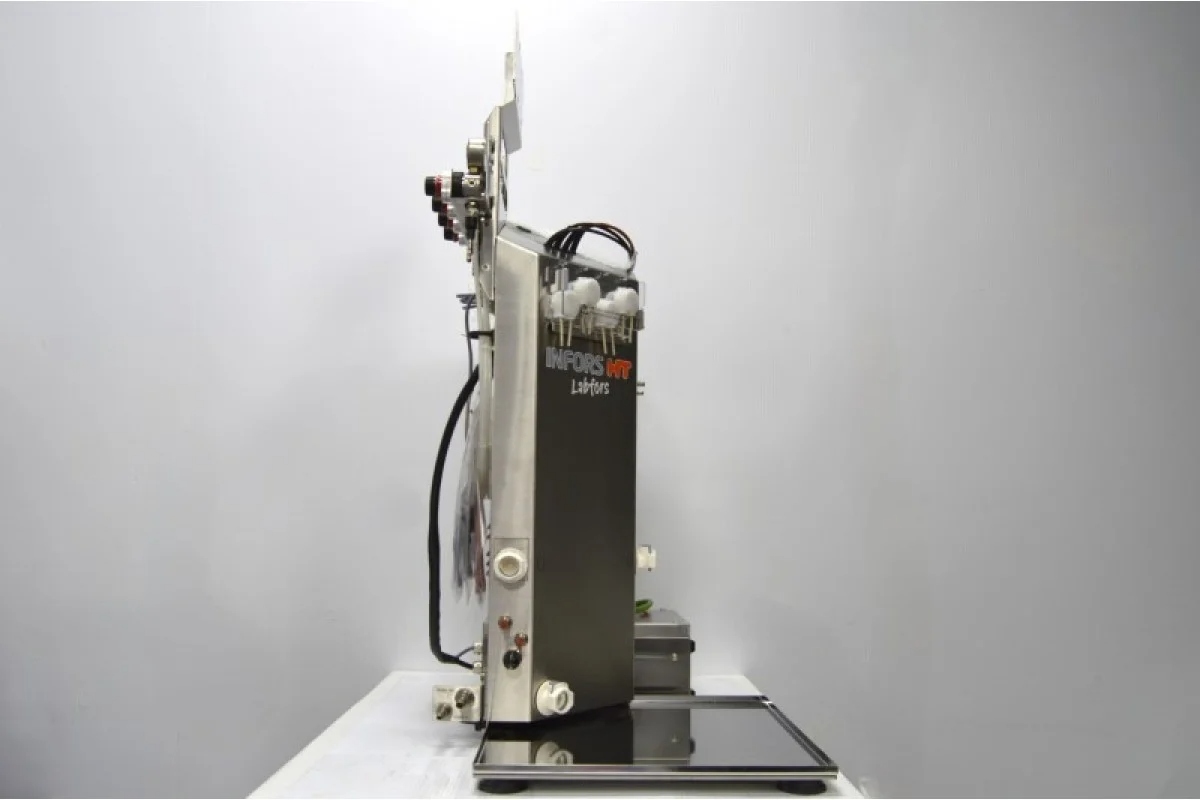

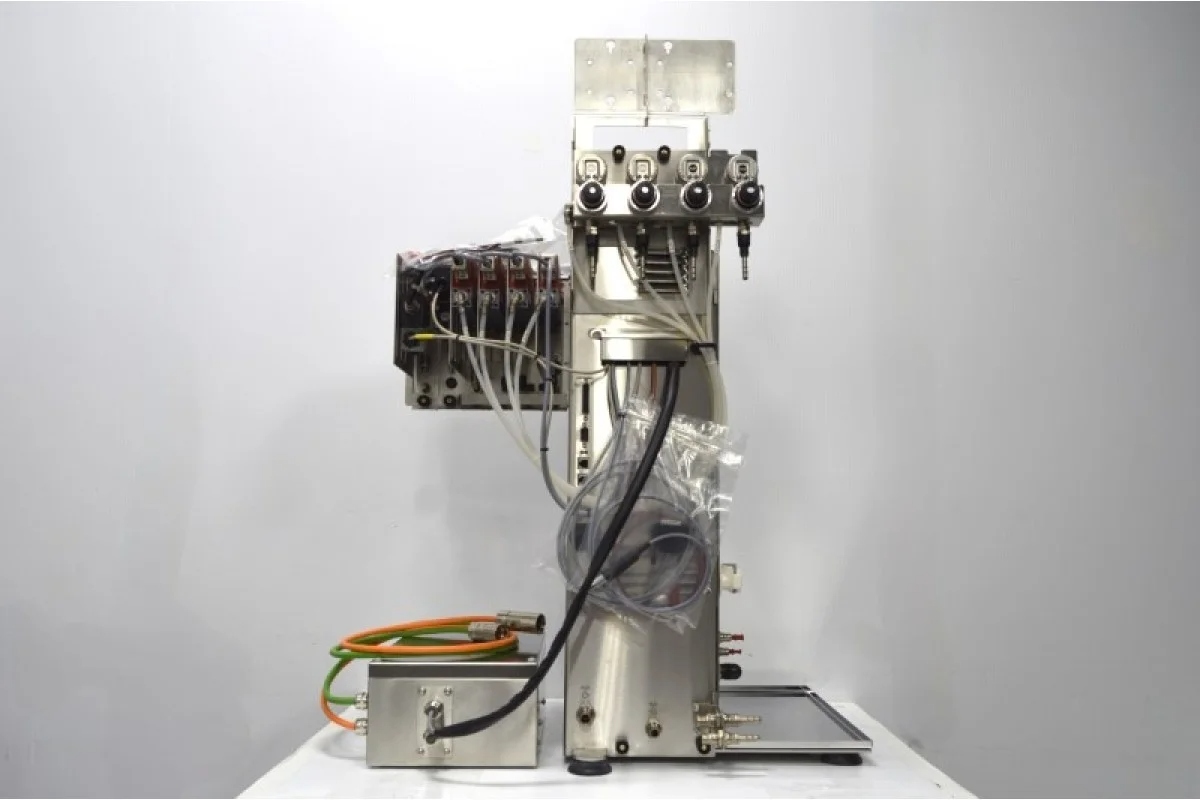

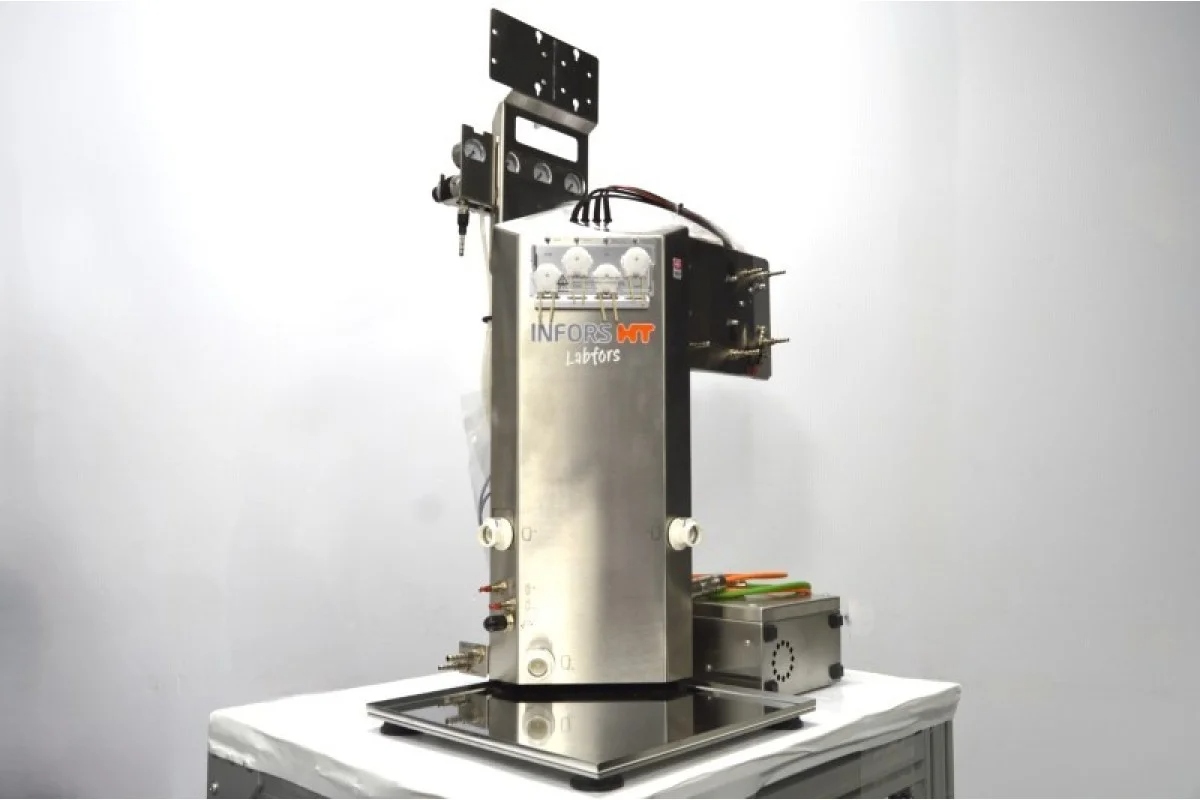

- Infors HT Labfors 5 BioReactor master unit with 12" colour touch screen Qty.:1
- Infors HT Labfors 5 BioReactor satellite units Qty.:3
- Starter Set 73214 Qty.:4

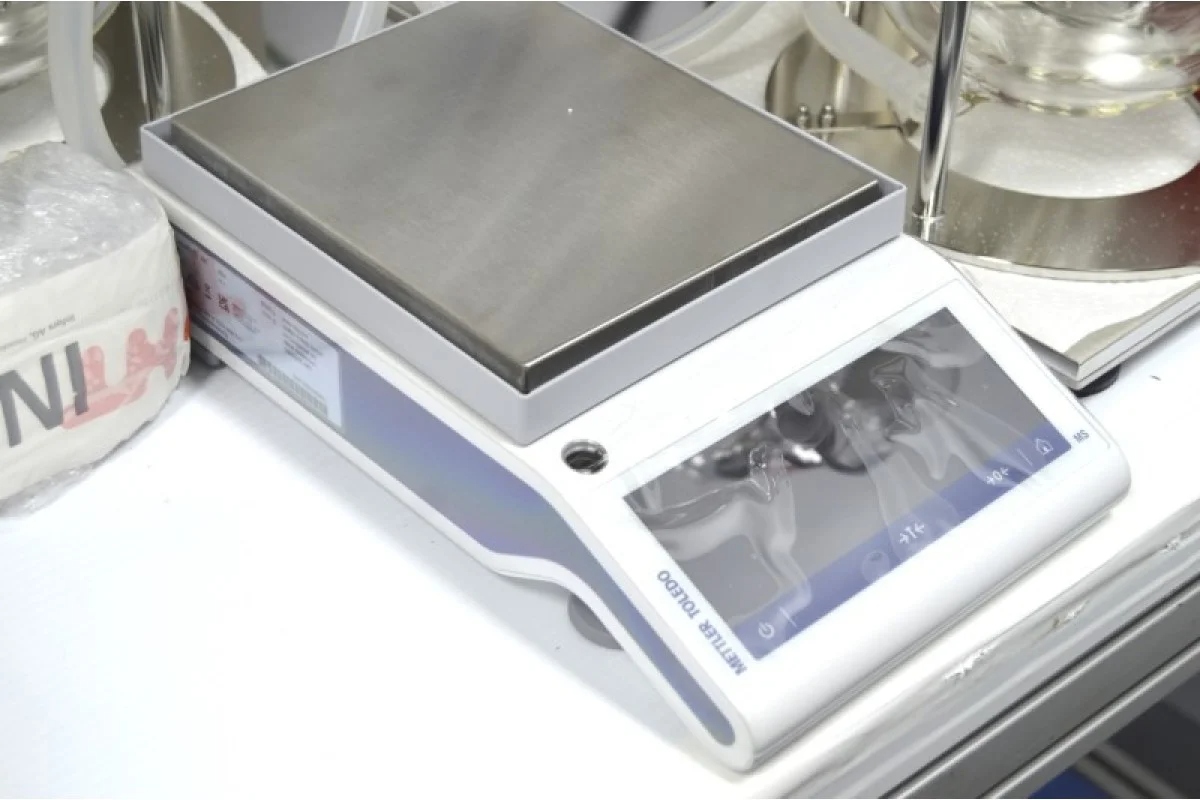

- Precision balance Mettler MS6002TS/00 max. 6200g Qty.:2

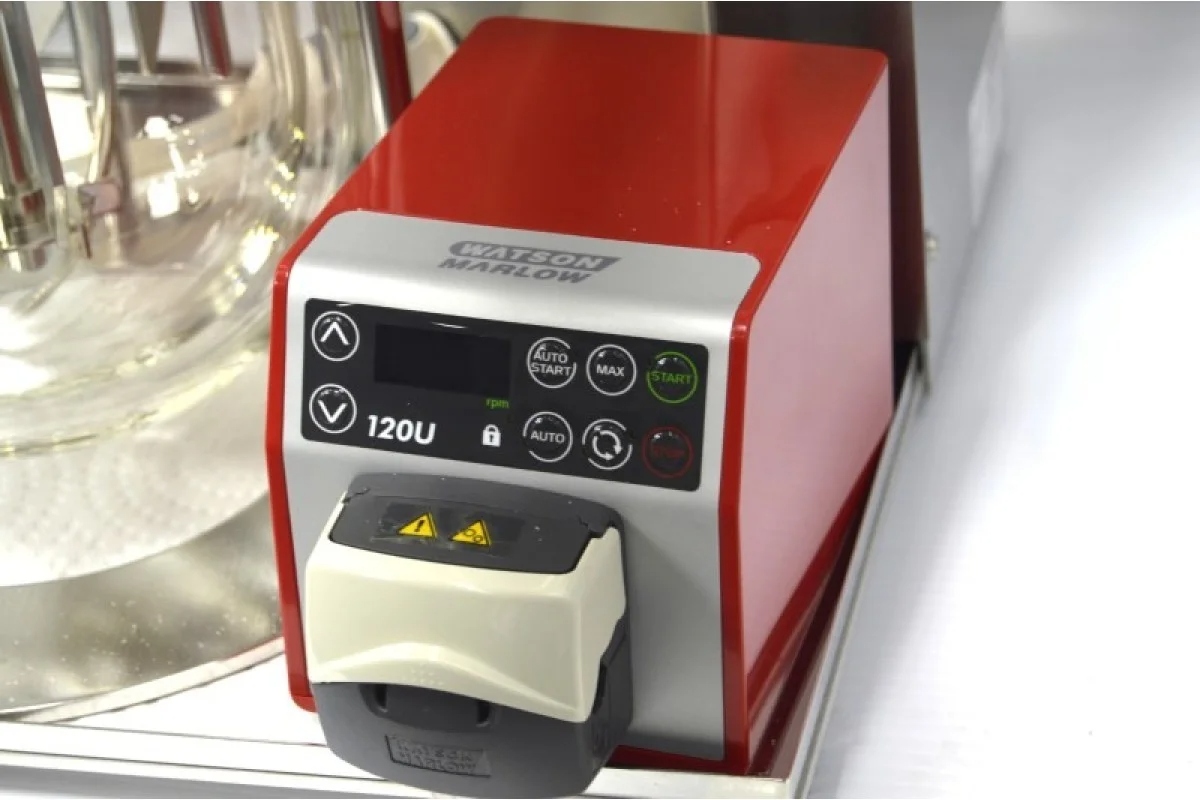

- Watson Marlow 120U/DV external peristaltic pumps Qty.:4
- High Torque Servomotor w/ attached cable Qty.:4
- Labfors Drive Servo amplifier Qty.:4
- Bruker control valve for pressure control
- Reagent Bottle Holder for 250 mL reagent bottles Qty.:4
- Set of 250 mL reagent bottles Qty.:4

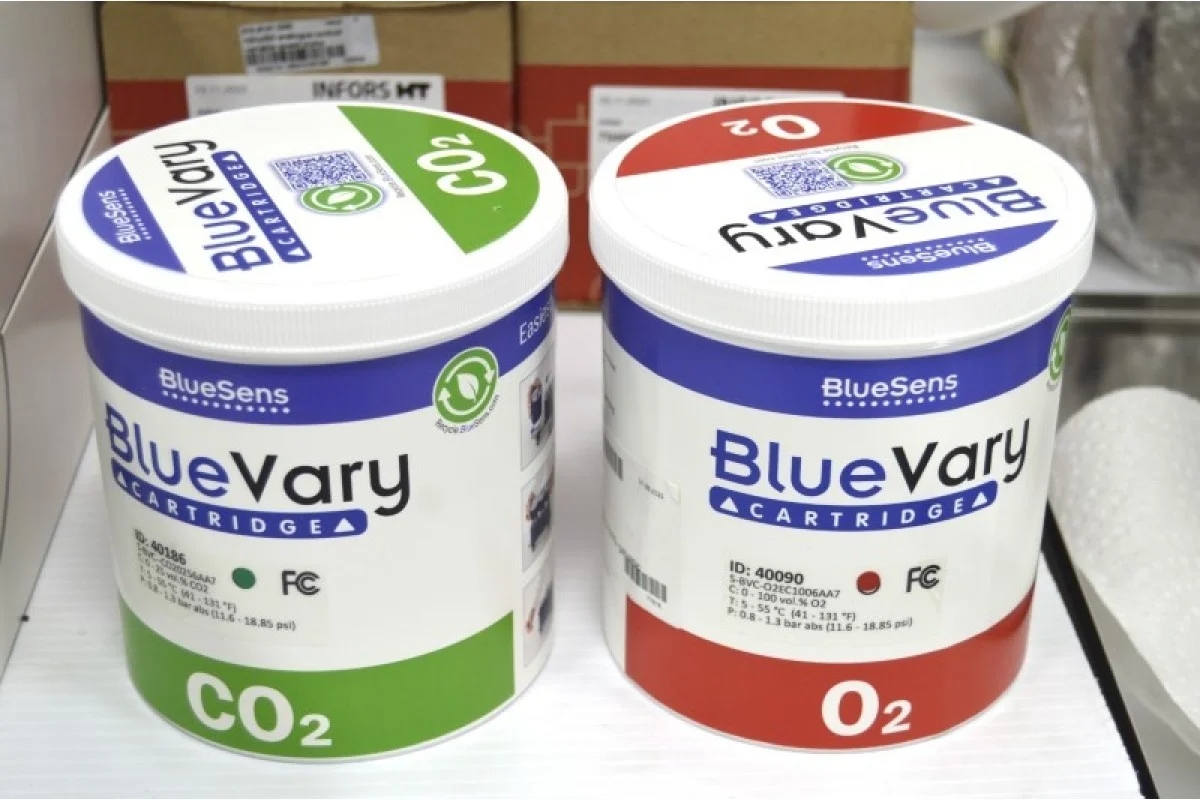

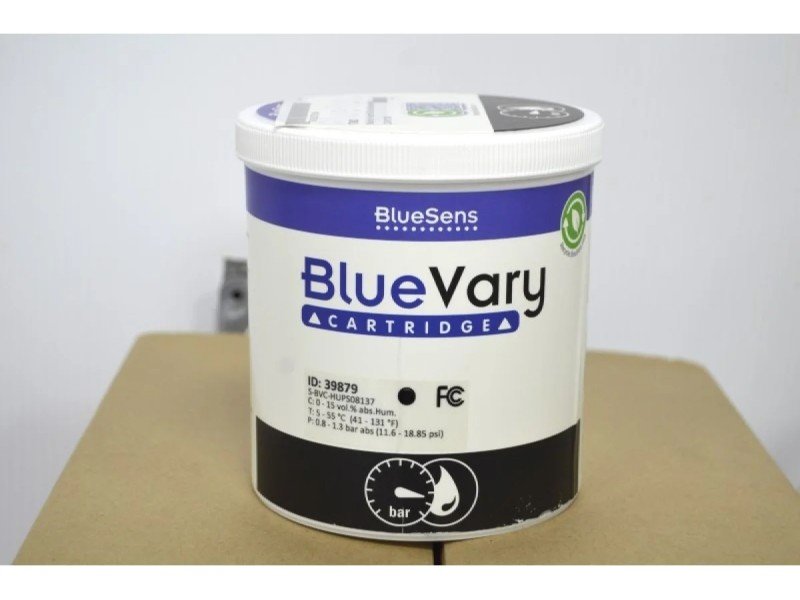

- BlueVary gas sensor with O2, CO2, and Pressure/Humidity cartridges Qty.:1
- Base tray Qty.:4

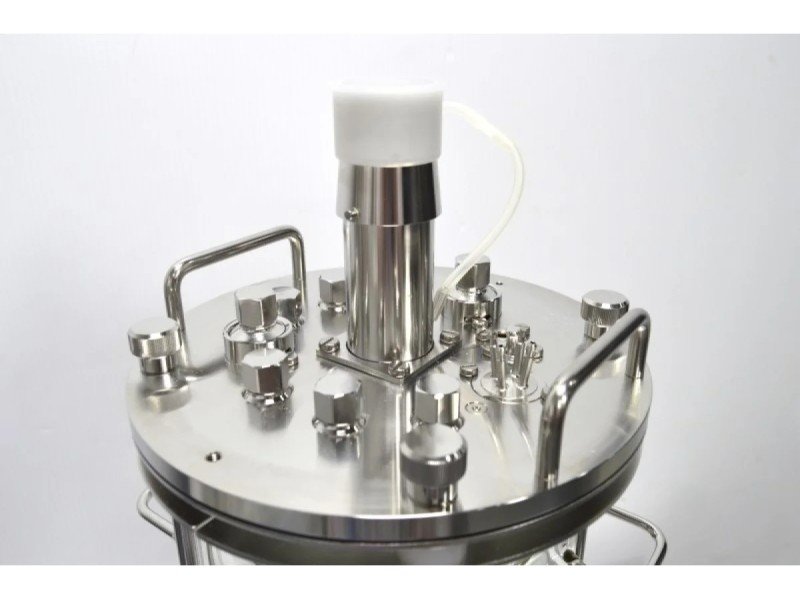

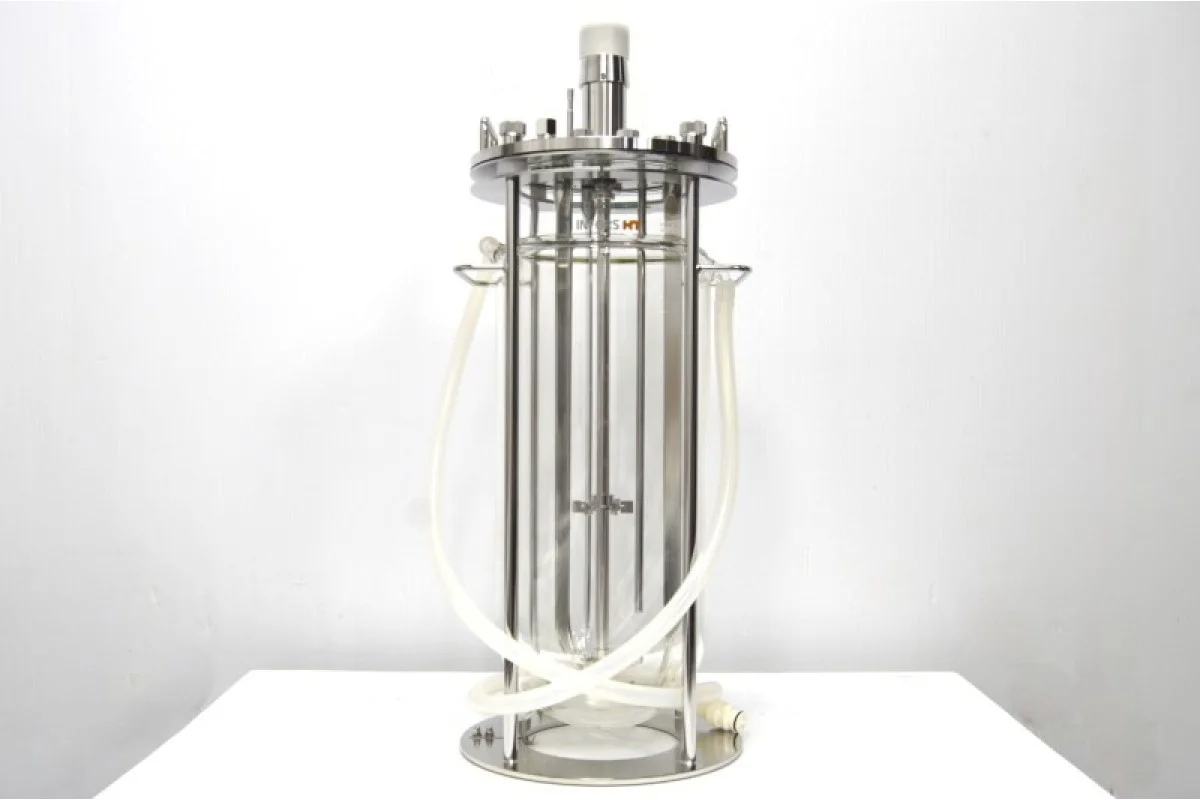

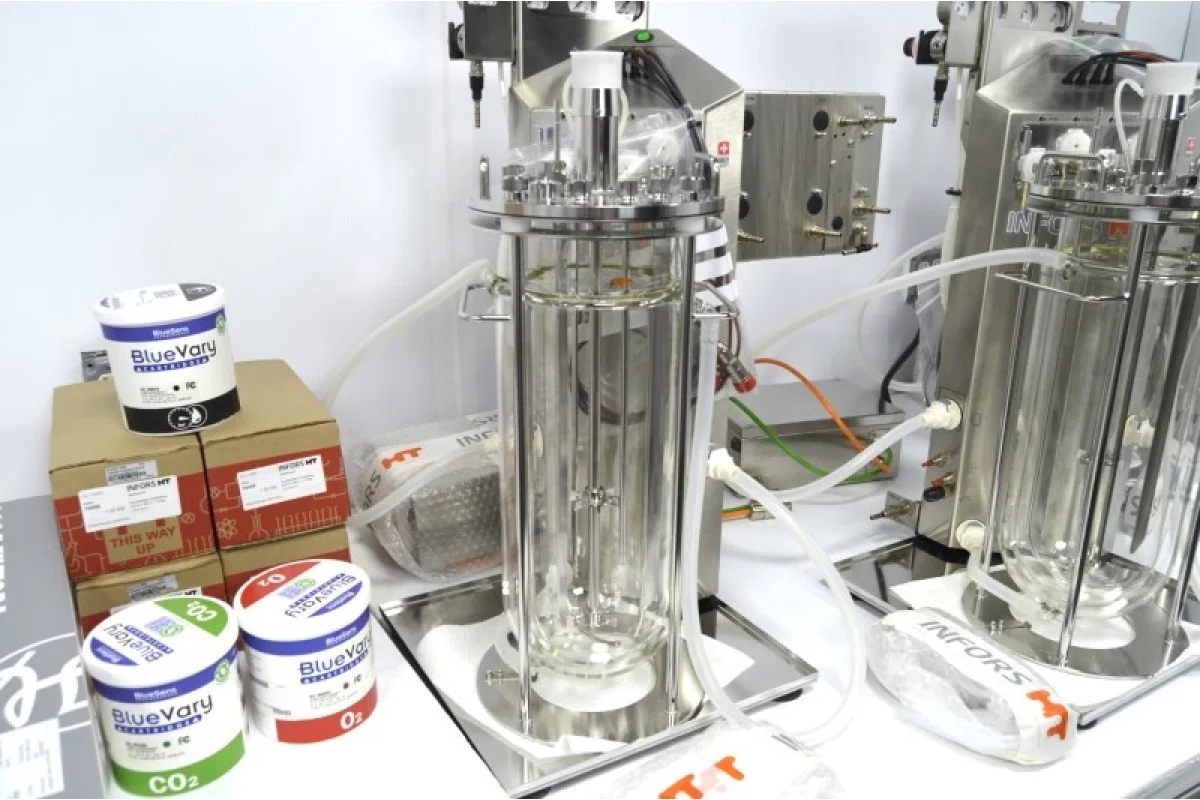

- VESSEL – Jacketed/Double walled Culture Vessel 7.5 L, DN 150 Qty.:4

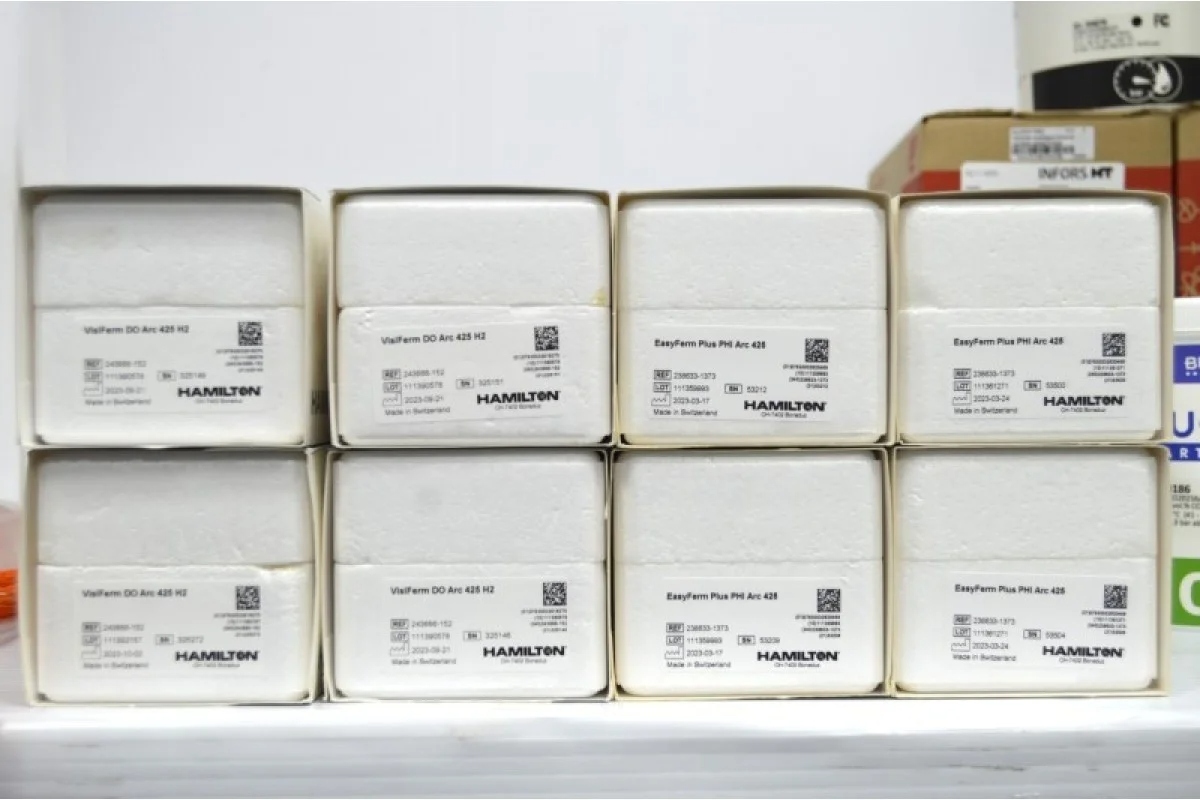

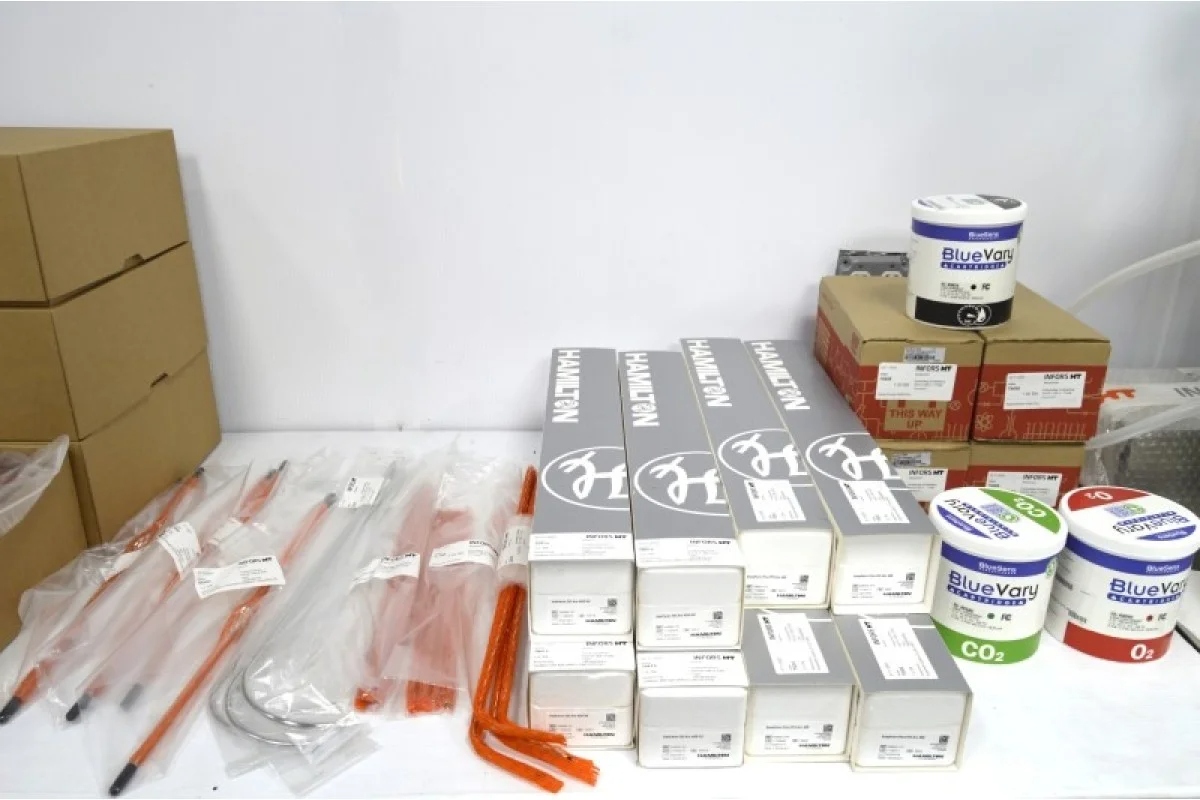

- PH – Easyferm Plus PHI ARC 425 (Digital Hamilton) pH sensor with extension cable Qty.:4
- DO – Visiferm DO ARC 425 H2 (Digital Hamilton) PO2 sensor with extension cable Qty.:4
- TEMP – Temp sensor Pt100 w/ cable Qty.:4
- 2 x Rushton impellers with 6 blades Qty.:4
- Arch sparger for microbials Qty.:4
- Sparger 7.5L NW 150 p/n: 26164 Qty.:4

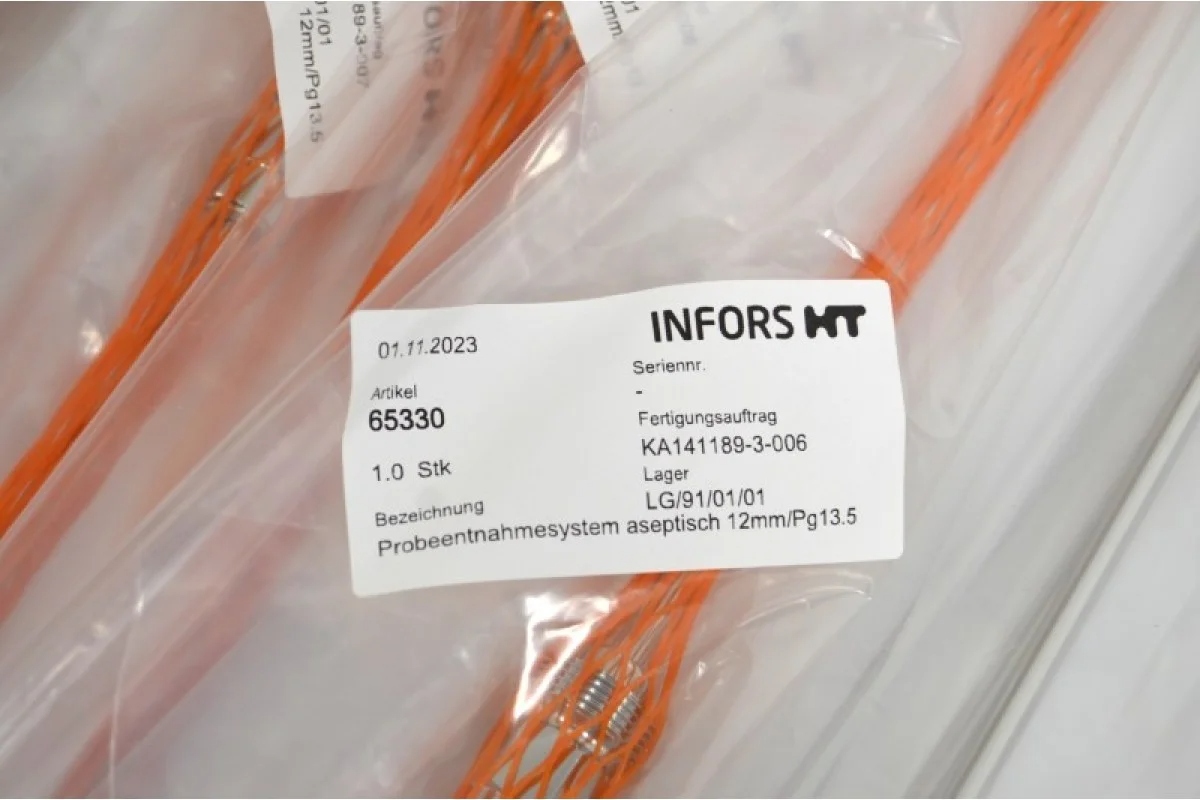

- Sampling system 12mm/pg13.5 p/n: 65330 Qty.:4
- Dip tube straight 6x360mm p/n: 31185 Qty.:4
- Dip tube straight 6x430mm p/n: 31186 Qty.:4
- Harvest probe D=6mm 7.5L NW150 p/n: 22042 Qty.:4
- Water hoses KIT for the jacket Qty.:4
- Communication and power cables
- Techfors version: 3.5.1.0

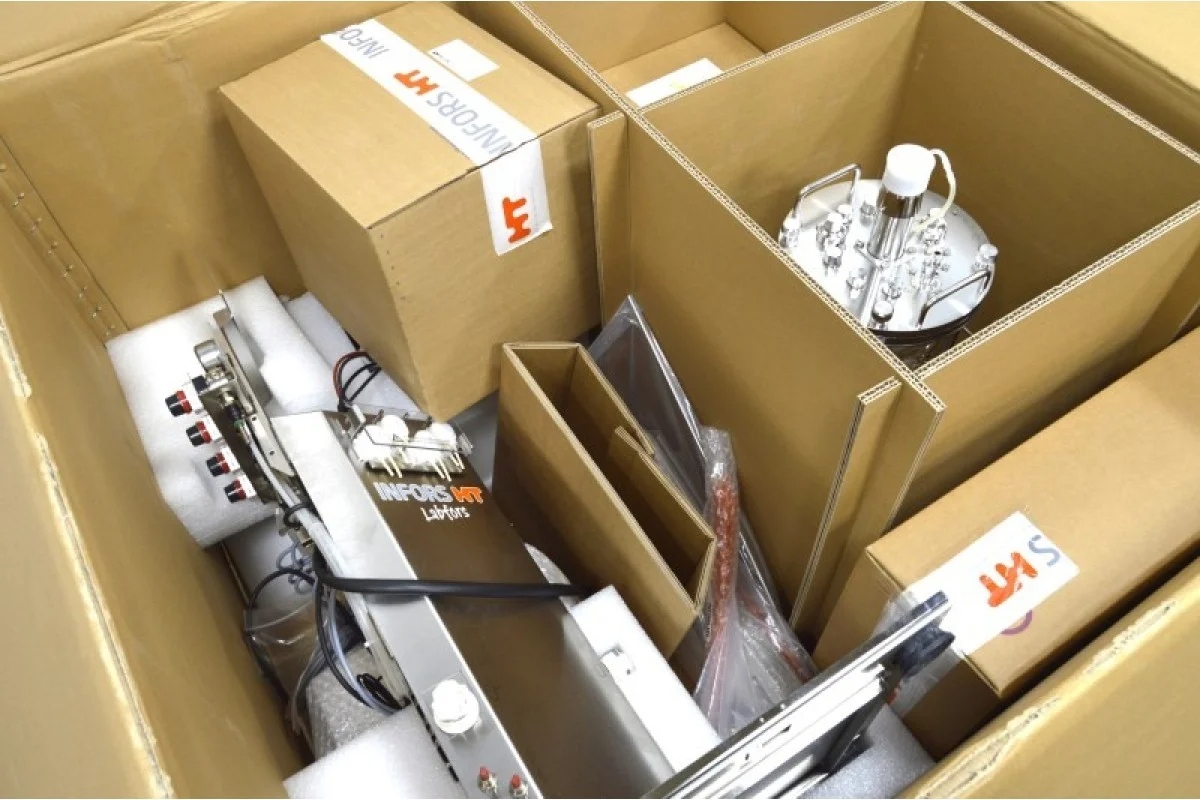

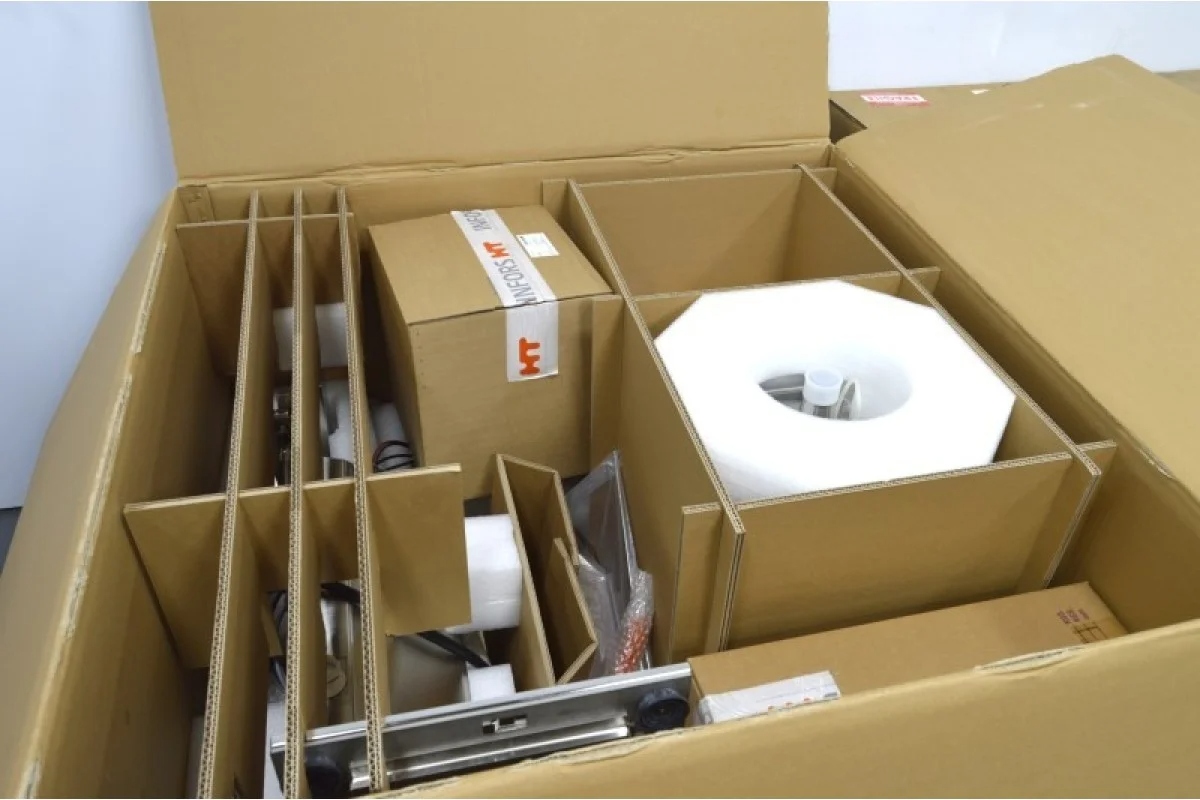

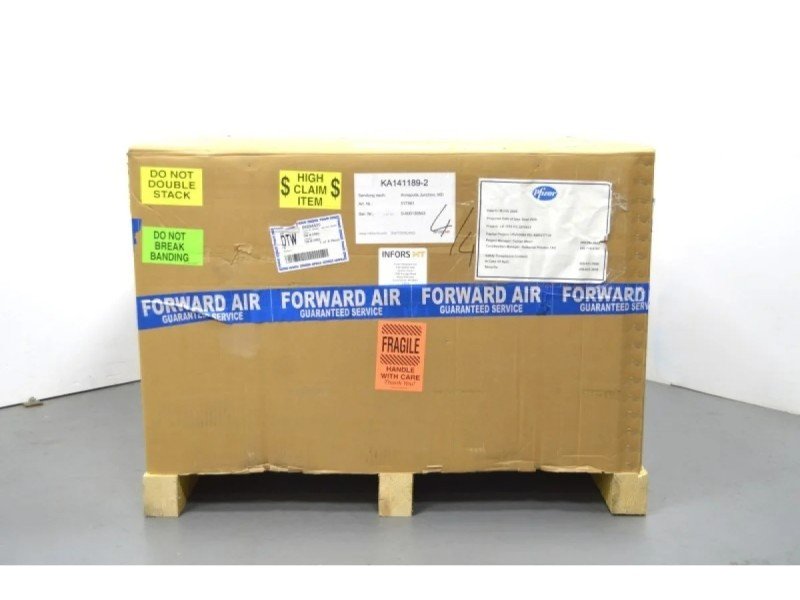

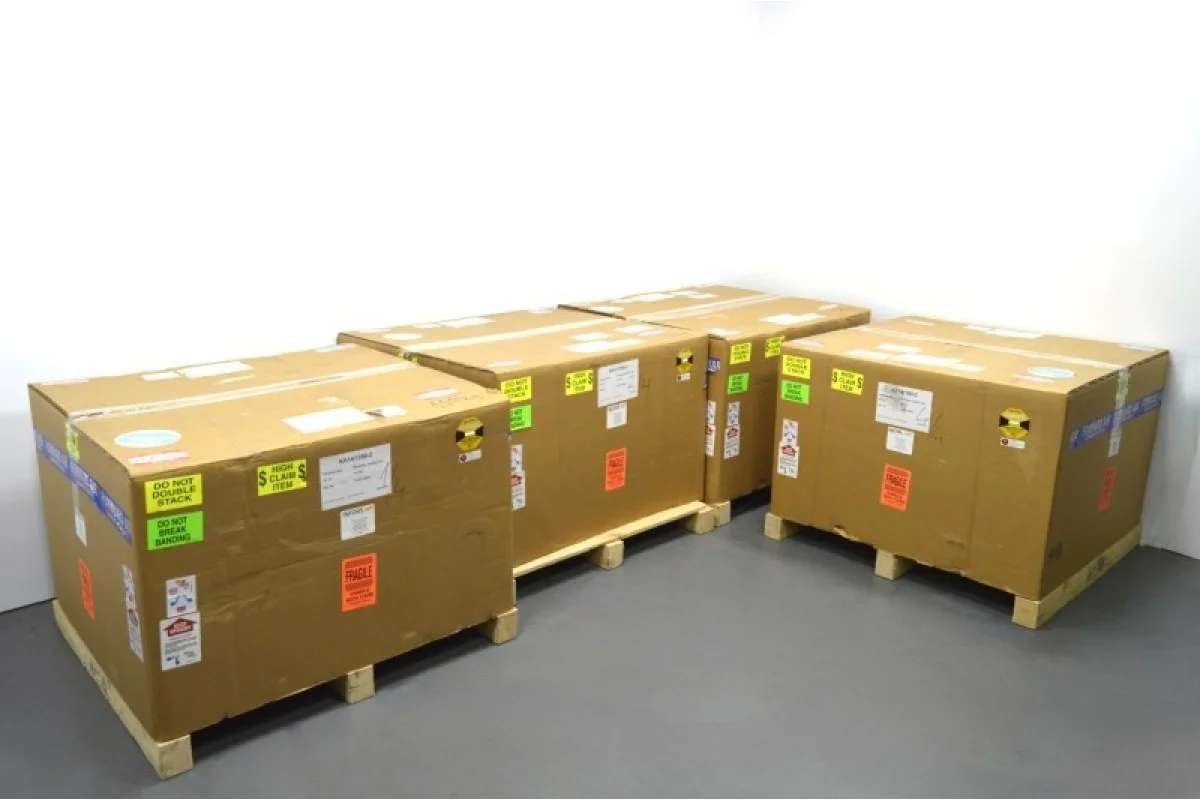

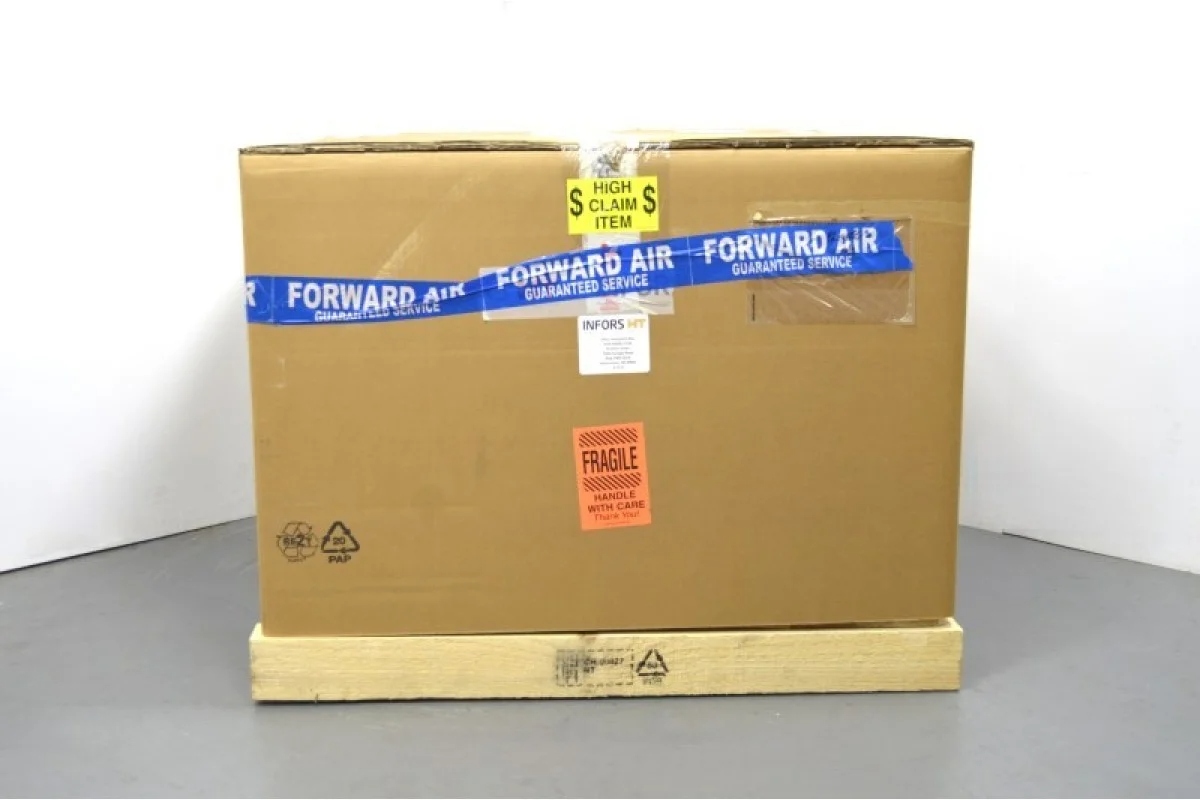

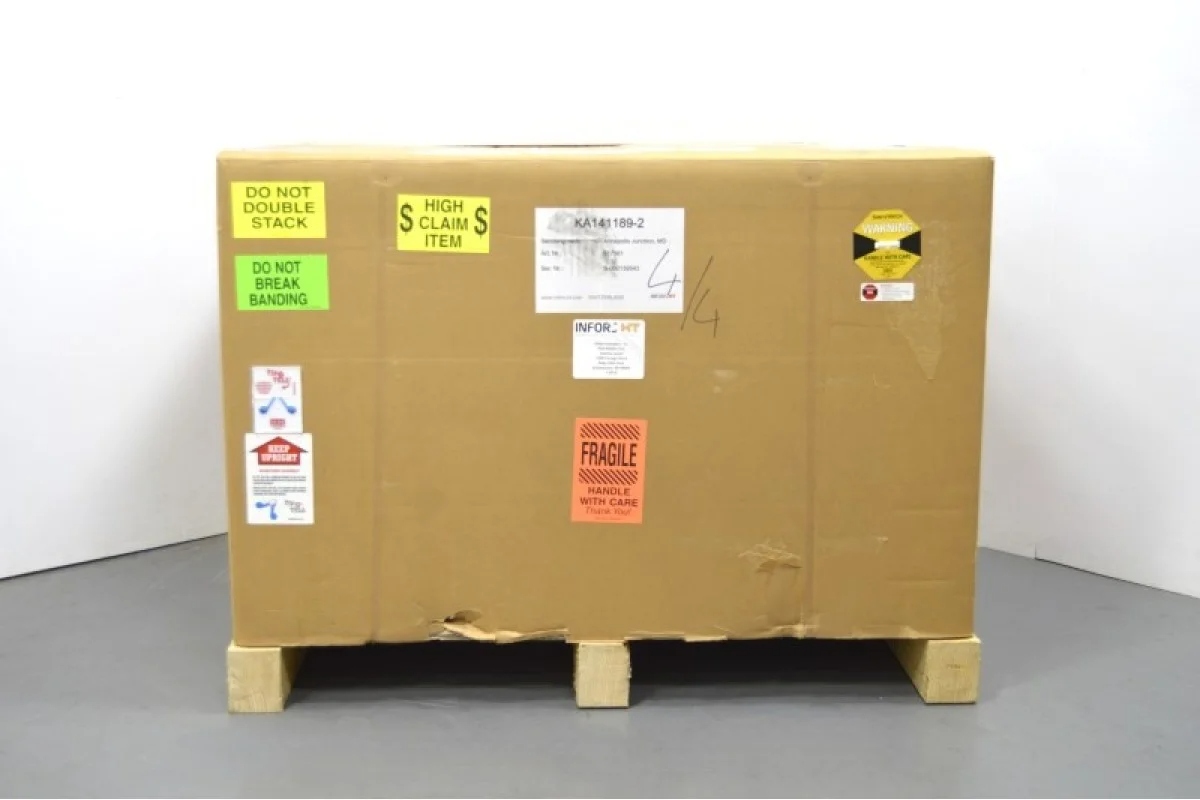

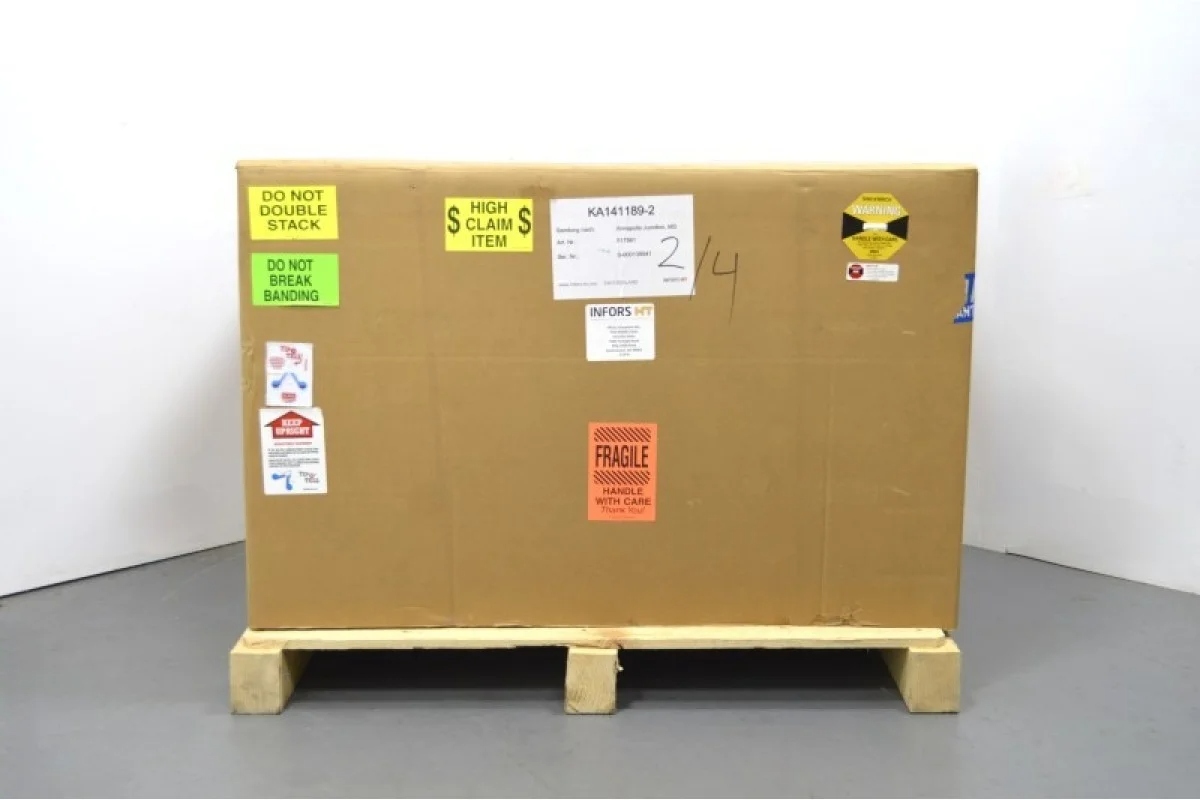

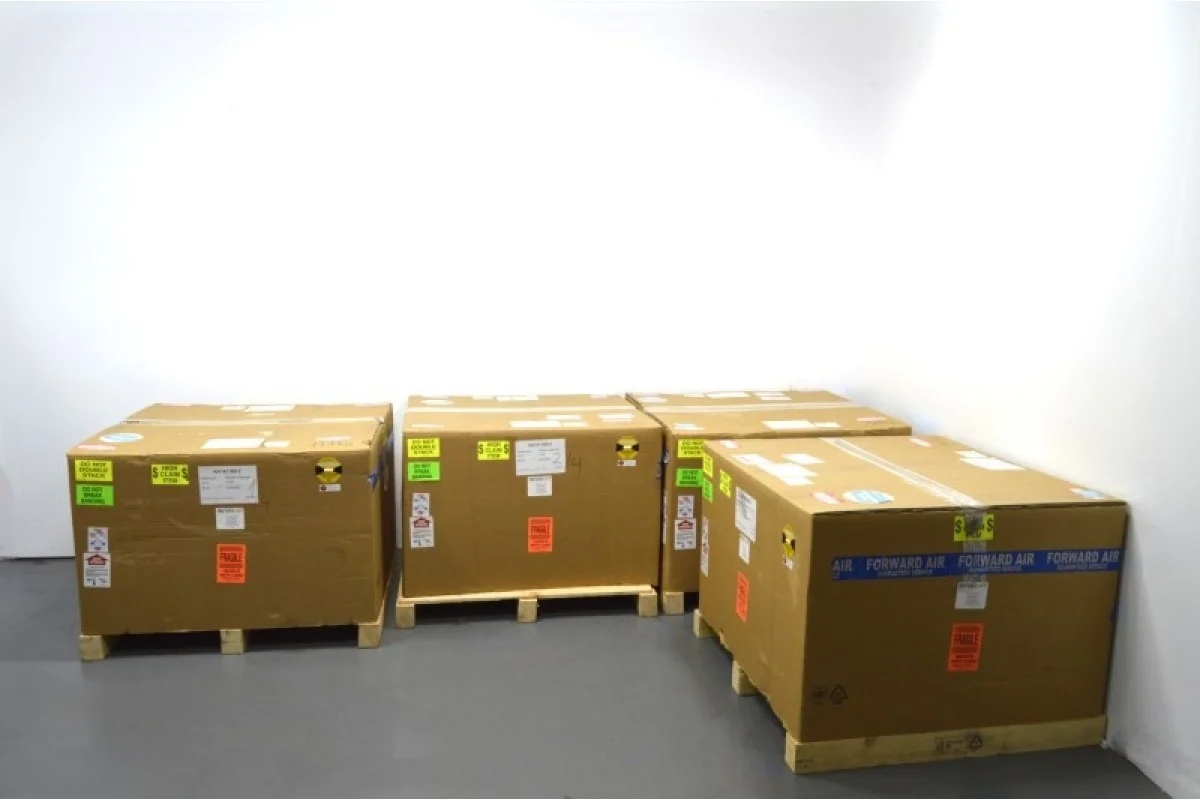

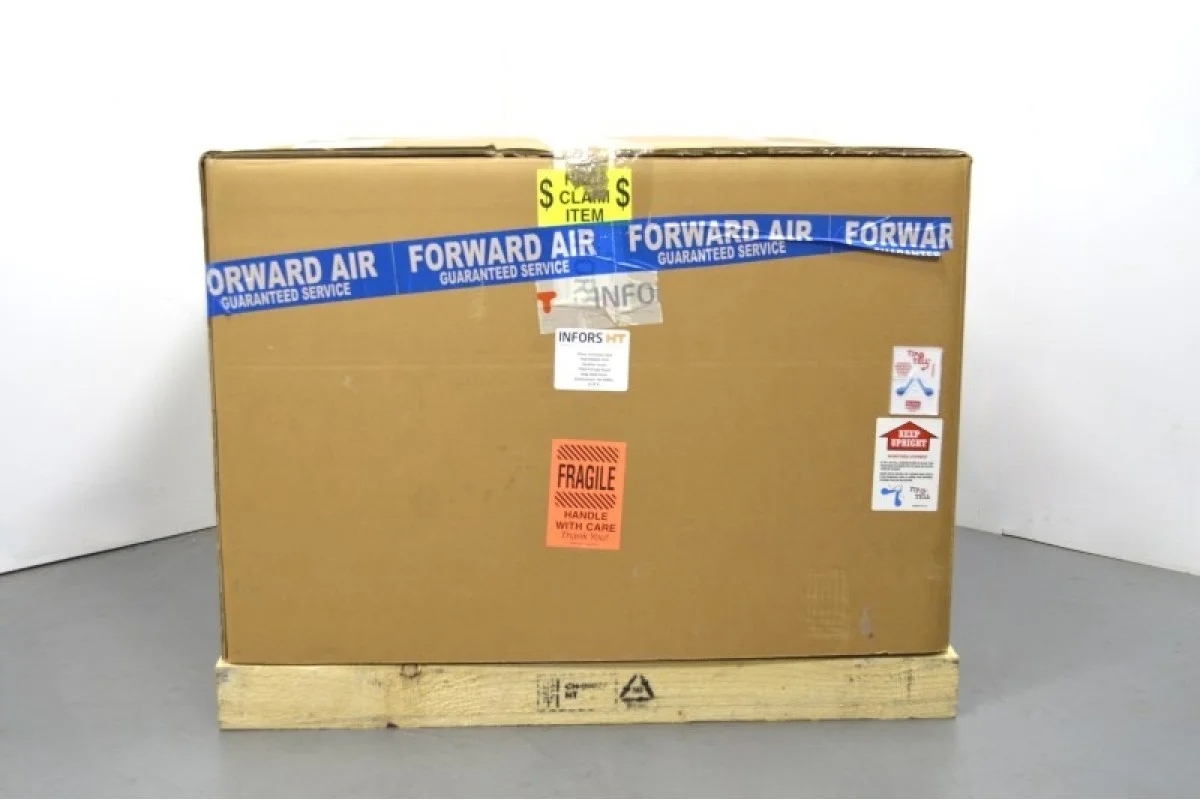

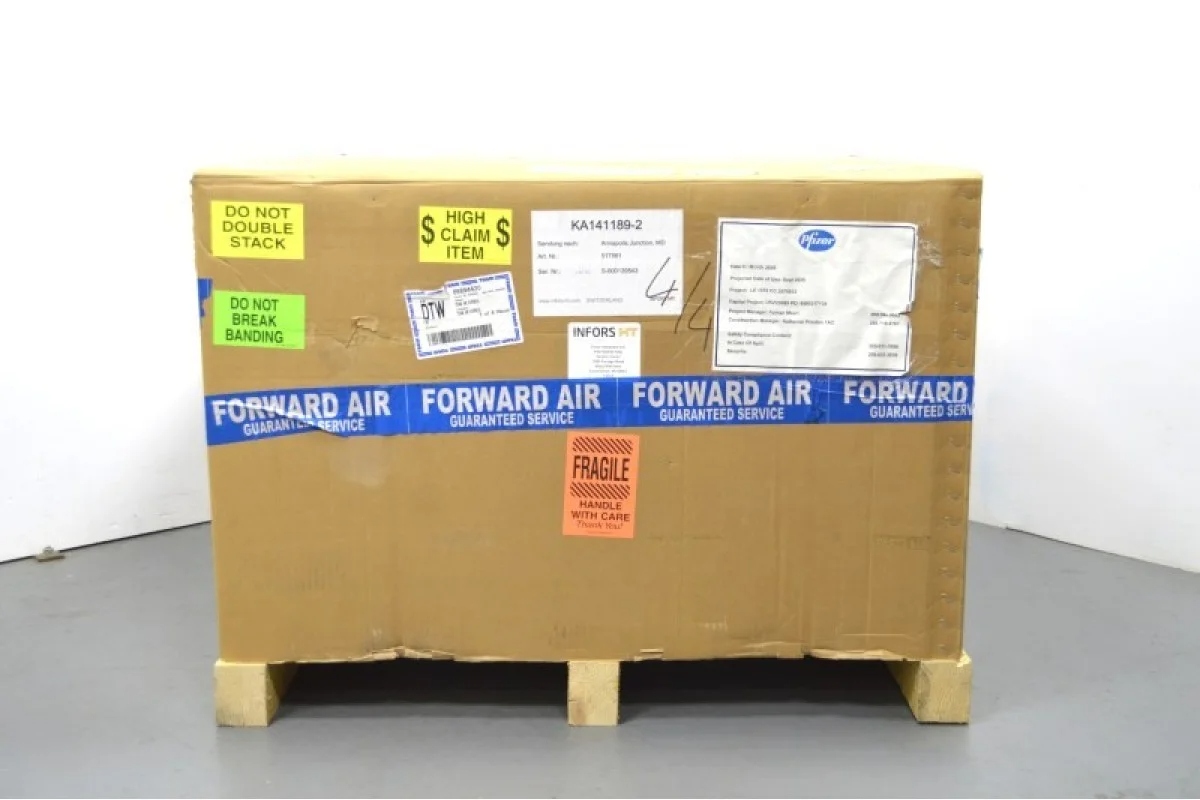

- The bioreactor is in the original manufacturer's packaging and was opened to inspect contents..
- If anything in our listing is unclear, please kindly inquire for more information.
Labfors 5 Bench-Top Bioreactor Configuration: Same for 1 master unit and 3 satellite units
Vessel:
| Total volume per vessel: | 7.5 L |
| Working volume per vessel: | 1-5 L |
| Vessel type: | round bottom, double-walled |
| Nominal diameter: | 150 mm (Vessel DN 150) |
| Impellers: | 2 x Rushton impellers with 6 blades |
| Sparger type: | arch sparger for microbials |
Stirrer:
| Stirrer: | high-torque servomotor, shaft with mechanical seal, 3000 min-1 |
| Rotation speed with 2 impellers: | 20 to 1500 min-1 |

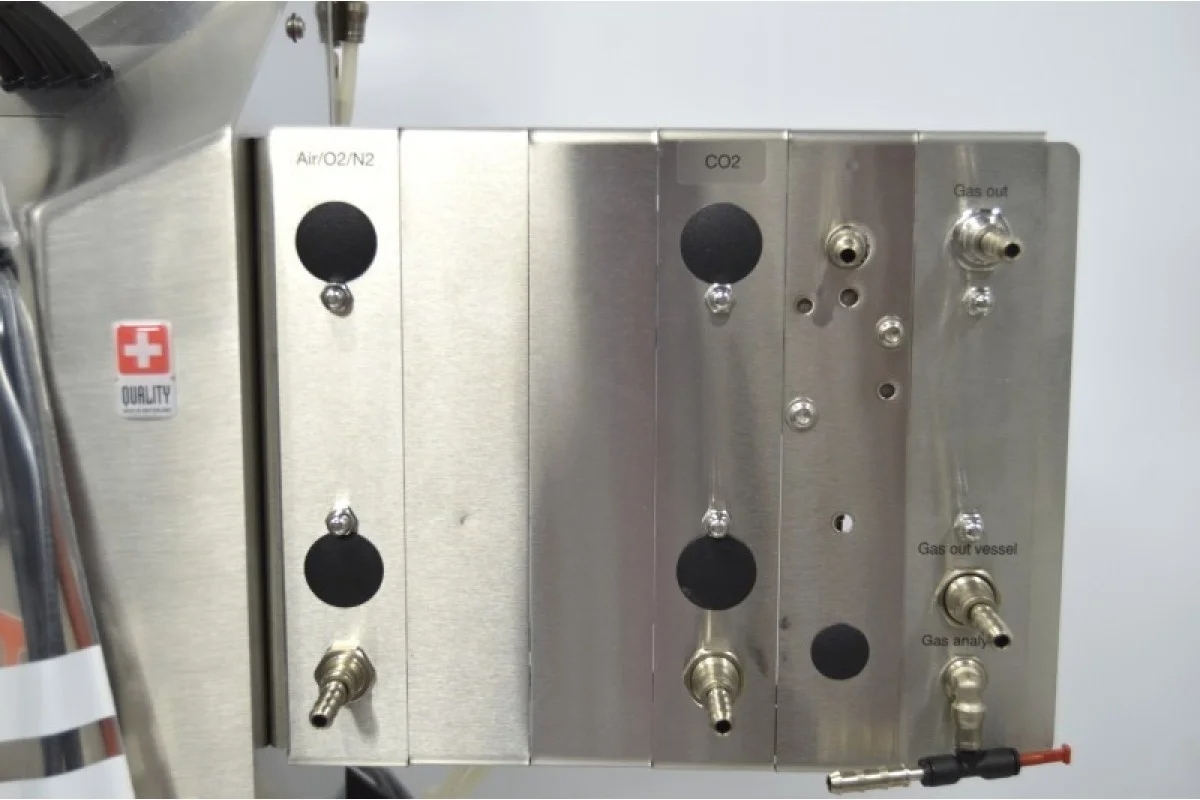

Gassing system:
| Gases: | Air + O2 + N2; CO2 via sparger |

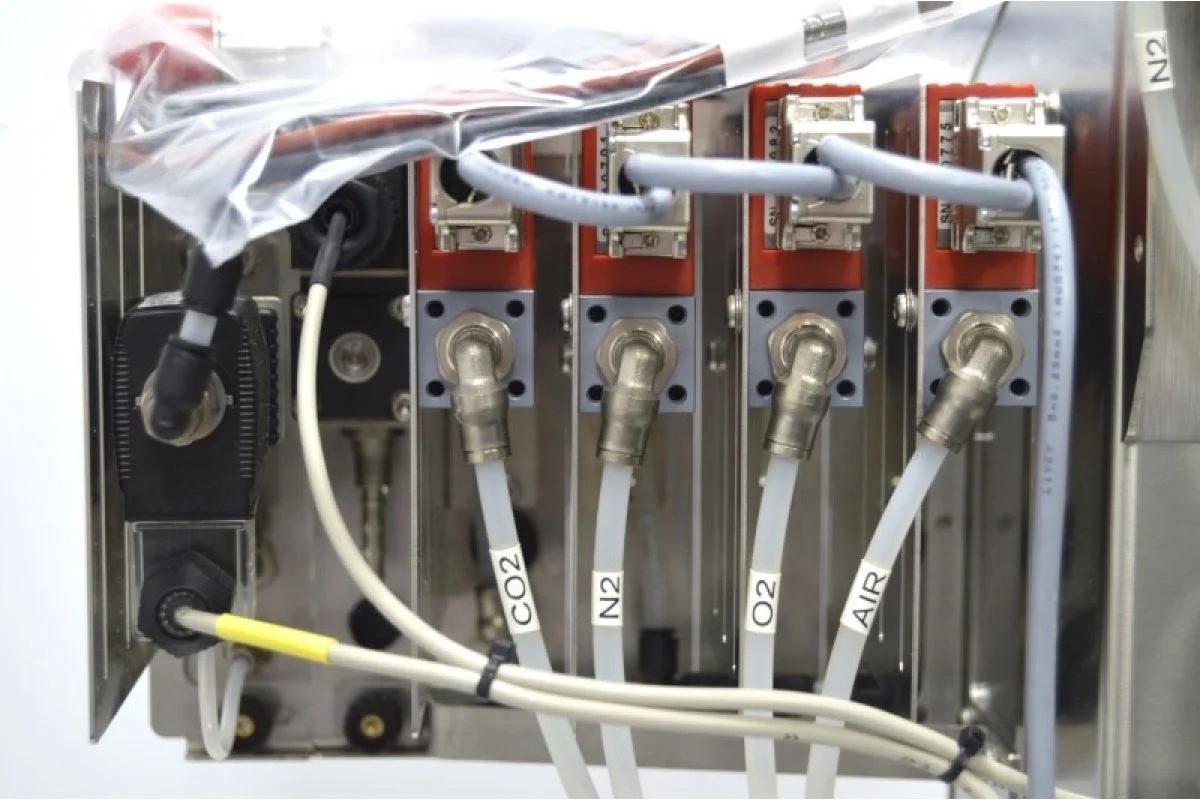

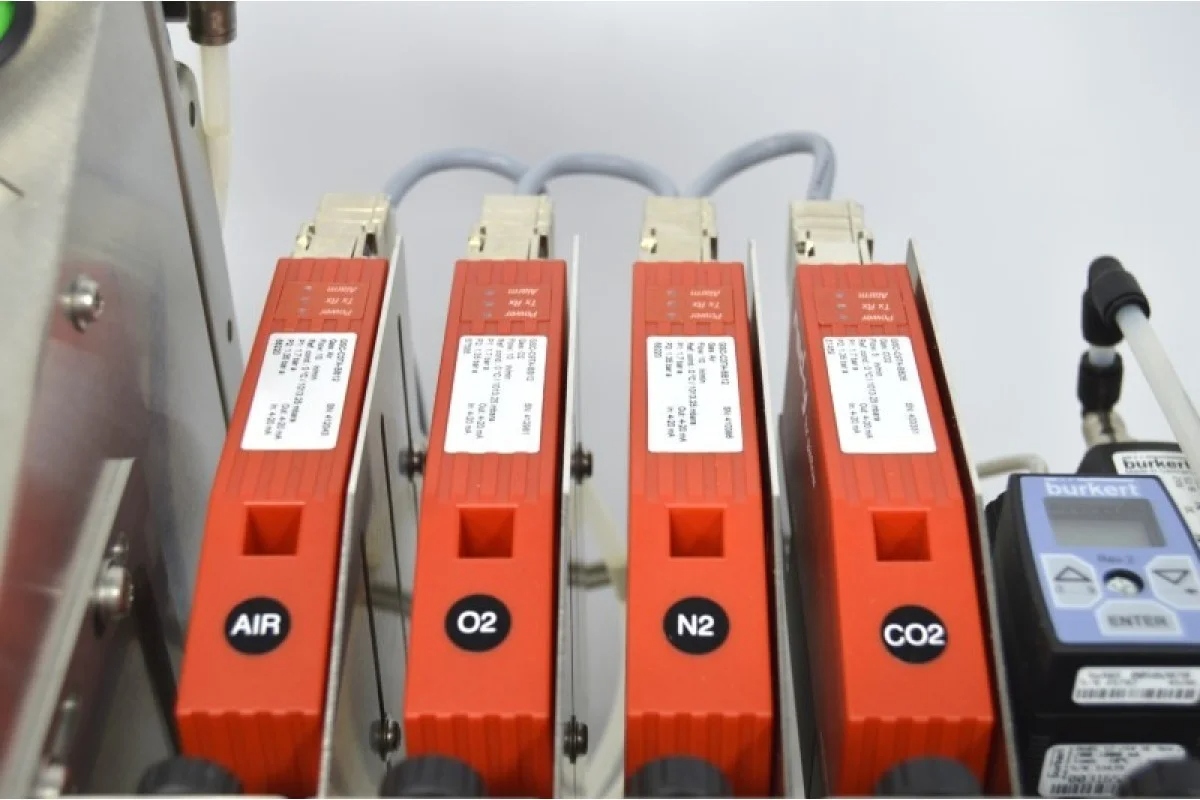

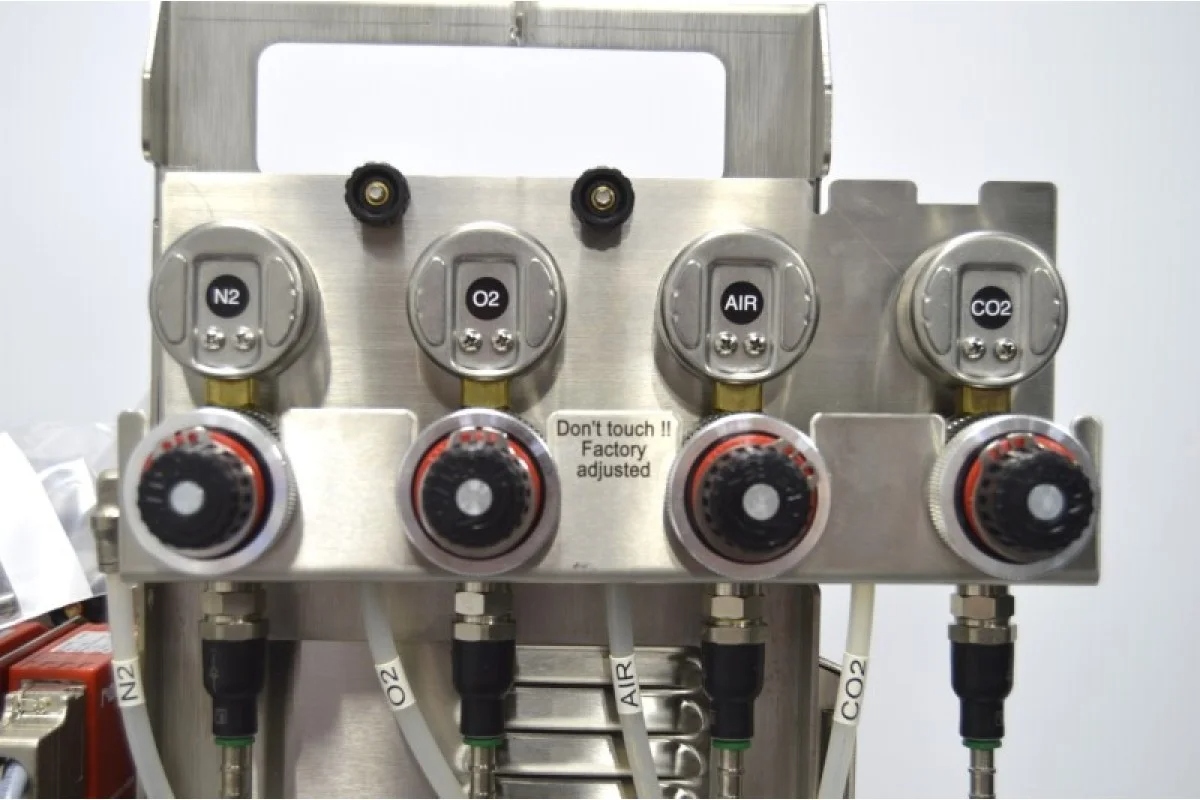

| Gas flow control and Gasmix: | 4 Mass Flow Controllers, one per gas (High End Gassing strategy) |
| Control Ranges of MFCs: | 0.1 to 10.0 L min-1 for Air, O2, N2; 0.05 to 5.0 L min-1 for CO2 |
| Accuracy measurement and control: | ± 1.5 % FS |
Pumps:

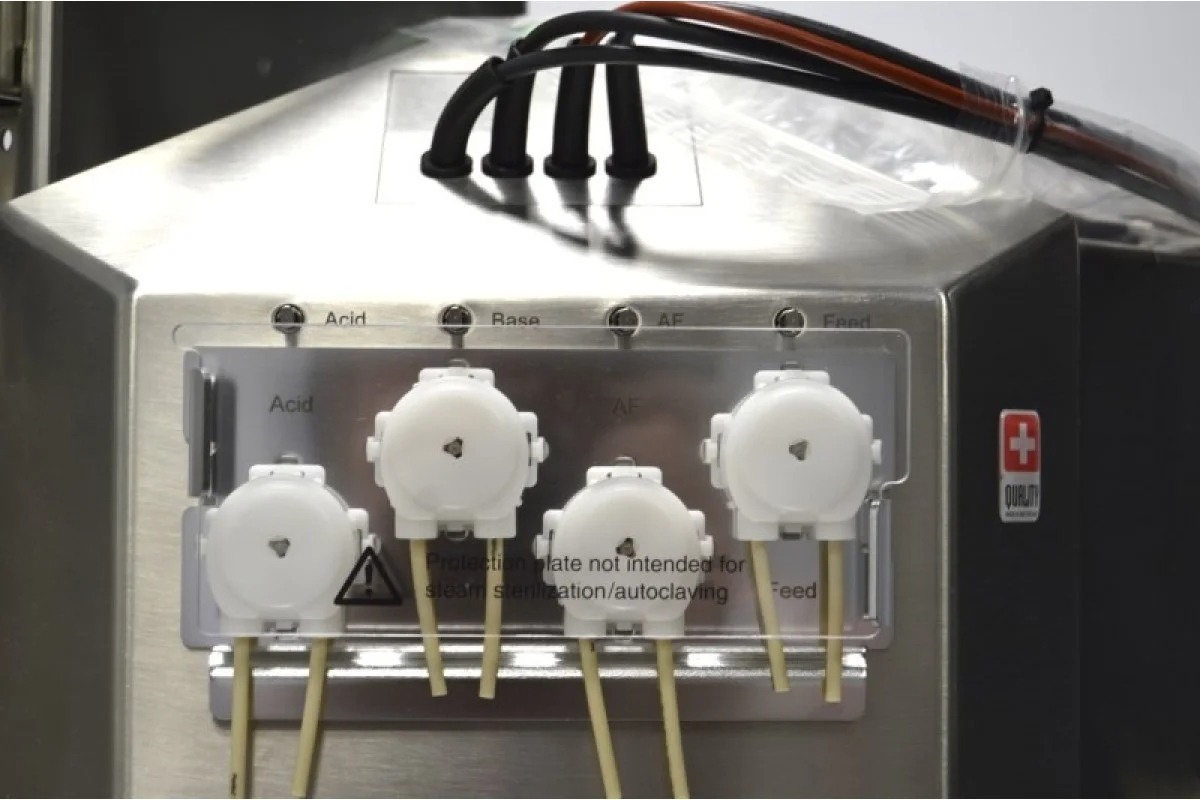

| 3 digital peristaltic pumps (Acid, Base, Antifoam) | Rotation speed: fixed speed 74 min-1 |
| 1 analogue peristaltic pump (Feed) | Rotation speed: adjustable 0-74 min-1 |
| 1 external Watson Marlow pump 120 U/DV | Rotation speed: adjustable within range of 0 % to 100 % |
Temperature control system & sterilization:
| Heating: | water circulation in jacket, pump and heating 500 W integrated in basic unit |
| Cooling: | tap water via water circuit into vessel jacket |
| Temperature sensor: | Pt100 Sensor |
| Temperature control range: | 5 °C above inlet temperature to 70 °C |
System Controls:
pH control: | peristaltic pumps for acid and base or with CO2 instead of acid |
| Control range: | pH 2 to pH 12 |
| Measurement accuracy: | pH ± 0.1 |
| Sensor type: | Easyferm Plus ARC (Digital Hamilton) |
| Measurement range: | pH 0 to pH 14 |
| pO2 control: | via cascade stirrer, gas flow, gas mixture (addition of O2) |
| pO2 Control range: | 0 to 100 %-sat |
| Measurement accuracy: | ± 1 % |
| Sensor type: | Visiferm DO ARC (Digital Hamilton) |
| Measurement range: | 0 to 300 %-sat |
| Antifoam control: | Antifoam peristaltic pump, 0-100 % |
| Pressure Control: | Pressure Brukert control valve |
| Balances: | Mettler Toledo MS6002TS/00 Precision Balance; max. capacity: 6.2kg |
Exit gas analysis: | BlueVary gas sensor with O2, CO2, and Pressure/Humidity cartridges |
| Measurement ranges: | 0 to 25% CO2, 0 to 100% O2, and 0 to 15% Humidity |
Customization/Options: N/A
Testing performed by our in-house service team: BRAND NEW/SEALED
Instrument Overview:
- Infors HT Labfors 5 is a modular bench-top bioreactor for growing microorganisms.
- Features four 7.5 L glass vessels with easy sterilization and handling.
- Labfors 5 offers precise temperature, pH, and DO control with robust sensors.
- Flexible configurations allow for aerobic or anaerobic cultivations.
- Compact footprint makes the Infors HT Labfors 5 suitable for lab-scale work.
- Infors HT Labfors 5 supports scale-up studies with reproducible conditions.
Instrument Application:
- Production of microbial biomass for research
- Optimization of fermentation parameters
- Small-scale bioprocess development
The Key Features:
- Four 7.5 L double-walled glass vessels
- High-torque servo stirrer up to 1500 rpm
- 4 MFCs for air, O2, N2; CO2 sparging
- Precise temp control with jacket heating
- Digital pH and pO2 sensors onboard
- Exit gas sensor for O2, CO2, humidity
Additional technical info:
