- Stock: In Stock
- Brand: Halo Labs
- Product Code: 62805
- Condition: Pre-Owned

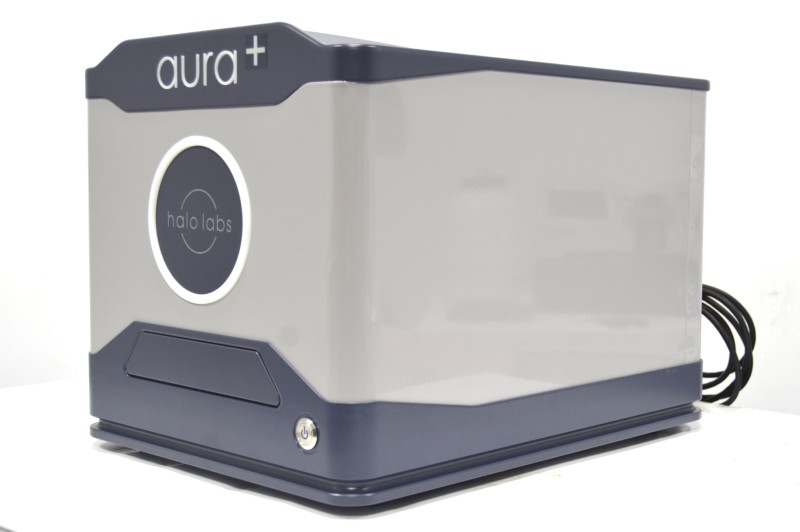

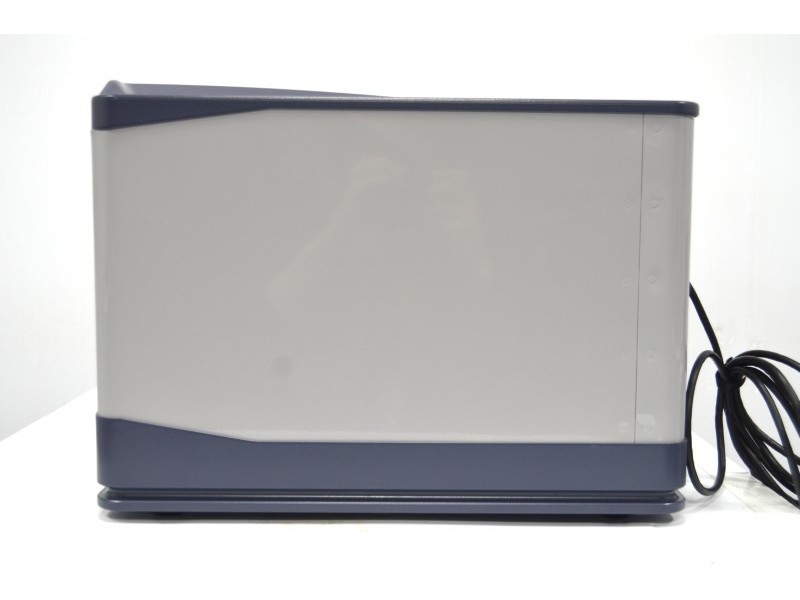

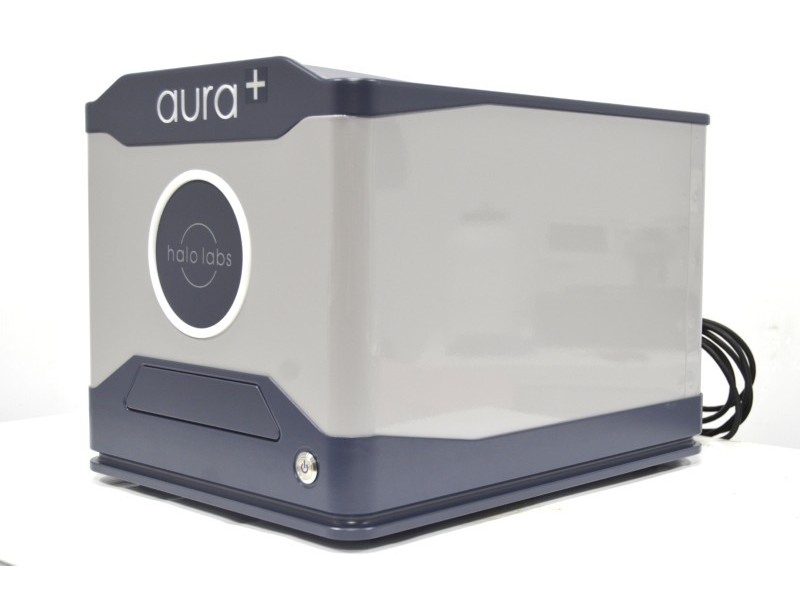

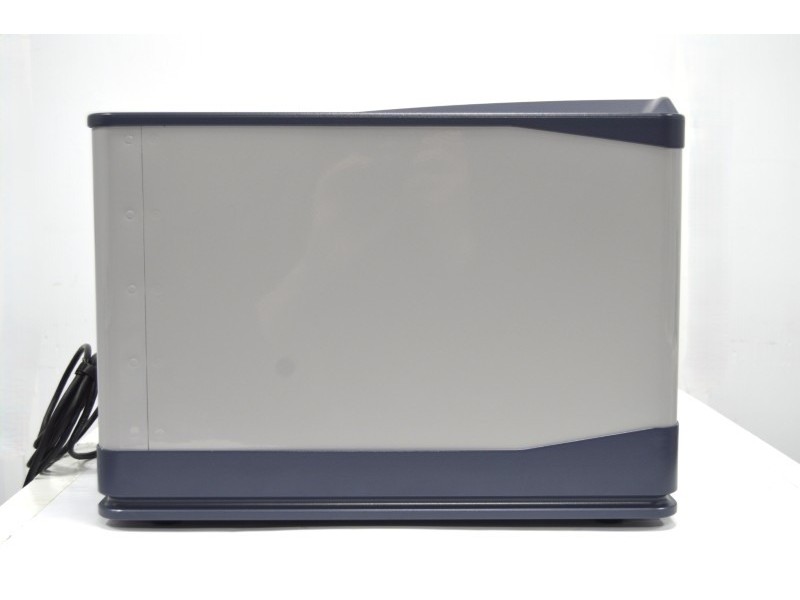

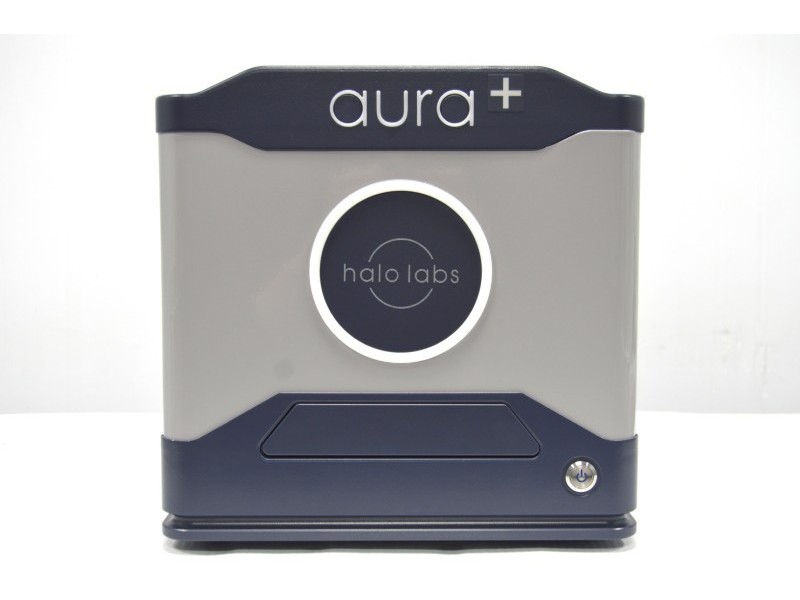

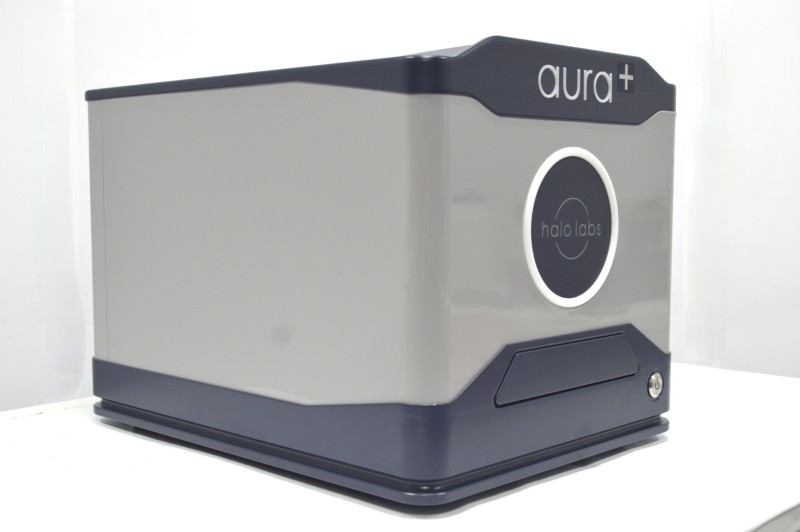

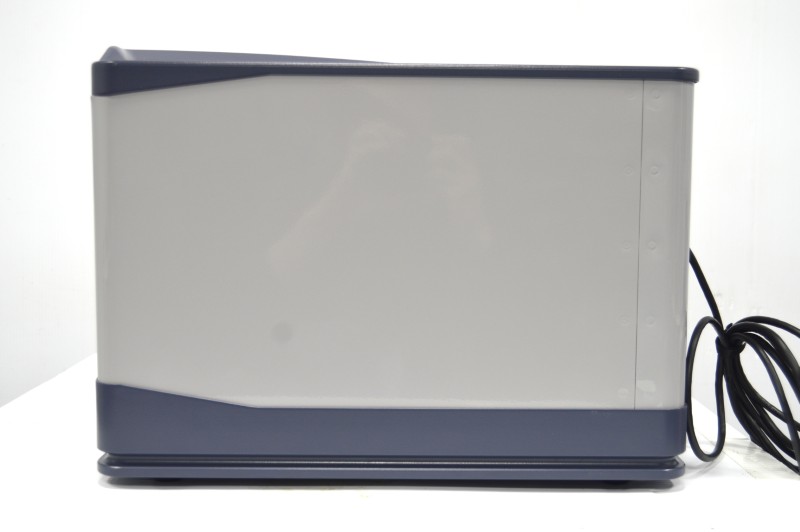

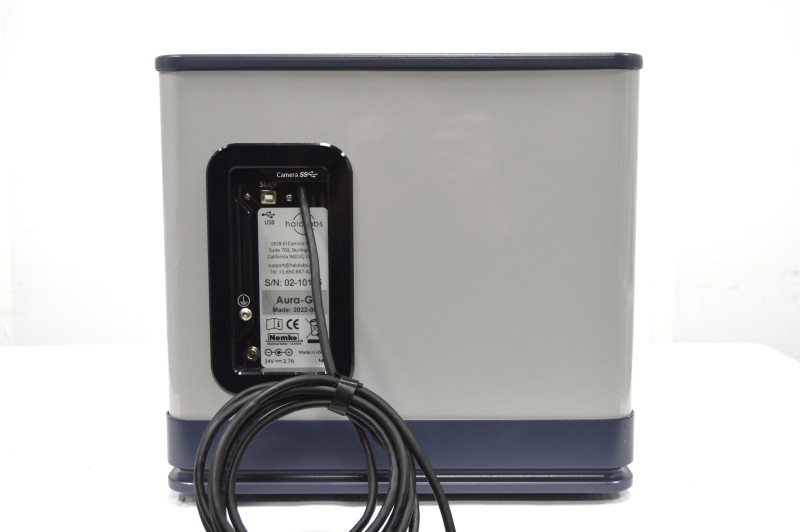

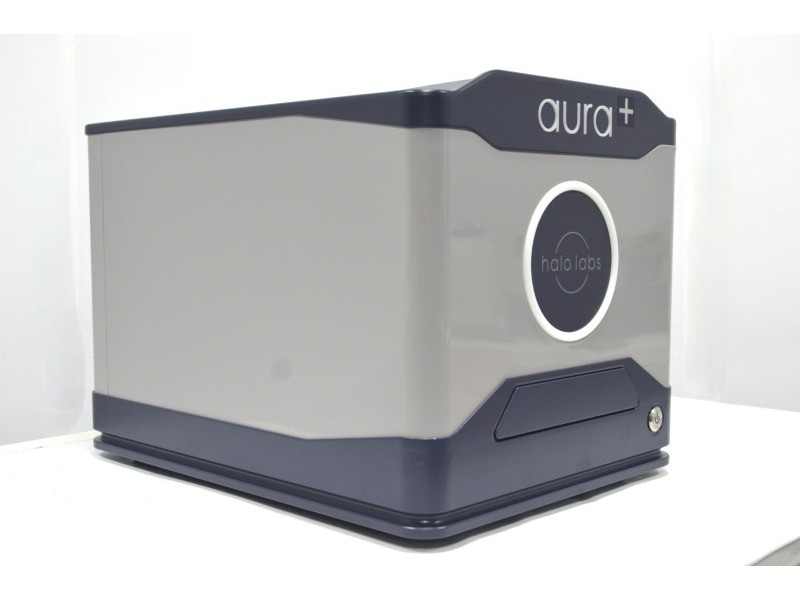

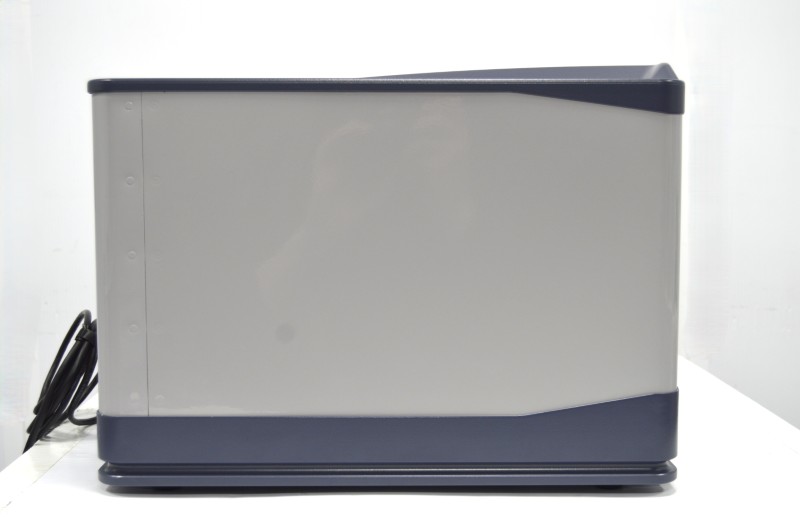

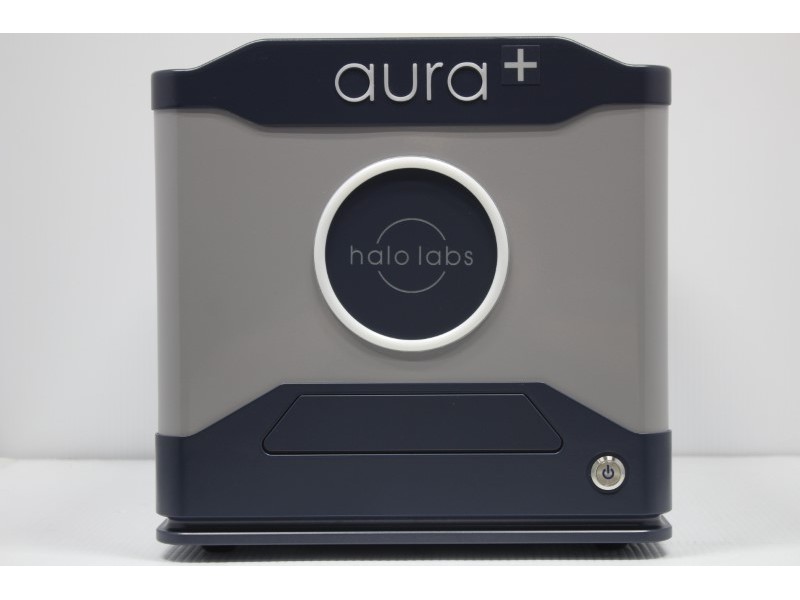

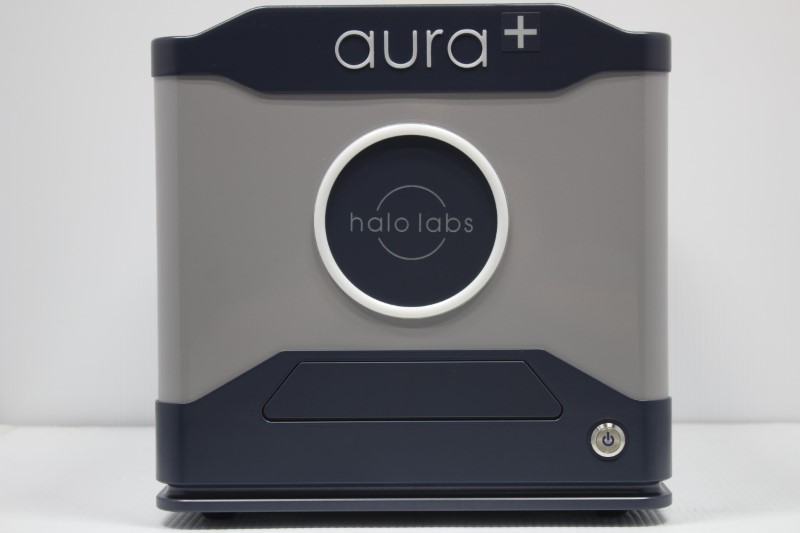

For Sale Waters Halo Labs Aura+ Particle Analyzer
- Functional
- Serviced & in Stock
- Current Model
- Made in 2022
- Good cosmetic condition
- Technical sales consultation available
- WARRANTY

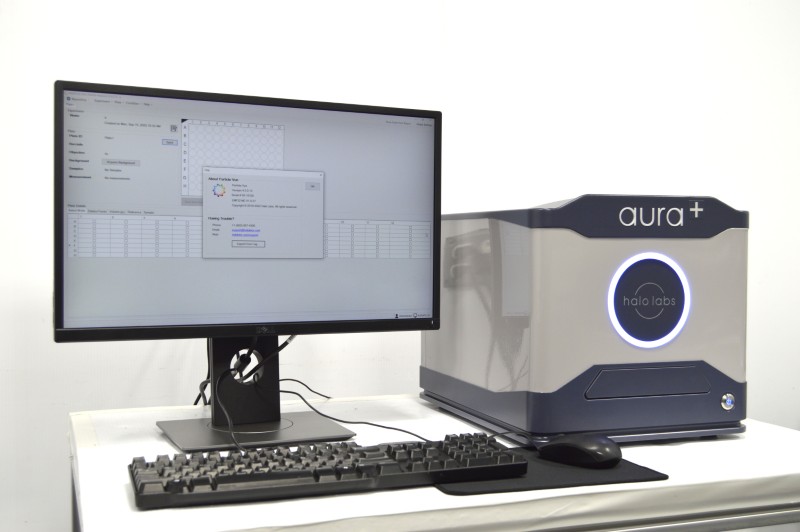

Here is what you will receive:

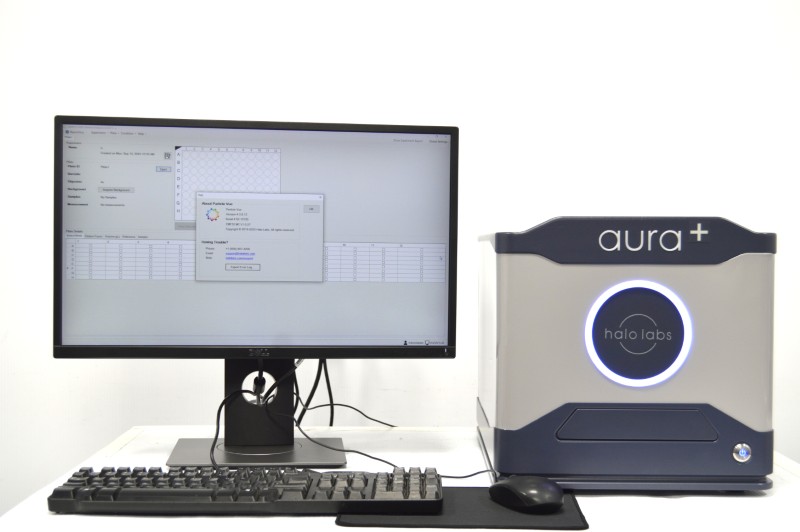

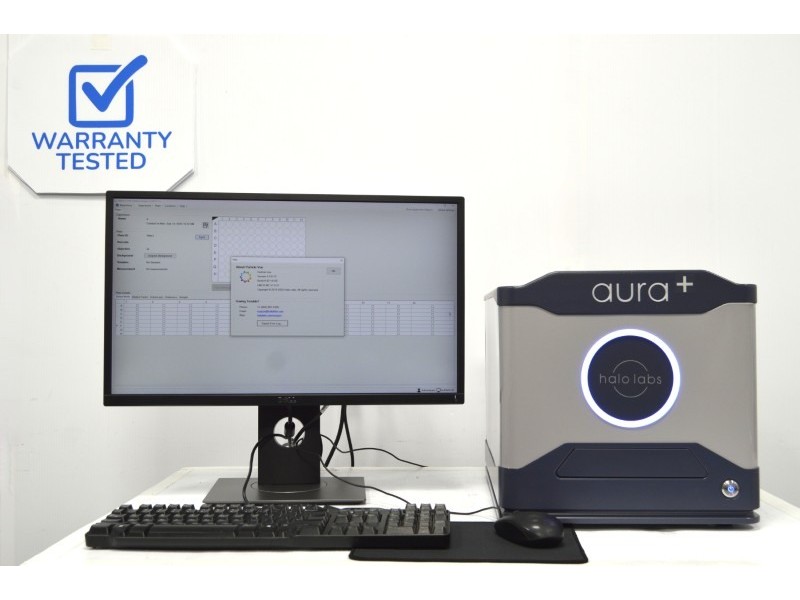

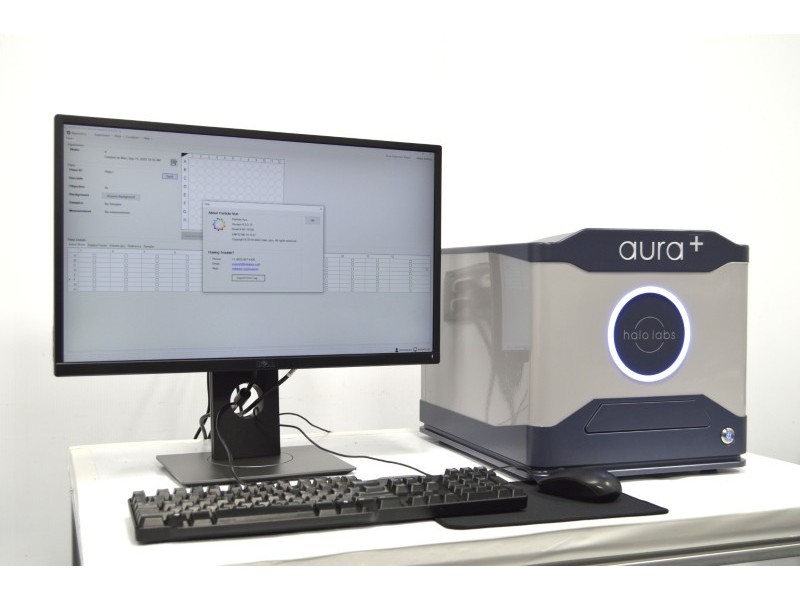

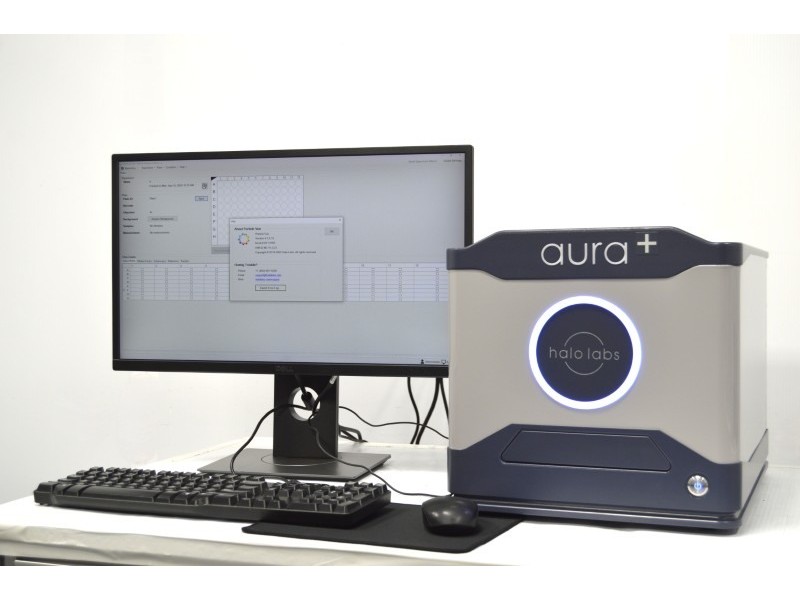

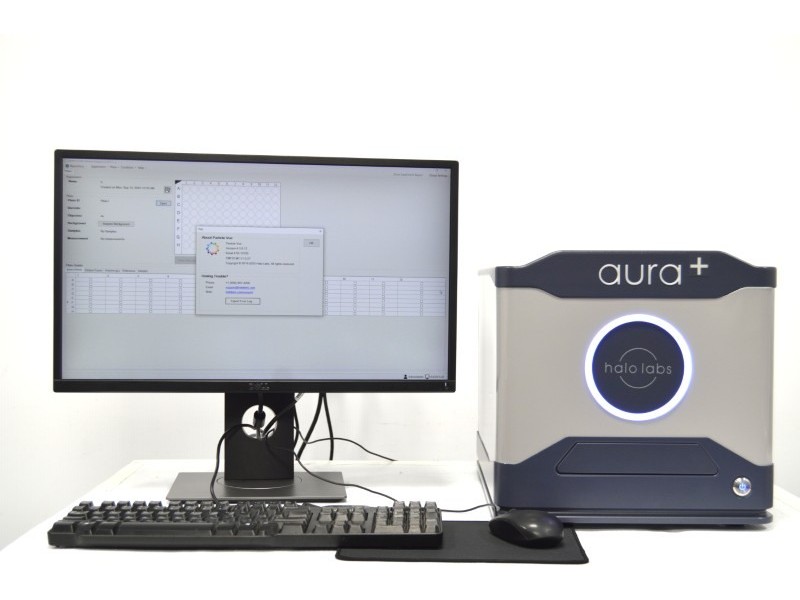

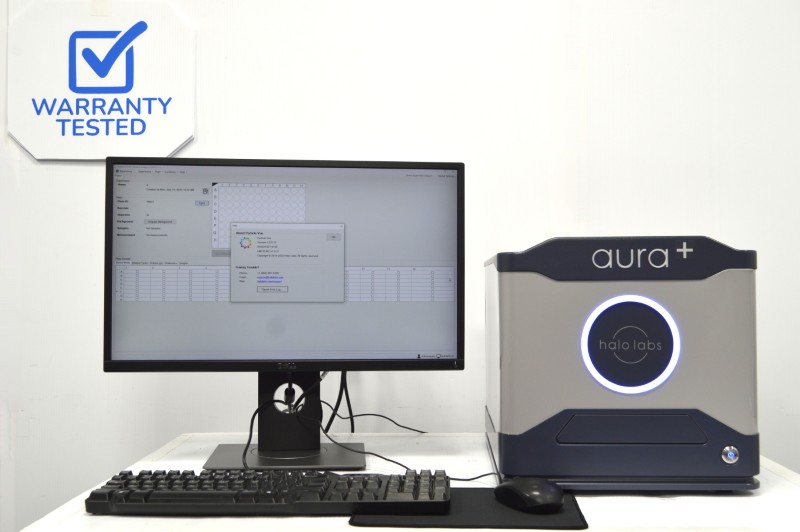

- Halo Labs Aura + (Aura G) Particle Analyzer
- PC with ParticleVue software
- Keyboard, mouse, monitor
- Power and communication cables
Aura+ Particle Analyzer Configuration:
Technology: Backgrounded Membrane Imaging (BMI), Fluorescence Membrane Microscopy (FMM), and Side Illumination Membrane Imaging (SIMI)
Optics: 4x and 20x objectives
Sampling efficiency: 100% (4x objective)
Brightfield illumination (BF): LED 455 nm
Side scatter illumination (SIMI): LED 465 nm
Fluorescence illumination (FL): LED
- FL Channel 1: Ex: 440 nm Em: 500 nm
- FL Channel 2: Ex: 376 nm Em: 440 nm
- FL Channel 3: Ex: 482 nm Em: 524 nm
Minimum sample volume: 5 μL (assay dependent)
Resolution: 1.0 pixel/μm
Detectable size range (min): >1 μm (ECD)
Detectable size range (max): <5 mm (ECD)
Brightfield read time (BMI): 1 minute/sample
Fluorescence read time (FMM): 15 seconds/sample
Sample format: 24-well or 96-well filter membrane
Membrane type 1 (Brightfield): White – Polycarbonate
Membrane type 2 (Fluorescence) Black – Polycarbonate
Dimensions: 13.5 in x 18 in x 13 in
Weight: 57 lbs

Customization/Options: N/A
Testing performed by our in-house service team:
The Aura+ Particle Analyzer passed all tests and was found to be functional:
- We verified the power supply and completed the initialization sequence.
- We established the connection to the software without errors.

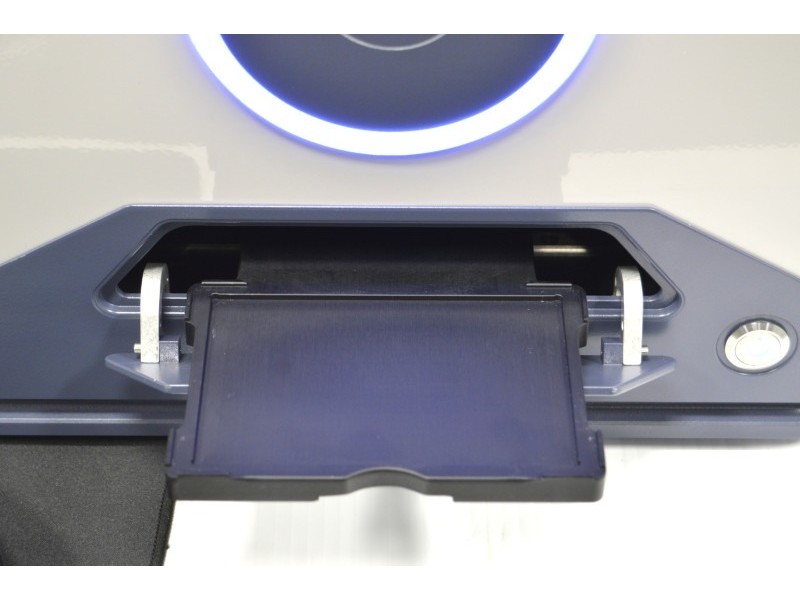

- We tested the plate carrier movement and confirmed accurate positioning.
- We checked the front status indicator LEDs during operation.
- We inspected the interior ring lights and confirmed proper illumination.
No further testing was performed because we did not have the necessary consumables. We can perform additional testing if consumables are supplied.
Instrument Overview:
- Aura+ enables the detection, counting, and characterization of protein, cell, and gene therapy particles with a 5 μL sample.
- Combines Backgrounded Membrane Imaging with Fluorescence Membrane Microscopy for aggregate analysis.
- Identifies multiple biological targets and differentiates protein, cellular, or extrinsic particles in one run.
- Provides high-resolution imaging with 4x and 20x objectives and supports brightfield and fluorescence modes.
- Detects particle sizes from >1 μm up to <5 mm, delivering results in under a minute for brightfield analysis.
- The Aura+ Particle Analyzer supports 24-well or 96-well formats with 100% sampling efficiency at 4x.

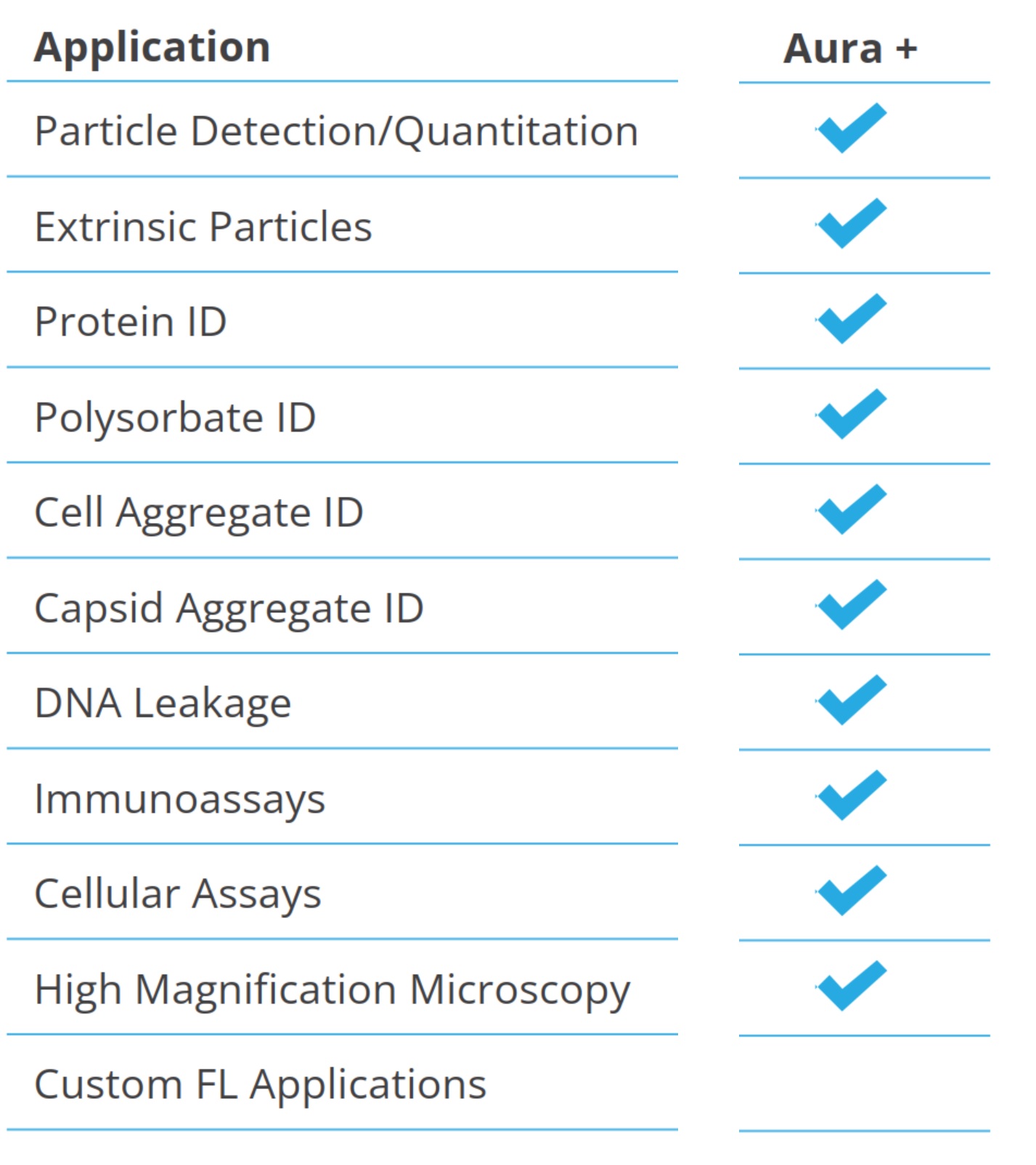

Instrument Application:
- Protein aggregation detection
- Cell and gene therapy product quality testing
- Capsid and cell identification
- Differentiation of cellular vs. protein vs. extrinsic particles
- Cell viability and cell type assays
The Key Features:
- Works with just 5 μL of sample volume
- Detects visible and subvisible particles
- Combines brightfield and fluorescence imaging
- Differentiates protein, cell, and extrinsic particles
- Provides high-resolution 4x and 20x objectives
- Supports 24-well and 96-well sample formats
Video Overview:
About us

How we pack

VIEW SOME OF THE CUSTOMERS WE HELPED HERE
Why do so many customers choose to order from us?

- We have experience servicing and repairing these instruments.
- This instrument goes through all the described service steps before shipping. see the questions section below
- We offer detailed photos and videos of the instruments you buy.
- We are an approved pre-owned equipment vendor to many large US, Canadian, and EU Universities.
- We are an approved pre-owned equipment vendor to many Fortune 500 US and International Biopharma companies.
- Technical sales consultation available
- On-site installation may be available in the Boston Area (New England area)
- US or International shipping is no problem (see the shipping tab on how we pack and feel at ease)

- Warranty
- You get after-sales technical support
- Customer references are available
- The instrument will be fully functional!
- Smooth process from the initial quote to order fulfillment
This will ship via freight. Please contact us with your zip code to obtain a shipping quote.
*SM* Small Crate
310#
COMMON QUESTIONS AND ANSWERS BELOW
What are the steps you take to verify, service, and confirm the functionality of the Aura+ Particle Analyzer?
We verify various instrument functions individually and together, performing necessary repairs or maintenance to bring the instrument to our quality standards..
- We verified the power supply and completed the initialization sequence.
- We established the connection to the software without errors.
- We tested the plate carrier movement and confirmed accurate positioning.
- We checked the front status indicator LEDs during operation.
- We inspected the interior ring lights and confirmed proper illumination.
Can I view the Aura+ Particle Analyzer in person at your facility or do a live Zoom demo before it is shipped to me?
We invite you to visit our facility for an on-site demo or feel free to request a virtual Zoom demo of the instrument you are interested in.
What about the warranty? Installation, training, maintenance?
Warranty Terms:
- The instrument comes fully warranted for both parts and labor.
- The customer should retain all packing materials during the warranty period.
What should I watch out for when buying an Aura+ Particle Analyzer used/pre-owned from another lab?
- Make sure the instrument is properly packed for shipping and will arrive safely. If the instrument is large, request to have it packed in a wooden crate.
- Confirm that there is no physical damage or any misaligned internal components.
- Ask what accessories are included.
- Ask how long the warranty is and what it covers.
Here is what our technical team tests so you can request something similar and ensure your instrument will be fully functional.
- We verified the power supply and completed the initialization sequence.
- We established the connection to the software without errors.
- We tested the plate carrier movement and confirmed accurate positioning.
- We checked the front status indicator LEDs during operation.
- We inspected the interior ring lights and confirmed proper illumination.
We recommend inspecting the instrument in person or requesting a virtual demo; this will allow you to evaluate the condition and performance of the instrument you are considering purchasing.
Do you have an Aura+ Particle Analyzer on hand?
- This is a common model, and we generally stock multiple instruments, accessories, and many replacement parts to back up our warranty.
I found it elsewhere for less. What goes into your price?
We acknowledge that sometimes you can purchase this model instrument elsewhere, possibly for less.
Here are some of the reasons for our price.
- We may offer longer warranty terms.
- We cover shipping costs during the warranty period. (Customer is required to save packing materials for the duration).
- We have to have technical staff that can do the testing/repairs and after-sales support if there are any issues.
- We invest considerable time into the testing and service of each instrument we sell.
- We have to purchase various testing supplies (often expensive) to perform testing.
- We have to purchase any missing required accessories to make the instruments complete.
- We have to procure and stock service parts to support our warranty.
- We have extensive experience packing sensitive instruments. See the shipping section in the website menu for info on how not to pack.
- We guarantee that the instrument will be functional.
This procurement is for a University or College. Are purchase orders with NET terms accepted?
- If you are a US or Canadian customer, we are likely already a registered vendor in your University's vendor system. This would greatly expedite the process of PO approvals and get this instrument into your lab faster.
- POs are accepted from US and Canadian universities.
How fast will you ship?
- We can ship within a few days to two weeks. Shipping time depends on the current demand for our instruments. Members of our sales team will be able to offer current delivery estimates.
Will my instrument be insured during shipping?
- All instruments shipped within the USA and internationally are fully insured. This applies as long as we are the shipper and handle shipping arrangements.
- If the buyer handles shipping, then shipping insurance responsibility falls to the buyer; we highly advise that the buyer obtain shipping insurance from their carrier.
How do you pack? Have you packed and shipped Aura+ Particle Analyzer Instruments in the past? Do you ship Internationally?
Packing
- Most larger instruments ship in fully enclosed ISPM15-certified wooden crates with proper padding underneath, and the sides have moving components braced.
- Accessories are packed safely in boxes with padding and then safely packed inside the crate.
- We may not use a crate for local deliveries to save you money *if delivered by us.
- We often use “tilt’ & “shock” indicators on the crates to ensure the crate has not been excessively tilted and dropped where equipment may suffer damage.
- Photos are taken during the packing process to make sure nothing is missed.
USA/Canada Shipping
- Within the US and Canada, we will ship via selected freight carriers. We do not use low-price/high-damage carriers as we want the equipment to get safely to you.
International Shipping
- Internationally, we will only ship via Air Freight or Air Parcel (such as UPS or DHL), which provides reliability, no exposure to Ocean weather, and timely delivery.
We have extensive experience packing and shipping fragile instruments globally.
Our experience and process
- We have safely packed and shipped thousands of sensitive analytical instruments.
How much will I save buying it pre-owned, and is it worth it?
A lot…and it is undoubtedly worth it, and here is why. Feel free to ask for feedback from hundreds of customers who bought from us.
- You will pay less than half vs. buying a new instrument. Why not spend leftover funds on another instrument for your lab?
- You will get our standard warranty, plus, when available, an option to obtain an extended warranty agreement.
- Know that your instrument was tested and working the day it left our facility and is covered if there are faults.
- Get extra peace of mind by adding an extended warranty or service agreement when such an option is available.
Sustainability
- Well, this one is easy: buying a pre-owned instrument is great for the planet; you are reducing unnecessary waste, CO2 output, and water use that would be used during the manufacturing process.
I have more questions; I want to receive a formal quote.
Absolutely! Please give us a call (1-617-397-3486) or complete this form to get your questions answered or receive a formal Quote.
