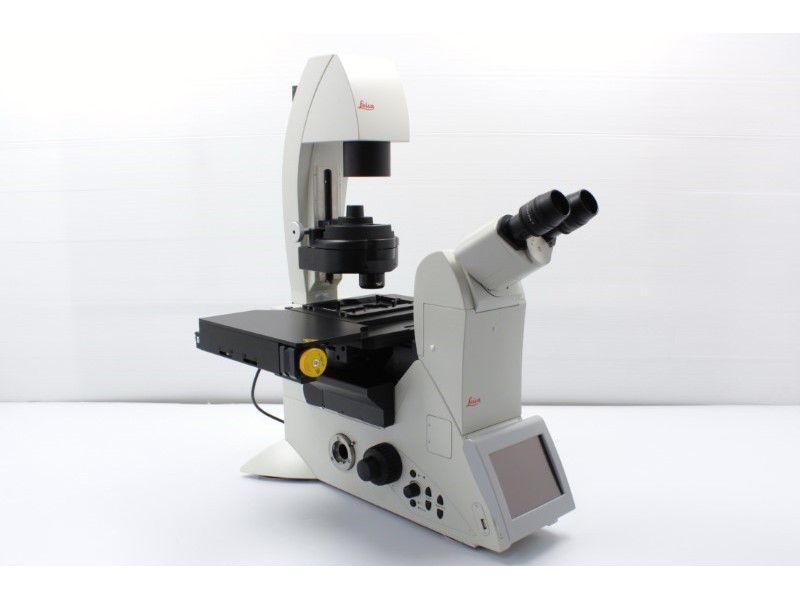

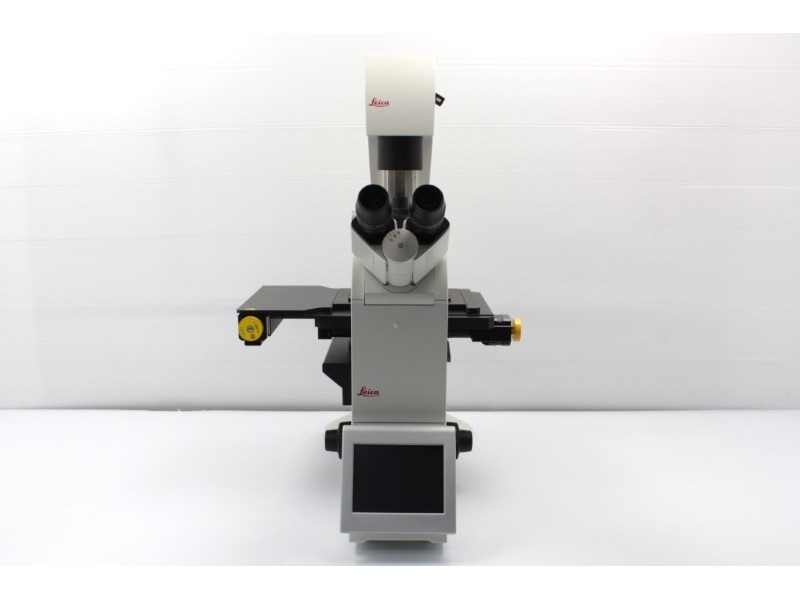

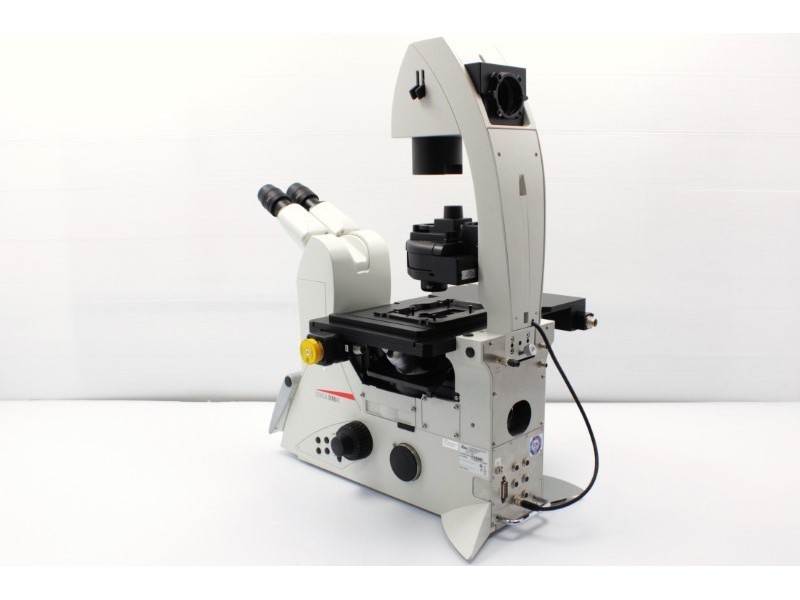

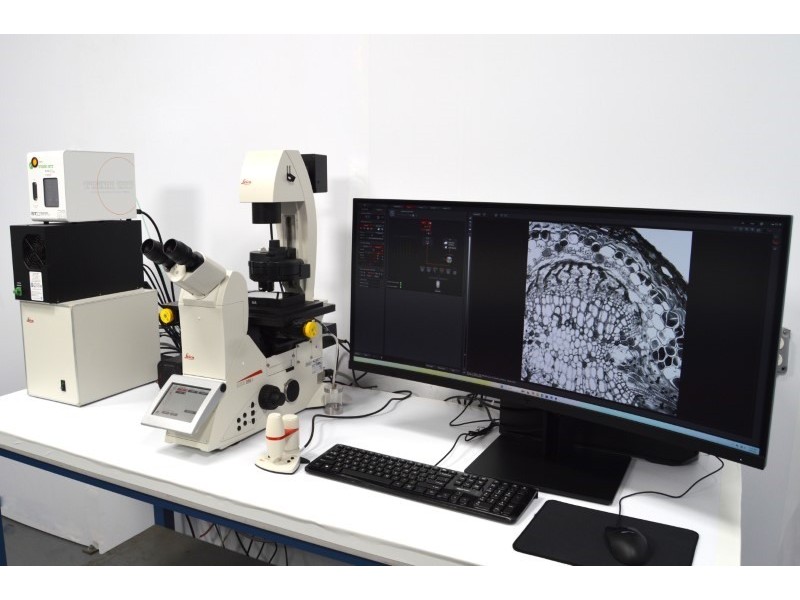

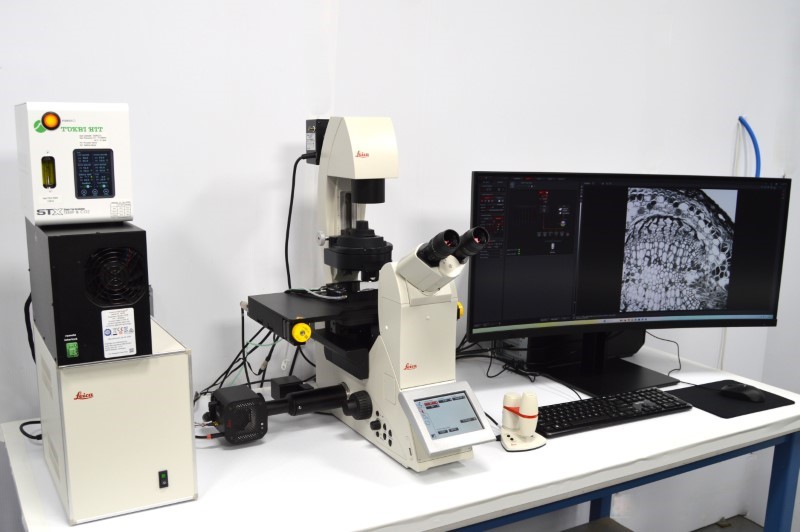

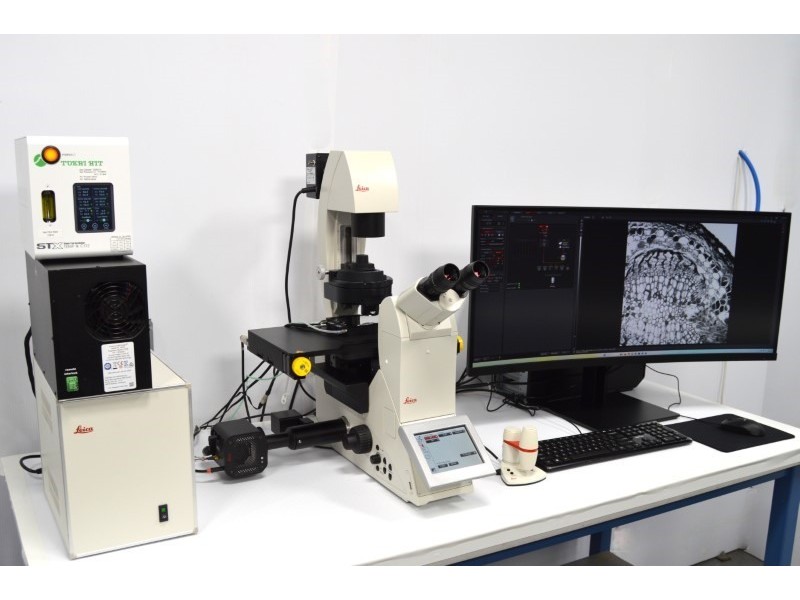

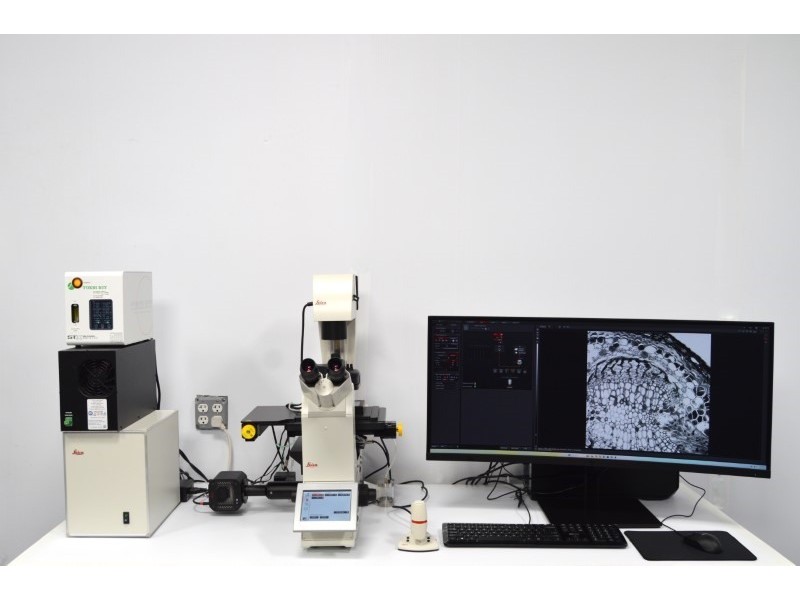

Leica THUNDER DMi8 Inverted Autofocus Fluorescence Motorized Microscope

For Sale Leica THUNDER DMi8 Inverted Autofocus Fluorescence Phase Contrast Motorized Microscope with Stage Top Incubator

 This item has been recently sold. Please view the other available instruments on your right.

 If you do not see what you need, let us know via the “Request Quote” form; we often replenish sold-out items.

• Fully Functional
• Serviced & in Stock
•  Customized to your requirements
•  Includes new fluorescence filters
•  Technical sales consultation available
•  Continental USA 120 DAYS WARRANTY & 60 DAYS INTERNATIONAL
•  Includes remote microscope training session and software overview
• More info about our Microscopy Capabilities or view the Microscope Buying Guide

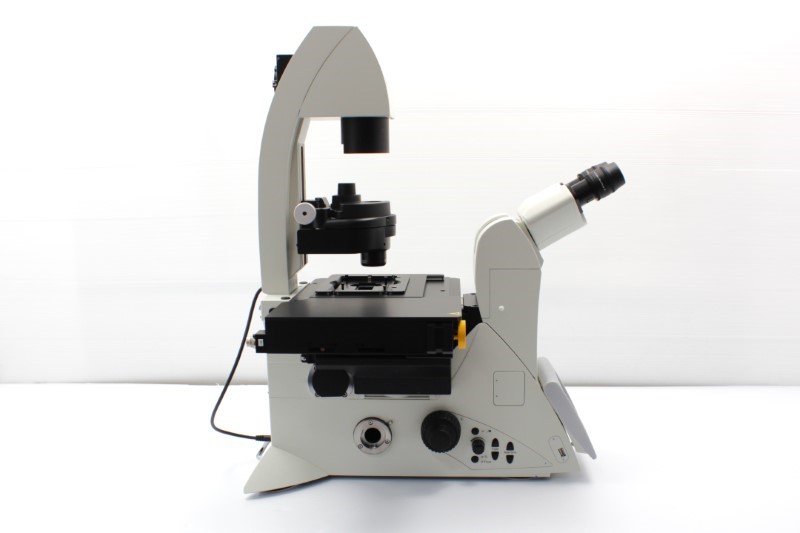

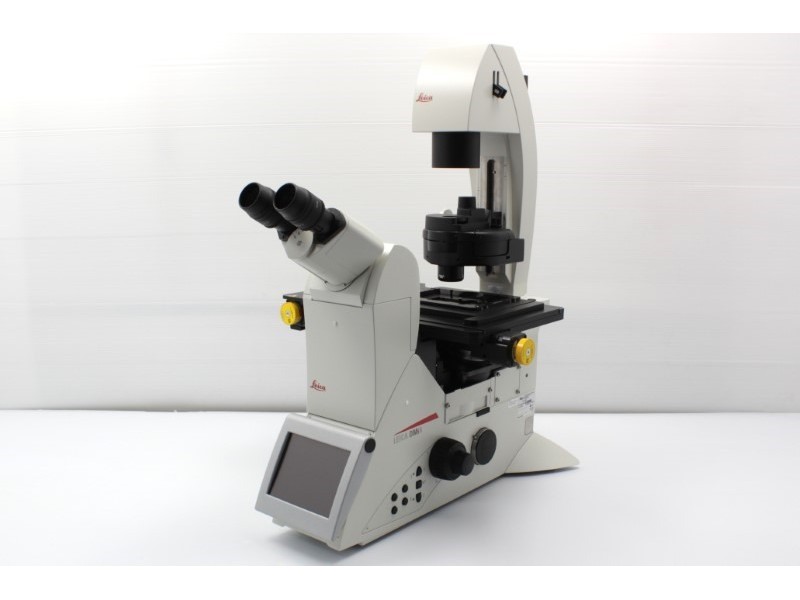

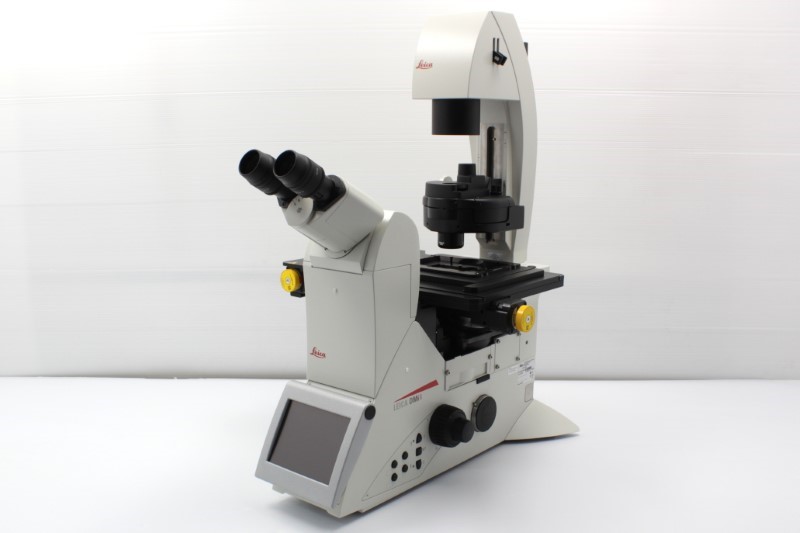

Leica THUNDER DMi8 Inverted Microscope Overview

(Final microscope capabilities will depend on the modifications you request)

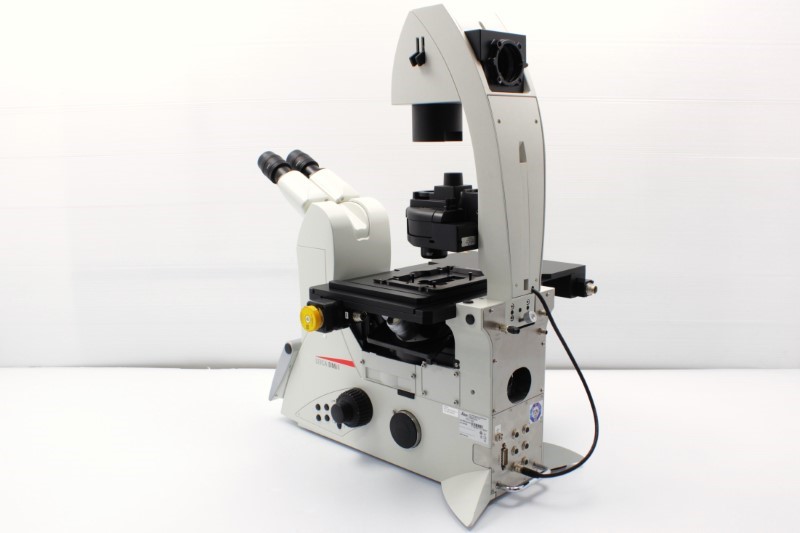

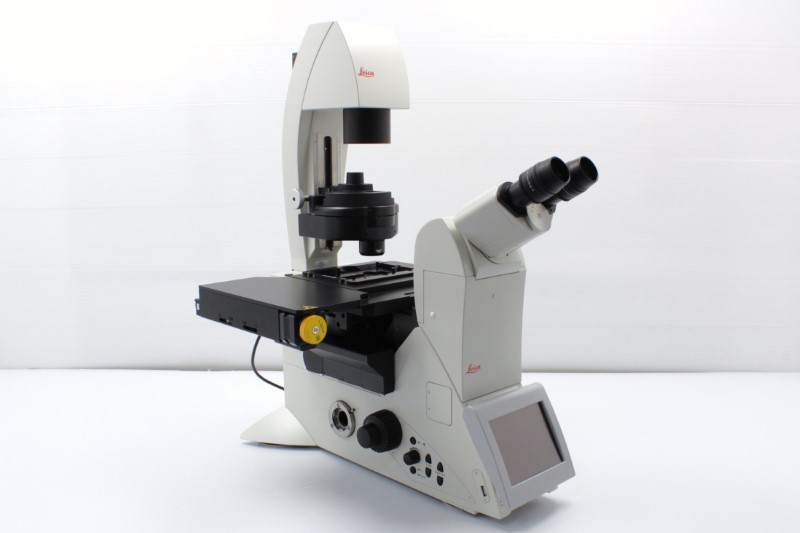

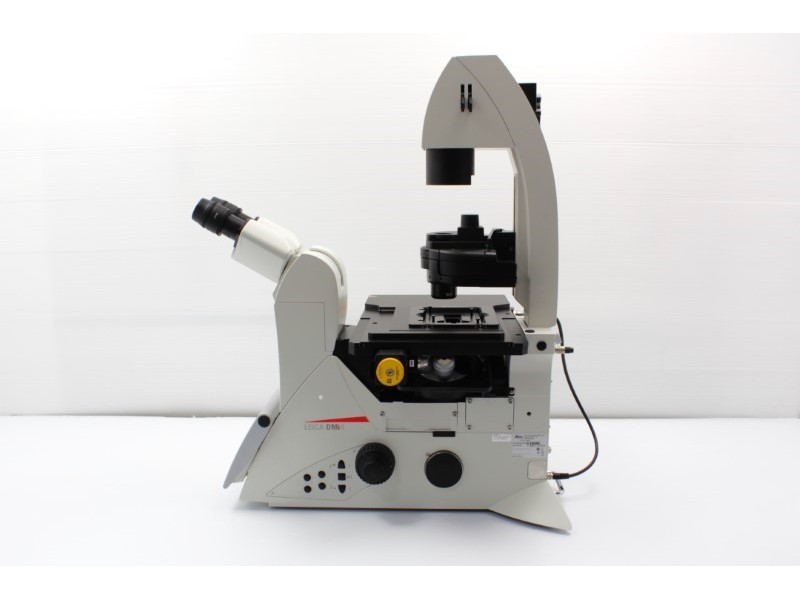

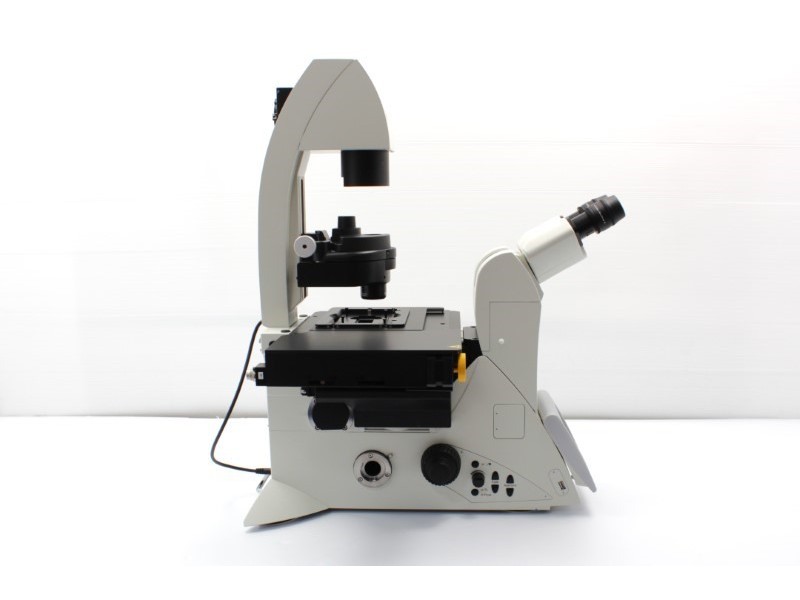

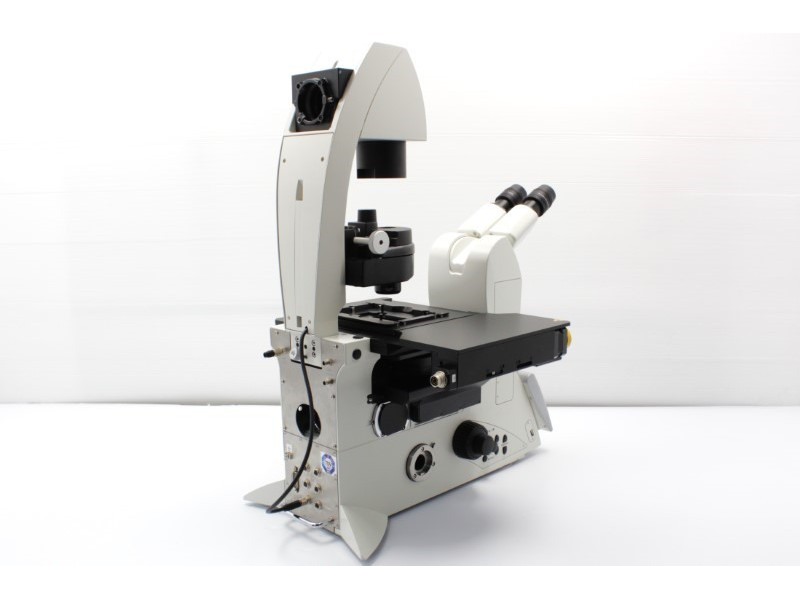

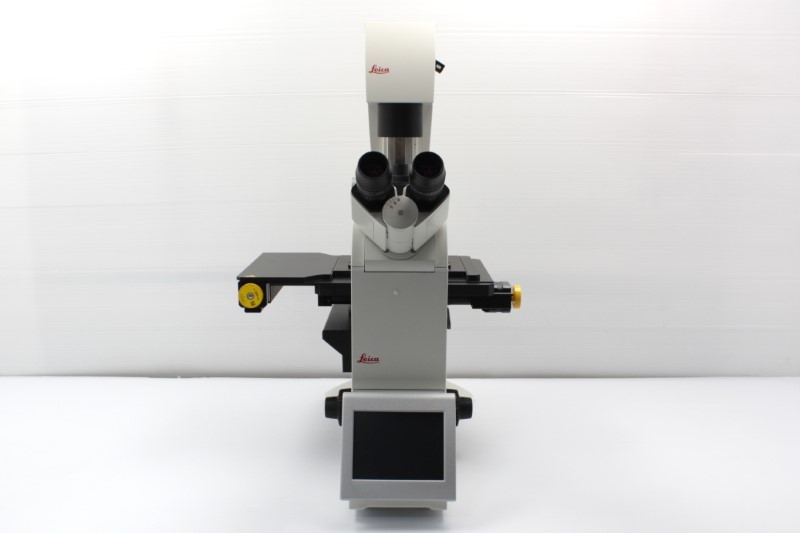

• Leica DMi8 inverted microscope with motorized components for advanced imaging and precision control.
• Fluorescence and phase contrast modes for live-cell and fixed-sample observation

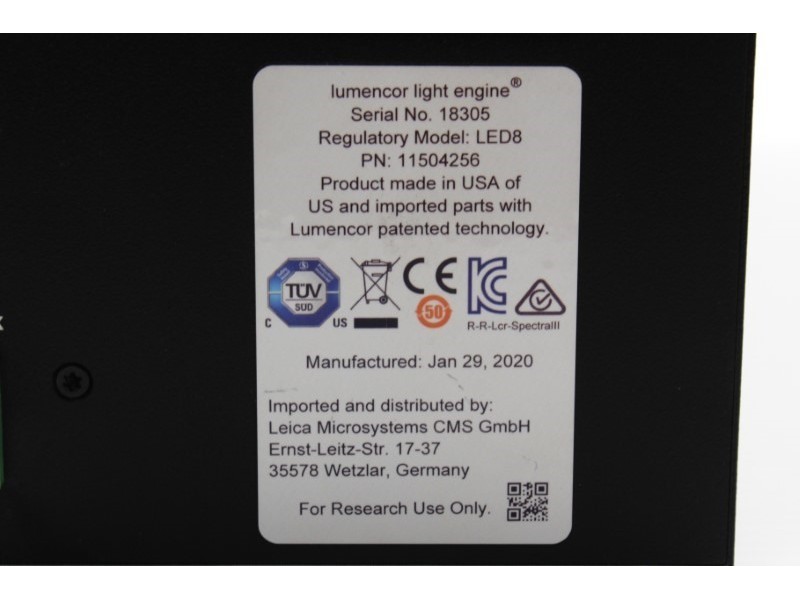

• Integrated TL LED and Lumencor Spectra LED8 fluorescence light sources.

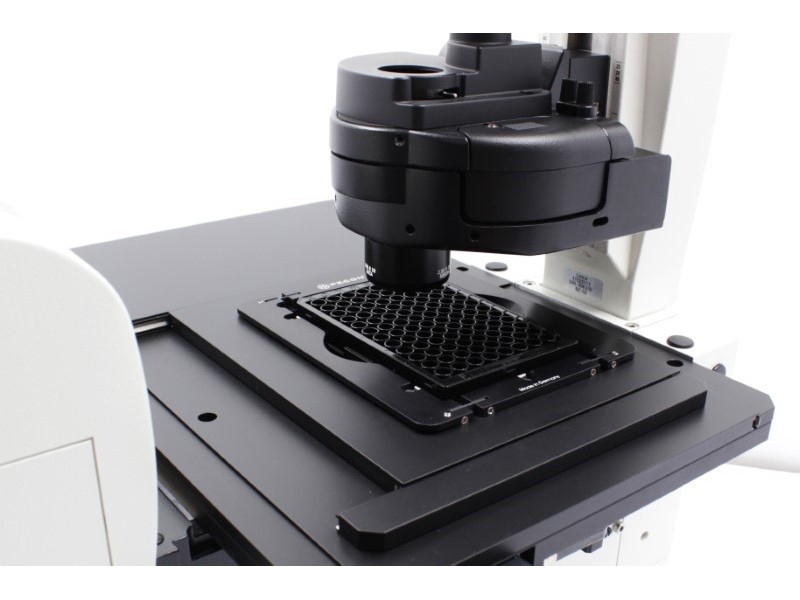

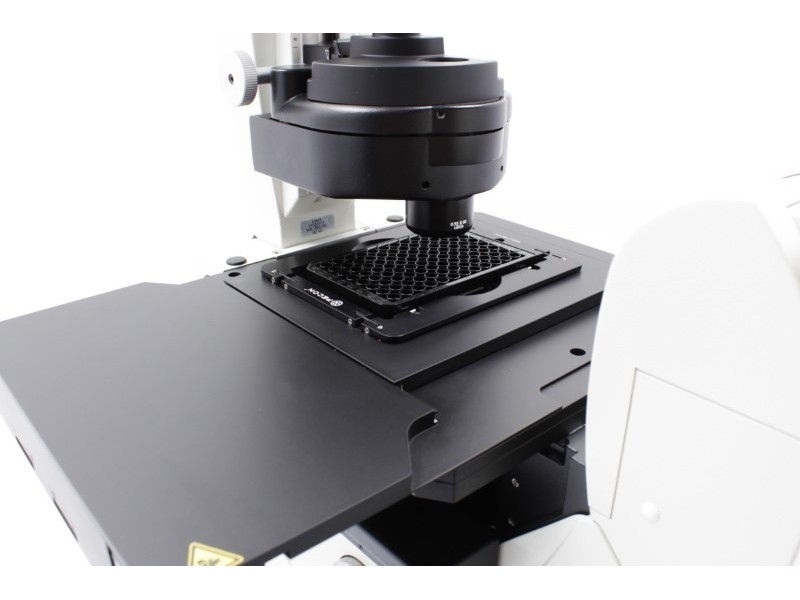

• Features a motorized XY stage for smooth sample navigation.
• Adaptive Focus Control (AFC) actively keeps the focus position over time. (Autofocus)

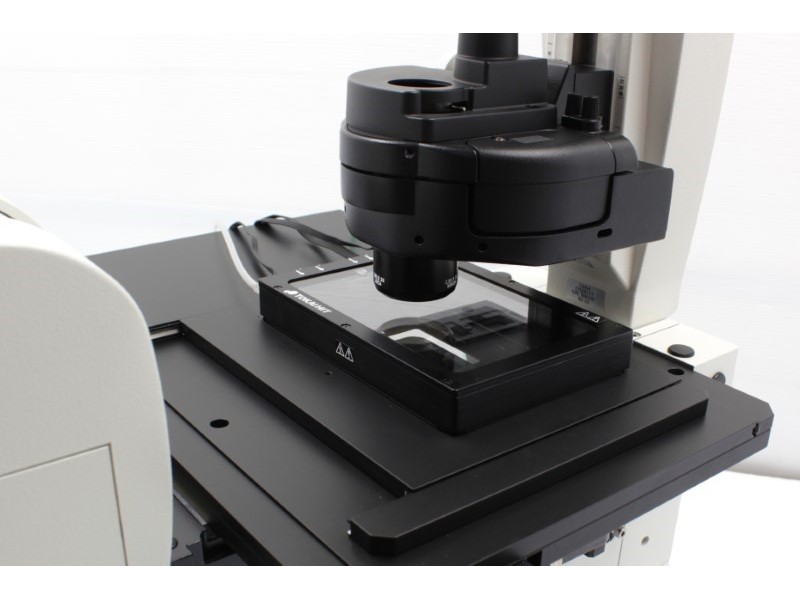

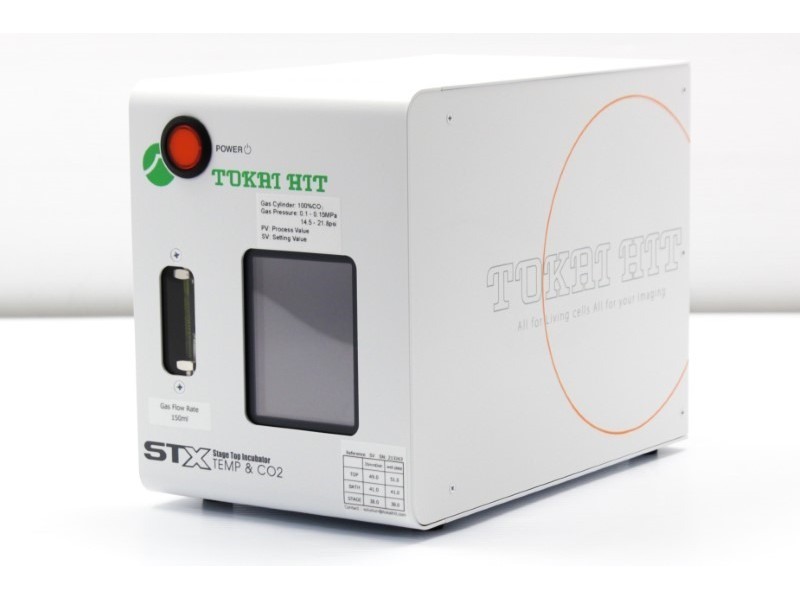

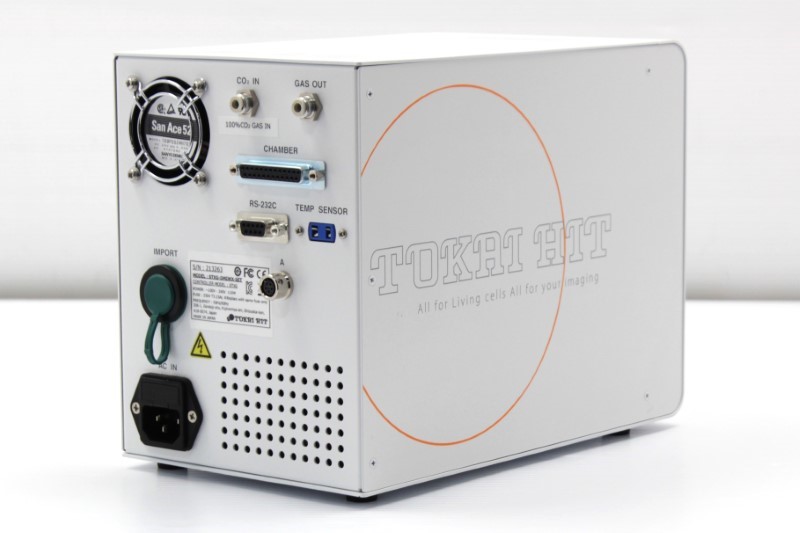

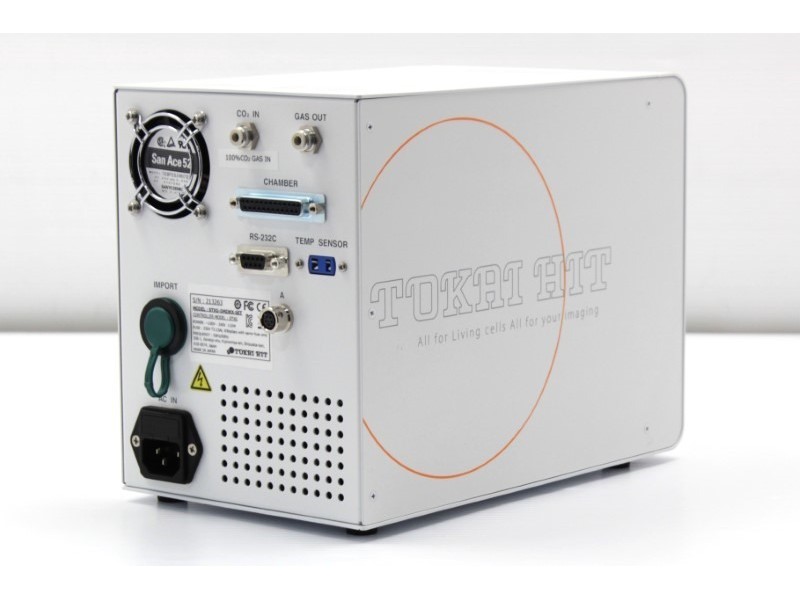

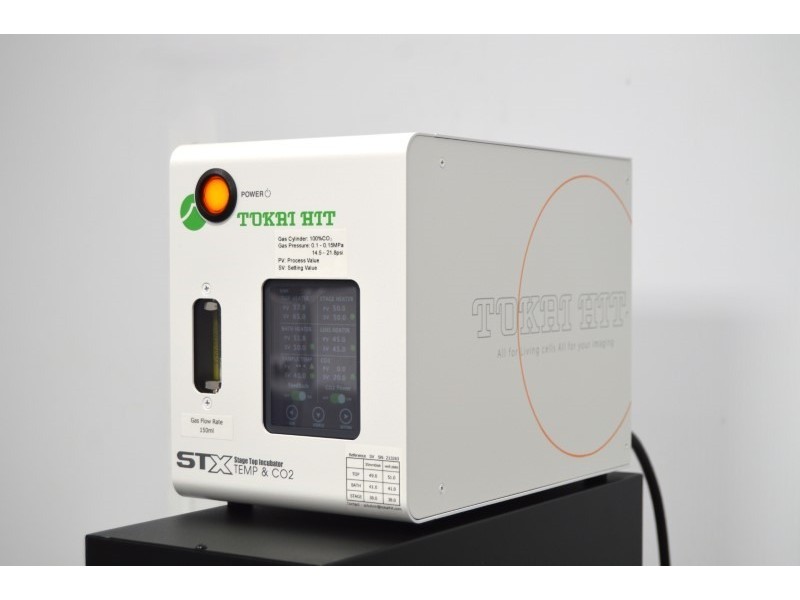

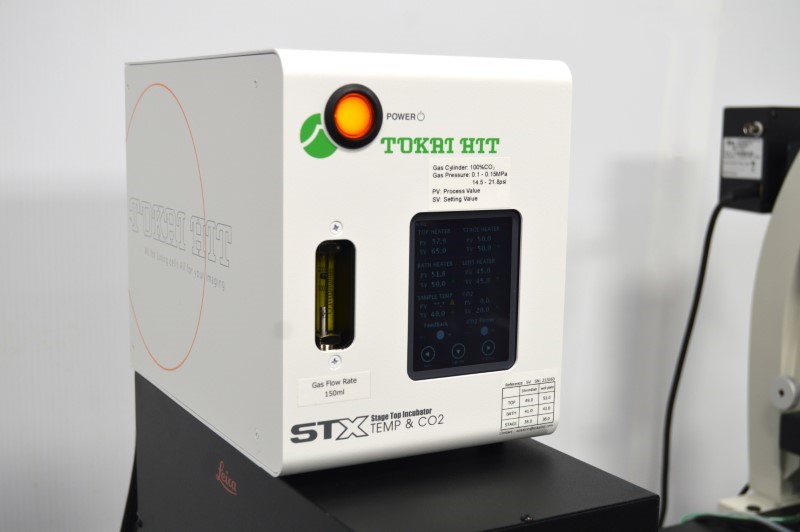

• Tokai Hit STXG Stage Incubator offers precision temperature, humidity, and CO2 control for cell cultures for long-term Time-Lapse imaging.
• LASX license with many modules outlined below

This is what you will receive before customizing this microscope:

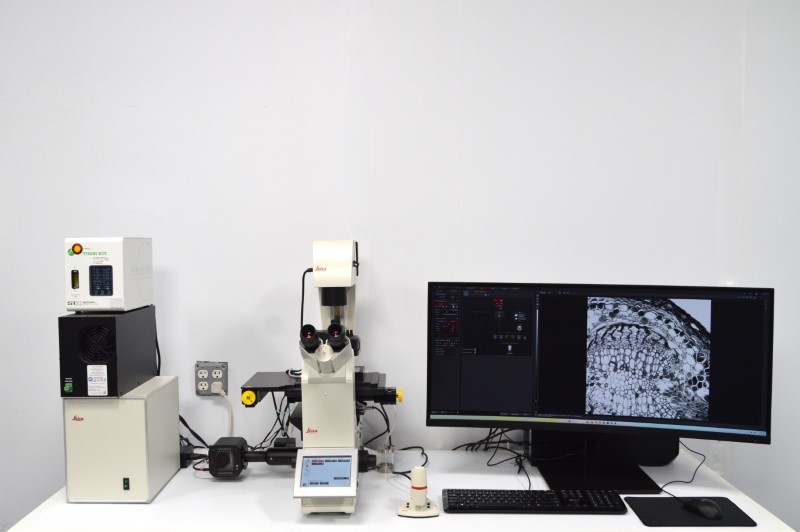

Leica THUNDER DMi8 Inverted Microscope Configuration:

Microscopy Techniques:

• Phase Contrast and Brightfield w/ Fluorescence Microscopy

Microscope Base:

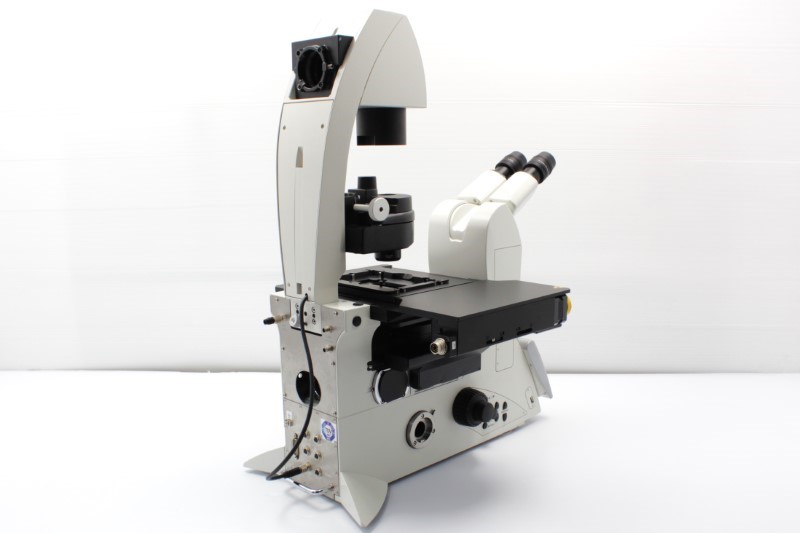

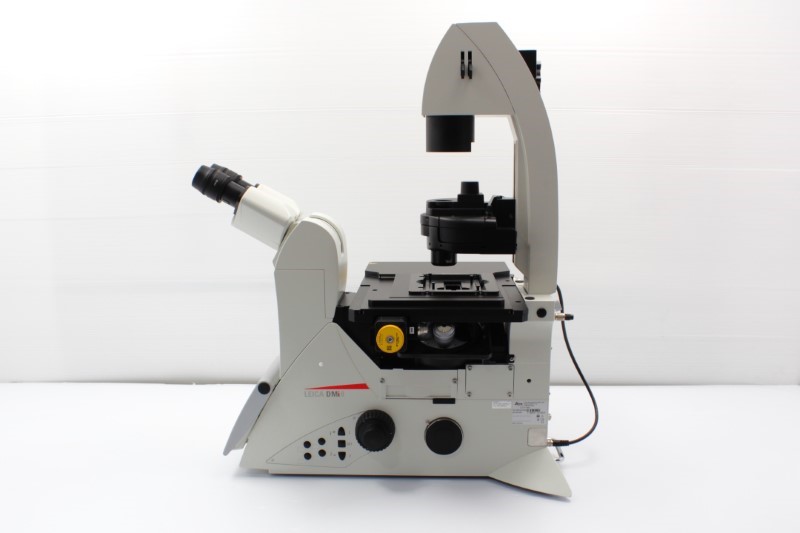

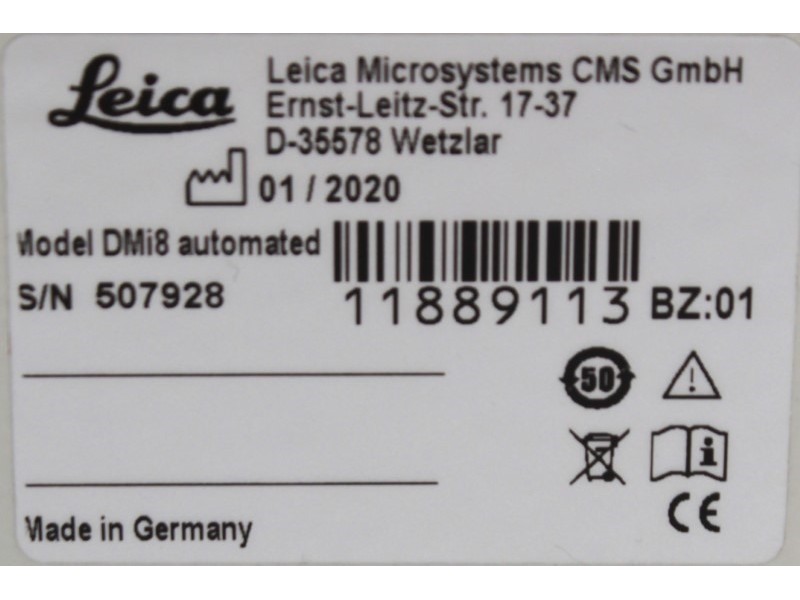

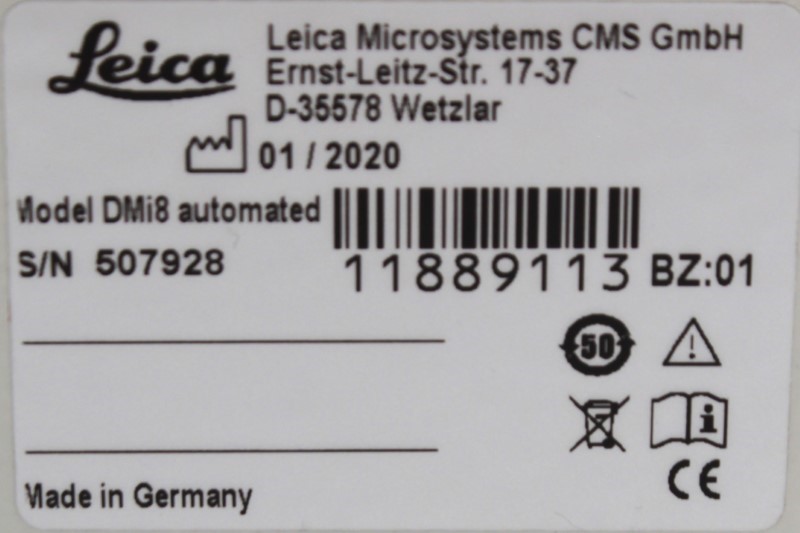

• Leica DMi8 automated

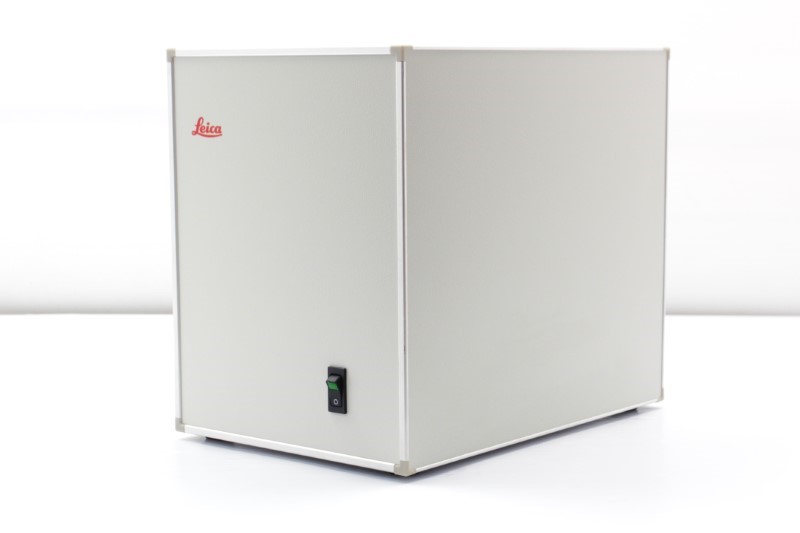

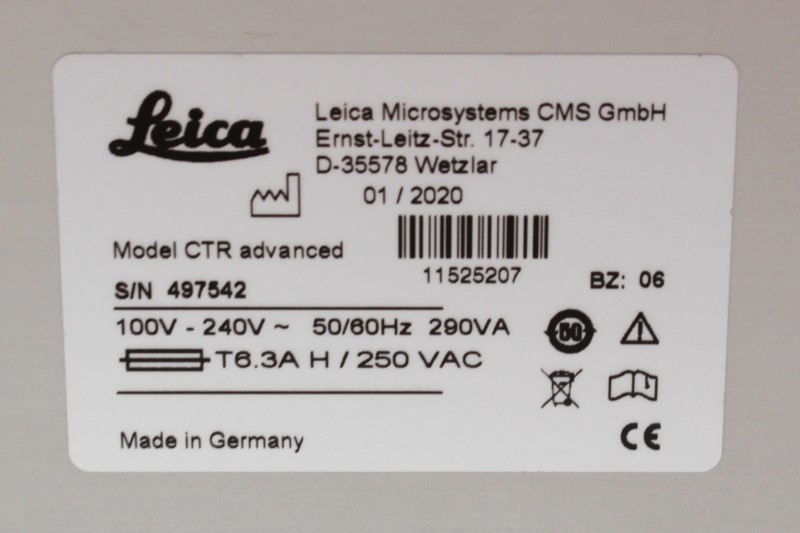

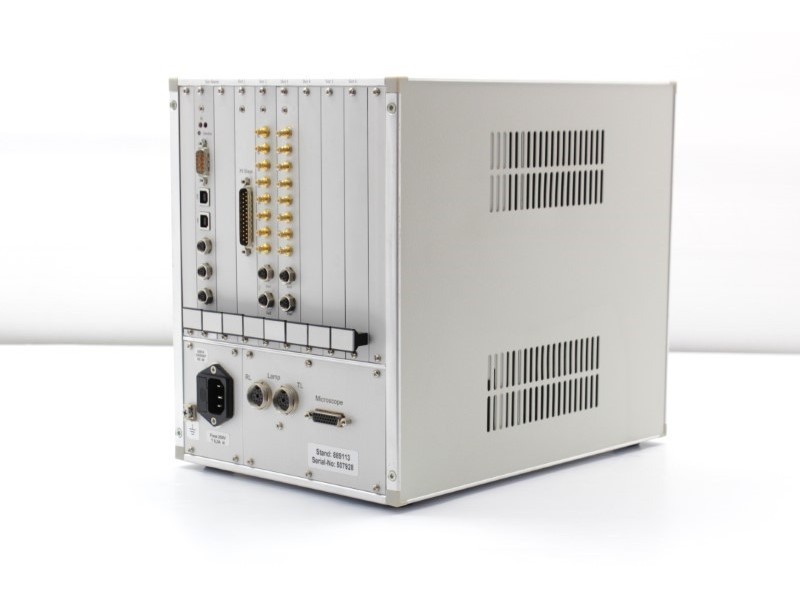

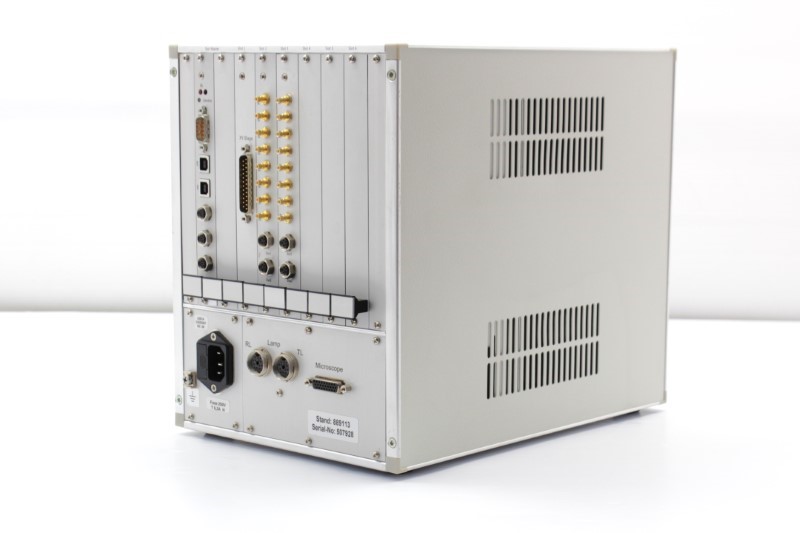

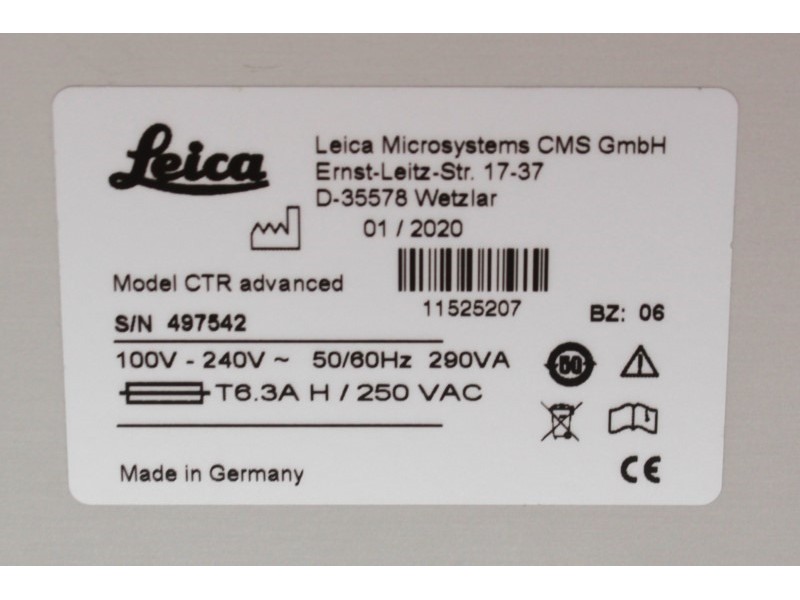

• Leica CTR Box advanced

Microscope Head:

• Ergonomic Binocular Head

Fluorescence Light Path:

• Motorized external fluorescence axis

Fluorescence Illumination:

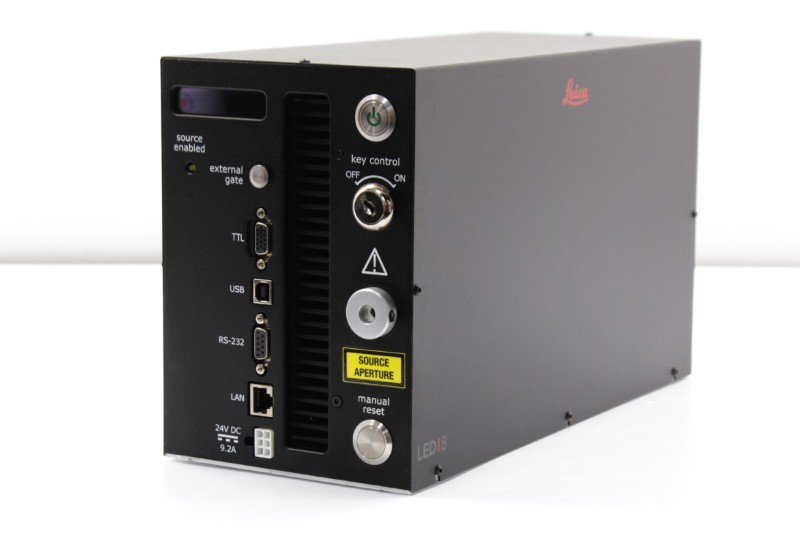

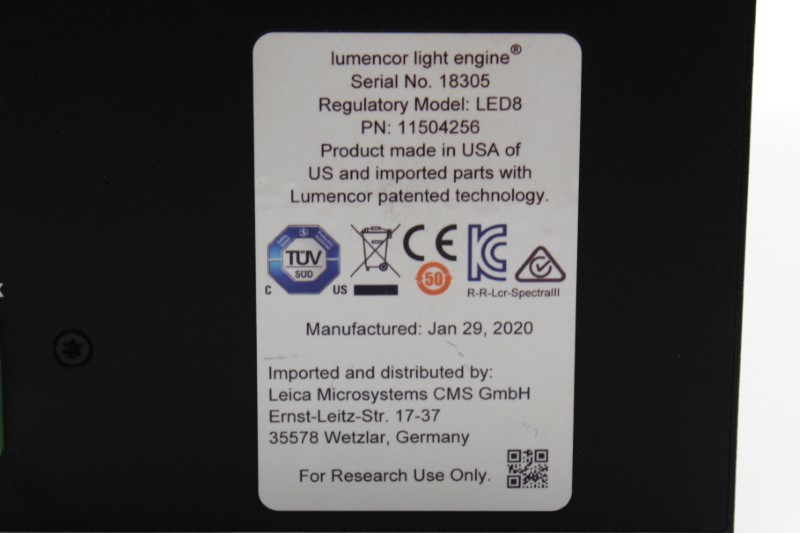

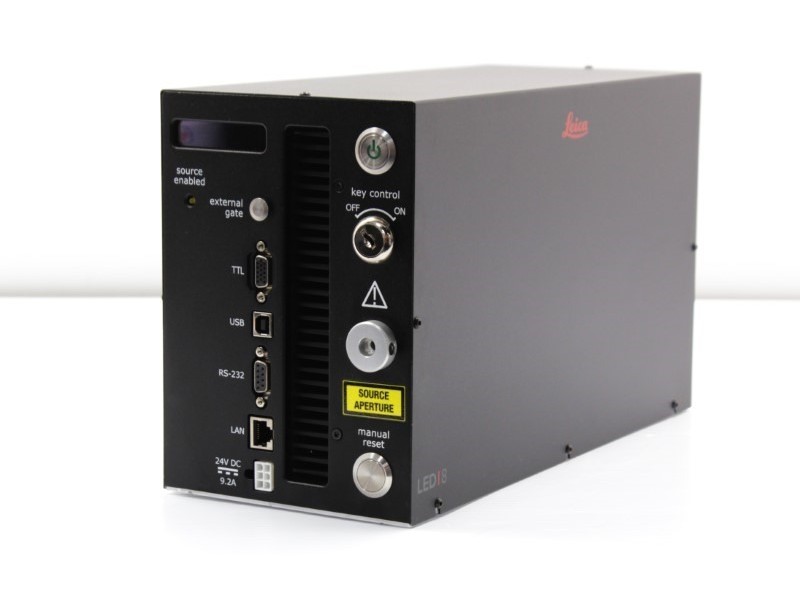

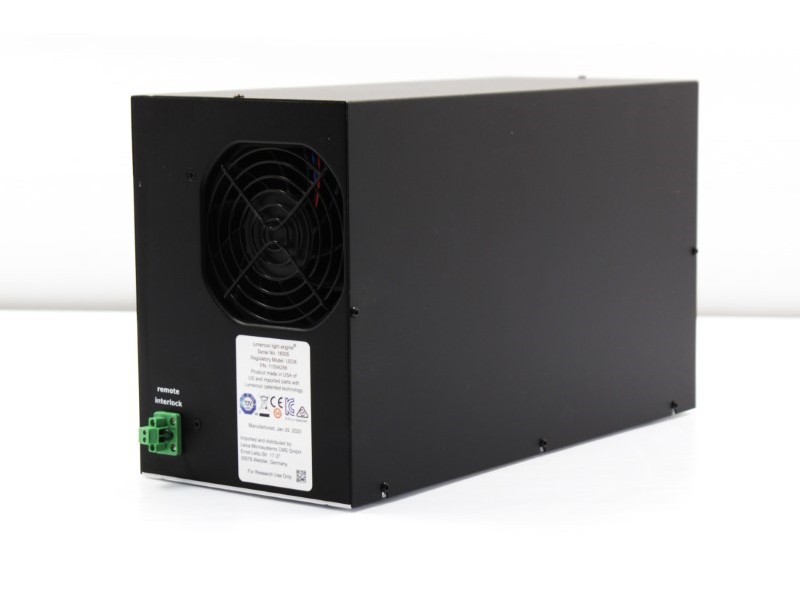

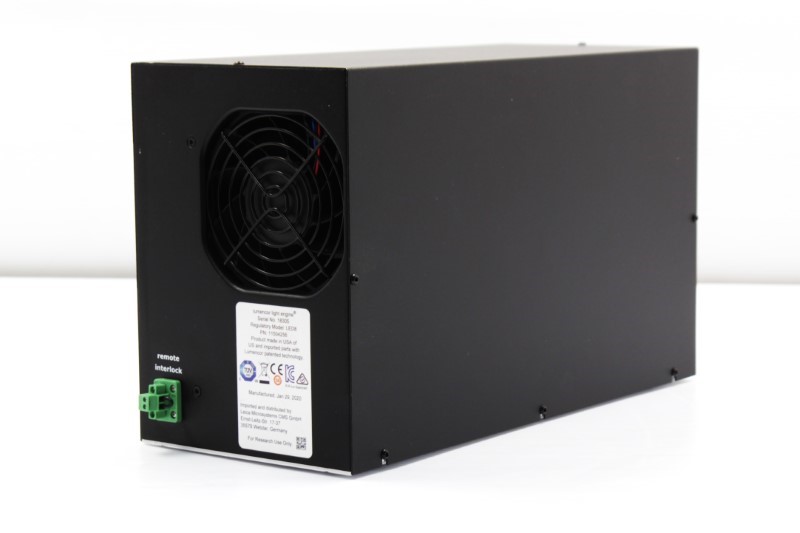

• Leica LED8 8-Channel LED light source
• Liquid Light Guide

Fluorescence filter cube turret:

• 6-position Motorized Reflective Cube Turret

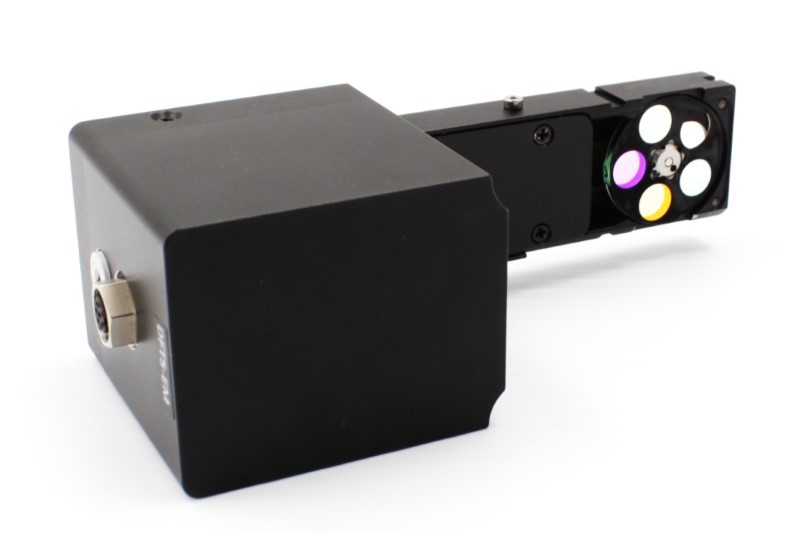

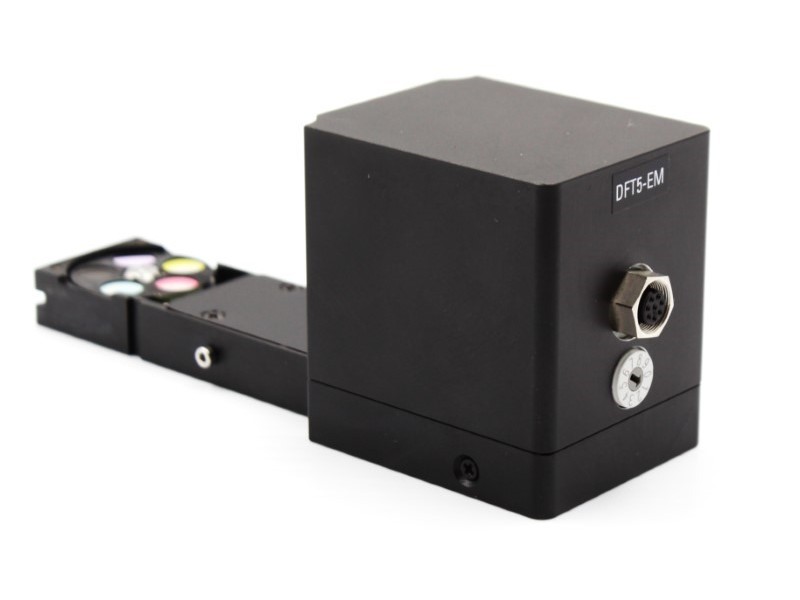

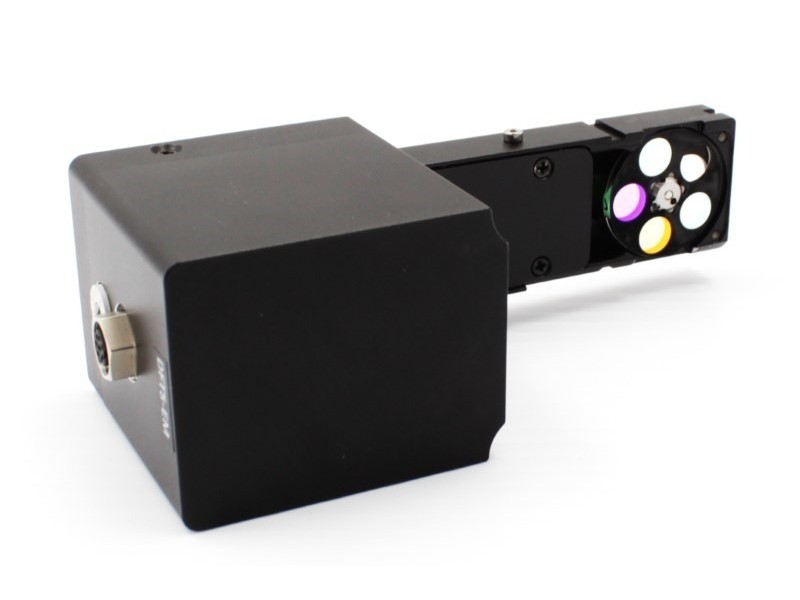

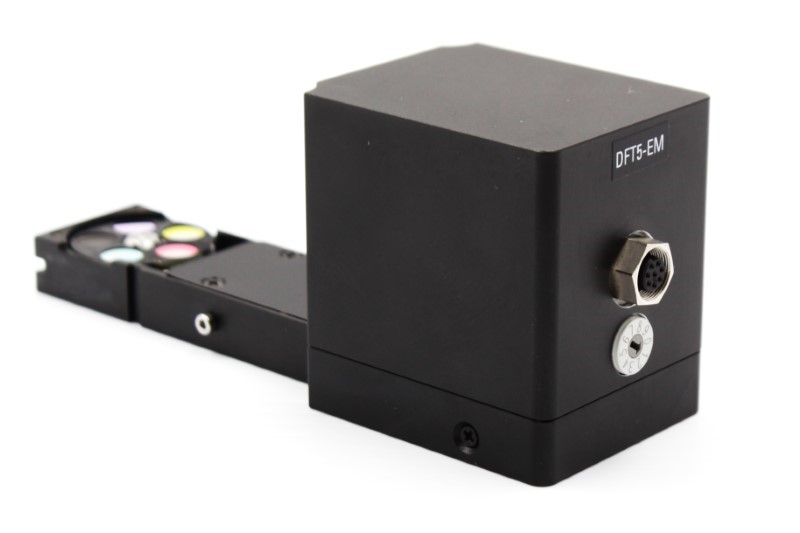

• External Filterwheel

Brightfield Light Path:

• Built-in

Brightfield Illumination:

• TL LED 12V 15W LED illuminator
• Tiltable Illumination Arm

Objective Turret:

• 6-position Motorized Nosepiece

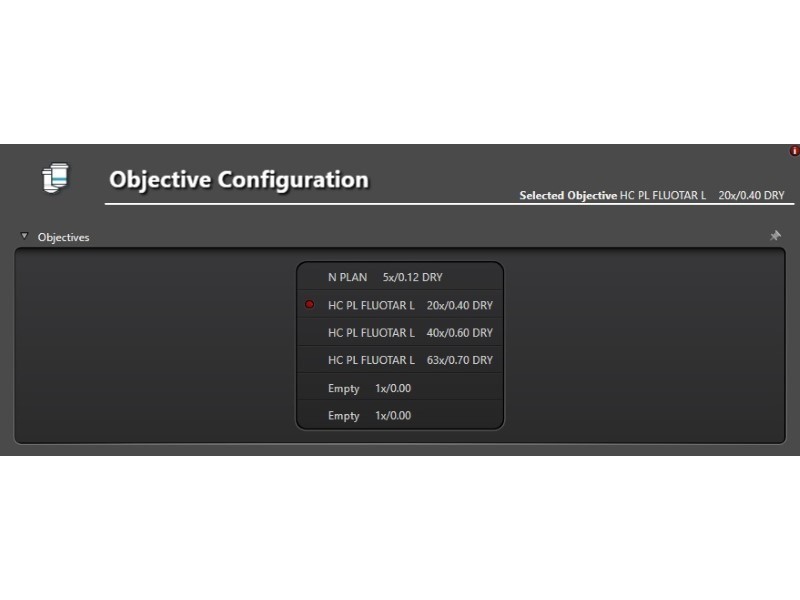

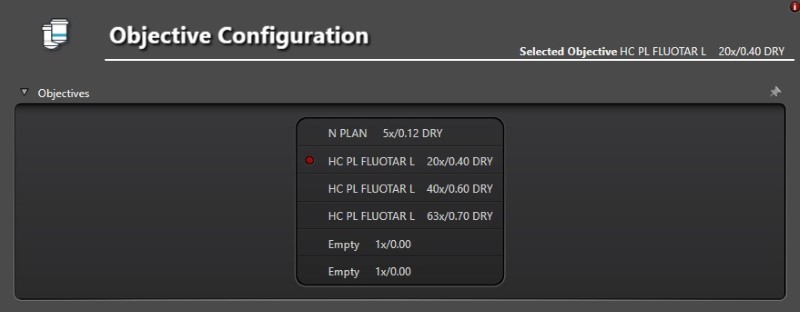

Objectives:

• 5x N Plan PH0 (O6024)
• 20x HC PL Fluotar PH1 (O6026)
• 40x HC PL Fluotar PH2 (O6023)
• 63x HC PL Fluotar PH2 (O6025)

Condenser:

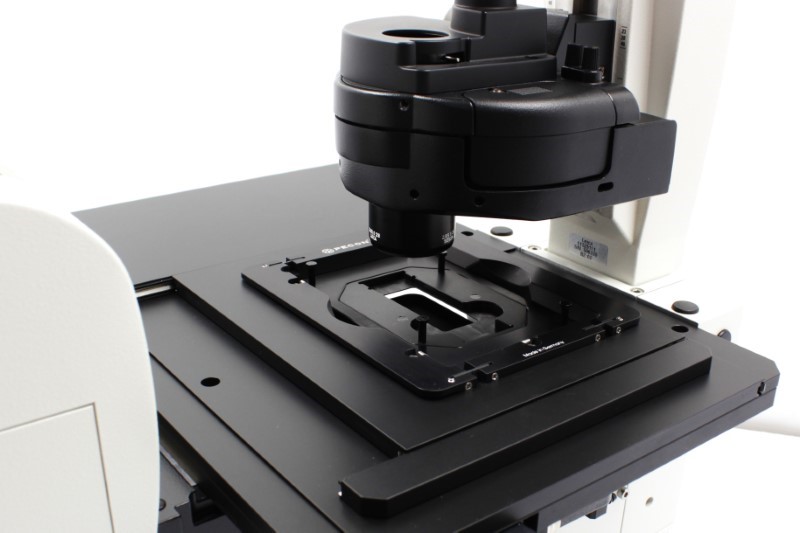

• Motorized 0.55 S28 Condenser with Polarizer and Phase Contrast Annuli: PH0, PH1, PH2

Stage:

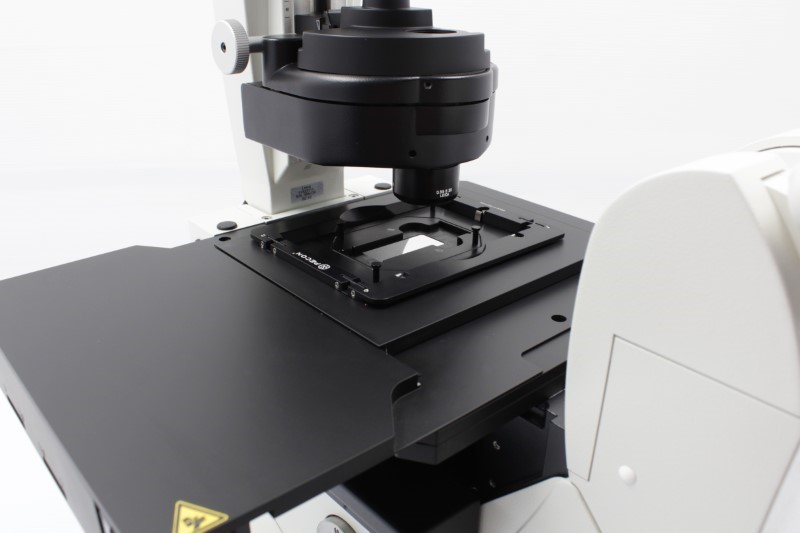

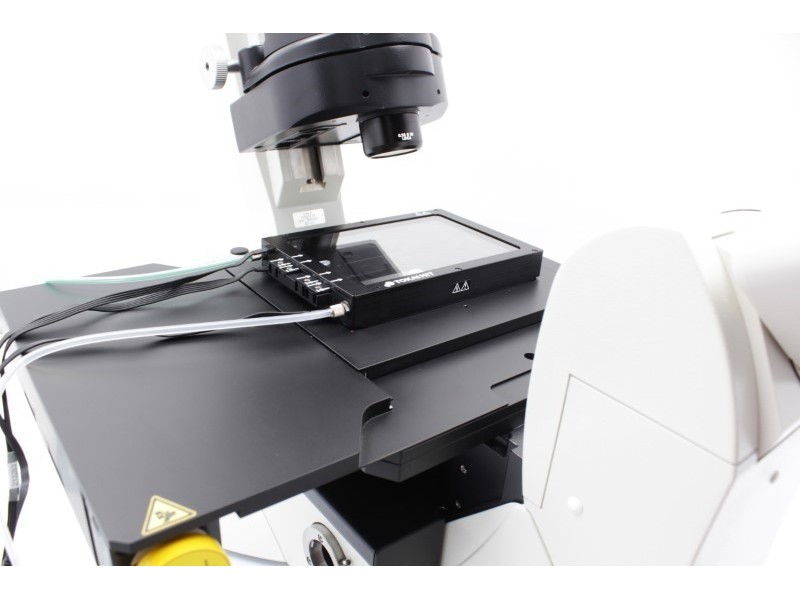

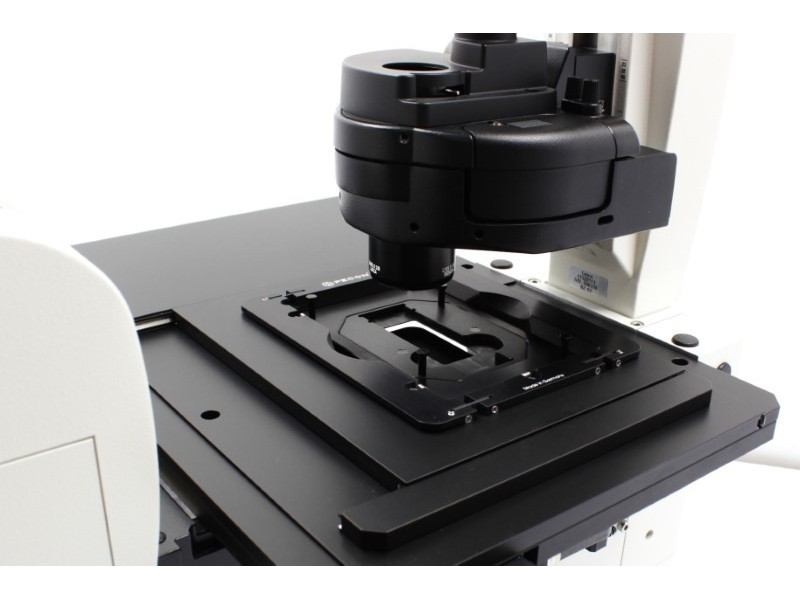

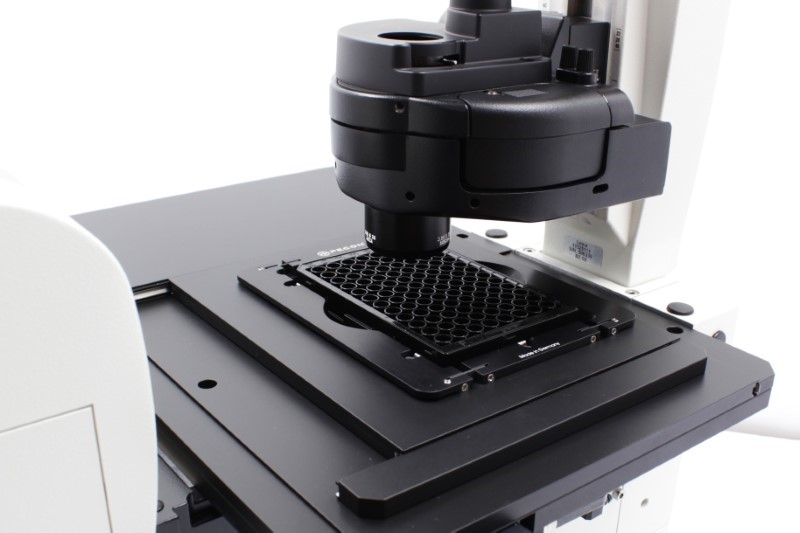

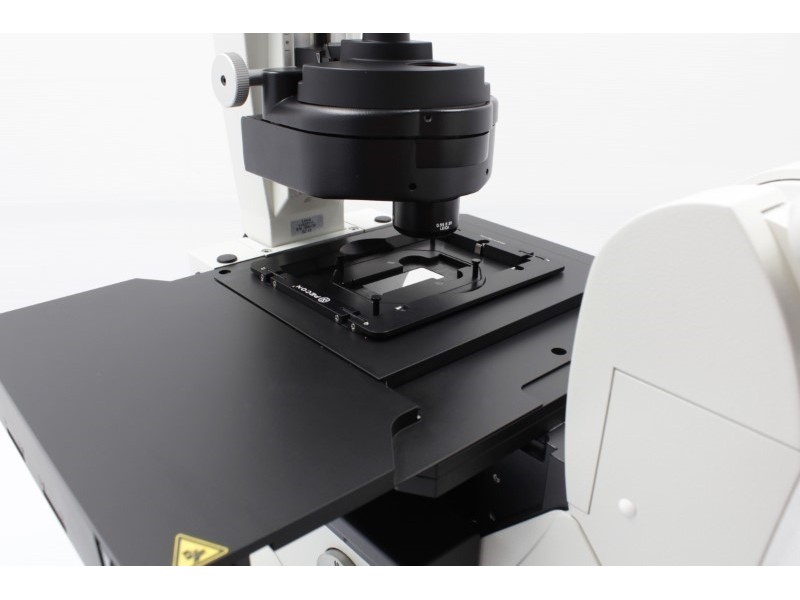

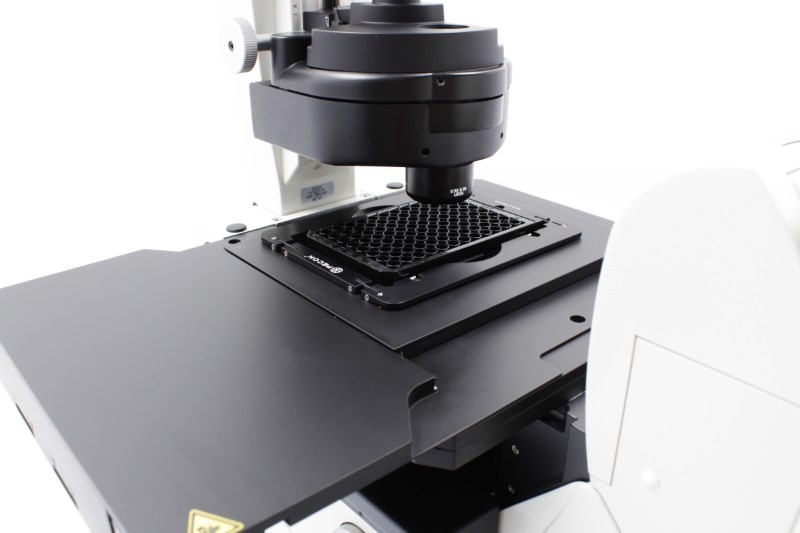

• Leica Scanning Stage (Original Mfg. Marzhauser)

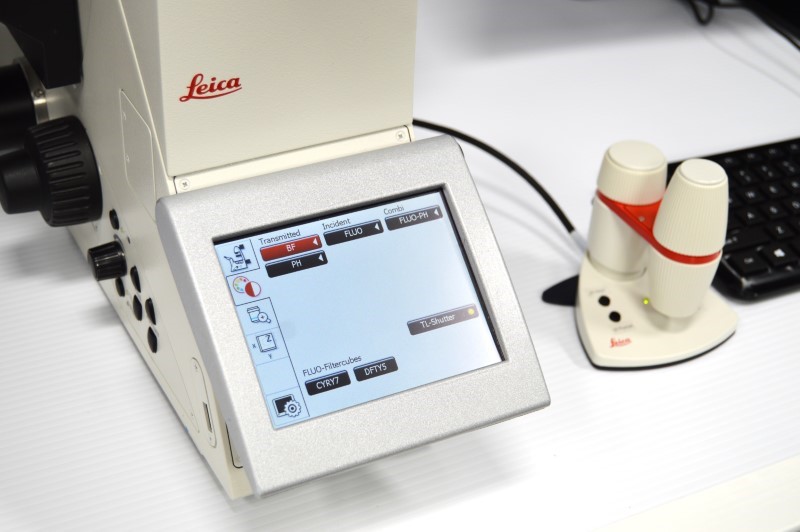

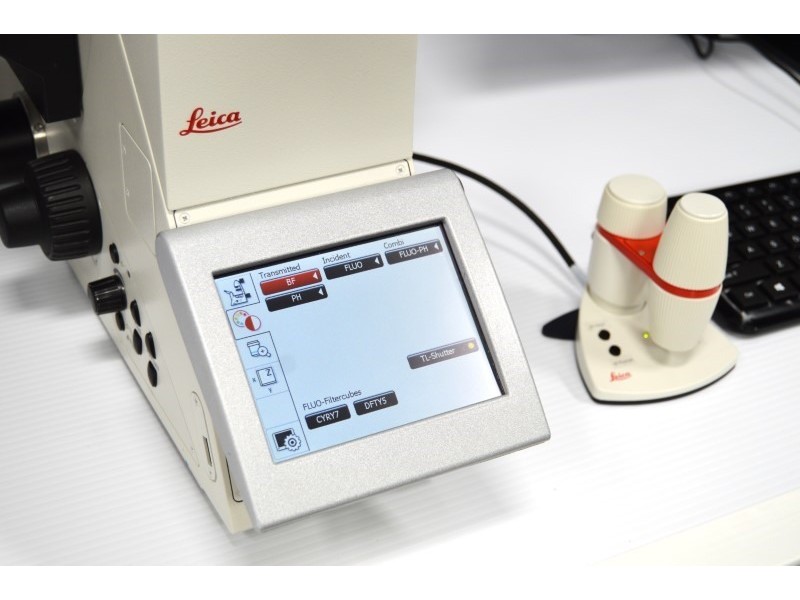

• Leica SmartMove joystick

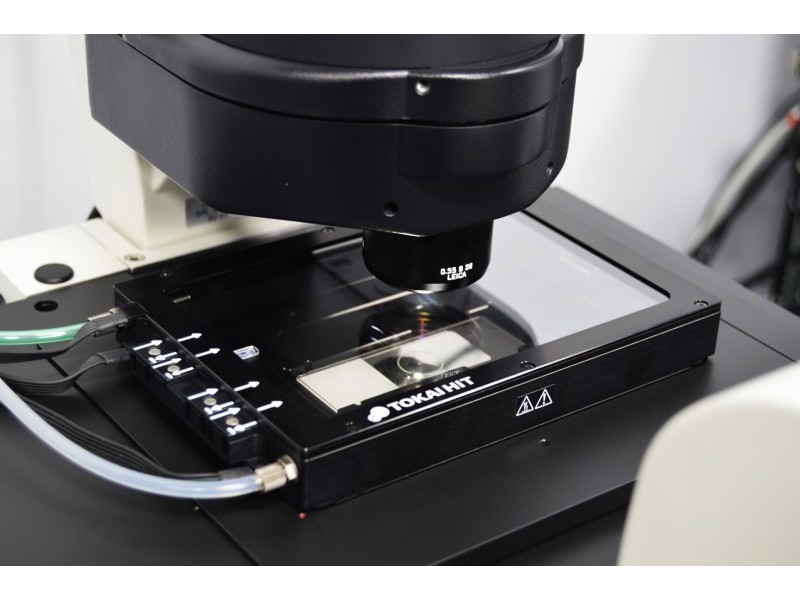

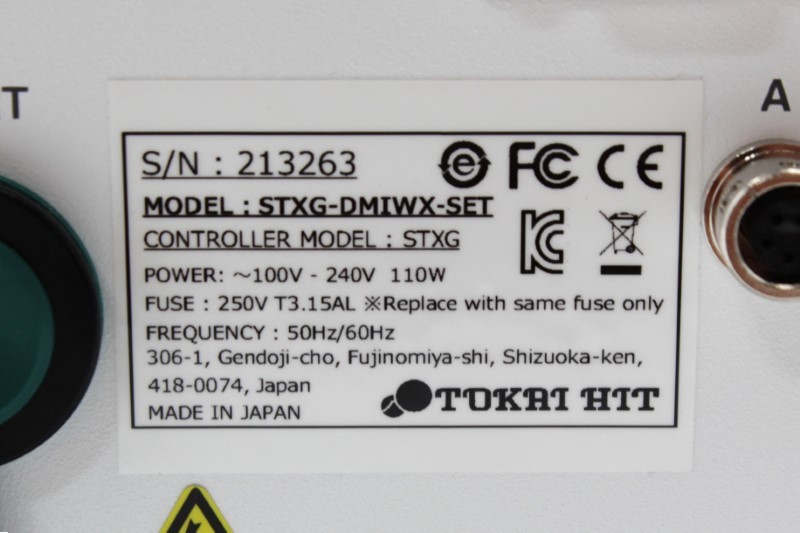

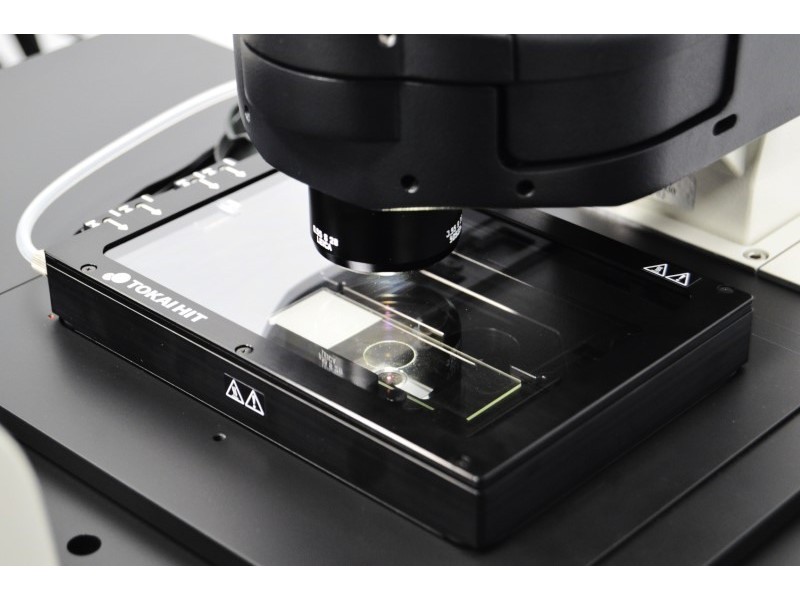

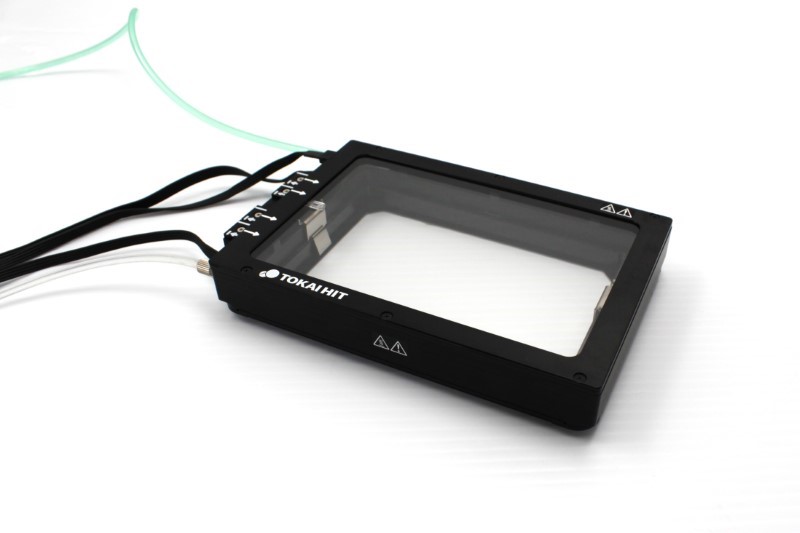

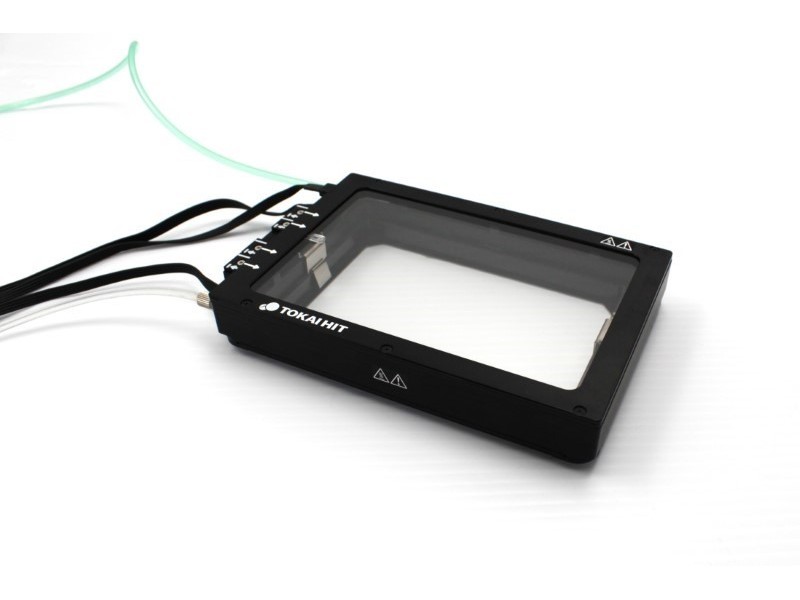

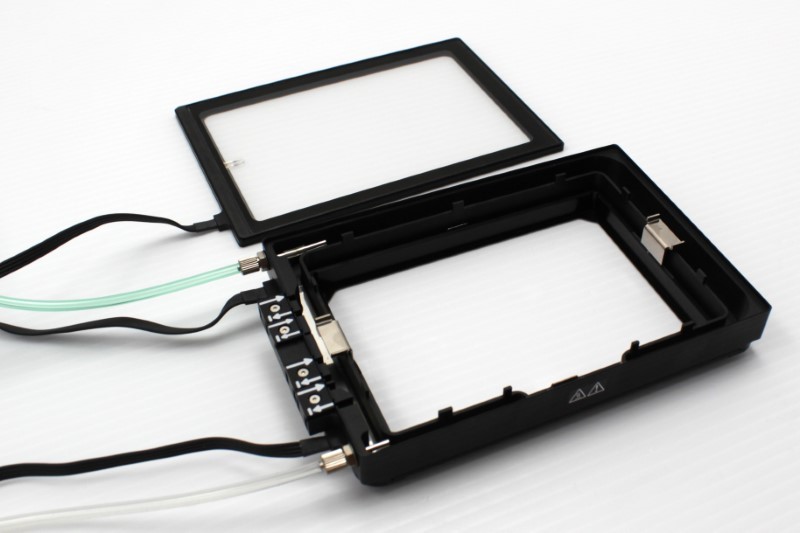

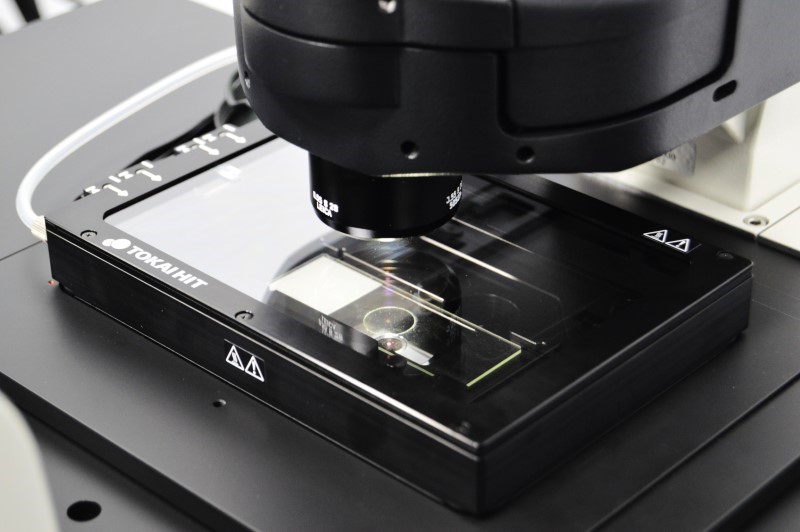

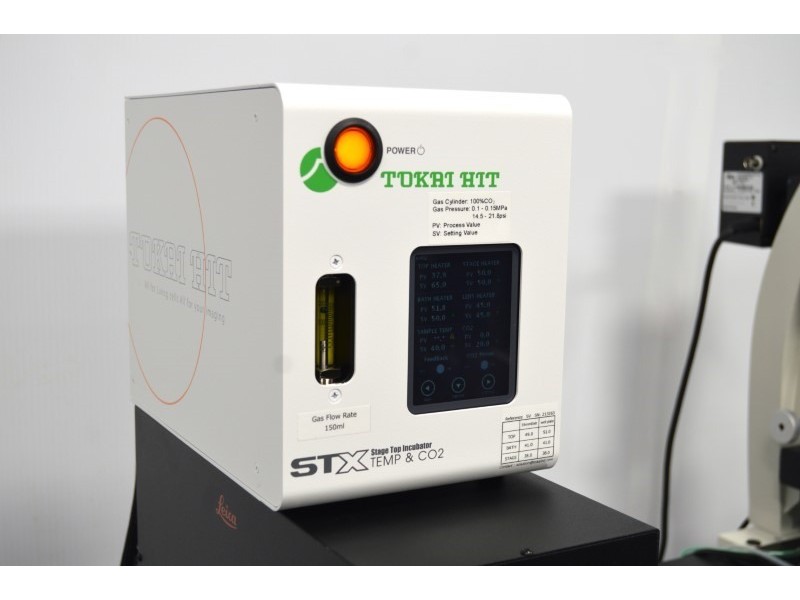

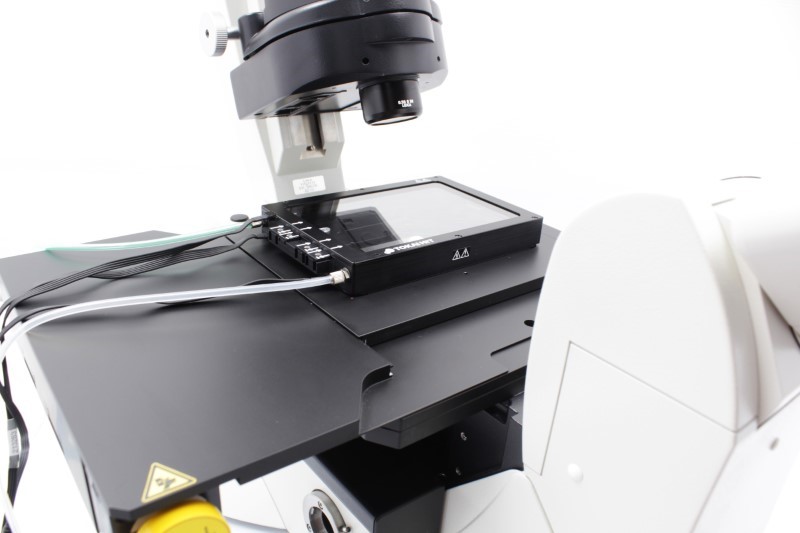

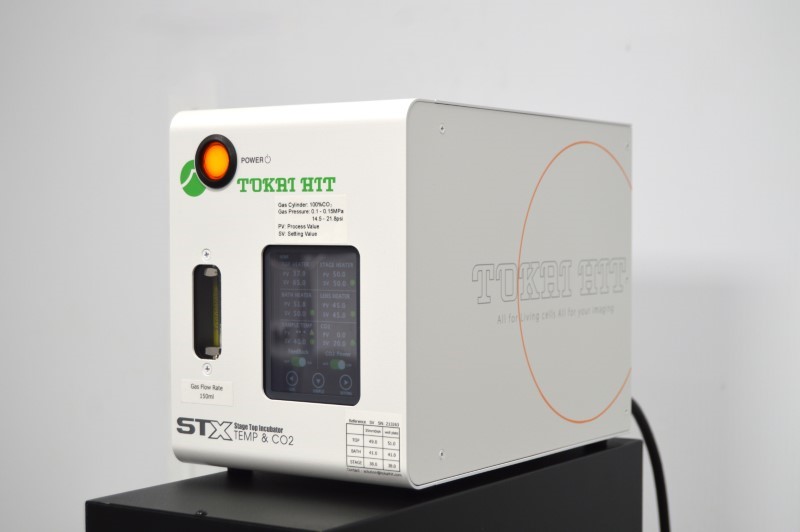

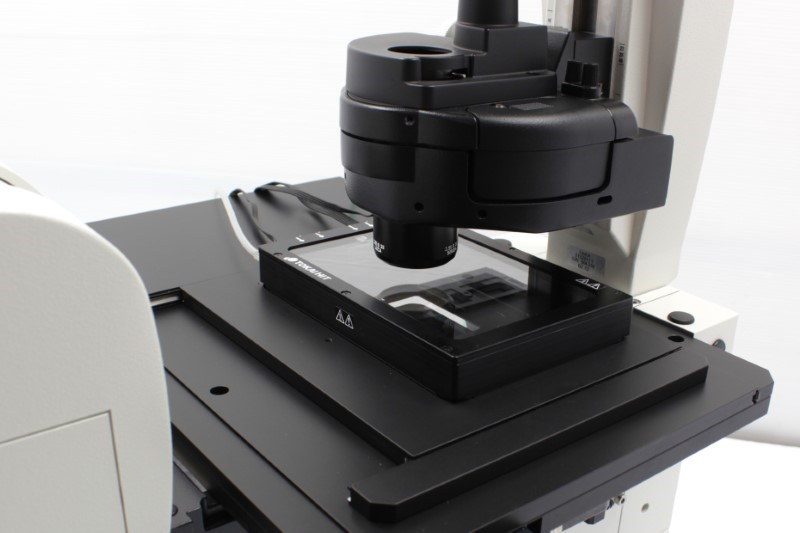

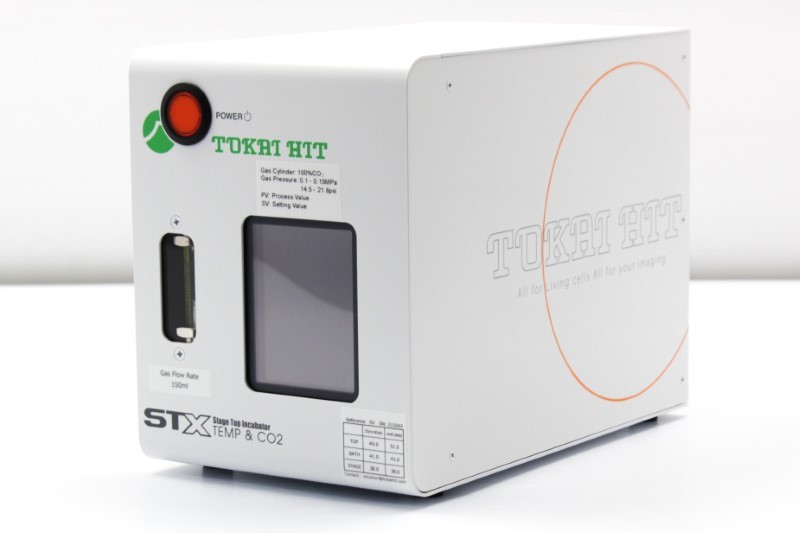

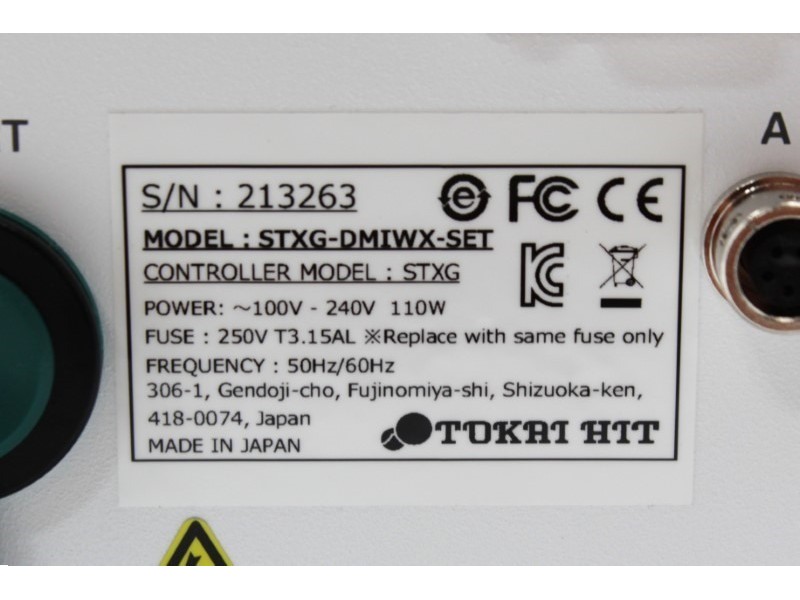

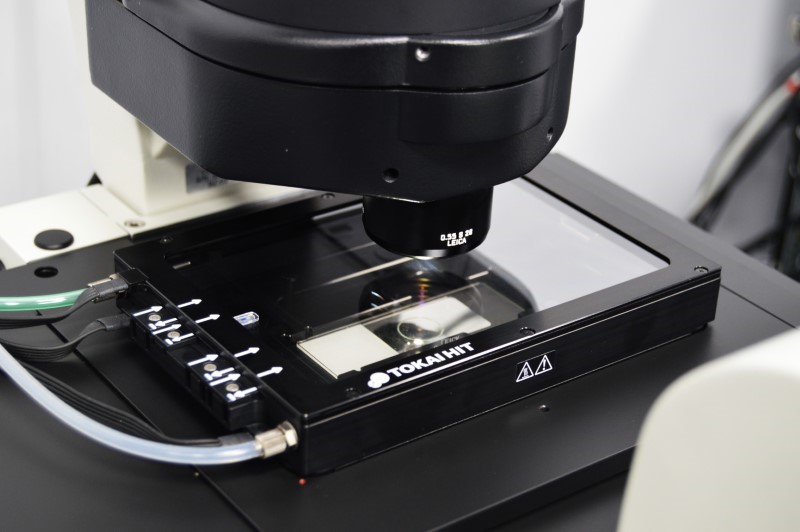

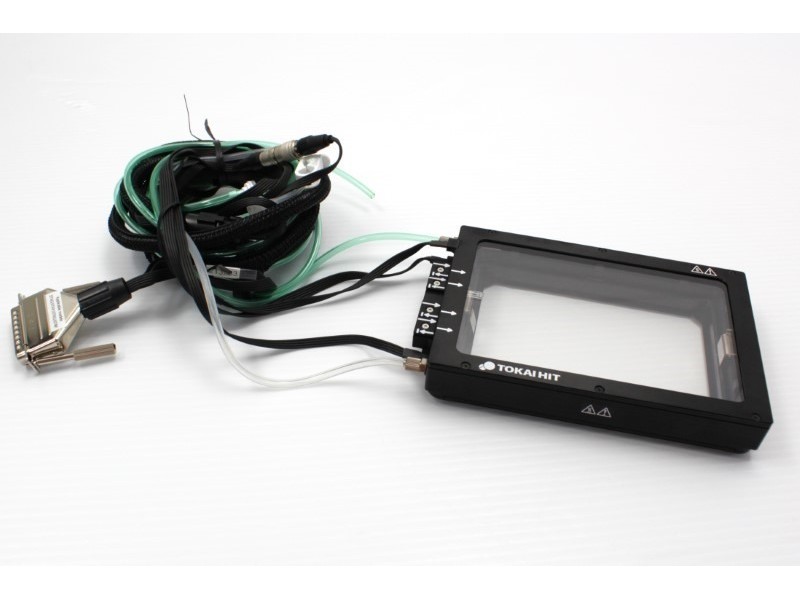

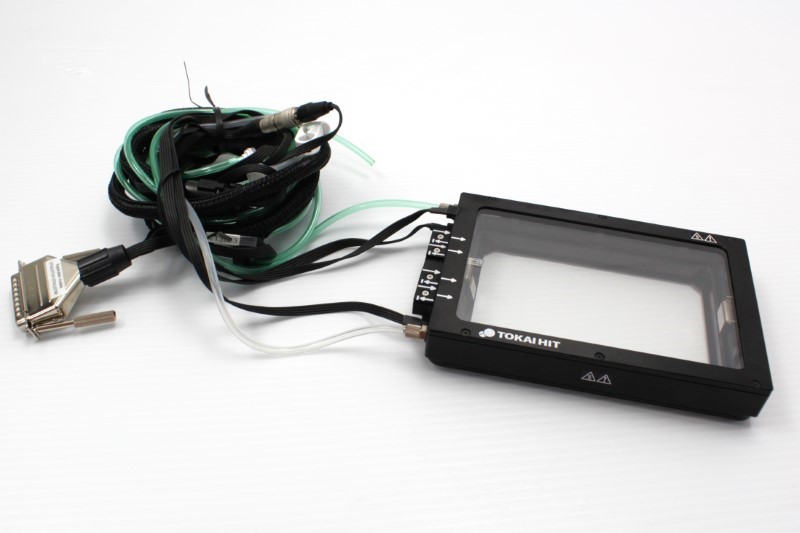

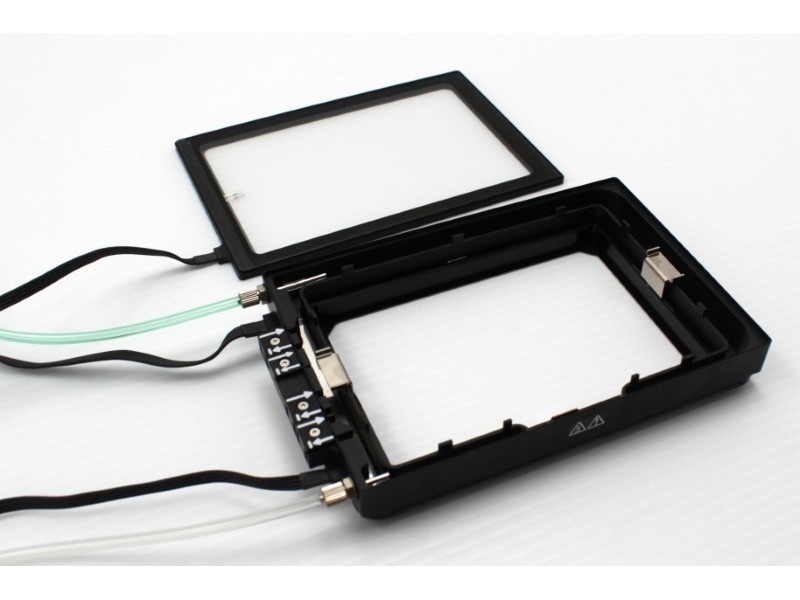

• Tokai Hit STXG Stagetop Incubator

Camera ports:

• 100% Eyepiece, 0% Camera
• 0% Eyepiece, 100% Camera

Camera:

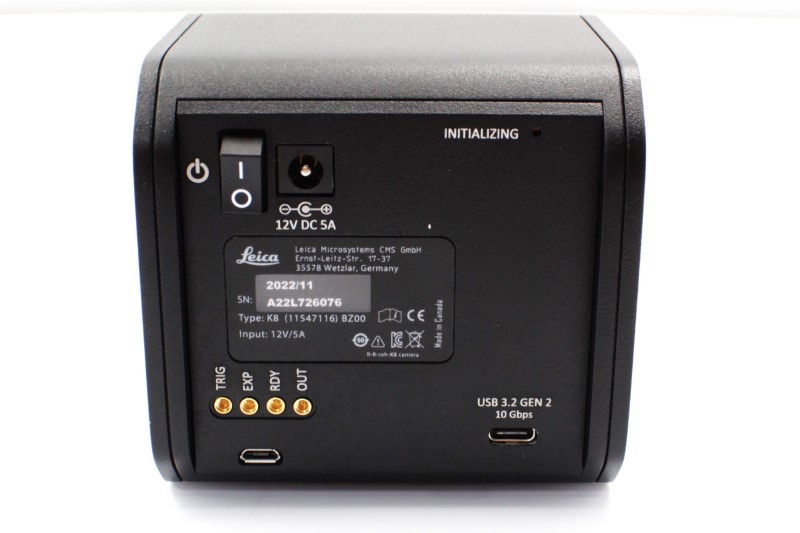

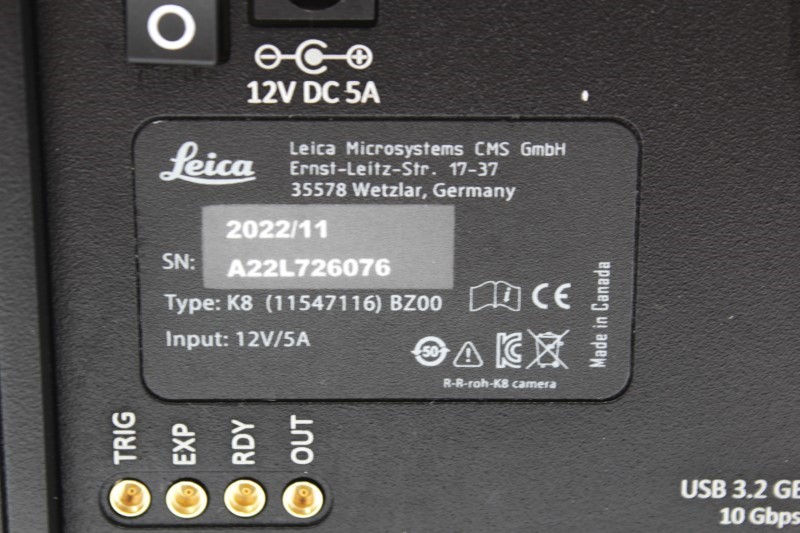

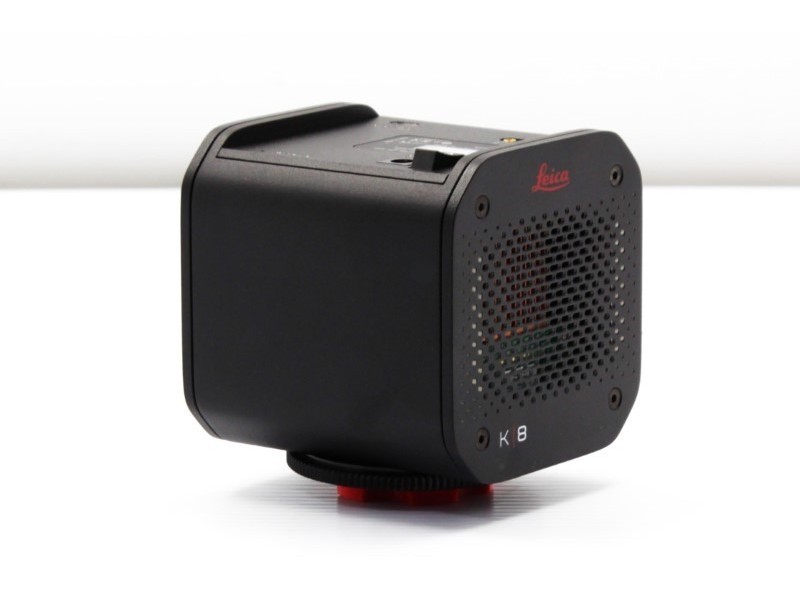

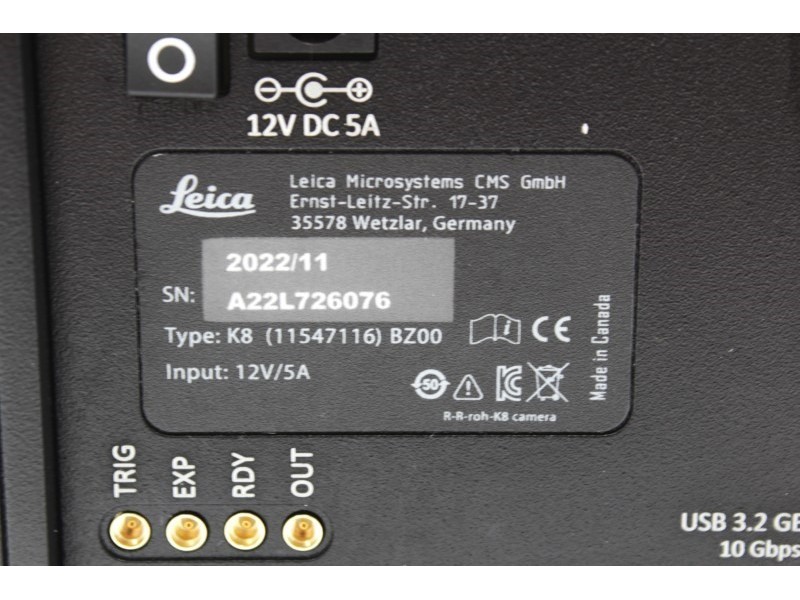

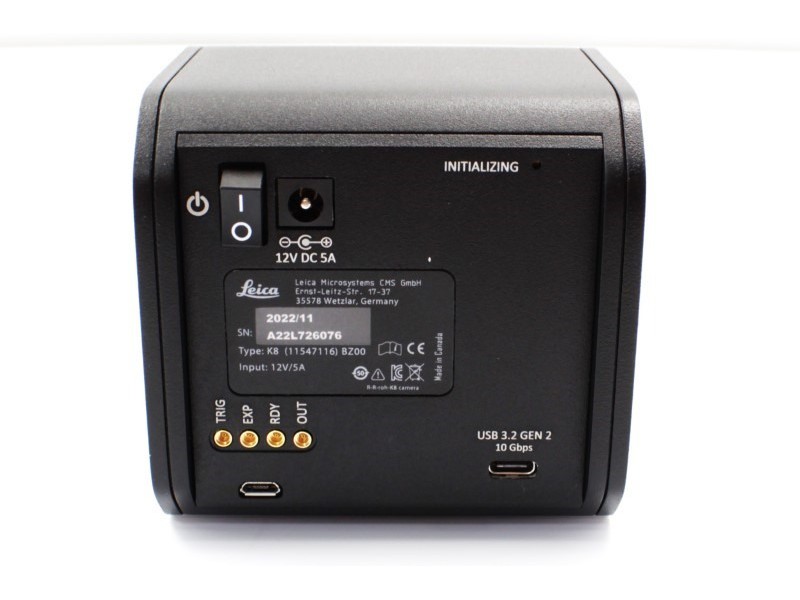

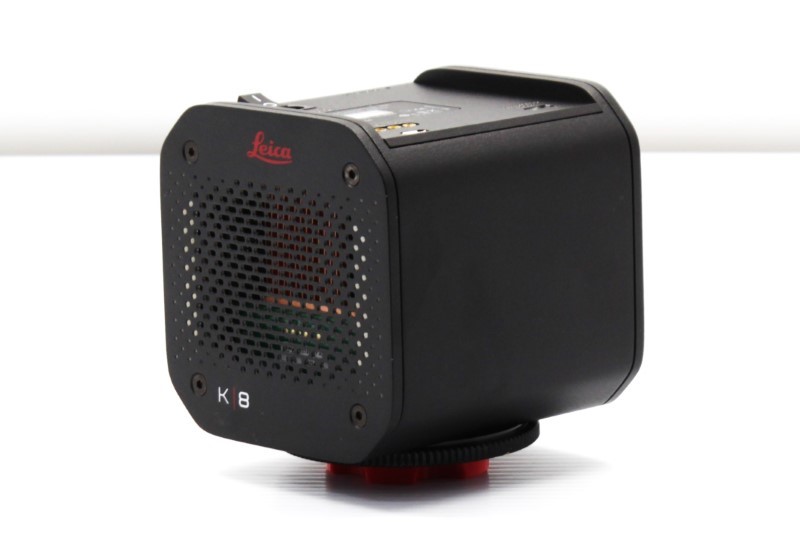

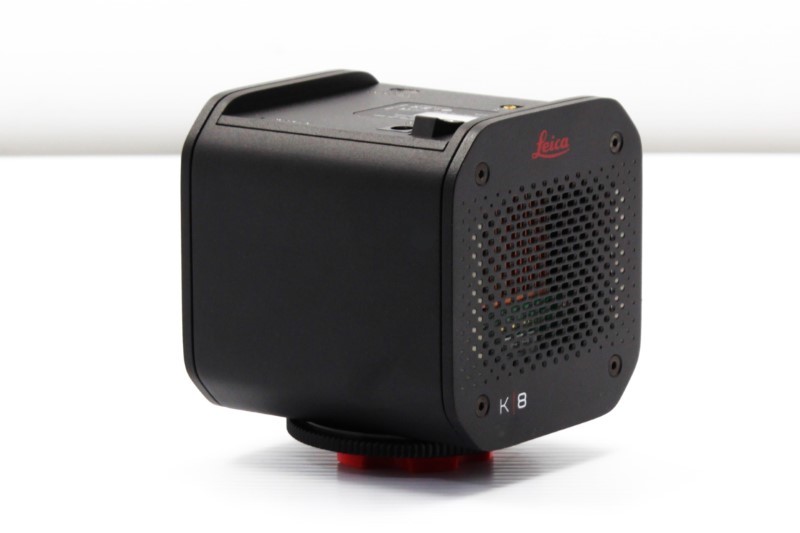

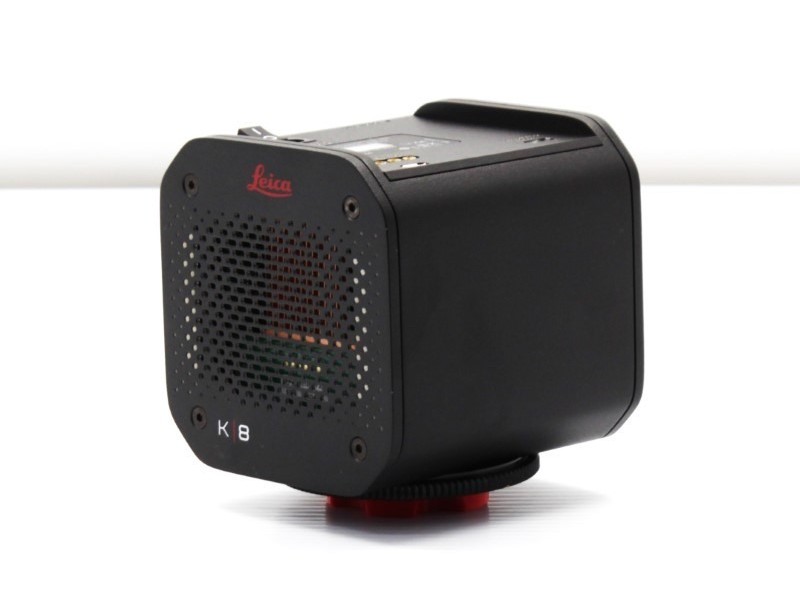

• Leica K8 sCMOS Microscope Camera

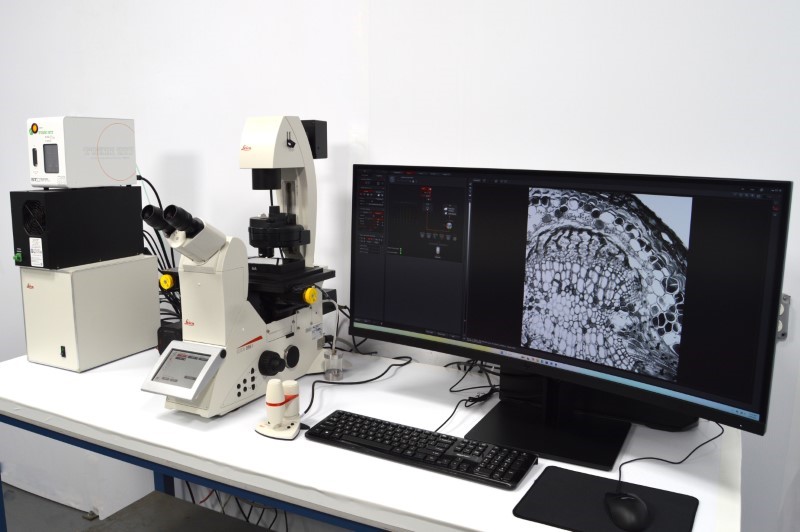

Computer & Software:

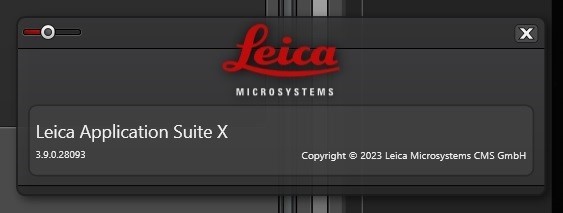

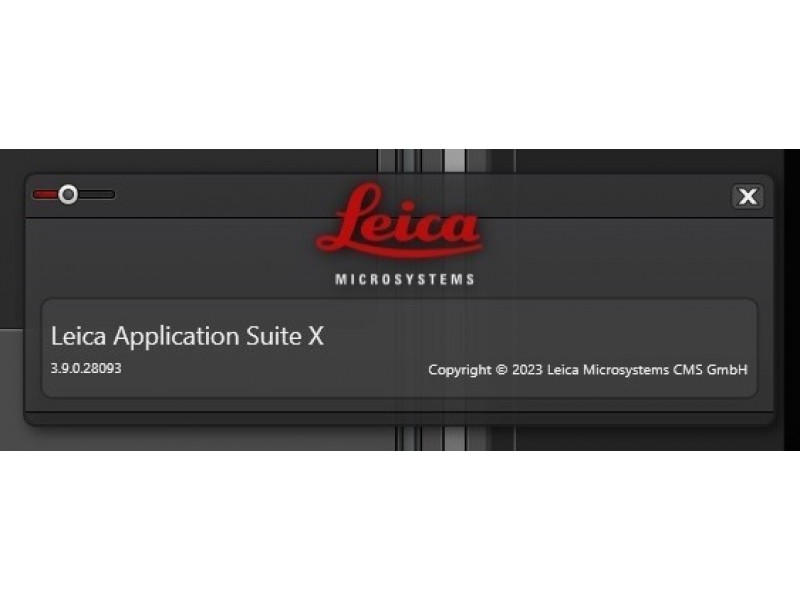

• Desktop computer running Leica LASX software

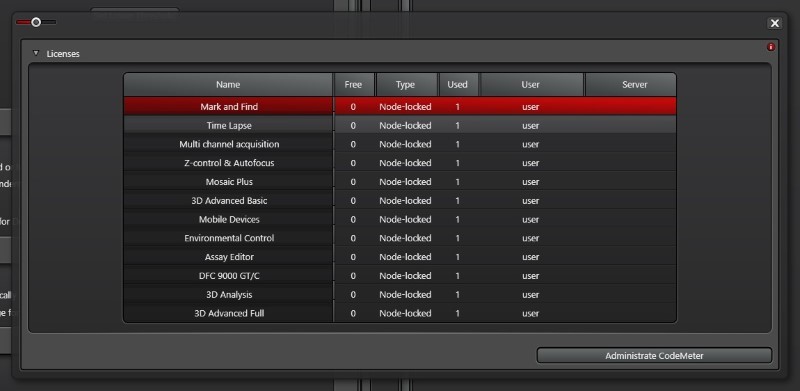

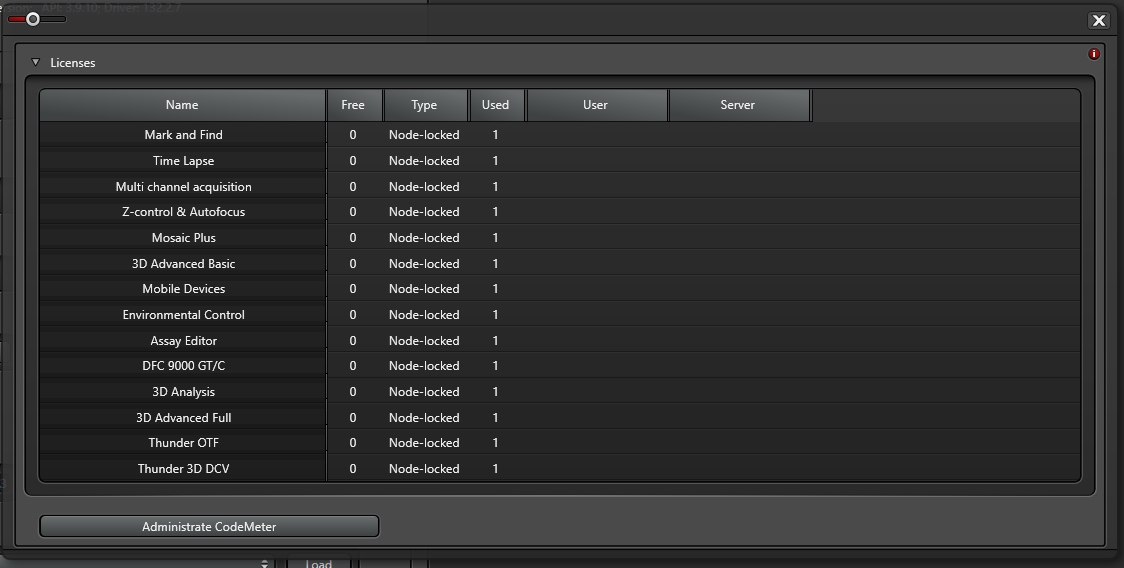

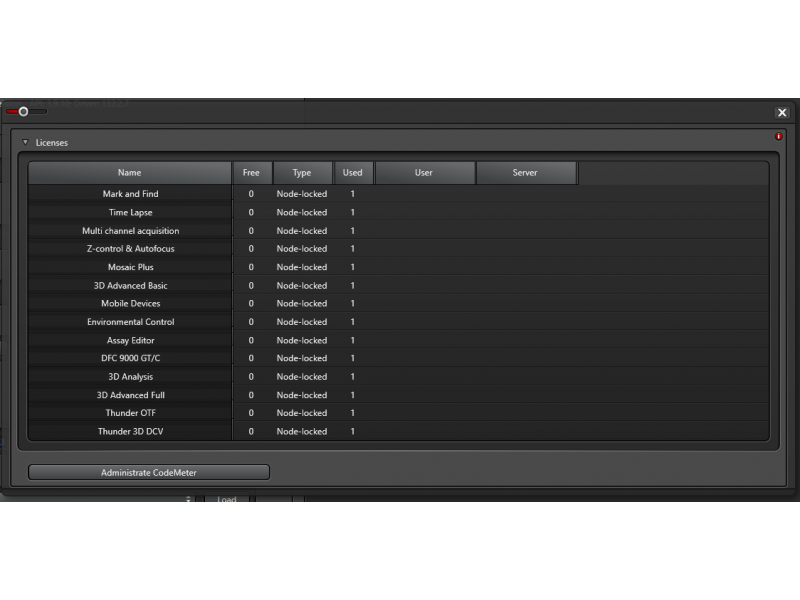

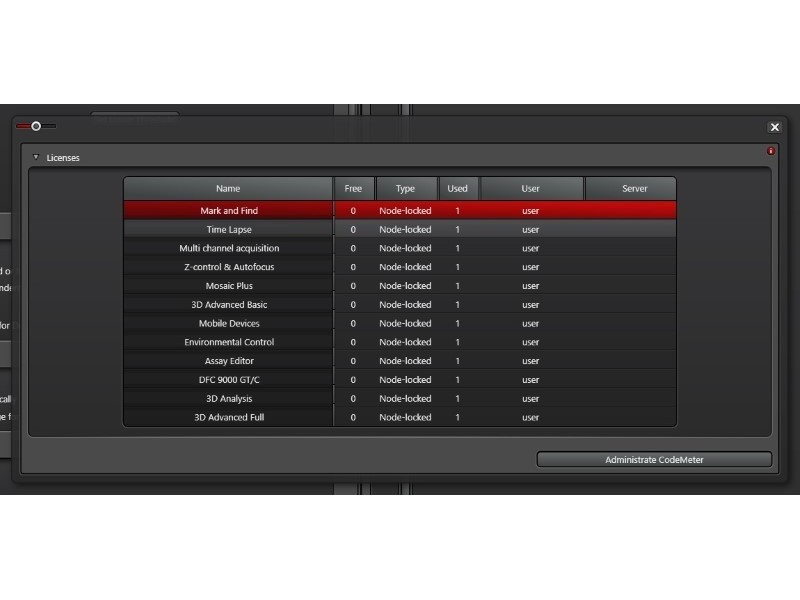

LAS License Dongle with licenses for:

• Mark and Find
• Time Lapse
• Multi-channel acquisition
• Z-control & Autofocus
• Mosaic Plus
• 3d Advanced Basic
• Mobile Devices
• Environmental Control
• Assay Ed
• DFC 9000 GT/C (camera not included)
• 3D Analysis
• 3D Advanced Full
• Thunder OTF
• Thunder 3D DCV

Accessories:

• Necessary power and communication cables

Automated/motorized capabilities of this microscope:

Installed automation/motorized components:

• Motorized XY w/ Stage Top Incubator
• Motorized external fluorescence axis
• Motorized Reflective Cube Turret
• Motorized Nosepiece
• Motorized Condenser

Benefits of having THUNDER:

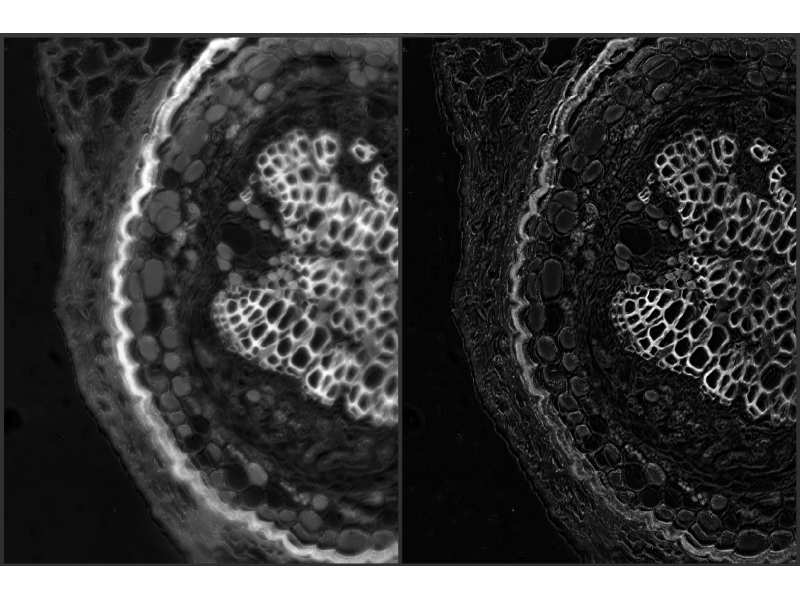

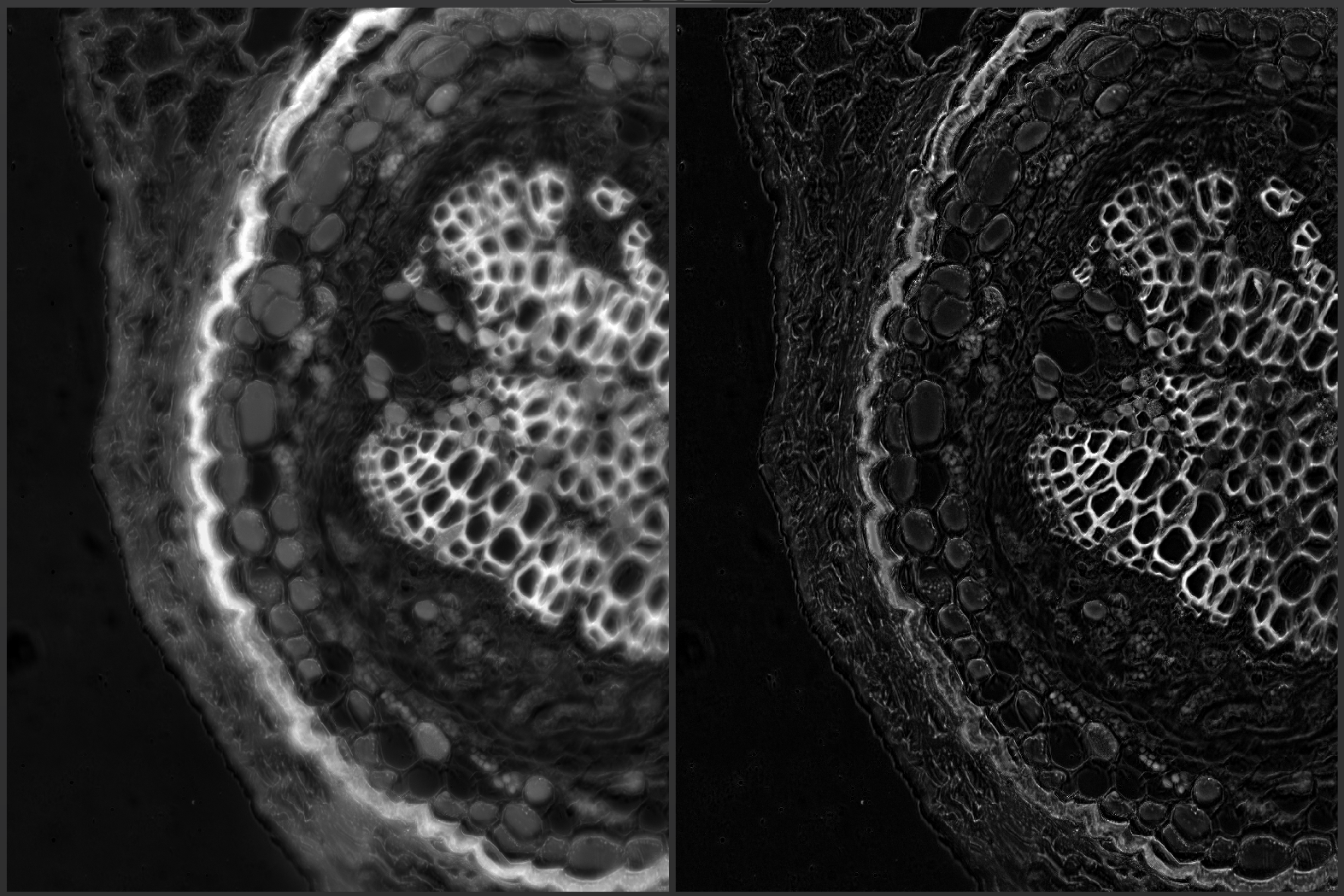

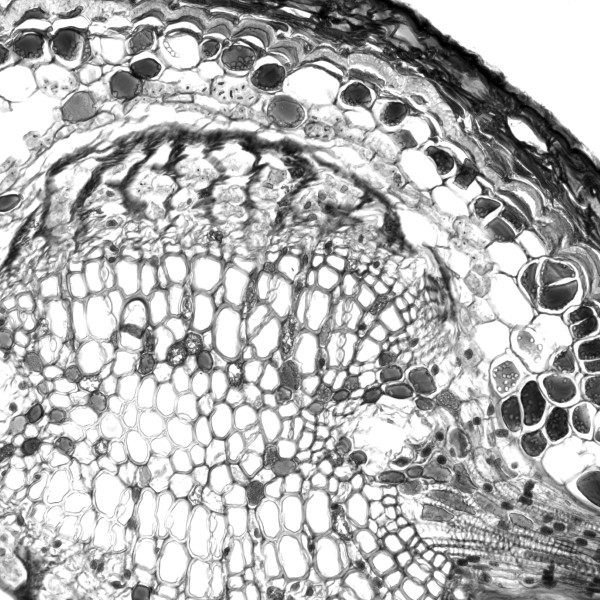

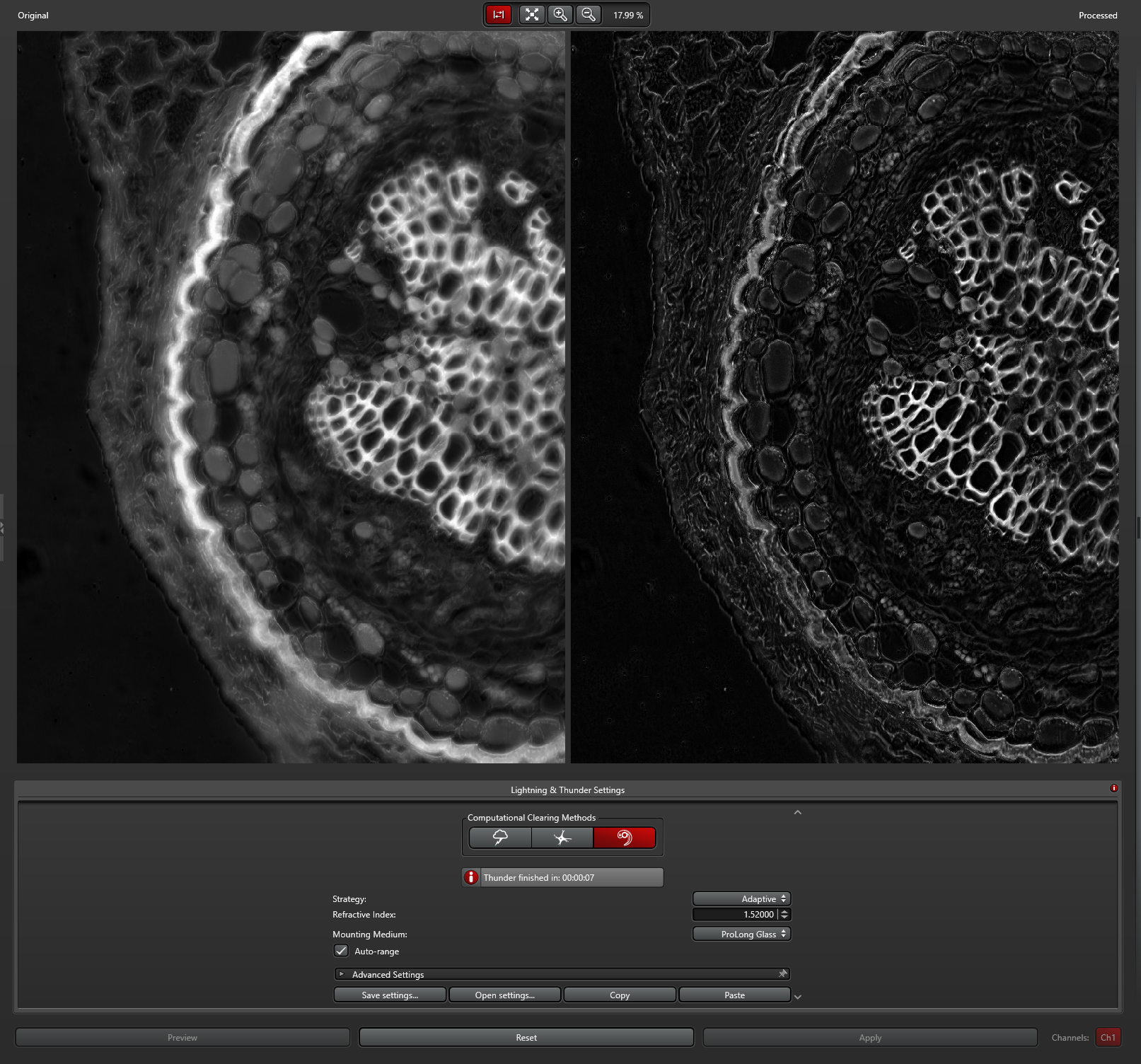

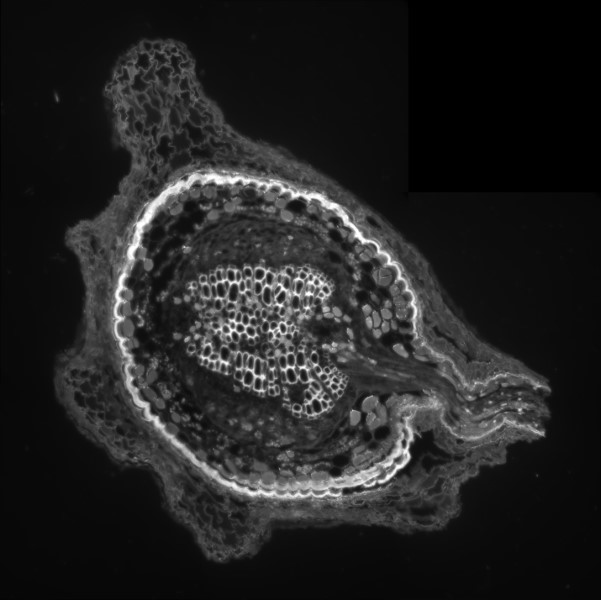

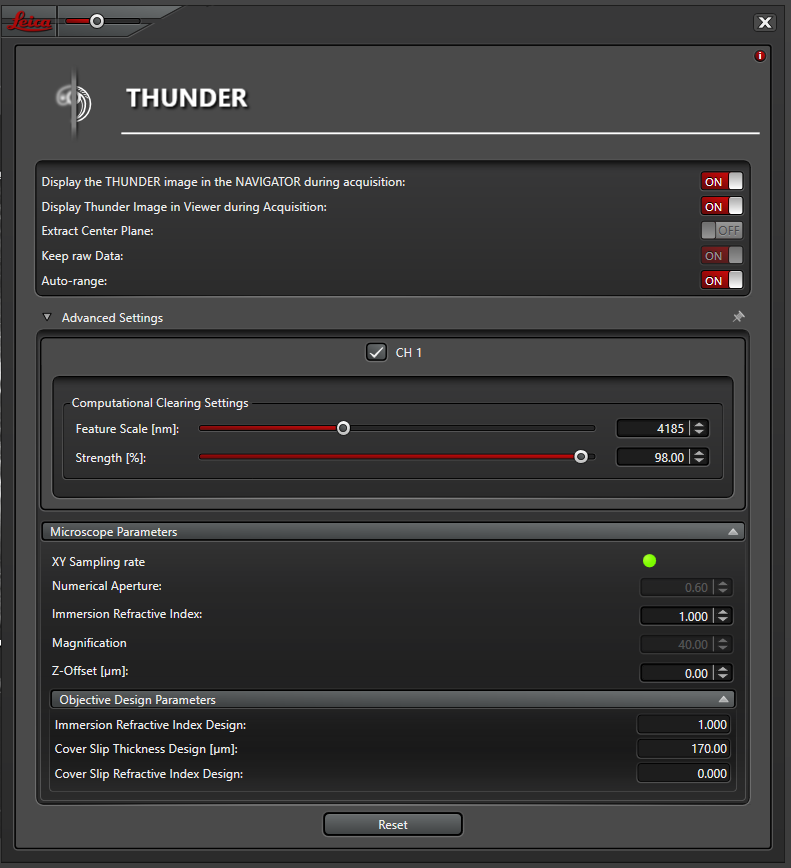

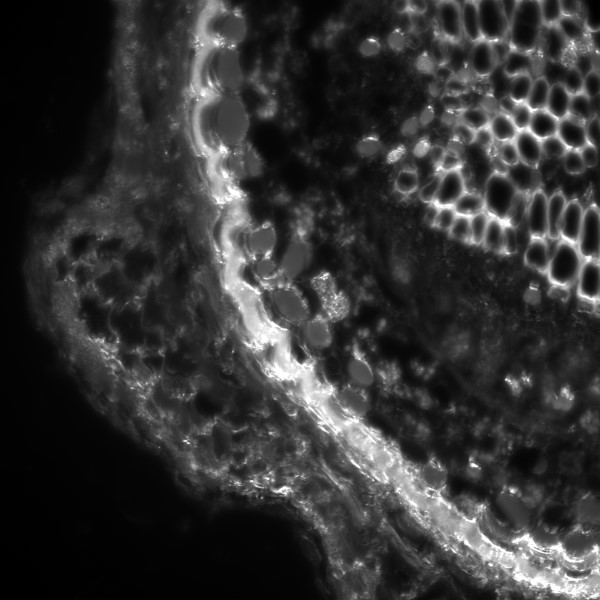

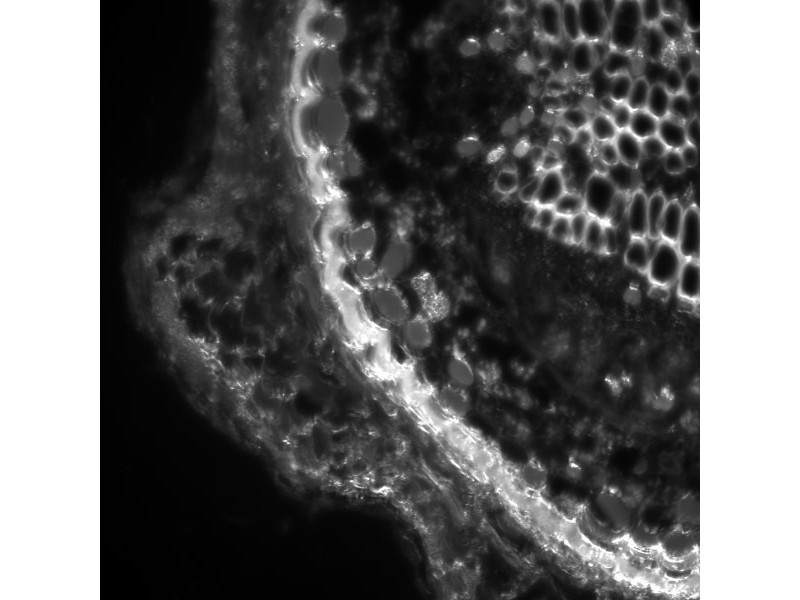

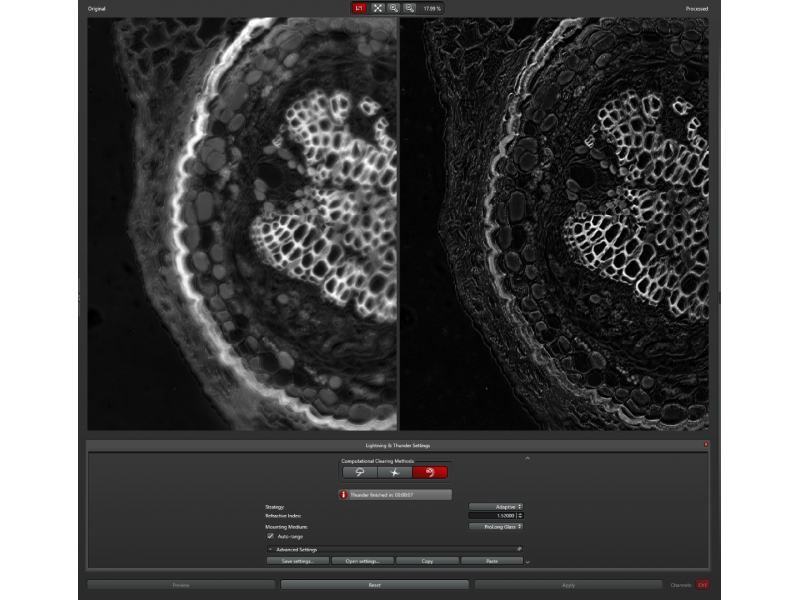

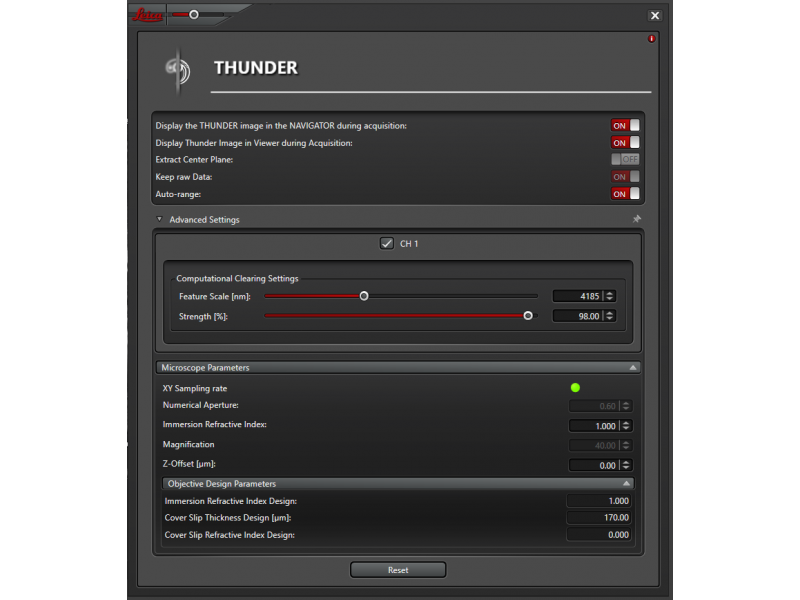

Computational Clearing for High-Contrast Imaging

THUNDER uses a proprietary Computational Clearing (CC) algorithm to remove out-of-focus blur in real time. This is not available in the standard DMi8.

• Benefit: Sharp, clear images from thick samples like tissue sections, organoids, or 3D cell cultures.

• Standard DMi8: Captures all light, including out-of-focus light, leading to lower contrast and less detail in thick specimens.

Real-Time Image Processing

The THUNDER DMi8 integrates powerful GPU-based processing for real-time image enhancement.

• Benefit: Immediate visual feedback without the need for time-consuming post-processing.

• Standard DMi8: Requires additional software or post-acquisition processing for comparable results.

Enhanced 3D Imaging

While both models can capture z-stacks, THUNDER optimizes these for clarity using CC, allowing more accurate 3D reconstruction.

• Benefit: More detailed analysis of 3D structures and spatial relationships in tissues.

• Standard DMi8: Z-stacks contain significant blur without deconvolution or confocal-style optics.

Improved Signal-to-Noise Ratio

By filtering out background haze computationally, THUNDER delivers much cleaner images, even with low-expressing fluorophores.

• Benefit: Better results from weak or photobleached signals.

• Standard DMi8: Background light can mask subtle signals.

Optimized for Live-Cell and Large-Scale Imaging

THUNDER is particularly well-suited for live-cell imaging, tissue imaging, and fast workflows.

• Benefit: Non-invasive imaging of dynamic processes in real biological systems.

• Standard DMi8: Can image live cells, but without the real-time clarity enhancements of THUNDER.

We can customize this microscope to fit your requirements:

Add Microscopy Techniques (In addition to installed Brightfield and Fluorescence)

• DIC, or Polarization Add-on Components may be added (subject to availability)

Increase Maximum Magnification and Image Quality:

• Microscope can be configured for magnification between 50x and 630x (with 10x Eyepieces)
• We can add standard higher magnification microscope objectives
• We can add high-end Apochromat objectives

Enhance imaging capabilities:

• We offer various advanced CCD, sCMOS, and EMCCD camera options for higher-quality images.

Commonly Requested Customer Upgrades

• High-End CCD, sCMOS Cameras
• LED or Metal Halide Fluorescence Light Sources
• Phase Contrast, Polarization, or the DIC configurations
• Higher Magnification Objectives
• Higher performance Fluor or APO objectives
• Motorized XY Stage (stage, controller, joystick)

We are excited to help build and configure the right microscope for you!

Leica DMi8 Inverted Microscope Overview

(Final microscope capabilities will depend on the modifications you request)

• Leica DMi8 inverted microscope with motorized components for advanced imaging and precision control.
• Fluorescence and phase contrast modes for live-cell and fixed-sample observation
• Integrated TL LED and Lumencor Spectra LED8 fluorescence light sources.
• Features a motorized XY stage for smooth sample navigation.
• Adaptive Focus Control (AFC) actively keeps the focus position over time.
• Tokai Hit STXG Stage Incubator offers precision temperature, humidity, and CO2 control for cell cultures for long-term Time-Lapse imaging.

Suited for the following applications as configured:

• Live-cell imaging under controlled temperature, CO2, and humidity conditions
• Time-lapse fluorescence microscopy for dynamic cellular processes
• Phase contrast observation of unstained live cells in culture
• High-content screening in fixed or live cell formats
• Long-term drug treatment and cellular response monitoring
• Multichannel fluorescence imaging for colocalization studies

Other potential applications:

• Stem cell culture monitoring and differentiation analysis
• Cell migration and wound healing assays
• Intracellular trafficking and vesicle dynamics studies
• Transfection efficiency evaluation using fluorescent markers
• Embryo imaging in developmental biology research
• Neurobiology applications, including neurite outgrowth tracking

• Manual: Leica DMi8 Microscope Manual
• Manual: Tokai Hit STK Stage Incubator Manual
