BioDot RR120 Modular Web Handling System with Single AirJet Dispensing, Vision System & Dual Drying Towers

BioDot RR120 Modular Web Handling System with Single AirJet Dispensing, Vision System & Dual Drying Towers

	Approved Vendor to many US, Canada, and EU Universities
	International Shipping
	Customer References Available
	Training and Installation Options Available

Stock: In Stock
Brand: BioDot
Product Code: SM101300-2P1J
Condition: Pre-Owned

$59,995.00

Qty

Request Quote

or receive

Additional Information

Add to Cart

CLICKABLE TABS BELOW

For Sale BioDot RR120 Modular Web Handling System with AirJet Dispensing, Vision System & Dual Drying Towers

Fully Functional
Serviced & in Stock
Current Model
Good cosmetic condition
Technical sales consultation available
WARRANTY

Here is what you will receive:

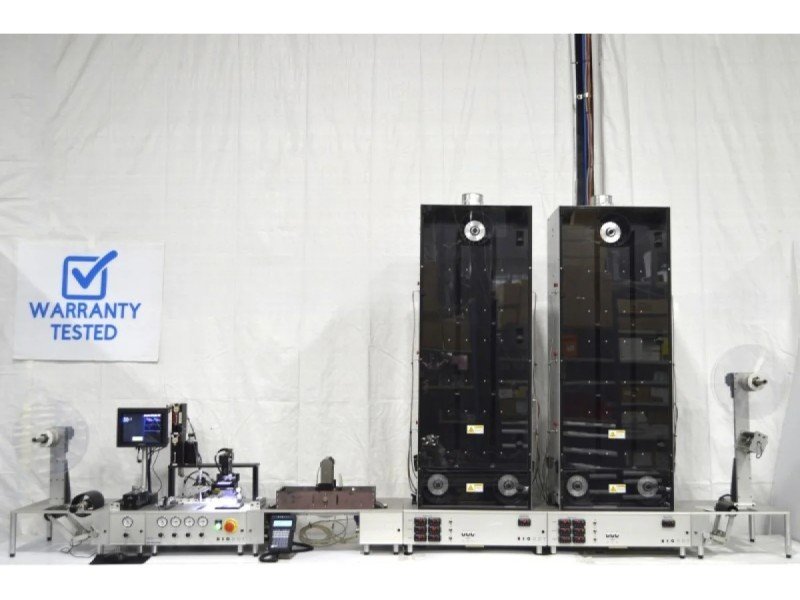

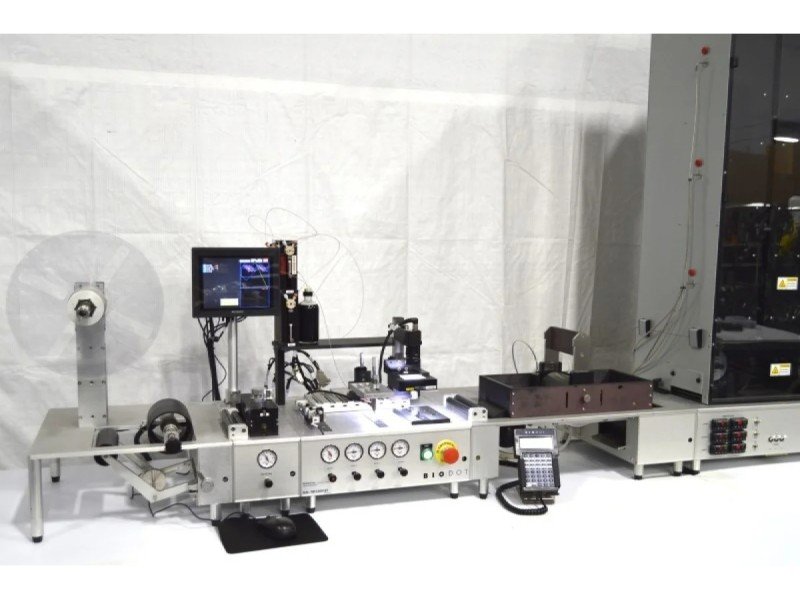

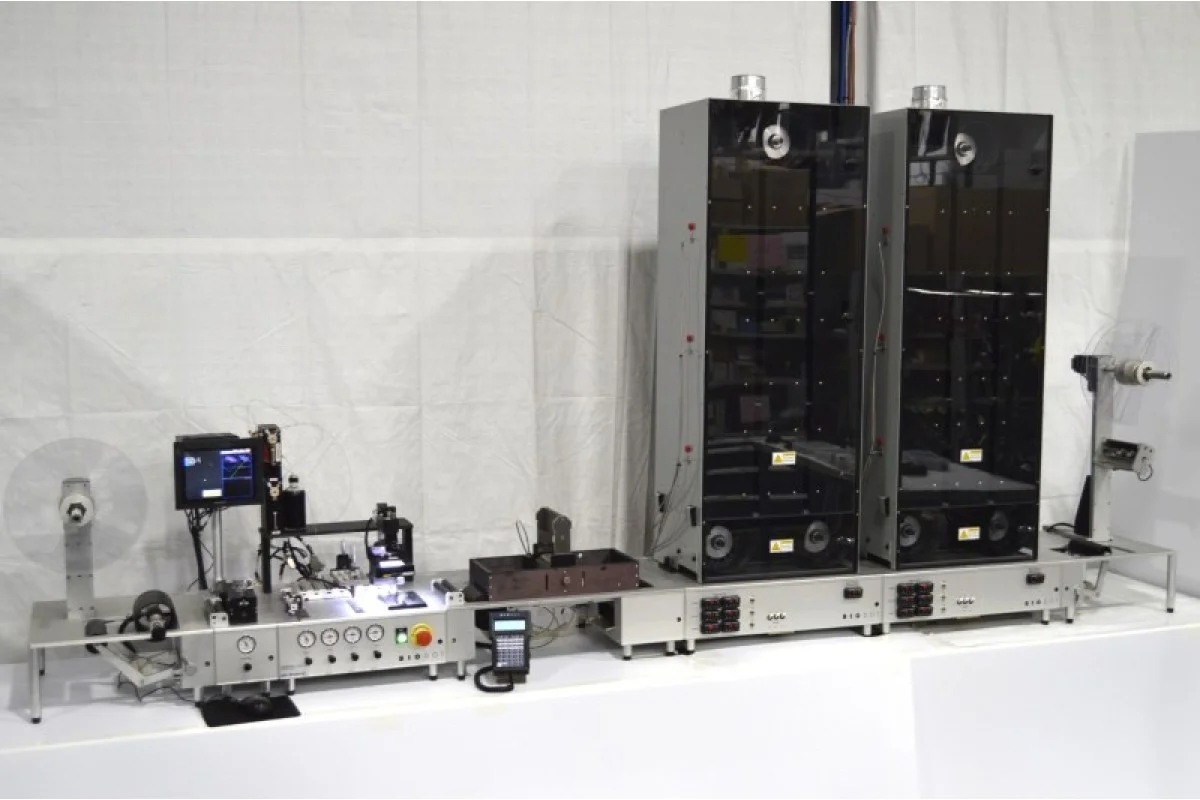

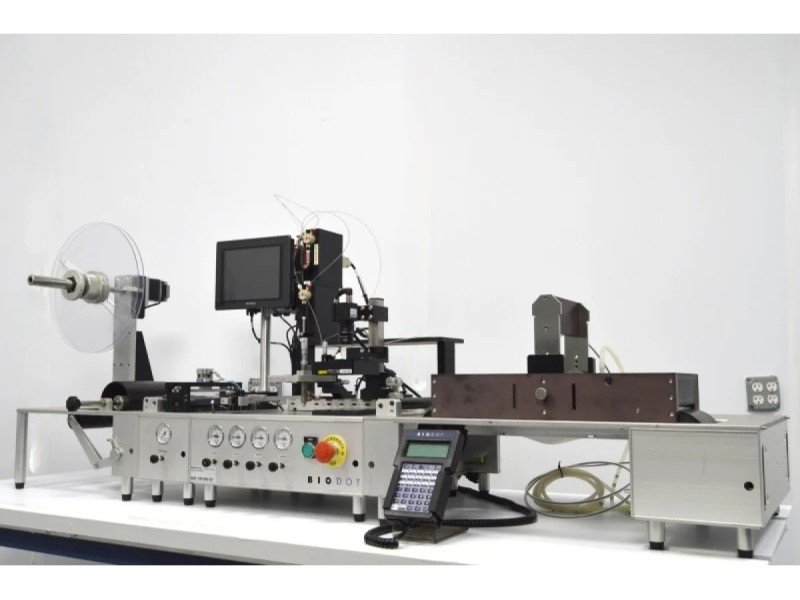

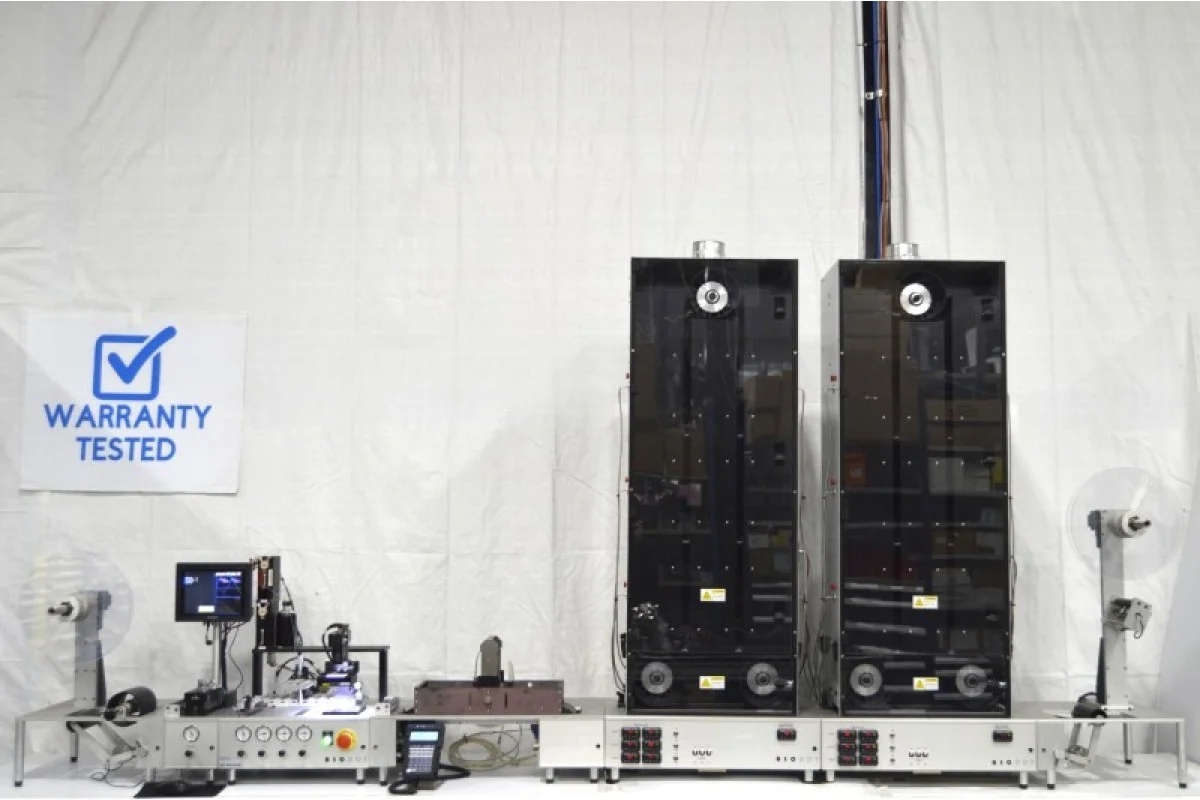

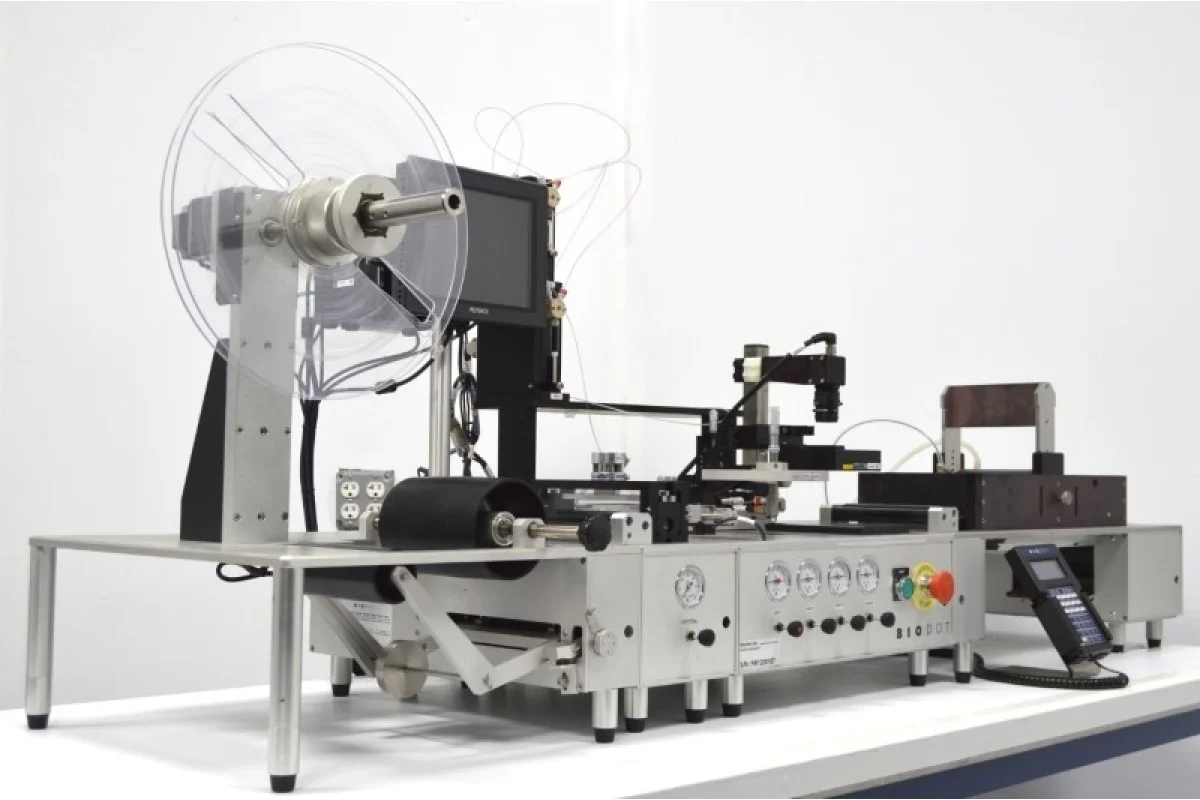

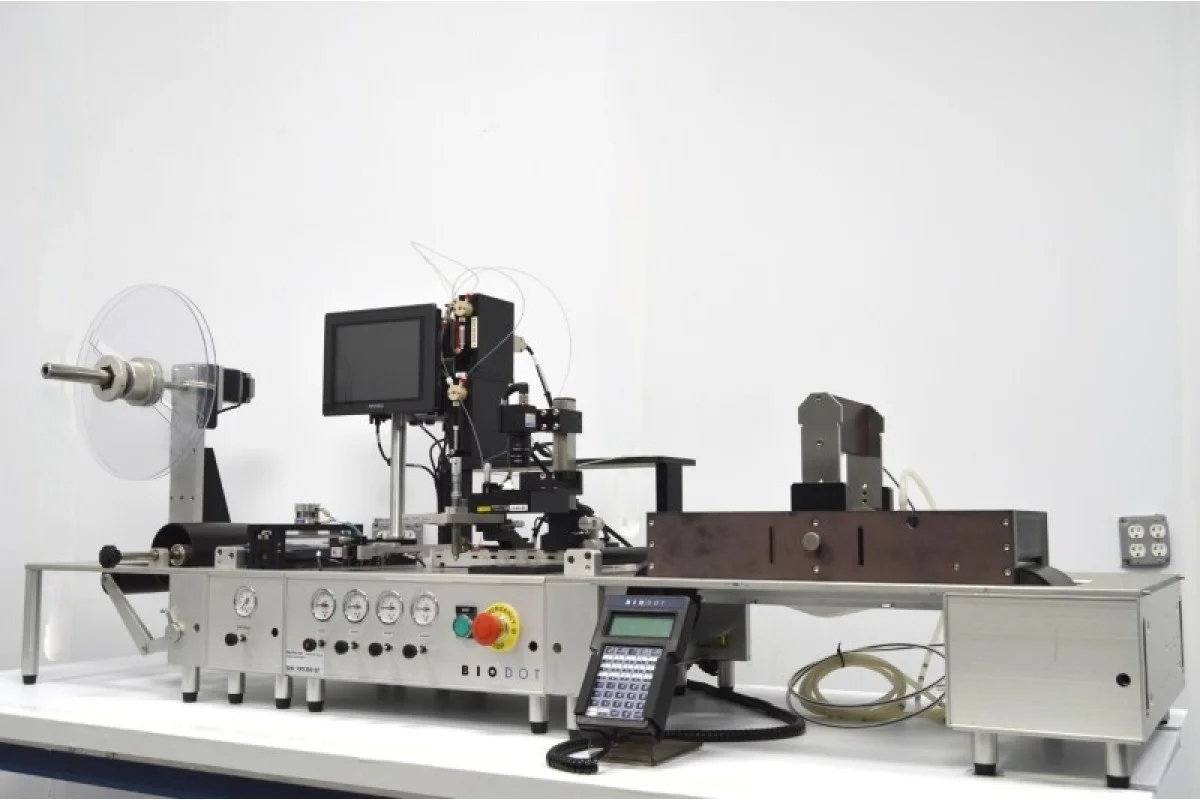

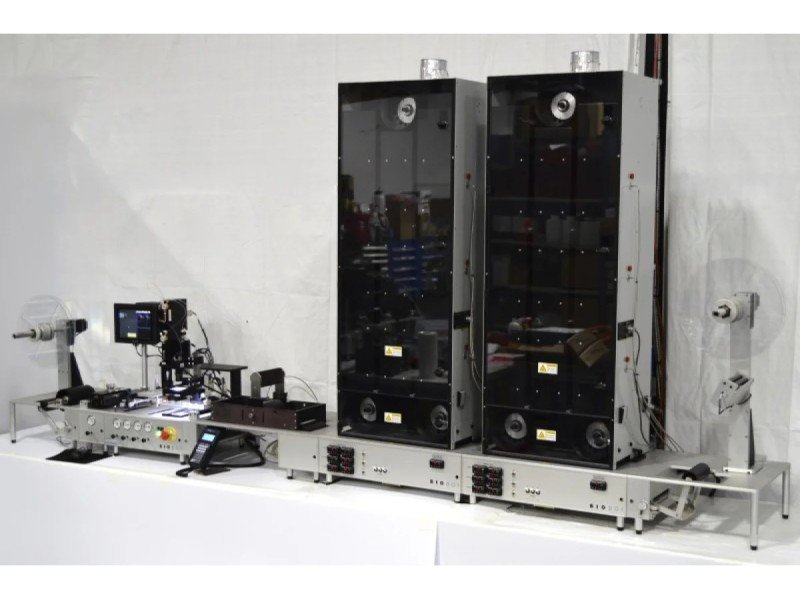

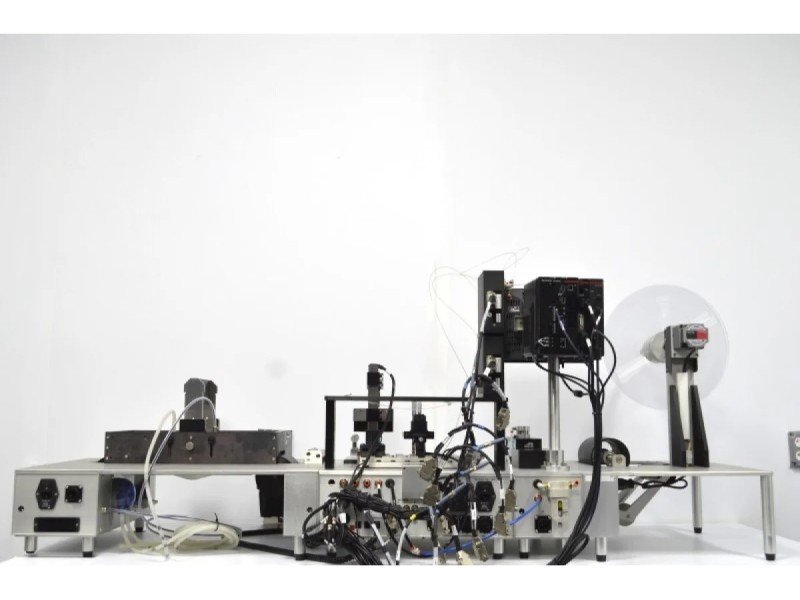

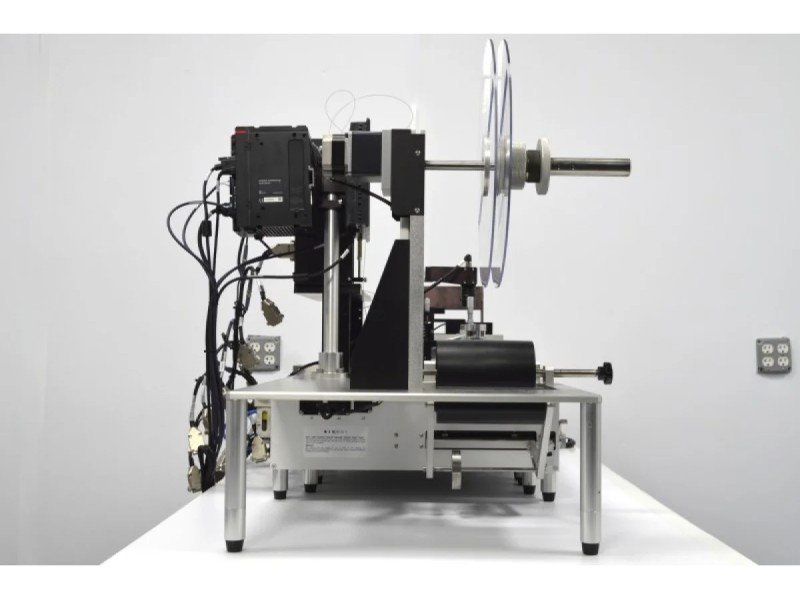

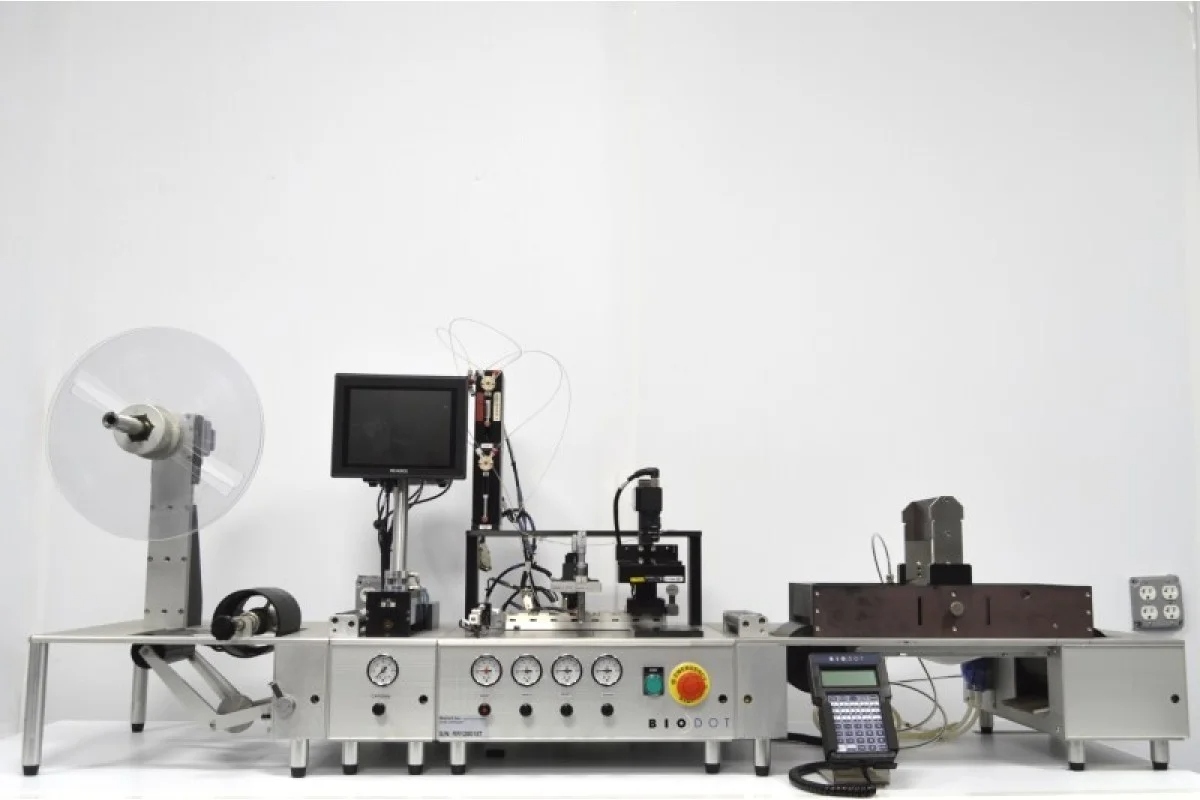

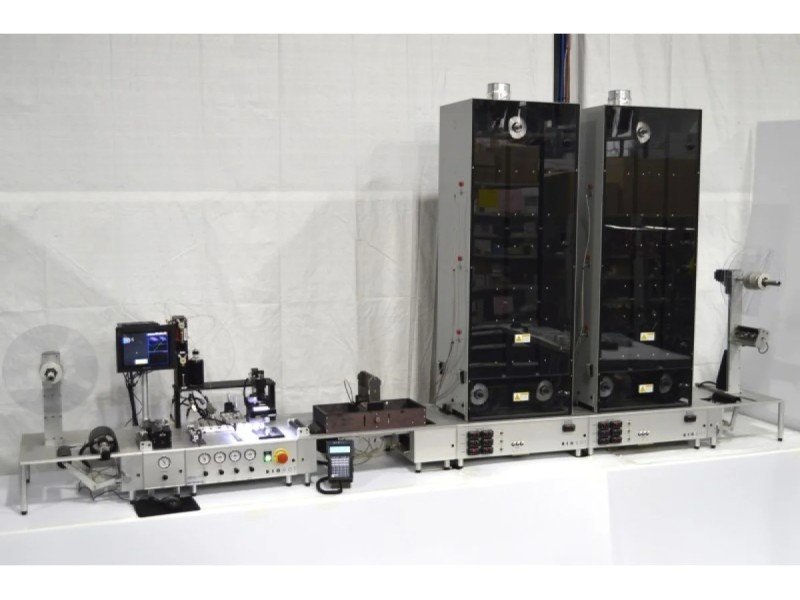

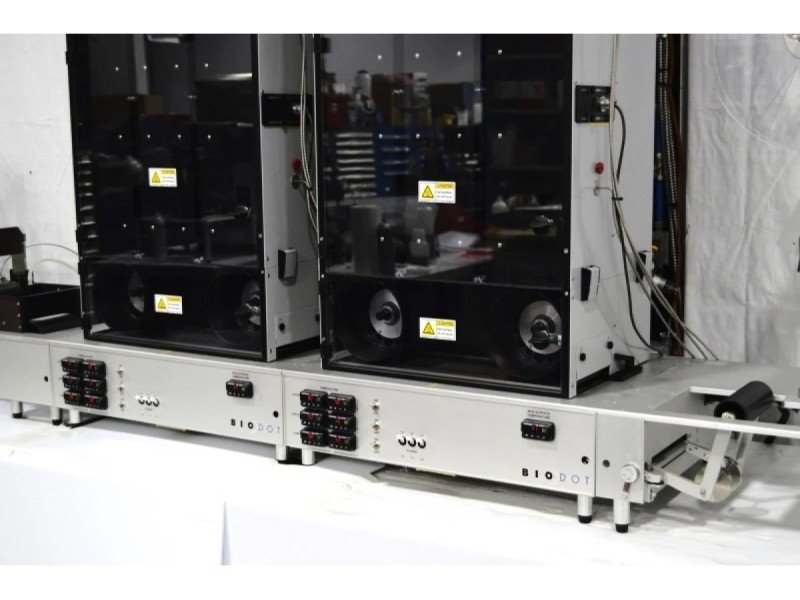

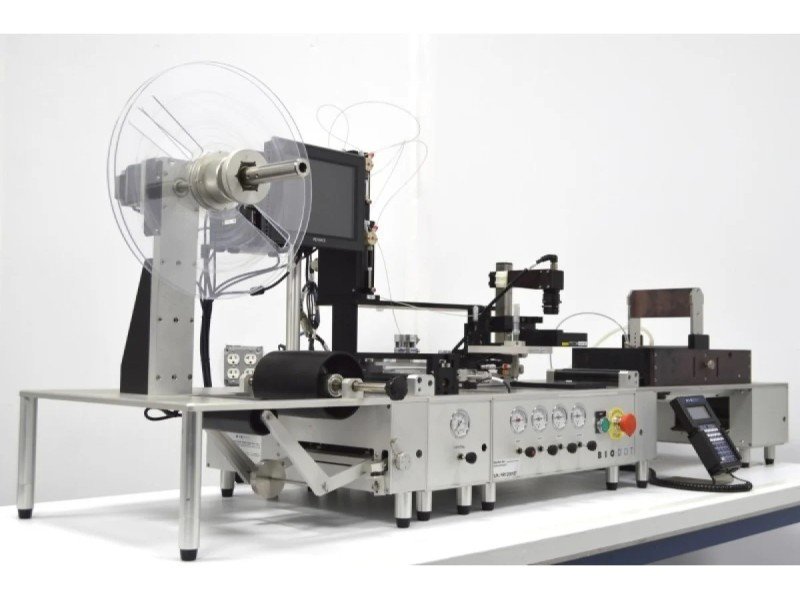

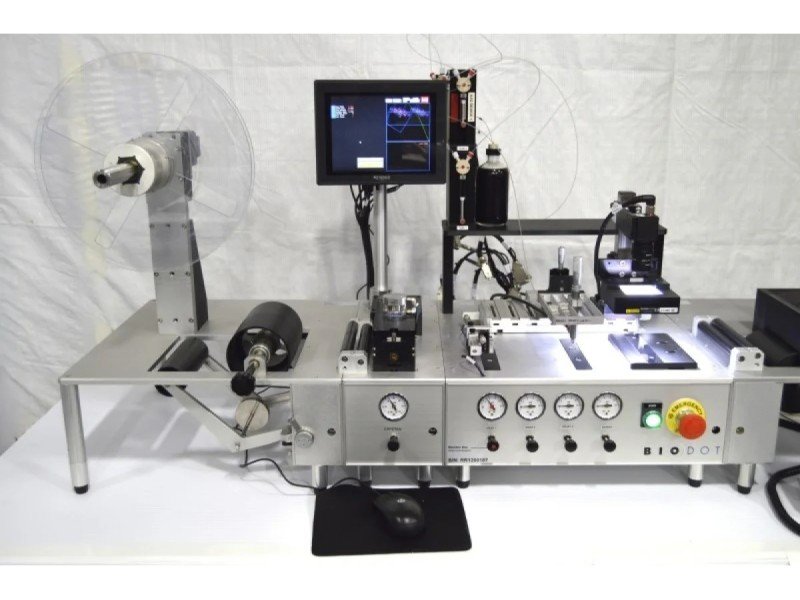

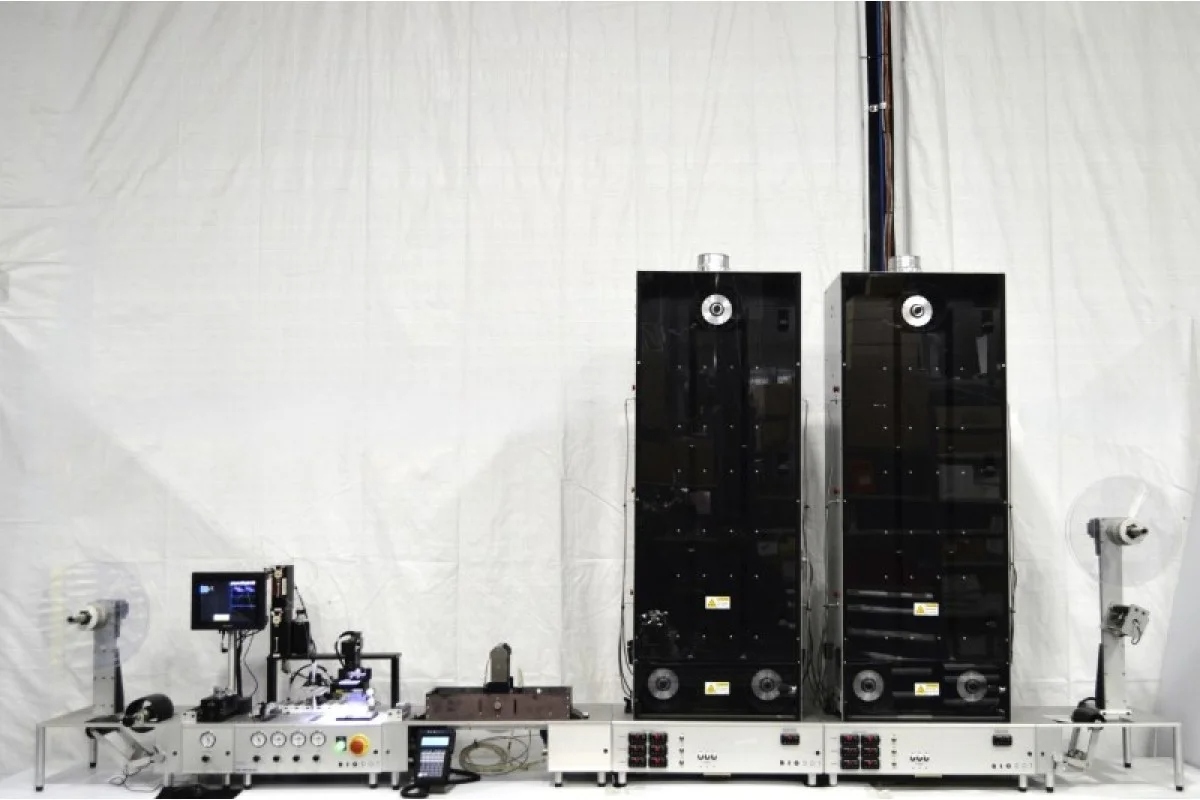

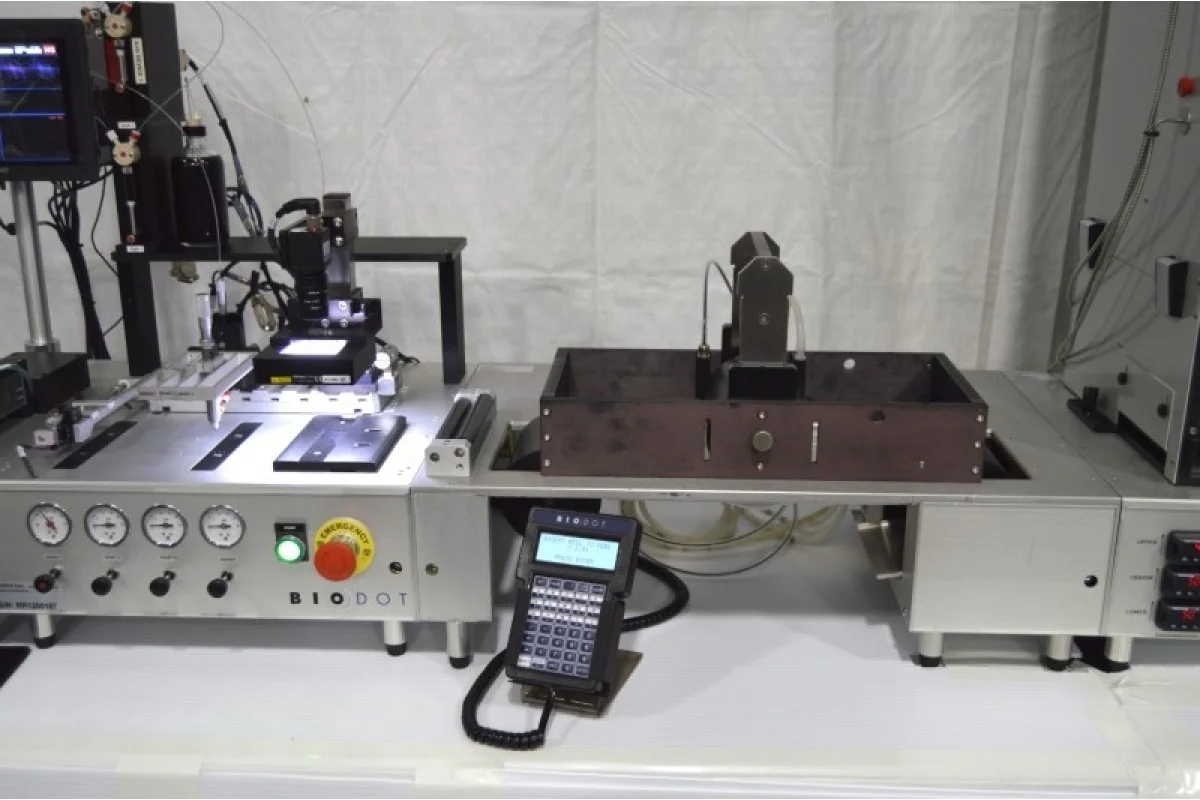

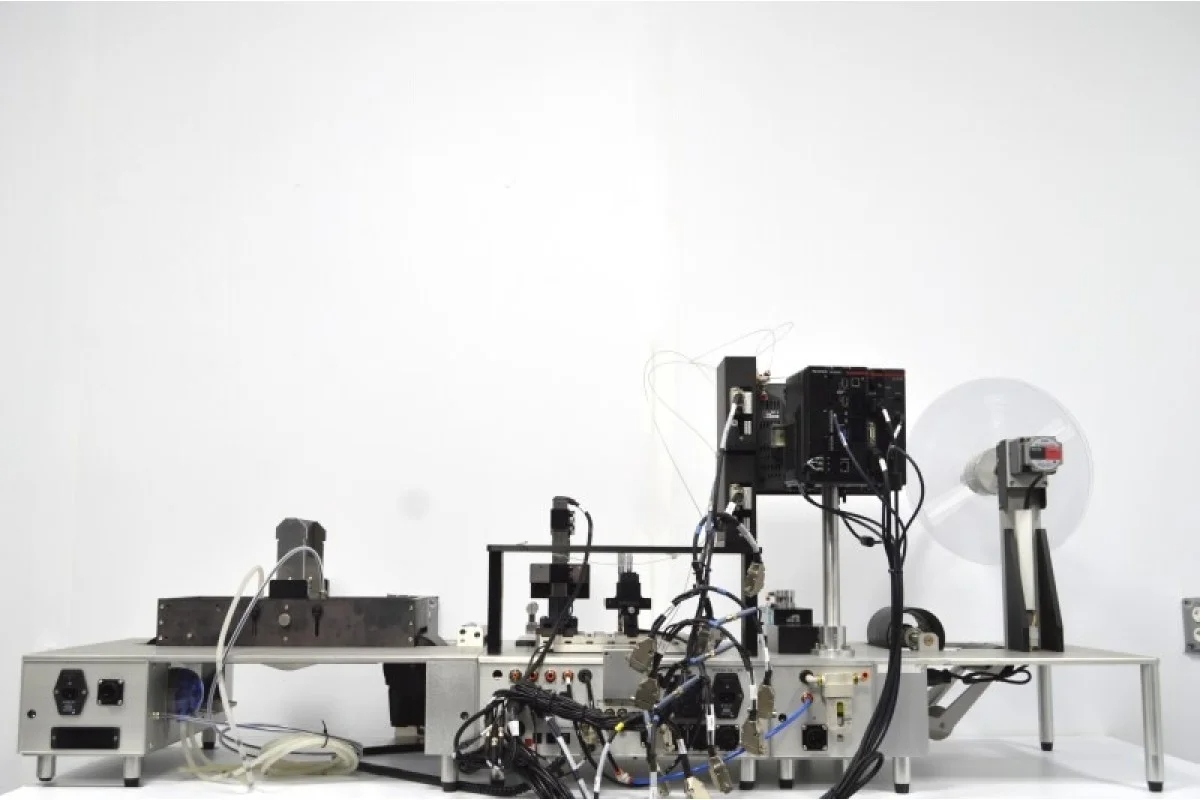

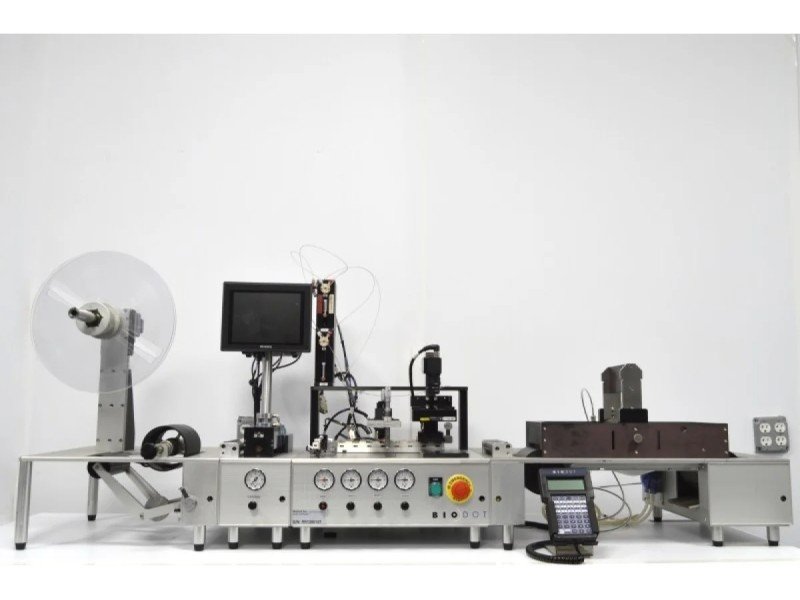

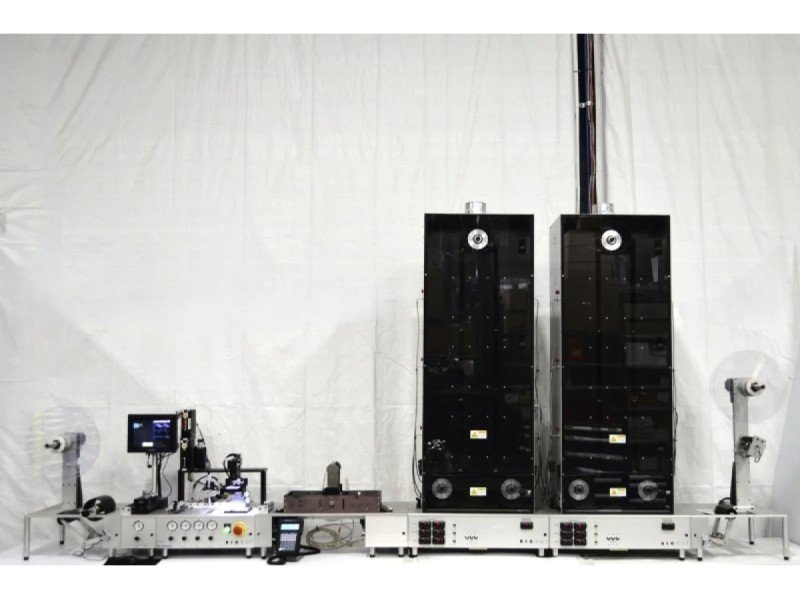

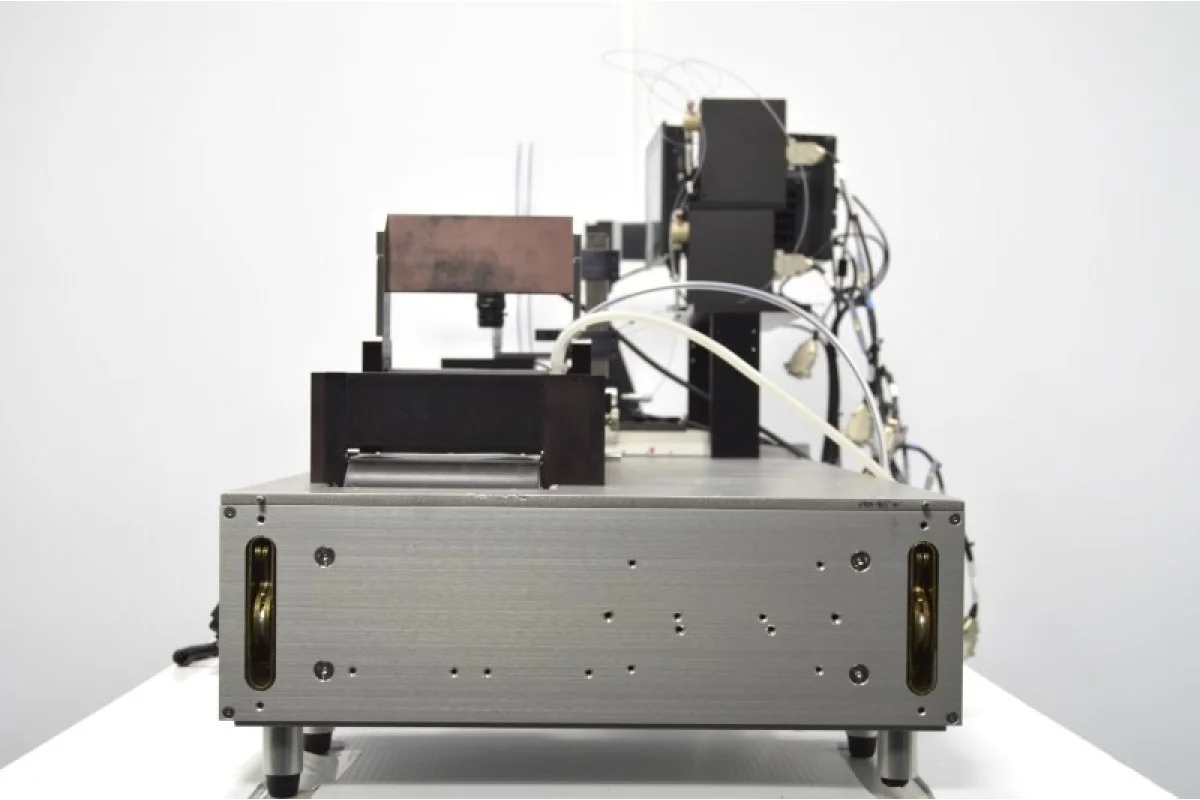

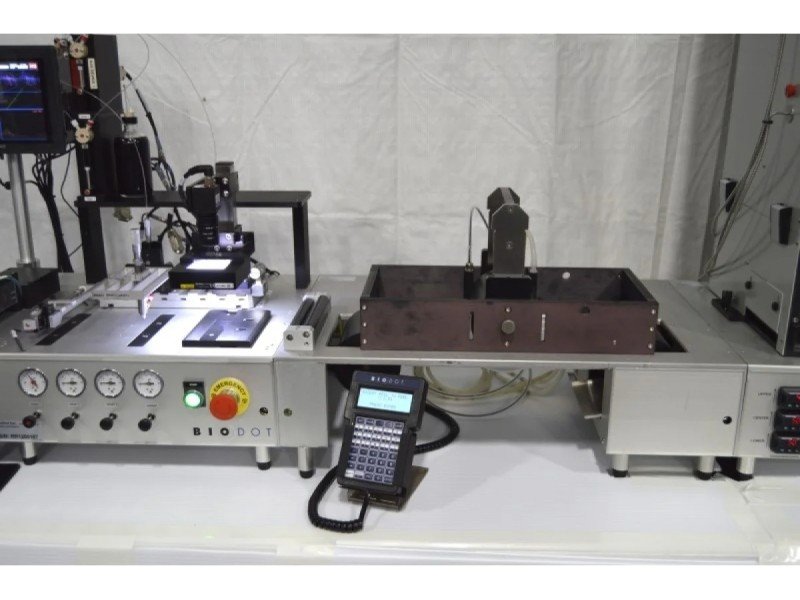

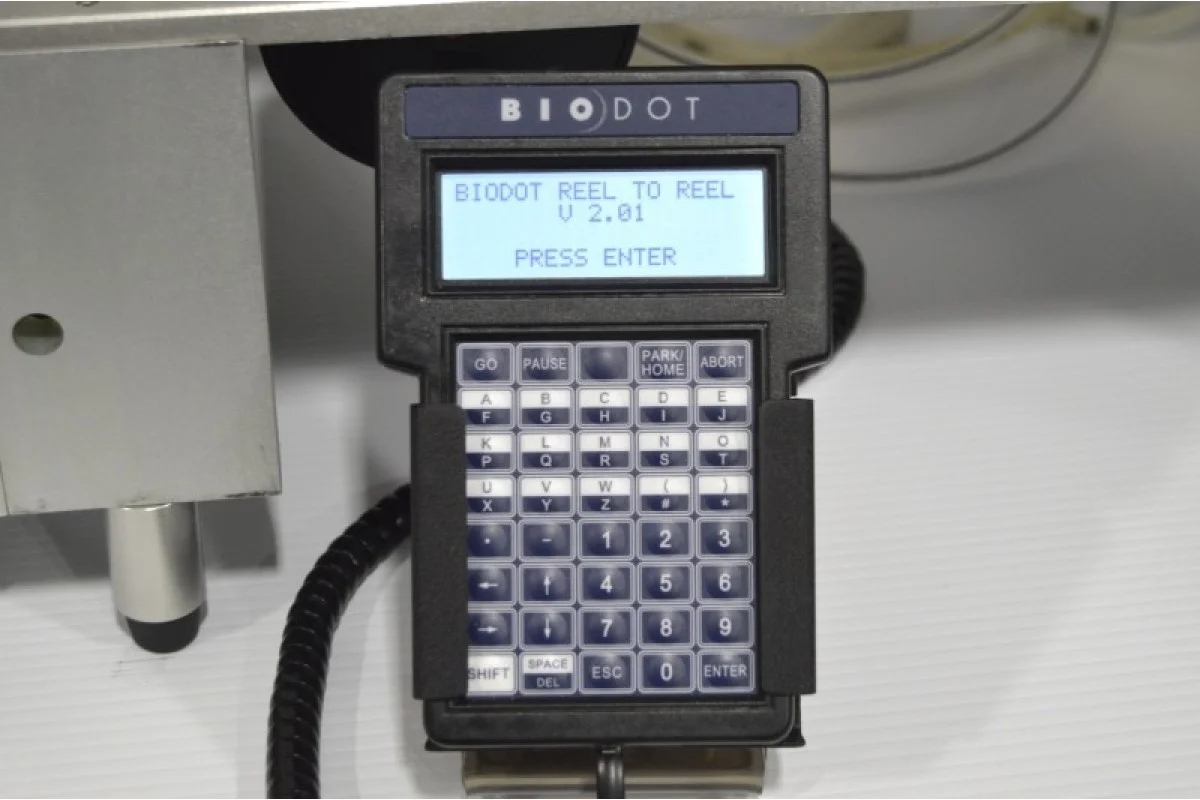

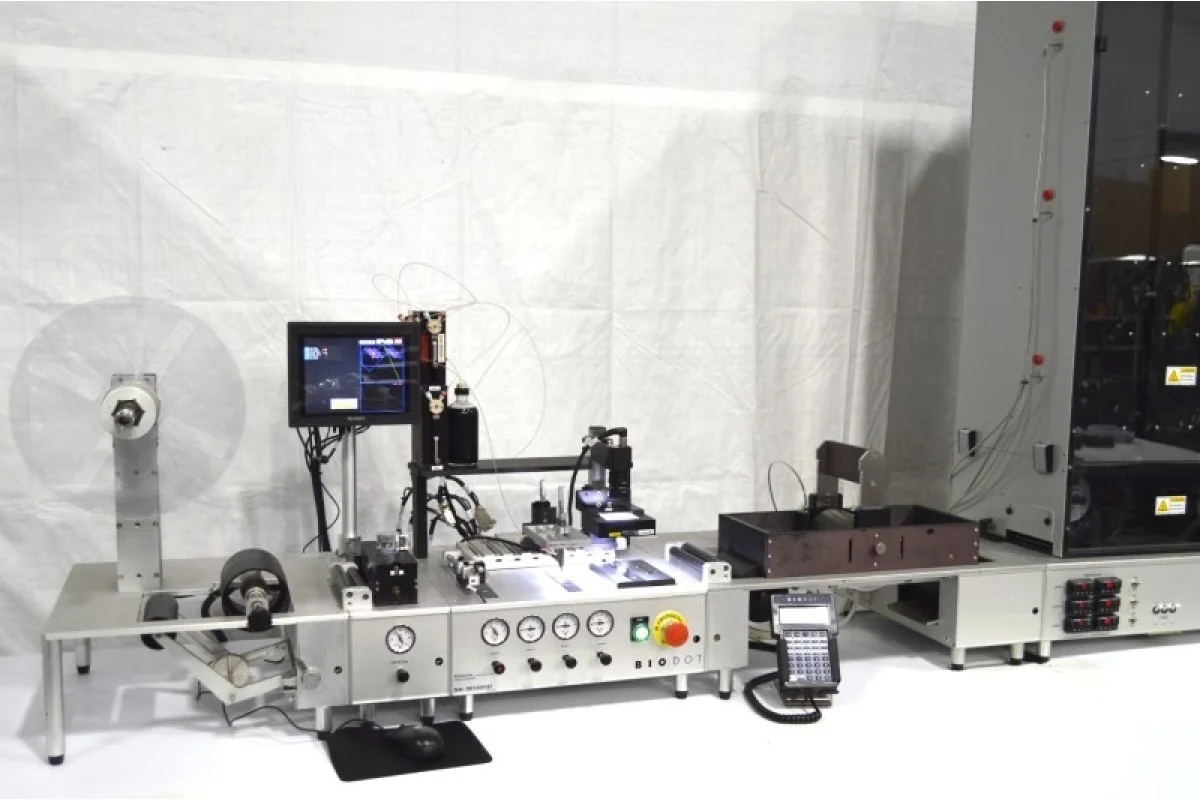

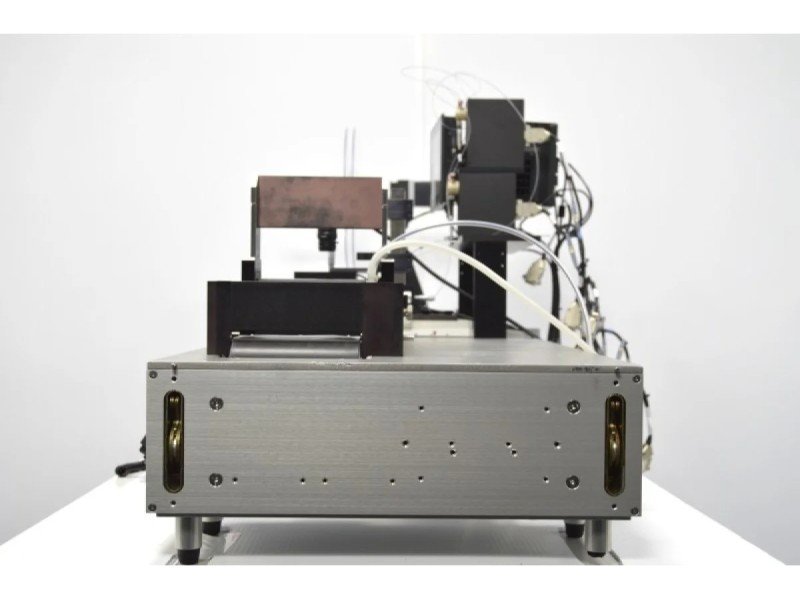

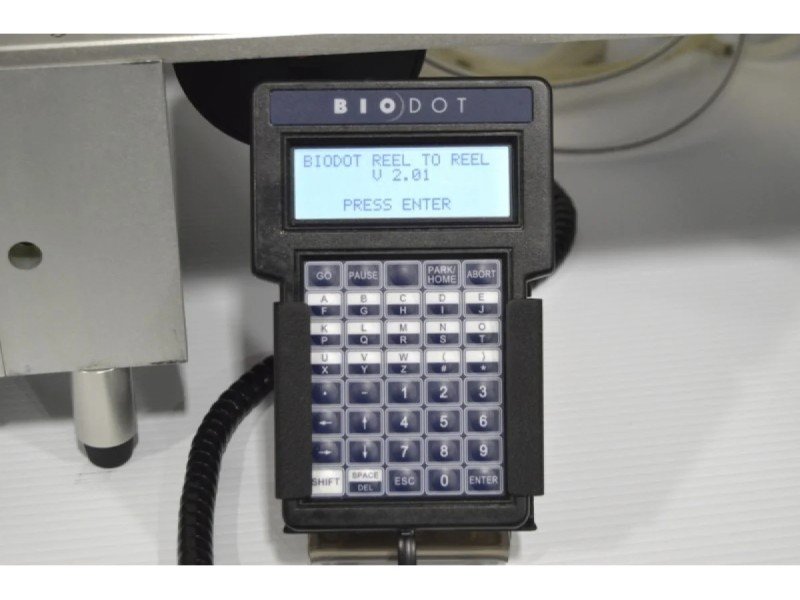

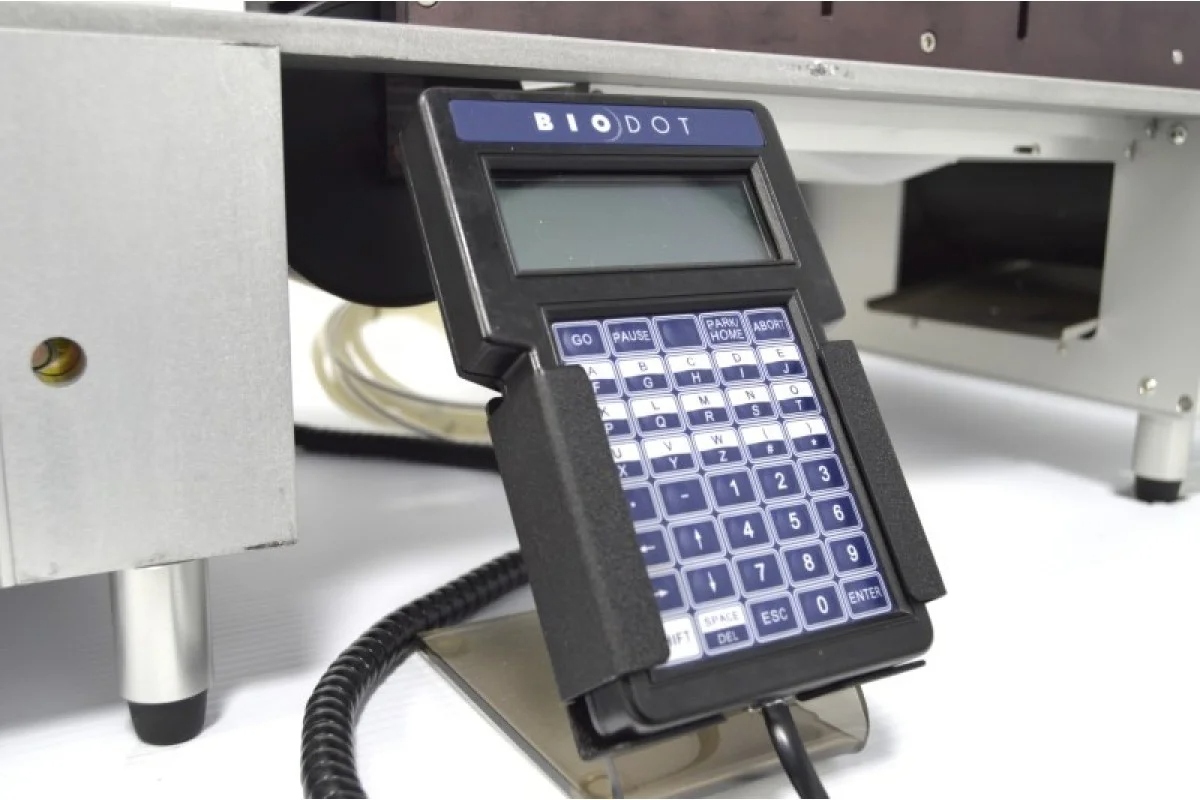

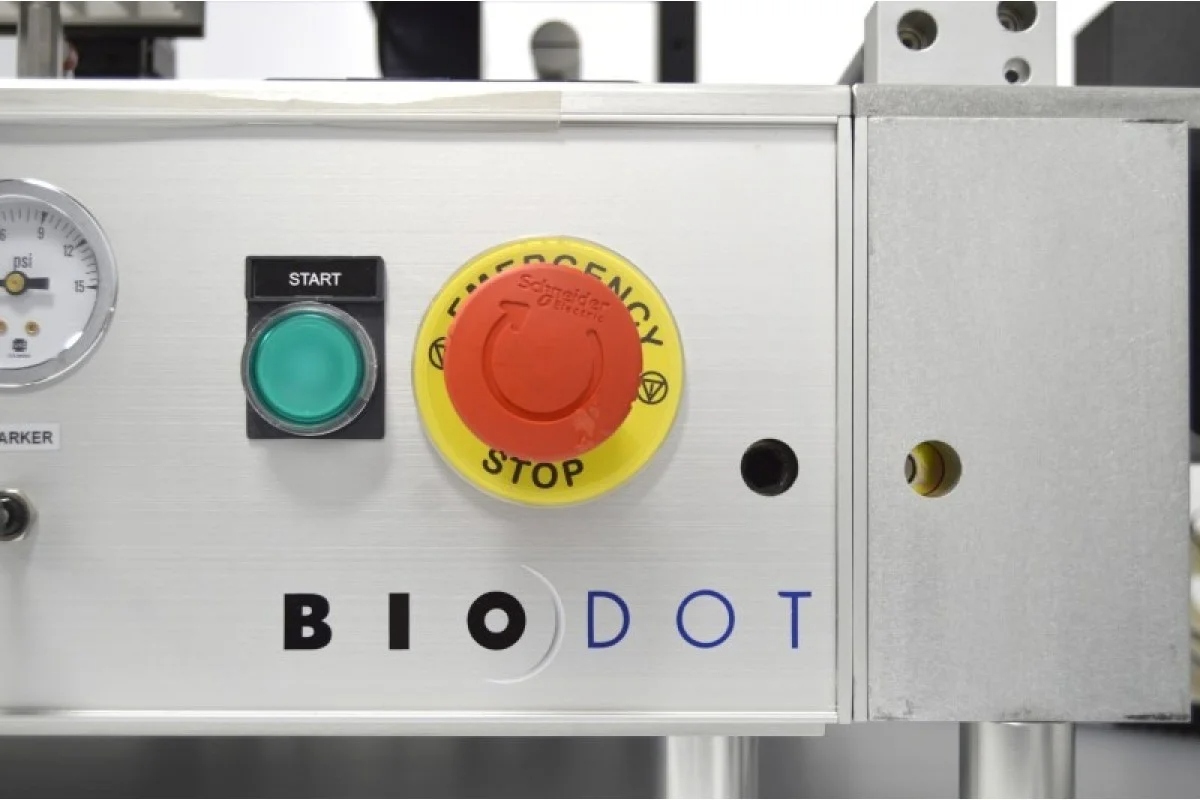

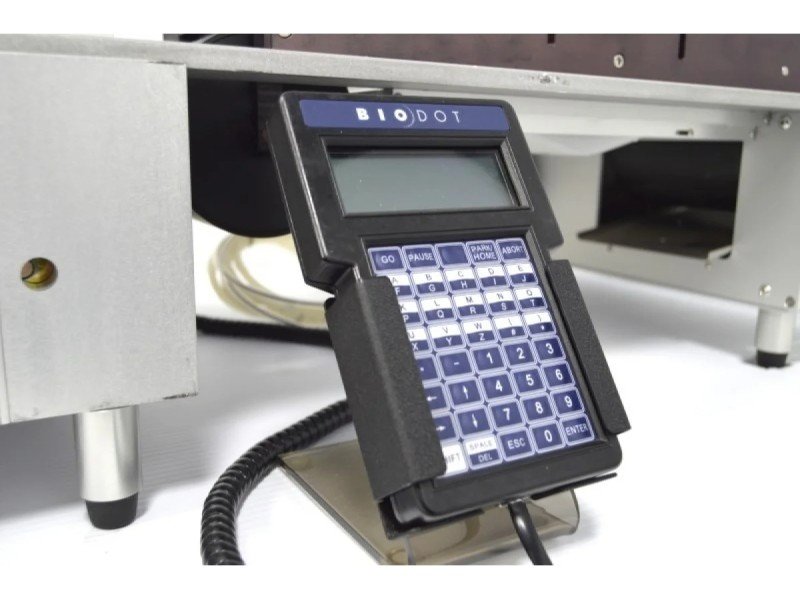

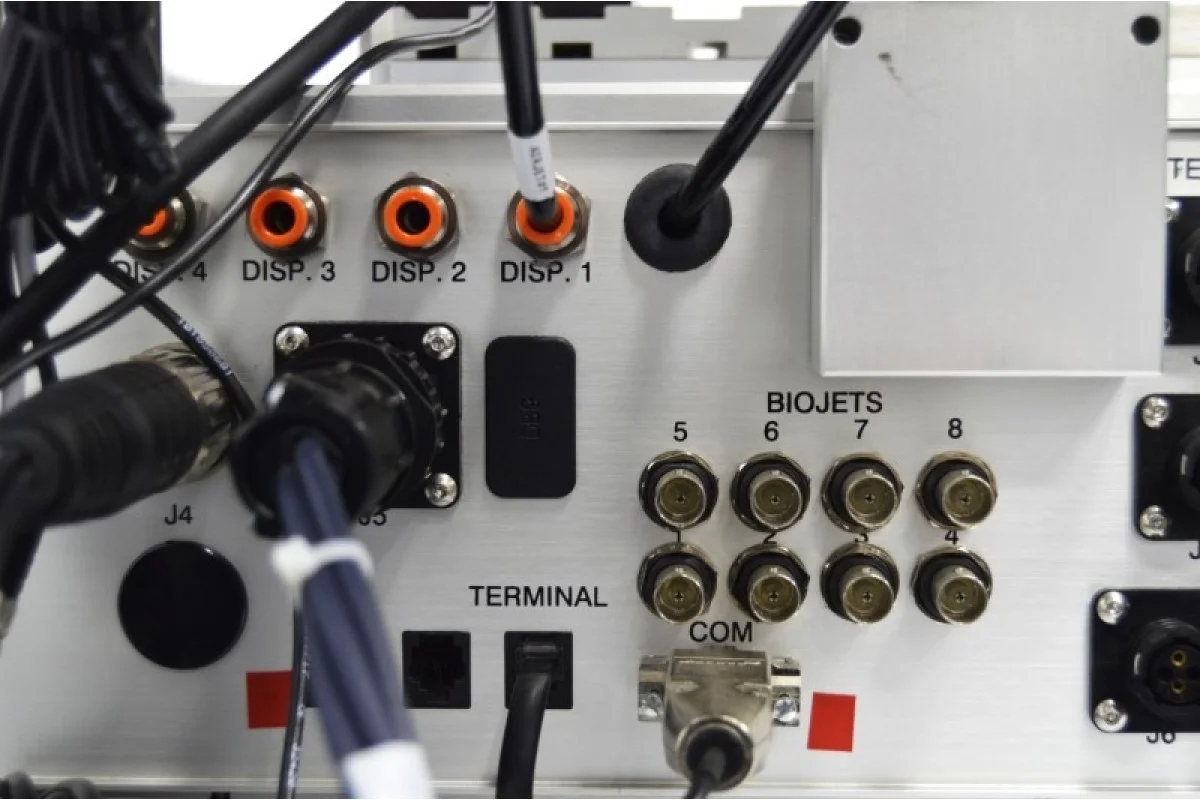

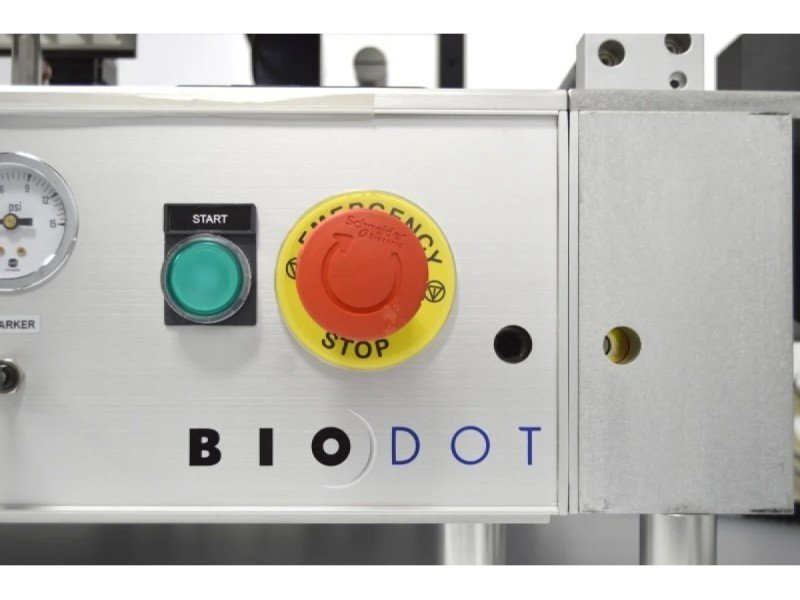

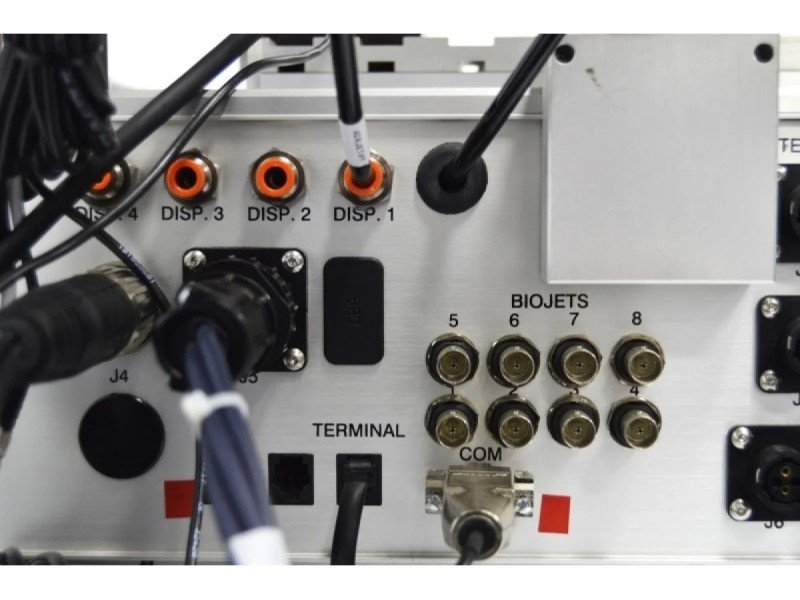

BioDot RR120 Web Handling System

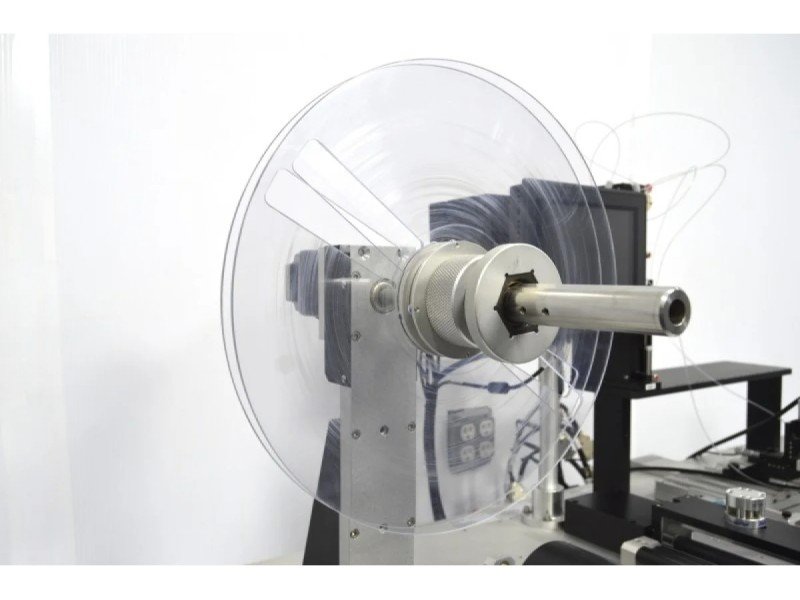

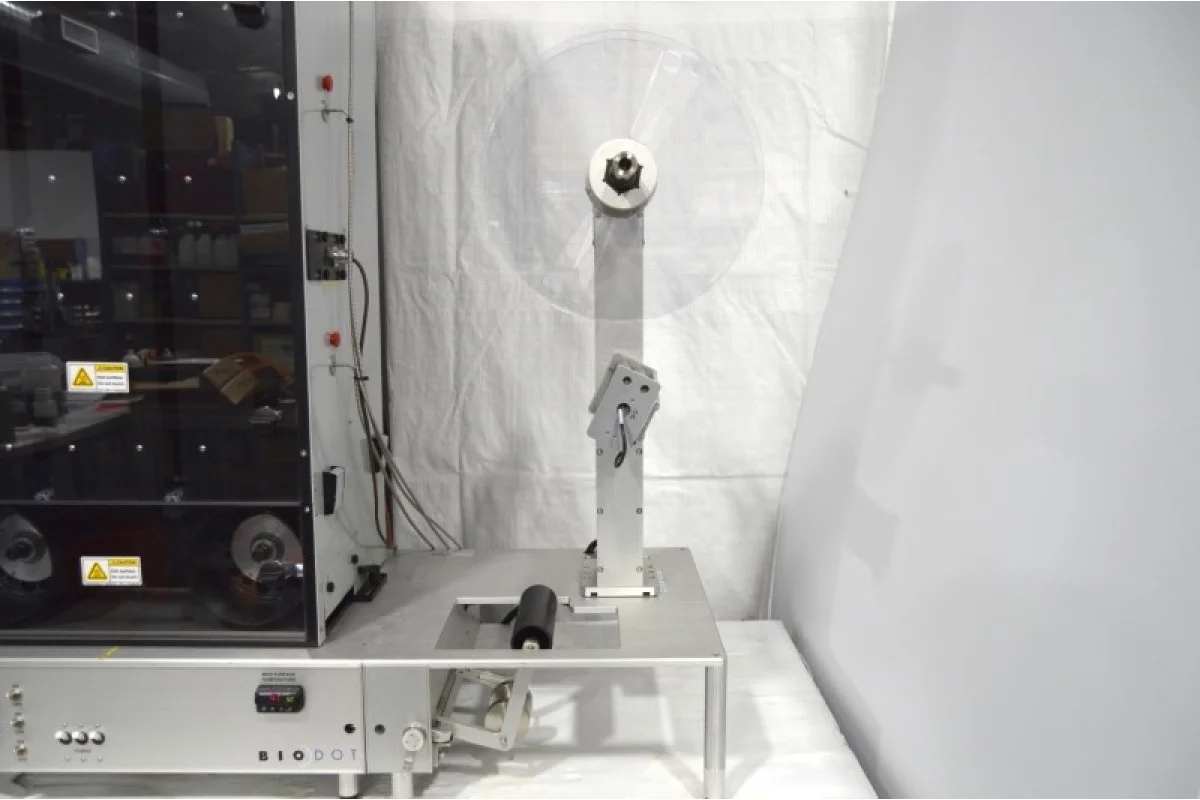

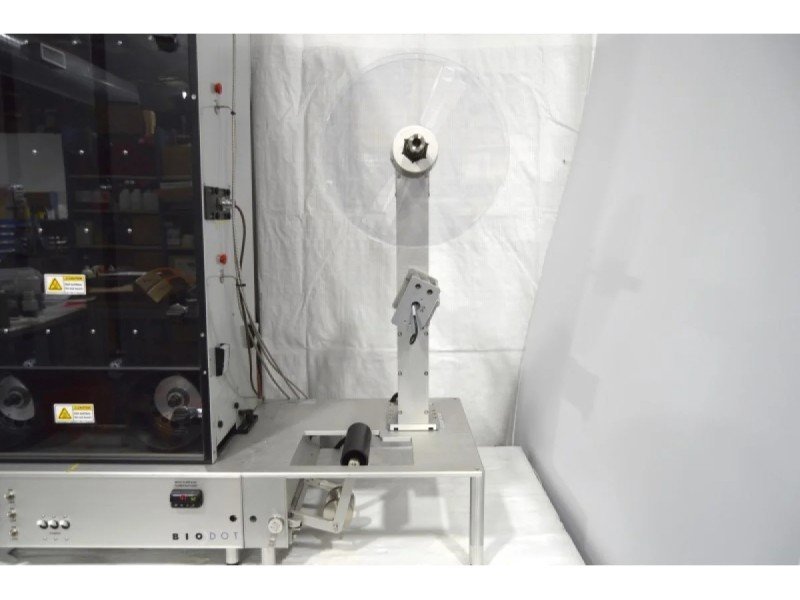

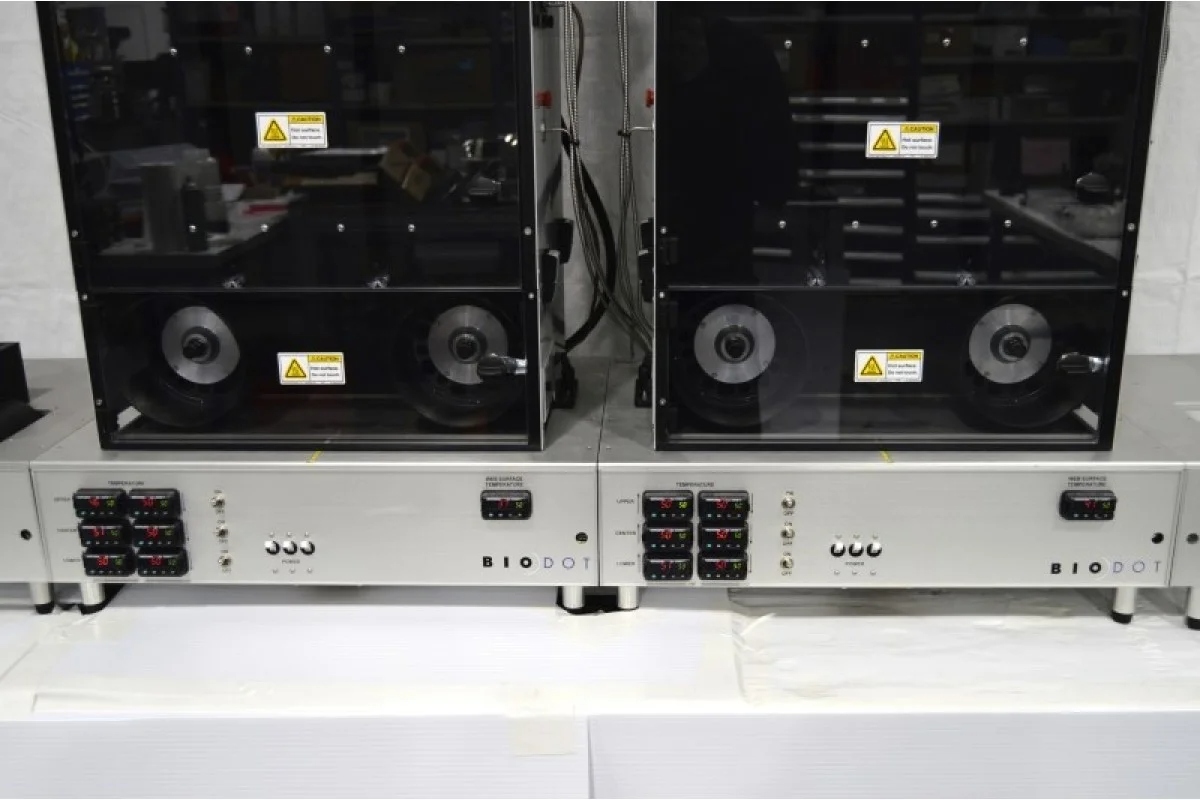

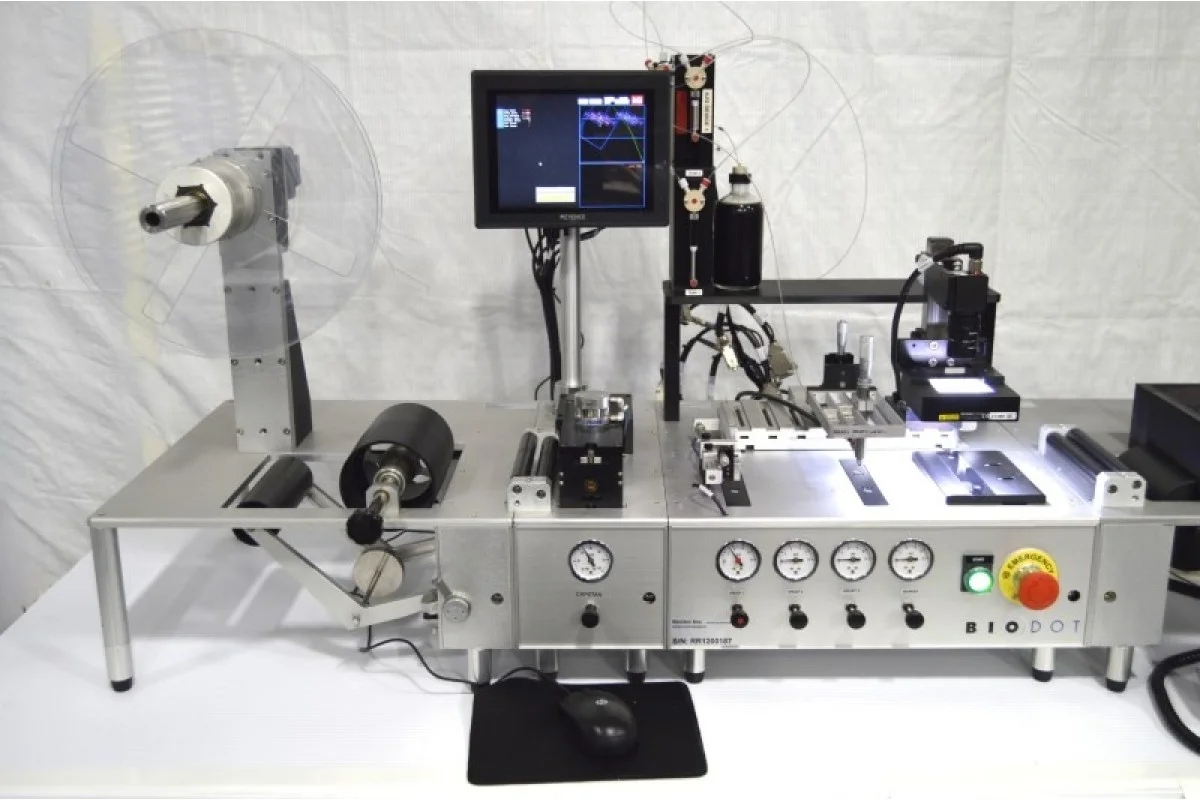

Payout Reel
Takeup Reel

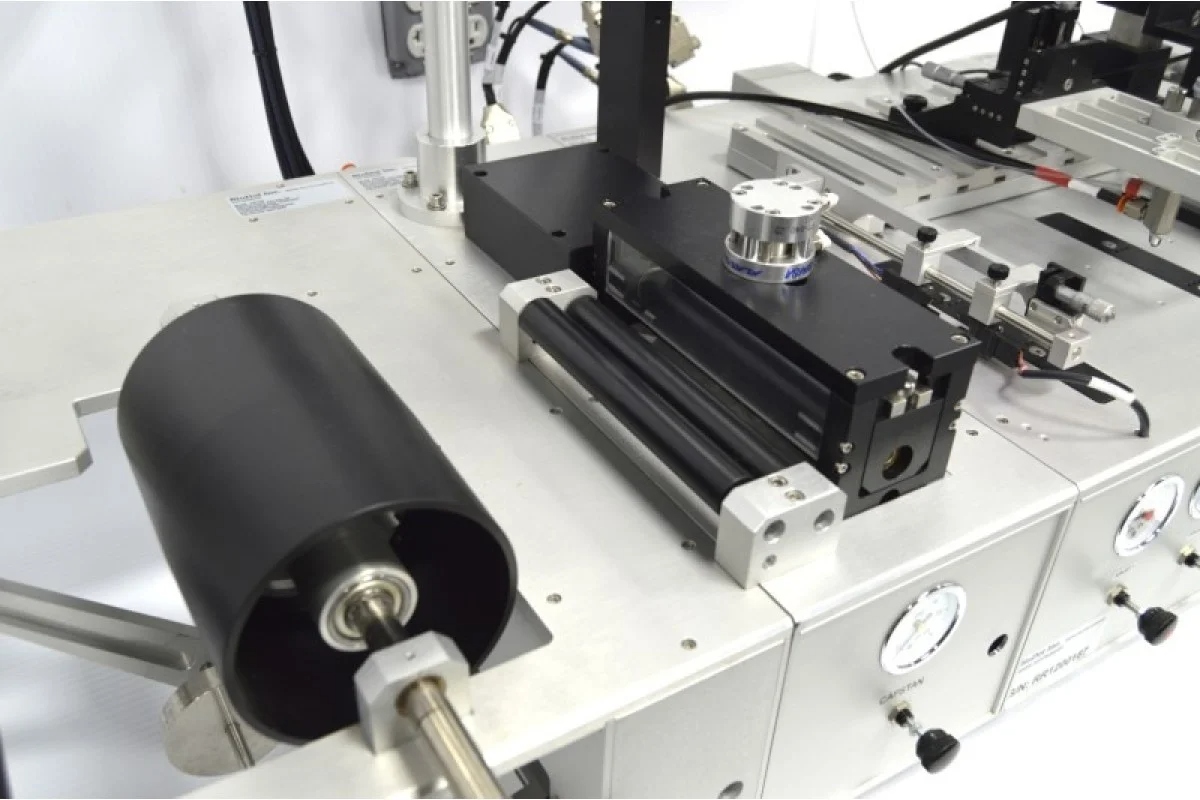

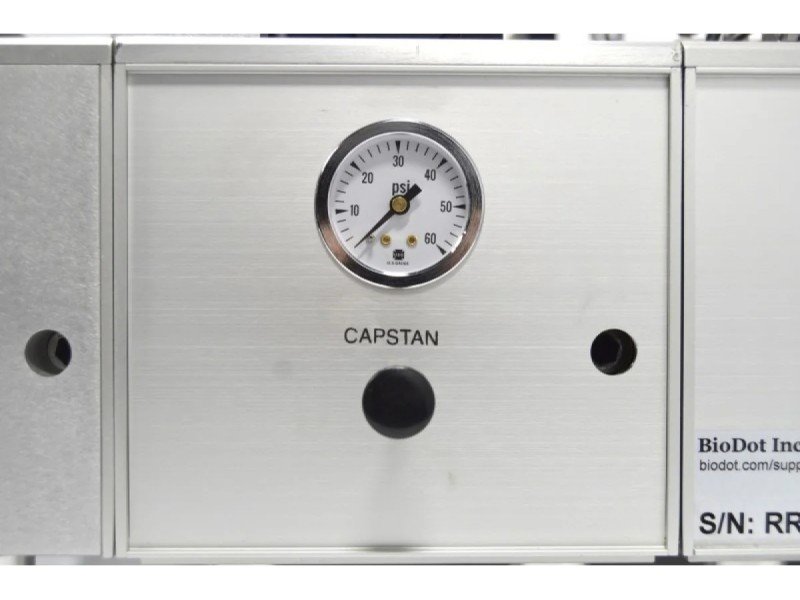

Capstan module

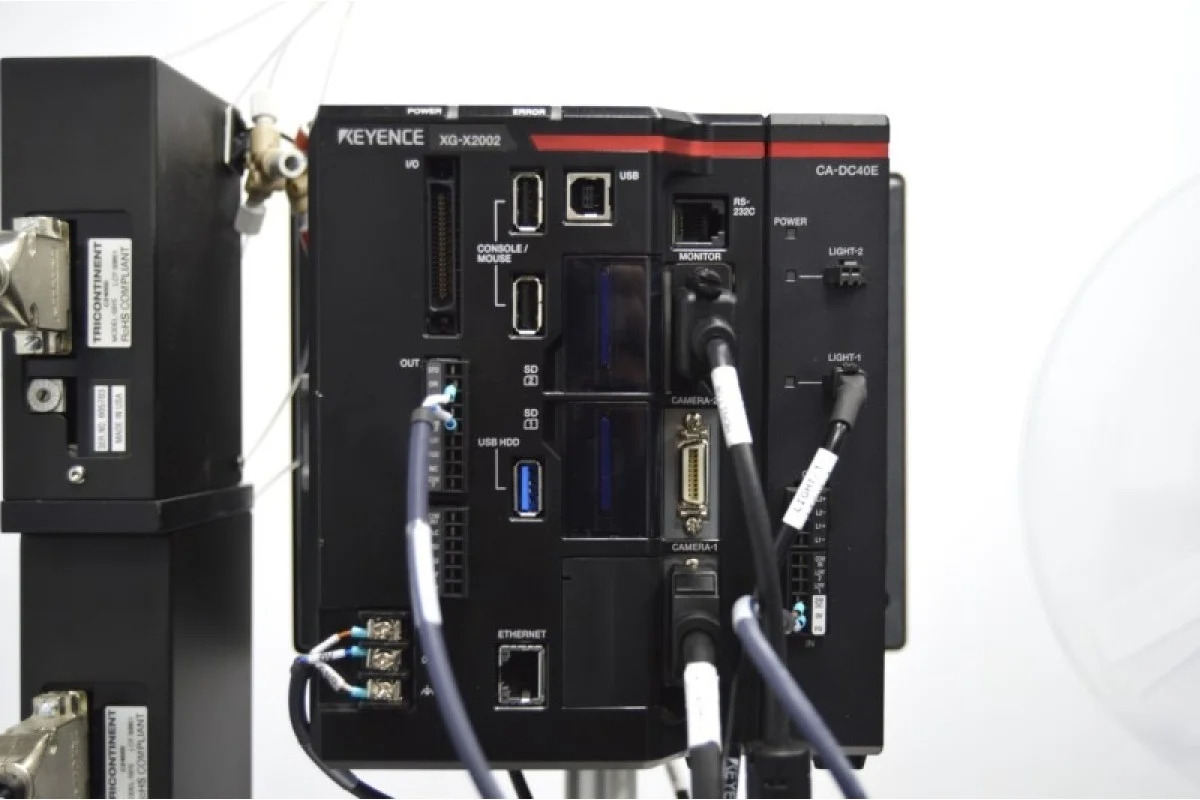

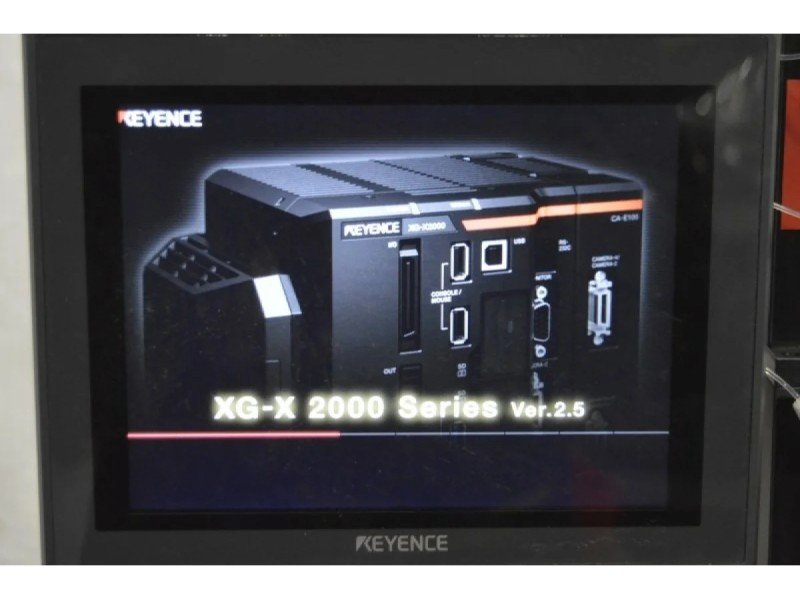

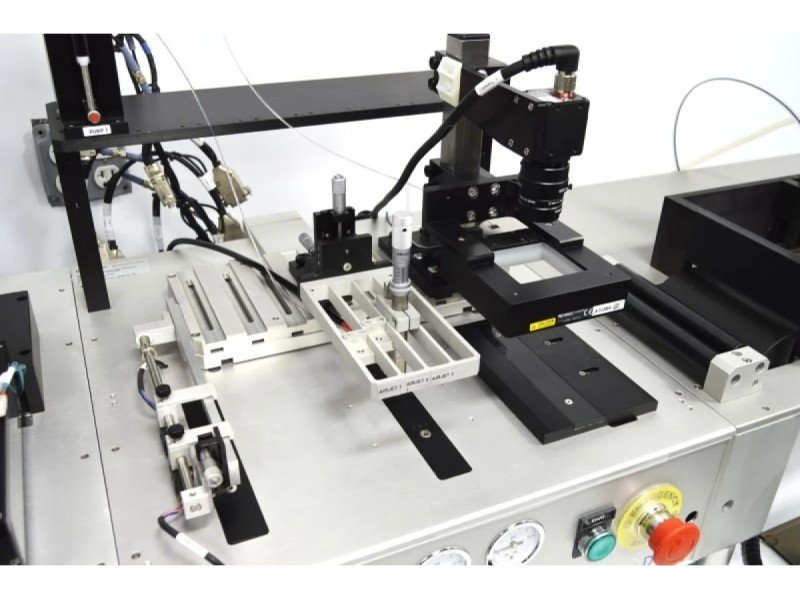

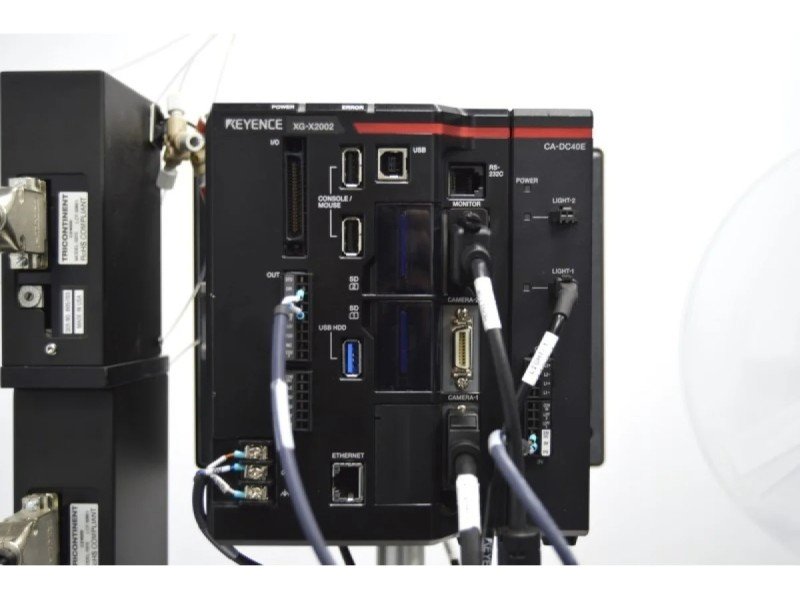

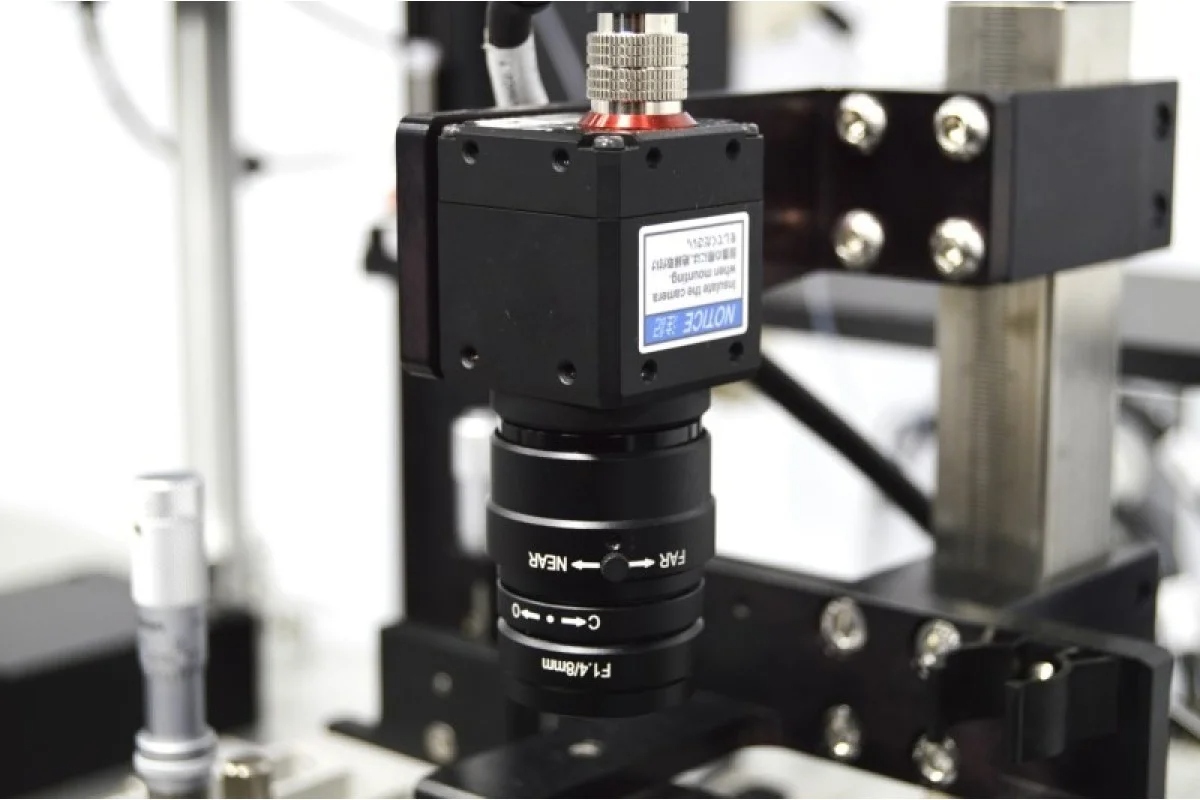

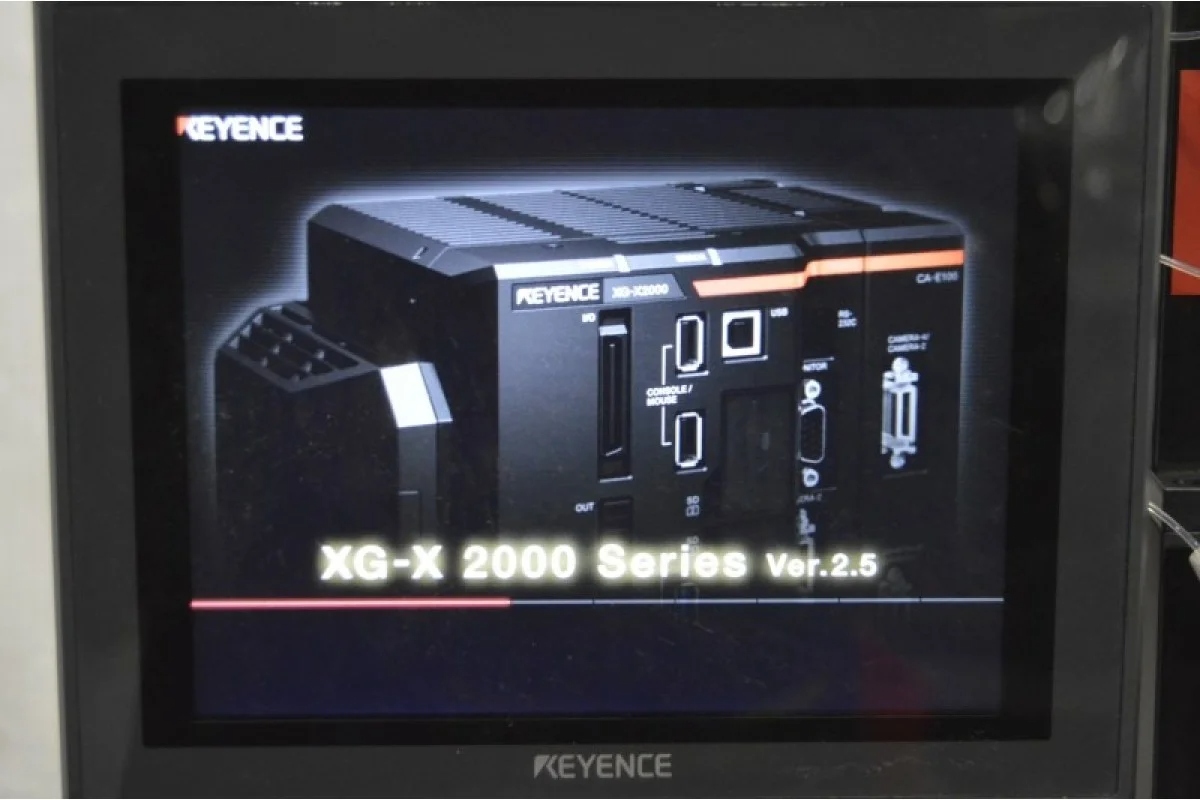

Keyence CA-H048MX Vision System
1 Airjet dispenser + 2 pumps (Extra pumps and dispensers can be added)
Diptank

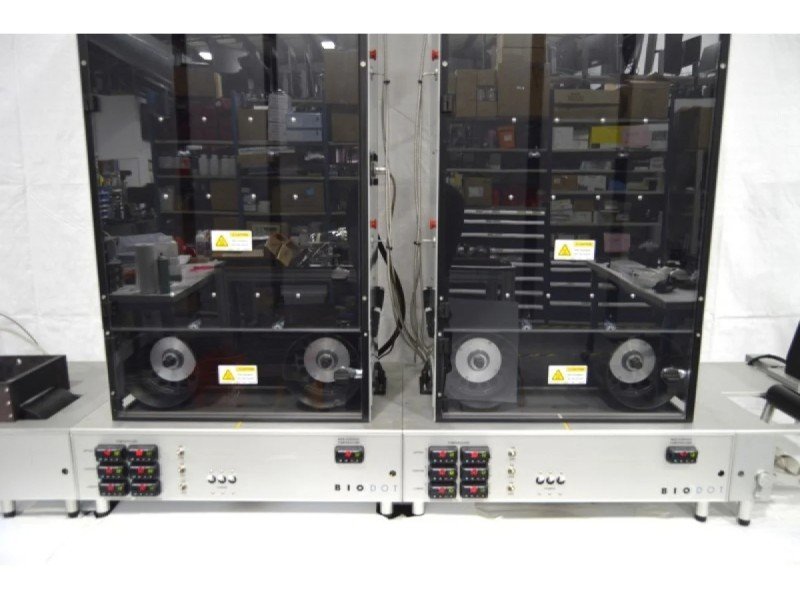

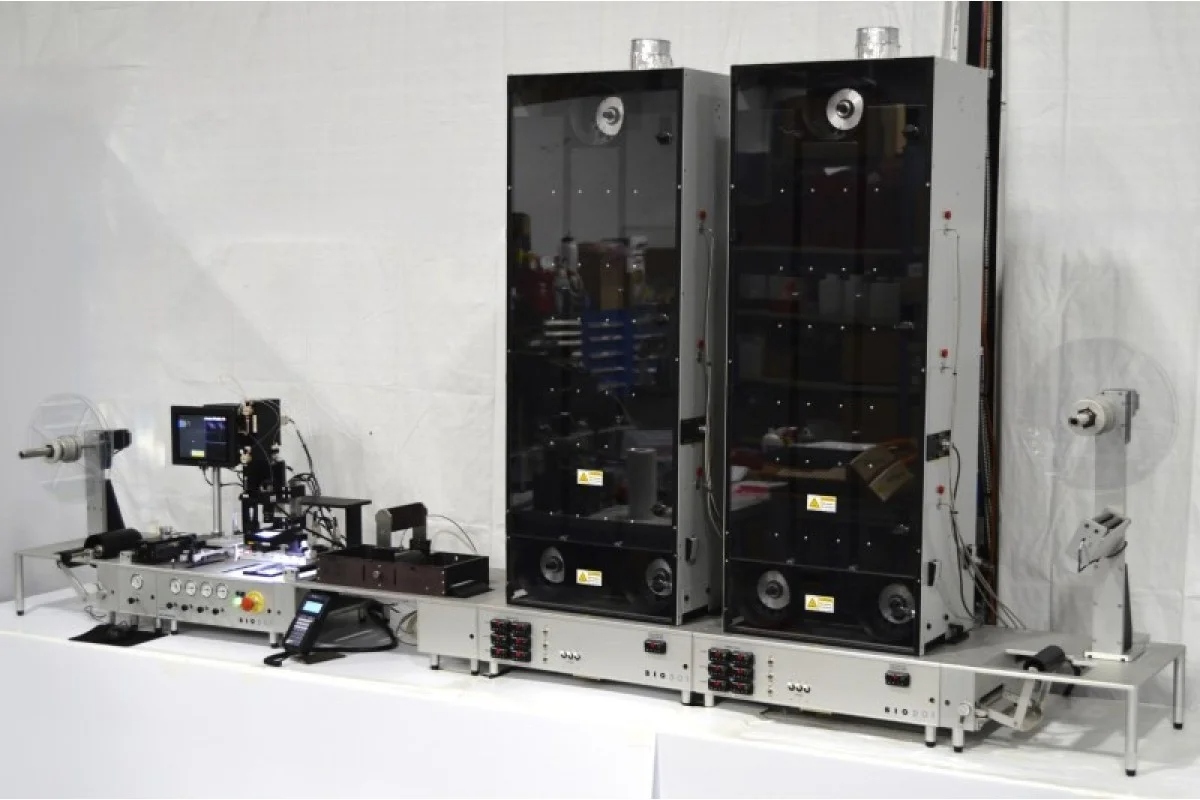

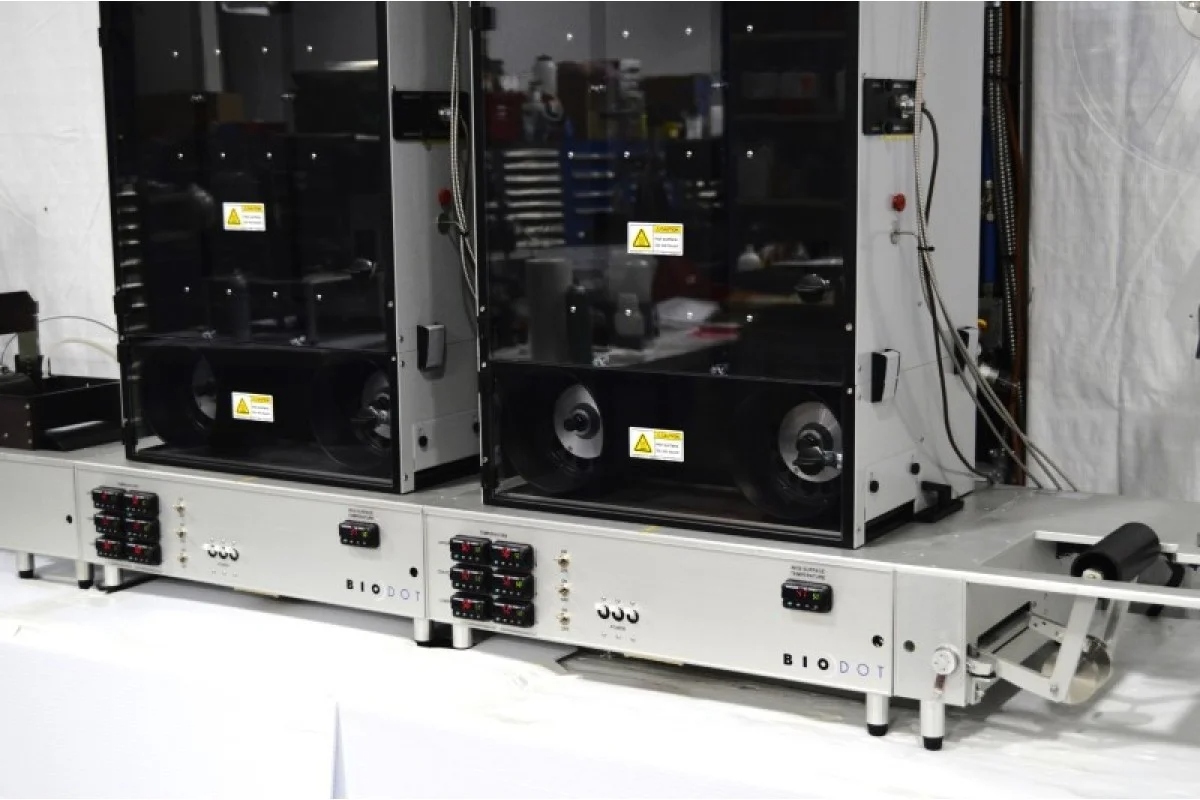

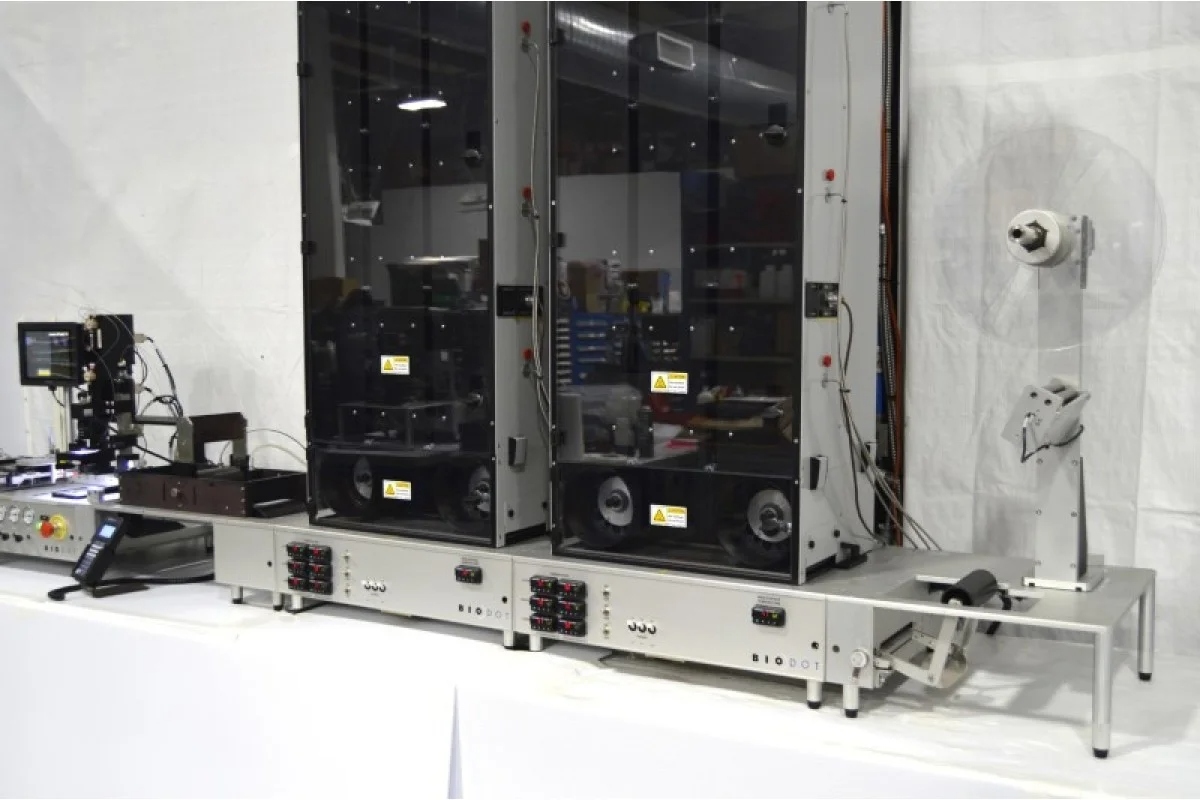

2 Drying Towers

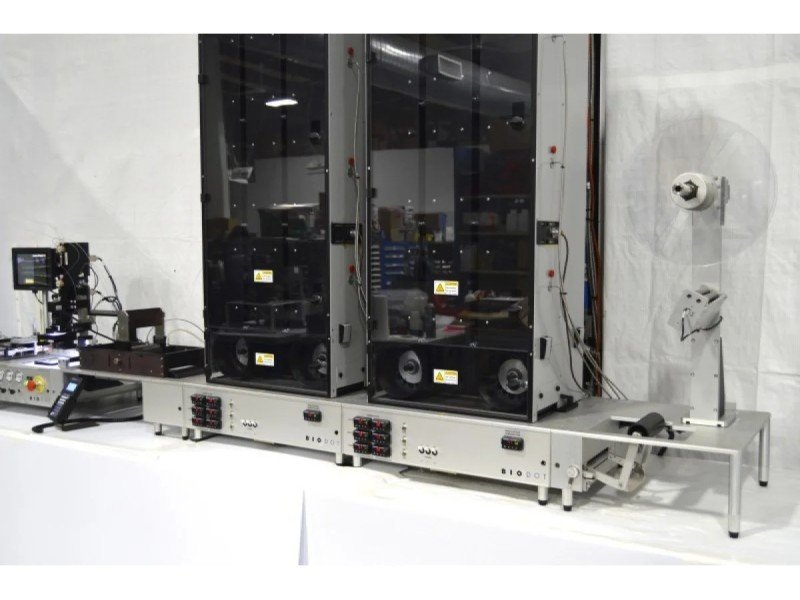

BioDot RR120 Web Handling System Configuration:

Membrane Width: 5 mm - 120 mm; speed adjustable up to 100 mm/sec
1 AirJet (pneumatic) dispenser with 2 individual pumps set up in tandem for continuous dispensing
Dual drying towers, each with 3 IR-heated zones and real-time temperature feedback
Keyence CA-H048MX (2448×2048 px) camera with CA-LH8 (8 mm, f/1.4) lens for in-line vision inspection
Capstan-driven tension control, diptank module with level sensing, and automated marking system

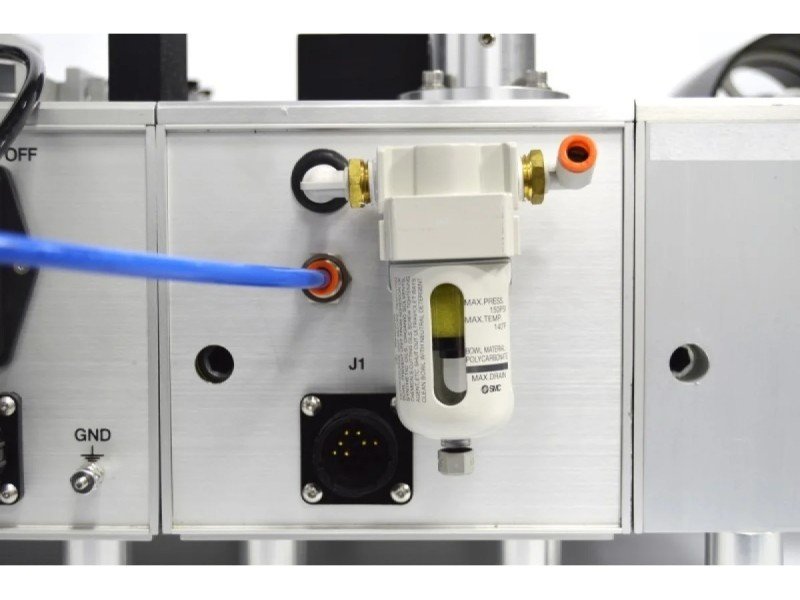

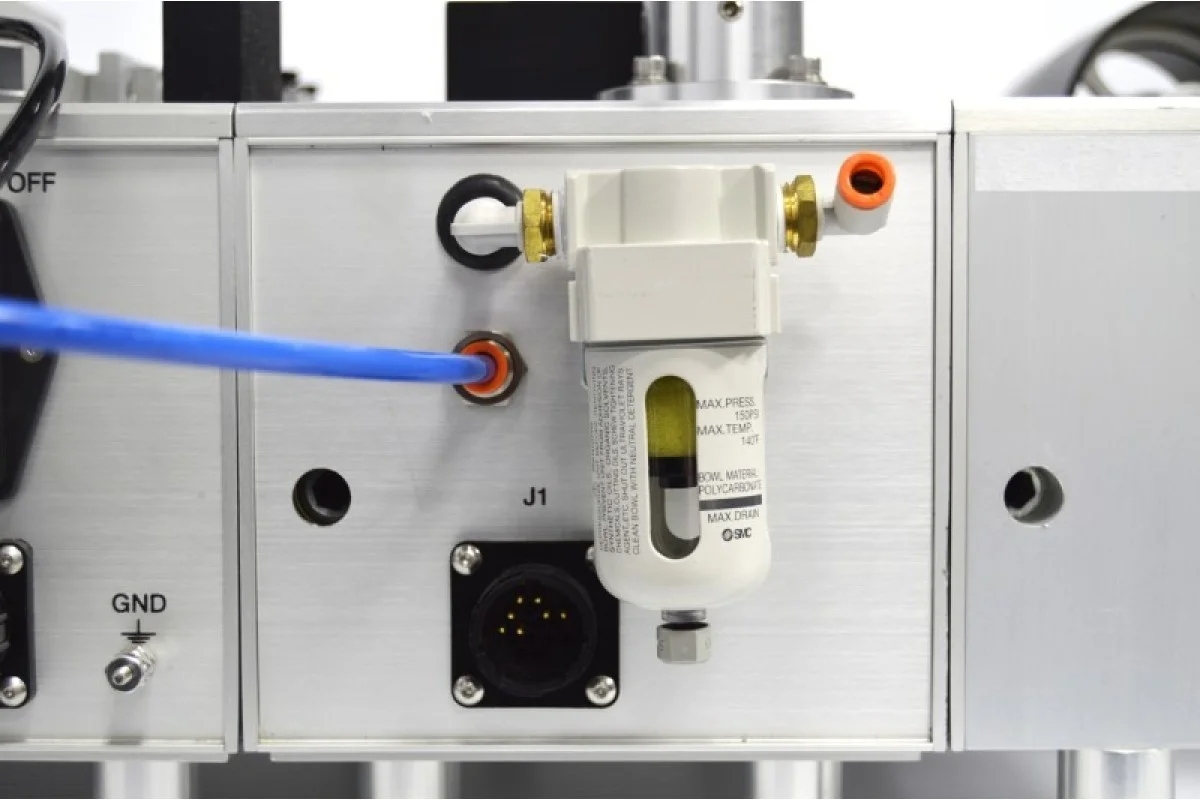

Air Requirement 60-125 PSI (clean, dry air)

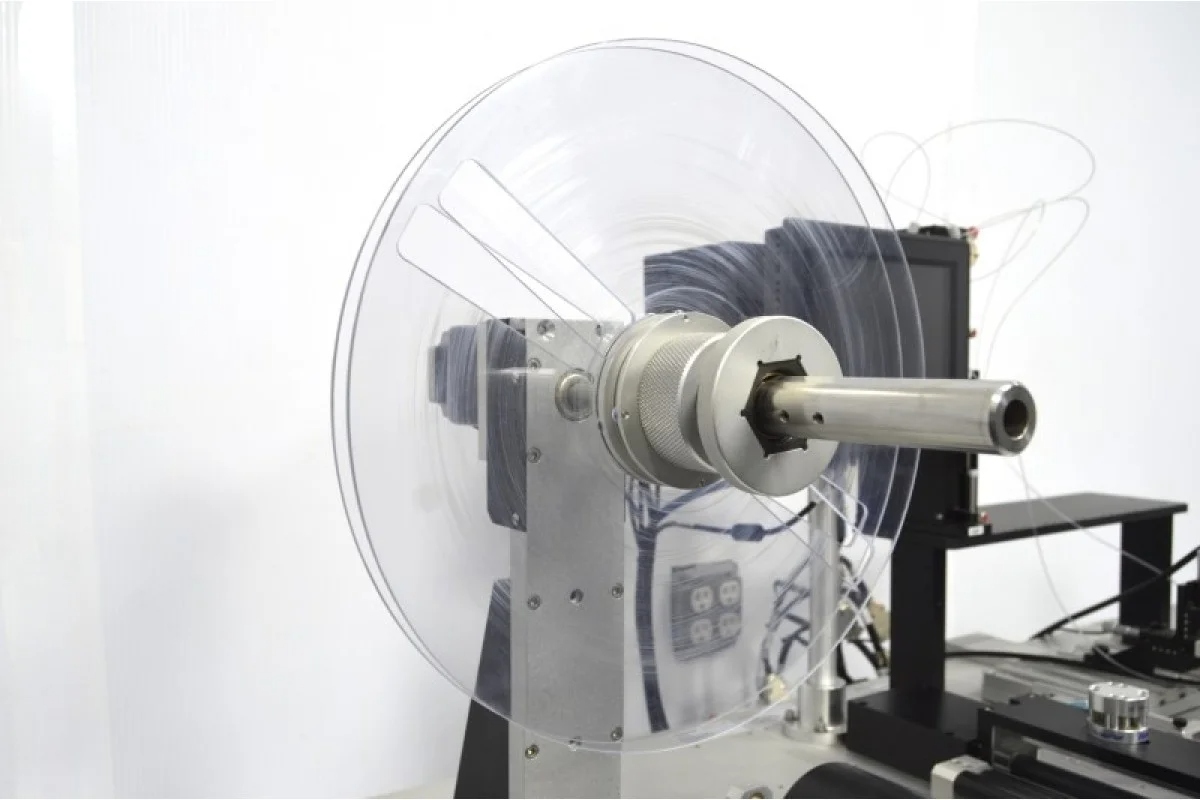

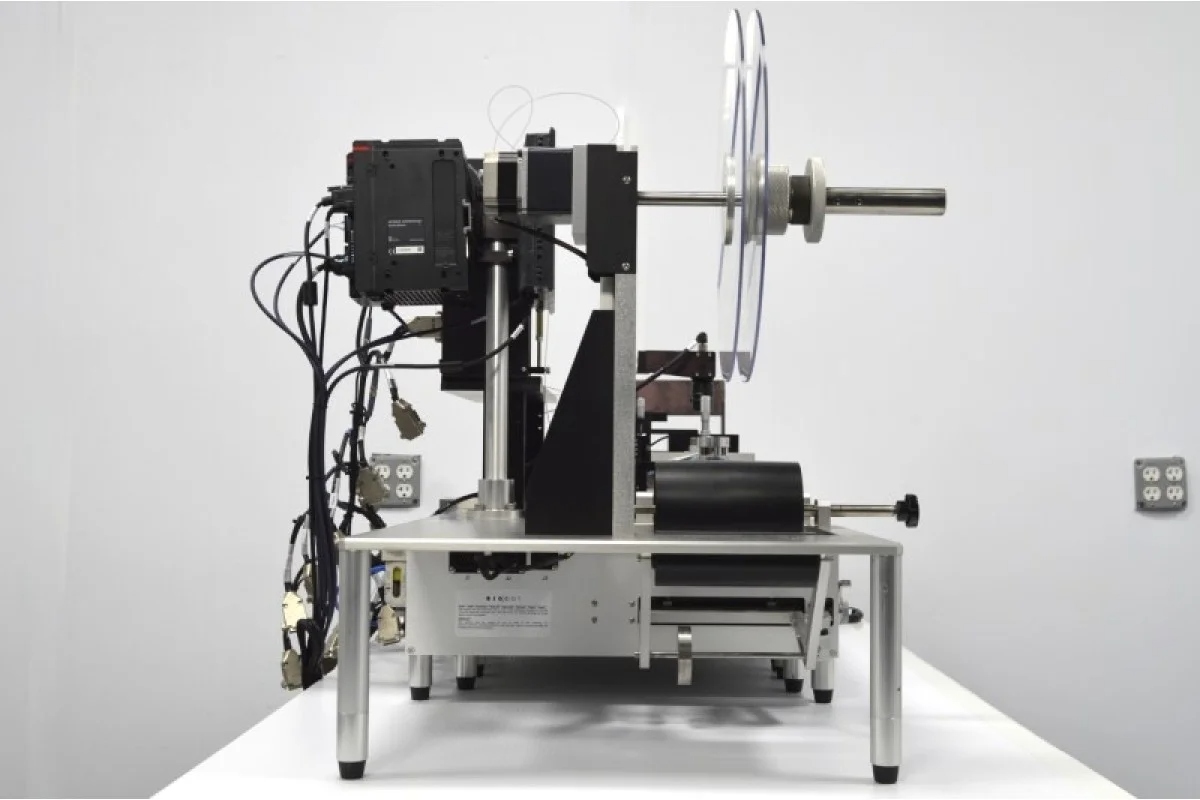

Payout Reel: feeds roll-based membrane or substrate into the system for downstream processing.

Material width capacity: 5 mm to 120 mm
Core holder: mechanical chuck
Tension control: Passive brake system
Adjustability: web edge alignment and tension adjustment mechanisms

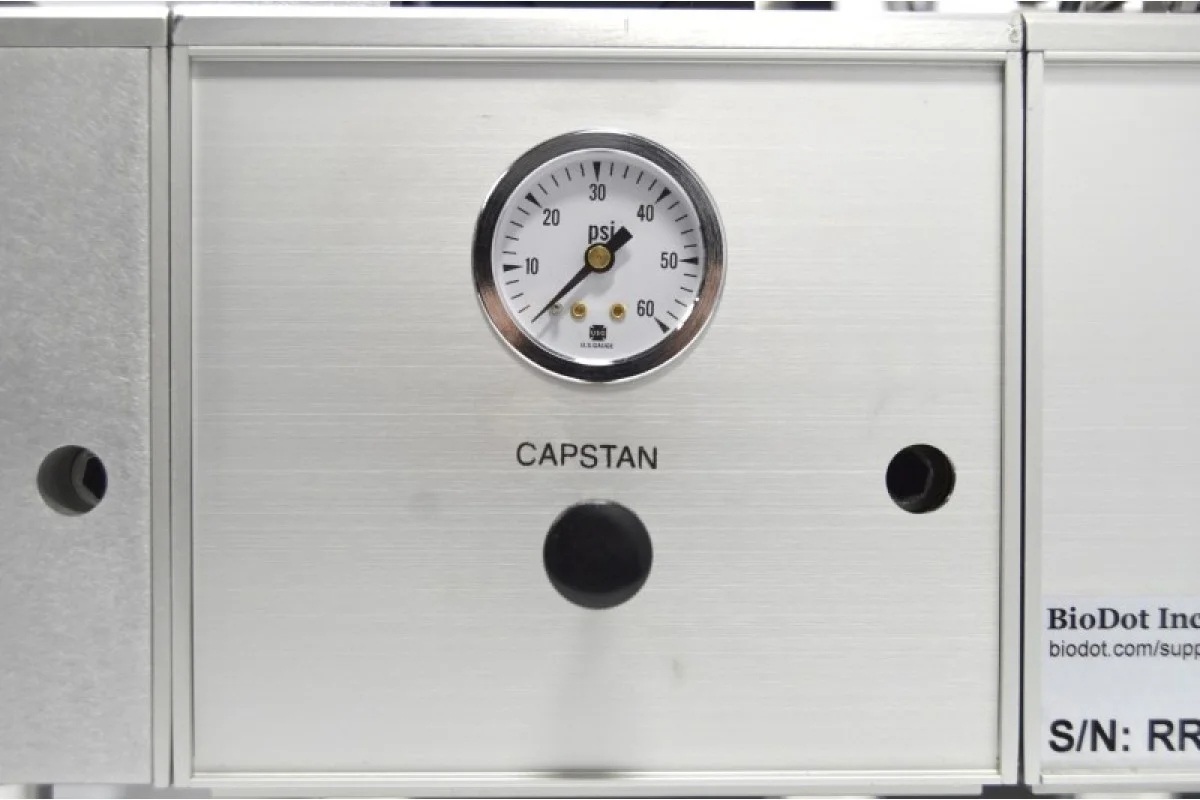

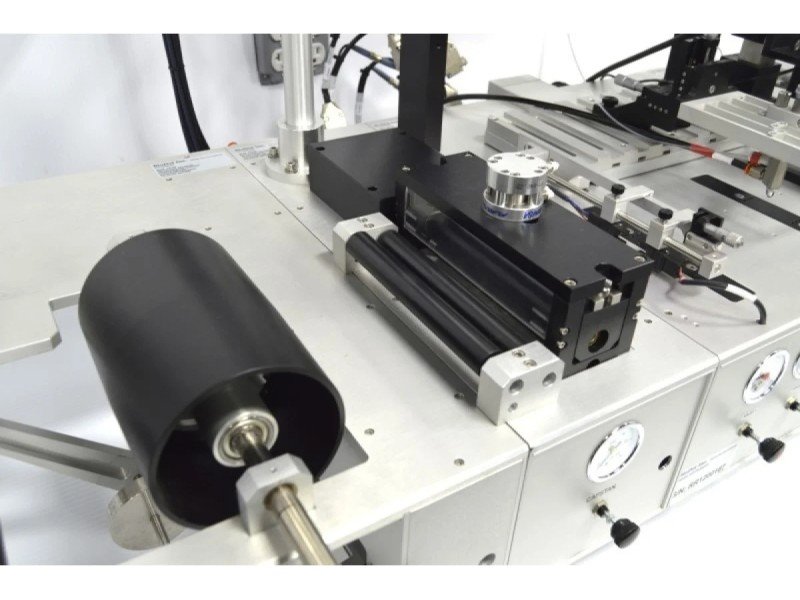

Capstan Module: maintains constant web speed and tension between payout and takeup reels.

Motor type: servo motor with encoder
Tension range: ultra-low (for unbacked membranes) to moderate tension (for laminated rolls)
Speed range: 0.1 to 100 mm/sec
Feedback: integrated with line control and vision systems
Web guidance: roller alignment with low-friction surface

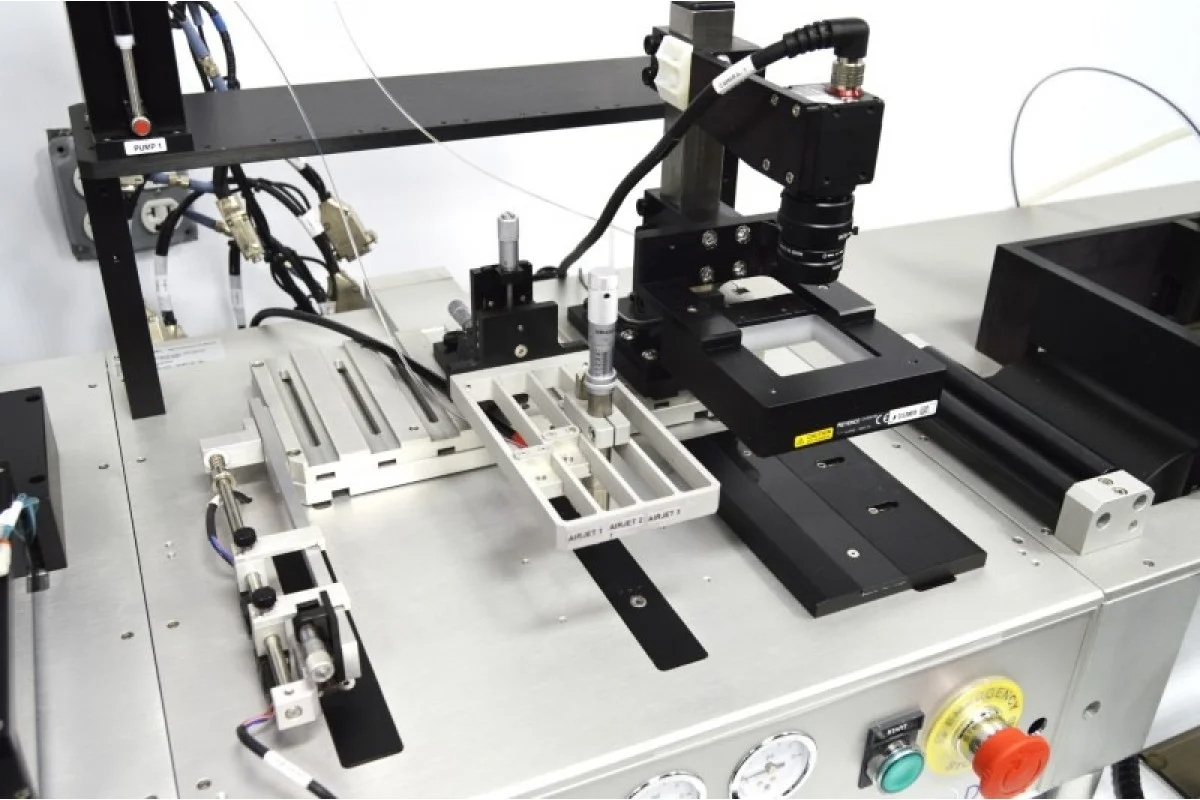

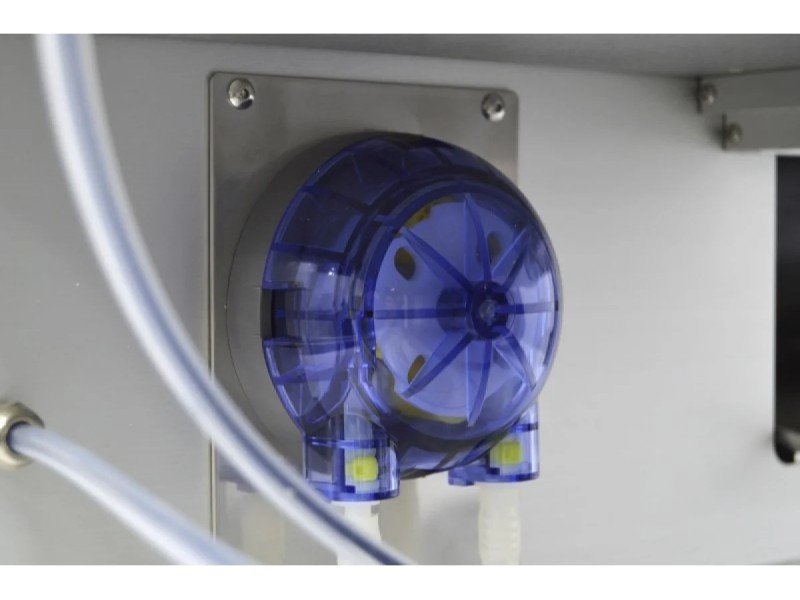

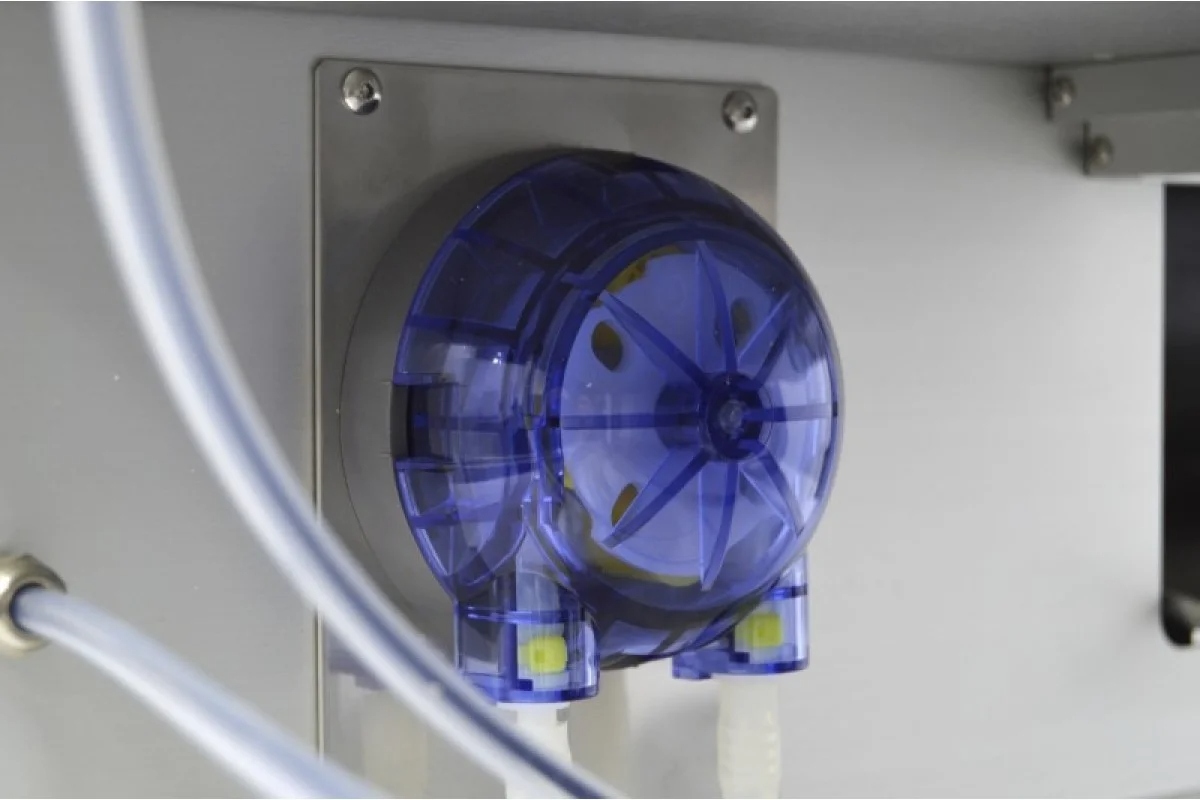

1 AirJet Dispenser + 2 Pumps: non-contact, pressurized dispensing of reagents with small droplet size for conjugate lines and coating.

Line volume: 0.1 - 24 uL/cm
continuous dispensing
Typical line width: 0.5 to 10 mm
Repeatability: CV < 5%
Materials compatibility: aqueous, organic solvents, colloidal suspensions

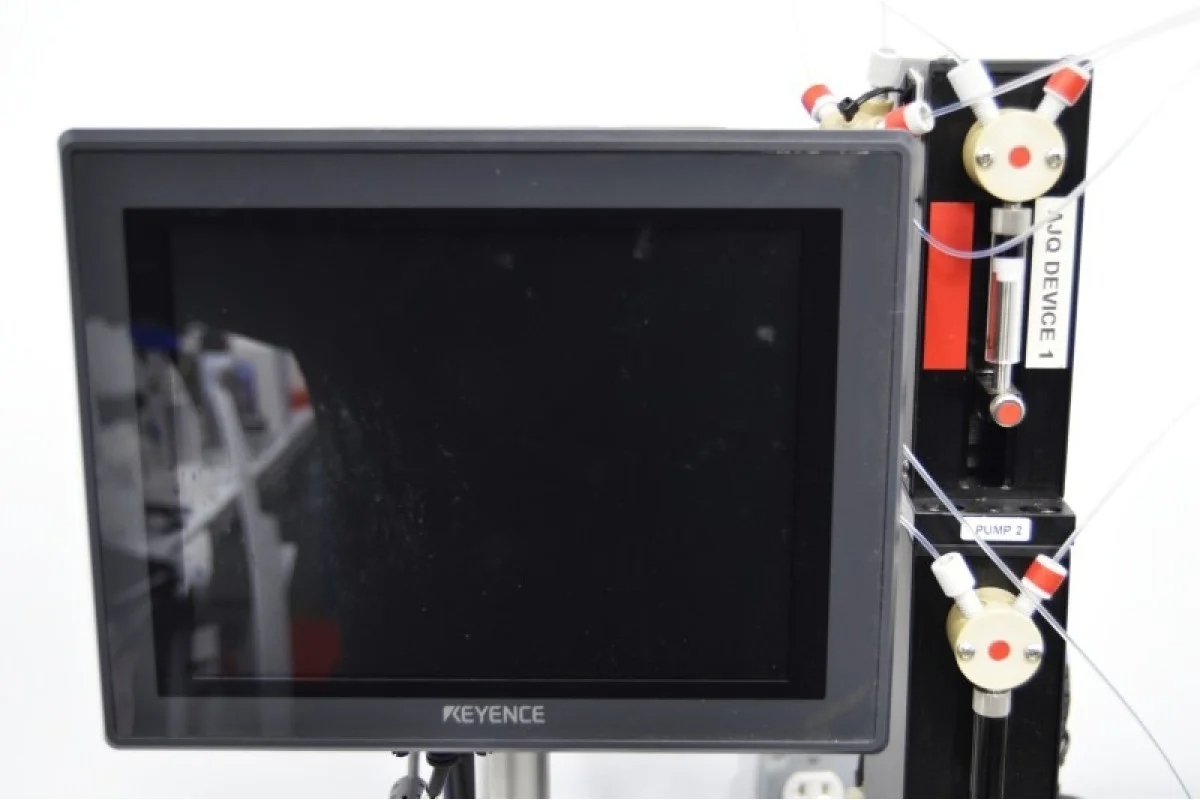

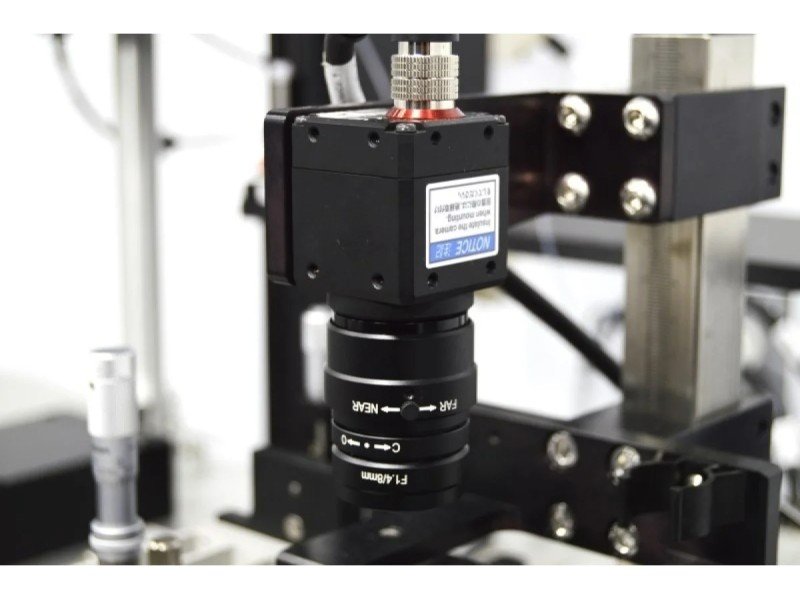

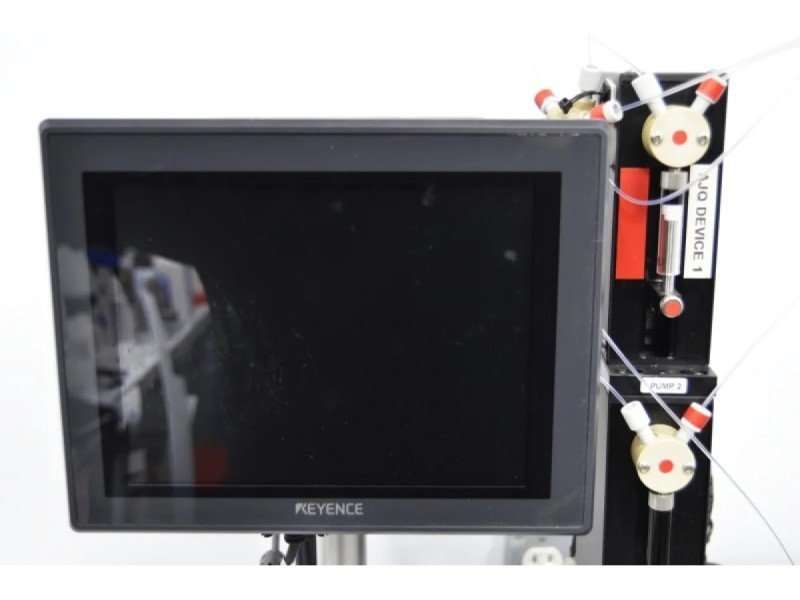

Keyence CA-H048MX Vision System: performs in-line quality control such as monitoring line presence, alignment, and width.

Camera type: monochrome CA-H048MX Camera
Resolution: 2448 × 2048 pixels
Total pixels: 5.0 megapixels
Lens: Keyence CA-LH8 industrial camera lens
Focal length: 8 mm
Maximum aperture: f/1.4
Mount: C-mount
Features:

- Edge detection

- Line width tolerance monitoring

- Dot/line misplacement alerts

- Triggered marking integration

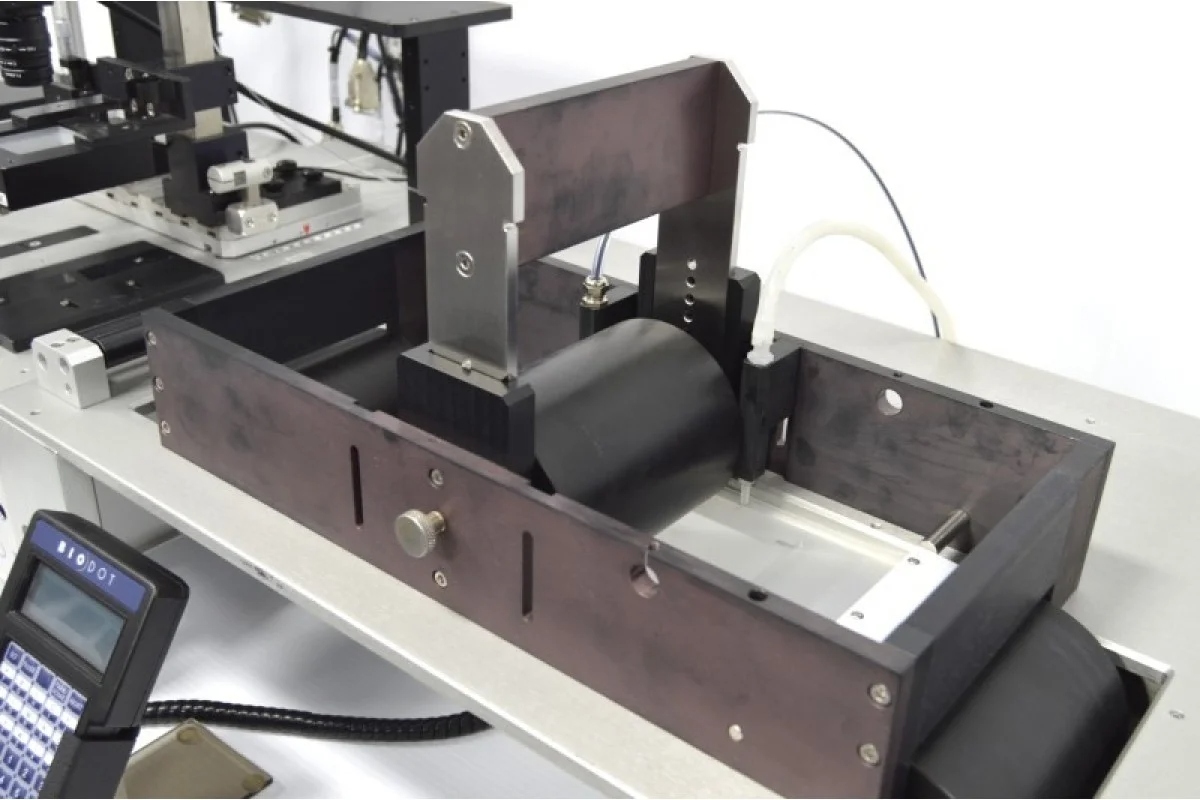

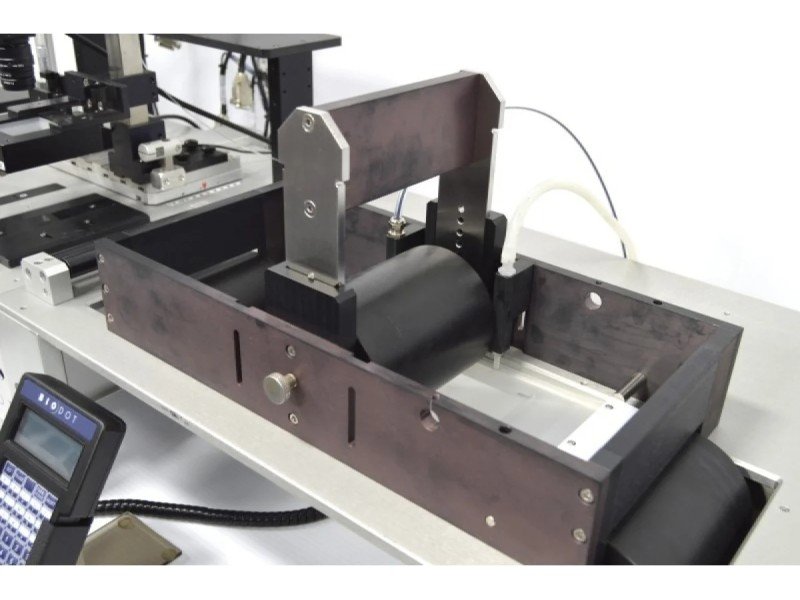

Diptank: provides immersion coating of membranes with reagents or buffer solutions.

Dimensions: tank depth adjustable; fits full membrane width
Fluid management: level sensing (capacitive or float-based); overflow and drain port
Control: programmable immersion time, automated raising/lowering

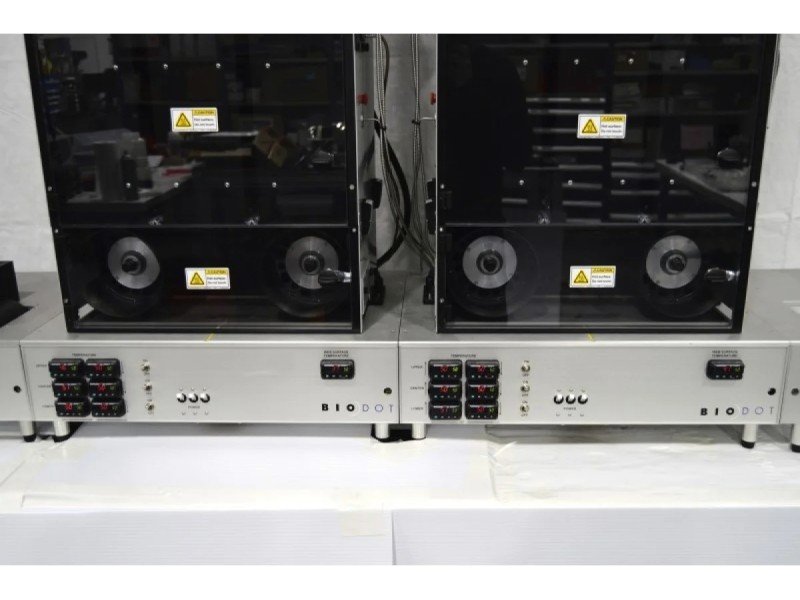

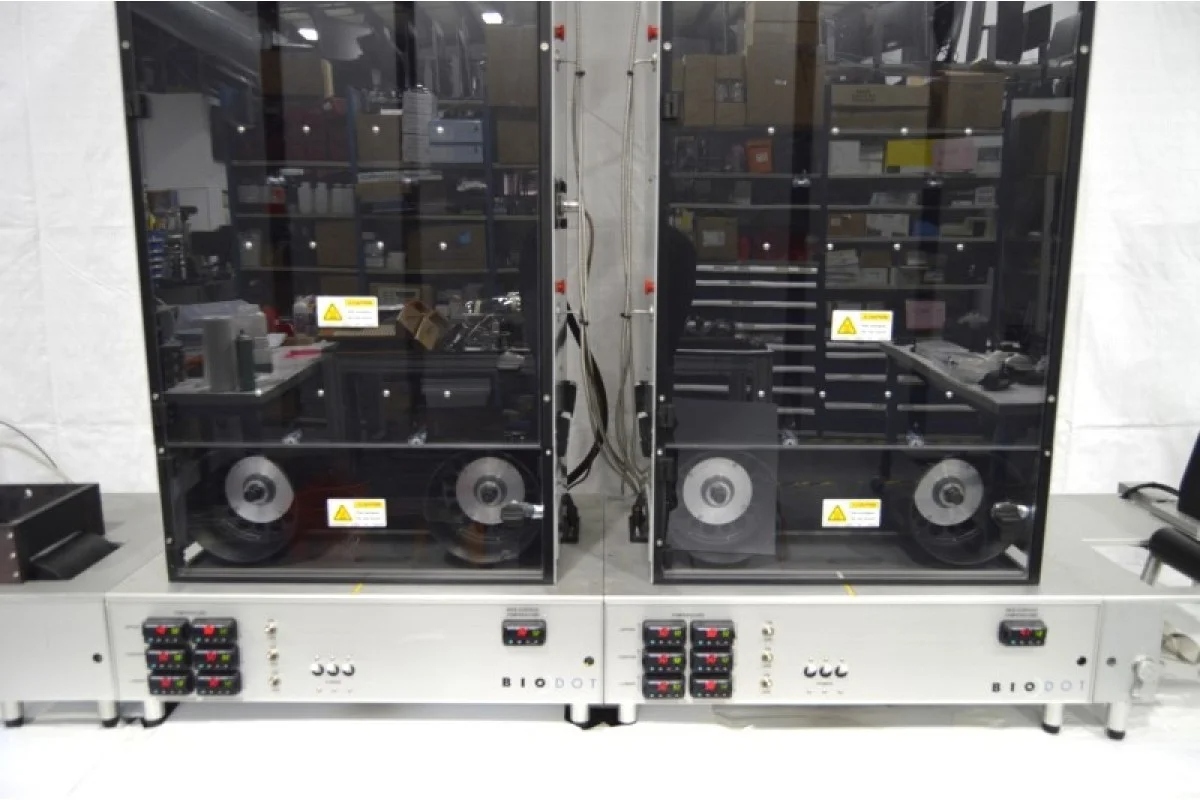

Drying Towers: evaporate solvents and stabilize printed or coated reagents.

Zones: 3 per tower (6 total), independently controlled
Web path: 3.0 meters
Temperature range: ambient to 70 DegC @ 20% Air Flow
Heating type: forced air convection with IR augmentation
Sensors: IR sensors for surface temp feedback; thermocouples in each zone
Control: digital interface or programmable via the central system

Takeup Reel: rewinds the processed membrane for collection or further processing.

Drive: motorized with torque feedback control
Speed synchronization: matches the capstan or payout reel speed using a feedback loop
Tension control: pneumatically or electronically adjustable

Customization/Options:

Airjet & Biojet dispenser options might be available. Please inquire with our sales team.

Testing performed by our in-house service team:

The BioDot RR120 Web Handling System passed all tests and was found to be fully functional:

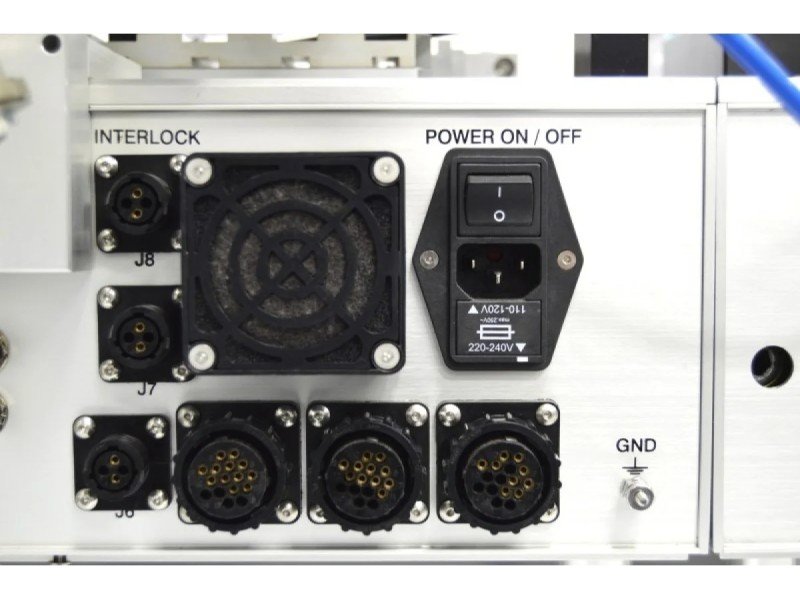

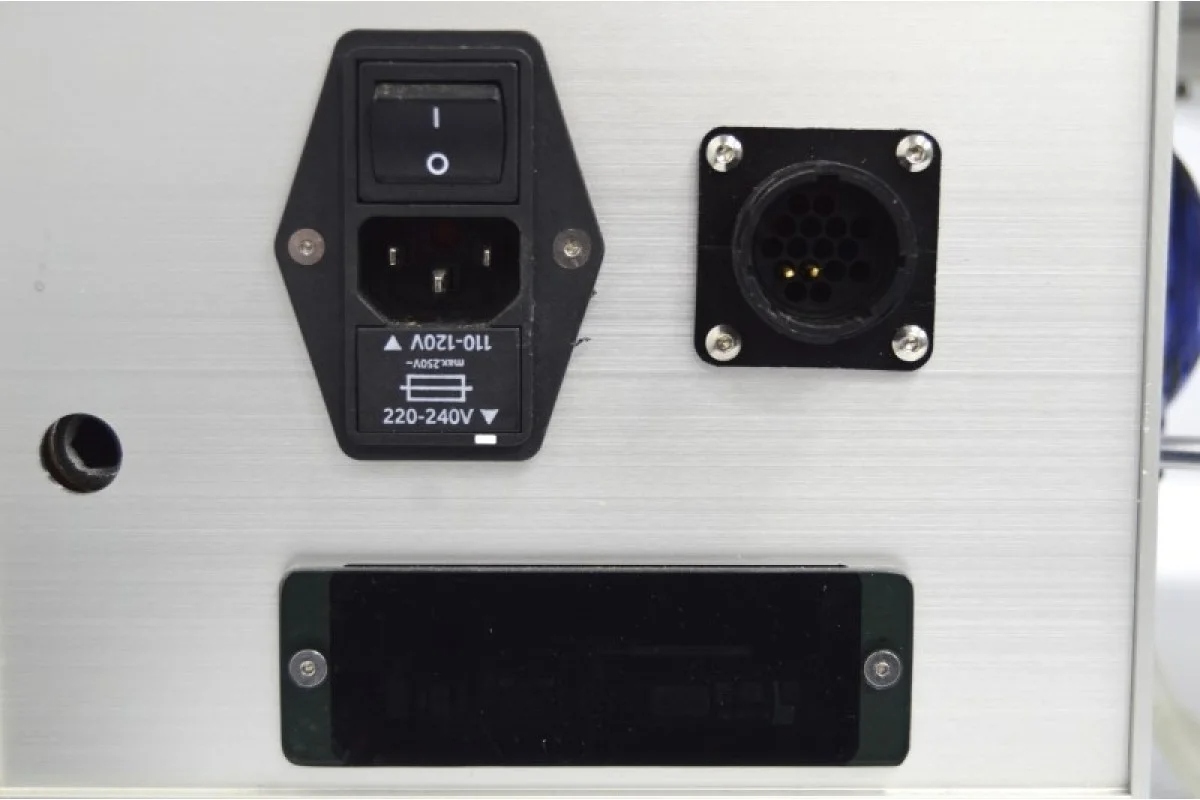

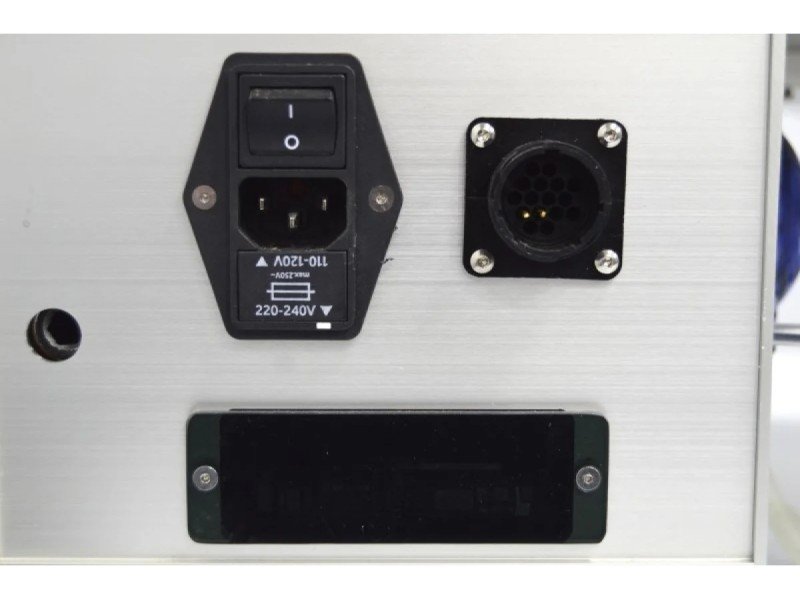

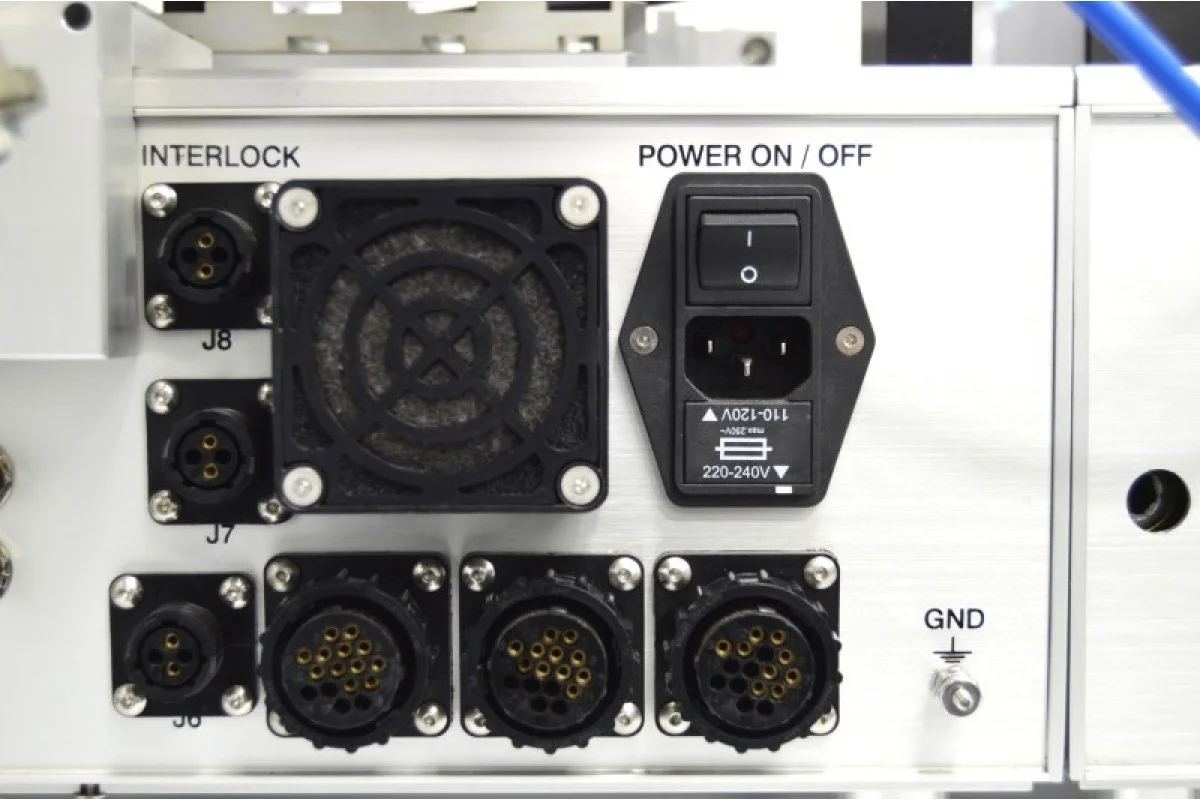

We verified the power connection and confirmed stable system startup and operational readiness.
We primed all pumps to ensure consistent and bubble-free fluid delivery.
We activated the AirJet dispenser and validated uniform droplet formation and precise line control.
We initialized the camera system and confirmed alignment, image clarity, and proper integration with the vision software.
We filled and activated the dip tank, confirming appropriate fluid levels, stable immersion, and proper pump recirculation.
We heated the drying towers and verified temperature setpoints and zone stability using the integrated sensors.
We ran the tape through the system and confirmed smooth movement, accurate web tracking, and synchronized tension control.

Instrument Overview:

BioDot RR120 enables precise handling of roll-based membranes with adjustable web tension and speed.
Integrated drying towers feature independent zones to ensure controlled and efficient reagent drying.
Includes AirJet dispensers for non-contact, high-precision reagent deposition.
Vision system with a high-resolution camera supports real-time inspection and line alignment.
The system incorporates payout/takeup reels, capstan drive, and diptank capabilities.
BioDot RR120 supports continuous, high-throughput processing of delicate or laminated membranes.

Instrument Application:

Lateral flow assay production
Protein and antibody line dispensing
Membrane coating and drying
Biosensor strip manufacturing

The Key Features:

Modular design for custom setups
Supports roll-to-roll processing
Precise AirJet dispensing
Multi-zone drying tower control
Inline vision for quality checks
Handles delicate membrane types

Video Overview:
