xCELLigence RTCA MP - Multiple Plates Instrument Real-Time Cell Analyzer - AV

Here is an xCELLigence RTCA MP - Multiple Plates Instrument
Made in 2021

Predecessor to:
Current model

Condition:
This xCELLigence RTCA MP - Multiple Plates Instrument Real-Time Cell Analyzer system is in good working order.

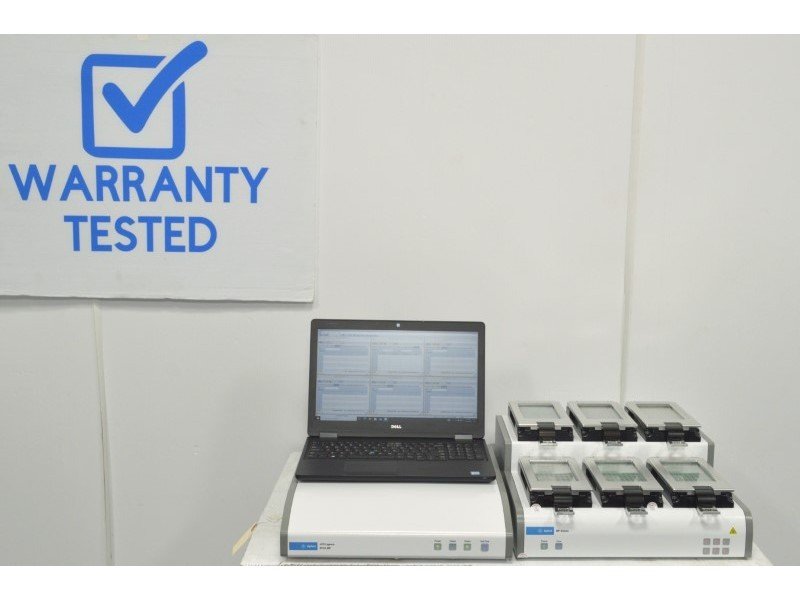

Please see the exact video and photos below.

Testing we performed:
The xCELLigence Real-Time Cell Analyzer system passed all tests and was found to be fully functional:
Tested Connection to Software: PASSED
Tested Plate Recognition: PASSED
Tested Self-Test Function: PASSED
Tested Status Indicators: PASSED
Tested Communication Between the Devices: PASSED
Tested Lock/Unlock Function on Clamp Plates: PASSED
Tested Verification with Resistor Plate: PASSED

System consists of:
Agilent xCELLigence RTCA MP W380
Agilent RTCA MP Station 6x96
(2) RTCA Resistor Plate 96

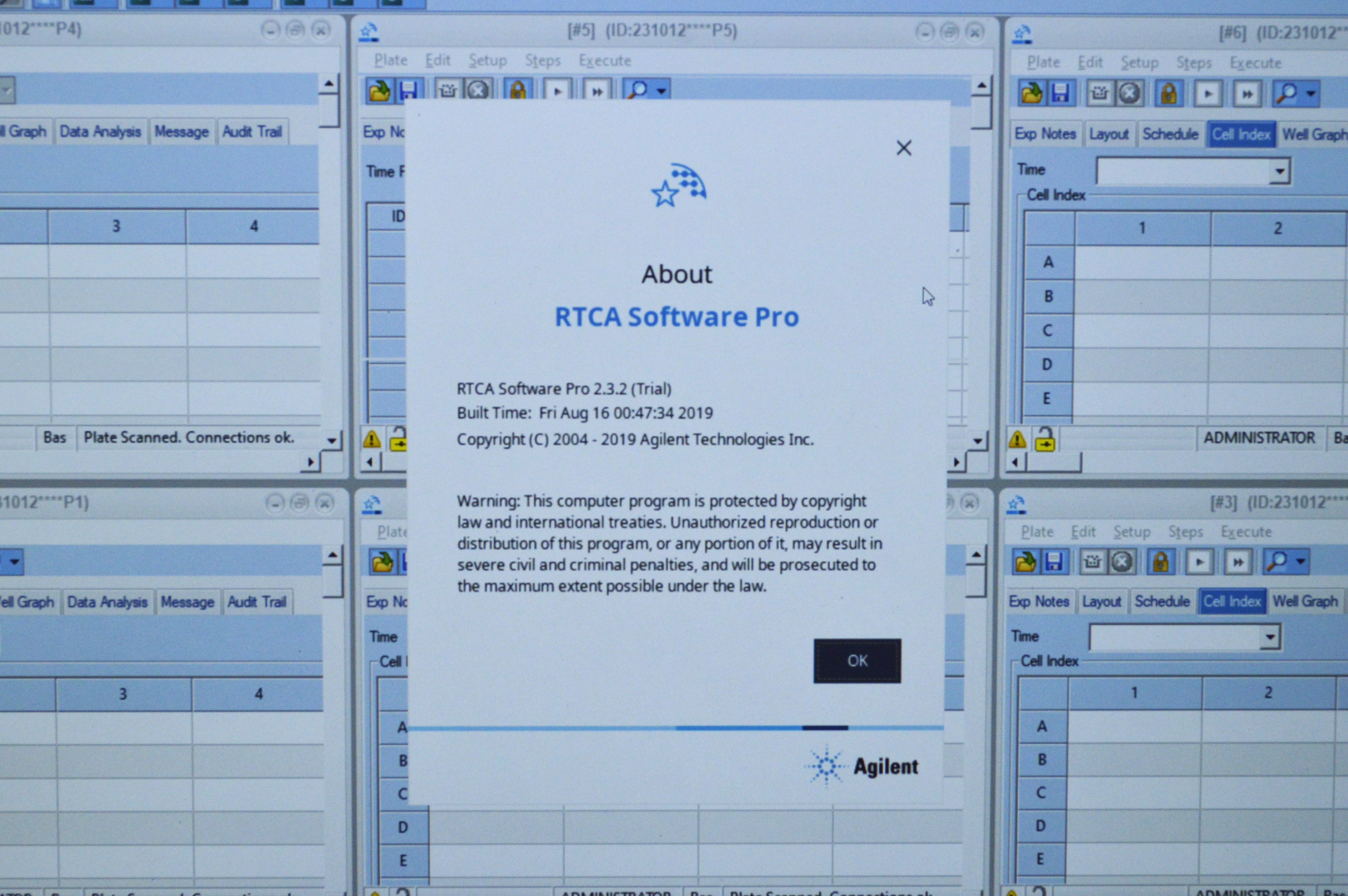

Computer running RTCA software
Communication and power cables.

Configuration and Setup:
Sampling Format: 6 x 96 E Plate
Measurement Applications: Adhesion, Apoptosis, Cell Characterization, Cytotoxicity, Immune Cell Killing, Proliferation, Receptor Signaling, Virus Cytopathic Effects
Output Test Signal: 22 mV rms +/- 20% with max. 5 mV DC offset at 10, 25 and 50 kHz
Impedance Dynamic Range: 10 to 5 k
Impedance Measurement Repeatability: 0.8%

Uses electronic detection to show the presence, absence, or change in properties of cells or molecules
Can be used for Cell viability and proliferation, apoptosis, compound-mediated cytotoxicity, cell-mediated cytotoxicity, receptor functional analysis (e.g., GPCRs, RTKs), and real-time detection of viral cytopathic effects
Obtain real-time cell measurements throughout the experiment
Gather single-well data in approximately 150 milliseconds for each well. Average measurement rate is approximately 15 seconds for a 96-well plate
See individual Cell Index curves for all 96 wells with the 96-well graph display
Can utilize up to 6 E-Plates simultaneously

The xCELLigence Real-Time Cell Analyzer  uses biosensors to continuously monitor cell behavior in a 6 x 96-well format.
Obtain continuous cell assay data points using label-free methods.
This multiple plate format is ideal for cell killing and immunotherapy applications such as antibody dependent cytotoxicity, bispecific T cell engagers, checkpoint inhibitors, NK cells, T cells, B cells, oncolytic viruses.

The MP Station can host up to six 96-well electronic microplates (E-Plate 96) which can be run in parallel or independently of one another.
This flexible plate batch processing allows for maximum productivity for multiple users.
The instrument operates in a standard CO2 cell culture incubator and the control unit is housed outside the incubator.
Easy-to-use intuitive software allows for real-time control and monitoring of the instrument and includes real-time data display and analysis functions.

Video Description:
The video gives an overview of the xCELLigence Real-Time Cell Analyzer  system, and also performs functionality.

Documentation:
Datasheet: xCELLigence RTCA MP - Multiple Plates Instrument Real-Time Cell Analyzer

Brochure: xCELLigence RTCA MP - Multiple Plates Instrument Real-Time Cell Analyzer

Manual: xCELLigence RTCA MP - Multiple Plates Instrument Real-Time Cell Analyzer

This will ship via freight. Please contact us with your zip code to obtain shipping quote.

*SM* Small Crate
175#

Please do not hesitate to contact us if you have any questions.
