We apologize this Instrument is currently | |
Please submit a request, we will notify you if another one comes in stock. Thank you! | |
Approved Vendor to many US, Canada, and EU Universities | |
US & International Shipping |
- Stock: SOLD
- Brand: Thermo Scientific
- Product Code: 49293
- Condition: Pre-Owned

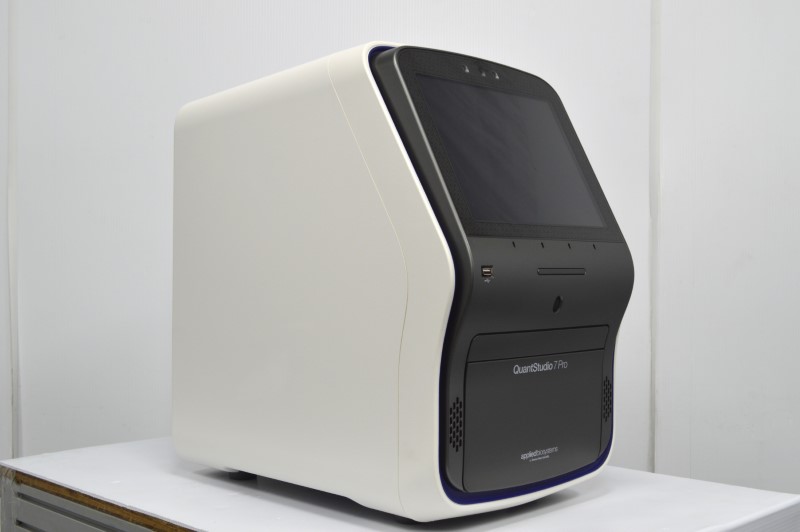

Here is a Thermo ABI QuantStudio 7 Pro Real-Time 384-well Block PCR Unit5
REF A43055
Made in 2021
Predecessor to:
Current model
Condition:
This Thermo ABI QuantStudio 7 Pro Real-Time PCR system is in good working order and also has good cosmetic condition.
Please see the exact video and photos below.
Testing we performed:
The Thermo ABI QuantStudio 7 Pro Real-Time PCR system passed all tests and was found to be fully functional:
Preventative Maintenance (PM) & Calibration Performed.
Power on: PASSED
Initialization: PASSED
Touch screen: PASSED
Tray test: PASSED
Door test: PASSED
LED controller: PASSED
Thermal block: PASSED
Automation controller: PASSED
Screen test: PASSED
Speaker: PASSED
Microphone: PASSED
Camera switch on: PASSED
Face detection: PASSED
Image capture: PASSED
Depth data: PASSED
Proximity: PASSED
System consists of:
Thermo ABI QuantStudio 7 Pro Real-Time PCR

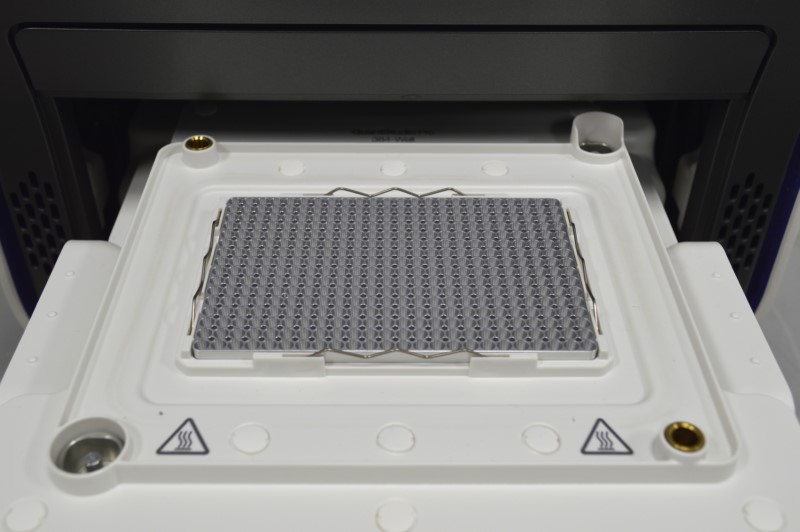

QuantStudio Pro 384-well Block
QuantStudio Pro 384-well Cover
Computer running Design & Analysis software ver2.6 (w/ monitor, keyboard, mouse)
Communication and power cables
Configuration and Setup:
Reaction Volume: 5-20uL for 384-well block
Maximum Ramp Rate 384-well: 6C/sec
Average Sample Ramp Rate 384-well 2.92C/sec
Temperature Uniformity: 0.4C; Temperature Range 4-99.9C
Block Size: 22.5 x 22.5 x 7 cm
Dimensions (D x W x H) and weight 52.5 x 33.8 x 54.7 cm; 38 kg
Heating and cooling method Peltier
Run time Less than 30 min
Calibration Engineer calibrated during installation
On board memory 10 GB, which translates to approximately 450 detailed run files can be stored
Electrical approvals IEC, CE
Excitation (light source) Bright white LED
Filter/Color combinations: 5 for QuantStudio 6 Pro system, 21 for QuantStudio 7 Pro system
Excitation/emission range 450-600 nm/500-640 nm
Detection method CMOS technology
Data acquisition Whole-plate imaging
Touchscreen 12 inch capacitive touchscreen with real-time application viewing
Online ecosystem Our free, cloud-based Connect Platform with cloud-enabled systems
Communication interface Connect Platform with cloud-enabled systems, USB, LAN, or Wi-Fi
System configuration Stand-alone, PC connected, or direct connection via LAN or Wi-Fi to the Connect Platform
VeriFlex Zones provide independent temperature zones that offer enhanced functionality and precise control over your real-time PCR runs.
The independent zones are ideal for real-time PCR optimization. They also provide the ability to perform multiple runs at the same time.
Unlike standard gradients which give a sigmoidal temperature curve across the columns, blocks with VeriFlex Zones help deliver accurate temperatures across every zone.
The QuantStudio 6 Pro System has three VeriFlex Zones. The QuantStudio 7 Pro System has six VeriFlex Zones. (Quoted from user guide)
Video Description:
The video gives an overview of the Thermo ABI QuantStudio 7 Pro Real-Time PCR system, and also performs functionality.
Documentation:
Datasheet: Thermo ABI QuantStudio 7 Pro Real-Time PCR
Brochure: N/A
Manual: Thermo ABI QuantStudio 7 Pro Real-Time PCR
This will ship via freight. Please contact us with your zip code to obtain shipping quote.
*ME* Medium Crate
300#
Please do not hesitate to contact us if you have any questions.
We understand that every instrument has unique packing and shipping requirements; our team understands that no one wants to spend thousands of dollars and receive a damaged instrument.
Our process involves evaluating every instrument to determine the safest shipping method and the best process for packing.
We generally ship parcels either via UPS or freight for all larger goods.
Whenever we ship freight, we use an ISPM-15 wooden crates or pallets made from ½” plywood and 1x4 framing. (Our crates are Internationally Compliant).
On freight shipments, we use 2” 1.7 lb. density foam, which provides excellent cushioning and support for the instrument.
Instruments are safely braced inside the crates. We use solid boards with 1” foam shrink-wrapped around them, which provides cushioning in all directions and holds instruments firmly in place.
Final step is to photograph everything inside the crate and then seal it with screws.
