Thermo ABI QuantStudio 7 Pro Real-Time 384-well Block PCR A43055 - AV

Thermo ABI QuantStudio 7 Pro Real-Time 384-well Block PCR A43055 - AV
Thermo ABI QuantStudio 7 Pro Real-Time 384-well Block PCR A43055 - AV
  • Stock: In Stock
  • Brand: ABI
  • Product Code: 49039
  • Condition: Pre-Owned

Here is a Thermo ABI QuantStudio 7 Pro Real-Time 384-well Block PCR Unit6

REF A43055

Made in 2021

Predecessor to:
Current model

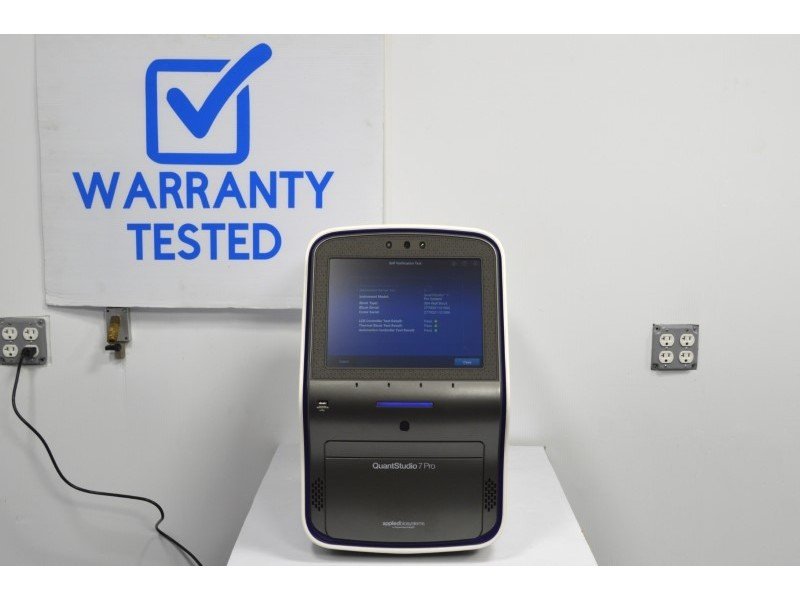

This Thermo ABI QuantStudio 7 Pro Real-Time PCR system is in good working order and also has good cosmetic condition.

Please see the exact video and photos below.

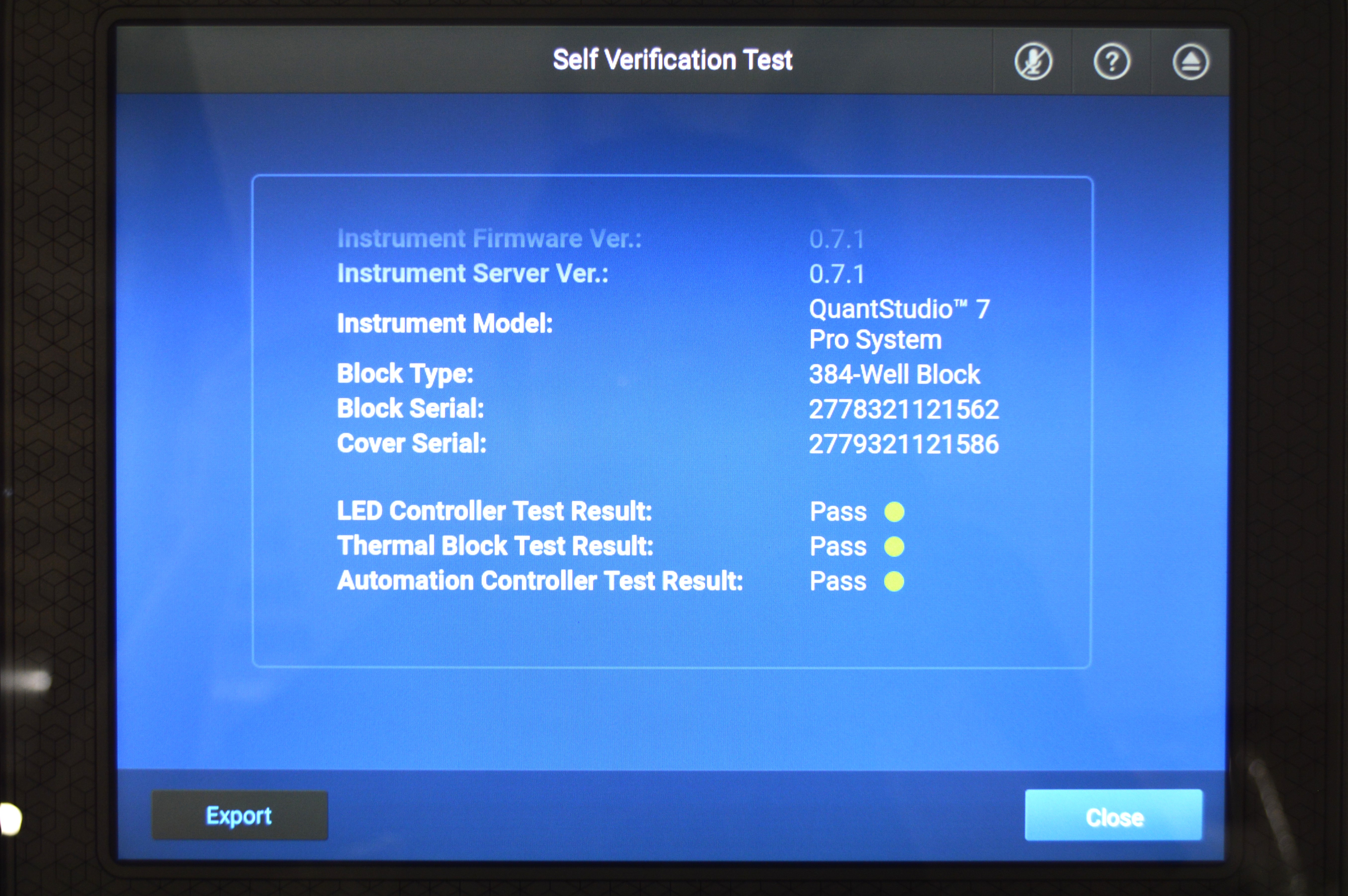

Testing we performed:
The Thermo ABI QuantStudio 7 Pro Real-Time PCR system passed all tests and was found to be fully functional:
Preventative Maintenance (PM) & Calibration Performed.
Power on: PASSED
Initialization: PASSED
Touch screen: PASSED
Tray test: PASSED
Door test: PASSED
LED controller: PASSED
Thermal block: PASSED
Automation controller: PASSED
Screen test: PASSED
Speaker: PASSED
Microphone: PASSED
Camera switch on: PASSED
Face detection: PASSED
Image capture: PASSED
Depth data: PASSED
Proximity: PASSED

System consists of:
Thermo ABI QuantStudio 7 Pro Real-Time PCR
QuantStudio Pro 384-well Block
QuantStudio Pro 384-well Cover
Computer running Design & Analysis software ver2.6 (w/ monitor, keyboard, mouse)
Communication and power cables

Configuration and Setup:
Reaction Volume: 5-20uL for 384-well block
Maximum Ramp Rate 384-well: 6C/sec
Average Sample Ramp Rate 384-well 2.92C/sec
Temperature Uniformity: 0.4C; Temperature Range 4-99.9C
Block Size: 22.5 x 22.5 x 7 cm
Dimensions (D x W x H) and weight 52.5 x 33.8 x 54.7 cm; 38 kg

Heating and cooling method Peltier
Run time Less than 30 min
Calibration Engineer calibrated during installation
On board memory 10 GB, which translates to approximately 450 detailed run files can be stored
Electrical approvals IEC, CE
Excitation (light source) Bright white LED
Filter/Color combinations: 5 for QuantStudio 6 Pro system, 21 for QuantStudio 7 Pro system
Excitation/emission range 450-600 nm/500-640 nm
Detection method CMOS technology
Data acquisition Whole-plate imaging
Touchscreen 12 inch capacitive touchscreen with real-time application viewing
Online ecosystem Our free, cloud-based Connect Platform with cloud-enabled systems
Communication interface Connect Platform with cloud-enabled systems, USB, LAN, or Wi-Fi
System configuration Stand-alone, PC connected, or direct connection via LAN or Wi-Fi to the Connect Platform

VeriFlex Zones provide independent temperature zones that offer enhanced functionality and precise control over your real-time PCR runs.
The independent zones are ideal for real-time PCR optimization. They also provide the ability to perform multiple runs at the same time.
Unlike standard gradients which give a sigmoidal temperature curve across the columns, blocks with VeriFlex Zones help deliver accurate temperatures across every zone.
The QuantStudio 6 Pro System has three VeriFlex Zones. The QuantStudio 7 Pro System has six VeriFlex Zones. (Quoted from user guide)

Video Description:
The video gives an overview of the Thermo ABI QuantStudio 7 Pro Real-Time PCR system, and also performs functionality.

Datasheet: Thermo ABI QuantStudio 7 Pro Real-Time PCR

Brochure: N/A

Manual: Thermo ABI QuantStudio 7 Pro Real-Time PCR

This will ship via freight. Please contact us with your zip code to obtain shipping quote.

*ME* Medium Crate

Please do not hesitate to contact us if you have any questions.

All equipment warranty request must have a support case opened within the 60-day warranty period.
To open a support case, please send an email to [email protected] or call (508)974-4896.
Please provide your name, contact information, quotation/invoice number and a brief description of the issue that you are experiencing.
Phone and/or Email support will be provided prior to scheduling a return.
Please see the link below for our detailed warranty statement.
Customers must retain all original shipping materials during the warranty period.

Every instrument has unique packing and shipping needs. Few instruments can be safely shipped via Pacel, and most require the safety of a well-built crate.

Here we are showing you our standard packing process

      1. All items are different, but they all follow the same principle when packaging.

      2. Start with a well-constructed crate

A well-constructed crate would consist of 1/2” to 5/8” Plywood with framing. We generally purchase our crates from a third party who specializes in custom crates.

      3. You always want the Instrument to not be directly on the wood deck of the crate. This is done by placing it on foam, inside of the crate. We use 2” 1.7 lb. density foam which works great. It provides cushioning and enough firmness to support the Instrument.

      4. The next step is to make sure there is nothing on the deck of the Instrument and the Head/ Arm is secured. In some cases there will be multiple arms to secure but for this example there is only one. The reason for this is so there is no free movement during transit which could cause serious damage to the Instrument.

      5. The next step is to make sure your Instrument is covered in either a pallet bag or shrink wrap so no dust or foreign object will get into the crate.

      6. The next step is to secure the instrument inside the crate by bracing. We use a method of 2x4’s which have 1” foam shrink wrapped to them so no piece of wood touches the actual instrument.

      7. Final step is to photograph everything inside the crate and then seal it with screws.
