Molecular Devices SpectraMax M2 Multi-Mode Microplate Reader Unit2 - AV

Molecular Devices SpectraMax M2 Multi-Mode Microplate Reader Unit2 - AV
Molecular Devices SpectraMax M2 Multi-Mode Microplate Reader Unit2 - AV

We apologize this Instrument is currently
out of stock

Please submit a request, we will notify you if another one comes in stock. Thank you!

Approved Vendor to many US, Canada, and EU Universities
US & International Shipping





$0.00

Request Quote


or receive


Additional Information

SOLD
CLICKABLE TABS BELOW

Here is Molecular Devices SpectraMax M2 Multi-Mode Microplate Reader Unit2

Predecessor to:
Current model

Condition:
This Molecular Devices SpectraMax M2 Multi-Mode Microplate Reader is in good working condition.

Please see exact video and photos below.

Testing we performed:
The Molecular Devices SpectraMax M2 Multi-Mode Microplate Reader passed all tests and was found to be fully functional:
Tested power and initialization: PASSED
Tested incubation temperature up to maximum (45DegC): PASSED
Tested plate carrier functionality: PASSED
Tested touchpad LCD screen and button functionality: PASSED
Tested communication with software: PASSED
Tested fluorescence using Flourecence test plate: PASSED
Tested absorbance using Absorbance test plate: PASSED
Tested Luminescence plate: PASSED

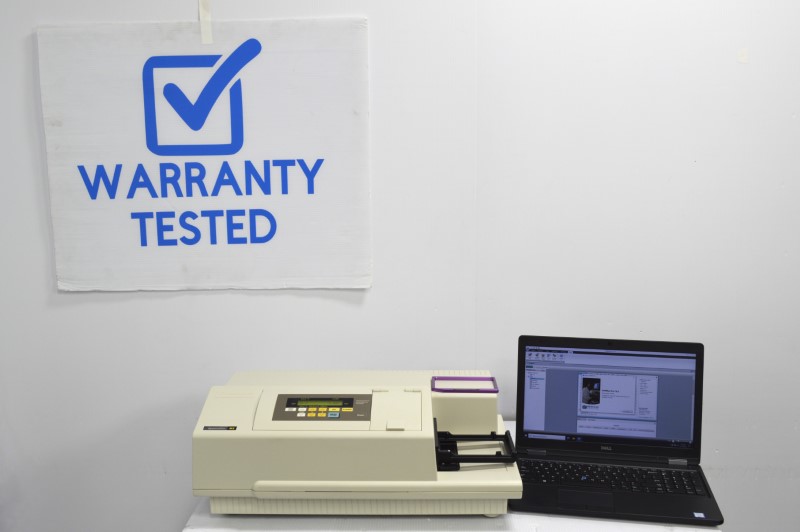

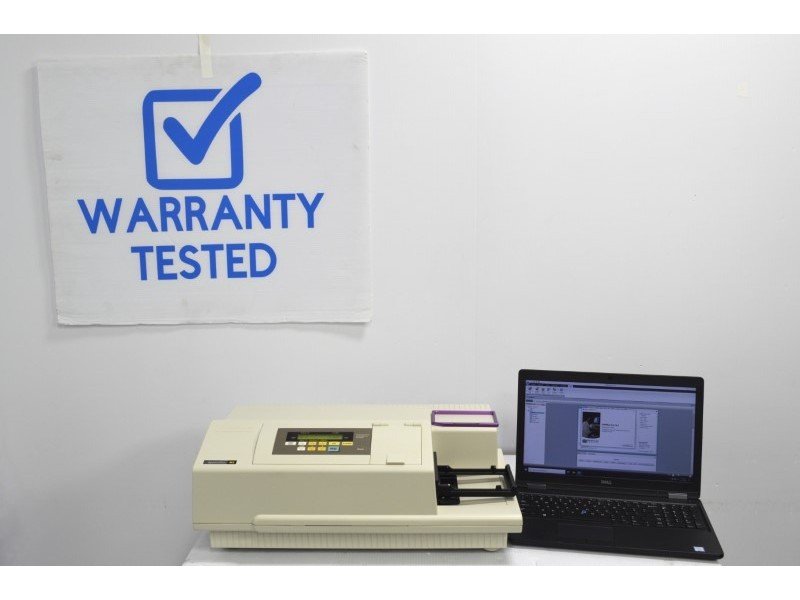

System consists of:

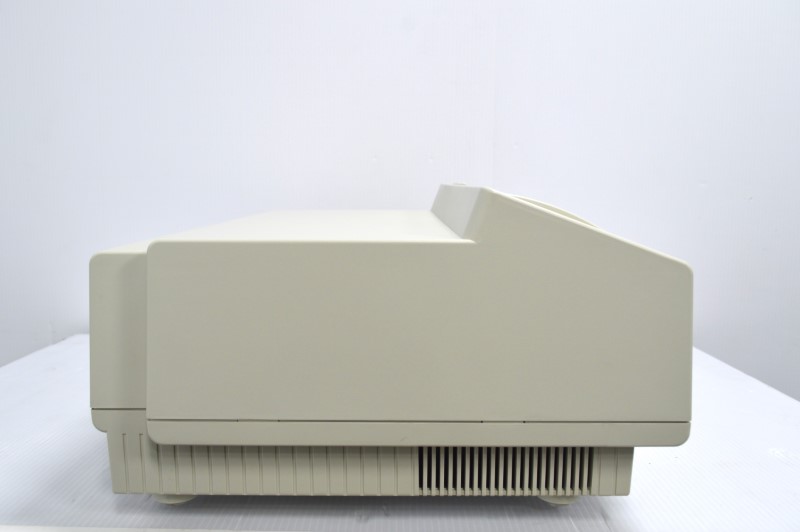

Molecular Devices SpectraMax M2 Multi-Mode Microplate Reader

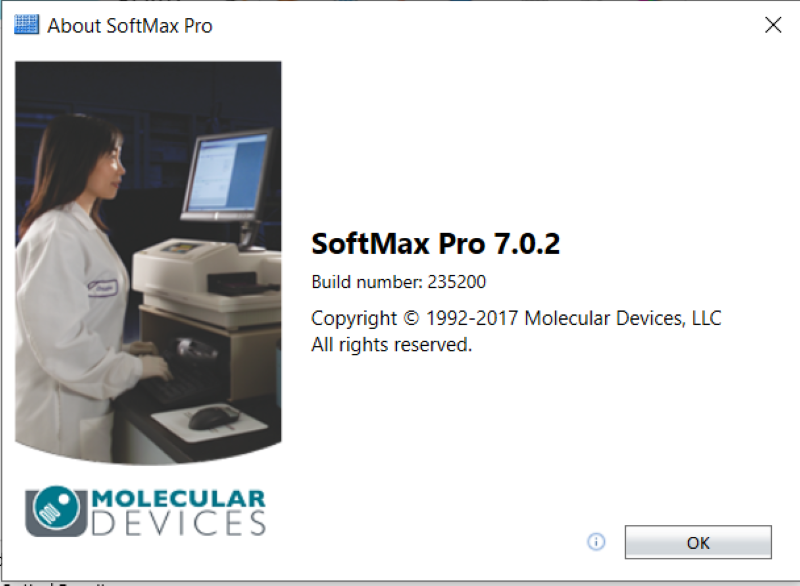

Computer running trial of Softmax software v7.0 (Please note: Software subscription from MDC required).
It is around 2400 per year for commercial use or a university rate of 600-700 per year. You will need to reach out to the manufacturer for exact pricing.

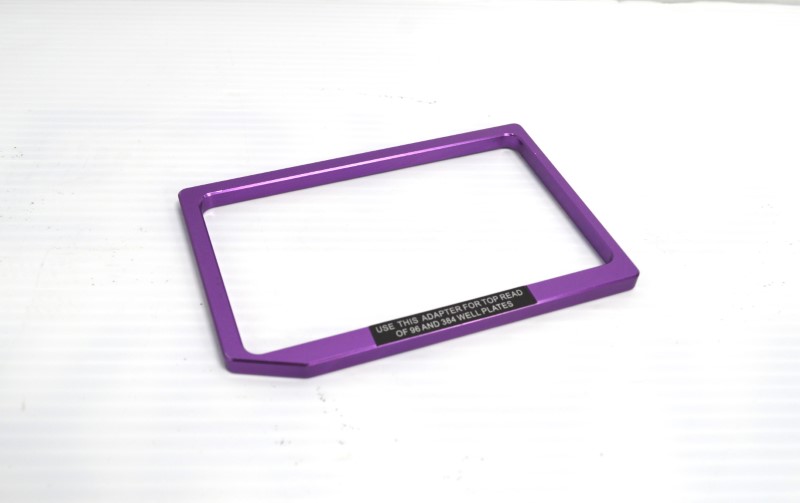

Top read plate adapter for 96- and 384-well plates
Power and communication cables

Configuration and Setup:
Detection Modes: absorbance (UV-Vis Abs), fluorescence intensity (FI) and luminescence (L) (in secondary mode)
Detection Ranges: absorbance 200-1000nm, fluorescence Ex: 250-850nm / fluorescence Em: 360-850nm, luminescence: 360–850 nm
Microplate Formats: 6- to 384-well plates (including 96-well plates)
Temperature Control: ambient from +4 to 45DegC
Reading Capabilities: cuvette or microplate

Video Description:
The video below gives an overview of the Molecular Devices SpectraMax M2 Multi-Mode Microplate Reader, and also demonstrates its functionality.

Documentation:

Datasheet: N/A

Brochure: Molecular Devices SpectraMax M2 Multi-Mode Microplate Reader

Manual: Molecular Devices SpectraMax M2 Multi-Mode Microplate Reader

This will ship via freight. Please contact us with your zip code to obtain shipping quote.

*SM* Small Crate
200#

Please do not hesitate to contact us if you have any questions.


Model:Molecular Devices SpectraMax M2 Multi-Mode Microplate Reader
Read types:Endpoint, kinetic, spectrum and area-well scanning read types
Application:• DNA/RNA/protein quantitation and purity
• PicoGreen/NanoOrange/Bradford
• ELISAs/enzyme kinetics (i.e., Km, Ki, etc.)
• Drug dissolution profiles
• Live/Dead Viability/cytotoxicity assays
• Caspase-3 and protease assays
• Low volume applications
Read modes:• Absorbance (UV-Vis ABS)
• Fluorescence (FI)
• Luminescence (L) (secondary mode)
Detectors:Photo multiplier tube (PMT)
Light sources:Xenon Flash Lamp
Wavelength range, nm:• ABS: 200–1000 nm
• FI: Ex 250–850 nm, Em 360–850 nm
• Lum: 360–850 nm
Wavelength selection:Dual monochromators, tunable in 1 nm increments
Sensitivity:• ABS: Photometric range: 0–4.0 OD; resolution: 0.001 OD; accuracy(microplate): < ±0.006 OD ±1.0%, 0–2 OD; accuracy (cuvette): < ±0.005 OD ±1.0%, 0–2 OD; precision < ±0.003 OD ±1.0%, 0–2 OD
• FI: 5 pM (fluorescein) in 96 wells
• Lum: 50 fM alkaline phosphatase
Plate format:6- to 384-well plates (including 96 wells)
Plate read time:• 96-well plate: ABS: 18 seconds, FI: 15 seconds;
• 384-well plate: ABS: 49 seconds, FI: 45 seconds
Shaking:Linear with automix function
Temperature control:from 4C above ambient up to 45C
Data analysis software:SoftMax Pro 7 software
Weight:35 lbs. (15.9 kg)
Dimensions (HxWxD):8.6 in x 22.8 in x 15 in / 22cm x 58cm x 38cm
Power requirements:100–240 VAC, 50/60 Hz
Features:• Multi-detection capability
• Top read plate adapter for 96- and 384-well plates
• Dual-mode cuvette port
• Dual monochromators
• PathCheck and well volume sensor
• Instrument and software validation
• Robot compatible



We understand that every instrument has unique packing and shipping requirements; our team understands that no one wants to spend thousands of dollars and receive a damaged instrument.

Our process involves evaluating every instrument to determine the safest shipping method and the best process for packing.

We generally ship parcels either via UPS or freight for all larger goods.

Whenever we ship freight, we use an ISPM-15 wooden crates or pallets made from ½” plywood and 1x4 framing. (Our crates are Internationally Compliant).

On freight shipments, we use 2” 1.7 lb. density foam, which provides excellent cushioning and support for the instrument.

Instruments are safely braced inside the crates. We use solid boards with 1” foam shrink-wrapped around them, which provides cushioning in all directions and holds instruments firmly in place.

Final step is to photograph everything inside the crate and then seal it with screws.
