Molecular Devices SpectraMax M2 Multi-Mode Microplate Reader - AV

Molecular Devices SpectraMax M2 Multi-Mode Microplate Reader - AV
Molecular Devices SpectraMax M2 Multi-Mode Microplate Reader - AV
$7,995.00
TO INQUIRE ABOUT THIS ITEM
OR RECEIVE A QUOTE
PLEASE CLICK HERE
Add to Cart
CLICKABLE TABS BELOW

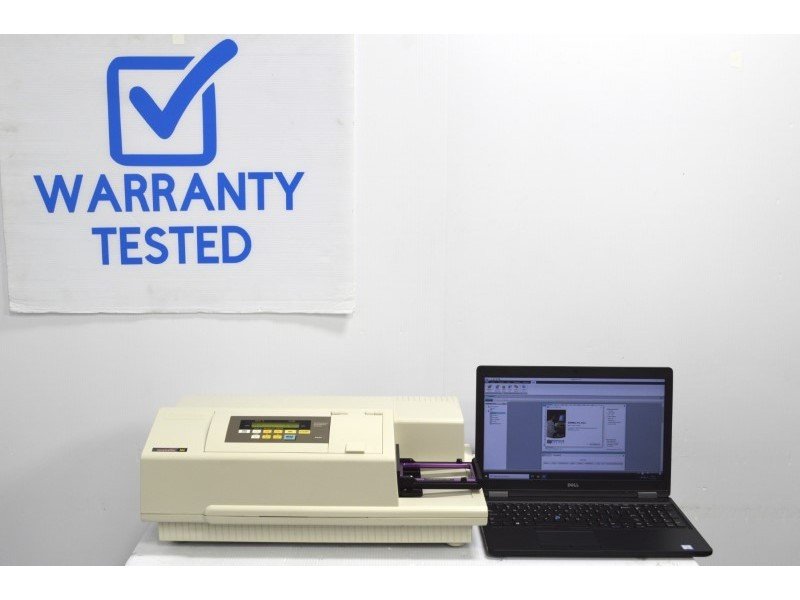

Here is Molecular Devices SpectraMax M2 Multi-Mode Microplate Reader

Predecessor to:
Current model

Condition:
This Molecular Devices SpectraMax M2 Multi-Mode Microplate Reader is in good working condition.

Please see exact video and photos below.

Testing we performed:
The Molecular Devices SpectraMax M2 Multi-Mode Microplate Reader passed all tests and was found to be fully functional:
Tested power and initialization: PASSED
Tested incubation temperature up to maximum (45DegC): PASSED
Tested plate carrier functionality: PASSED
Tested touchpad LCD screen and button functionality: PASSED
Tested communication with software: PASSED
Tested fluorescence using Flourecence test plate: PASSED
Tested absorbance using Absorbance test plate: PASSED
Tested Luminescence plate: PASSED

System consists of:
Molecular Devices SpectraMax M2 Multi-Mode Microplate Reader
Computer running trial of Softmax software v7.0 (Please note: Software subscription from MDC required).
It is around 2400 per year for commercial use or a university rate of 600-700 per year. You will need to reach out to the manufacturer for exact pricing.

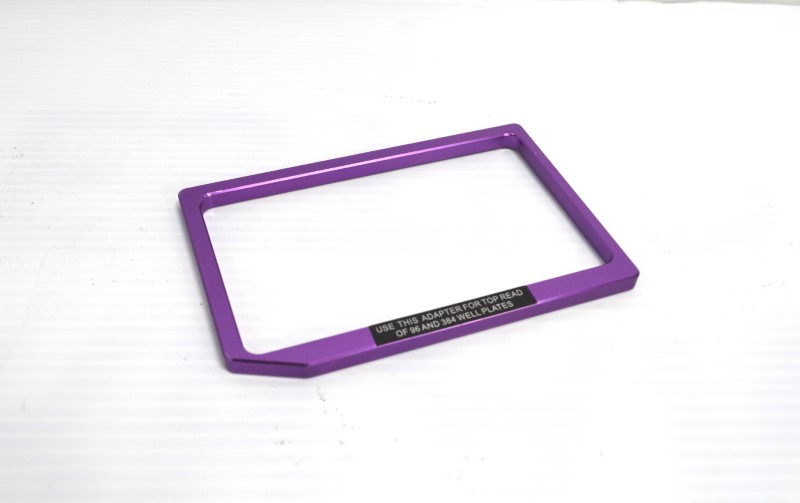

Top read plate adapter for 96- and 384-well plates
Power and communication cables

Configuration and Setup:
Detection Modes: absorbance (UV-Vis Abs), fluorescence intensity (FI) and luminescence (L) (in secondary mode)
Detection Ranges: absorbance 200-1000nm, fluorescence Ex: 250-850nm / fluorescence Em: 360-850nm, luminescence: 360–850 nm
Microplate Formats: 6, 12, 24, 48, 96, 384
Temperature Control: ambient from +4 to 45C
Reading Capabilities: cuvette or microplate

Video Description:
The video below gives an overview of the Molecular Devices SpectraMax M2 Multi-Mode Microplate Reader, and also demonstrates its functionality.

Documentation:

Datasheet: N/A

Brochure: Molecular Devices SpectraMax M2 Multi-Mode Microplate Reader

Manual: Molecular Devices SpectraMax M2 Multi-Mode Microplate Reader

This will ship via freight. Please contact us with your zip code to obtain shipping quote.

*SM* Small Crate
200#

Please do not hesitate to contact us if you have any questions.

Model:Molecular Devices SpectraMax M2 Multi-Mode Microplate Reader
Read types:Endpoint, kinetic, spectrum and area-well scanning read types
Application:• DNA/RNA/protein quantitation and purity
• PicoGreen/NanoOrange/Bradford
• ELISAs/enzyme kinetics (i.e., Km, Ki, etc.)
• Drug dissolution profiles
• Live/Dead Viability/cytotoxicity assays
• Caspase-3 and protease assays
• Low volume applications
Read modes:• Absorbance (UV-Vis ABS)
• Fluorescence (FI)
• Luminescence (L) (secondary mode)
Detectors:Photo multiplier tube (PMT)
Light sources:Xenon Flash Lamp
Wavelength range, nm:• ABS: 200–1000 nm
• FI: Ex 250–850 nm, Em 360–850 nm
• Lum: 360–850 nm
Wavelength selection:Dual monochromators, tunable in 1 nm increments
Sensitivity:• ABS: Photometric range: 0–4.0 OD; resolution: 0.001 OD; accuracy(microplate): < ±0.006 OD ±1.0%, 0–2 OD; accuracy (cuvette): < ±0.005 OD ±1.0%, 0–2 OD; precision < ±0.003 OD ±1.0%, 0–2 OD
• FI: 5 pM (fluorescein) in 96 wells
• Lum: 50 fM alkaline phosphatase
Plate format:6- to 384-well plates (including 96 wells)
Plate read time:• 96-well plate: ABS: 18 seconds, FI: 15 seconds;
• 384-well plate: ABS: 49 seconds, FI: 45 seconds
Shaking:Linear with automix function
Temperature control:from 4C above ambient up to 45C
Data analysis software:SoftMax Pro 7 software
Weight:35 lbs. (15.9 kg)
Dimensions (HxWxD):8.6 in x 22.8 in x 15 in / 22cm x 58cm x 38cm
Power requirements:100–240 VAC, 50/60 Hz
Features:• Multi-detection capability
• Top read plate adapter for 96- and 384-well plates
• Dual-mode cuvette port
• Dual monochromators
• PathCheck and well volume sensor
• Instrument and software validation
• Robot compatible



All equipment warranty request must have a support case opened within the 60-day warranty period.
To open a support case, please send an email to [email protected] or call (508)974-4896.
Please provide your name, contact information, quotation/invoice number and a brief description of the issue that you are experiencing.
Phone and/or Email support will be provided prior to scheduling a return.
Please see the link below for our detailed warranty statement.
Customers must retain all original shipping materials during the warranty period.

Every instrument has unique packing and shipping needs. Few instruments can be safely shipped via Pacel, and most require the safety of a well-built crate.

Here we are showing you our standard packing process

      1. All items are different, but they all follow the same principle when packaging.

      2. Start with a well-constructed crate

A well-constructed crate would consist of 1/2” to 5/8” Plywood with framing. We generally purchase our crates from a third party who specializes in custom crates.

      3. You always want the Instrument to not be directly on the wood deck of the crate. This is done by placing it on foam, inside of the crate. We use 2” 1.7 lb. density foam which works great. It provides cushioning and enough firmness to support the Instrument.

      4. The next step is to make sure there is nothing on the deck of the Instrument and the Head/ Arm is secured. In some cases there will be multiple arms to secure but for this example there is only one. The reason for this is so there is no free movement during transit which could cause serious damage to the Instrument.

      5. The next step is to make sure your Instrument is covered in either a pallet bag or shrink wrap so no dust or foreign object will get into the crate.

      6. The next step is to secure the instrument inside the crate by bracing. We use a method of 2x4’s which have 1” foam shrink wrapped to them so no piece of wood touches the actual instrument.

      7. Final step is to photograph everything inside the crate and then seal it with screws.
