Malvern Microcal PEAQ-ITC Automated Isothermal Titrating Calorimeter - AV

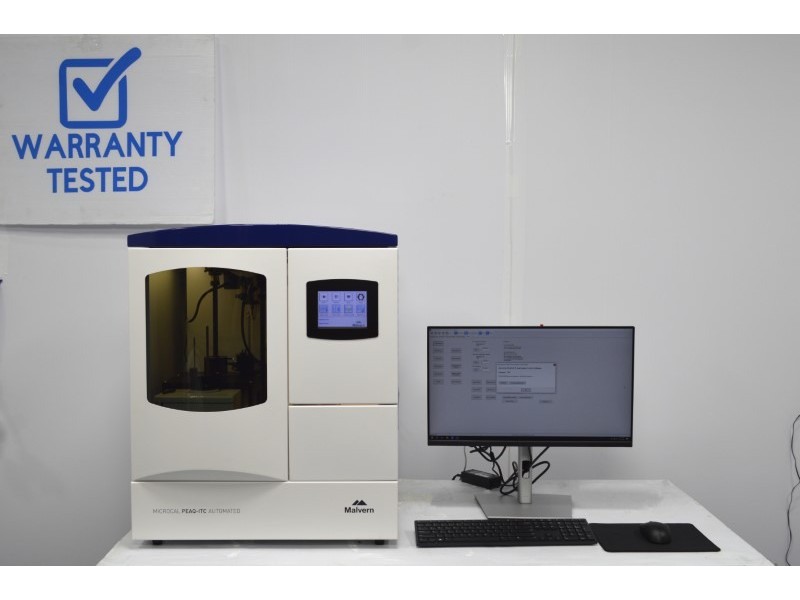

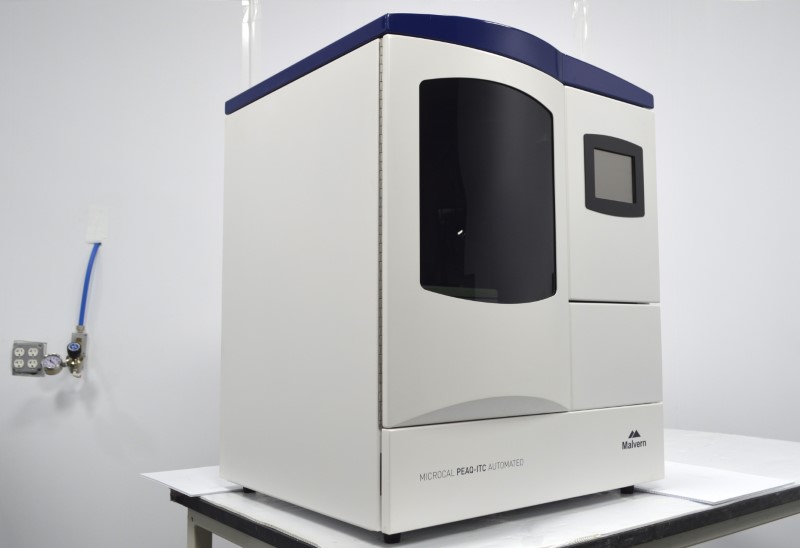

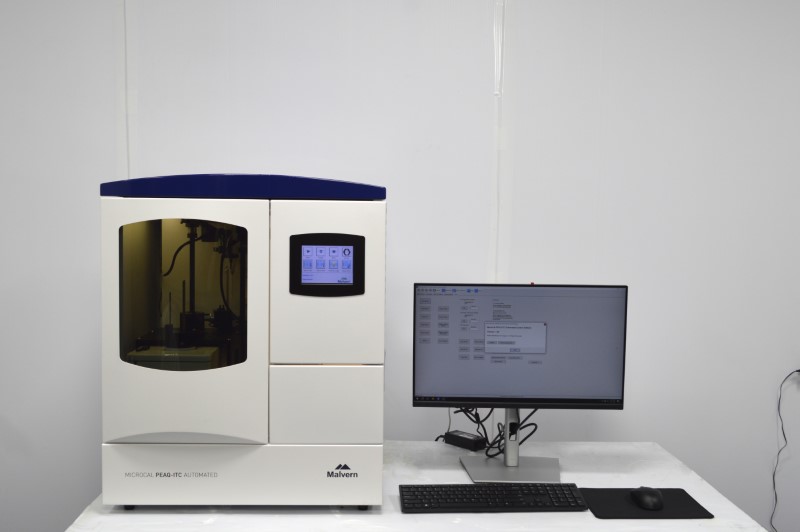

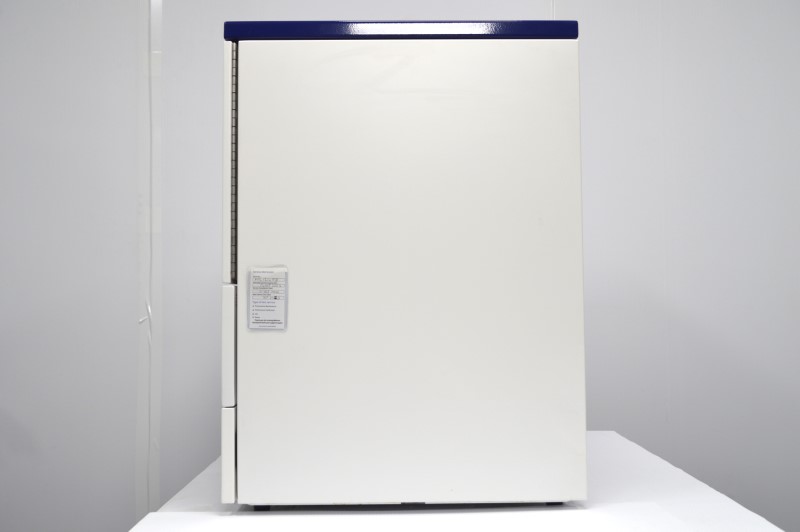

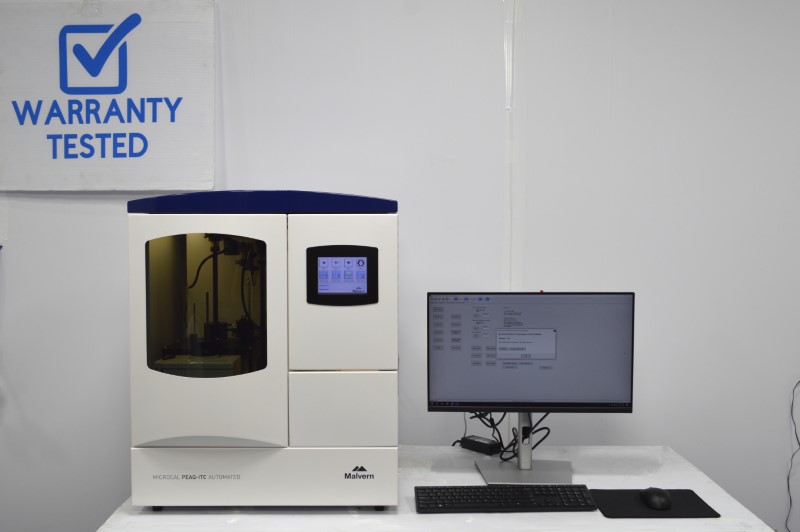

Here is a Malvern Microcal PEAQ-ITC Automated Isothermal Titrating Calorimeter

Predecessor to:
Current model

Condition:
This Malvern Microcal PEAQ-ITC Automated Isothermal Titrating Calorimeter is in good working condition

Please see the exact video and photos below

Testing we performed:
This Malvern Microcal PEAQ-ITC Automated Isothermal Titrating Calorimeter passed all tests and was found to be fully functional:
Tested the Initial boot sequence of the entire system: PASSED
Tested Homing sequence of all titration and sample arms: PASSED
Tested Manual control of door lock, chamber illumination, and cell drawer system: PASSED
Tested Microcal system to heat and cool to specification: PASSED
Tested Baseline water read to be uniform: PASSED
Tested Communication from Microcal PEAQ-ITC system to computer software: PASSED
Tested all syringe pump units: PASSED

System consists of:
GE MicroCal PEAQ-ITC Isothermal Titration Calorimetry system
Tube rack drawer lid
Computer running MicroCal ver1.5 software (with monitor, keyboard and mouse)
Communication and power cables

Configuration and Setup:
Measurement parameters: Affinity (KD), Enthalpy ?H, Entropy ?S, Stoichiometry (N)
Sample tray temp range: 4DegC +/- 2DegC ambient
Sample volume: 370 uL
Cell volume: 200 uL
Injection syringe volume: 40 uL
Injection volume precision: < 1% at 2 uL
Sample presentation: 96-well plate
Sample capacity: 384 (four 96 well plates)
Throughput: up to 42 per 24 h (SIM)
Noise: 0.15 ncal/s
Temperature Range: 2DegC to 80DegC
Temperature stability at 25DegC: ± 0.00012DegC
Response time: 8 seconds
Multiple feedback modes: Yes (passive, high gain, low gain)
Power Requirements: 100-240 V, 50/60Hz, 400W
Dimensions (W x H x D) 63 x 77 x 35 cm
Weight 91 kg

Video Description:
The video below gives an overview of the Malvern Microcal PEAQ-ITC Automated Isothermal Titrating Calorimeter and also demonstrates its functionality

Documentation:
Datasheet: N/A

Brochure: Malvern Microcal PEAQ-ITC Automated Isothermal Titrating Calorimeter

User Manual: Malvern Microcal PEAQ-ITC Automated Isothermal Titrating Calorimeter

Software Manual: Malvern Microcal PEAQ-ITC Automated Isothermal Titrating Calorimeter

This will ship via freight. Please contact us with your zip code to obtain shipping quote.

"LA" Large Crate
600#

Please do not hesitate to contact us if you have any questions.
