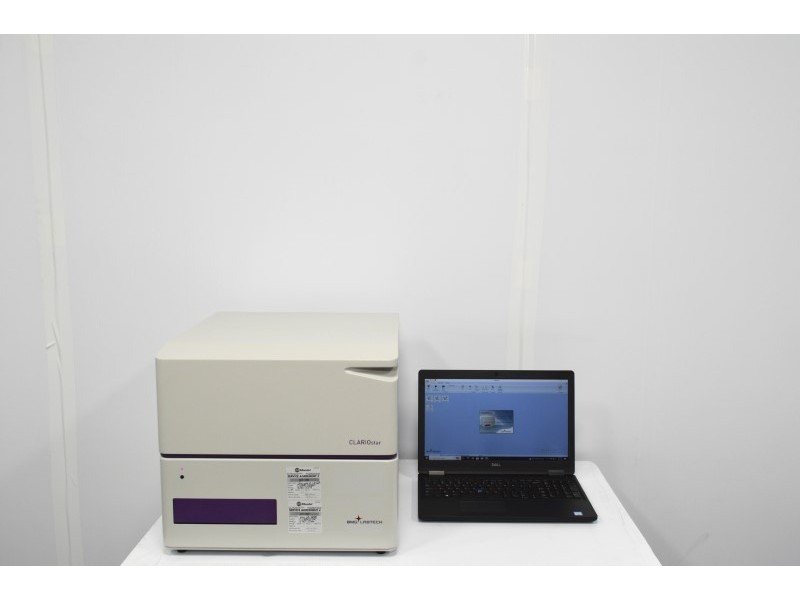

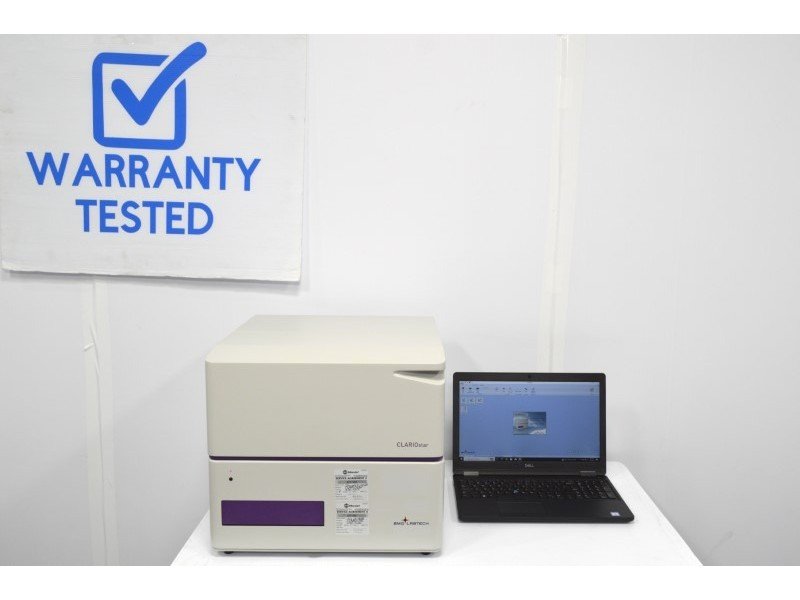

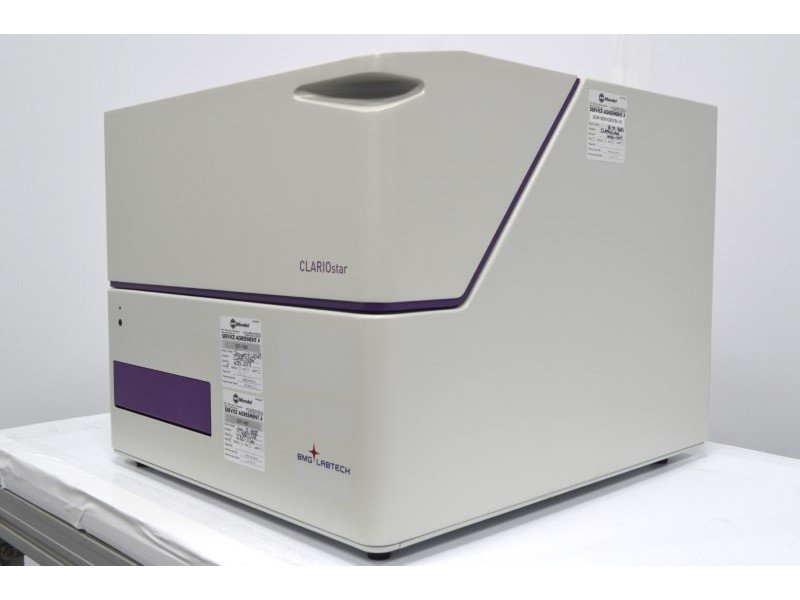

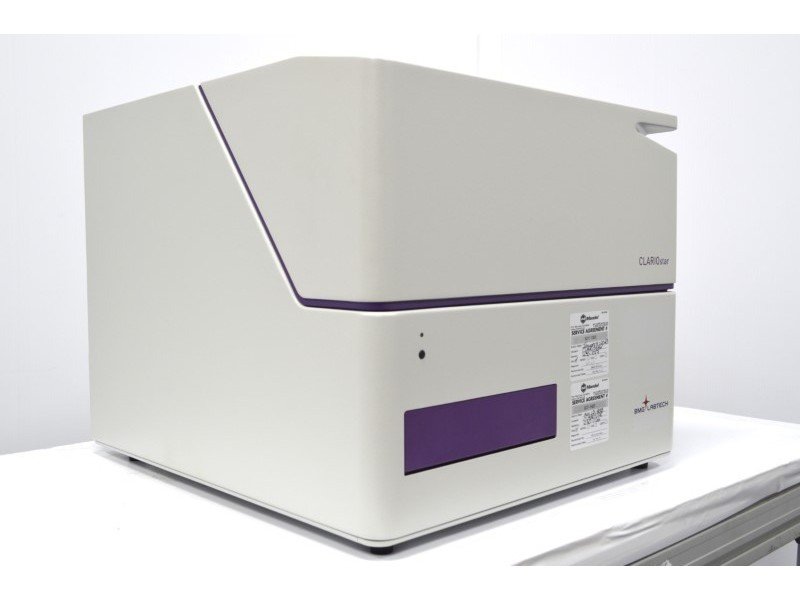

BMG Labtech CLARIOstar Microplate Reader Pred Plus - AV

Model:

BMG ClarioStar Microplate Reader

Detection modes:

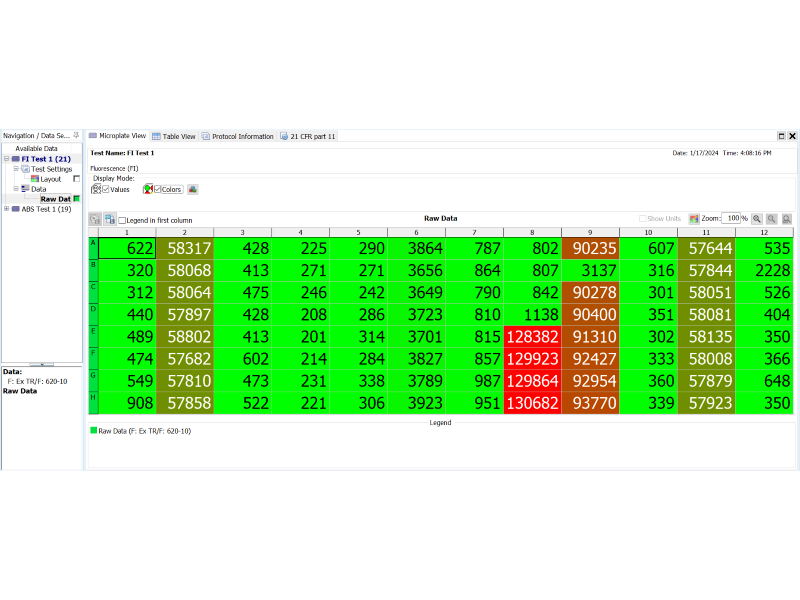

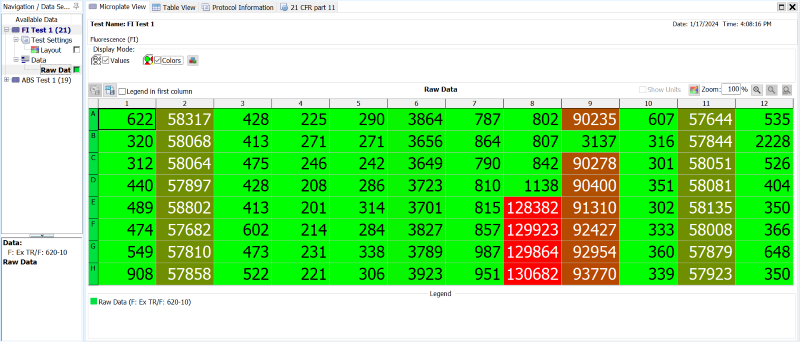

- Fluorescence Intensity - including FRET
- Luminescence (flash and glow) - including BRET

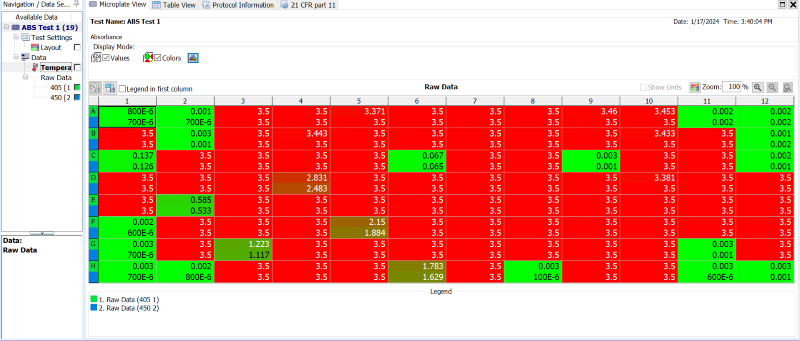

- UV/Vis Absorbance

Measurement modes:

- Top and Bottom reading
- Endpoint and Kinetic measurements
- Spectral Scanning (Fluorescence, Luminescence and Absorbance)
- Well Scanning

Data Analysis Software:

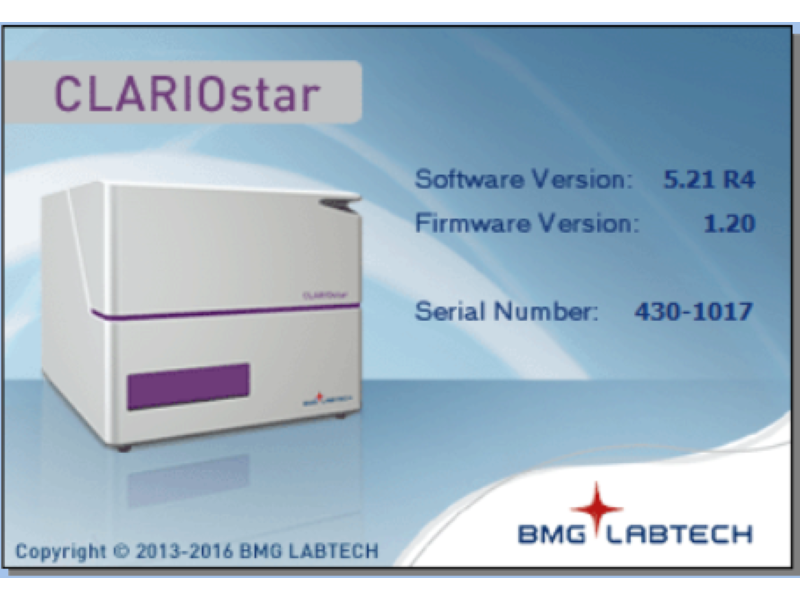

- Omega software ver5.21

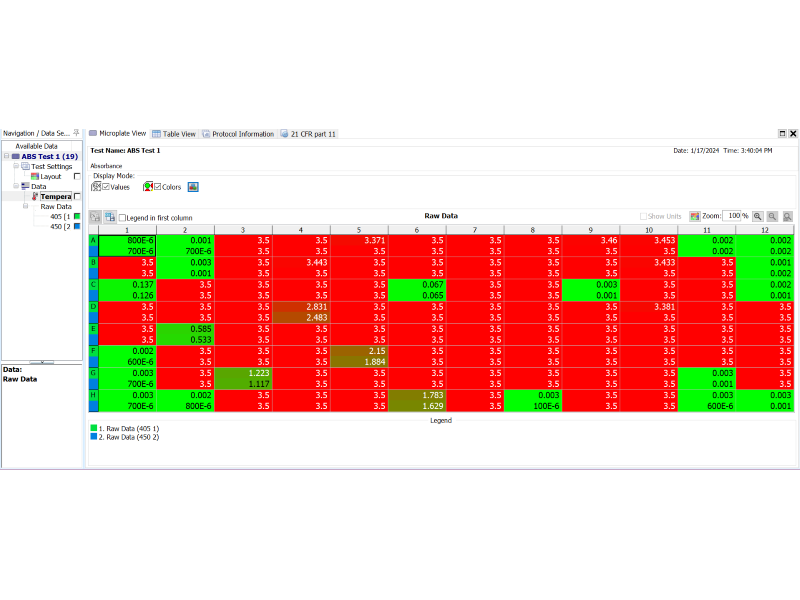

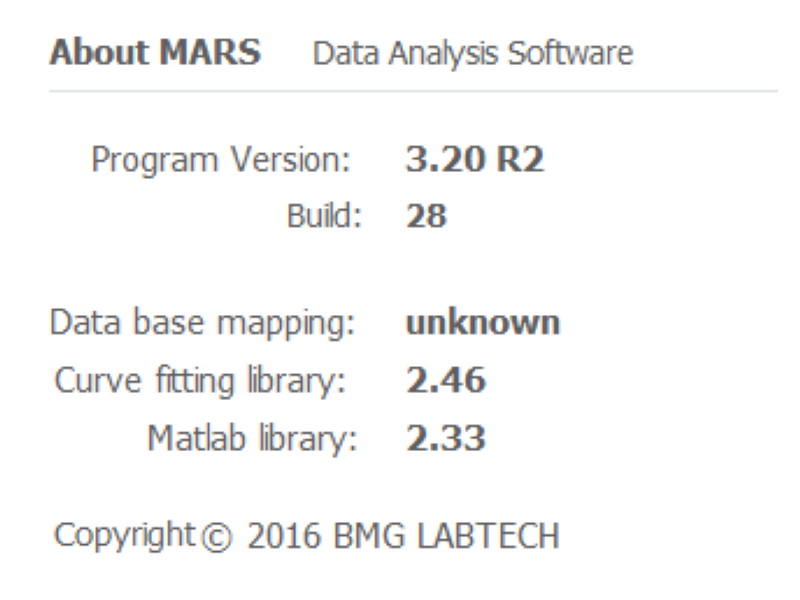

- Mars Data Analysis Software ver3.20

Light Sources:

- High-energy xenon flash lamp

Detectors:

- Low noise photomultiplier tube (PMT)
- UV/Vis Absorbance spectrometer

Dual LVF Monochromator:

- Fluorescence Top and Bottom
- Luminescence Top and Bottom
- Fluorescence Excitation / Emission Spectral Scanning
- Luminescence Emission Spectral Scanning
- Spectral Range: 320 - 730 nm (selectable increments from 0.1 to 10 nm)
- Software Selectable Bandwidths: 8 - 100 nm

UV/Vis Absorbance Spectrometer:

- Spectral Scanning or up to 8 discrete wavelengths in less than 1 sec / well
- Spectral Range: 220 - 1000 nm (selectable increments from 1 to 10 nm)
- Bandwidth: 3 nm

Sensitivity:

- FI Filters (top): 0.4 pM Fluorescein, 384sv, 20uL (< 8 amol/well)
- FI Filters (bottom): 1.0 pM Fluorescein, 384, 50uL (<50 amol/well)
- FI Monochromator (top): 0.5 pM Fluorescein, 384sv, 20uL (< 10 amol/well)
- FI Monochromator (bottom): 3.0 pM Fluorescein, 384, 50uL (< 150 amol/well)0
- LUM: < 0.4 pM ATP, 384sv, 20 uL (< 8 amol/well); Dynamic Range: 7 decades
- ABS with Specrometer: Accuracy: < 1% at 2 OD; Precision: < 0.5% at 1 OD and < 0.8% at 2 OD; Dynamic Range: 0 - 4 OD

Plate format:

- 6- to 384-well plates, (including 96-well format); LVis Plate with 16 microspots (2 uL)

Plate Read Time:

- 1 flash: 8s (96), 15s (384)

Reagent Injectors:

- Up to two built-in reagent injectors
- Injection into 6-well up to 384-well plates
- Individual injection volumes for each well (3 to 350 uL)
- Variable injection speed
- Up to four injection events per well
- Reagent back flushing

Temperature Control:

- Incubation range from 3DegC above ambient to 45DegC
- Temperature monitoring

Shaking:

- Double orbital, orbital and linear shaking
- Programmable shake time and speed

Weight:

32 kg

Dimensions (HxWxD):

40 x 45 x 51 cm
