- Stock: In Stock
- Brand: Bio-Rad
- Product Code: SM101638-PTC
- Condition: Pre-Owned
For Sale Bio-Rad QX600 AutoDG Droplet Digital PCR System w/ Plate Sealer & PTC Tempo Thermal Cycler
- Fully Functional
- Serviced & in Stock
- Good cosmetic condition
- Technical sales consultation available
- CONTINENTAL US 120 DAYS WARRANTY & 60 DAYS INTERNATIONAL
- Includes remote instrument setup and training session

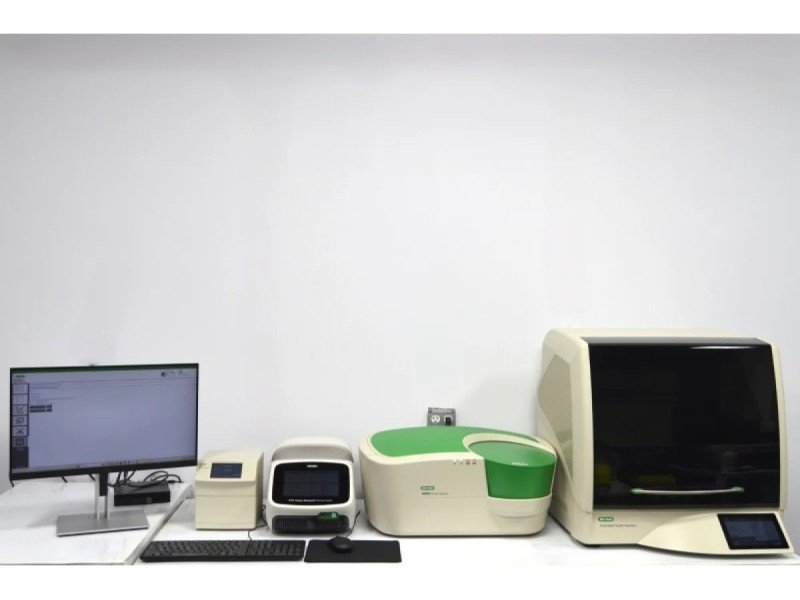

Here is what you will receive:
- Bio-Rad QX600 Droplet Reader
- Bio-Rad AutoDG Automated Droplet Generator
- PX1 Plate Sealer
- PTC Tempo Deepwell Thermal Cycler
- Computer with Bio-Rad software
- Communication and power cables
QX600 AutoDG Droplet Digital PCR System Configuration:
Automated Droplet Generator: (does not include cooling block)
- Starting sample size: 20 ul
- Capacity: 1-96 samples/run
- Droplets per sample: 20,000
QX600 Droplet Reader:
- Quantification of 12 targets in a single well
- Absolute quantification with 0.1% or better sensitivity
- Capacity: 1-96 samples/run
- Sample illumination: light-emitting diodes
- Sample detection: avalanche photodiodes
- 6 Detection channels: FAM (EvaGreen), HEX (VIC), Cy5, Cy5.5, ROX, and ATTO 590

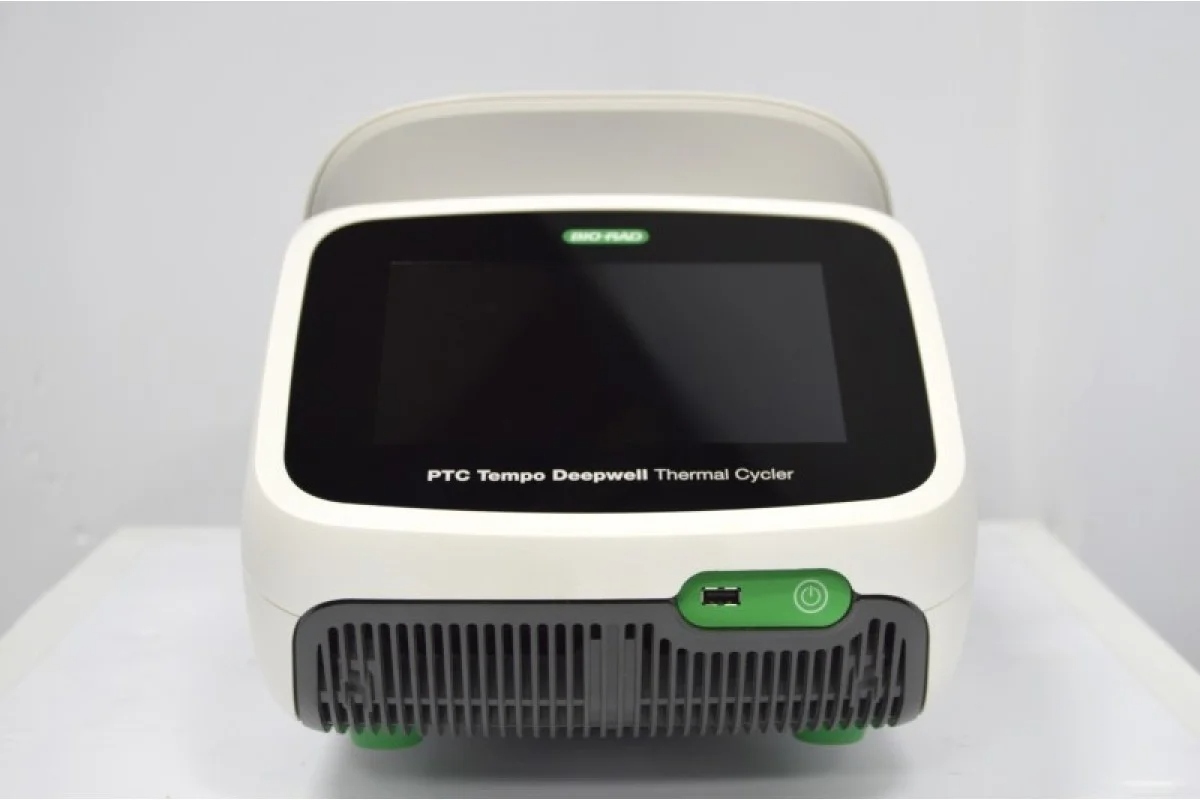

PTC Tempo Deepwell Thermal Cycler:
- Lid type: automated
- Block formats: higher volume: deepwell (0.2 and 0.5 ml)
- Sample capacity: 96 x 0.2 ml tubes, 48 x 0.5 ml tubes, or 1 x 96-well plate
- Sample volume: 1-125 ul (10-125 ul recommended)
- Maximum ramp rate: 2.5DegC/sec
- Average ramp rate: 2DegC/sec
- Temperature range: 4-100DegC
- Gradient:
- - Operational range: 30-100DegC
- - Programmable span: 8 rows, 1-24DegC
PX1 PCR Plate Sealer:
- Heat up time: <3 min
- Temperature range: 100-190 DegC
- Time range: 0.5-10s
Customization/Options: N/A
Testing performed by our in-house service team:
The QX600 AutoDG Droplet Digital PCR System passed all tests and was found to be fully functional:
- We test the power of the QX600 AutoDG ddPCR System.
- We establish communication with the system’s software.
- We prepare the test sample using the AutoDG module.
- We assess the sample cover's functionality.
- We verify accurate sample detection.
- We check the fluid and waste level sensors.
- We examine the fluid and waste door sensors.
- We check the system using the software control interface.
- We perform a thorough system flush.
- We prime the system before operation.
- We test the QX200 with test fluid to verify detector and fluidics performance.
- We evaluate the thermal cycler across its full temperature range for consistency.
- We seal the plate using the PX1 Plate Sealer.
Instrument Overview:
- The Bio-Rad QX600 AutoDG Droplet Digital PCR System with Plate Sealer & PTC Tempo Cycler offers automated droplet generation.
- This instrument streamlines plate sealing and thermal cycling for consistent digital PCR workflows.
- The system provides high droplet uniformity, improving quantification accuracy across samples.
- Bio-Rad QX600 AutoDG Droplet Digital PCR System supports high-throughput processing with minimal hands-on time.
- Integrated automation reduces variability and enhances reproducibility in demanding lab environments.
- The Bio-Rad QX600 AutoDG Droplet Digital PCR System with PTC Tempo Cycler enables reliable nucleic acid quantification.
Instrument Application:
- Absolute quantification of target DNA or RNA
- Detection of rare mutations or low-abundance variants
- Copy number variation (CNV) analysis
- High-precision viral load quantification
The Key Features:
- Automated droplet generation
- High-sensitivity digital PCR
- Rapid plate sealing workflow
- Consistent deepwell cycling
- Streamlined sample handling
- Reliable quantification results
Additional technical info:
- Manual: QX600 Droplet Reader Manual
- Manual: Bio-Rad Automated Droplet Generator Manual
- Manual: PTC Tempo Deepwell Thermal Cycler Manual
- Manual: PX1 PCR Plate Sealer Manual
Video Overview:
