Bio-Rad QX200 Droplet Digital PCR system with AutoDG Automated Droplet Generator, PX1 Plate Sealer and C1000 Touch Thermal Cycler Unit2 - AV

Here is a Bio-Rad QX200 Droplet Digital PCR system with AutoDG Automated Droplet Generator, PX1 Plate Sealer and C1000 Touch Thermal Cycler Unit2

Predecessor to:
Current model

Condition:
This Bio-Rad QX200 Droplet Digital PCR system is in good working condition.

Please see the exact video and photos below.

Testing we performed:
The Bio-Rad QX200 Droplet Digital PCR system passed all tests and was found to be fully functional:
Power: PASSED
Communication with software: PASSED
Prepared test sample using AutoDG: PASSED
Sample cover open/close: PASSED
Sample detection: PASSED
Fluid/Waste level sensors: PASSED
Fluid/Waste door sensors:: PASSED
Software controls: PASSED
Flush System: PASSED
Prime: PASSED
Ran test sample in QX200: PASSED
Tested C1000 through temperature range: PASSED
Sealed plate using PX1 PCR plate Sealer: PASSED

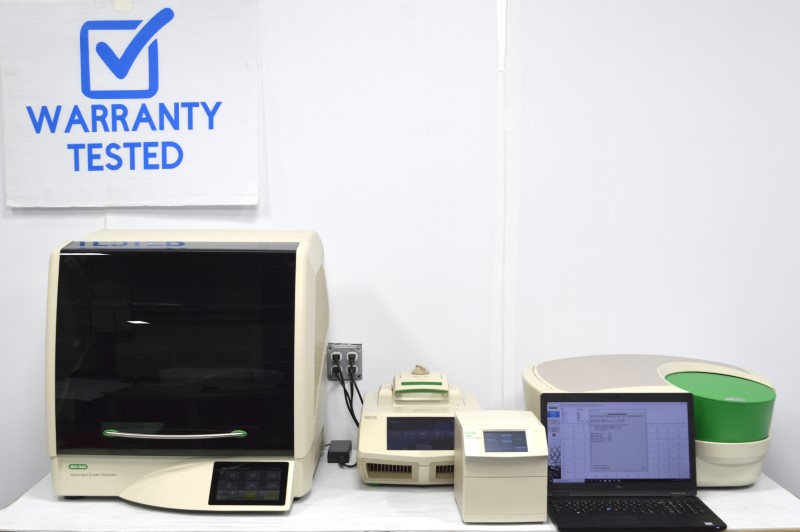

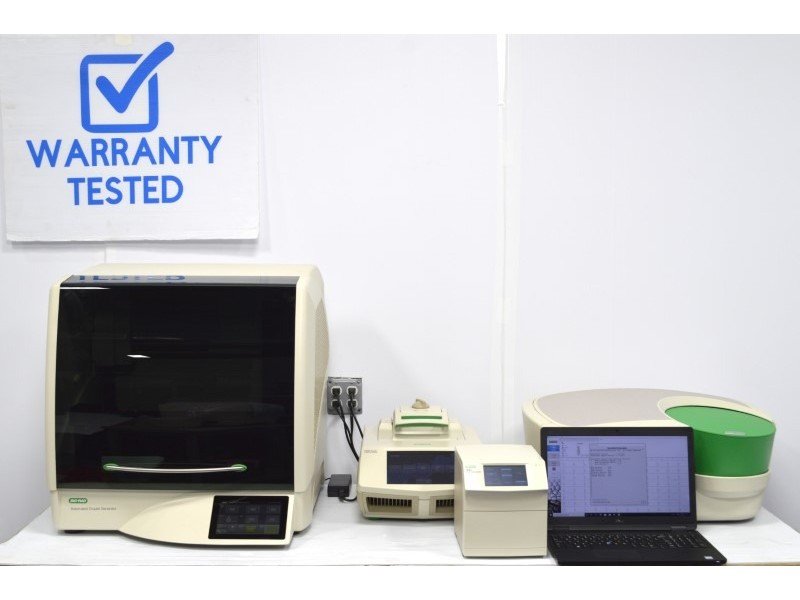

System consists of:

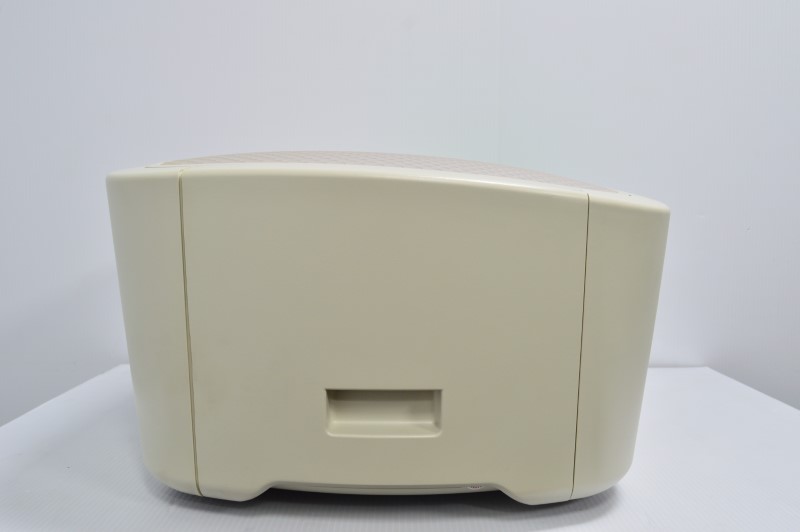

Bio-Rad QX200 Droplet Reader

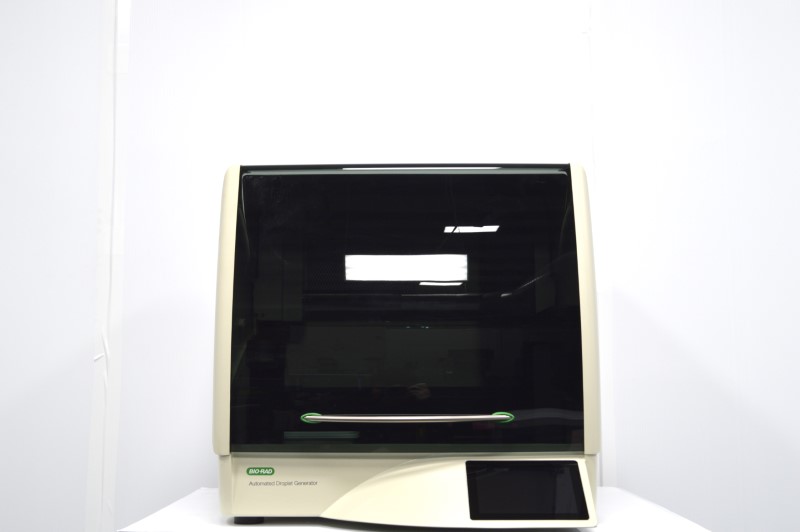

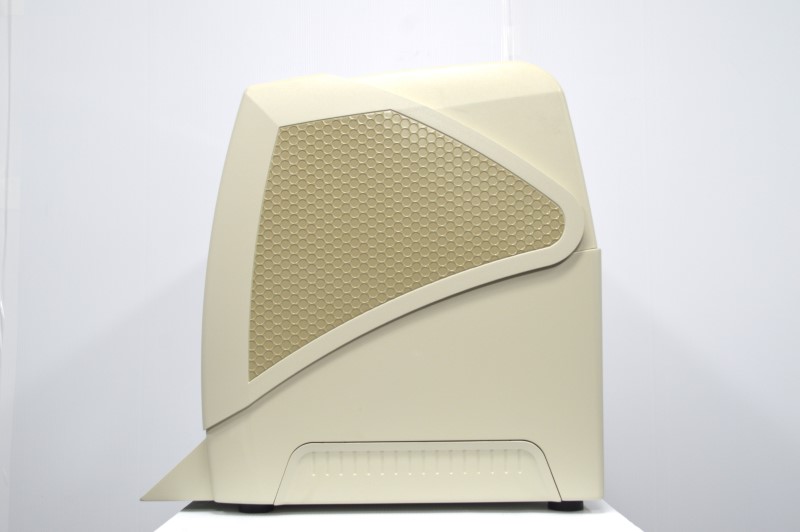

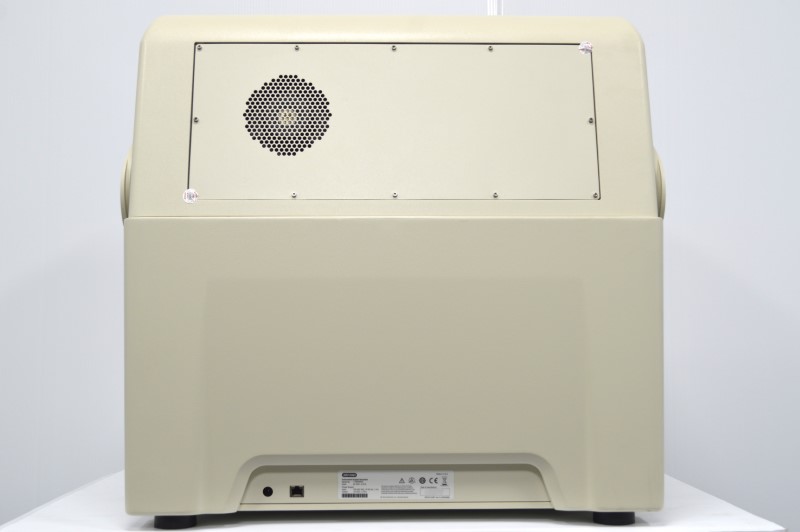

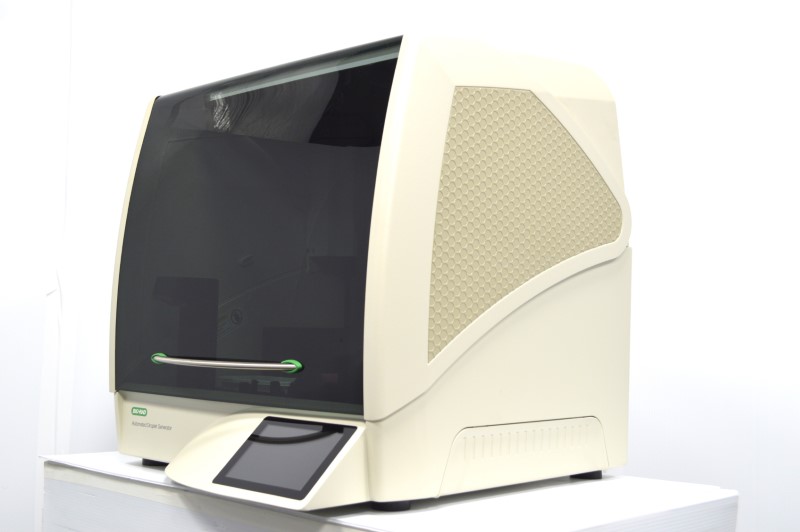

Bio-Rad AutoDG Automated Droplet Generator

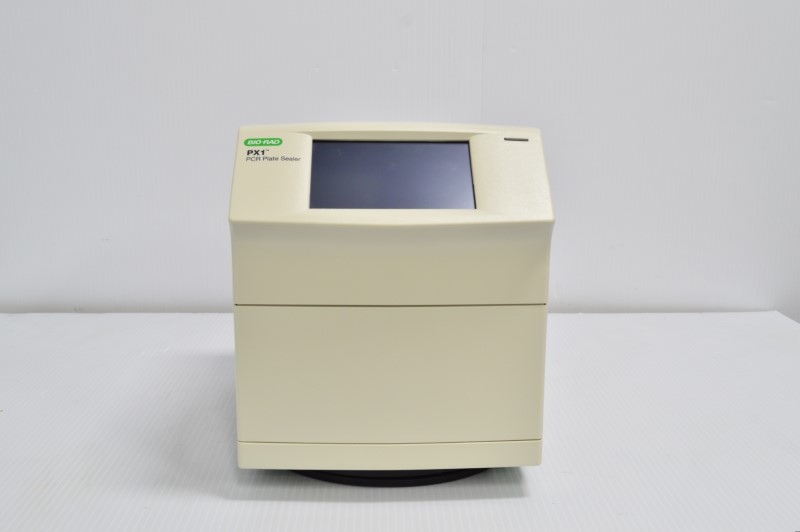

PX1 Plate Sealer

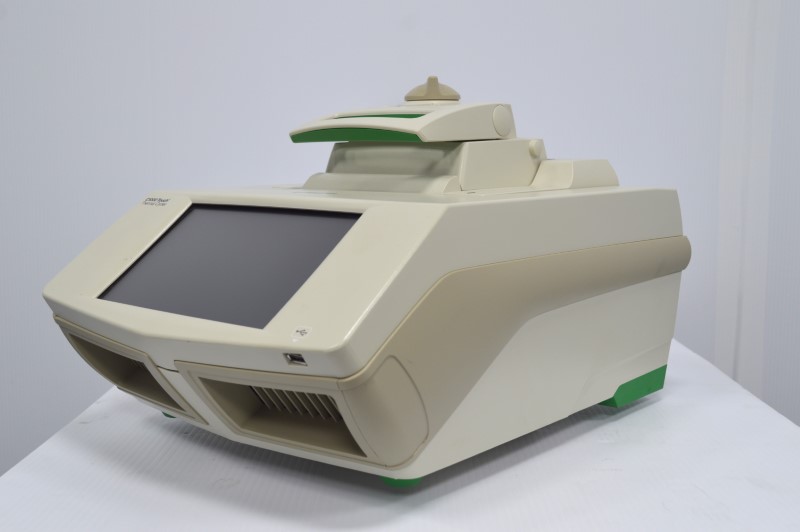

C1000 Touch Thermal Cycler

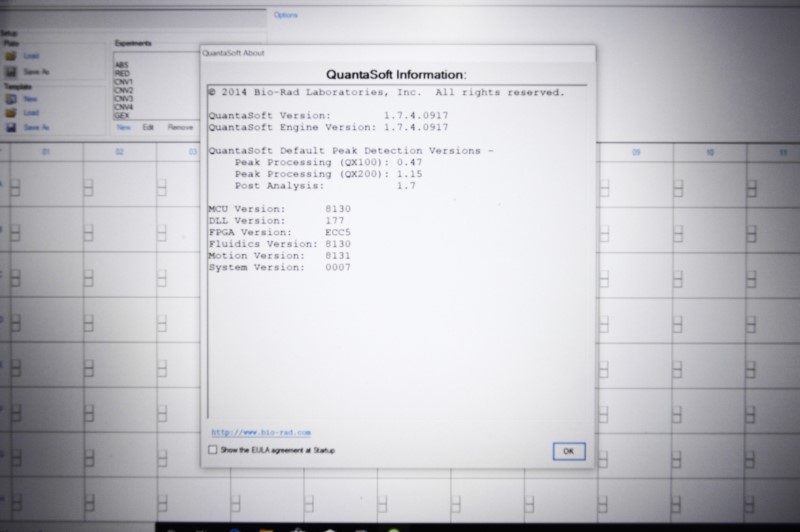

Computer with Bio-Rad software
Communication and power cables.

Configuration and Setup:

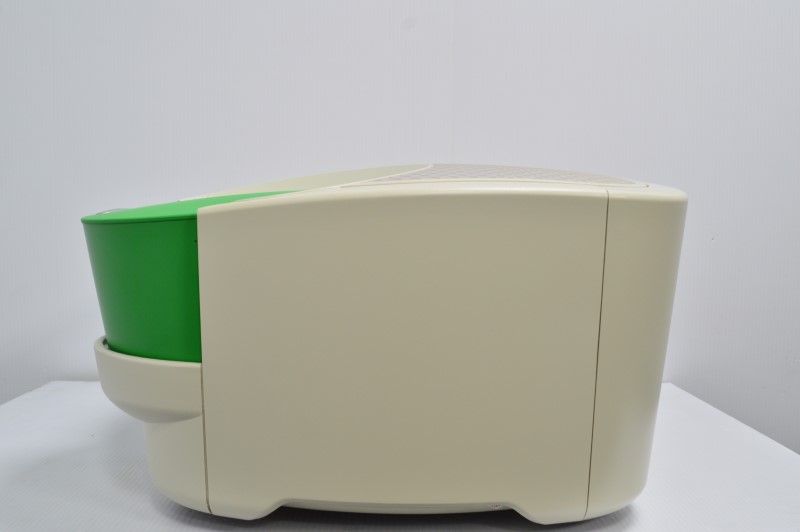

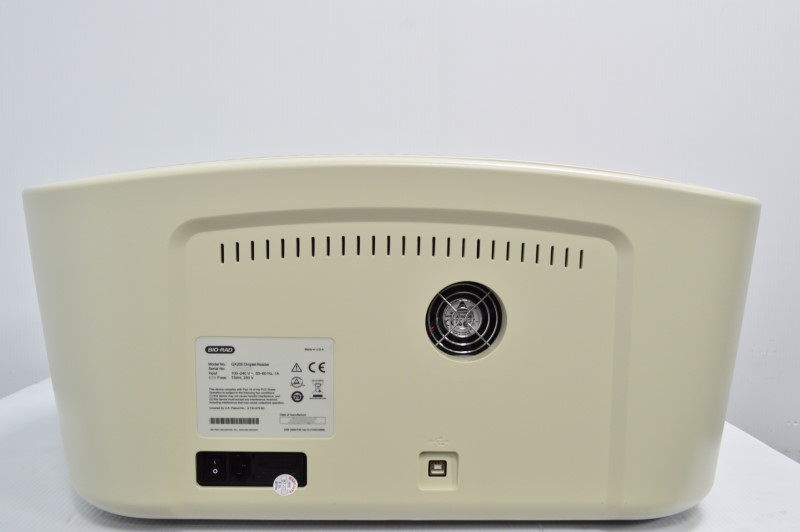

QX200 Droplet Reader
Precision: +/- 10%
Linear dynamic range: 5 orders of magnitude
Capacity: 1–96 samples
Droplets per 96-well plate: approximately 1,500,000
Sample illumination: light-emitting diodes
Sample detection: multipixel photon counter
Detection channels: FAM (EvaGreen), HEX (VIC)
Dimensions (W x D x H): 66 x 52 x 29 cm (26 x 20 x 11 in)

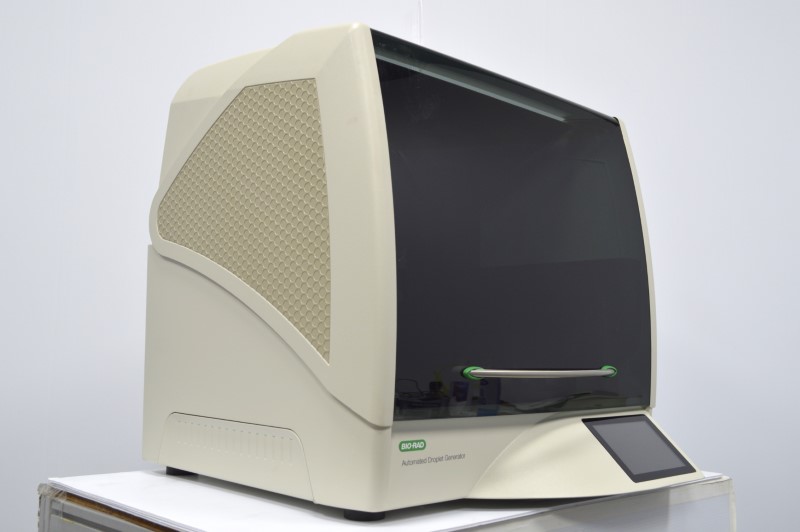

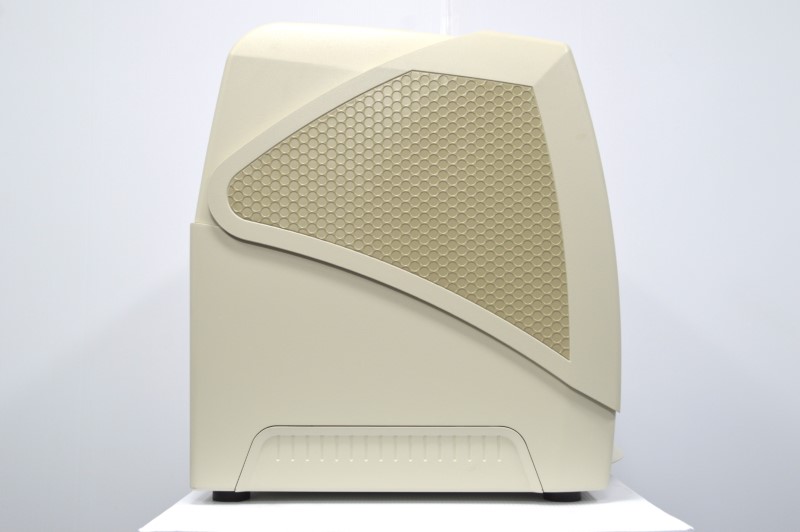

AutoDG Automated Droplet Generator
Starting sample size: 20 ul
Capacity: 1–96 samples/run
Droplets per sample: 20,000
Dimensions (W x D x H): 66 x 56 x 66 cm (26 x 22 x 26 in)
Weight: 100 lb (45.4 kg)

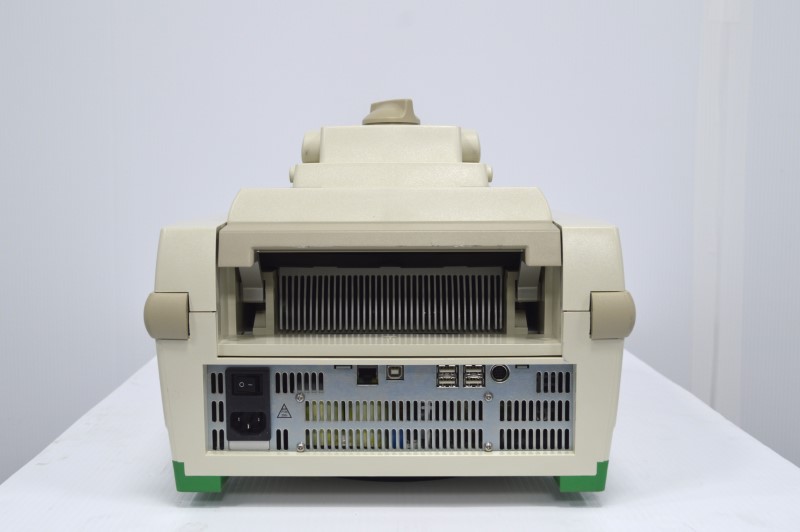

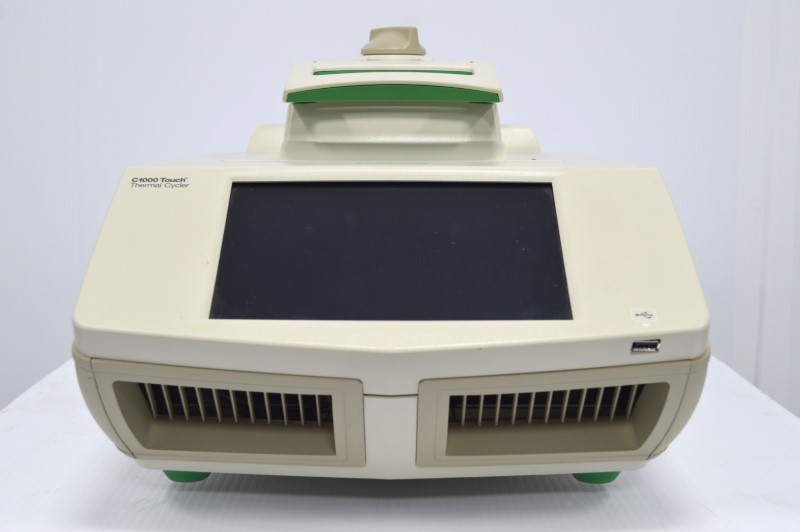

C1000 Touch Thermal Cycler
Input power: Up to 850 W maximum
Frequency: 50-60 Hz, single phase
Memory: >1,000 typical programs onboard
Temperature control modes: calculated and block
Programming options: step-based graphical and automatic
Reporting: exportable run logs, system error logs
Instant incubation
Dimensions (W x D x H): 33 x 45.5 x 20 cm (13 x 18 x 8 in)
Weight: 10.5 kg (23 lb)

PX1 PCR Plate Sealer
Heat up time: <3 min
Temperature range: 100-190 DegC
Time range: 0.5–10 s
Dimensions (W x D x H): 19.2 x 24.8 x 21.9 cm (7.6 x 9.8 x 8.6 in)
Weight: 7.3 kg (16 lb)
Power requirements: 100-240 VAC, 50/60 Hz 840 W

Video Description:
This video below gives an overview of Bio-Rad QX200 Droplet Digital PCR system with AutoDG Droplet Generator, PX1 Plate Sealer and C1000 Touch Thermal Cycler, and also demonstrates its functionality.

Documentation:
Brochure: Bio-Rad QX200 Droplet Reader

Software Manual: Bio-Rad QX200 Droplet Reader

AutoDG Manual: Bio-Rad Automated Droplet Generator

Brochure: Bio-Rad Automated Droplet Generator

Brochure: C1000 Touch Thermal Cycler

Manual: C1000 Touch Thermal Cycler

Brochure: PX1 PCR Plate Sealer

Manual: PX1 PCR Plate Sealer


This will ship via freight. Please contact us with your zip code to obtain shipping quote.

*LA* Large Crate ESQ
500#

Please do not hesitate to contact us if you have any questions.
