- Stock: SOLD
- Brand: BluecatBio
- Product Code: 53429
- Condition: Pre-Owned

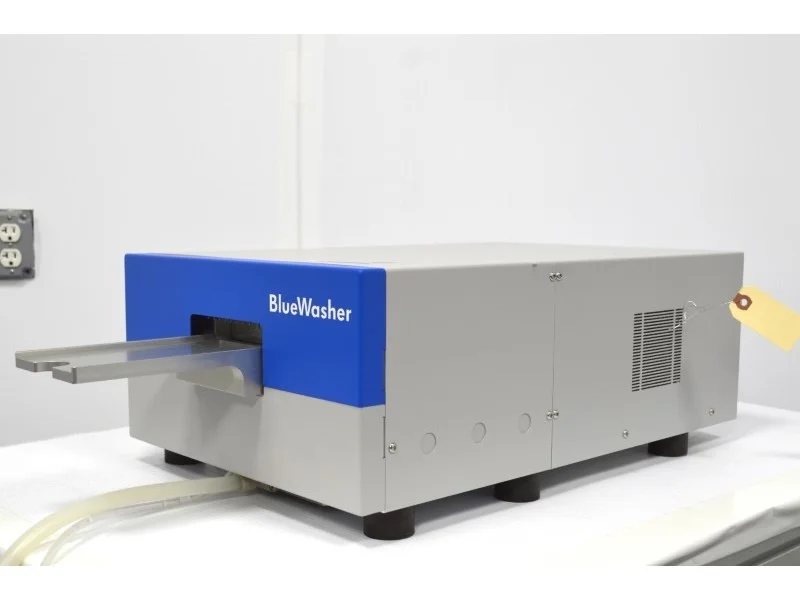

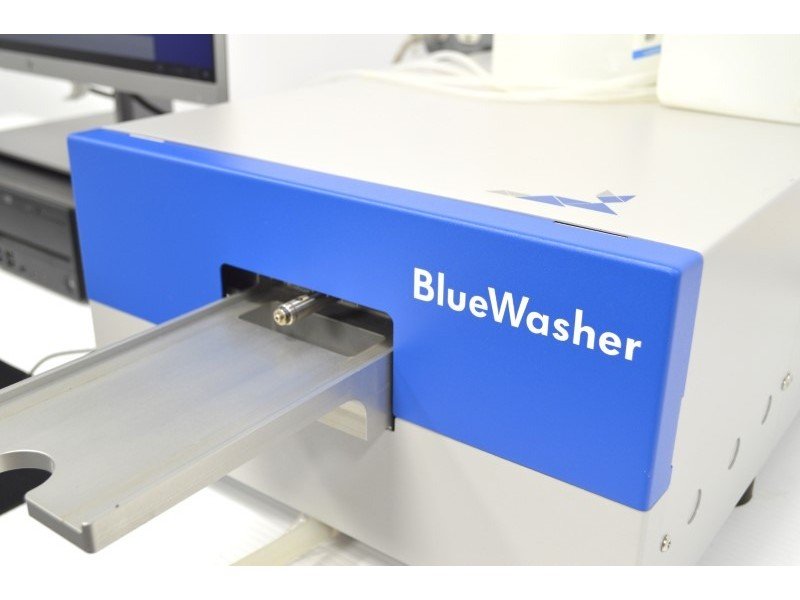

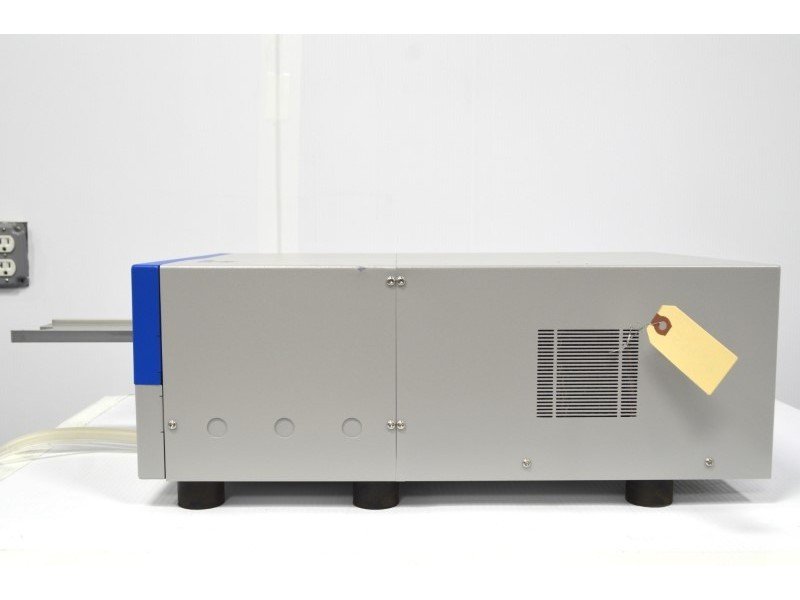

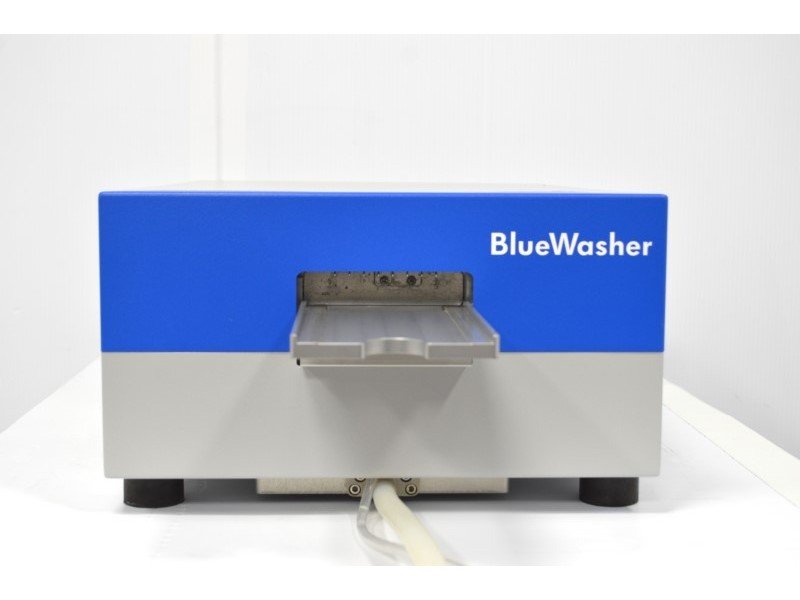

For Sale BluecatBio HTI bio-X BlueWasher Centrifugal Microplate Washer
- Fully Functional
- Serviced & in Stock
- Expert sales consultation
- Warranty

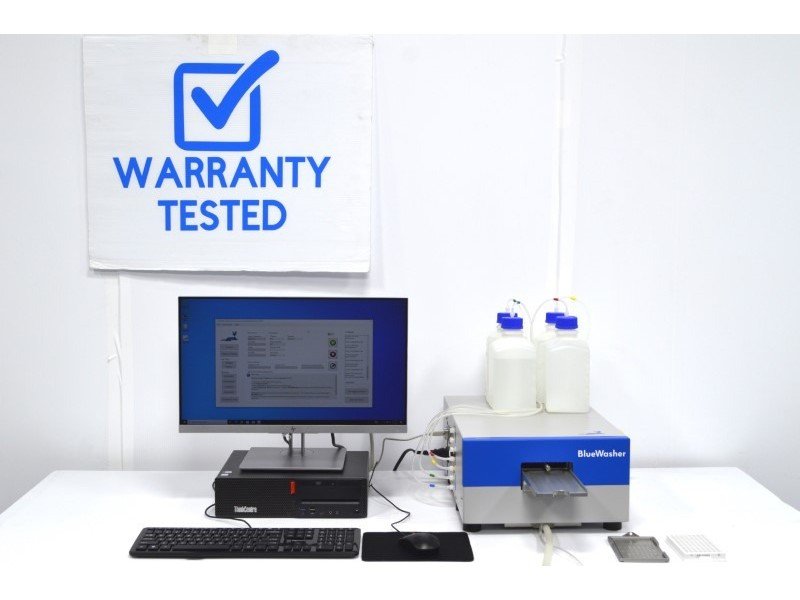

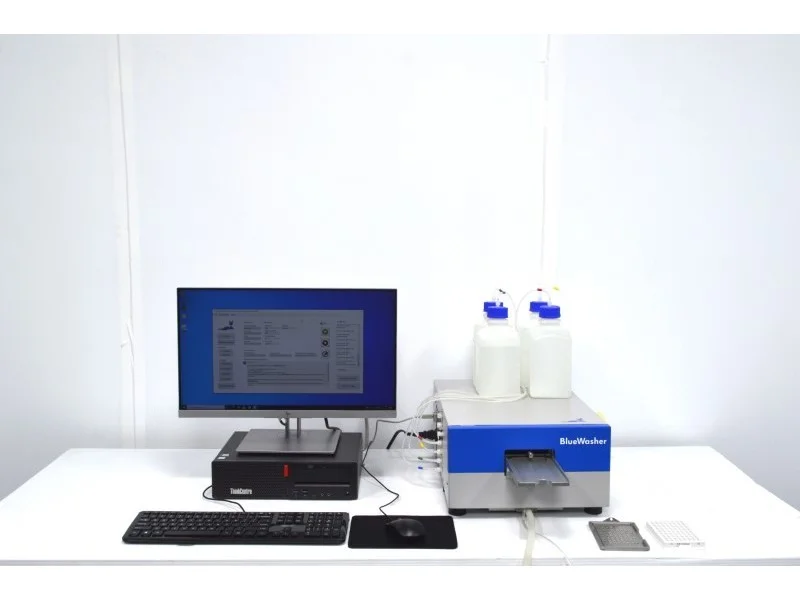

Here is what you will receive:

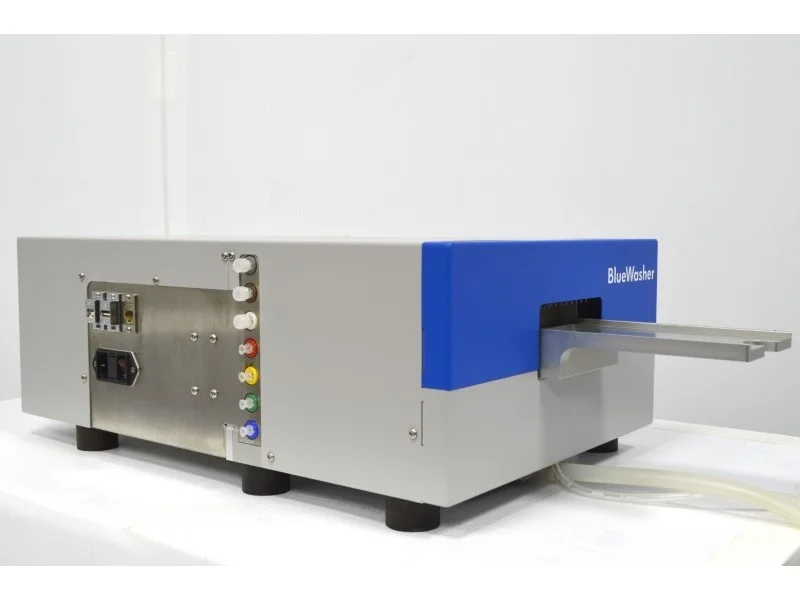

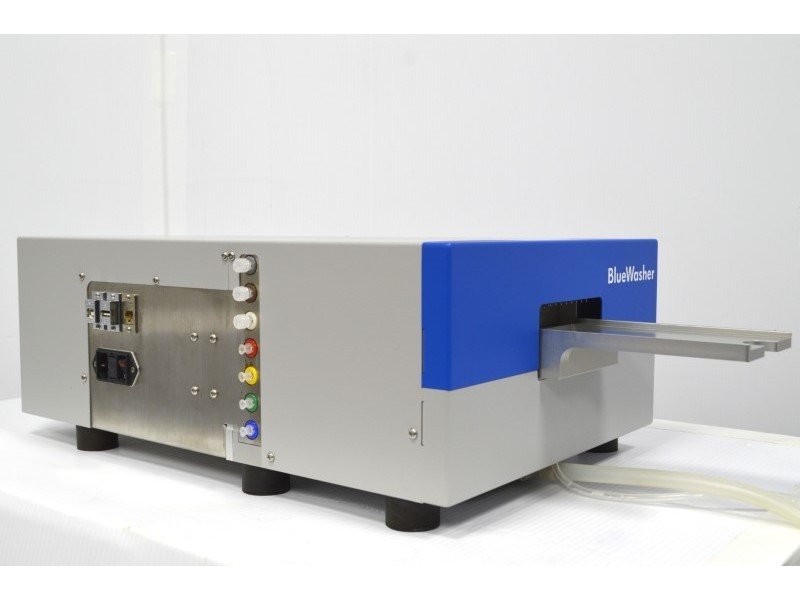

- HTI bio-X BluecatBio BlueWasher Centrifugal Microplate Washer
- Set of (4) Color-Coded Reagent Input Tubes w/ Bottle Caps
- 8-Pin Dispenser Comb for 96-Well Plates

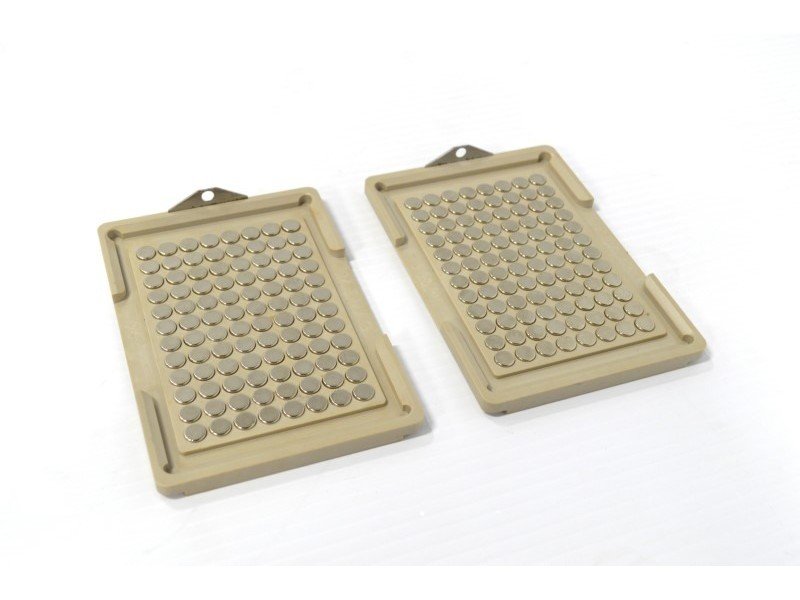

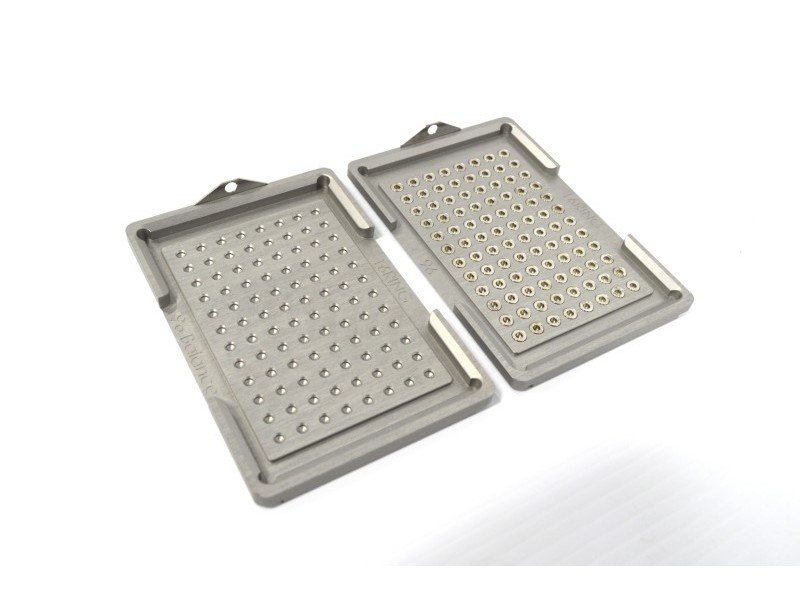

- 14.5MAG96+ +1 Magnetic Carrier (Quantity: 2)

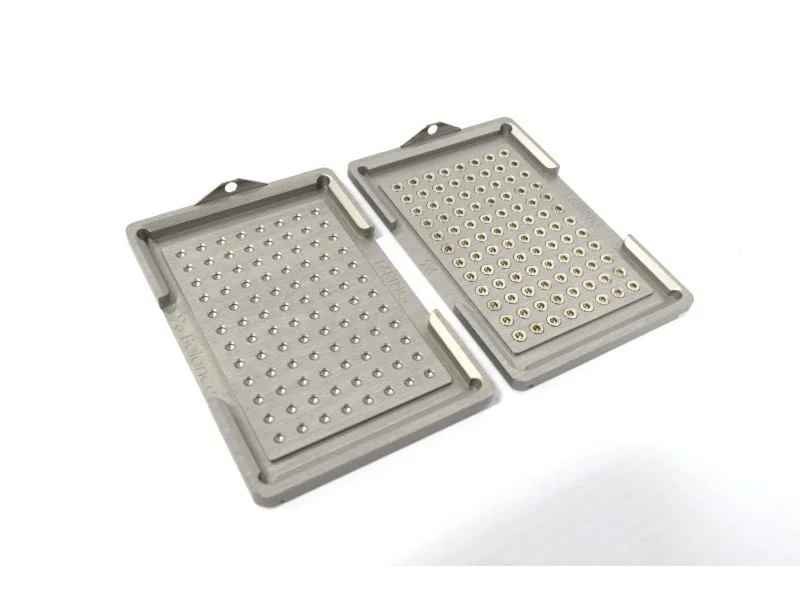

- 16RING96 Magnetic Carrier (Quantity: 1)
- 16RING96 Balance Carrier (Quantity: 1)
- 12.5MAG384+ Magnetic Carrier (Quantity: 1) (Requires 16tube manifold to use ~$1300)
- 12.5MAG384+ Balance Carrier (Quantity: 1)
- Computer with w/ BlueFlow application
- Computer Monitor, Keyboard, & Mouse
- Power, Display, and Communication Cables
BluecatBio HTI bio-X BlueWasher Configuration:
- Application: contactless media change & liquid evacuation with near zero, reproducible residual volume Magnetic bead washes with magnetic carrier for 96-well plates
- Compatibility: any SBS format plate up to 17.4mm height, strip or slides, custom formats programmable; dispensing into 96-well plates
- Centrifuge system: liquid evacuation by centrifugation; plates positioned in symmetric rotor with well openings facing outwards to expel liquids
- RPM: 3 to 3,500 RPM (= 630 g), Acceleration: <1,500 RPM/s, Deceleration:< 1,000 RPM/s
- Maximum weight difference between active plate and balance plate in dry condition: 15 g @ 3500 rpm, 20 g @ 2000 rpm, 35 g @ 1500 rpm, 70 g @ 1000 rpm
- Dispense system: precision membrane pump and electromechanical valves controlled by on-board Linux CPU

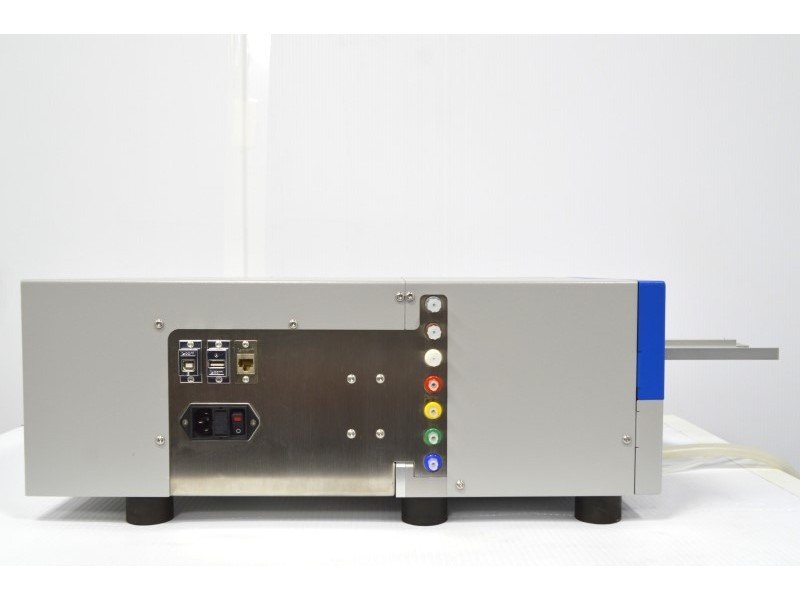

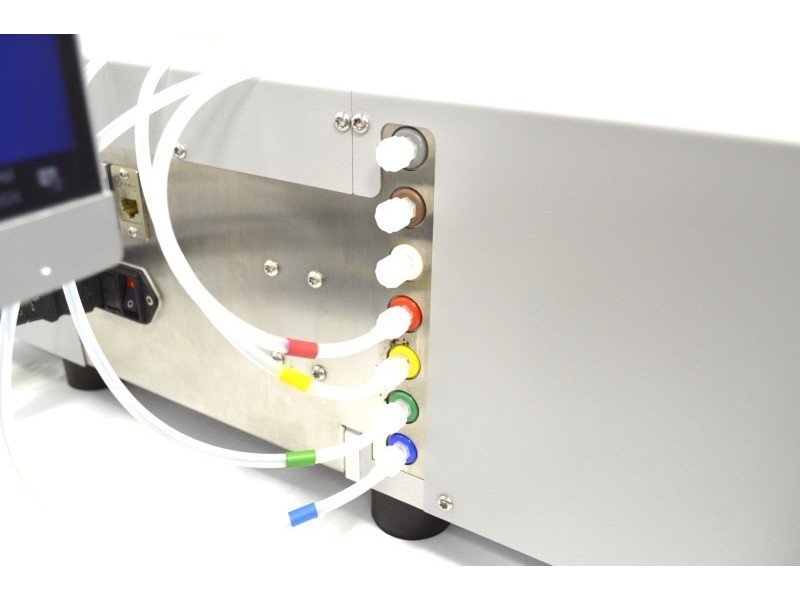

- Liquid inputs: choice of 4 or 7 liquid inputs with Luer lock fittings
- Manifold: 8 needles for 96 well plates
- Dispense pressure: adjustable in 5 steps, from approx. 25% to full pressure
- Dispense speeds: 96w MTP: 7 sec @ 100ul
- Range & accuracy: 96 MTP: >1ul, < 3%CV @ 100ul
- Internal dead volume:8 ml (input connector to dispenser pin tips)
- Residual volume: 0.01ul to 5ul per well, depending on the application-specific evacuation method selected
- Shaking & incubation: programmable speeds, rocking angles, and time, ideal for breaking up liquid layers
- Dimensions (HxWxD): 20.5 x 36.5 x 69 | 8.1 x 14.4 x 27.2 in.
- Weight: 27 kg | 60 lbs
Customization/Options: N/A
Testing performed by our in-house service team:
The BluecatBio HTI bio-X BlueWasher passed all tests and was found to be fully functional:
- We powered on the instrument.

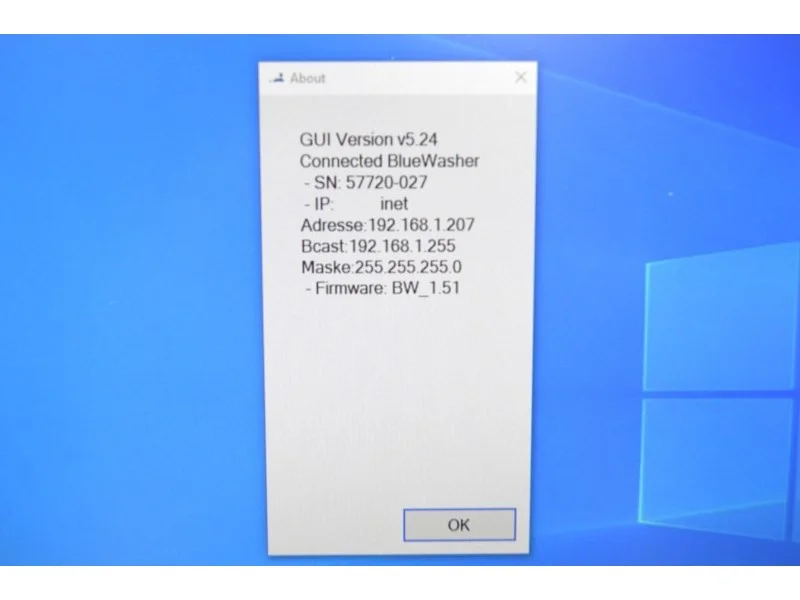

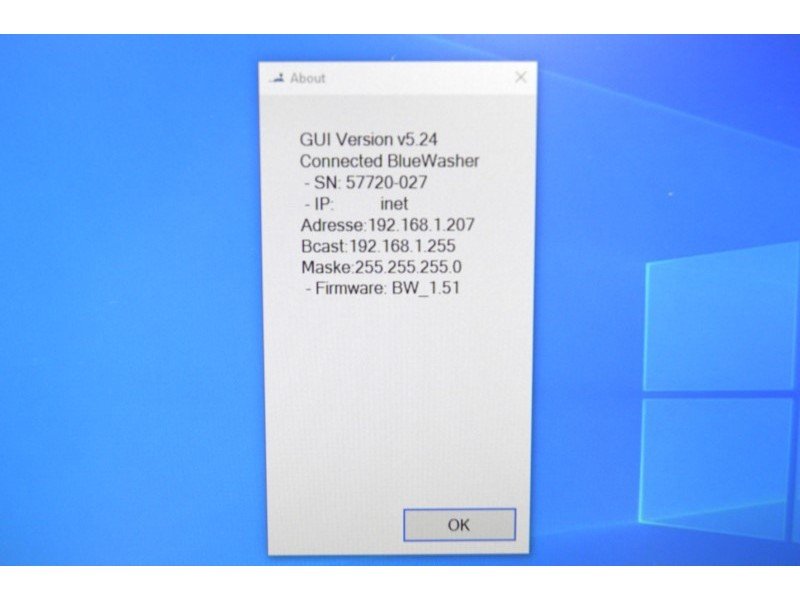

- We established a connection to the software.
- We initialized the instrument.
- We assessed all valves and pumps.
- We evaluated the centrifuge up to the maximum RPM (3,500 RPM).
- We examined the instrument balance function.
- We checked fluidics priming functions.
- We assessed all dispensing pressures.
- We ran decant and evacuation protocols.
- We ran the magnetic bead spin protocol.
- We ran all cleaning protocols.
- We tested incubation and rocking functions.
Instrument Overview:
- BluecatBio HTI bio-X BlueWasher is a high-throughput microplate washer designed for efficient and reliable washing of microplates.
- It offers flexibility with customizable programmable protocols, allowing for tailored and reproducible washing for various applications.
- The instrument provides fast and precise washing with its advanced technology, ensuring high-quality results in research and diagnostic workflows.
- Its user-friendly interface and intuitive software make operation and optimization straightforward for users of all experience levels.
- With its compact design, the BlueWasher HTI bio-X saves valuable laboratory space while delivering exceptional performance.
- Overall, the BluecatBio HTI bio-X BlueWasher is a cutting-edge instrument that streamlines microplate washing processes, enhancing productivity and research outcomes.
Instrument Application:
- 2D cellular assays
- 3D cellular assays
- Suspension cells
- Cell seeding
- Magnetic bead assays
- Genomics - NGS assays
- Dispensing
- Plate coating
The key features:
- High throughput: Processes multiple plates efficiently.
- Versatile: Compatible with various assay types.
- Precise: Ensures accurate washing and aspiration.
- Flexible: Adjustable washing parameters.
- User-friendly: Intuitive software interface.
- Compact design: Saves space in the lab setup.
Additional technical info:
- Datasheet: BluecatBio HTI bio-X BlueWasher Datasheet
- Brochure: BluecatBio HTI bio-X BlueWasher Brochure
- Quick Start Guide: BluecatBio HTI bio-X BlueWasher Quick Start Guide
- Manual: BluecatBio HTI bio-X BlueWasher Manual
Video Overview:
About us

How we pack

Why should you buy from us?

- We have experience servicing and repairing these instruments.
- This instrument goes through all the described service steps before shipping.
- We offer detailed photos and videos of the instruments you buy.
- We are an approved pre-owned equipment vendor to many large US, Canadian, and EU Universities.
- We are an approved pre-owned equipment vendor to many Fortune 500 US and International Biopharma companies.
- On-site installation may be available in the Boston Area (New England area)
- US or International shipping is no problem (see the shipping tab on how we pack and feel at ease)

- It will work!
- Warranty
- Smooth process from the initial quote to order fulfillment.
- Customer references are available.
This will ship via freight. Please contact us with your zip code to obtain a shipping quote.
