- Stock: SOLD
- Brand: 4titude
- Product Code: 50327
- Condition: Pre-Owned
Here is an Azenta 4titude a4S Automatic Roll Heat Sealer Unit3
Made by 4titude now branded by Azenta
Predecessor to:
Current model, it was renamed by manufacturer to 4ti-0665 Automated Roll Heat Sealer
Condition:
This Azenta 4titude a4S Automatic Roll Heat Sealer is in good working condition.

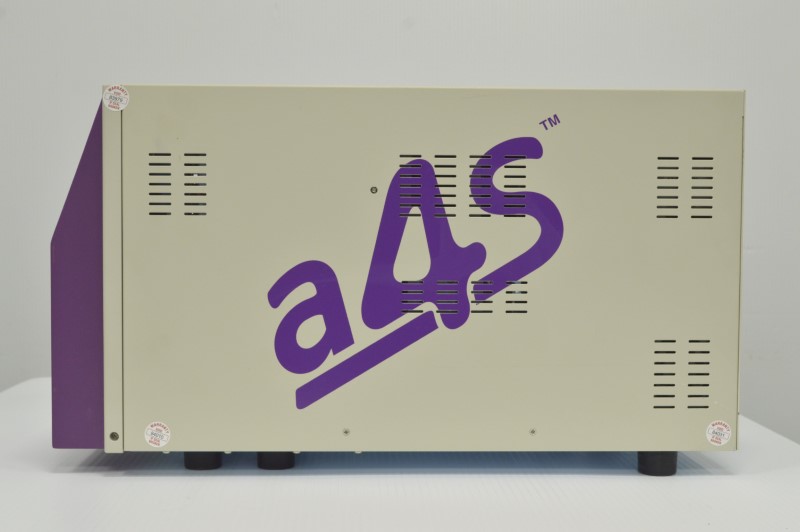

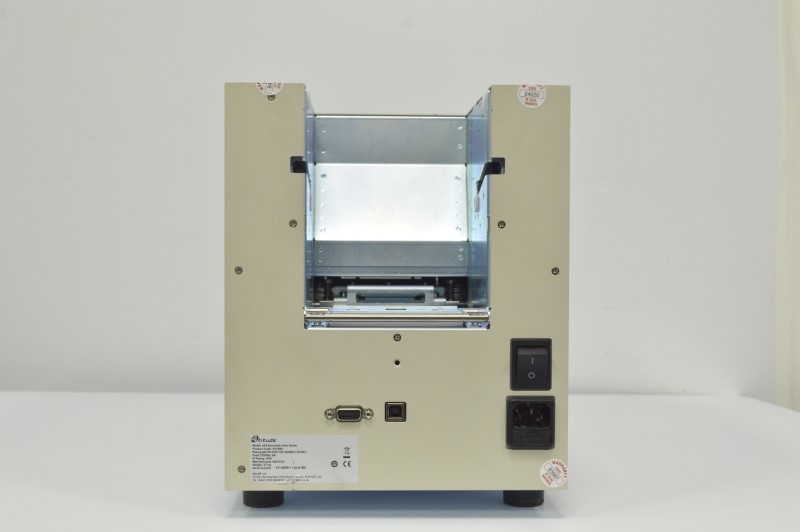

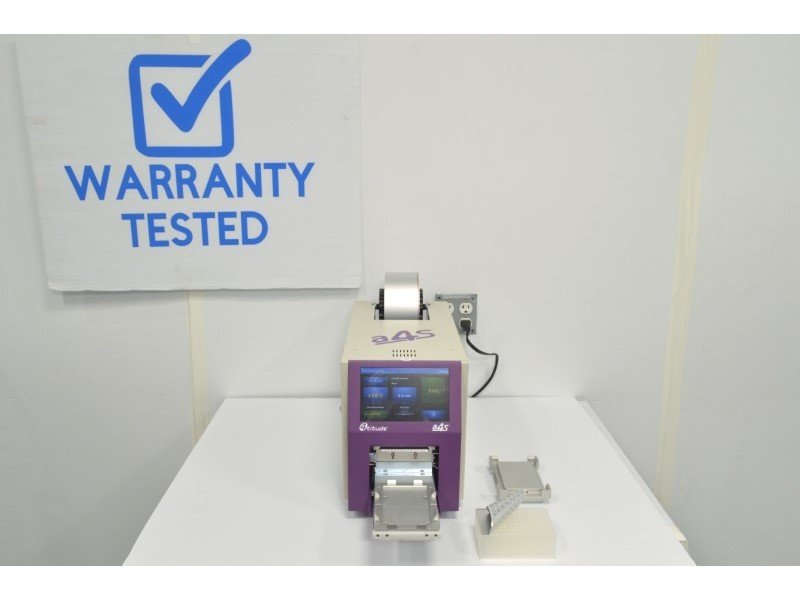

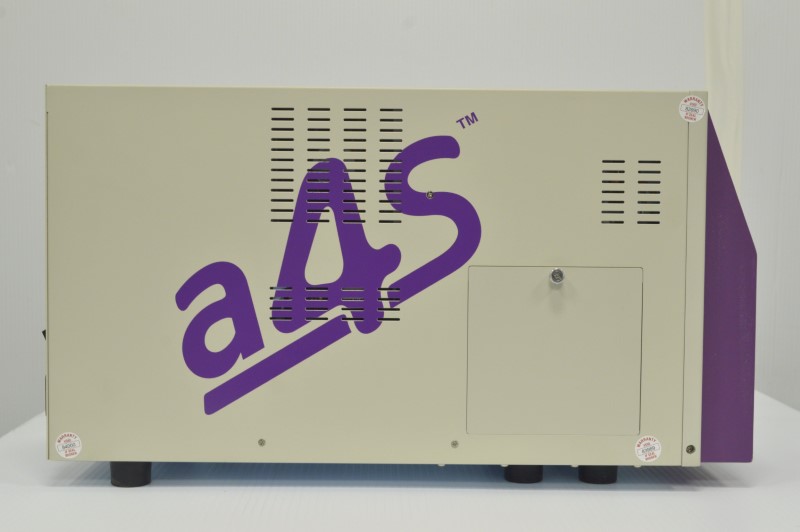

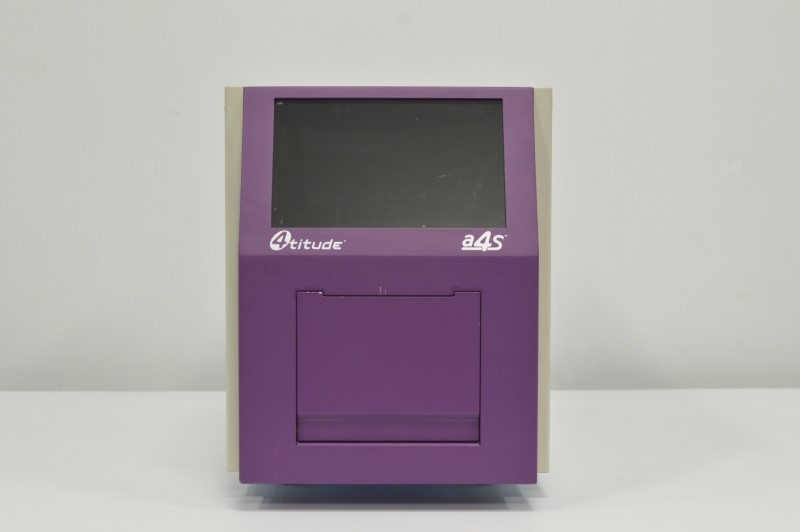

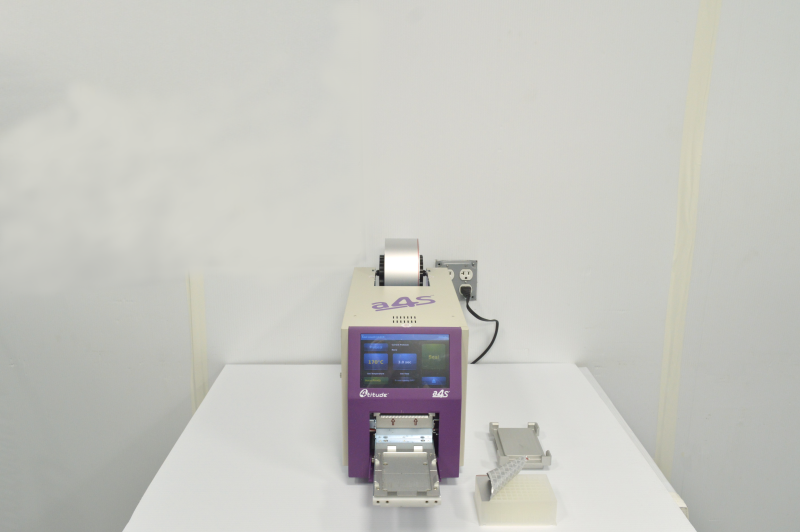

Please see exact photos and video below.
Testing we performed:
The Azenta 4titude a4S Automatic Roll Heat Sealer passed all tests and was found to be fully functional:
Power: PASSED

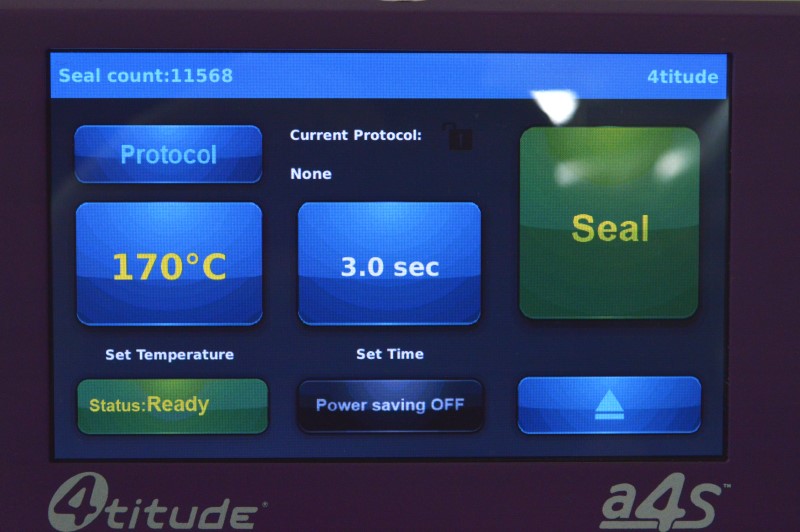

Touchscreen: PASSED
Microplate Carrier: PASSED
Door sensor: PASSED
Foil feeding: PASSED
Foil cutting: PASSED
Tested heating through max. temperature 195C: PASSED
Method sealing 96 well deep plate: PASSED
By Sealing a plate we are able to verify that all functions are working correctly together. Plate is checked to ensure the seal is complete and uniform.
System consists of:
Azenta 4titude a4S Automatic Roll Heat Sealer
Roll Holder
Plate Adapter A
Power Cables
Please note: seal roll is not included - used for testing only.
Configuration and Setup:
Plate sizes:
Deep well: 34-53mm (no adapter required)
Mid-height: 14mm-33mm with the included adapter A (most standard microplates are 14.2mm tall)
Can also accommodate plates within 4-20mm height; adapter B required, inquire with the sales team
Sealing Temperature: 100-195C, 1 degree intervals
Sealing Time: 0.1-10 seconds, 0.1 second intervals
Accepts seal rolls with widths within 75-85mm, 2 loading positions based on roll length.
Power Supply: Vin: AC100 ? 240V; 50/60 Hz; 700 W(max)
Dimension: (W x L x H) 230 x 507 x 276mm
Weight: 27kg
Video Description:
The video gives an overview of the Azenta 4titude a4S Automatic Roll Heat Sealer, and also displays functionality of the instrument.
Documentation:
Quick User Guide: 4titude a4S Automatic Roll Heat Sealer
Brochure: 4titude a4S Automatic Roll Heat Sealer
Manual: 4titude a4S Automatic Roll Heat Sealer
Please do not hesitate to contact us if you have any questions.
