Applied Biosystems Arcturus XT Laser Capture Microdissection (LCM) System

Applied Biosystems Arcturus XT Laser Capture Microdissection (LCM) System

	Approved Vendor to many US, Canada, and EU Universities
	US & International Shipping
	Hundreds of Custom Microscopes Shipped
	Customer References Available
	Training and Installation Options Available

Stock: In Stock
Brand: Applied Biosystems
Product Code: 56234
Condition: Pre-Owned

$34,995.00

Qty

Request Quote

or receive

Additional Information

Add to Cart

CLICKABLE TABS BELOW

For Sale Applied Biosystems Arcturus XT Laser Capture Microdissection (LCM) System

Fully Functional
Serviced & in Stock
Customized to your requirements
Includes new fluorescence filters
Technical sales consultation available
Continental USA 120 DAYS WARRANTY & 60 DAYS INTERNATIONAL
Includes remote microscope training session and software overview
More info about our Microscopy Capabilities or view the Microscope Buying Guide

The Predecessor to Accuva Cellect LCM System

This is what you will receive before customizing this system:

Arcturus XT LCM System Configuration:

Microscopy Techniques:

Brightfield, Phase Contrast, Fluorescence Microscopy

Microscope Base:

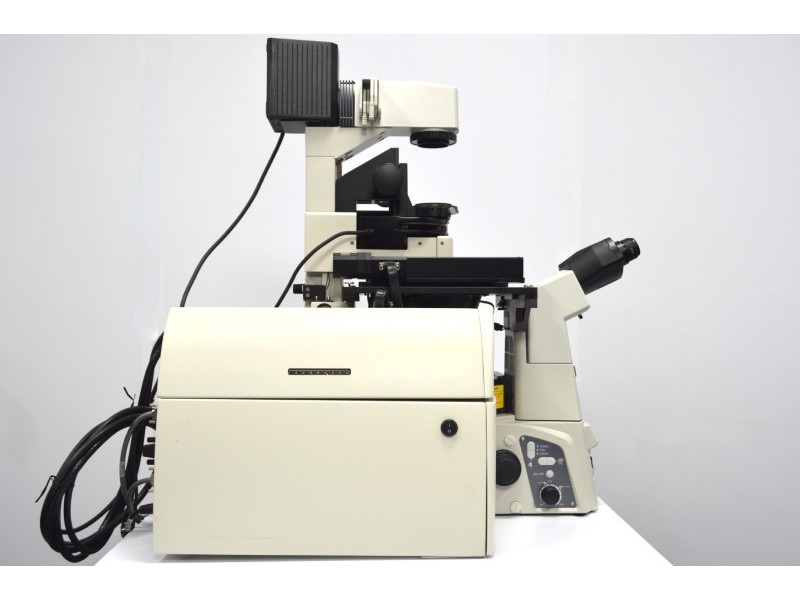

Nikon Eclipse ArcturusXT Inverted Microscope

Microscope Head:

TI-TD Binocular Head

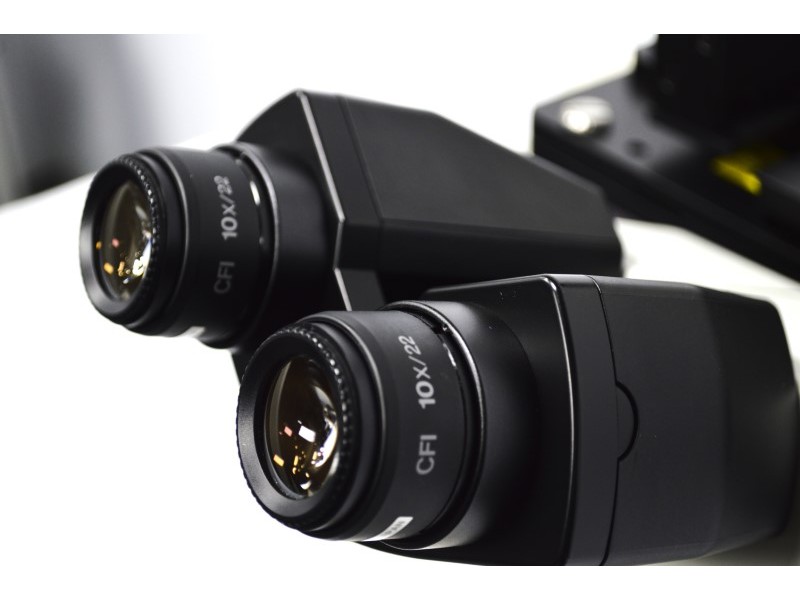

(2) CFI 10x/22 Eyepieces

Fluorescence Light Path:

TI-FL Epi-fluorescence illuminator unit

Fluorescence Illumination:

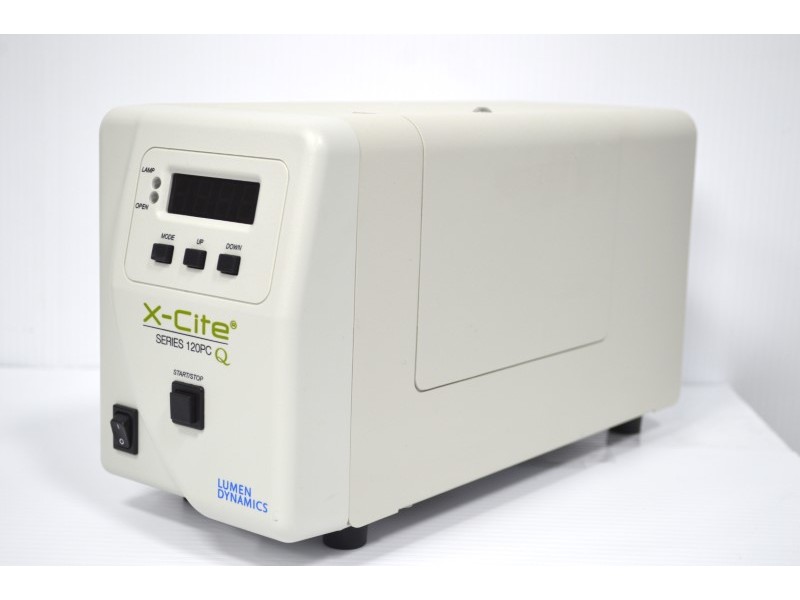

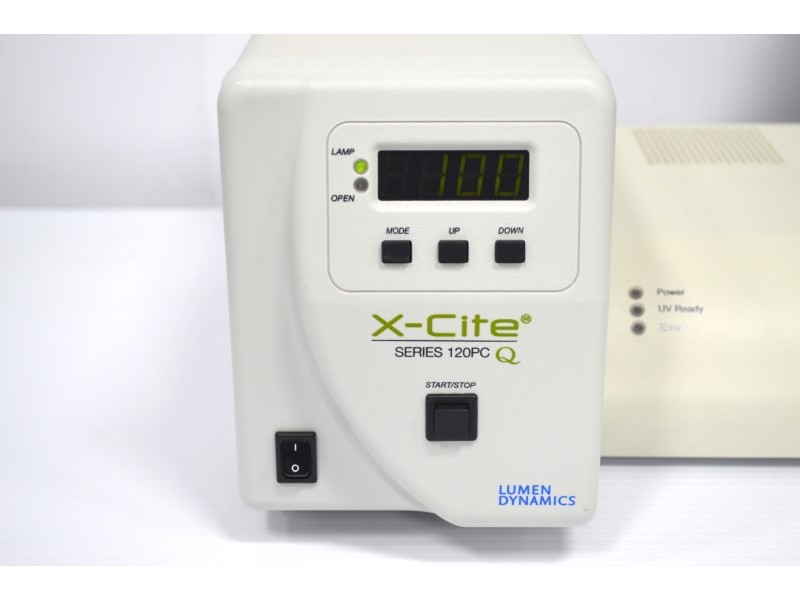

X-Cite 120PC Q w/ collimating adapter and light guide

Fluorescence filter cube turret:

TI-FLC-E Motorized 6-position Filter Turret

Fluorescence Filter Cubes:

Three brand new filter sets of either DAPI, FITC, Texas Red or CY3
*Other filters may be available - please inquire*

Brightfield Light Path:

TI-DH Illumination Pillar

Brightfield Illumination:

D-LH/LC 12v 100w Halogen lamp

Objective Turret:

TI-ND6-E Motorized 6-position Objective Turret

Objectives:

Nikon Plan UW 2x/0.06
Nikon Plan Fluor 4x/0.13
Nikon Plan Fluor 10x/0.30 Ph1 DL
Nikon S Plan Fluor ELWD 20x/0.45 Ph1
Nikon S Plan Fluor ELWD 40x/0.60 Ph2
Nikon S Plan Fluor ELWD 60x/0.70 Ph2

Lasers:

Infrared (IR) Capture Laser: Solid-state, near-IR (810 nm)
UV Cutting Laser: Solid-state, passive Q-switched, diode-pumped (355 nm)

Condenser:

TI-CT-E Motorized Condenser Turret
LWD 0.52 Condenser Lens
Ph1, Ph2 inserts

Stage:

Motorized XY stage
Insert for three 75mm x 25mm slides
Trackball controller

Camera ports:

100% Eyepiece,
100% Left camera port
100% Right camera port
20% Eyepiece, 80% Left camera port

Camera:

Integrated Imaging Source DFK 31A403 Color CCD camera

Computer & Software:

Desktop with ArcturusXT control software
Touchscreen monitor, keyboard, mouse

Accessories:

Necessary power and communication cables

This configuration includes any 3 of these new filter sets.

New filter set - DAPI (EX: 365/28nm, DM: 405nm, EM: 445/50nm) (Dye compatibility: DAPI/Hoechst/AlexaFluor 350)
New filter set - EGFP/FITC/Cy2 (EX: 475/30nm, DM: 500nm, EM: 530/40nm) (Dye compatibility: EGFP/FITC/Cy2/AlexaFluor 488)
New filter set - TRITC/Cy3/Dsred (EX: 545/20nm, DM: 562nm, EM: 605/60nm) (Dye compatibility: TRITC/Cy3/RFP/Rhodamine/AlexaFluor 546)
New filter set - Texas Red (EX: 560/20nm, DM: 585nm, EM: 630/40nm) (Dye compatibility: Texas Red/mCherry/AlexaFluor 594)

Automated/motorized capabilities of this system:

Installed automation/motorized components:

Motorized XY stage
motorized Z-axis drive
Motorized filter cube turret
Motorized objective turret
Motorized condenser turret

Benefits of motorized/Automated Z-Axis drive:

Automatic parfocality adjustment
The ability to recall previously saved focus levels
Automated management of Z positioning/ Fine-coarse control

This system's software highlights:

Automated Cell Capture: precise laser control for seamless sample acquisition.
Real-Time Imaging: live imaging during capture for verification.
Customizable Settings: adjustable laser and stage parameters for different samples.
Data Export: supports multiple formats for downstream analysis.
Preloaded Protocols: ready-to-use and customizable workflows.
Fluorescence/Brightfield Modes: automated switching for versatile imaging.
Batch Processing: handles multiple samples efficiently.

We can customize this system to fit your requirements:

Increase Maximum Magnification and Image Quality:

System can be configured for magnification between 20x and 600x (with 10x Eyepieces)
We can add standard higher magnification Nikon microscope objectives
We can add high-end Nikon Apochromat objectives

Enhance fluorescence capabilities by adding/changing filters and upgrading light sources.

Additional filter cubes
Additional filter sets to match your fluorochromes.
Xenon, Metal Halide, or LED Fluorescence microscope light sources

We will also ensure the fluorescence light source matches your selected filter sets.

Enhance imaging capabilities:

We offer various advanced CCD, sCMOS, and EMCCD camera options for higher-quality images.

Commonly Requested Customer Upgrades

High-End CCD, sCMOS Cameras
LED or Metal Halide Fluorescence Light Sources
Polarization, or the DIC configurations
Higher Magnification Objectives
Higher performance Fluor or APO objectives
Motorized XY Stage (stage, controller, joystick)

We are excited to help build and configure the right system for you!

Arcturus XT LCM System Overview:

The Arcturus XT LCM System combines infrared (IR) laser capture and ultraviolet (UV) laser cutting technologies, providing precise sample isolation for molecular analysis.
Designed for a wide range of biological specimens, it ensures contamination-free collection of specific cells or regions of interest for downstream analysis such as DNA, RNA, and protein extraction.
Applications include oncology, pathology, neuroscience, and any research where precise isolation of cells is critical for subsequent molecular analysis.

Key Features:

Dual Laser System: IR laser for capturing cells and UV laser for precise cutting.
Advanced Optics: equipped with Nikon Eclipse Ti-E Inverted Microscope for high-quality imaging.
Fluorescence and Brightfield Imaging: supports brightfield, phase contrast, and fluorescence imaging for enhanced cell visualization.
Objective Flexibility: multiple objective lenses, from 2x to 60x magnification, offering various levels of detail for sample analysis.
Software-Controlled Operation: fully automated, controlled through ArcturusXT software, simplifying complex workflows.

Brochure: Arcturus XT LCM System Brochure
Manual: Arcturus XT LCM System Manual

Video Overview:

Check out our microscopy capabilities:

https://www.bostonind.com/our-microscopy-capabilities

How we pack

Why do so many customers choose to order from us?

We make sure to match the microscope capabilities to your requirements.
We have experience servicing and repairing these microscopes.
This microscope goes through an extensive set of service steps before shipping.
We offer detailed photos and videos of the microscopes you buy.
We are an approved pre-owned equipment vendor to many large US, Canadian, and EU Universities.
We are an approved pre-owned equipment vendor to many Fortune 500 US and International Biopharma companies.
Many upgrade and repair parts are in stock.
Remote installation and microscope operation training are available.
On-site installation may be available in the Boston Area (New England area)
Expert US or International shipping is available (see the shipping tab on how we pack and feel at ease)

Warranty
An extended warranty may be available.
You get after-sales technical support.
Customer references are available.
This LCM system will be complete and working!
Smooth process from the initial quote to order fulfillment.

*ME* Medium Crate
500#

COMMON CUSTOMER QUESTIONS AND ANSWERS BELOW

What steps do you take to verify, service, and confirm the functionality of the Arcturus XT LCM System?

We verify various microscope functions individually and together, performing necessary repairs or maintenance to bring the microscope to our quality standards.

We tested the halogen light source and transmitted light path, confirming full functionality.
We confirmed the metal halide light source and reflective light path are operational.
We tested the motorized stage, ensuring smooth movement and precise positioning.
We verified the motorized Z-axis, confirming accurate performance.
We checked the motorized condenser, which passed all operational tests.
We tested the motorized objective turret, confirming smooth rotation and functionality.
We validated the motorized fluorescence filter turret as fully operational.
We tested the IR laser, ensuring it functions as expected.
We confirmed the UV laser is fully operational through testing.
We tested the software control, confirming it is working correctly.

Can I view the Arcturus XT LCM System in person at your facility or do a live Zoom demo before it is shipped to me?

We invite you to visit our facility for an on-site demo, or feel free to request a virtual Zoom demo of the system you are interested in.

What about the warranty? Installation, training, maintenance?

Warranty Terms:

The system is fully warranted for parts and labor.
The customer should retain all packing materials during the warranty period.

Installation & Training:

Option 1 – In Person

If your lab is located within two hours of Boston, we may be able to offer in-person installation and training in person.

Option 2 – Remote/Virtual

Our remote training is conducted via Zoom, allowing us to significantly reduce its cost and offer it to customers outside our travel area.

Both training options include:

Review of the system and its capabilities.
Microscope and software operation.
Review of the recommended maintenance procedures.

We generally recommend these training services to anyone who is new to this model.

What should I watch out for when buying a Arcturus XT LCM System used/pre-owned from another lab?

Make sure the system is properly packed for shipping and will arrive safely. If the system has many components, request to have it packed in a wooden crate.
Confirm that there is no physical damage or any misaligned internal components.
Ask what accessories are included.
Ask how long the warranty is and what it covers.

Here is what our technical team tests so you can request something similar and ensure your microscope will be fully functional.

We confirm the microscope's physical condition.
We meticulously inspect and clean the optical path within the microscope.
We assess light quality using various fluorescence and non-fluorescence samples.
We ensure the stage moves smoothly in both fine and coarse adjustments.
We ensure the smooth operation of all mechanical components.
We confirm that all electronic/motorized components are working well.
We set up communication between the microscope, installed components, and the software.
We test the camera by acquiring sample images.
We confirm the responsiveness of any included touchscreens and buttons.
We ensure necessary accessories and cables are included.

We recommend inspecting the microscope in person with your sample or requesting a virtual demo; this will allow you to evaluate the condition and performance of the microscope you are considering purchasing.

Do you have a Arcturus XT LCM System on hand?

Yes, this is a common microscope model we carry, and we stock multiple accessories and many replacement parts to back up our warranty.

I found it elsewhere for less. What goes into your price?

We acknowledge that sometimes you can purchase this microscope model elsewhere, possibly for less.

Here are some of the reasons for our price.

Our microscope will be fully serviced.
It will be customized and configured to your requirements.
We may offer longer standard warranty terms.
We cover shipping costs during the warranty period. (Customer is required to save packing materials for the duration).
We have to employ technical staff that can do the testing/repairs and after-sales support if there are any issues.
We invest considerable time into the testing and service of each microscope we sell.
We have to purchase any missing required accessories to make the microscopes complete.
We have to procure and stock service parts to fulfill our warranty.
We have extensive experience packing sensitive instruments. See the shipping section in the website menu for info on how not to pack.
We guarantee that the microscope will be functional.

This procurement is for a University or College. Are purchase orders with NET terms accepted?

If you are a US or Canadian customer, we are likely already a registered vendor in your University's vendor system. This would greatly expedite the process of PO approvals and get this instrument into your lab faster.
POs are accepted from US and Canadian universities.

How fast will you ship?

We can ship within a few days to 2 weeks, depending on your required microscope customization.

Will my system be insured during shipping?

All microscopes shipped within the USA and internationally are fully insured. This applies as long as we are the shipper and handle shipping arrangements.
If the buyer handles shipping, then shipping insurance responsibility falls to the buyer; we highly advise that the buyer obtain shipping insurance from their carrier.

How do you pack? Have you previously packed and shipped a Arcturus XT LCM System? Do you ship Internationally?

Packing

Smaller microscopes ship via UPS Parcel Delivery with adequate packing material and a strong box. Or, when combined with other orders, it may be packed in a crate.
Most larger microscopes ship in fully enclosed ISPM15-certified wooden crates with proper padding underneath, and the sides have moving components braced.
Accessories are packed safely in boxes with padding and then safely packed inside the crate.
We may not use a crate for local deliveries to save you money *if delivered by us.
We often use “tilt’ & “shock” indicators on the crates to ensure the crate has not been excessively tilted and dropped where equipment may suffer damage.
Photos are taken during the packing process to make sure nothing is missed.

USA/Canada Shipping

Within the US and Canada, we will ship via selected freight carriers. We do not use low-price/high-damage carriers as we want the equipment to get safely to you.

International Shipping

Internationally, we will only ship via Air Freight or Air Parcel (such as UPS or DHL), which provides reliability, no exposure to Ocean weather, and timely delivery.
We have extensive experience packing and shipping fragile microscopes globally.

Our experience and process

We have safely packed and shipped thousands of sensitive analytical instruments.

How much will I save buying it pre-owned, and is it worth it?

A lot…and it is undoubtedly worth it, and here is why. Feel free to ask for feedback from hundreds of customers who bought from us.

When compared to buying a new one, you will save up to 60% to 80% and have plenty of funds left over for an additional instrument or two.
You will get our standard warranty, plus, when available, an option to obtain an extended warranty agreement.
Know that your microscope was tested and working the day it left our facility and is covered if there are faults.

Sustainability

Well, this one is easy: buying a pre-owned microscope is great for the planet; you are reducing unnecessary waste, CO2 output, and water use that would be used during the manufacturing process.

I have more questions; I want to receive a formal quote.

Absolutely! Please give us a call (1-617-397-3486) or complete this form to get your questions answered or receive a formal Quote.

OPEN THE FORM
