Tecan Freedom EVO Liquid Handler Configuration When deciding on a liquid handler it is important that you
|  |
What assays will I run?
Knowing the assays that you wish to automate and the requirements each will include is important...
Throughput now and beyond.
For each assay, we will want to know your intended output...
Service
When making an investment, you will need to know that you have the coverage to fit your budget...
What assays will I run?
Most use cases will require Span channels.
Span channels provide versatile functionality...
Liquid LiHa
Can Use Fixed Tips: Due to washing requirements, Liquid LiHA is required for fixed tips, allowing for saving on disposable tips and reliable septa piercing. Additionally, fixed tips allow for reaching the bottom of longer tubes and other deep labware.
Positive Displacement: The liquid system utilizes a solid column of liquid and can generate positive pressure that can be used for Protein purification and parallel chromatography when paired with complimentary accessories such as RoboColumns.
Low Volume Advantage: Small volumes below 10µL can have better CVs by up to 0.5%
Air LiHA
No Cross Contamination: With disposable tips and the capability to free dispense down to 0.5µL, cross-contamination is a non-issue.
Low Maintenance: By not having the added tubing and related hardware for a liquid system, the maintenance costs are lower when using an Air system.
Excellent CVs Over Larger Range: with the ability to dispense up to 1000µL, the Air LiHA maintains lower CVs with more versatility.
Deckware Manipulation for More Productivity
Robotic arms like the RoMa and PosID enhance system versatility...
Robotic Manipulator (RoMa) Arm
The RoMa arm swiftly transfers microplates and other labware between the worktable, peripheral devices, and storage areas, optimizing workflow efficiency and enabling seamless integration with automated processes for extended assay runs and increased productivity.

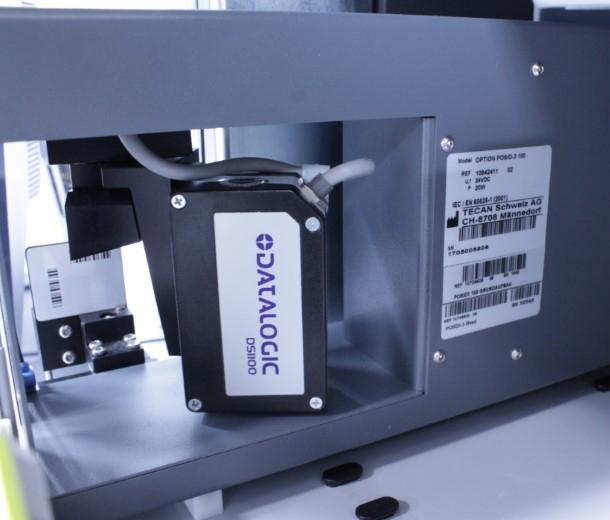

PosID Automatic Barcode Reader
Streamline labware identification with PosID. The system performs automatic barcode reading at any position on the worktable, allowing carriers and labware to be identified in real-time and ensuring sample and reagent traceability throughout processing.
Extended Robotic Manipulator (RoMa) Arm
The extended-range RoMa arm provides access below the worktable, facilitating the integration of devices like centrifuges and expanding options for additional storage and incubation solutions.
Simultaneous Pipetting of 96 channels and Parallel Processing
The MCA96 head allows for efficient high-throughput pipetting, handling all 96 wells of a plate simultaneously with precision and speed, making it ideal for tasks like plate replication, reagent distribution, and assay setup in high-volume workflows.
Pipette with 96, 12, or 8 tips as needed.
The MCA 96 head offers flexibility by functioning as an 8- or 12-channel pipette, selectively using a single row or column of disposable tips. This adaptability is ideal for tasks like pipetting standards, controls, or performing serial dilutions.
.JPG)
Reduce costs with washable tip compatibility.
The MCA 96 can seamlessly switch between disposable and washable tips during a run. Opting for washable fixed tips for routine tasks like handling reagents and buffers minimizes consumable usage and lowers costs.
.JPG)
Service
When investing in lab equipment, you need to trust it. Our offered services will give you this piece of mind.
Preventative Maintenance
Our Preventative Maintenance services ensure your Tecan EVO operates at peak efficiency, minimizing downtime and extending the lifespan of your investment—because dependable equipment is essential for your lab’s success.
Extended Warranty
Protect your Tecan EVO investment and your budget with our extended warranty, which ensures expert support and coverage for unexpected repairs. When planning your lab’s finances, you shouldn’t have to gamble on potential failures—our warranty gives you the peace of mind to focus on your work.

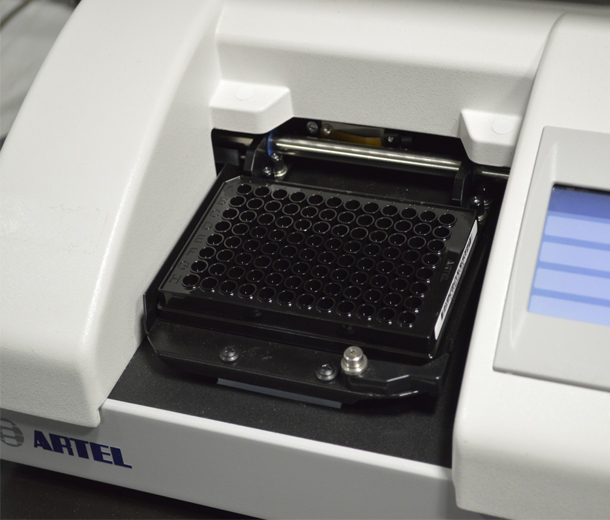

Artel MVS Liquid Verification
Our service ensures your Tecan EVO delivers accurate and consistent liquid handling by verifying volumes across channels. Confidence in your results starts with precise measurements.
Throughput now and beyond.
Depending on your throughput needs and the number of arms you require, the size will matter. We carry the Freedom EVO in 3 sizes.
.JPG)
Freedom EVO 100
Designed for efficiency in small-to-medium throughput applications. This system delivers advanced liquid handling capabilities with optional robotics featuring:
- 30 worktable grids
- 1075 mm/42.3”
- Capacity for mounting up to two arms
.JPG)
Freedom EVO 150
Optimized for research and diagnostic laboratories. This advanced liquid handling and robotics workstation offers a larger integration area for devices and the ability to mount up to three arms, making it perfect for automating complex workflows.
- 45 worktable grids
- Width 1450 mm/57.0”
- Capacity for mounting up to three arms
.JPG)
Freedom EVO 200
A powerful robotic platform for large-scale, high-throughput workflows. As the largest workstation in the Freedom EVO series, it features 69 grids of worktable space, supports up to three arms, and offers flexible configurations with liquid handling and robotic options – providing ample room to expand and scale your processes as needs evolve.
- 69 worktable grids
- Width 2050 mm/80.7”
- Capacity for mounting up to three arms
- There is plenty of room for multiple deck accessories such as shakers, heaters, and more
Options & Accessories
Options and Accessories give flexibility to your workflows, allowing you to do more.

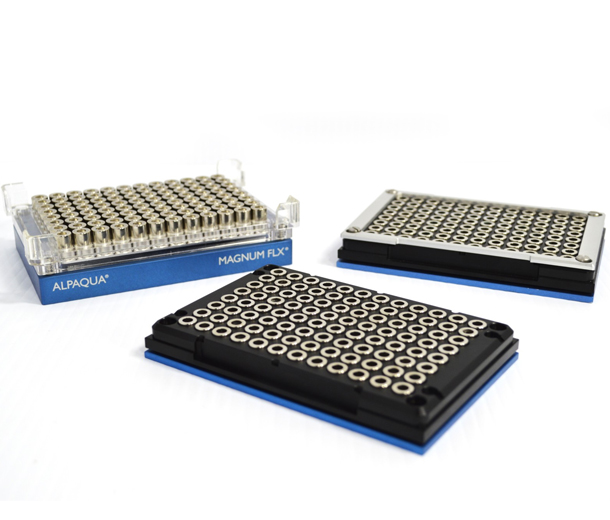

Magnetic Deck Positions
Magnetic deck positions are designed for magnetic bead-based assays, enabling precision separation, mixing, and washing steps. They are essential for applications like nucleic acid purification, protein isolation, and other magnetic particle-based workflows.
Shaker Positions and Heated Positions
Orbital shakers are used for mixing samples, reagents, and solutions in applications like cell culturing, PCR setup, and biochemical assays. They ensure consistent agitation for precise and reproducible results in various laboratory workflows.
Solid-Phase Extraction
Solid Phase Extraction (SPE) deck positions are used for automated sample preparation workflows, enabling the separation, purification, and concentration of analytes. They are commonly applied in fields like clinical diagnostics, drug discovery, and environmental analysis.
Tube Carriers
Tube carriers securely hold and organize tubes for automated liquid handling, ensuring precise positioning during pipetting and processing. They support various tube sizes and are essential for sample preparation, storage, and high-throughput workflows.
Temperature Controlled Positions
Temperature-controlled positions maintain precise heating or cooling of samples during liquid handling workflows, ensuring stability for sensitive assays. They are essential for applications like enzyme reactions, cell-based assays, and nucleic acid preparations.
Plate Hotels
Microplate hotels provide automated storage and retrieval of microplates, optimizing workflow efficiency in high-throughput screening and liquid handling systems. They come in multiple configurations and options including temeprature control.
Common Deck Carriers
Deck carriers provide secure and organized placement of labware, such as microplates, tip racks, trash, and reservoirs, on liquid handling workstations. They ensure precise positioning for automated workflows, improving efficiency and reproducibility in sample processing.
On Deck Thermal Cyclers
On-deck thermal cyclers enable seamless integration of PCR and other temperature-sensitive reactions into automated liquid handling workflows. They provide precise thermal cycling for applications like DNA amplification, genotyping, and mutagenesis without manual plate transfers.
Custom Design
With our design and manufacturing capabilities our team can provide fully customized labware holders, adapters, and carriers built to support specialized assays and high-throughput processes with maximum reliability.
