- Stock: In Stock
- Brand: Teledyne Isco
- Product Code: SM100623-RF1R
- Condition: Pre-Owned

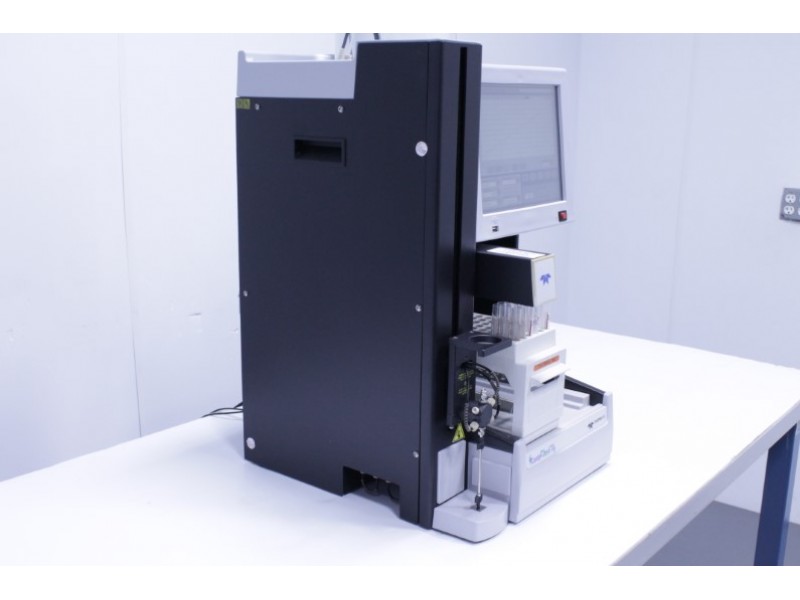

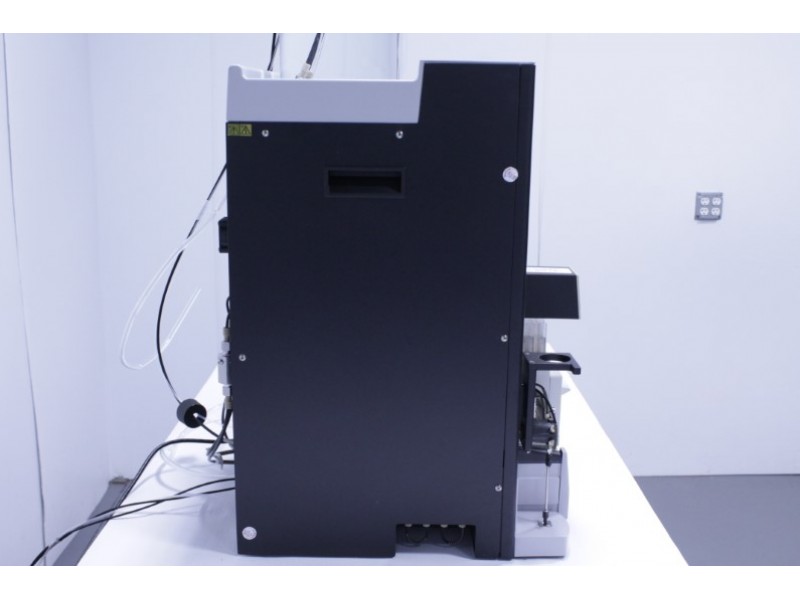

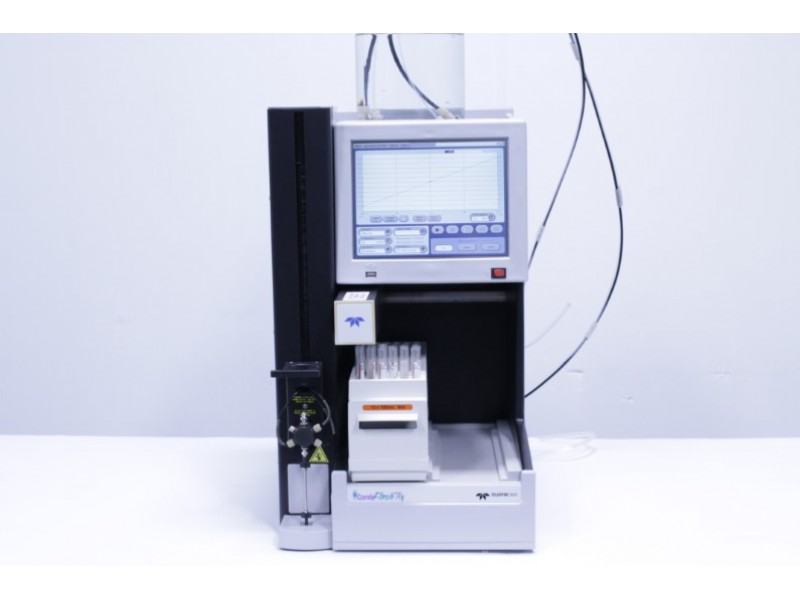

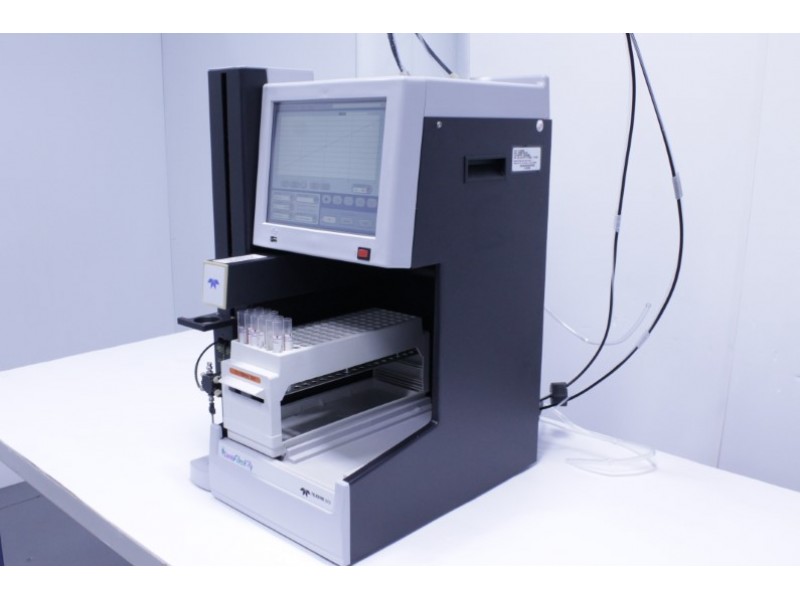

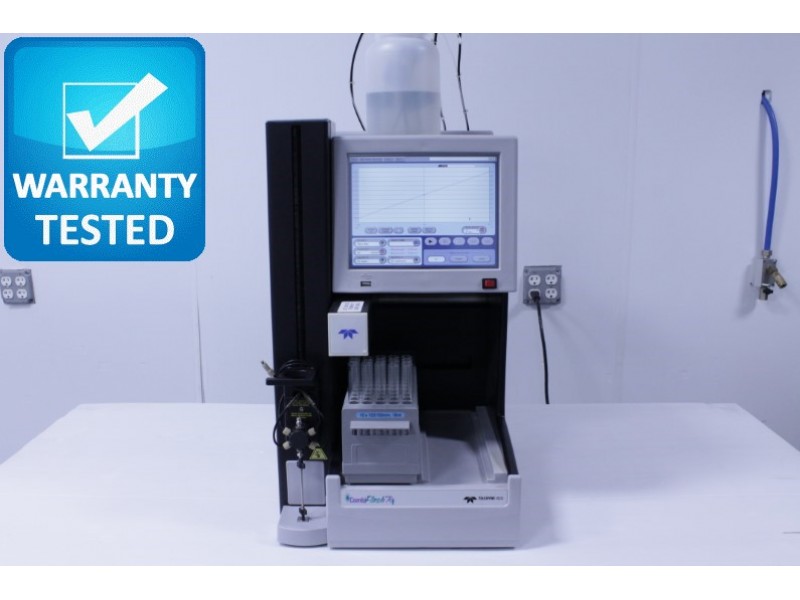

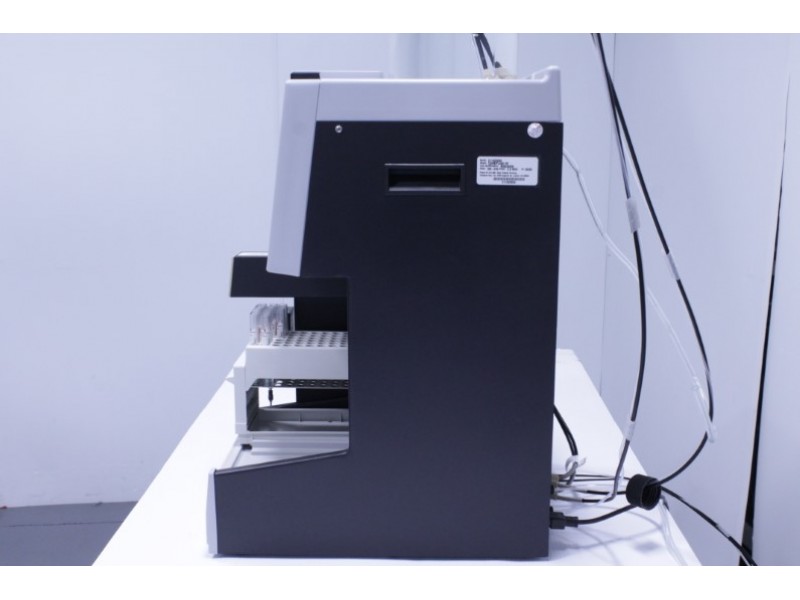

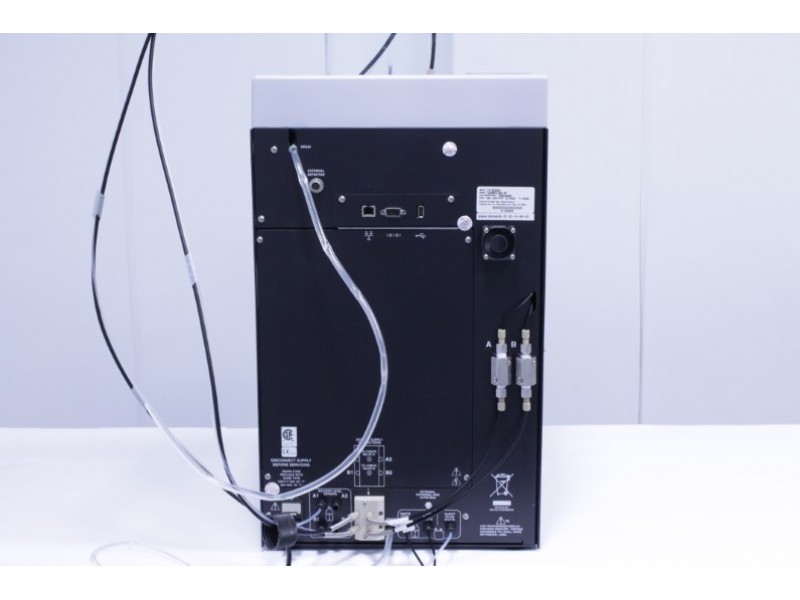

For Sale Teledyne Isco CombiFlash RF Flash Chromatography System with 1 Collection Rack
- Fully Functional
- Serviced & in Stock
- Good cosmetic condition
- Technical sales consultation available
- Extended 1-Year Warranty option available to US customers
- CONTINENTAL US 120 DAYS WARRANTY & 60 DAYS INTERNATIONAL
- Includes remote instrument setup and training session
The Predecessor to CombiFlash NextGen 300+
Here is what you will receive:
- Teledyne Isco Combiflash Rf
- Intake Hoses w/ Caps and Weighted Filters (Qty 4)
- Set of waste hoses
- 1 x Collection Rack (let us know so we can match it to the collection tubes you are using)
- Power cord
Teledyne Isco CombiFlash RF Flash Chromatography Configuration:
- Flow Rate: 1-100 mL/min
- Flow Rate Accuracy: ±10%
- Max Pressure: 100 psi (6.89 bar)
- Pressure Accuracy: 10% of the full scale
- Spectral Display: UV
- UV Spectrum: 200 to 360 nm
- Wavelength Accuracy: ±5 nm
- Peak Detection Modes: Slope or threshold
- Gradients: Two Solvents, binary
- Gradient Accuracy: ±2% of full scale, typical; 5% maximum
- Programmable Gradients: Linear, step, isocratic
- Pumping System: Ceramic dual piston with active valve
- Fraction Accuracy: ±[2mL +(flow rate/60)]
- Sample Injection: Manual load
- Sample Sizes: 4mg-33g
- Column Sizes: 4g-330g, up to 3kg with adapters
- Flow Cell Pathlength: 0.1 mm, ±25%
Customization/Options:
- Various collection racks are available to match your application.
- Solid Load Sample Adapters
Testing performed by our in-house service team:
- We inspect the CombiFlash Rf for physical damage.
- Mechanical components inspected, adjusted, and lubricated if necessary
- The proper operation of electronic components is confirmed
- Necessary repairs and services performed to make sure the CombiFlash will function as intended
- We measure the UV Lamp output and ensure it is not degraded
- We operate and test flow through each of the valves.
- The solvent system and flowcell paths of the Flash Chromatography System are cleaned.
- The system is cleaned and inspected for the condition of hoses and fittings, ensuring no leaks.
- We test the flow rate and pressure capability of the pumps
- We test the operation of all the pressure transducers.
- We perform verification using Teledyne’s Normal Phase Two peak verification method.
Glassware, test tubes, and columns are not included. Those are our internal testing components.
Instrument Overview:
- Combiflash RF Instrument gives you high productivity using automation, programmable gradients, UV detection, and peak separation.
- The automatic detection of columns and collection tube racks simplifies the operation and tracking of column usage.
- The Teledyne CombiFlash Rf's small size makes it well-suited for operation within chemical hoods and other limited indoor spaces.
Instrument Application:
Assay/Application examples:
- Enzymatic Synthesis
- Organic compound purification
- Purification of flavonoids, carbohydrates, lipids, synthetic compounds, natural products, peptides, or polymers
- Normal and Reverse Phase Flash Chromatography
- Rapid Preparative Sample Preparation
- Natural Products/Nutraceuticals
- Pharmaceutical/Small Molecules
Additional technical info:
- Quick Start Guide: Teledyne Combiflash RF Quick Start Guide
- Manual: Teledyne Combiflash RF Manual
Video Overview:
