Tecan Fluent 780 Liquid Handler w/ FCA, MCA, RGA - AV

Tecan Fluent 780 Liquid Handler w/ FCA, MCA, RGA - AV
Tecan Fluent 780 Liquid Handler w/ FCA, MCA, RGA - AV

We apologize this Instrument is currently
out of stock

Please submit a request, we will notify you if another one comes in stock. Thank you!

Approved Vendor to many US, Canada, and EU Universities
US & International Shipping





  • Stock: SOLD
  • Brand: Tecan
  • Product Code: 45258
  • Condition: Pre-Owned
$0.00
CLICKABLE TABS BELOW

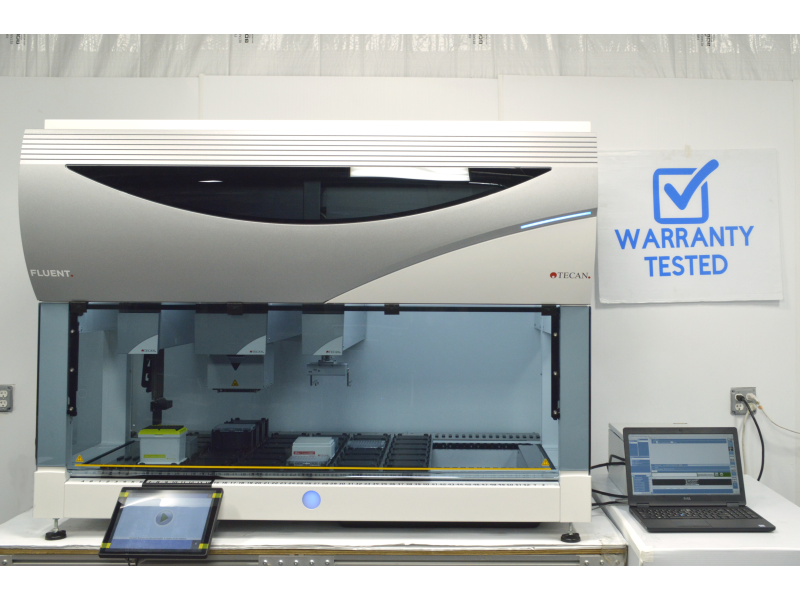

Here is a Tecan Fluent 780 Liquid Handler w/ FCA, MCA, RGA

REF 30042021

Made in 2020

- This system is equipped with a Span8 arm that allows for a liquid transfer up to 1000ul
- This system is equipped with a MCA Multichannel arm with 96 well adapter plate
- This system is able to perform Plate to Plate transfers
- This system is able to perform Reservoir to Plate transfers
- This system is able to perform Test Tube to Plate transfers
- The included gripper allows the labware to be moved around the deck
- This is a disposable tip system to prevent cross-contamination
- This system will be correctly packed for safe shipping either domestically and internationally

With the addition of included Active Diti position the MCA head is capable of using 384 tip boxes to transfer in a 96 well pattern.

This would allow for 125ul transfer into 96 well plates 4 times per tipbox

Other adapters are also available from the manufacture to increase the usability of the MCA to allow for higher volume 96 and 384 transfers

Predecessor to:
Current model

Condition:
This Tecan Fluent 780 Liquid Handler is in good working order.

Please see the exact video and photos below.

Testing we performed:
The Tecan Fluent 780 Liquid Handler passed all tests and was found to be fully functional:
Tested power on: PASSED
Tested communication with FluentControl software: PASSED
Tested system initialization and homing: PASSED
Tested door lock sensors: PASSED
Tested Span-8 aspiration and dispense liquid transfer: PASSED
Tested MCA multichannel aspiration and dispense liquid transfer: PASSED
Tested gripper arm labware plate transfer: PASSED
Tested touchscreen display method controller: PASSED

System consists of:
Tecan Fluent 780 Automated Liquid Handler
Span-8 Air FCA liquid handling DiTi disposable tip arm
MCA multichannel arm
96 DiTi MCA384 Tip adapter - p/n 30032063
RGA plate gripper arm
MCA 384 Active DiTi segment
6-wide deck segments with 6 sites, 7mm (Qty. 4)
6-wide deck segment, 5 sites and through-deck waste chute
2-wide deck segment w/ carrier clips (Qty. 2)
6-wide deck segment, 3 sites (62mm) 3 sites (7mm)
Touchscreen control screen
Computer running FluentControl software ver2.6
Communication and power cables.

Configuration and Setup:
Robotic Arm(s): Flexible Channel Arm with Air System (Air FCA), Multi-Channel Arm (MCA), Robotic Gripper Arm (RGA)
Pipetting Channel(s): 8 (FCA), 96 (MCA) (up to 384 with accessory 384-head, sold separately)
Pipetting Volume: 0.5 to 1000uL
Tips: Disposable Tips 10, 50, 200, 350, 1000uL can be mounted
Application: liquid handling and sample preparation

Dimensions: overall (165cm x 92.3cm x 127cm) (L x W x H)
Footprint: (165cm x 78cm x 127cm) (L x W x H)
Weight: ~140kg

Video Description:
The video gives an overview of the Tecan Fluent 780 Liquid Handler, and also performs functionality.

Documentation:
Datasheet: Tecan Fluent 780 Liquid Handler

Brochure: Tecan Fluent 780 Liquid Handler

Manual: Tecan Fluent 780 Liquid Handler

This will ship via freight. Please contact us with your zip code to obtain shipping quote.

1200#

Please do not hesitate to contact us if you have any questions.

Video #1


Video #2
