We apologize this Instrument is currently
out of stock

Please submit a request, we will notify you if another one comes in stock. Thank you!

Approved Vendor to many US, Canada, and EU Universities
US & International Shipping





  • Stock: SOLD
  • Brand: Formulatrix
  • Product Code: 50690
  • Condition:
$0.00
CLICKABLE TABS BELOW

Here is a Formulatrix Mantis V3.1 ACC Microfluidic Microplate Dispenser

Model: Mantis V3.1 ACC
Automatic Chip Changer (ACC): dispense up to 6 reagents to create complex plates and assay development protocols

Predecessor to:
Current model

Condition:
This Formulatrix Mantis V3.1 ACC Microfluidic Microplate Dispenser is in good working condition.

Please see the exact video and photos below.

Testing we performed:
The Formulatrix Mantis V3.1 Microfluidic Microplate Dispenser passed all tests and was found to be fully functional:
Power: PASSED
Connection to software: PASSED
Initialization: PASSED
Plate clamp: PASSED
Dispense arm retrieve/return all reagent chips: PASSED
Prime: PASSED
Wash with both solvents: PASSED
Recover reagent: PASSED
Dispense to waste: PASSED
96 well dispensing method: PASSED

System consists of:
Formulatrix Mantis V3.1 ACC Microfluidic Microplate Dispenser
Wash containers (Qty.: 2)
Waste container

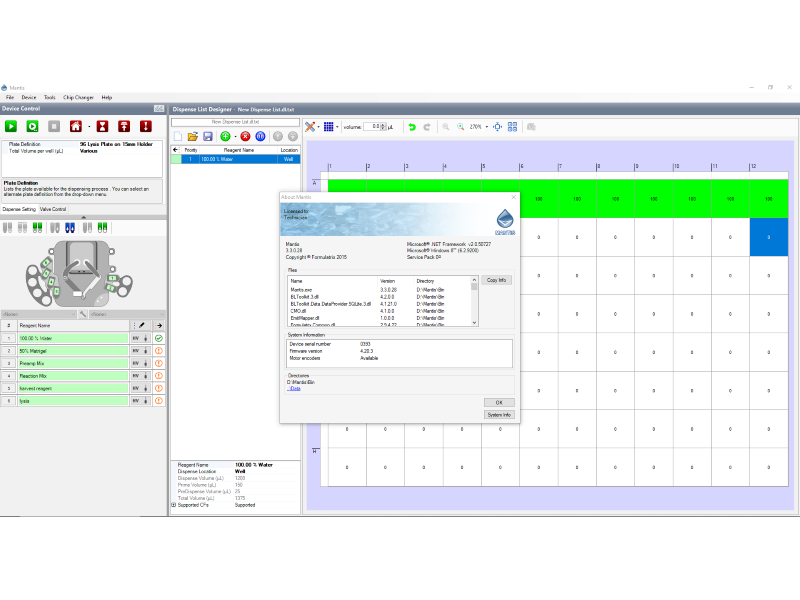

Computer running Mantis software ver3.3
Communication and power cables

No chips, labware or glassware included. Consumables shown in the video were used for testing and are not included.

Configuration and Setup:
(6) Interchangeable chip dispensers to automatically dispense up to six reagents, allowing you to dispense complex plates and assay development experiments.
The chip changers are compatible with High Volume (HV), Low Volume (LV), High Volume PFE, Low Volume PFE. (Chips are not included)
(2) Wash stations allowing for easy sterilization during dispenses
Reliably dispense beads, cells, proteins, enzymes, and high concentration salts
Sample dispensing into microfuge tubes: 15 mL and 50 mL tubes
Plate format: SBS plates up to 1536-wells including 96- and 384-well plates, with maximum height of 54 mm.
100nL per well to 96-well plate - 25 seconds
5 ul per well to 384-well plate - 2.5 minutes
20 ul per well to 384-well plate - 7.5 minutes
Dispense volumes down to 100nL at CV <3%
Dead Volume: as little as 6uL
Power requirements:110-240V, 50-60Hz, 50W typical, 100W max
Dimensions (H x W x D): 19.2 x 33.7 x 21.2 cm
Weight: 5.2kg (11.5lbs.)

Video Description:
The video gives an overview of the Formulatrix Mantis V3.1 ACC Microfluidic Microplate Dispenser, and also demonstrates its functionality.

Documentation:
Datasheet: Formulatrix Mantis V3 Microfluidic Microplate Dispenser

Brochure: Formulatrix Mantis V3 Microfluidic Microplate Dispenser

Manual: Formulatrix Mantis V3 Microfluidic Microplate Dispenser

Parcel
20#


Please do not hesitate to contact us if you have any questions.



We understand that every instrument has unique packing and shipping requirements; our team understands that no one wants to spend thousands of dollars and receive a damaged instrument.

Our process involves evaluating every instrument to determine the safest shipping method and the best process for packing.

We generally ship parcels either via UPS or freight for all larger goods.

Whenever we ship freight, we use an ISPM-15 wooden crates or pallets made from ½” plywood and 1x4 framing. (Our crates are Internationally Compliant).

On freight shipments, we use 2” 1.7 lb. density foam, which provides excellent cushioning and support for the instrument.

Instruments are safely braced inside the crates. We use solid boards with 1” foam shrink-wrapped around them, which provides cushioning in all directions and holds instruments firmly in place.

Final step is to photograph everything inside the crate and then seal it with screws.
