- Stock: In Stock
- Brand: Fluid Imaging Technologies
- Product Code: 50799
- Condition: Pre-Owned

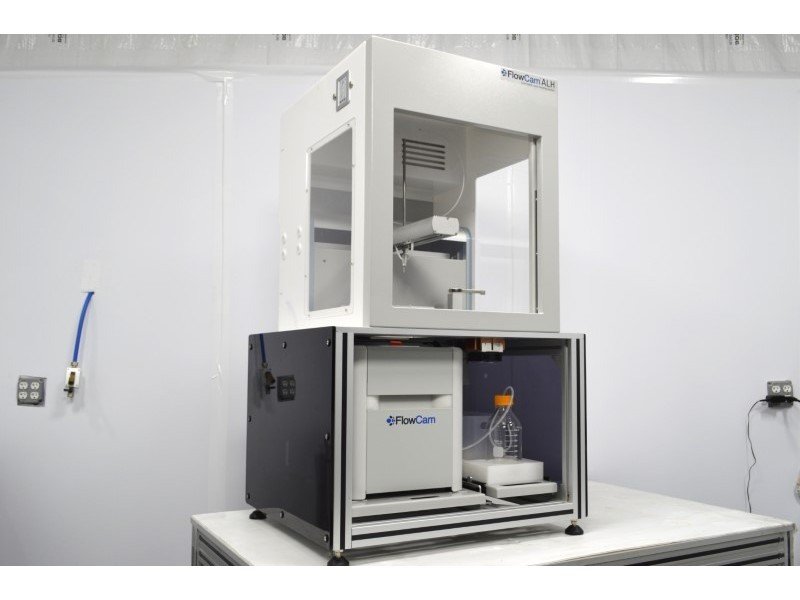

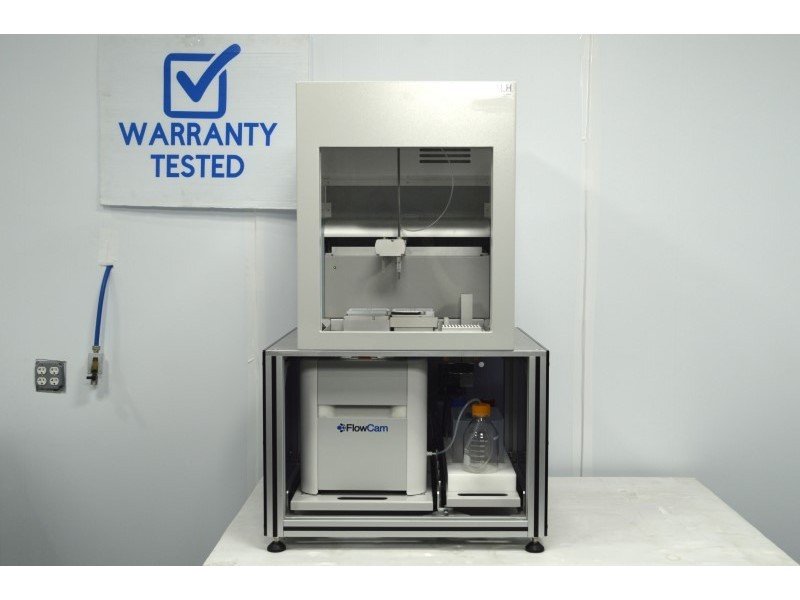

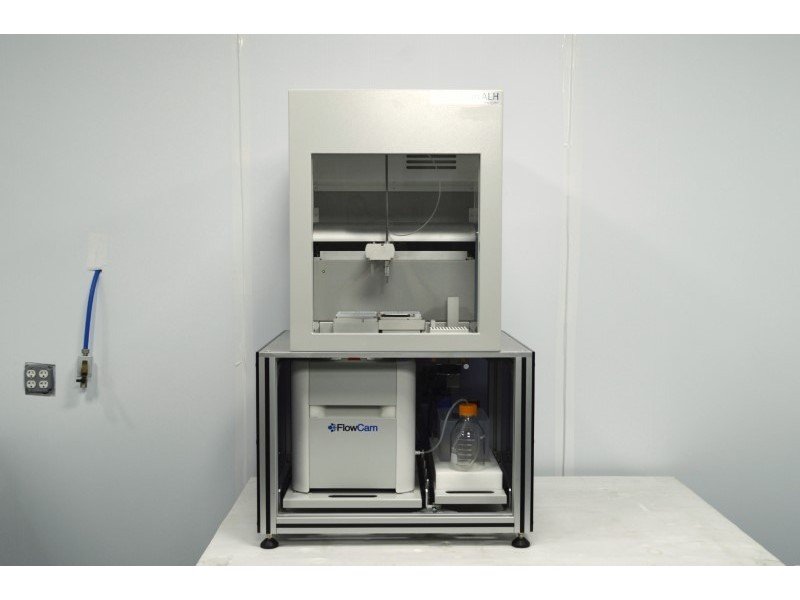

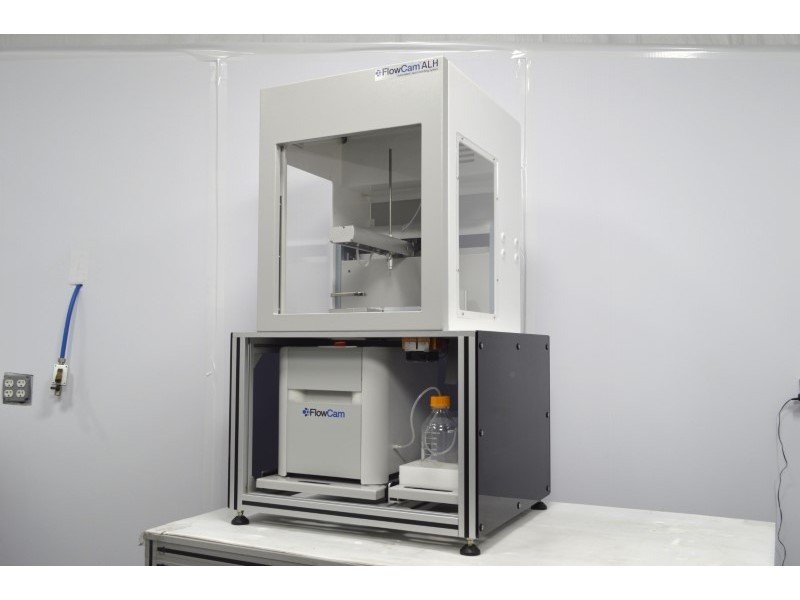

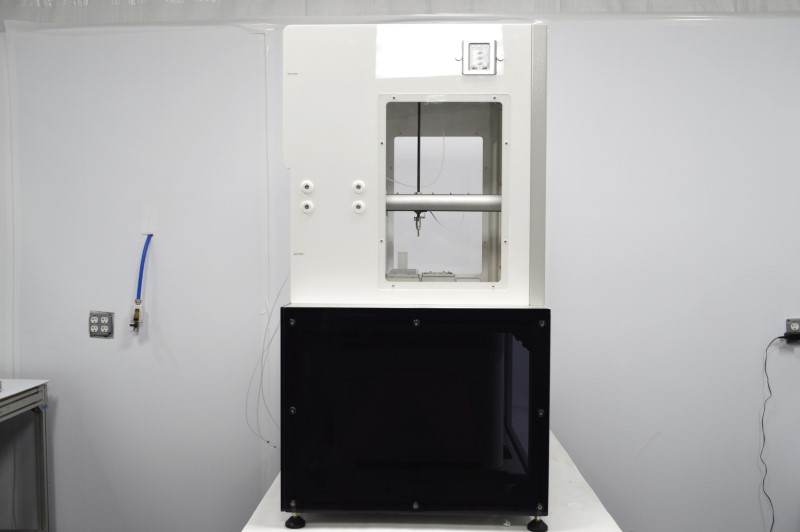

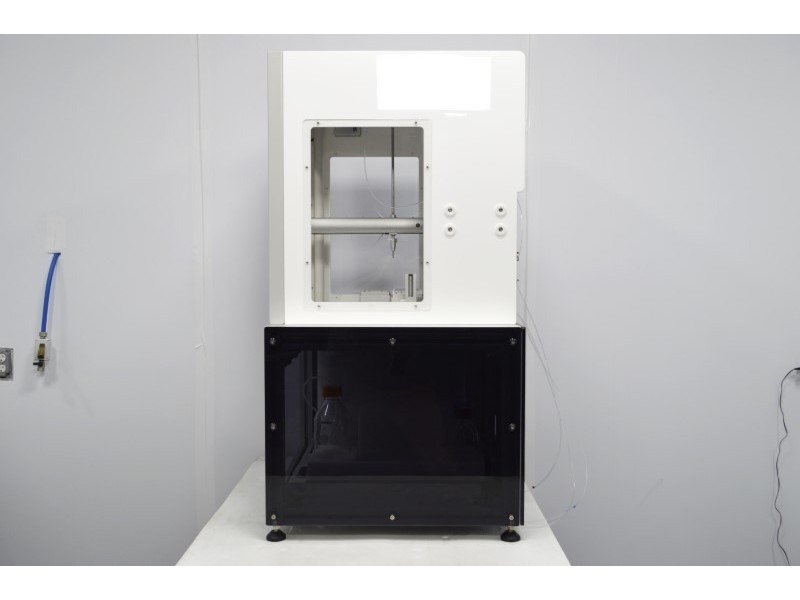

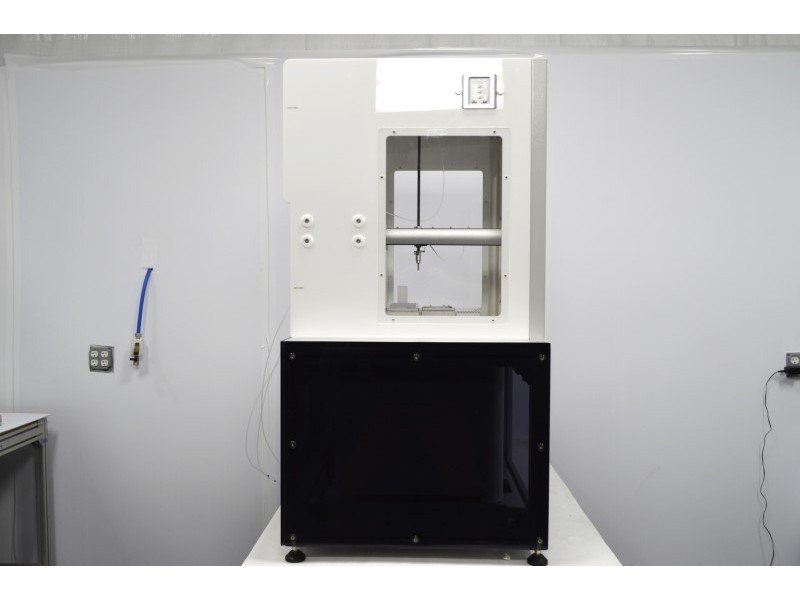

Here is a Fluid Imaging Technologies FlowCam 8000 Particle Analyzer with ALH Liquid Handling System
Sold for around 90,000 new.
Predecessor to:
Current model
Condition:
This Fluid Imaging Technologies FlowCam 8000 Particle Analyzer with ALH System came from a working lab and is in good cosmetic condition.
Previous Lab does not release hard drives, this system will need to have the manufacturer perform install and setup with software. System was in use prior to deinstall. Lab it came from shut down for reorg/finance reasons.
System will need to be setup by the manufacturer

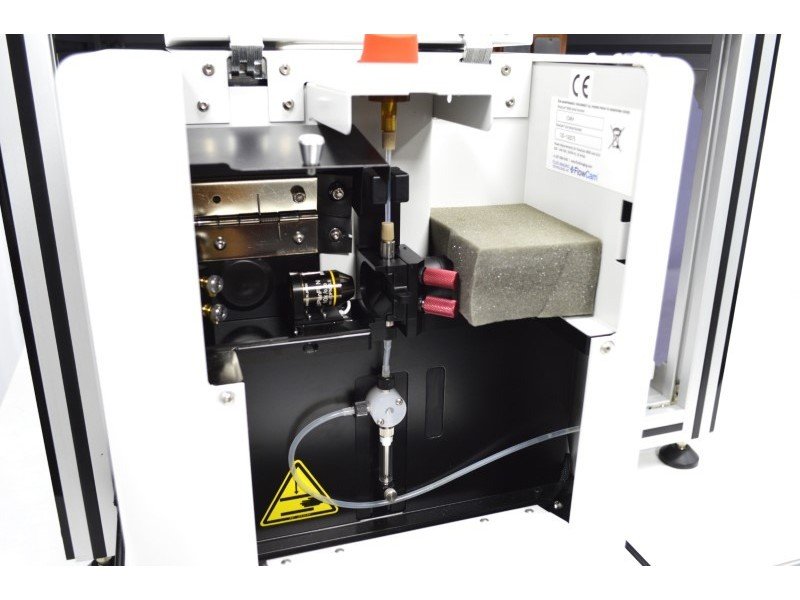

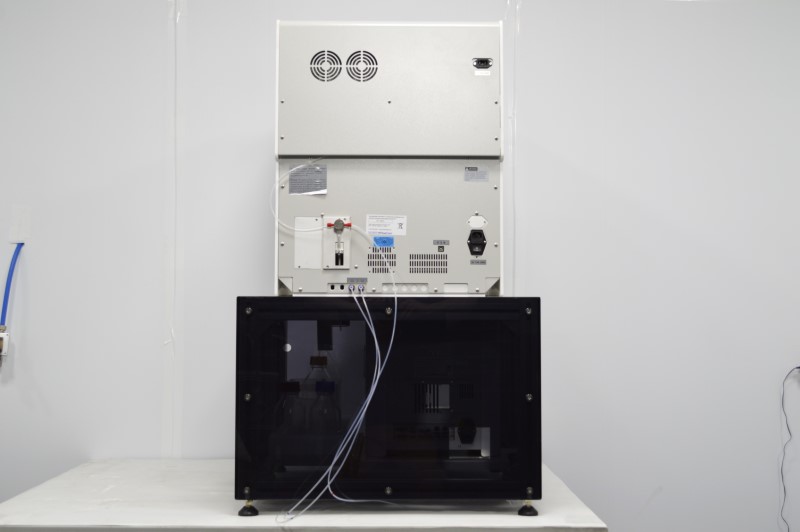

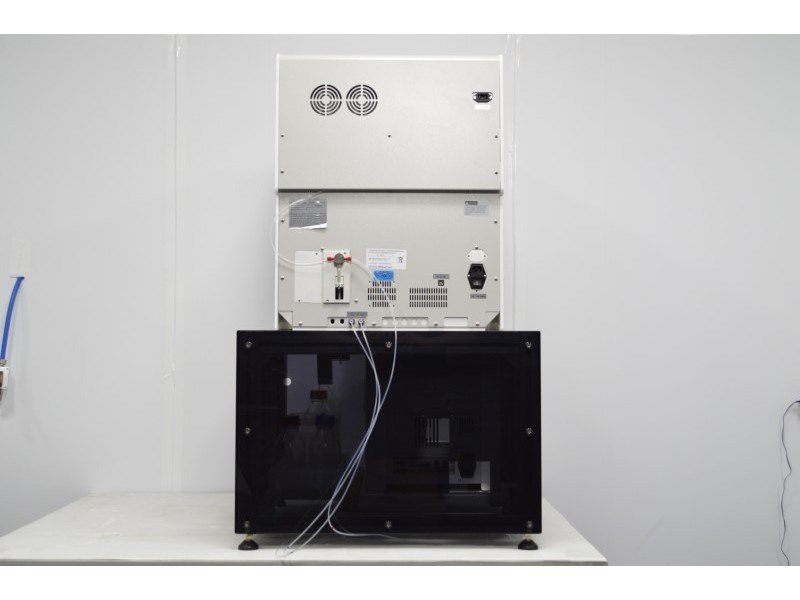

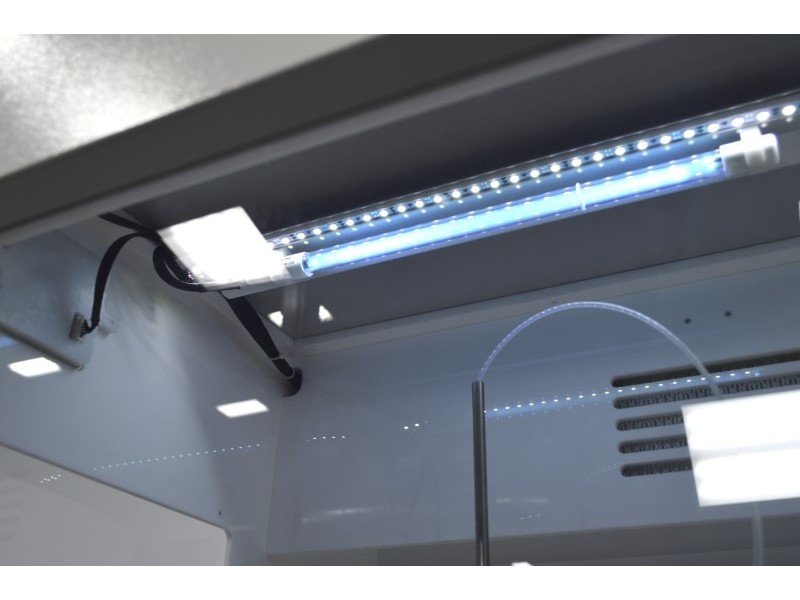

Please see the exact video and photos below.
System consists of:

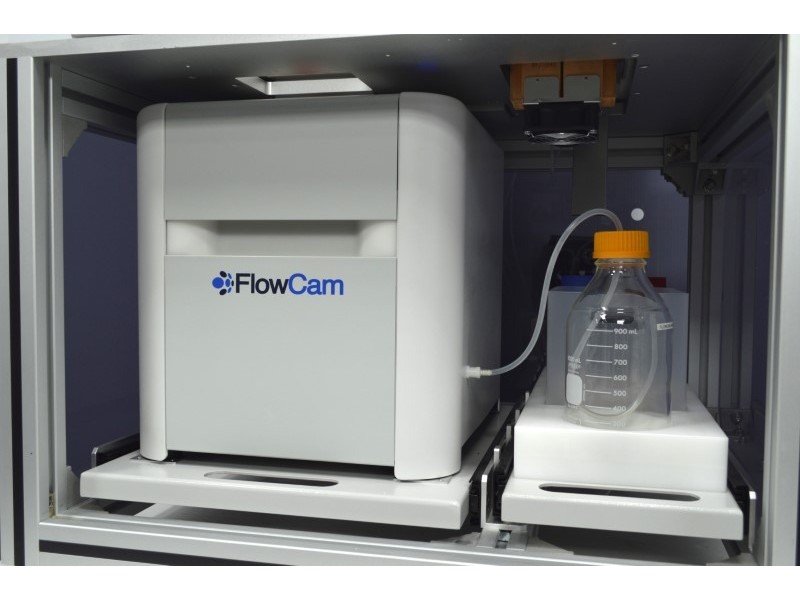

Fluid Imaging Technologies FlowCam 8000 Particle Analyzer

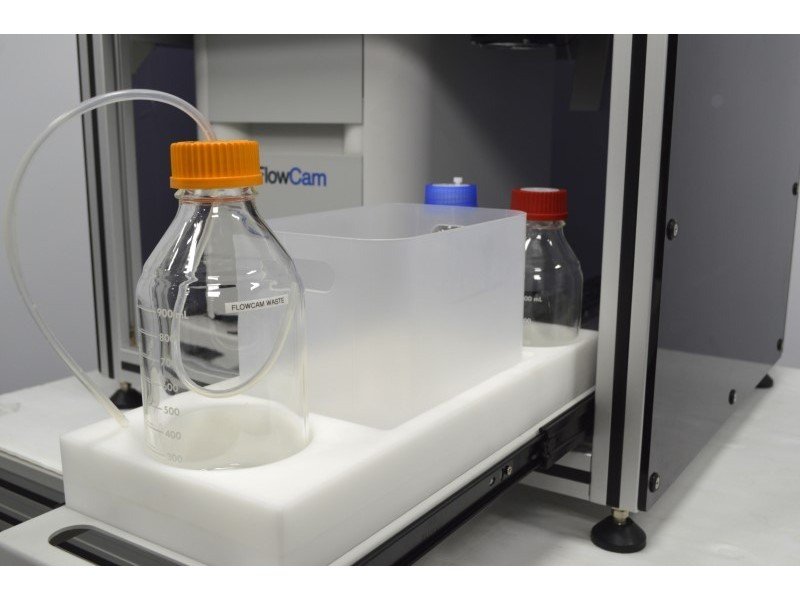

Fluid Imaging Technologies FlowCam ALH Automated Liquid Handling System

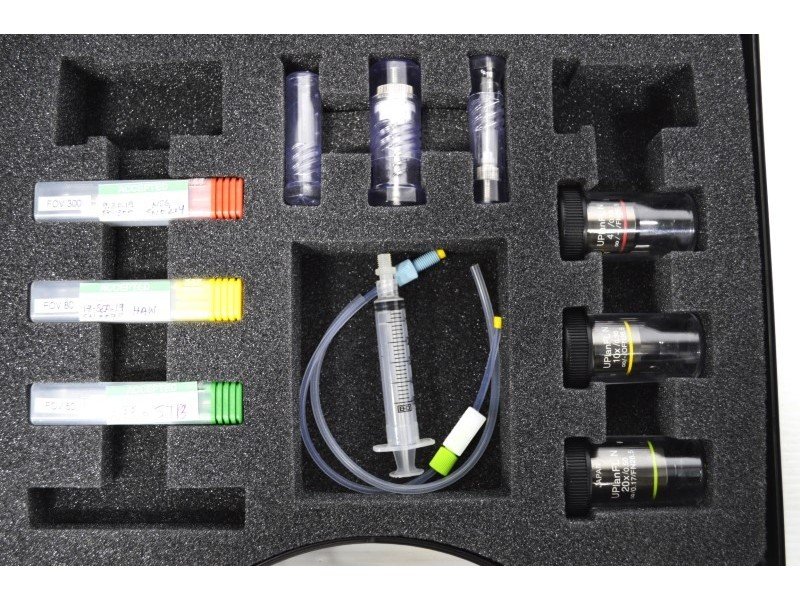

Accessory case with flow cells, syringe assembly and objectives
Flow cells included: FOV300, FOV80 and FOV50

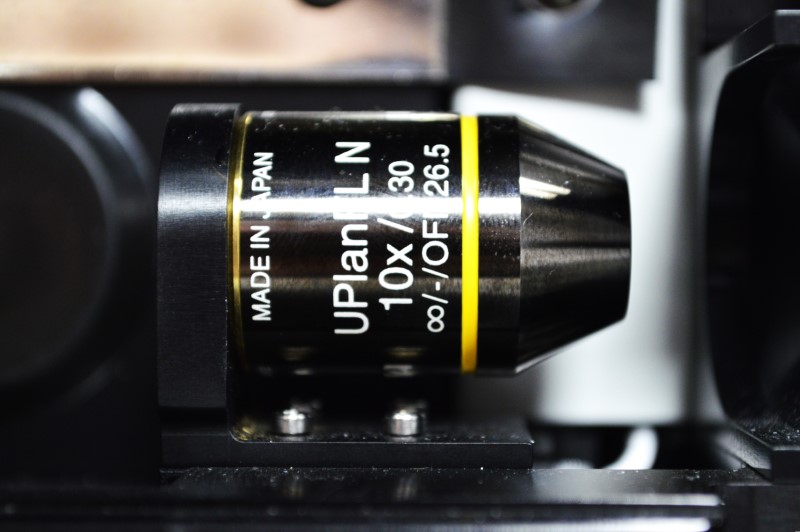

Objectives included: Olympus UPlanFL N 4x, 10x, and 20x

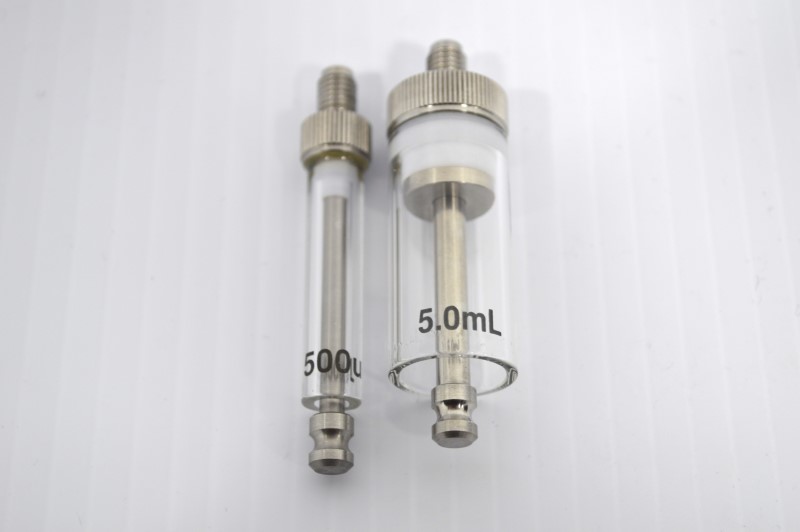

Pump Syringes included: 500uL, 1mL, and 5mL
Standard power cables
Configuration and Setup:
FlowCam 8000 Particle Analyzer:
Optics Options:
Objectives: 4x, 10x, 20x
4x Flow Cell: FOV300, 300 um depth x 1500 um width
10x Flow Cell: FOV80, 80 um depth x 700 um width
20X Flow Cell: FOV50, 50 um depth x 350 um width
Frame Rate: up to 100 frames per second
Fluidics:
Pump Syringe Size: 5 mL, 1 mL, 0.5 mL
4X Minimum/Maximum Particle Size: 25 um-300 um
10X Minimum/Maximum Particle Size: 4 um-100 um
20X Minimum/Maximum Particle Size: 2 um-50 um
Minimum Sample Flow Rate: 0.01 mL/min
Maximum Sample Flow Rate: 100 mL/min
Dimensions (HxWxD): 15 x 14.125 x 17.17 in (38 x 36 x 43 cm)

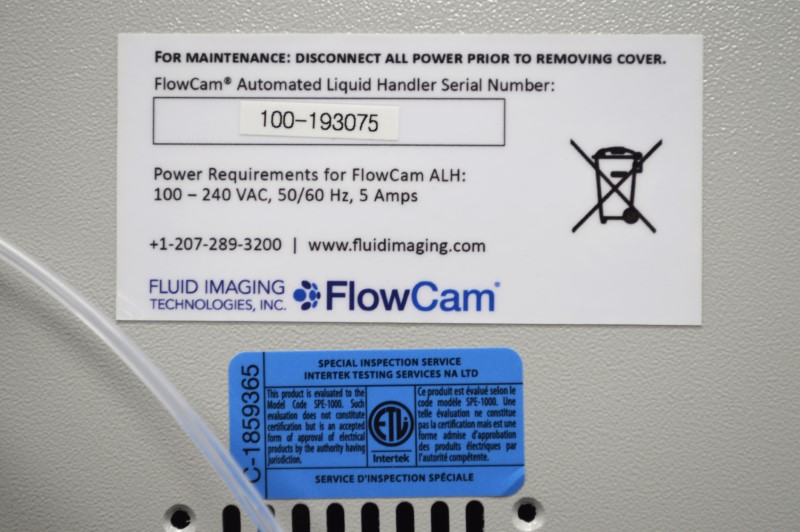

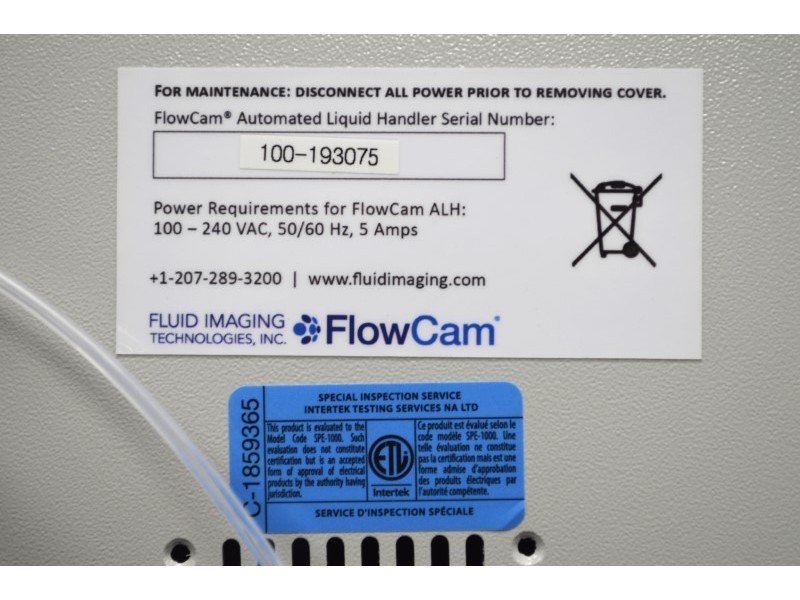

Power Requirements for FlowCam 8000 and ALH: 100 - 240 VAC, 50/60 Hz, 10 Amps
Weight: 59.5 lbs (27 kg)
FlowCam ALH System:

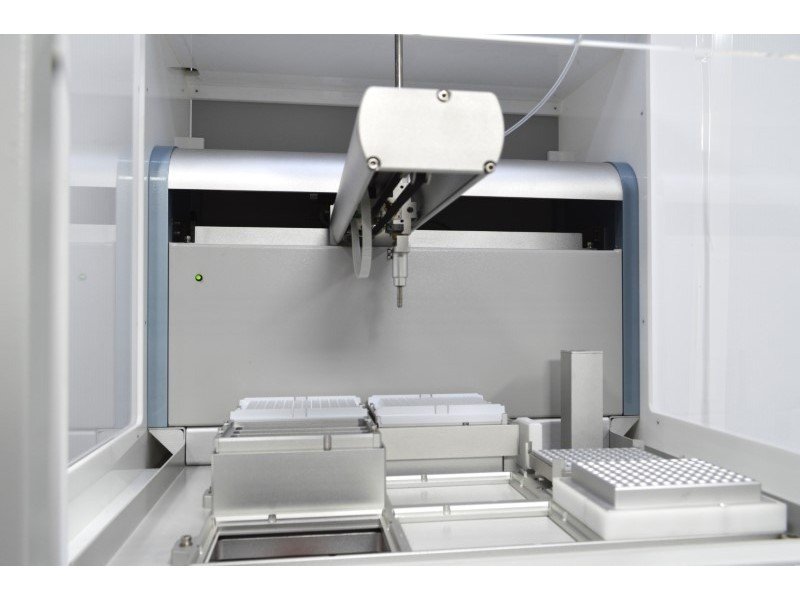

Operating principle: Single robotic XYZ arm, hydraulic fill on all fluidics
Labware format: SBS

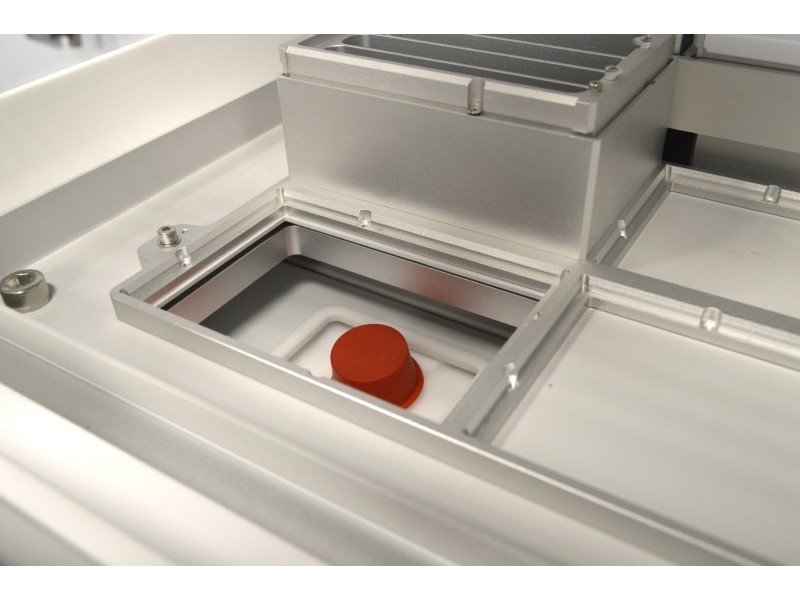

Number of positions for labware: 7
Maximum number of wells per deck position: 96
Maximum volume dispensed per operation: 1000 uL
Minimum volume dispensed during dilution or reagent operations: 5 uL
Minimum volume dispensed into FlowCam for analysis: 200 uL
CV of aspiration/dispensing accuracy: +/- 0.5%
Dimensions (HxWxD): 49 x 30 x 25 in (124.5 x 76.2 x 63.5 cm)
Weight 190 lbs (86.7 kg)
Video Description:
The video below gives an overview of the Fluid Imaging Technologies FlowCam 8000 Particle Analyzer with ALH Liquid Handling System.

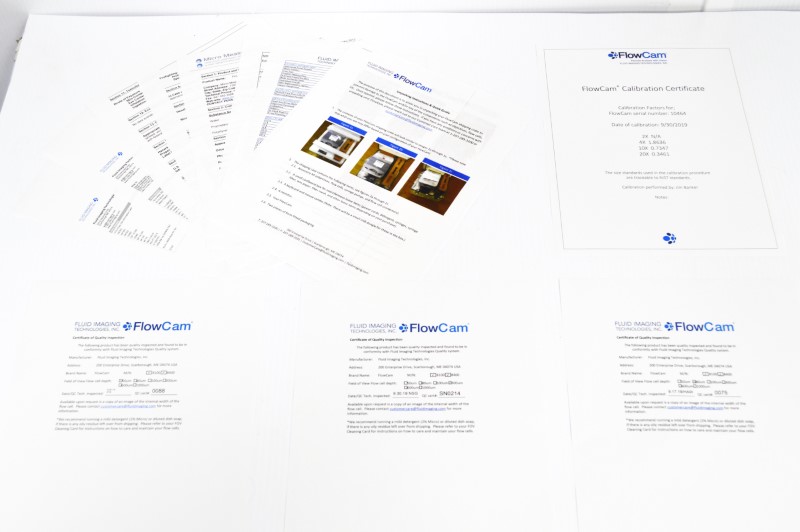

Documentation:
Datasheet: N/A
Brochure: FlowCam ALH Liquid Handling System
Brochure: FlowCam 8000 Particle Analyzer
Manual: FlowCam 8000 Particle Analyzer
