BD FACSCanto II Flow Cytometer (3)Lasers/(8)Colors/(10)Detectors with Carousel Loader and Fluidics Cart

For Sale BD FACSCanto II Flow Cytometer (3)Lasers/(8)Colors/(10)Detectors with Carousel Loader and Fluidics Cart

• Fully Functional
• Serviced & in Stock
•  Good cosmetic condition
•  Technical sales consultation available
•  Includes subscription to De Novo FCS Express 7 Analysis software
•  Warranty

Here is what you will receive:

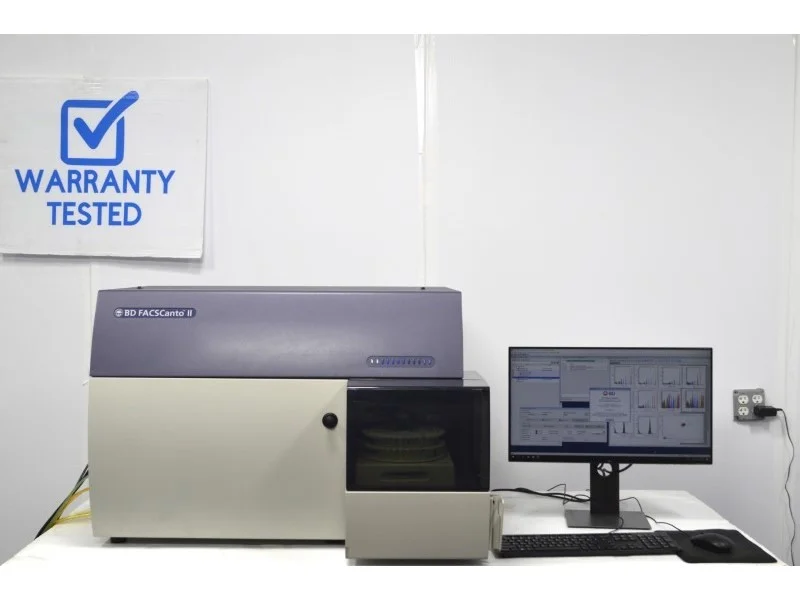

• BD FACSCanto II Flow Cytometer with Carousel Loader
• BD FACSCanto II Fluidics Supply Cart with Fluidics Harness
• (4) Fluidics Level Sensors (FACSFlow, Waste, Cleaning, Shutdown)
• Waste Container
• Computer running FACSDiva software w/ License Dongle (w/ monitor, keyboard, mouse)
• Complimentary De Novo FCS Express analysis software (1-Year Subscription) RUO version
• Communication and power cables

When you purchase a flow cytometer from Boston Industries, you also receive a complimentary 1-year subscription to De Novo FCS Express 7 Analysis software, enhancing your research capabilities with these key benefits:

• User-Friendly Interface: Navigate complex data analysis easily using FCS Express's intuitive design.
• Advanced Analysis Tools: Utilize sophisticated tools for in-depth data exploration and interpretation.
• Comprehensive Reporting: Generate detailed, customizable reports that are publication-ready.
• High Compatibility: Supports multiple file formats, including FCS, LMD, CSV, BD FACSDiva, Beckman Coulter files, Accuri C6 files, SPADE, Cytobank files, and TXT files.
• Enhanced Data Visualization: Create high-quality graphs and plots to visualize your data effectively
• With FCS Express 7, you will have the latest Research Use analysis software.

BD FACSCanto II Flow Cytometer Configuration:

Optics:

• (3) Lasers: 488nm Blue / 633nm Red / Violet 405nm,
• (8) Colors simultaneously,
• (10) Detector Channels
• FSC Detector: Photodiode with 488/10 BP; FSC Resolution: 1.0 um; SSC Detector: PMT with 488/10 BP; SSC Resolution: 0.5 um
• Fluorescence Detector Design: Reflective optics with a single transmission filter in front of each PMT

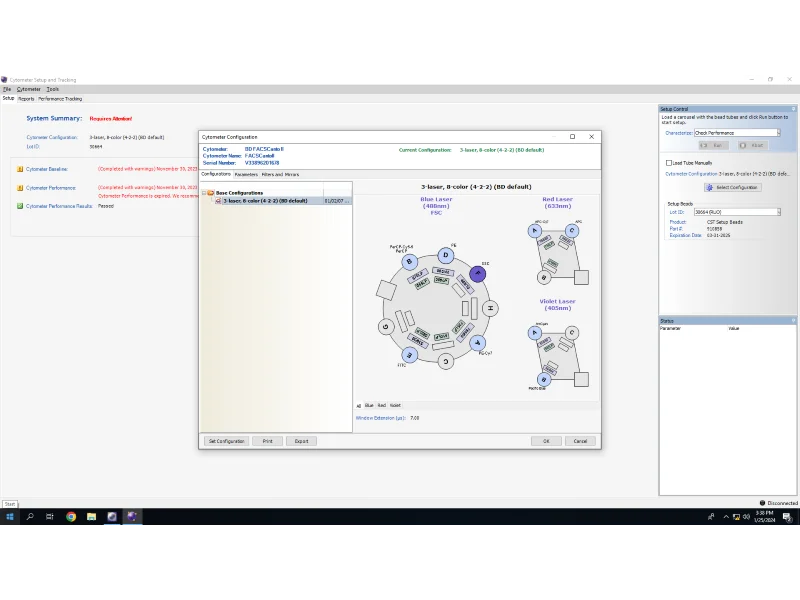

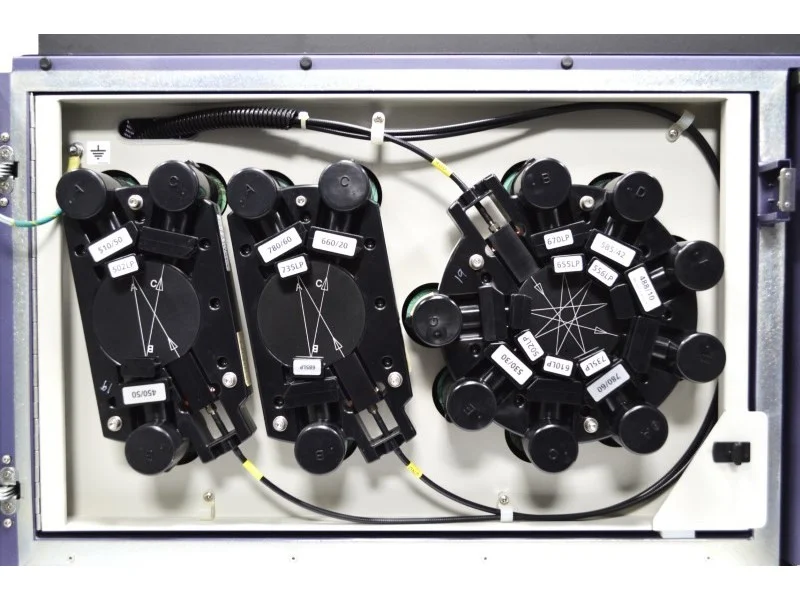

Fluorescence Detectors: 8 PMTs in 4-2-2 standard configuration:

• 488nm blue laser: Channel A(780/60, 735LP) Channel B(>670LP,655LP) Channel D(585/42,556LP) Channel E(530/30, 502LP);
• 633nm red laser: Channel A(780/60, 735LP), Channel C (660/20);
• 405nm violet laser: Channel A(510/50, 502LP), Channel B (450/50)
• Common Fluorochromes Detected: PE-Cy7, PerCP-Cy5.5, PE, FITC, APC-Cy7, APC, AmCyan, and Pacific Blue (Ask Us if compatible with your planned Fluorochromes)
• Fluorescence Threshold Sensitivities: FITC <100 MESF; PE <50 MESF
• Sheath Consumption: 1.10 L/h normal operation; <1 mL/h standby
• Carryover: =0.1%
• Sample Injection: Direct into flow cell
• Max Particle Size: 50 µm
• Sample Flow Rate, Min: 10 µL/min
• Sample Flow Rate, Max: 120 µL/min
• Sample Acquisition Rate: 10,000 events/second
• Sample Handling: Manual Tube Loading, Carousel Loader
• Size (D x W x H) Cytometer: 24 x 36 x 25 in. (61 x 91 x 64 cm), The cytometer depth increases to 30 in(76 cm) with the BD FACS Loader option installed
• Weight Cytometer: 320 lb (145 kg)

• Sample Input with BD FACS Carousel Loader: Multiple clinical applications can be run on the same Loader carousel;

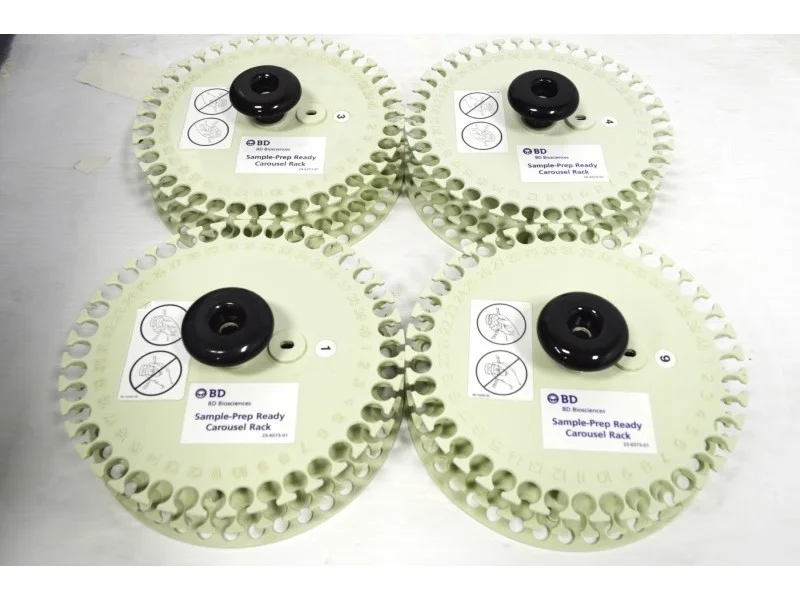

• Loading: 40-tube carousel;
• Throughput:
• 56 min/carousel with BD Multi-check high controls
• 66 min/carousel with BD Multi-check low controls using BD Multitest 6-color TBNK application

Customization/Options: N/A

Testing performed by our in-house service team:

The BD FACSCanto II Flow Cytometer passed all tests and was found to be fully functional:

• We verified power functionality of the BD FACSCanto II Flow Cytometer.

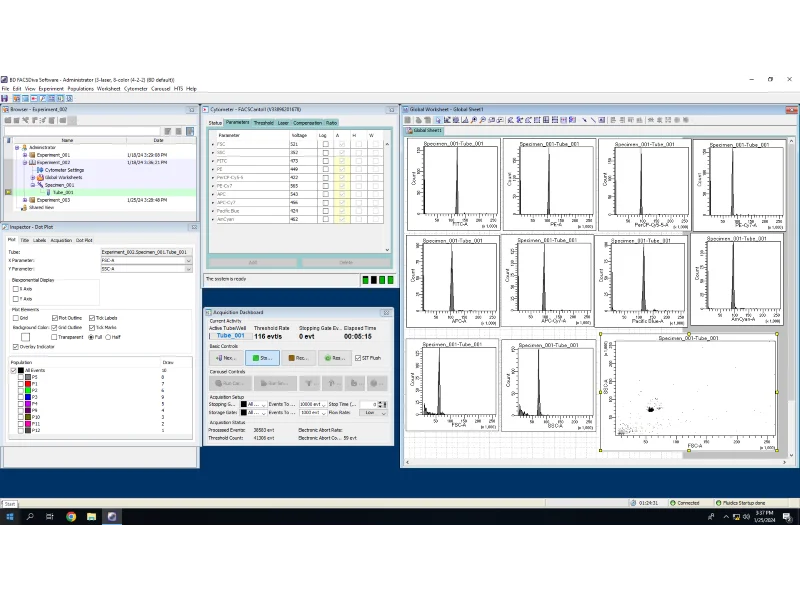

• We established communication with FACSDiva software.
• We conducted fluidics startup and priming protocols.
• We ran several cleaning cycles (Fluidics long clean, Flow cell clean, etc.).

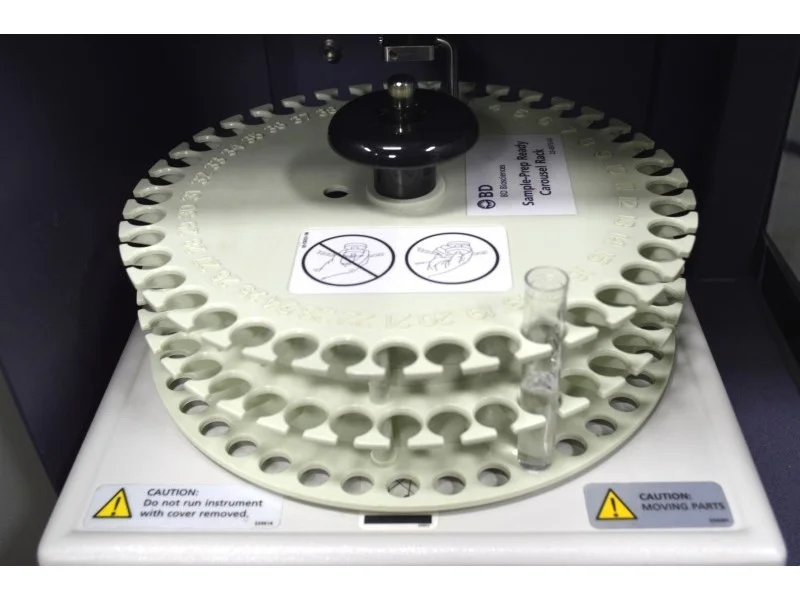

• We tested the functionality of the automated carousel loader.
• We aligned optics and cleaned the flow cell.

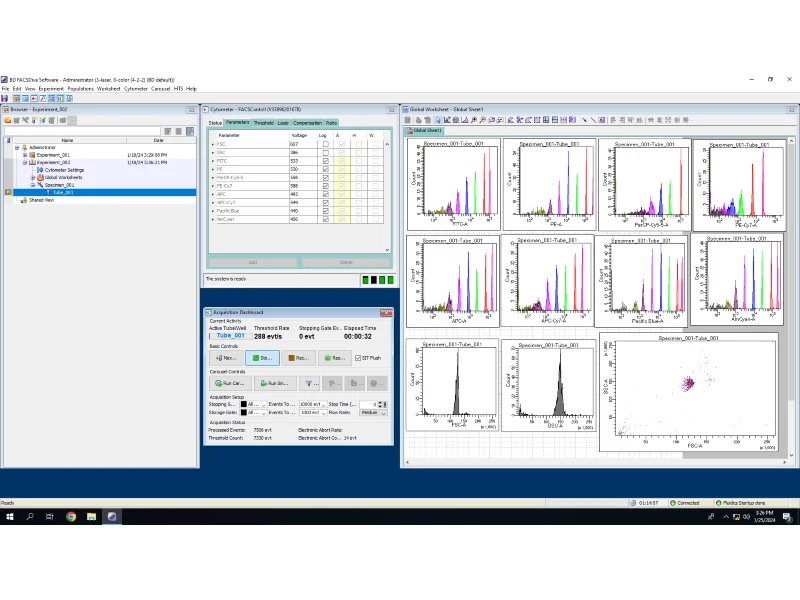

• We obtained clean results using 8-peak rainbow beads.

Instrument Overview:

• The BD FACSCanto II Flow Cytometer is a flexible tool engineered for efficient flow cytometry analysis at high throughput.
• It enables the simultaneous detection of multiple markers through multi-parameter analysis.
• Leveraging advanced optical and electronic components, it guarantees precise and sensitive detection of fluorescent signals.
• Equipped with automated sample handling capabilities, it optimizes workflow efficiency.
• Its user-friendly software interface simplifies data acquisition, analysis, and interpretation.
• Ultimately, the FACSCanto II serves as a dependable platform for a wide array of research and clinical applications in fields like immunology, oncology, and cell biology.

Instrument Application:

• Precise analysis of cell populations based on fluorescence and light scatter properties
• Immunophenotyping in clinical and research settings

The key features:

• Multi-parameter analysis.
• Sensitive fluorescence detection.
• Automated sample handling.
• High-throughput capability.
• Intuitive software interface.
• Versatile research applications.

 De Novo FCS Express Software Features

• Data Import and Handling: Easily imports data from various flow cytometry instruments, supporting a wide range of file formats.
• Intuitive Interface: User-friendly interface with customizable dashboards for streamlined workflow management.
• Advanced Data Analysis: Provides comprehensive tools for complex data analysis, including statistics, gating, and kinetic analysis.
• Visualization Tools: Offers a variety of plotting options, such as histograms, scatter plots, and heat maps, for effective data visualization.
• Automated Reporting: Facilitates the creation of detailed reports with integrated data and graphics, automating repetitive tasks.
• Real-Time Data Updates: Supports real-time data analysis and visualization, enabling immediate insights and decision-making.
• Collaboration Features: Allows sharing of data and analysis results with team members through secure cloud-based platforms.
• Integration Capabilities: Seamlessly integrates with other laboratory software and databases for efficient data management and workflow integration.

 Benefits of the Complimentary DeNovo FCS Express Software

• Enhanced Data Management: Streamlines data import, handling, and analysis, improving overall data management efficiency.
• User-Friendly Design: Intuitive interface design ensures ease of use, reducing the learning curve and increasing productivity.
• Comprehensive Analysis Tools: Advanced analysis tools allow for in-depth examination of complex data sets, leading to more accurate results.
• Flexible Visualization Options: Wide range of plotting options helps in effectively visualizing data, facilitating better understanding and presentation.
• Time-Saving Automation: Automated reporting and analysis features save time and reduce manual effort, enhancing workflow efficiency.
• Immediate Insights: Real-time data updates enable quick insights and decision-making, crucial for time-sensitive experiments.
• Collaboration and Sharing: Secure cloud-based collaboration features promote data sharing and teamwork, enhancing research collaboration.
• Seamless Integration: Integration capabilities with other software and databases ensure smooth workflow and data management.

Additional technical info:

• Analysis Software: FCS Express Analysis Software
• Datasheet: BD FACSCanto II Flow Cytometer Datasheet
• Brochure: BD FACSCanto II Flow Cytometer Brochure
• Manual: BD FACSCanto II Flow Cytometer Manual

Note: Subscription is for the Research Use Only (RUO) version.


Video Overview:

About us

How we pack

Why do so many customers choose to order from us?

• We have experience servicing and repairing these instruments.

• This instrument goes through all the described service steps before shipping. see questions section below
• We offer detailed photos and videos of the instruments you buy.
• We are an approved pre-owned equipment vendor to many large US, Canadian, and EU Universities.
• We are an approved pre-owned equipment vendor to many Fortune 500 US and International Biopharma companies.
• Technical sales consultation available
• On-site installation may be available in the Boston Area (New England area)
• US or International shipping is no problem (see the shipping tab on how we pack and feel at ease)

• Warranty
• You get after-sales technical support
• Customer references are available
• The instrument will be fully functional!
• Smooth process from the initial quote to order fulfillment

This will ship via freight. Please contact us with your zip code to obtain a shipping quote.

*LA* Large Crate ESQ
650#
